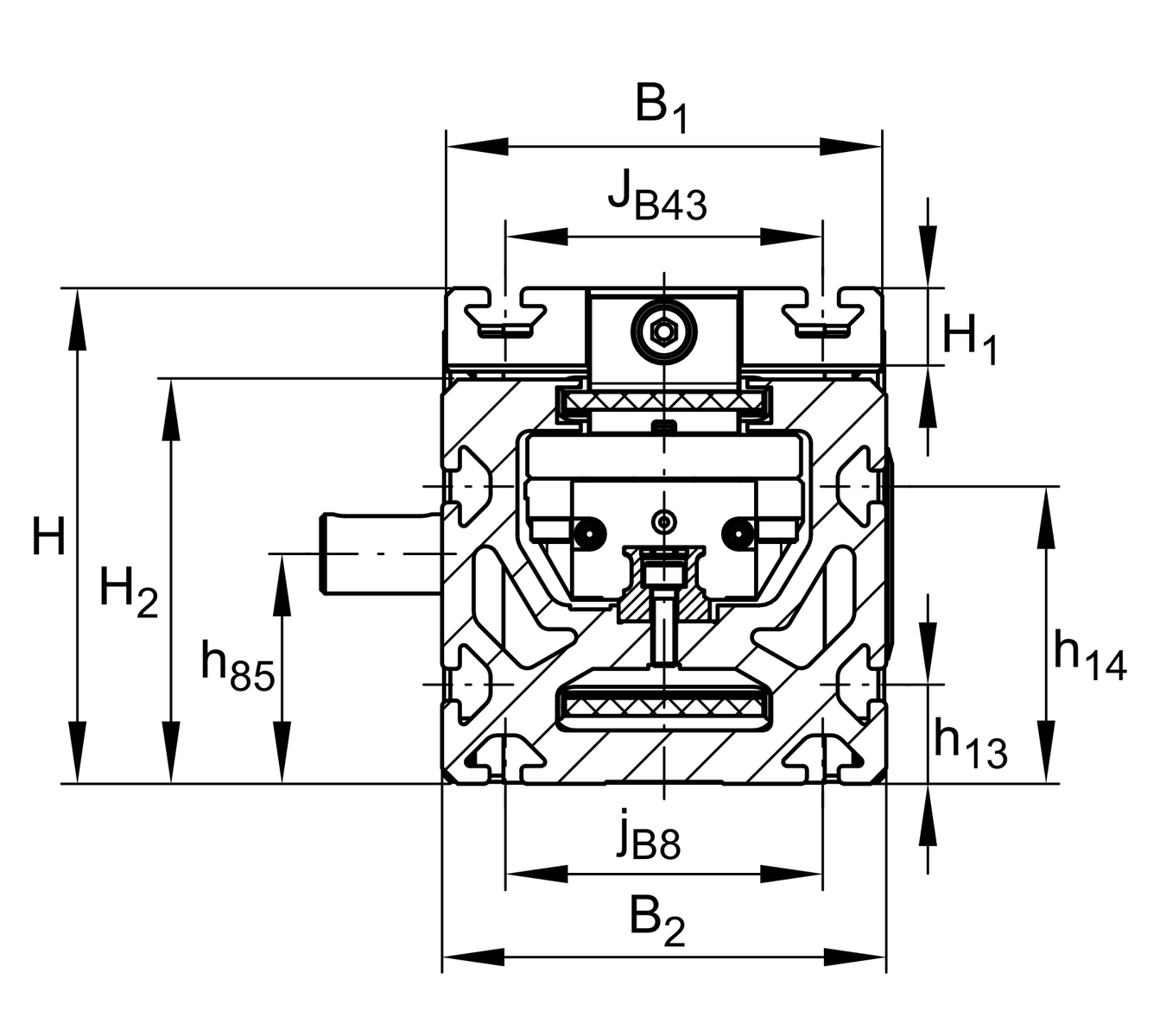

主要尺寸與性能資料
| B2 | 112 mm | Total Width |
| H | 125 mm | Total Height |
| L | 250 mm | Length of Carriage |

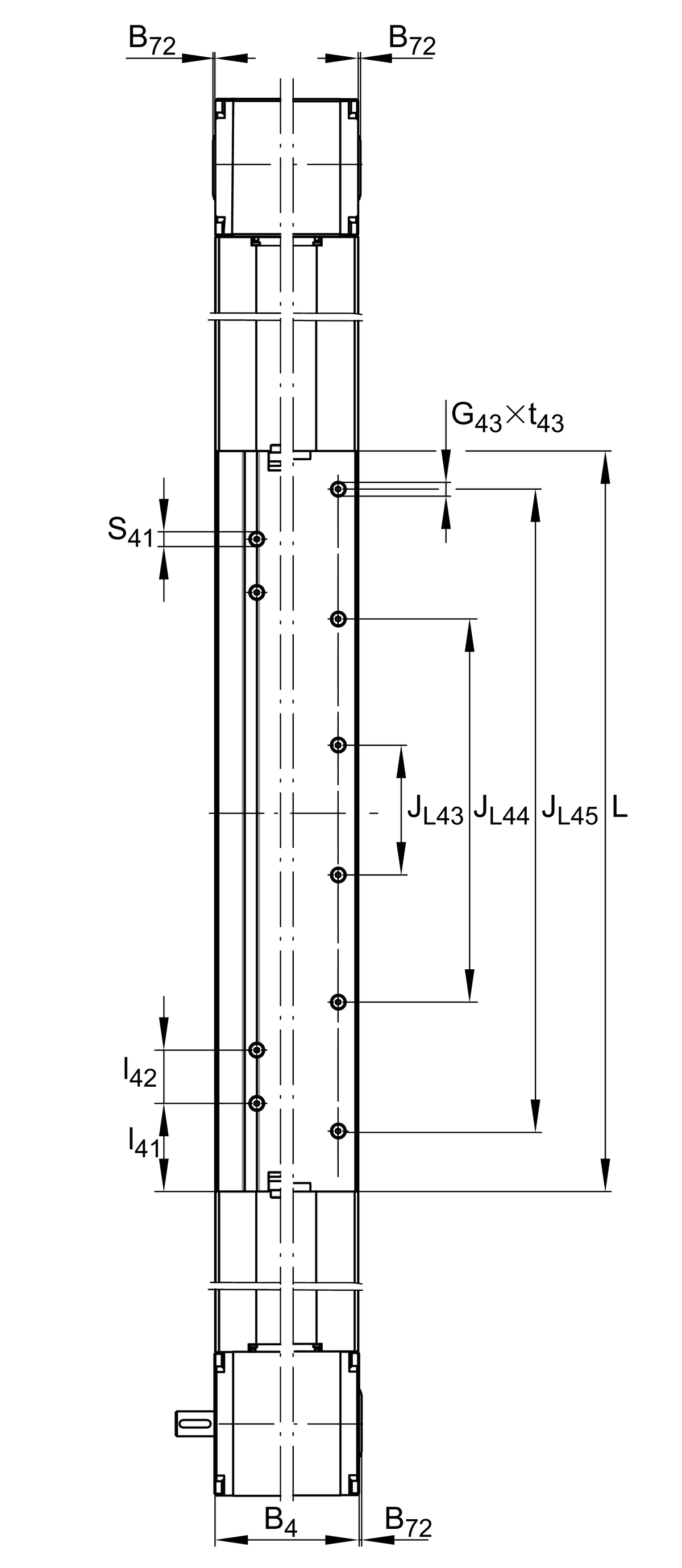

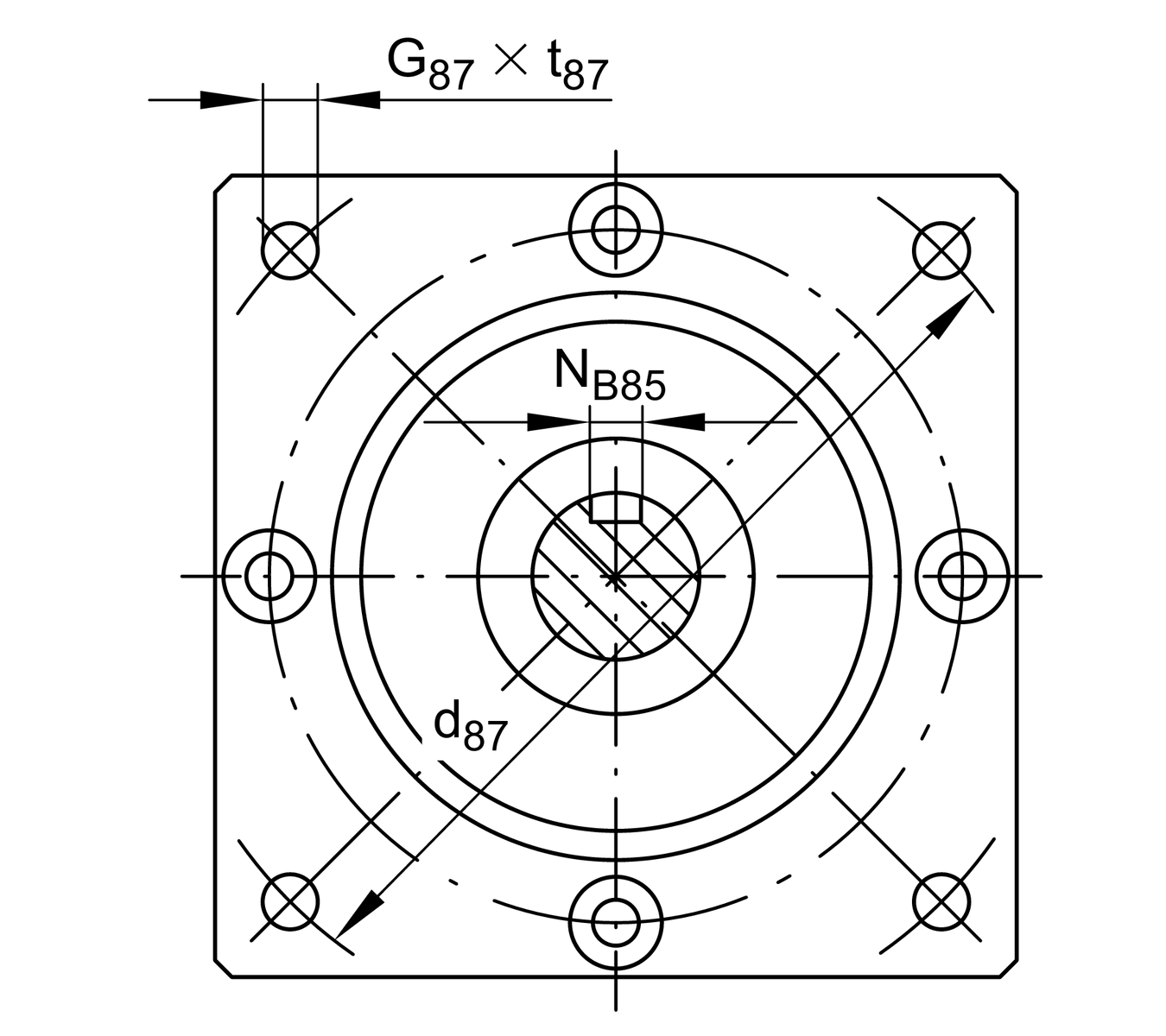

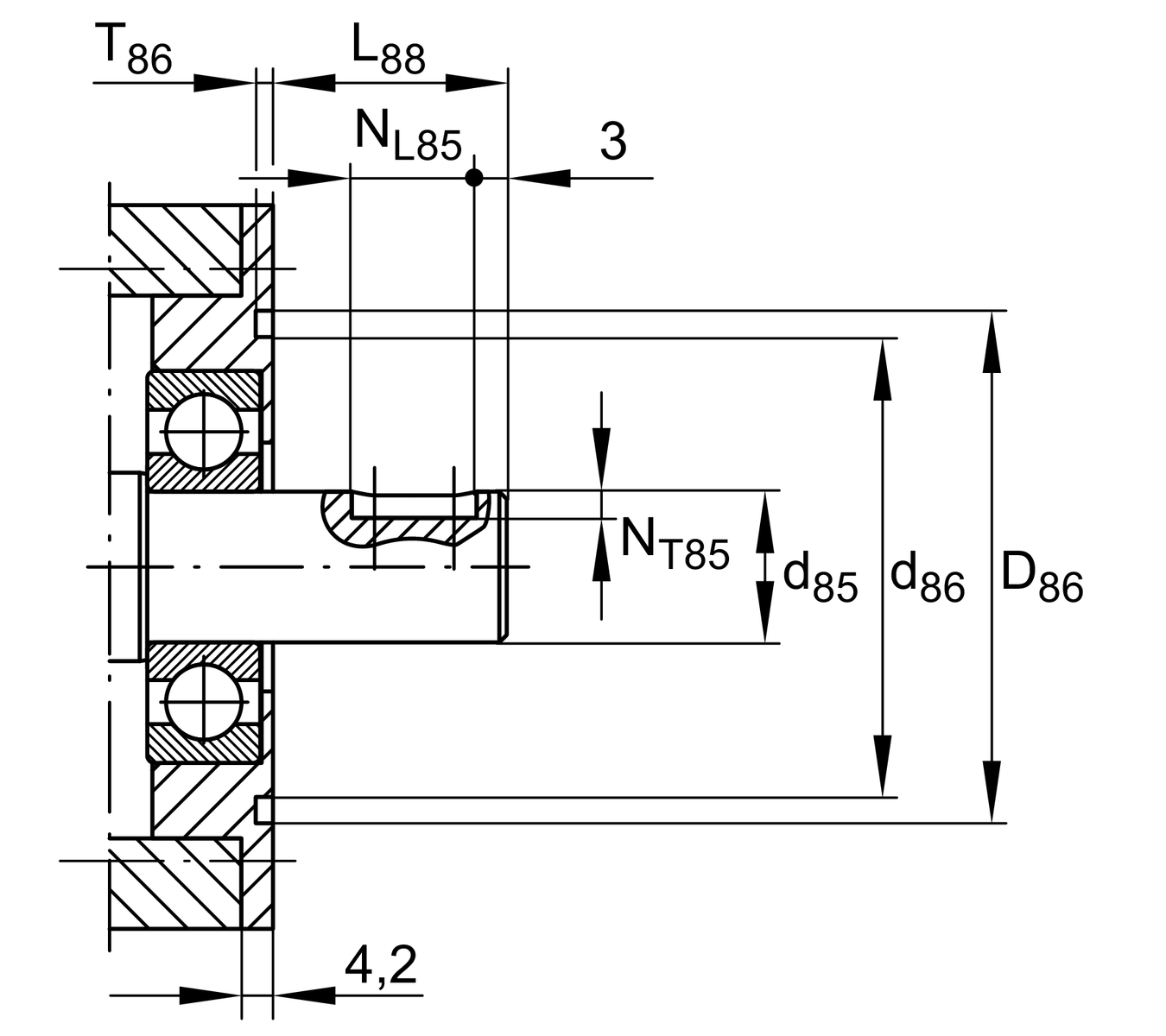

安裝尺寸
| B1 | 110 mm | Width of Carriage |
| D86 | 95 mm | |
| Tol D86 | G7 | Tolerance |
| D87 | 115 mm | |
| d85 | 20 mm | Tolerance h7 |
| d86 | 76 mm | |
| G43 | M10 | |
| G87 | M8 | |
| h13 | 25 mm | |
| h14 | 75 mm | |
| JB43 | 80 mm | |
| Tol JB43 | 0.1 | 公差上限 |
| Tol JB43 | 0.1 | 較低的公差 |
| JL43 | 180 mm | |
| jB8 | 80 mm | |
| L2 max | 8,000 mm | Maximum length of Support Rail |
| L88 | 31 mm | |
| NB85 | 6 mm | Tolerance P9 |
| NL85 | 25 mm | Length of Keyway |
| NT85 | 3.5 mm | Depth of Keyway |
| t43 max | 20 mm | Depth of Thread |
| t87 max | 15 mm | Depth of Thread |

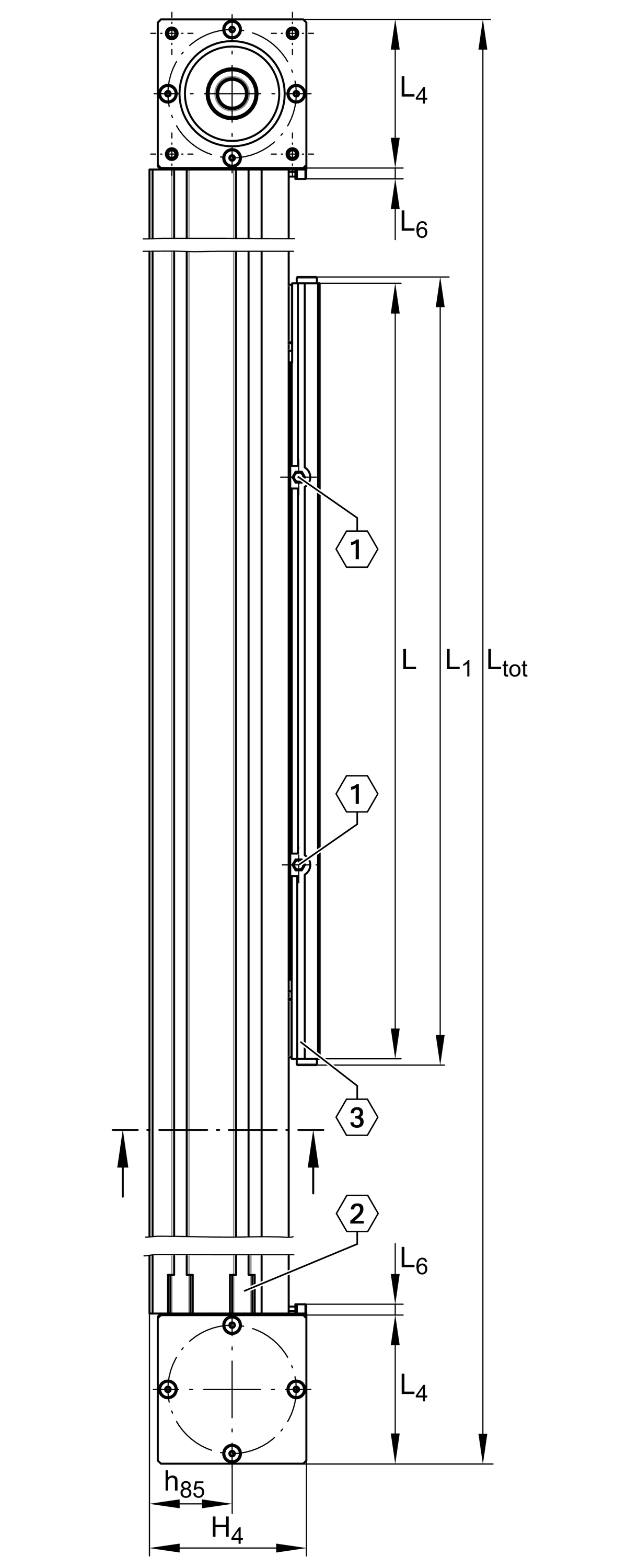

尺寸
| B72 | 2 mm | |
| H1 | 21 mm | Height of Carriage |
| H2 | 102 mm | Height of Support Rail |
| H4 | 115.7 mm | Height of Return Unit |
| h85 | 58 mm | |
| L1 | 263 mm | |
| L4 | 115.5 mm | Length of Return Unit |
| L6 | 6 mm | Length of Wiper Brushes |
| B4 | 111 mm | Width of Return Unit |
| T86 | 4 mm | |
| Tol T86 | 0 mm | 較低的公差 |
| Tol T86 | 0.5 mm | 公差上限 |
科技數據

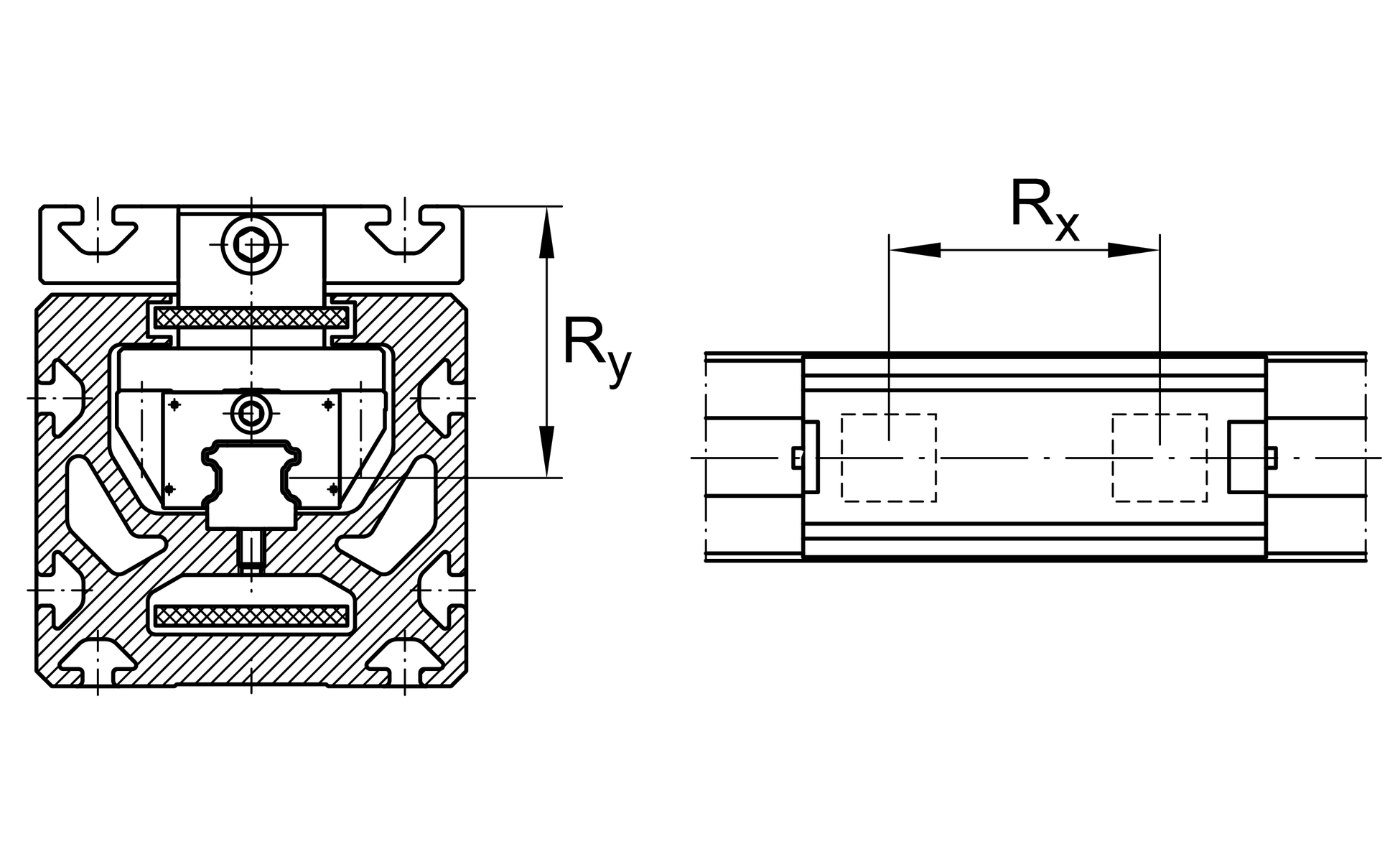

| Rx | 110 mm | |
| Ry | 71.8 mm | |
| S | 85 mm | Safety Distance |
| mLAW | 4.31 kg | |
| vmax | 5 m/s | Maximum Speed |
| amax | 30 m/s2 | Maximum Acceleration |
| I C | 29,000 N | Load direction I: compressive load |
| I C0 | 74,000 N | Load direction I: compressive load |
| II C | 29,000 N | Load direction II: tensile load |
| II C0 | 74,000 N | Load direction II: tensile load |
| III C | 29,000 N | Load direction III: lateral load |
| III C0 | 74,000 N | Load direction III: lateral load |

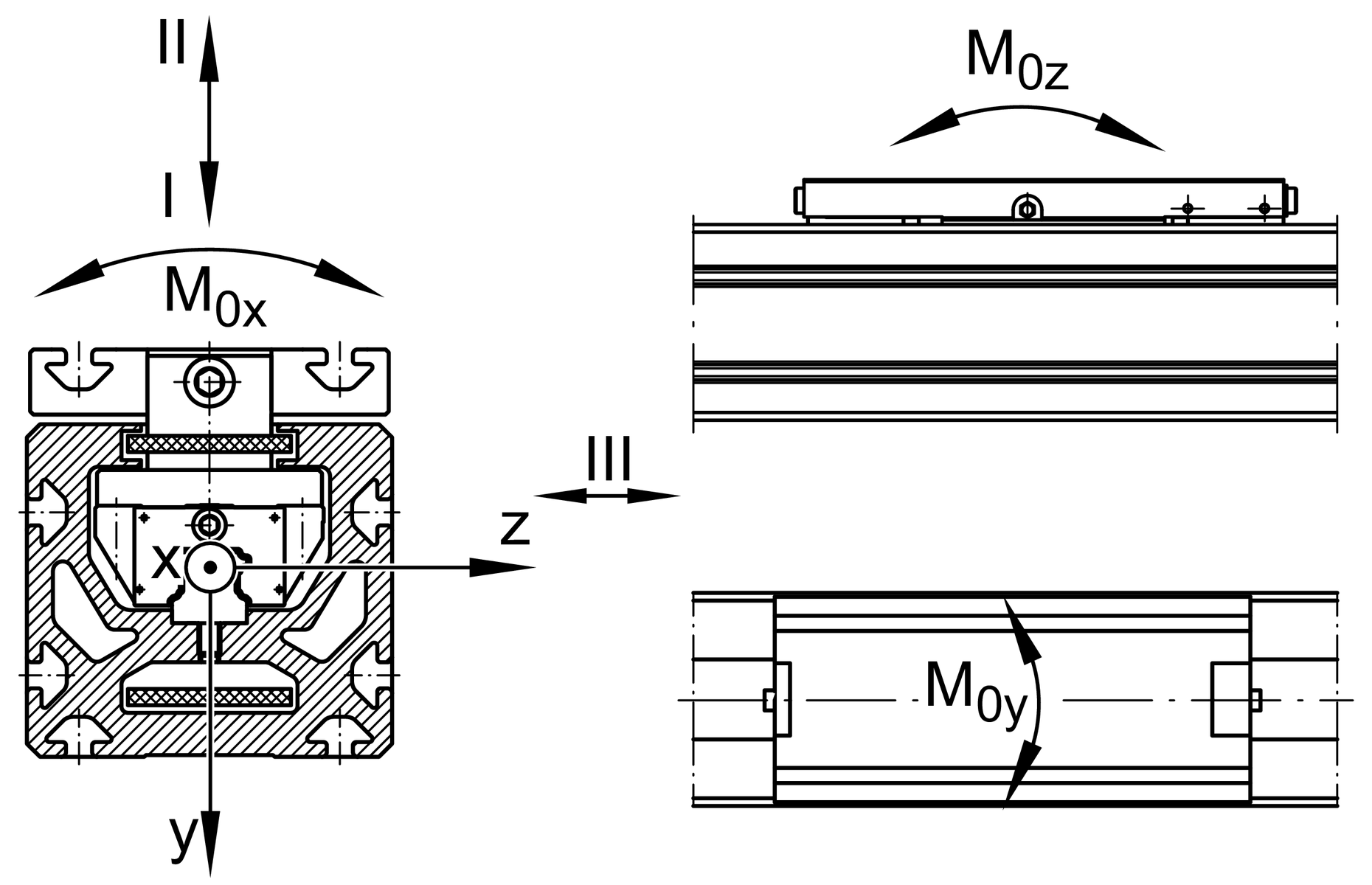

| M0x per | 1,000 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 2,575 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 2,575 Nm | Max. permissible static moment per Carriage 1 |
| Iy | 712 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 506 cm4 | Geometrical moments of inertia of Support Rail |
附加資訊
75 Nm | Max. permissible drive torque | |
2xKWVE25-B | Carriage | |
0.1 mm | Repeat Accurancy ± | |
250 mm | Feed (mm/rotation) | |
50BATK10 | Toothed Belt | |
0.29 kg/m | Mass of Toothed Belt | |
1,880 N | Permissible Toothed Belt operating force | |
14.7 kg*cm2 | 質量慣性矩 of Gears |
溫度範圍
| max | 80 °C | Maximum operating Temperatur |
| min | 0 °C | Minimum operating Temperatur |
您目前的產品型號
| Size code | 25 | |
| Length of carriage | 250 | 250 mm |
| Design | LN | Low-Noise |
| Drive type | (3)ZR | Toothed belt drive |
| Additional carriage | / | No additional carriage |
| Attachment to the carriage | / | Threaded holes |
| Support rail design | / | One-piece |
