n.r.
200 | Length of carriage |
主要尺寸與性能資料

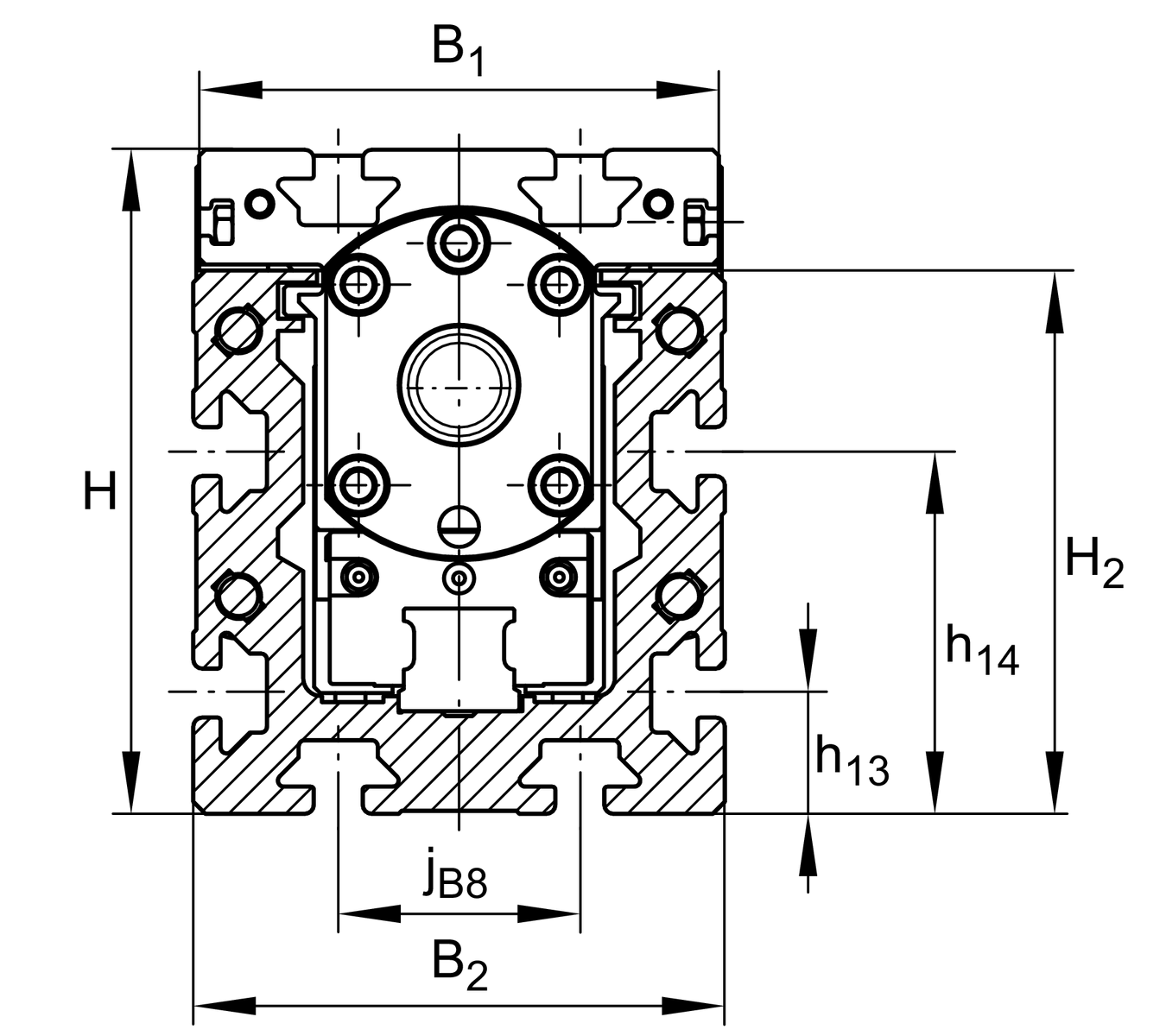

| L | 200 mm | Length of Carriage |
| H | 110 mm | Total Height |
| B2 | 88 mm | Total Width |
安裝尺寸
| B1 | 86 mm | Width of Carriage |
| h13 | 20 mm | |
| h14 | 60 mm | |
| JB43 | 40 mm | |
| jB8 | 40 mm | |
| L2 max | 5,850 mm | Maximum length of Support Rail |
| NB43 | 14 mm | |
| NL43 | 20 mm |

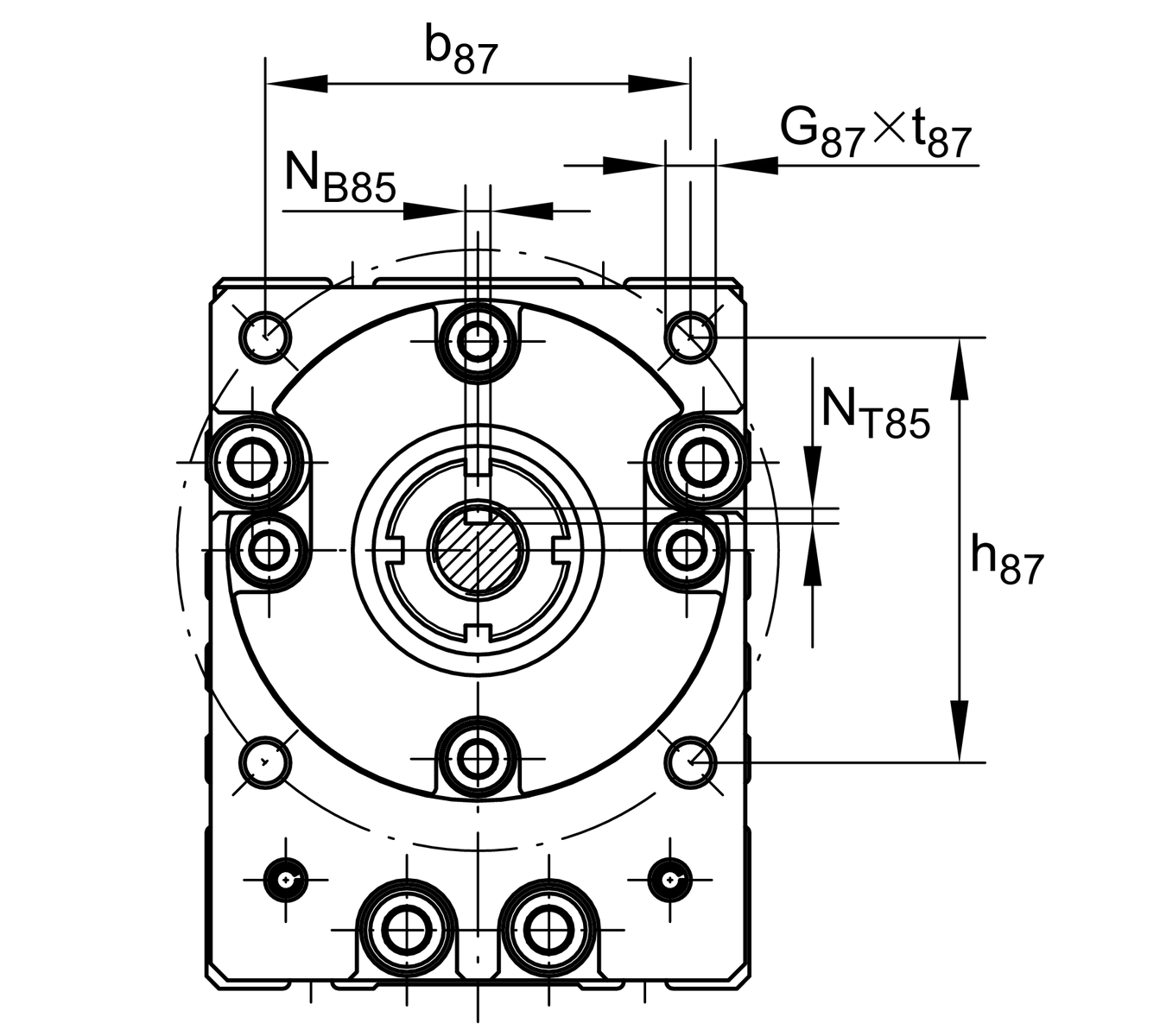

尺寸

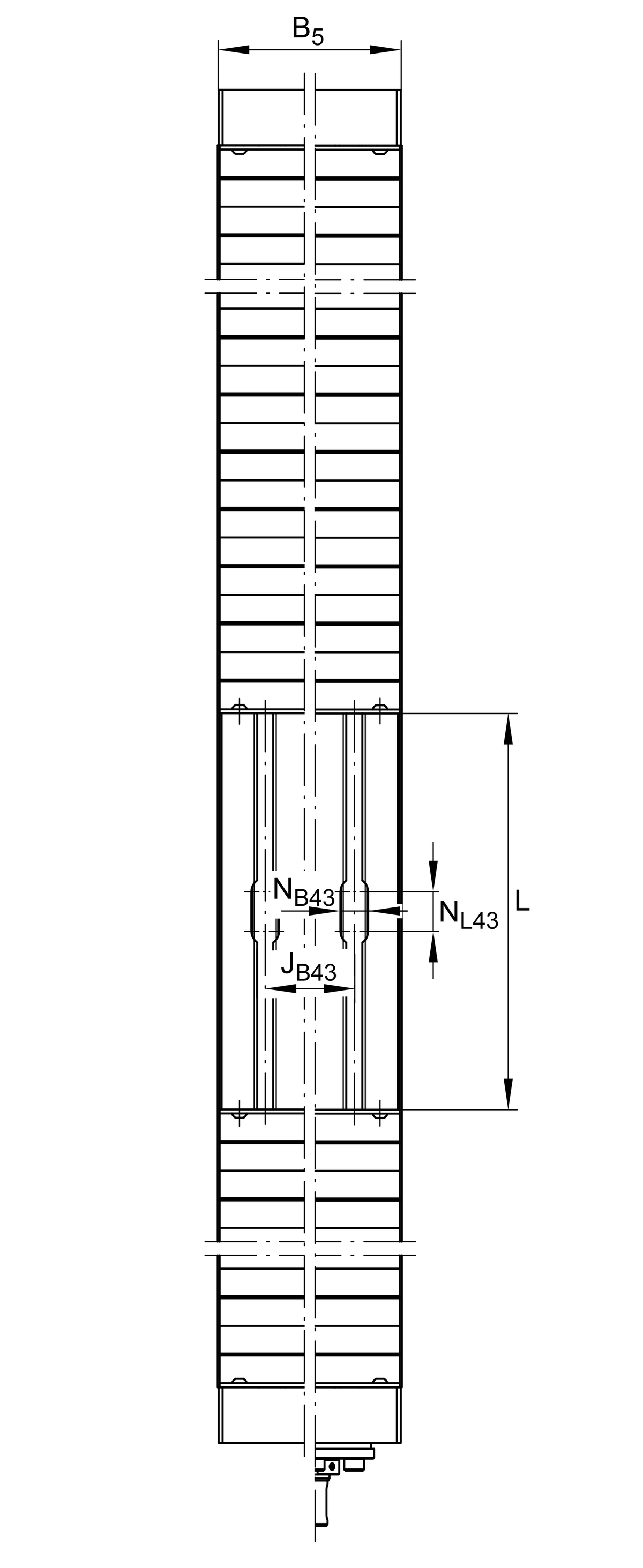

| B5 | 87 mm | Width of End Plates |
| FBL | 1.17 | Effective length factor of bellow |
| H2 | 90 mm | Width of Support Rail |

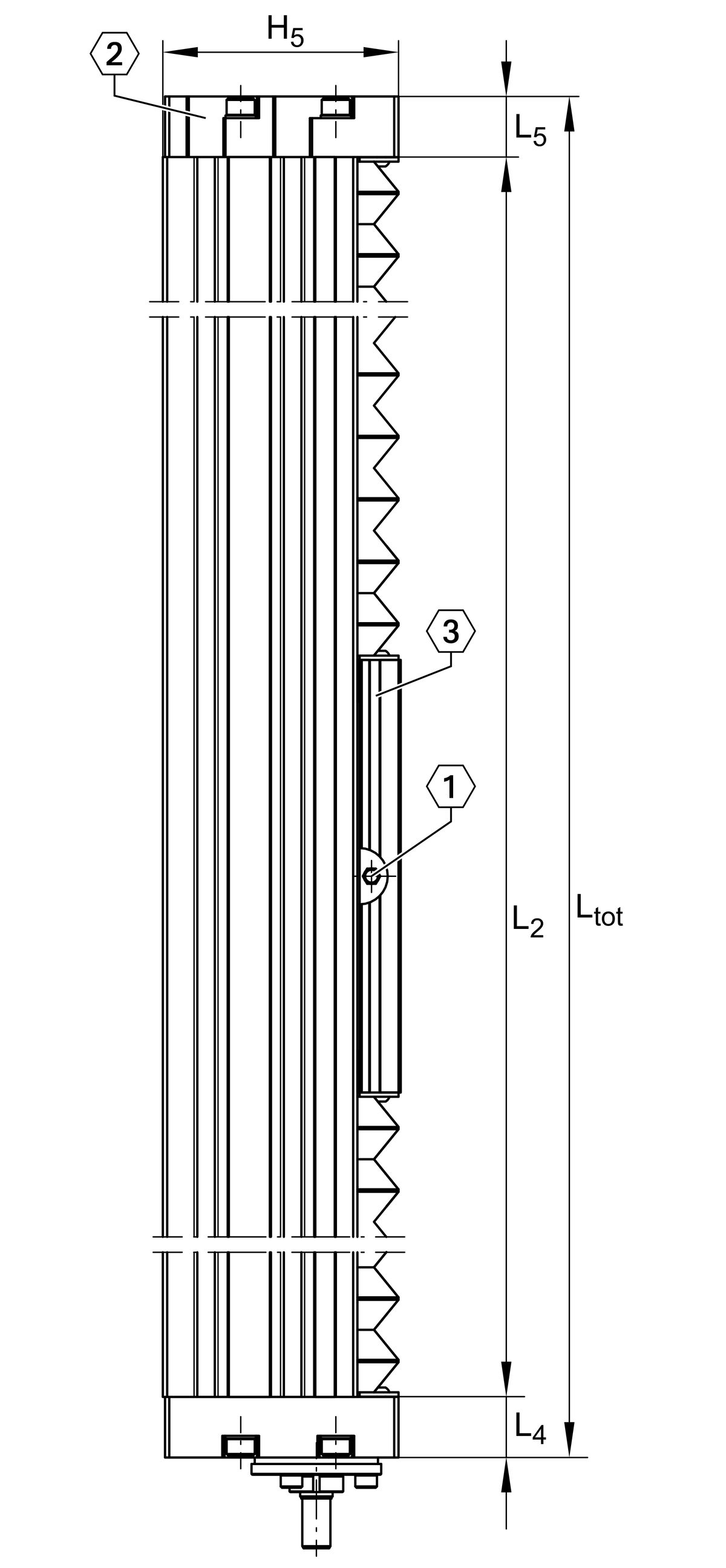

| H5 | 109 mm | |
| L4 | 28 mm | |
| L5 | 28 mm | |

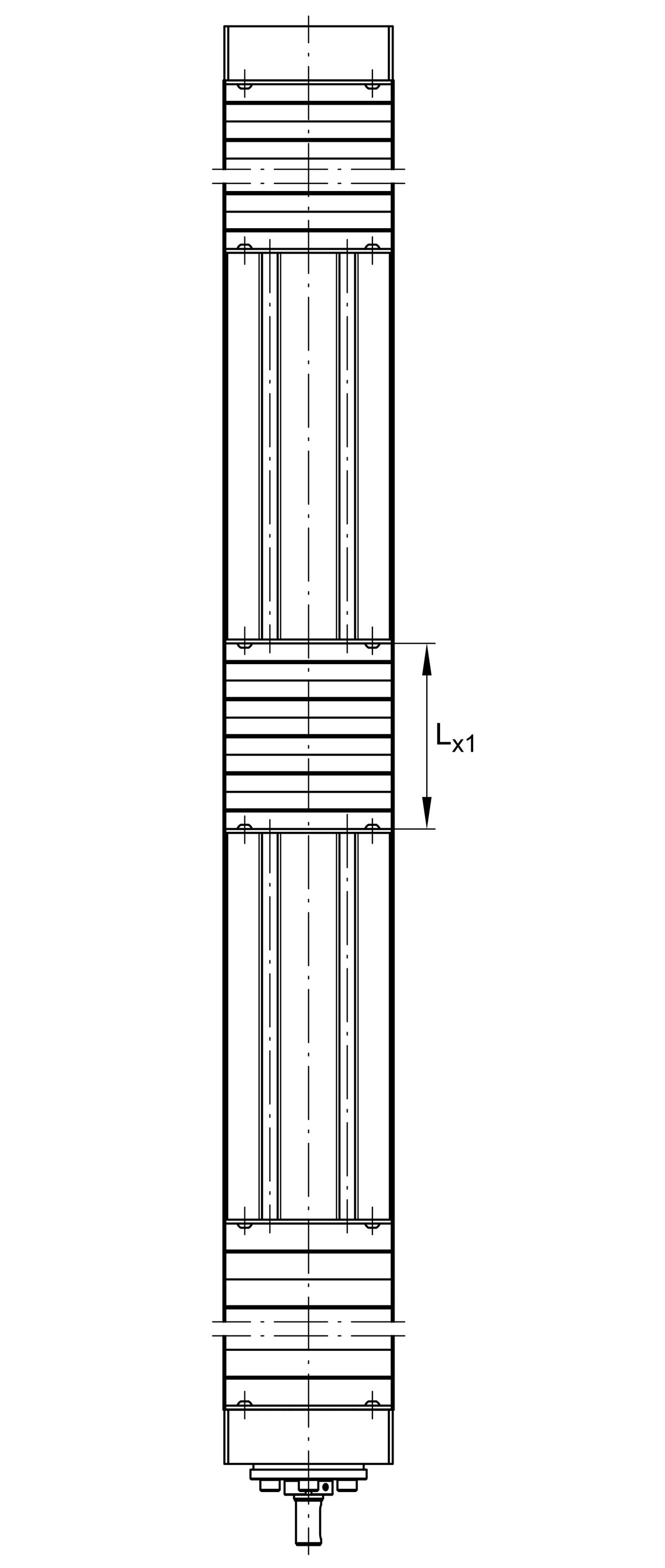

| Lx1 min | 20 mm | Minimum distance between the Carriages |
科技數據

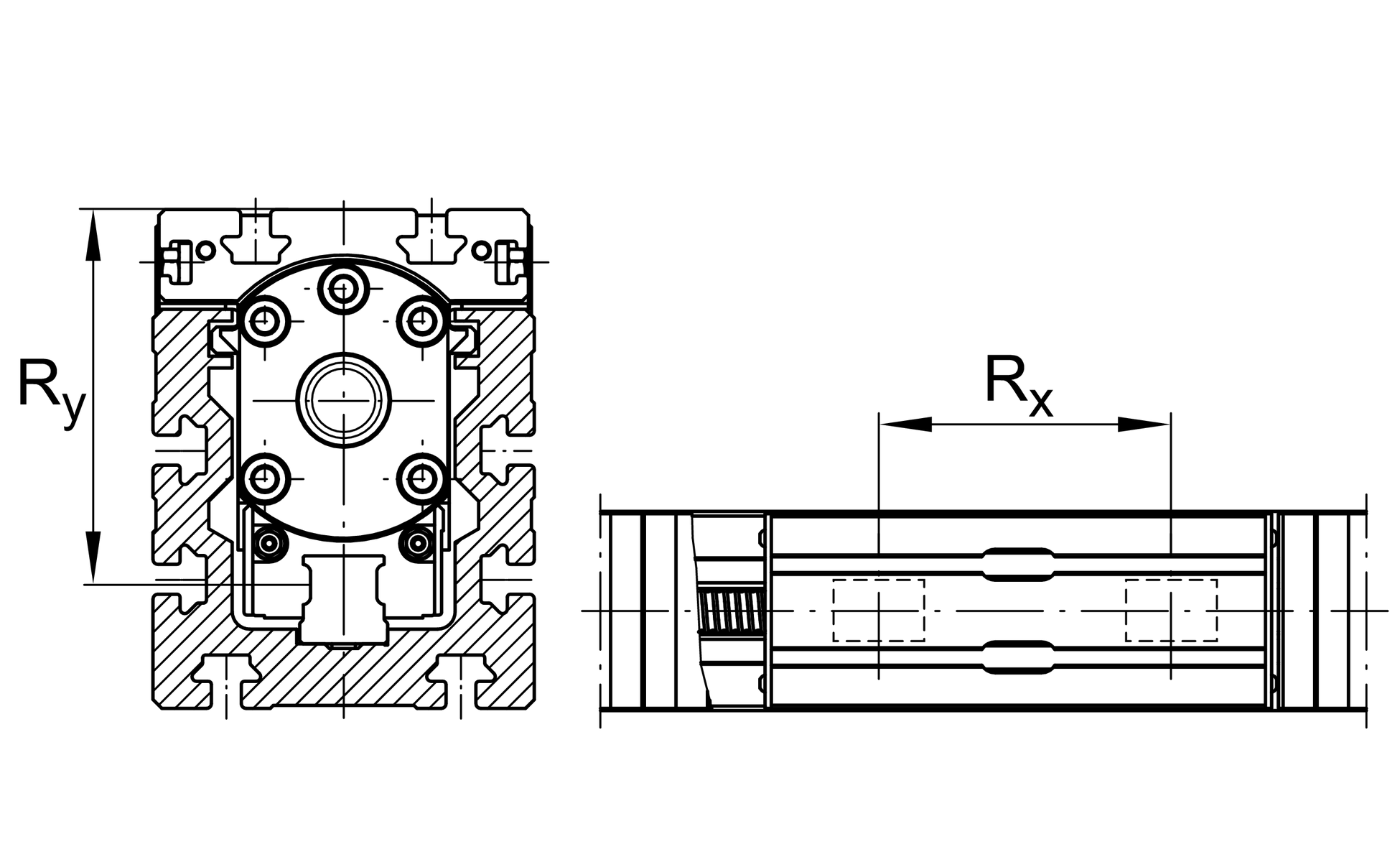

| Rx | 85 mm | |
| Ry | 52.1 mm | |
| S | 10 mm | Safety Distance |
| mLAW | 1.69 kg | Mass of Carriage |
| m3 | 1.69 kg | Mass of additional Carriage |
| IC | 21,300 N | Load direction I: compressive load |
| I C0 | 54,000 N | Load direction I: compressive load |
| II C | 21,300 N | Load direction II: tensile load |
| II C0 | 54,000 N | Load direction II: tensile load |
| III C | 21,300 N | Load direction III: lateral load |
| III C0 | 54,000 N | Load direction III: lateral load |

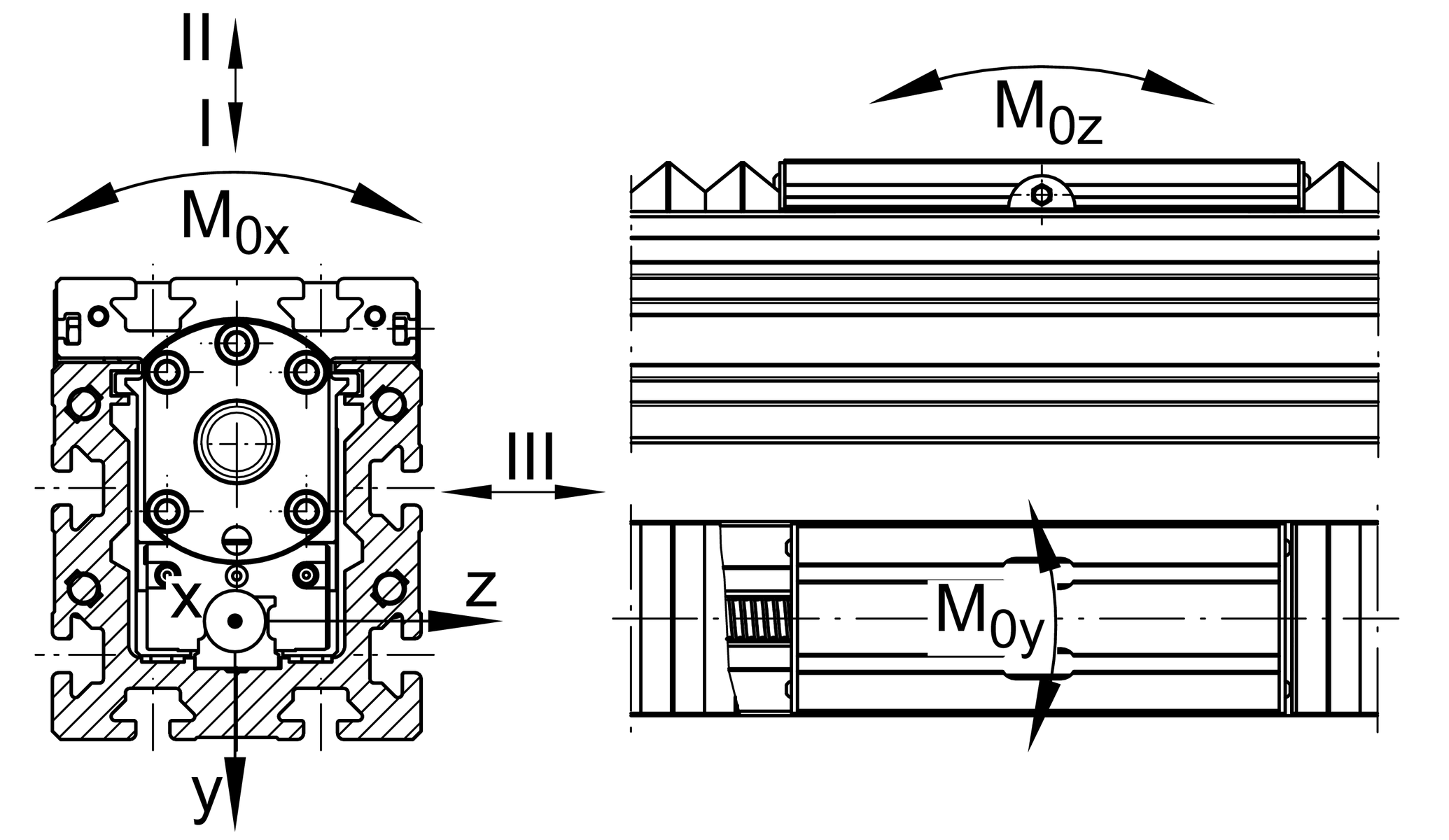

| M0x per | 580 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 1,000 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 1,200 Nm | Max. permissible static moment per Carriage 1 |
| ly | 281 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 219 cm4 | Geometrical moments of inertia of Support Rail |
| WN2 | Ja | Second, non-driven Carriage |
附加資訊
2 x KWVE20-B-S | Carriage |
您目前的產品型號
| Size code | 20 | |
| Drive type | OA | 沒有 drive |
| Spindle support | / | none |
| Additional carriage | WN2 | Second, non-driven carriage |
| Attachment to the carriage | N | T-Slots |
