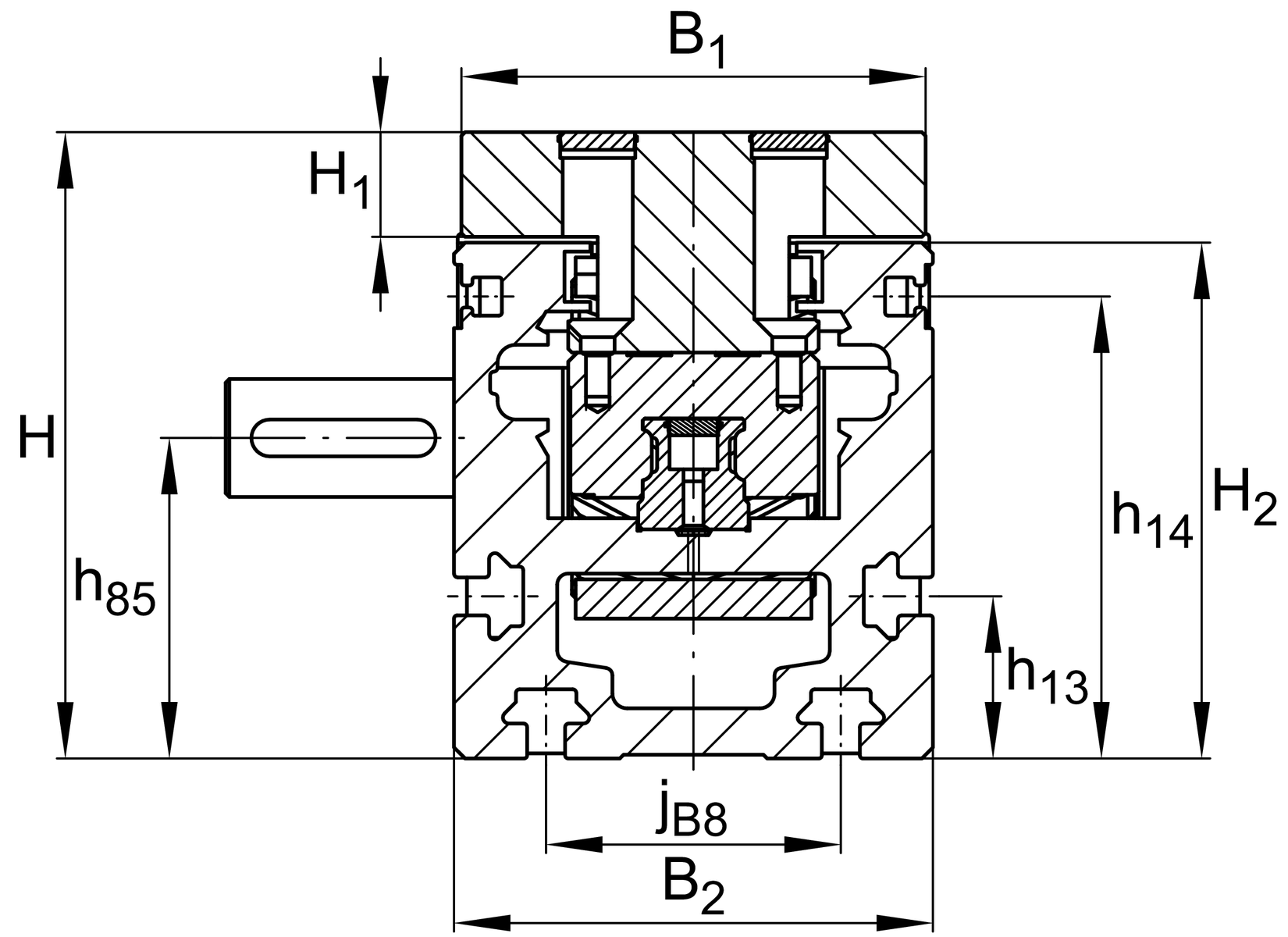

主要尺寸與性能資料
| B2 | 65 mm | Total Width |
| H | 85 mm | Total Height |
| L | 260 mm | Length of Carriage |

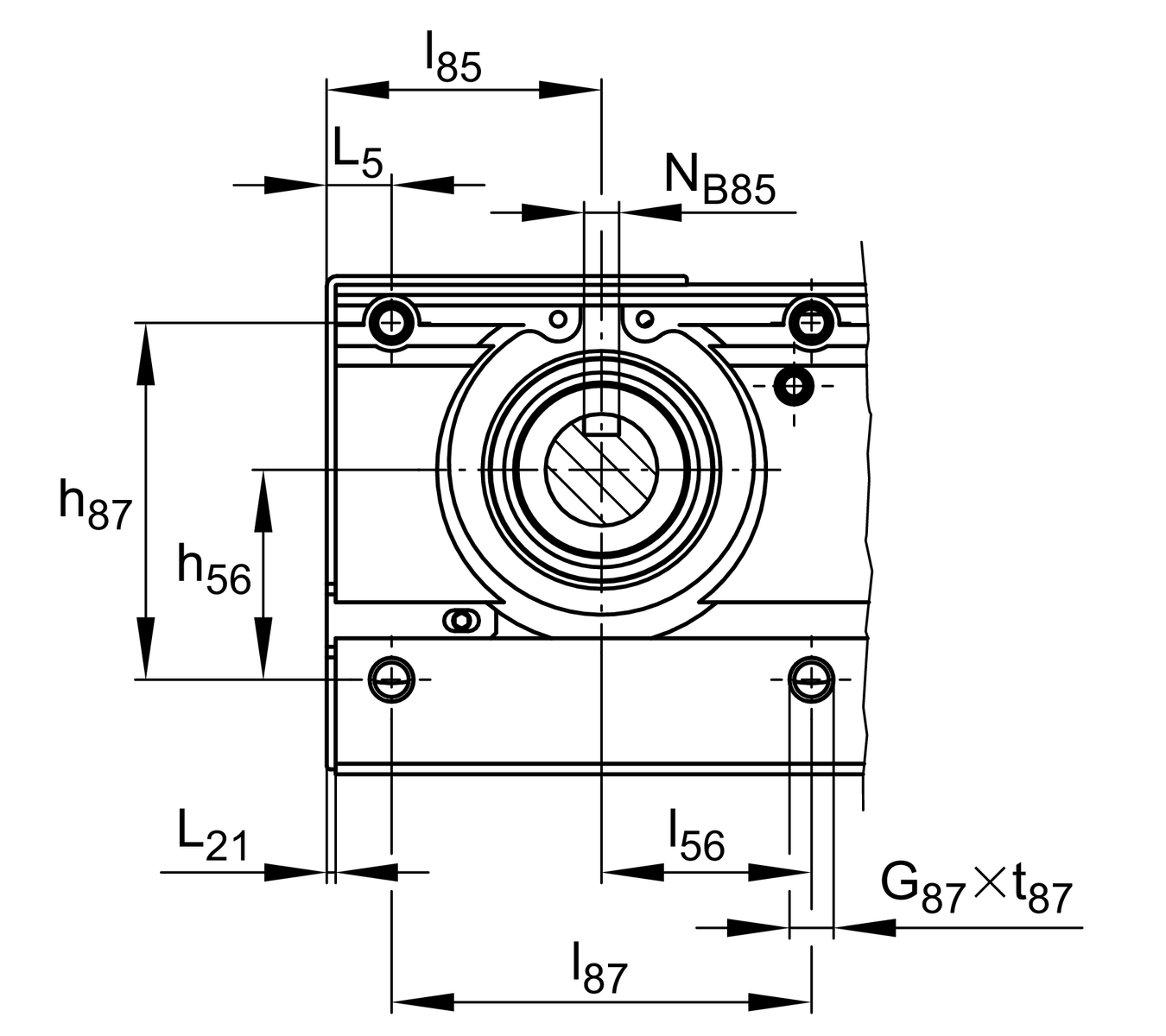

安裝尺寸
| B1 | 63 mm | Width of Carriage |

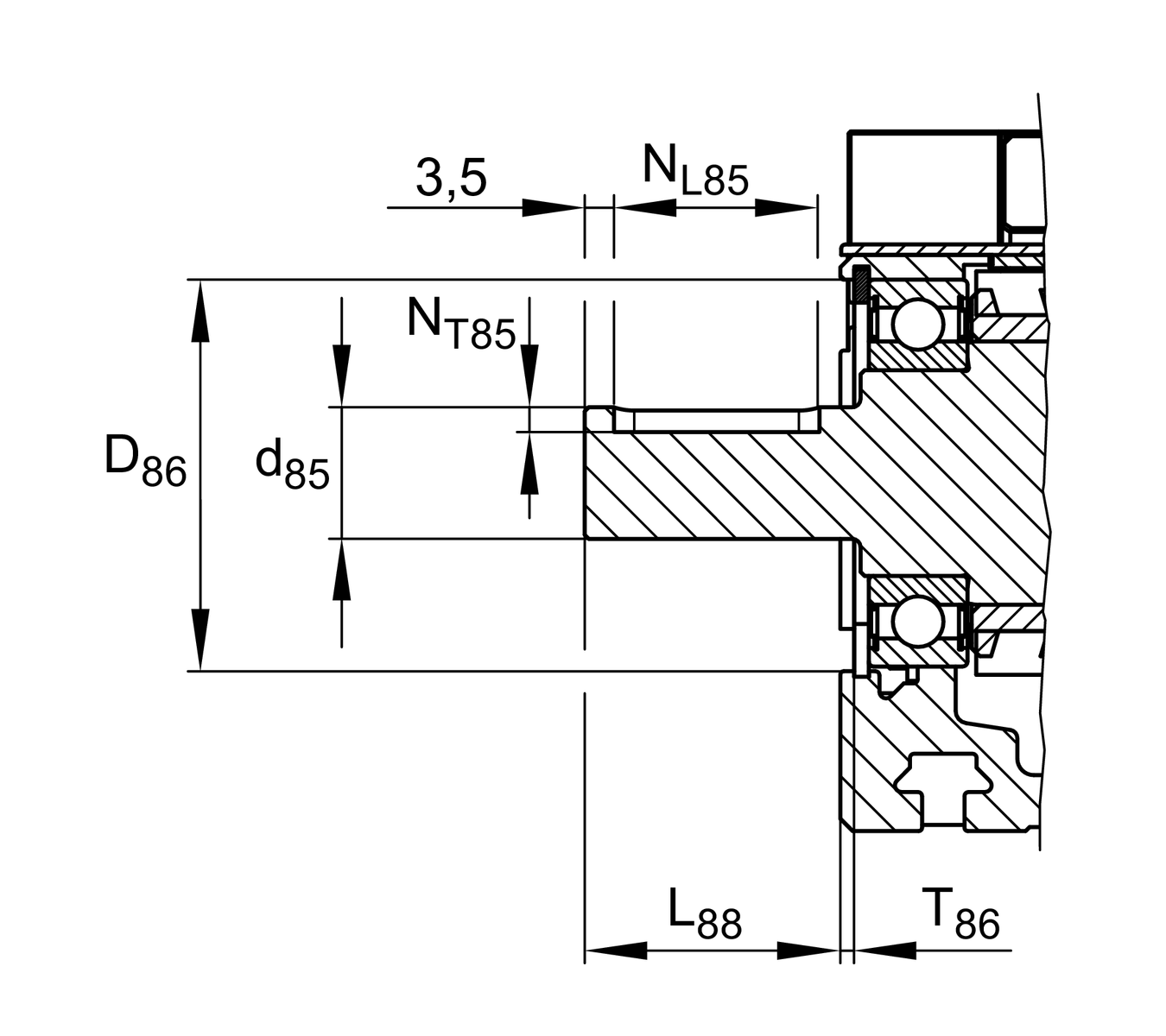

| D86 | 47 mm | |
| Tol D86 | +0,03 | Tolerance |
| d85 | 16 mm | Tolerance h7 |
| G43 | M6 | |
| G87 | M6 | |
| h13 | 22 mm | |
| h14 | 62.7 mm | |
| h56 | 30 mm | |
| h87 | 51 mm | Tolerance ±0,2 |

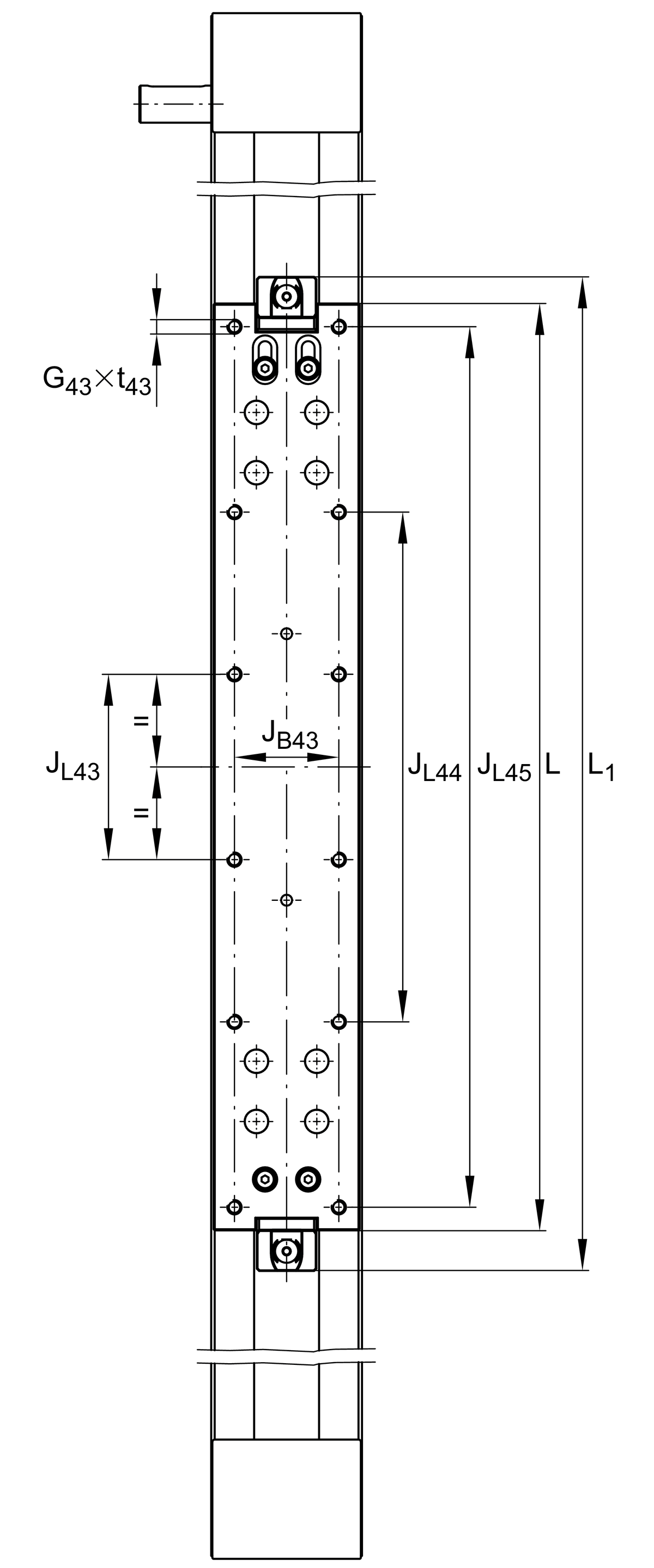

| JB43 | 45 mm | |
| JL43 | 80 mm | |
| JL44 | 240 mm | |
| jB8 | 40 mm | |
| L2 max | 6,000 mm | Maximum length of Support Rail |
| L88 | 31 mm | |
| NB85 | 5 mm | Tolerance P9 |
| NL85 | 25 mm | Length of Keyway |
| NT85 | 3 mm | Depth of Keyway |
| t43 max | 14 mm | Depth of Thread |
| t87 max | 12 mm | Depth of Thread |
尺寸
| H1 | 14.2 mm | Height of Carriage |
| H2 | 70 mm | Height of Support Rail |
| h85 | 43.5 mm | |
| L1 | 298 mm | |

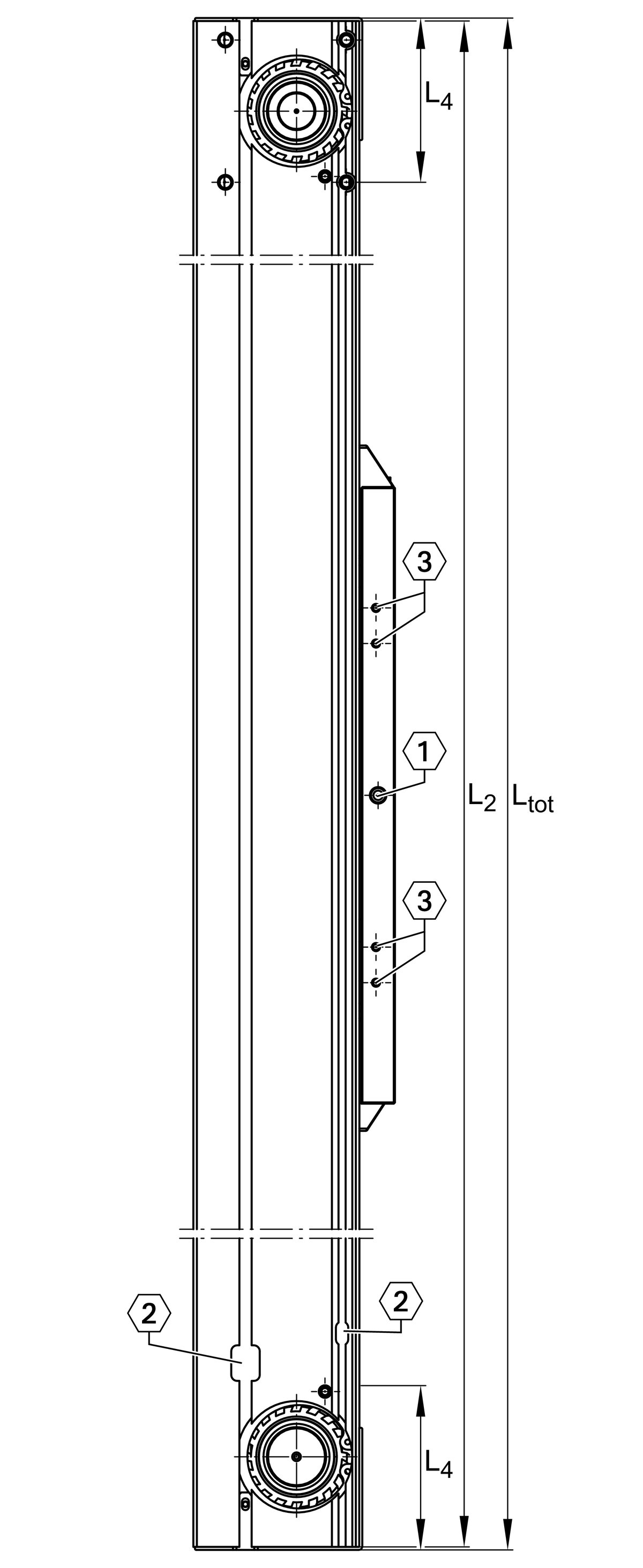

| L4 | 77.5 mm | Length of Return Unit |
| L5 | 9.3 mm | |
| L21 | 1 mm | |
| l85 | 39.3 mm | |
| l87 | 60 mm | Tolerance ±0,2 |
| T86 | 1.6 mm |
科技數據

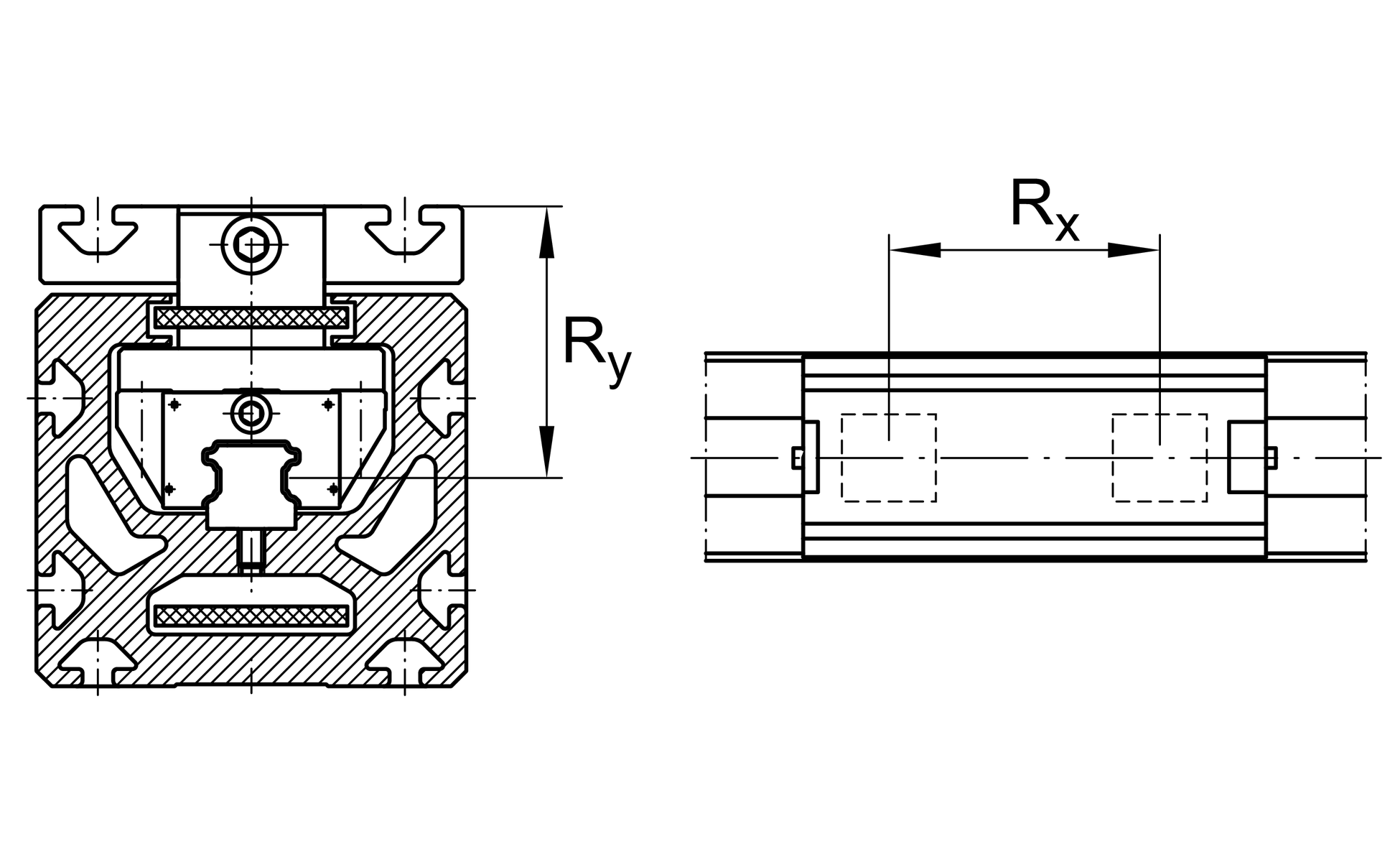

| Rx | 140 mm | |
| Ry | 44 mm | |
| S | 85 mm | Safety Distance |
| mLAW | 1.4 kg | |
| vmax | 5 m/s | Maximum Speed |
| amax | 30 m/s2 | Maximum Acceleration |

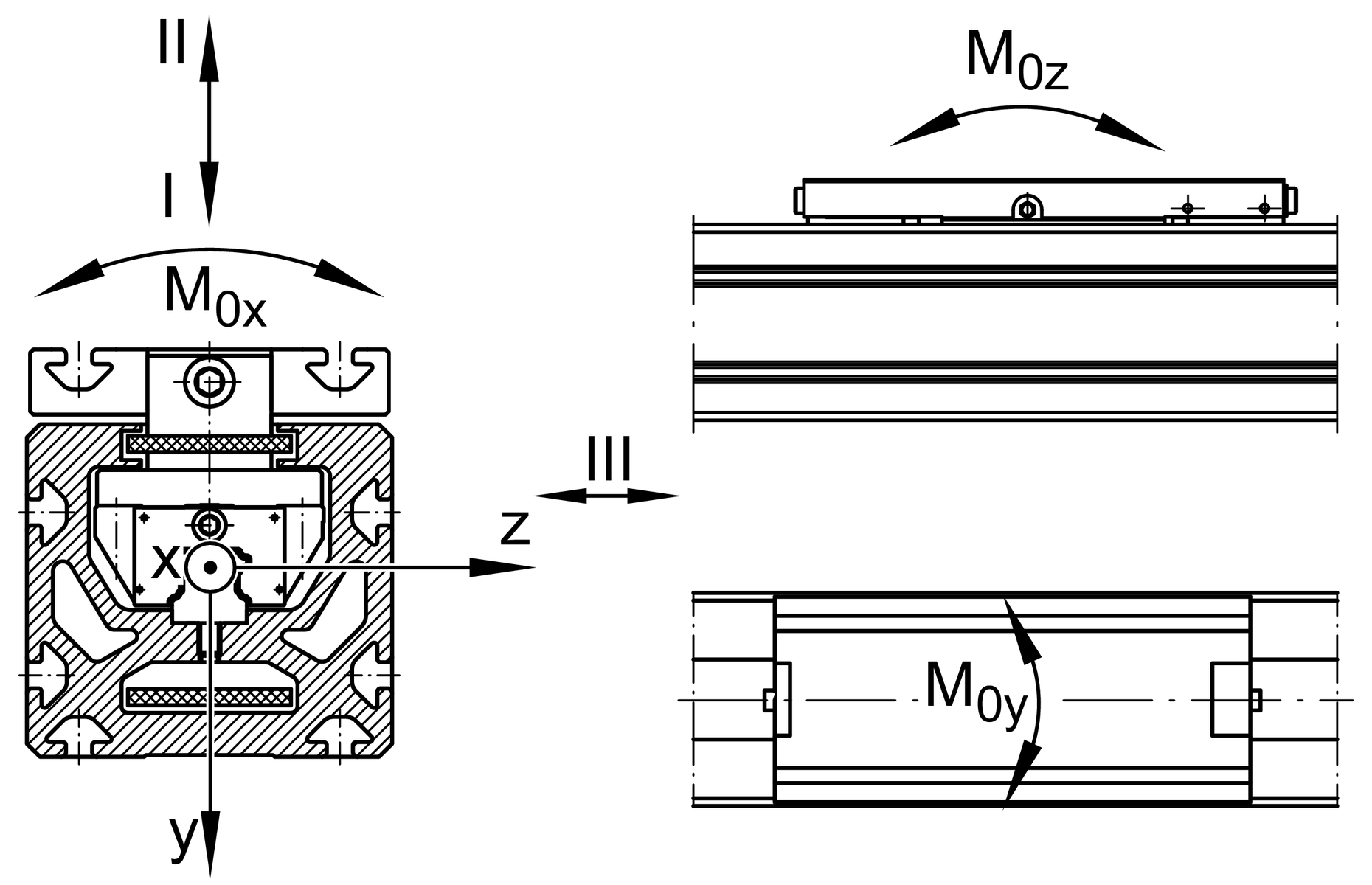

| I C | 11,700 N | Load direction I: compressive load |
| I C0 | 29,000 N | Load direction I: compressive load |
| II C | 11,700 N | Load direction II: tensile load |
| II C0 | 29,000 N | Load direction II: tensile load |
| III C | 11,700 N | Load direction III: lateral load |
| III C0 | 29,000 N | Load direction III: lateral load |
| M0x per | 300 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 1,100 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 1,300 Nm | Max. permissible static moment per Carriage 1 |
| Iy | 84 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 107 cm4 | Geometrical moments of inertia of Support Rail |
附加資訊
32 Nm | Max. permissible drive torque | |
2xKWVE15-B-S | Carriage | |
0.1 mm | Repeat Accurancy ± | |
144 mm | Feed (mm/rotation) | |
W-8-PU-32-STD | Toothed Belt | |
0.36 kg/m | Mass of Toothed Belt | |
1,400 N | Permissible Toothed Belt operating force | |
1.3 kg*cm2 | 質量慣性矩 of Gears |
溫度範圍
| max | 80 °C | Maximum operating Temperatur |
| min | 0 °C | Minimum operating Temperatur |
您目前的產品型號
| Size code | 15 | |
| Length of carriage | 260 | 260 mm |
| Design | / | Basis |
| Drive type | (3)ZR | Toothed belt drive |
| Additional carriage | / | No additional carriage |
| Attachment to the carriage | / | Threaded holes |
| Support rail design | / | One-piece |
