n.r.
160 | Length of carriage | |
F | Spindle nut design |
主要尺寸與性能資料

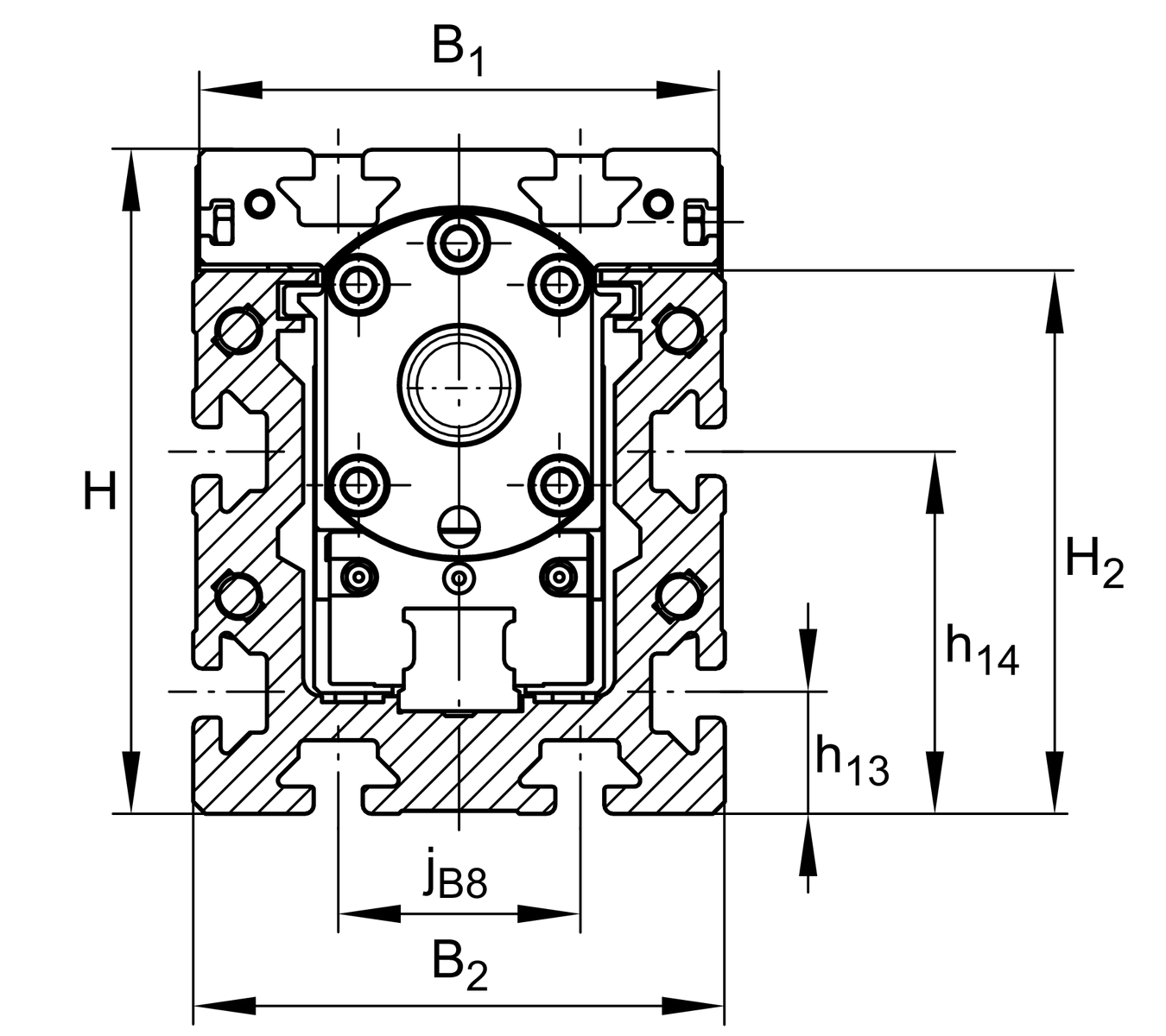

| L | 160 mm | Length of Carriage |
| H | 85 mm | Total Height |
| B2 | 65 mm | Total Width |
安裝尺寸
| B1 | 63 mm | Width of Carriage |

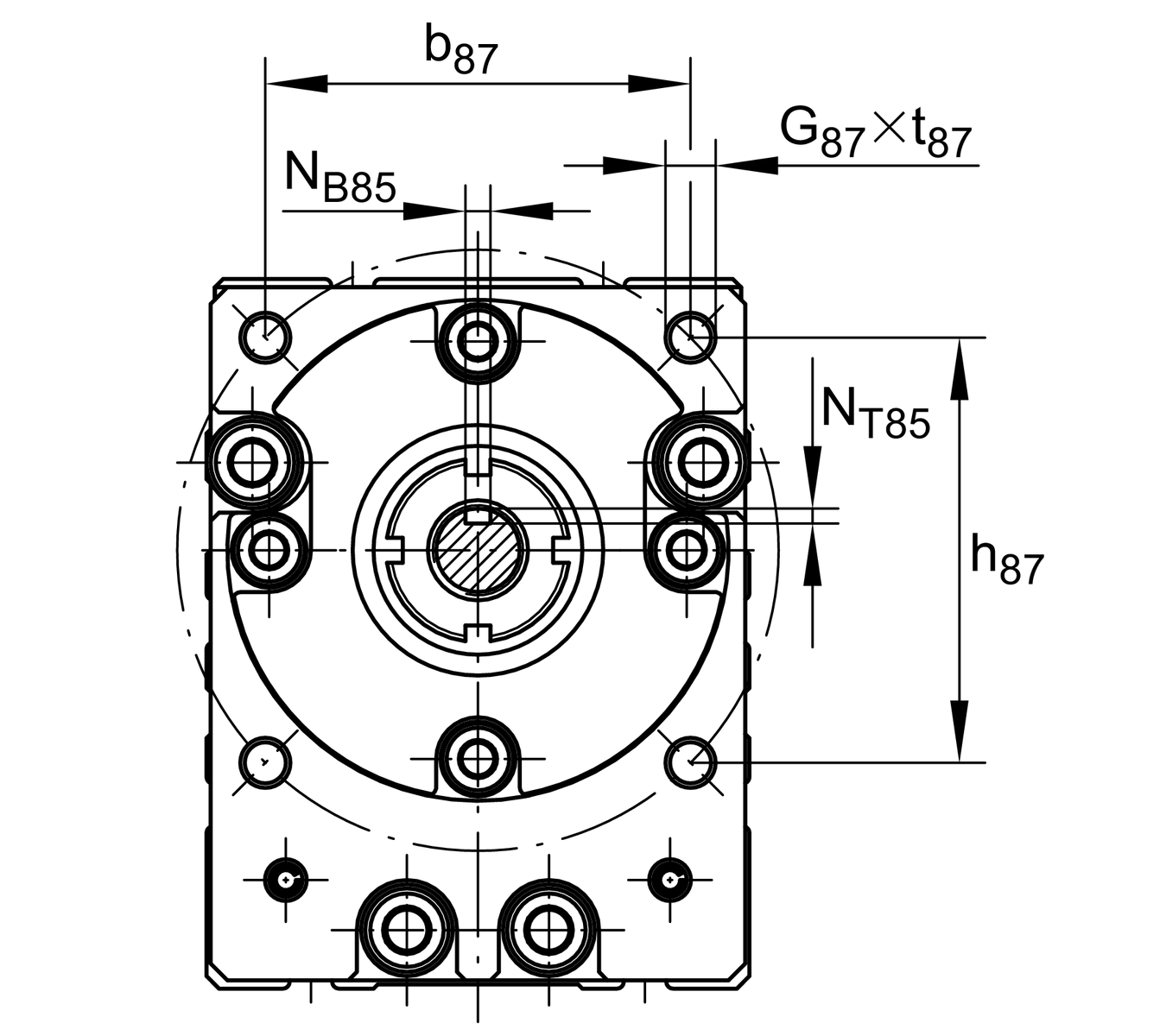

| b87 | 51 mm | |

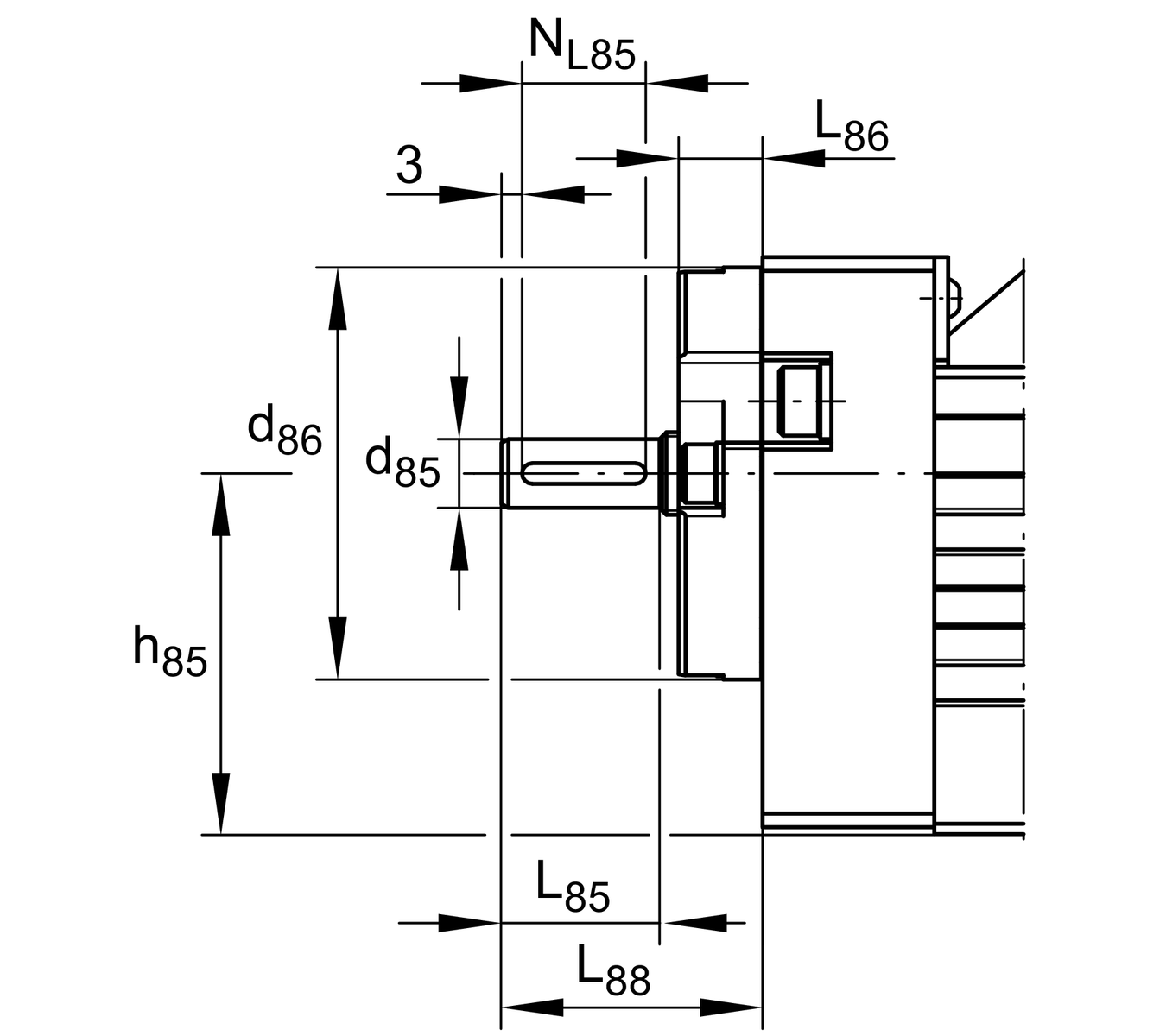

| d85 | 10 mm | Tolerance h6 |
| d86 | 60 mm | Tolerance h7 |
| G87 | M6 | 線 |
| h13 | 22 mm | |
| h14 | 44 mm | |
| h85 | 52.5 mm | |
| h87 | 51 mm | |
| JB43 | 30 mm | |
| jB8 | 40 mm | |
| L2 max | 5,850 mm | Maximum length of Support Rail |
| L85 | 23 mm | |
| L86 | 12.2 mm | |
| L88 | 38 mm | |
| NB43 | 10 mm | |
| NB85 | 3 mm | Tolerance P9 |
| NL43 | 15 mm | |
| NL85 | 18 mm | Length of Keyway |
| NT85 | 1.8 mm | Depth of Keyway |
| t87 | 13 mm | Depth of Thread |
尺寸

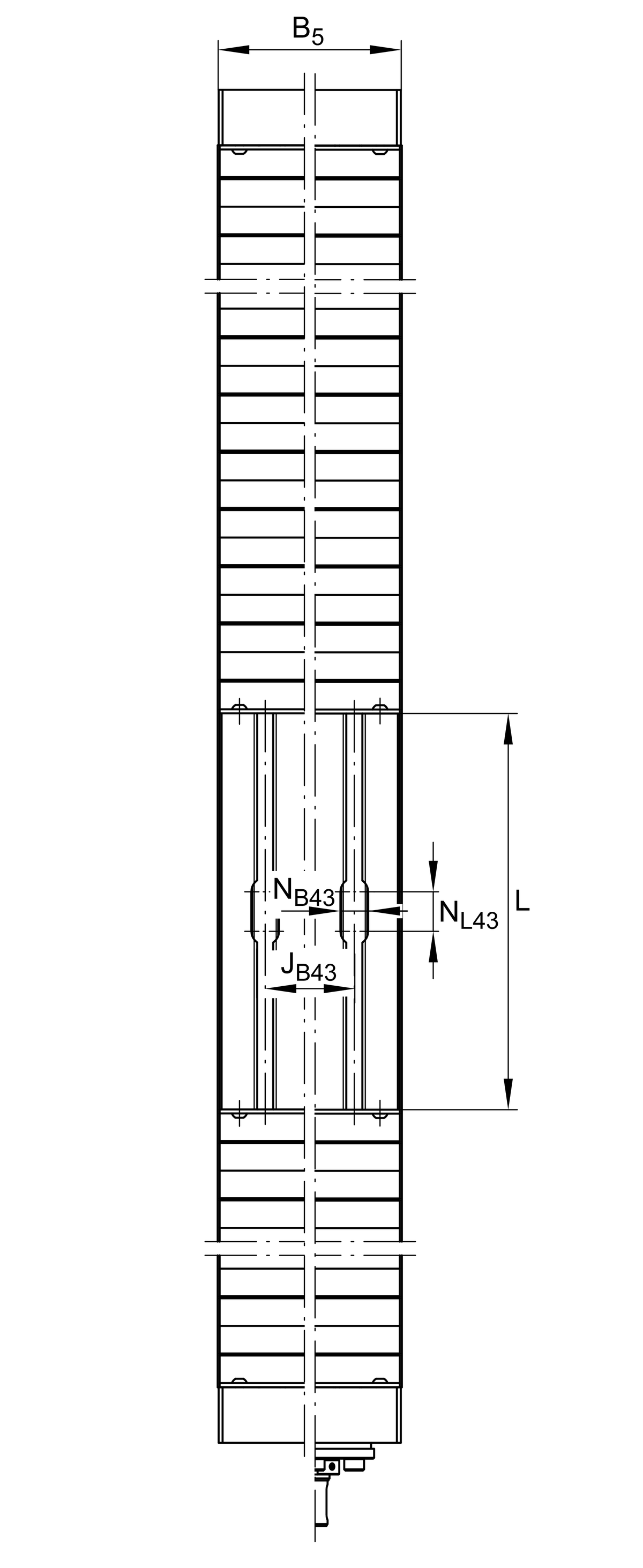

| B5 | 64 mm | Width of End Plates |
| FBL | 1.2 | Effective length factor of bellow |

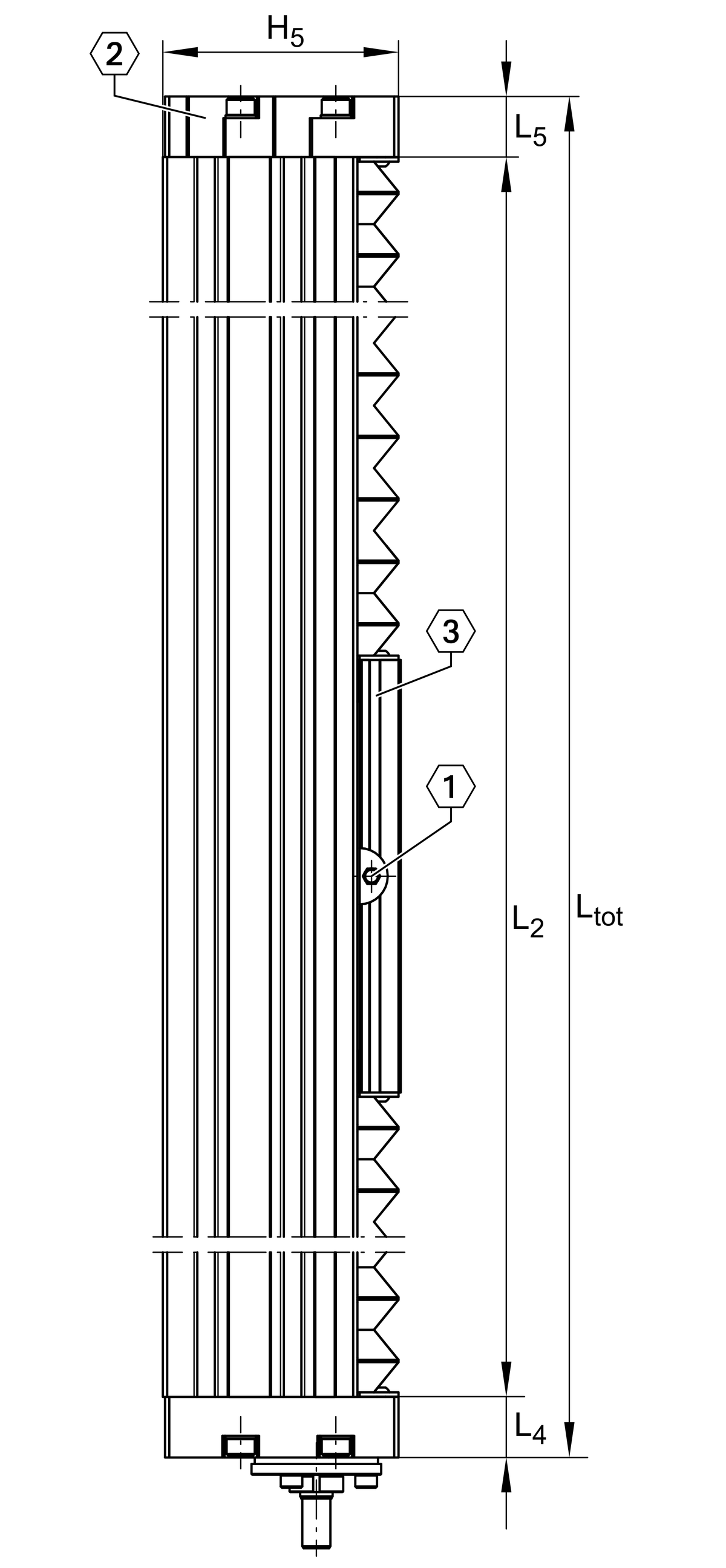

| H2 | 68 mm | Width of Support Rail |
| H5 | 84 mm | |
| L4 | 25 mm | |
| L5 | 25 mm |
科技數據

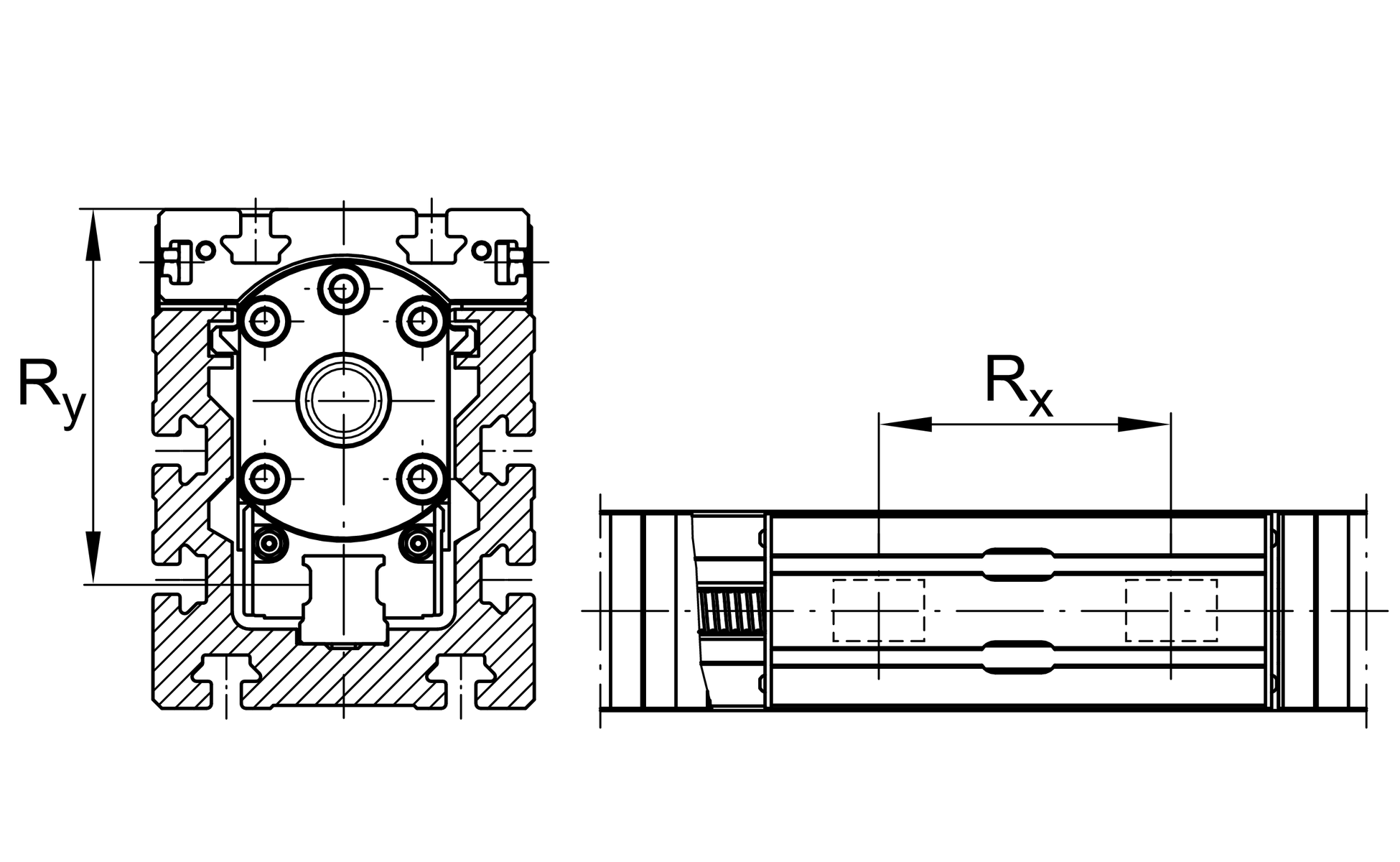

| Rx | 74.6 mm | |
| Ry | 64.9 mm | |
| S | 50 mm | Safety Distance |
| mLAW | 1.16 kg | Mass of Carriage |
| vmax | 2.5 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |

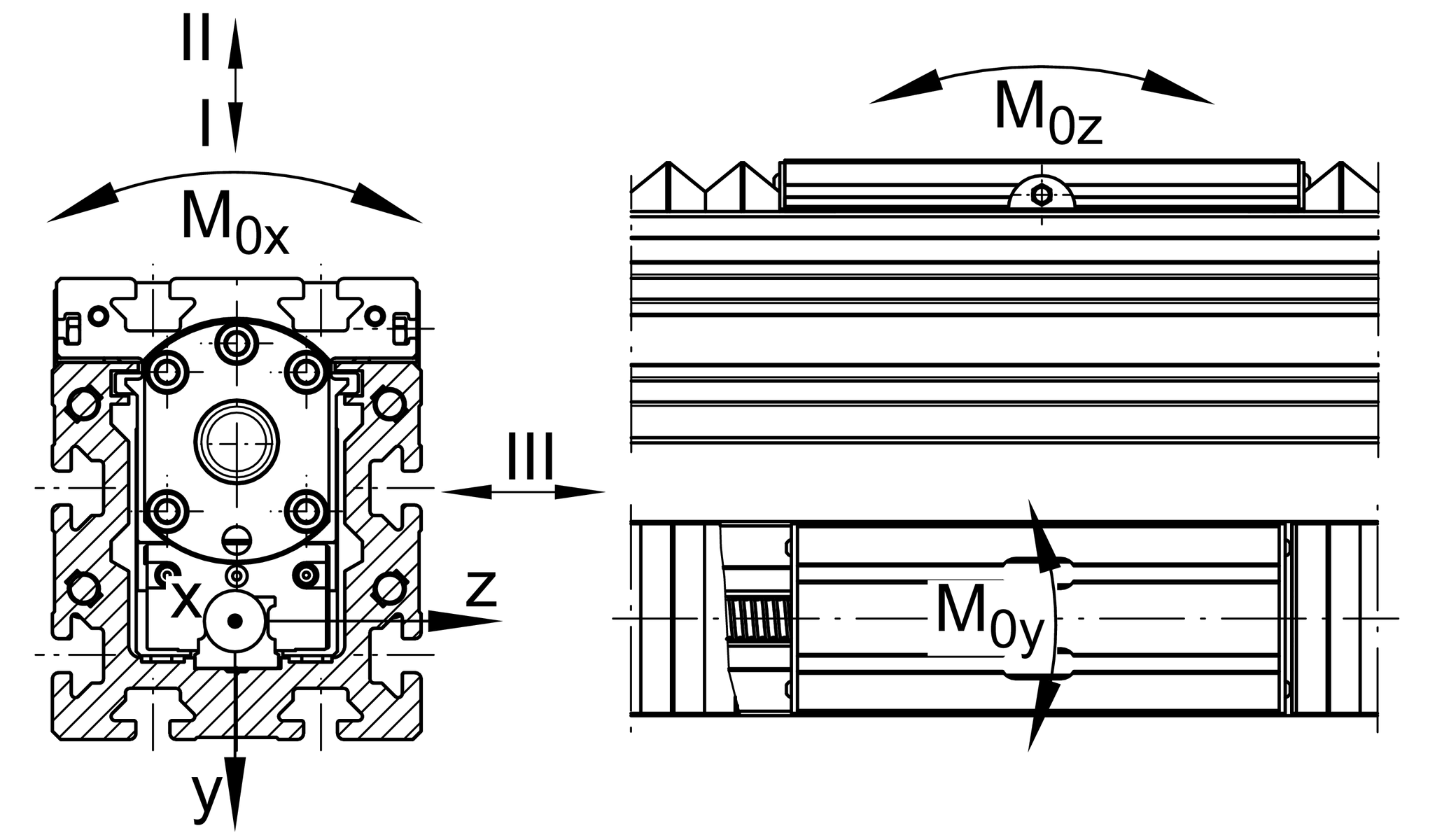

| IC | 11,700 N | Load direction I: compressive load |
| I C0 | 29,000 N | Load direction I: compressive load |
| II C | 11,700 N | Load direction II: tensile load |
| II C0 | 29,000 N | Load direction II: tensile load |
| III C | 11,700 N | Load direction III: lateral load |
| III C0 | 29,000 N | Load direction III: lateral load |
| M0x per | 245 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 500 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 600 Nm | Max. permissible static moment per Carriage 1 |
| ly | 96 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 77 cm4 | Geometrical moments of inertia of Support Rail |
| Ca MU | 4,800 N | Load capacity spindle nut dyn 2 |
| C0a MU | 11,000 N | Load capacity spindle nut stat 2 |
| Ca L | 16,900 N | Load capacity fixed Spindle bearing dyn |
| C0a L | 24,700 N | Load capacity fixed Spindle bearing stat |
| d0 | 16 mm | Spindle Diameter |
| P | 50 mm | Spindle Pitch |
| ls | 0.335 kg*cm2 | 質量慣性矩 of threaded Spindle |
附加資訊
ZKLN1242-2RS-PE | Rolling Bearings | |
F | Drive System | |
2 x KWVE15-B-S | Carriage |
您目前的產品型號
| Size code | 15 | |
| Drive type | KGT | Ball screw drive |
| Spindle pitch | 50 | 50 mm |
| Spindle support | / | none |
| Additional carriage | / | No additional carriage |
| Attachment to the carriage | N | T-Slots |
