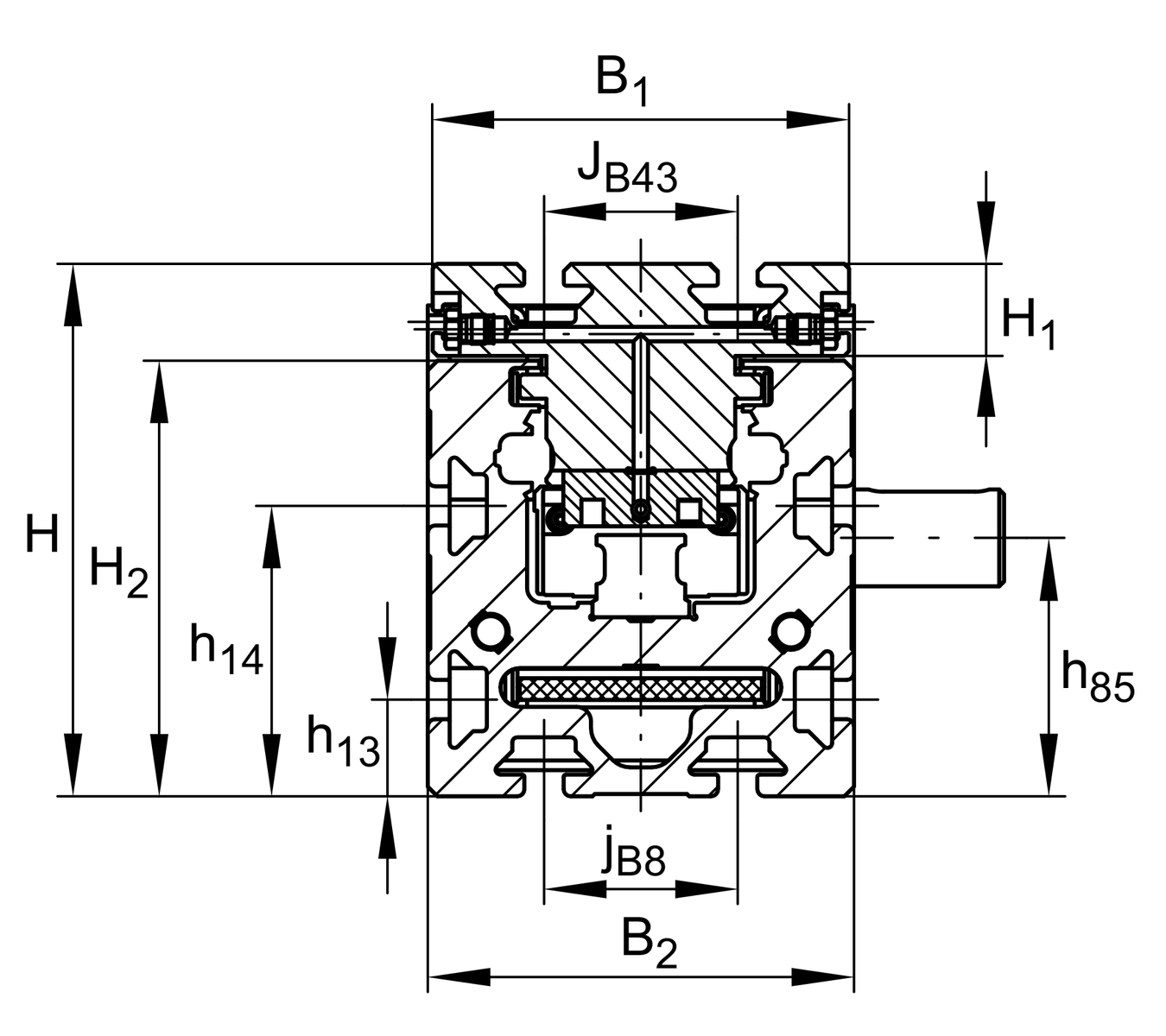

主要尺寸與性能資料
| B2 | 88 mm | Total Width |
| H | 110 mm | Total Height |
| L | 250 mm | Length of Carriage |

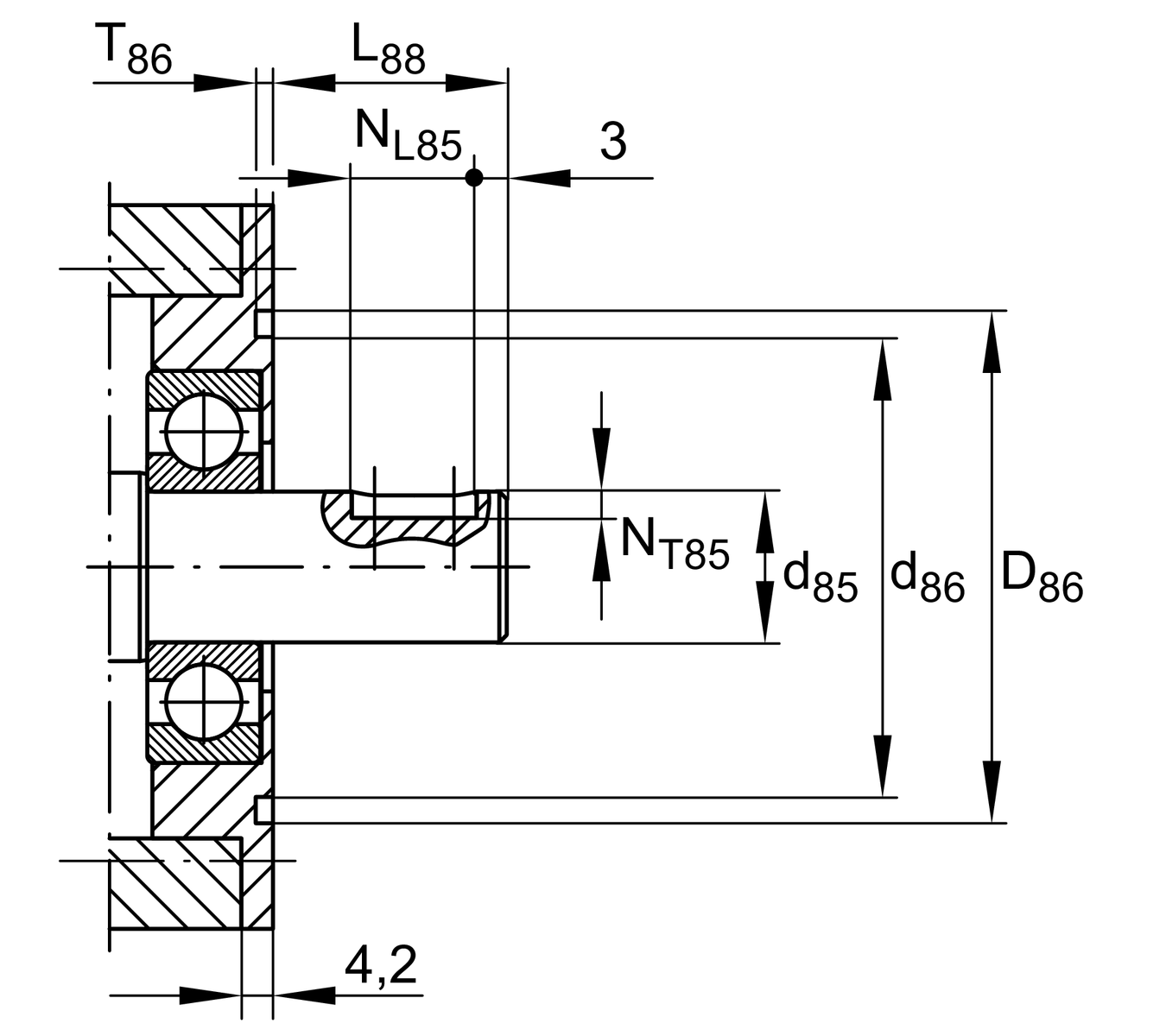

安裝尺寸
| B1 | 86 mm | Width of Carriage |
| D86 | 68 mm | |
| Tol D86 | G7 | Tolerance |
| D87 | 110 mm | |
| d85 | 20 mm | Tolerance h7 |
| d86 | 61 mm | |

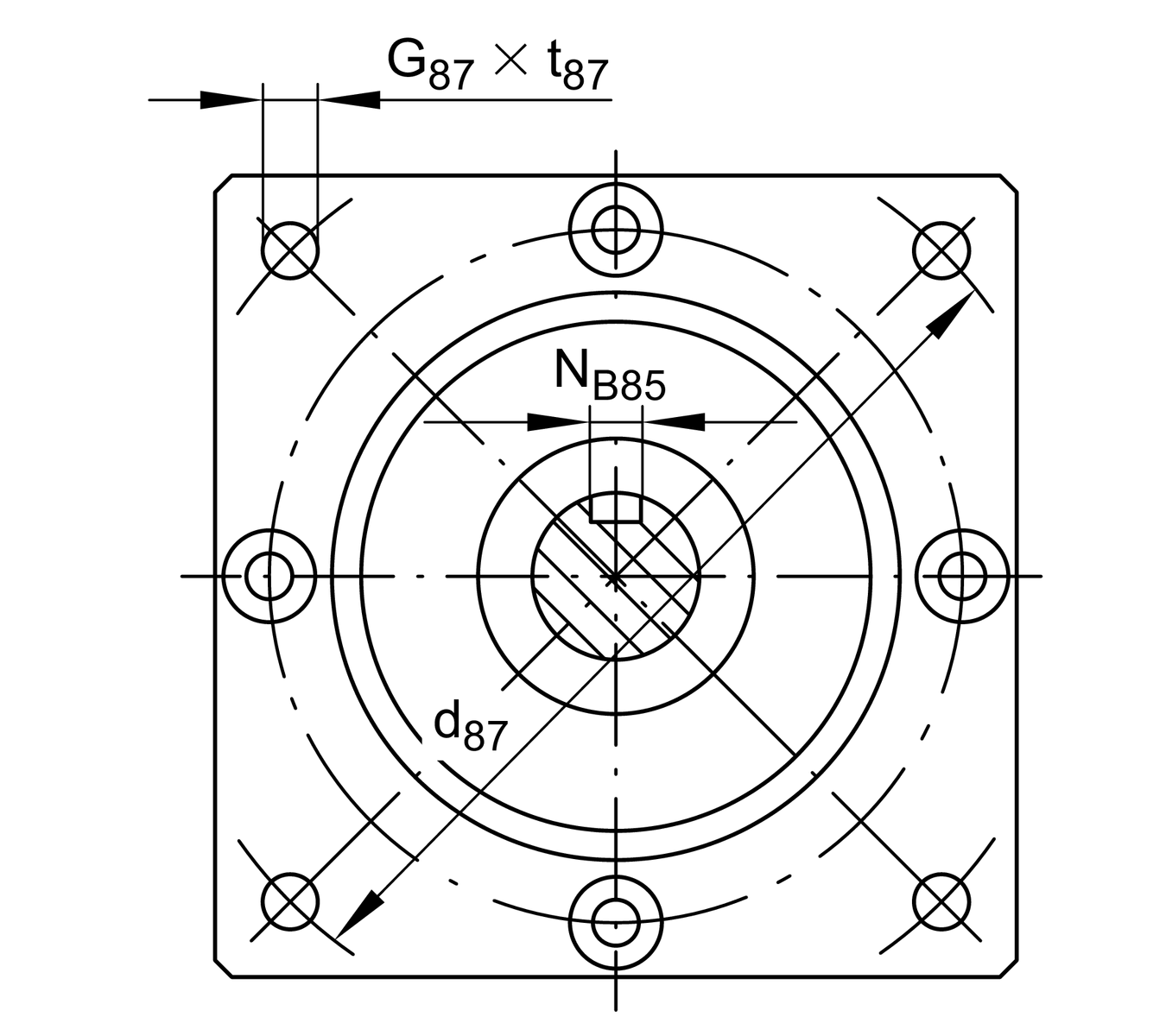

| G87 | M6 | |
| h13 | 20 mm | |
| h14 | 60 mm | |
| h18 | 10 mm | |
| JB43 | 40 mm | |
| jB8 | 40 mm | |
| L2 max | 24,000 mm | Maximum length of Support Rail |
| L88 | 31 mm | |
| NB85 | 6 mm | Tolerance P9 |
| NL85 | 25 mm | Length of Keyway |
| NT85 | 3.5 mm | Depth of Keyway |
| S41 | 10 mm | |
| t87 max | 24 mm | Depth of Thread |
尺寸

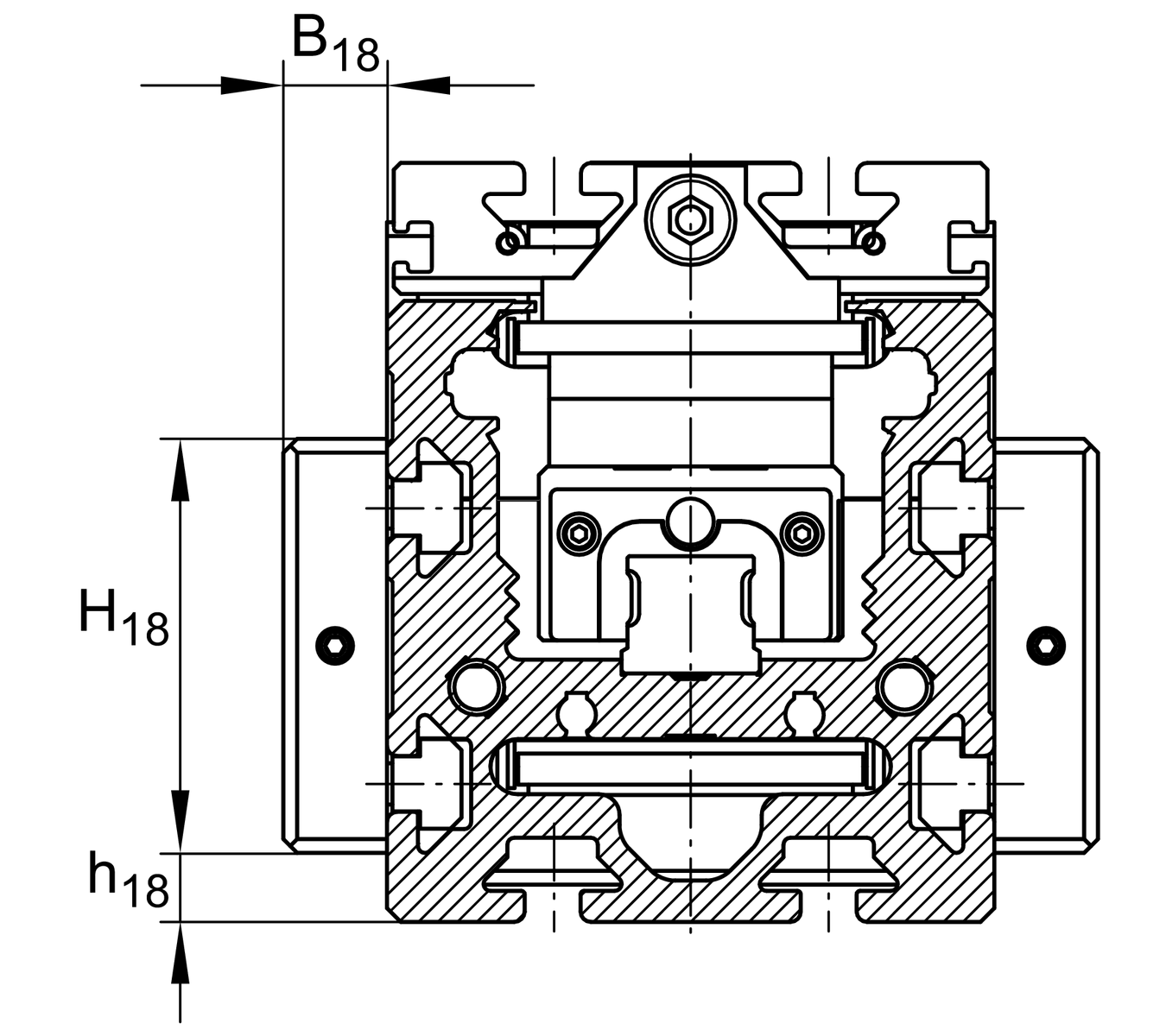

| B18 | 15 mm | |
| H1 | 19 mm | Height of Carriage |
| H2 | 90 mm | Height of Support Rail |

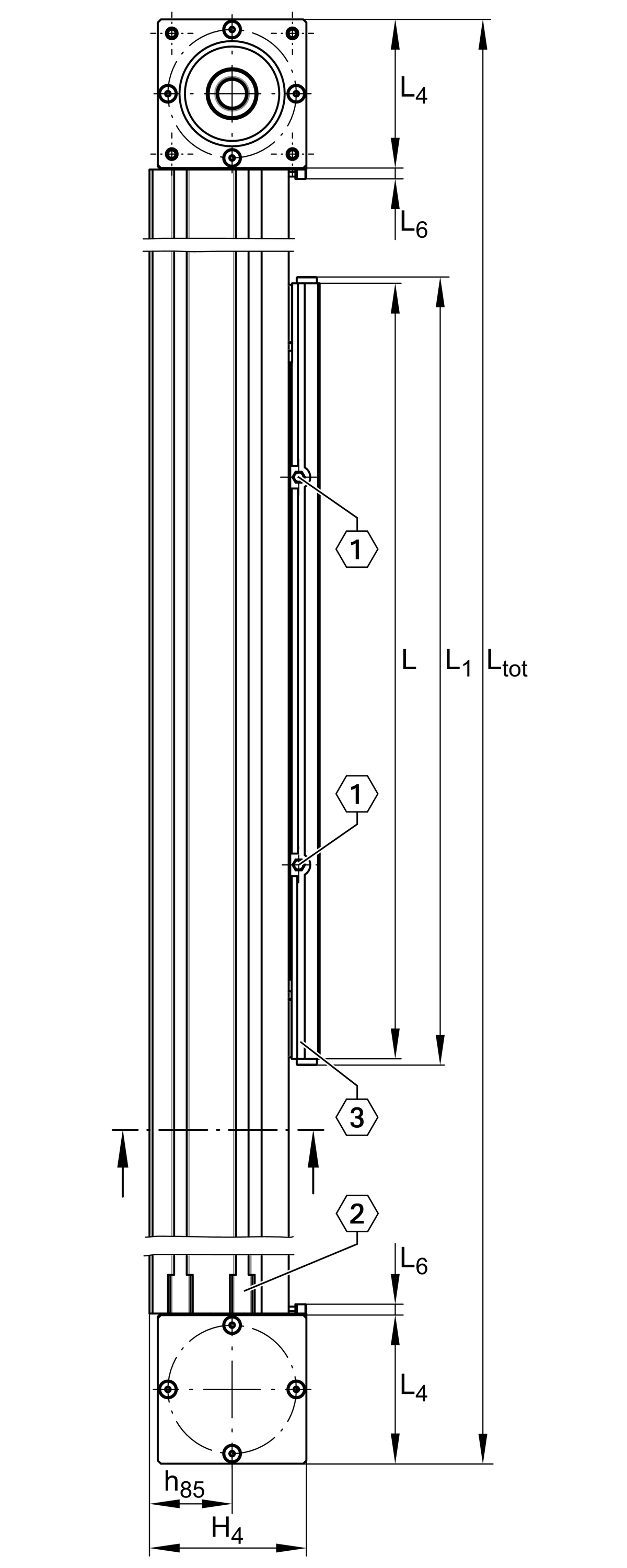

| H4 | 101.4 mm | Height of Return Unit |
| H18 | 60 mm | |
| h85 | 53.4 mm | |
| L1 | 260 mm | |
| L4 | 97 mm | Length of Return Unit |
| L6 | 6 mm | Length of Wiper Brushes |

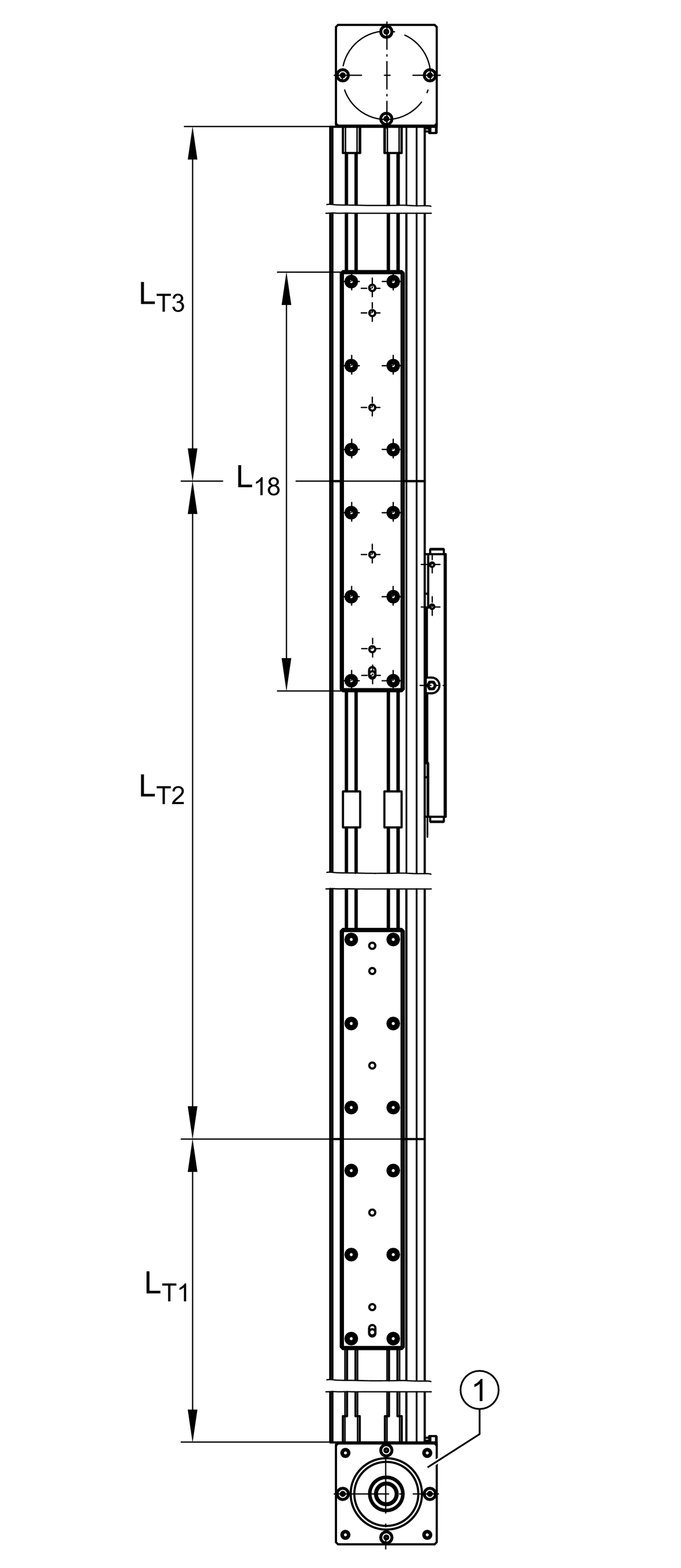

| L18 | 400 mm | |

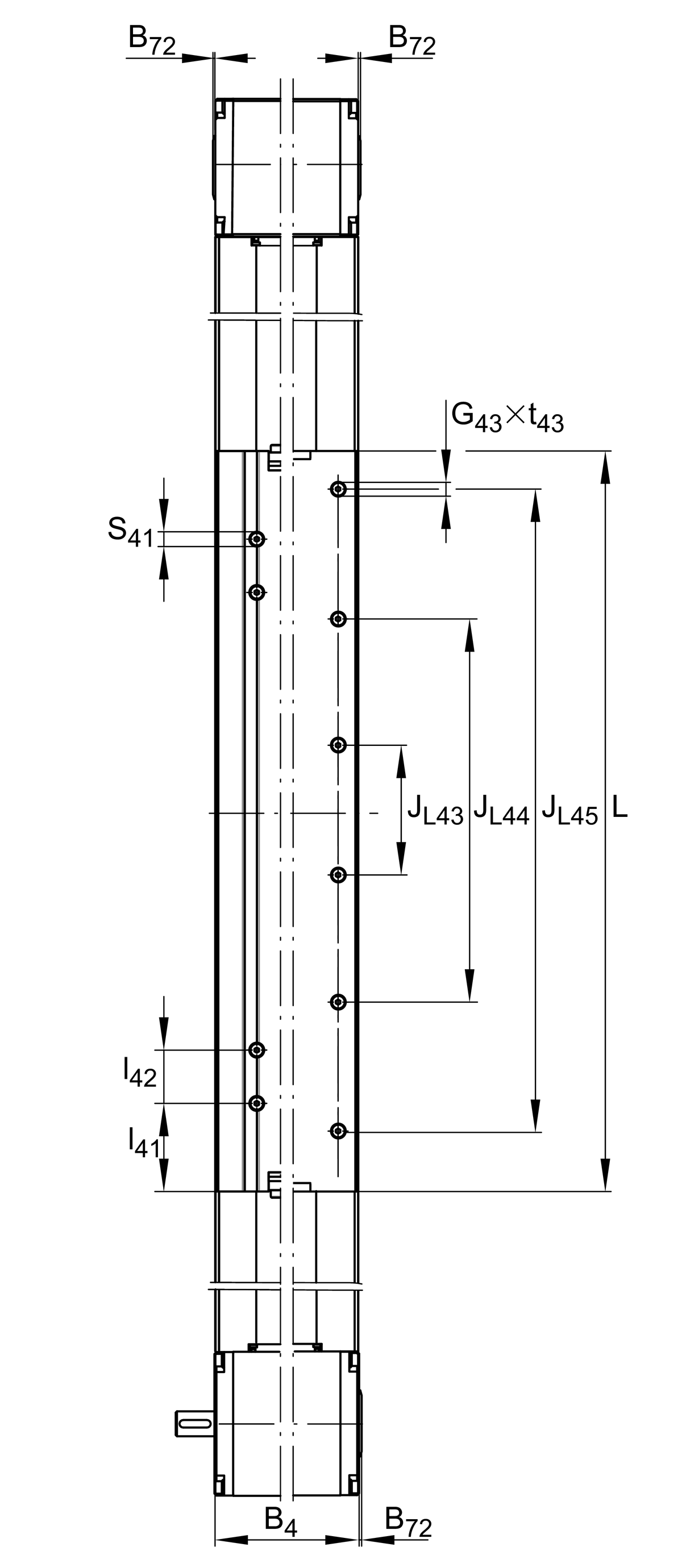

| l41 | 59.5 mm | |
| l42 | 36 mm | |

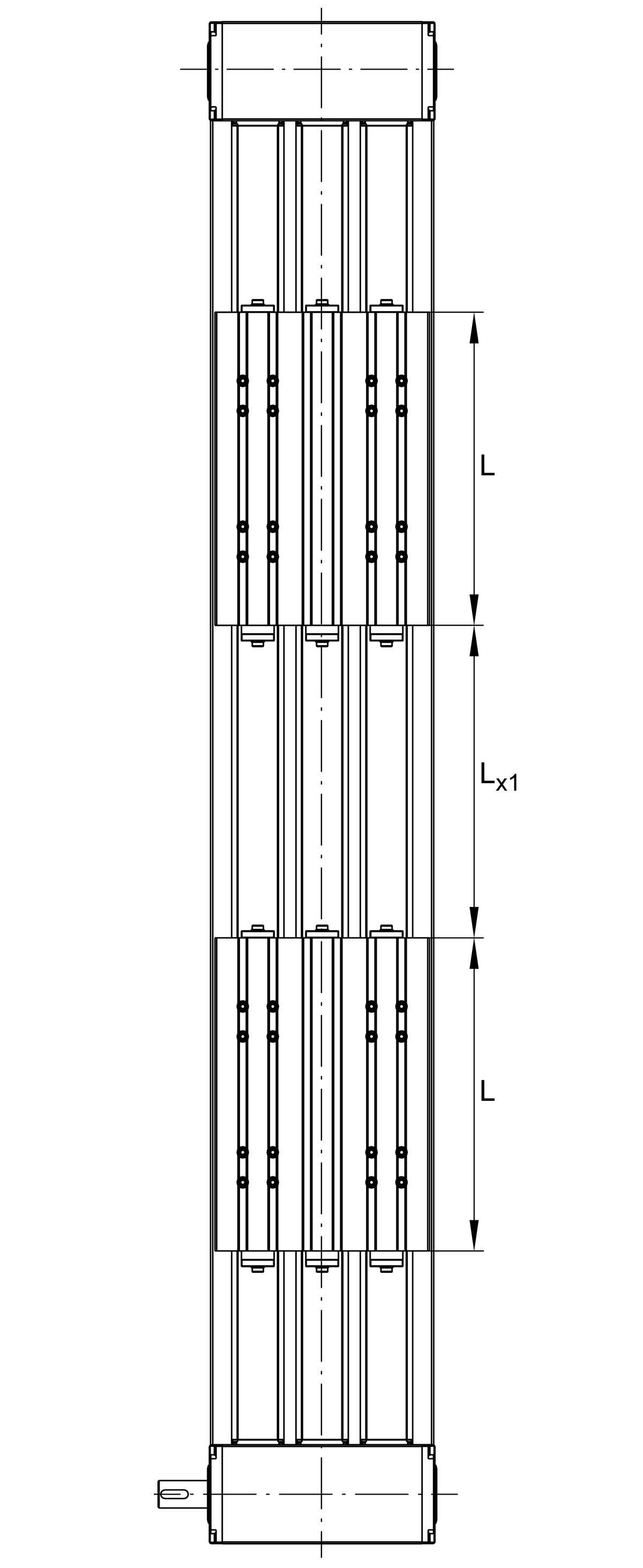

| Lx1 min | 50 mm | |
| B4 | 89 mm | Width of Return Unit |
| T86 | 2.3 mm | |
| Tol T86 | 0 mm | 較低的公差 |
| Tol T86 | 0.3 mm | 公差上限 |
科技數據

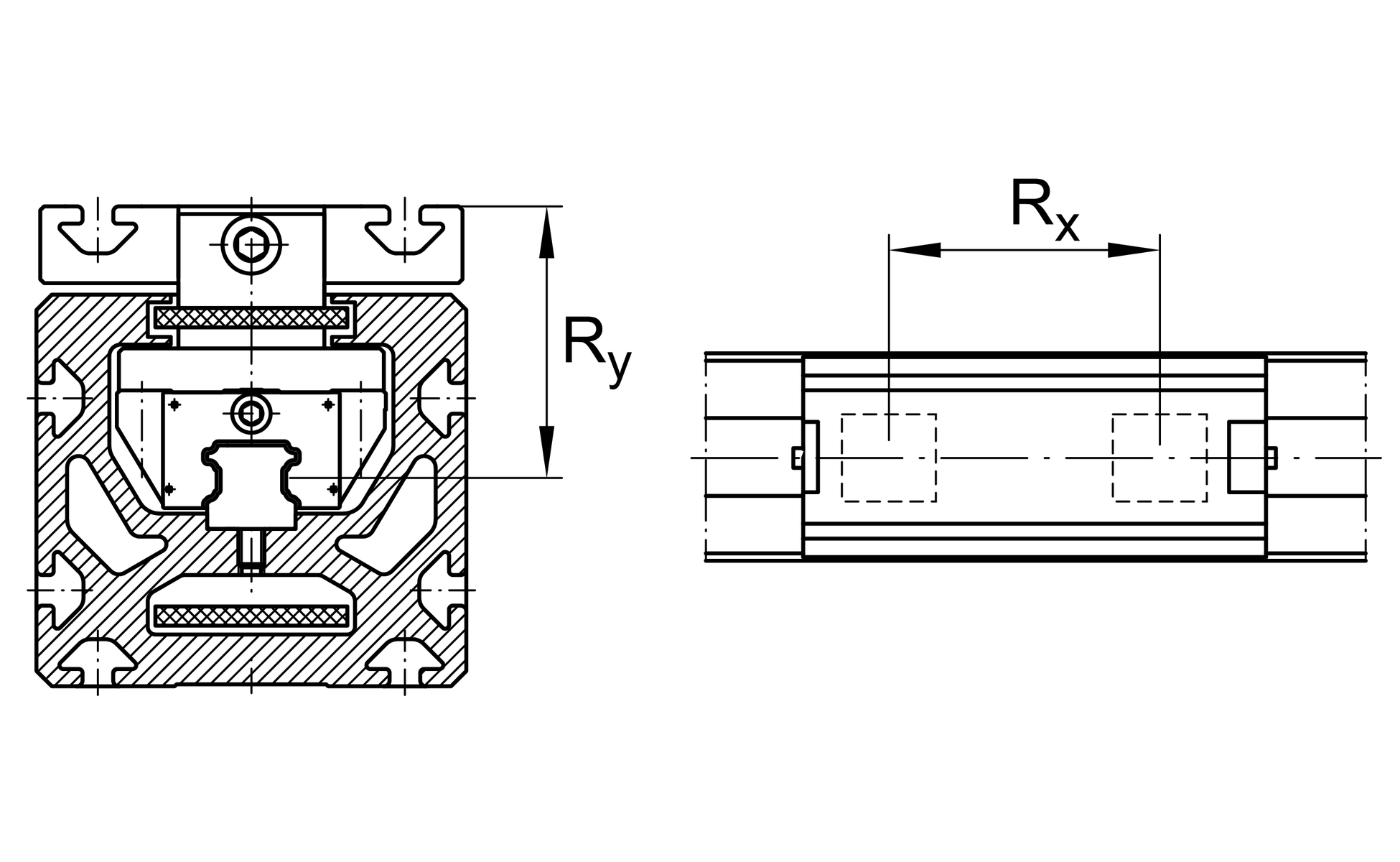

| Rx | 95 mm | |
| Ry | 63 mm | |
| S | 85 mm | Safety Distance |
| mLAW | 2.5 kg | |
| m3 | 2.5 kg | Mass of additional Carriage |
| vmax | 5 m/s | Maximum Speed |
| amax | 30 m/s2 | Maximum Acceleration |

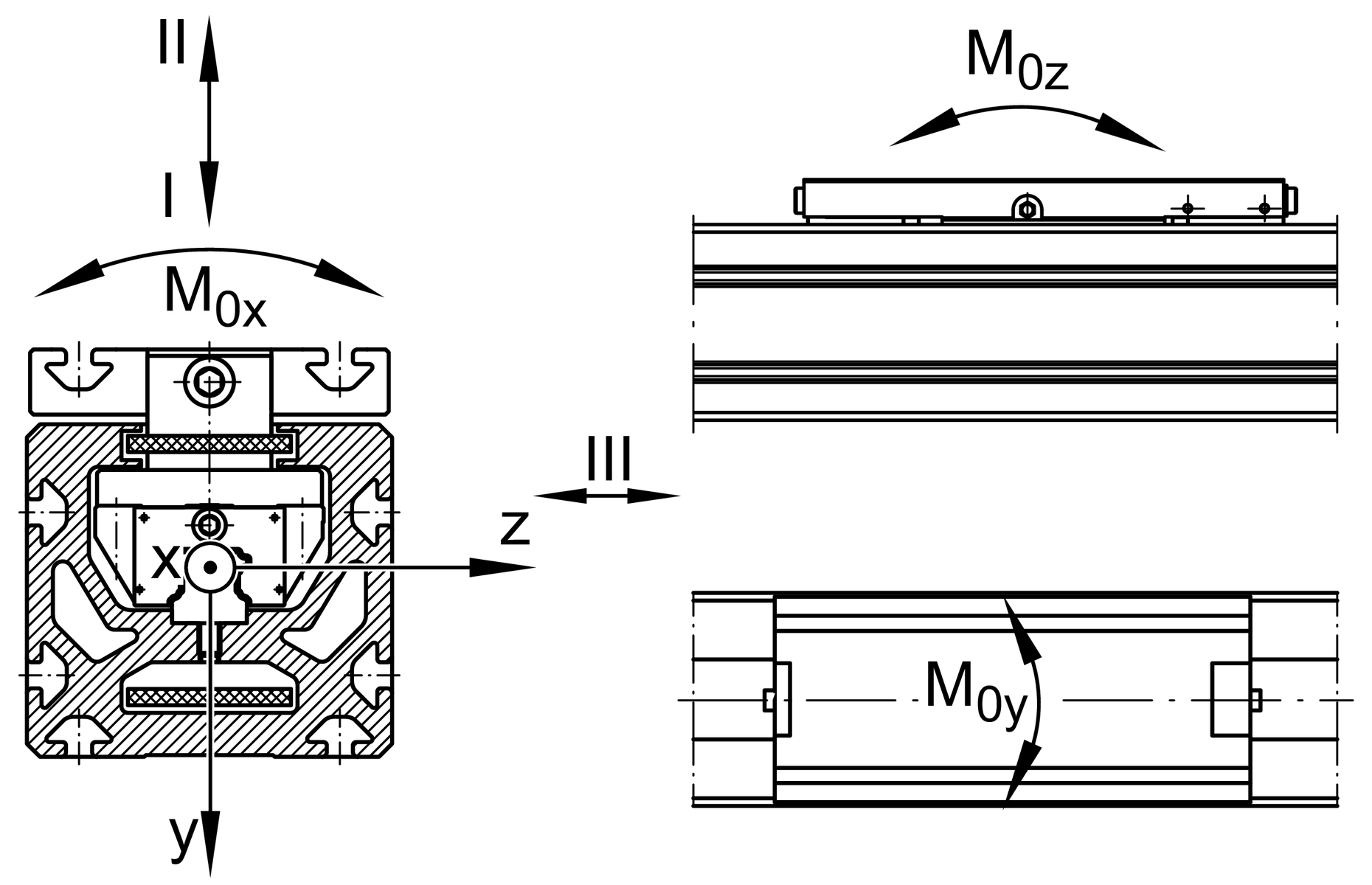

| I C | 21,300 N | Load direction I: compressive load |
| I C0 | 54,000 N | Load direction I: compressive load |
| II C | 21,300 N | Load direction II: tensile load |
| II C0 | 54,000 N | Load direction II: tensile load |
| III C | 21,300 N | Load direction III: lateral load |
| III C0 | 54,000 N | Load direction III: lateral load |
| M0x per | 664 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 1,150 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 1,400 Nm | Max. permissible static moment per Carriage 1 |
| Iy | 300 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 198 cm4 | Geometrical moments of inertia of Support Rail |
附加資訊
68.8 Nm | Max. permissible drive torque | |
2xKWVE20-B-SN | Carriage | |
0.1 mm | Repeat Accurancy ± | |
200 mm | Feed (mm/rotation) | |
50BATK10 | Toothed Belt | |
0.29 kg/m | Mass of Toothed Belt | |
1,880 N | Permissible Toothed Belt operating force | |
5 kg*cm2 | 質量慣性矩 of Gears |
溫度範圍
| max | 80 °C | Maximum operating Temperatur |
| min | 0 °C | Minimum operating Temperatur |
您目前的產品型號
| Size code | 20 | |
| Length of carriage | 250 | 250 mm |
| Design | LN | Low-Noise |
| Drive type | (3)ZR | Toothed belt drive |
| Additional carriage | W2 | Second, driven carriage |
| Attachment to the carriage | N | T-Slots |
| Support rail design | FA517.2 | Three-Piece |
