n.r.
160 | Length of carriage |
主要尺寸與性能資料

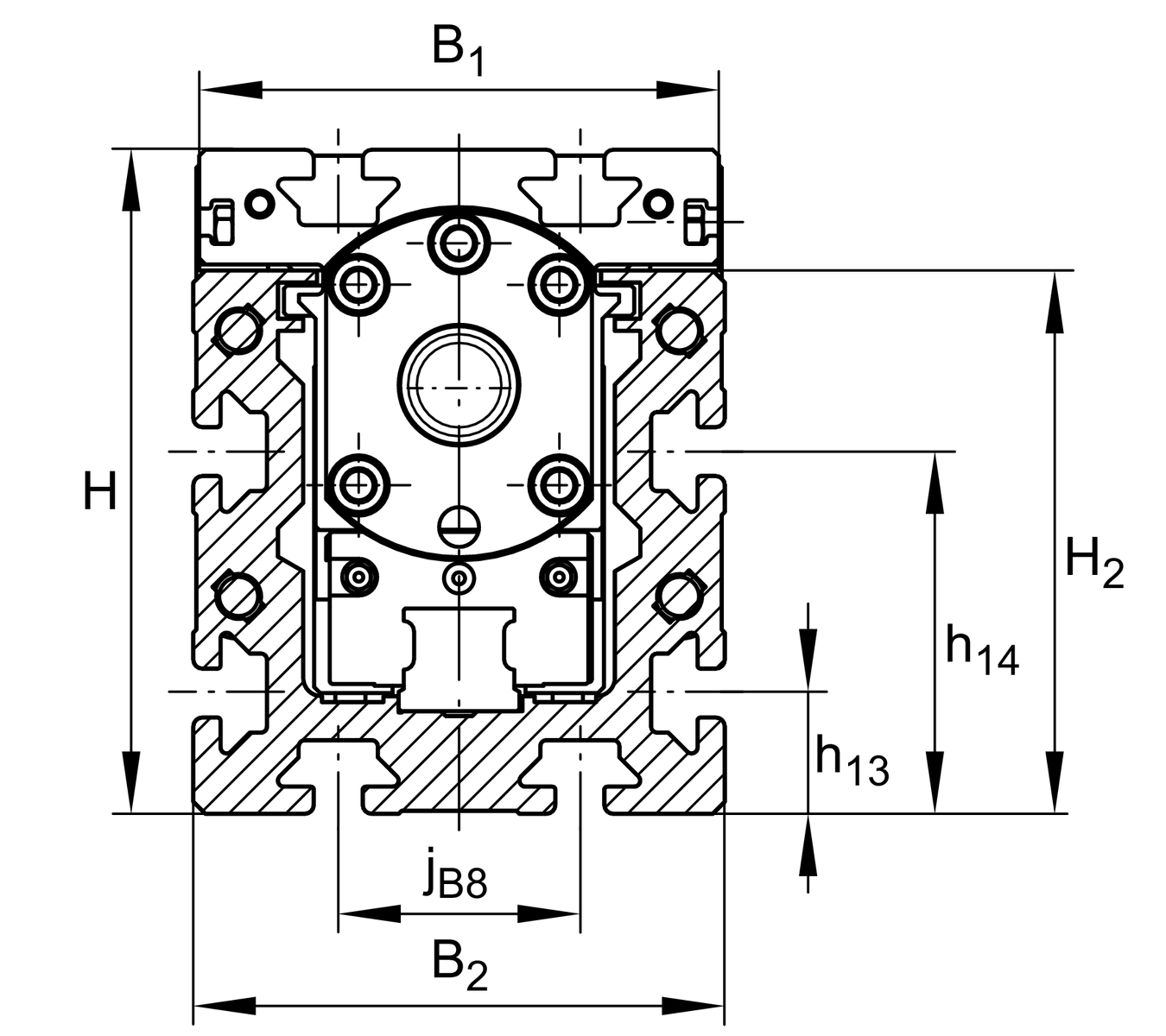

| L | 160 mm | Length of Carriage |
| H | 85 mm | Total Height |
| B2 | 65 mm | Total Width |
安裝尺寸
| B1 | 63 mm | Width of Carriage |
| h13 | 22 mm | |
| h14 | 44 mm | |
| JB43 | 30 mm | |
| jB8 | 40 mm | |
| L2 max | 5,850 mm | Maximum length of Support Rail |
| NB43 | 10 mm | |
| NL43 | 15 mm |

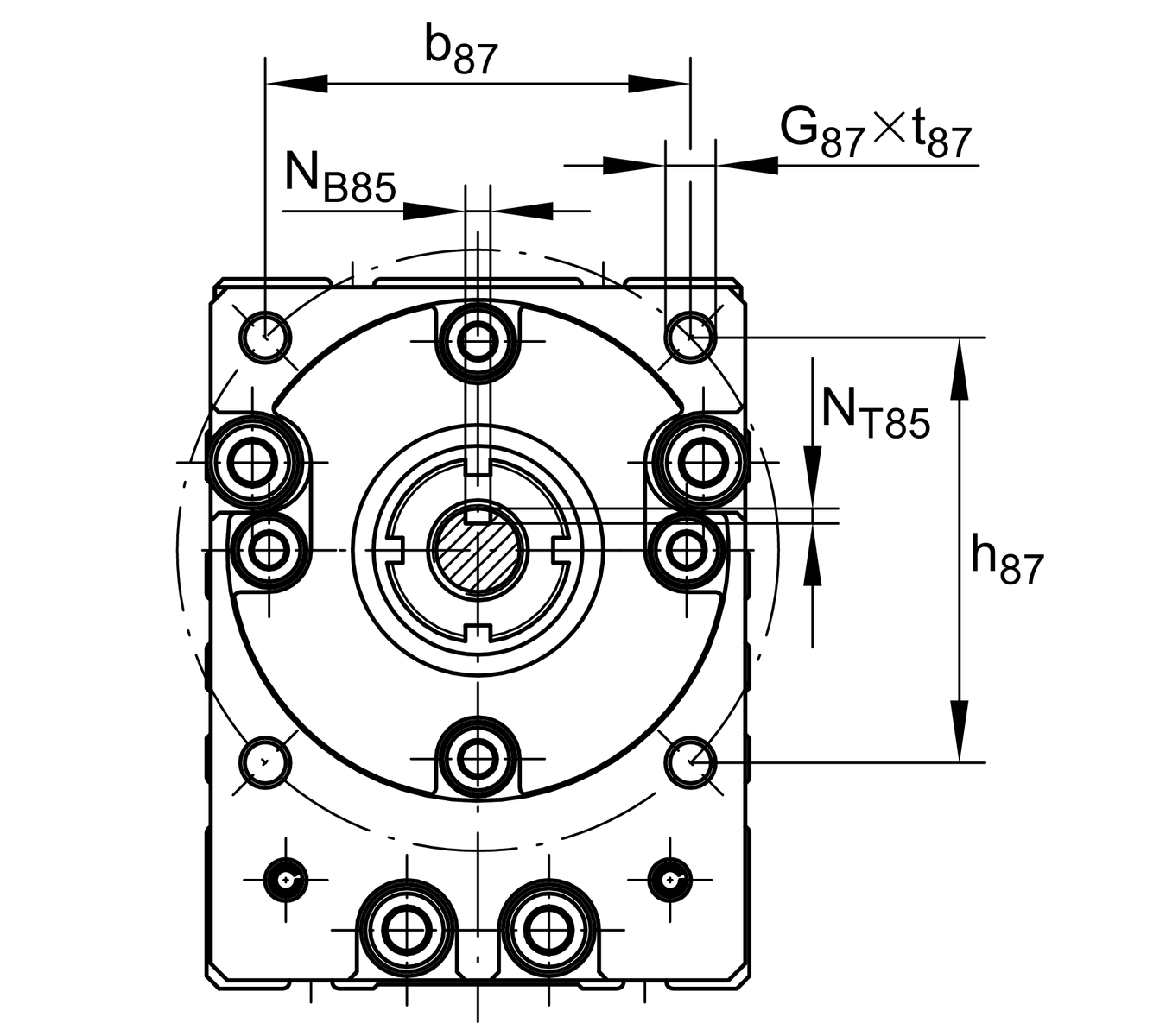

尺寸

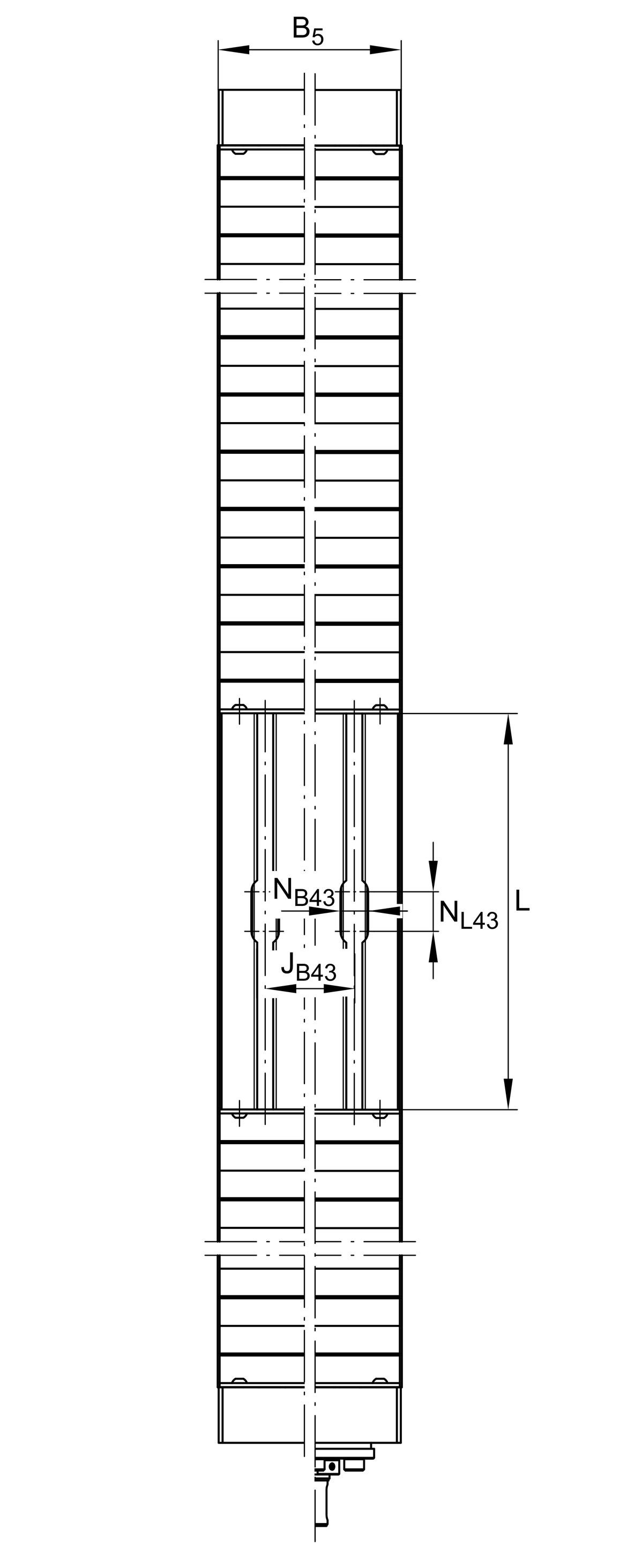

| B5 | 64 mm | Width of End Plates |
| FBL | 1.2 | Effective length factor of bellow |
| H2 | 68 mm | Width of Support Rail |

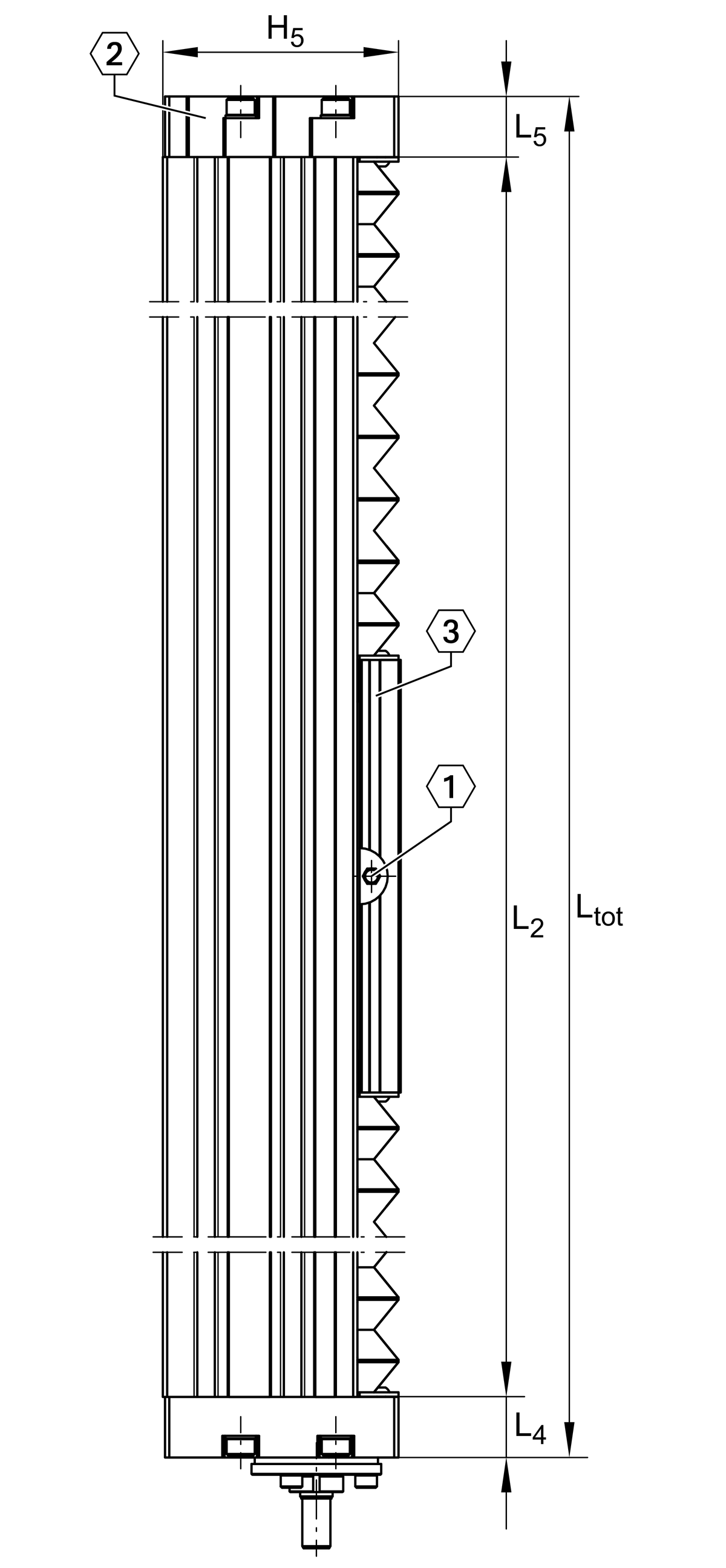

| H5 | 84 mm | |
| L4 | 25 mm | |
| L5 | 25 mm |
科技數據

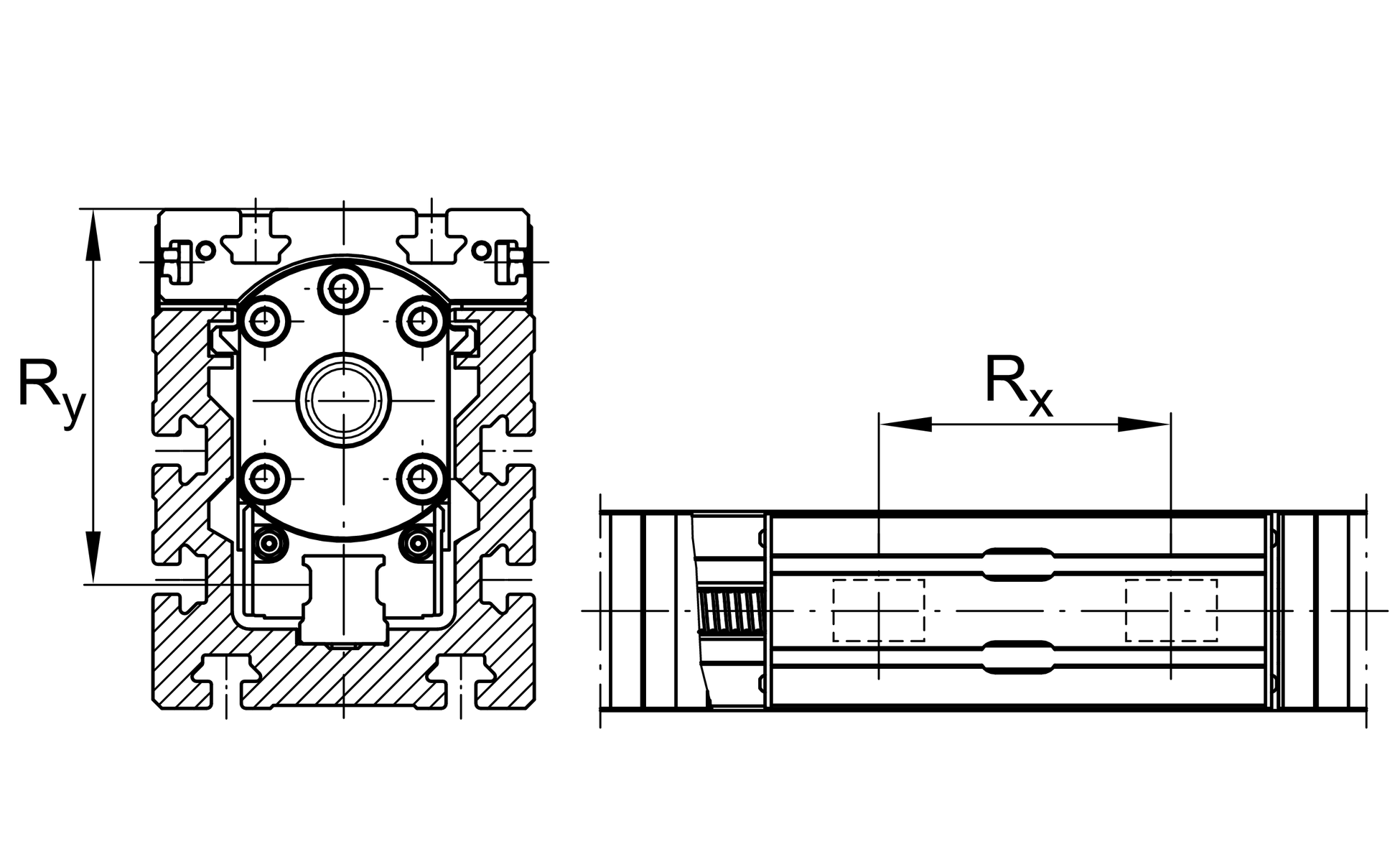

| Rx | 74.6 mm | |
| Ry | 64.9 mm | |
| S | 10 mm | Safety Distance |
| mLAW | 0.87 kg | Mass of Carriage |

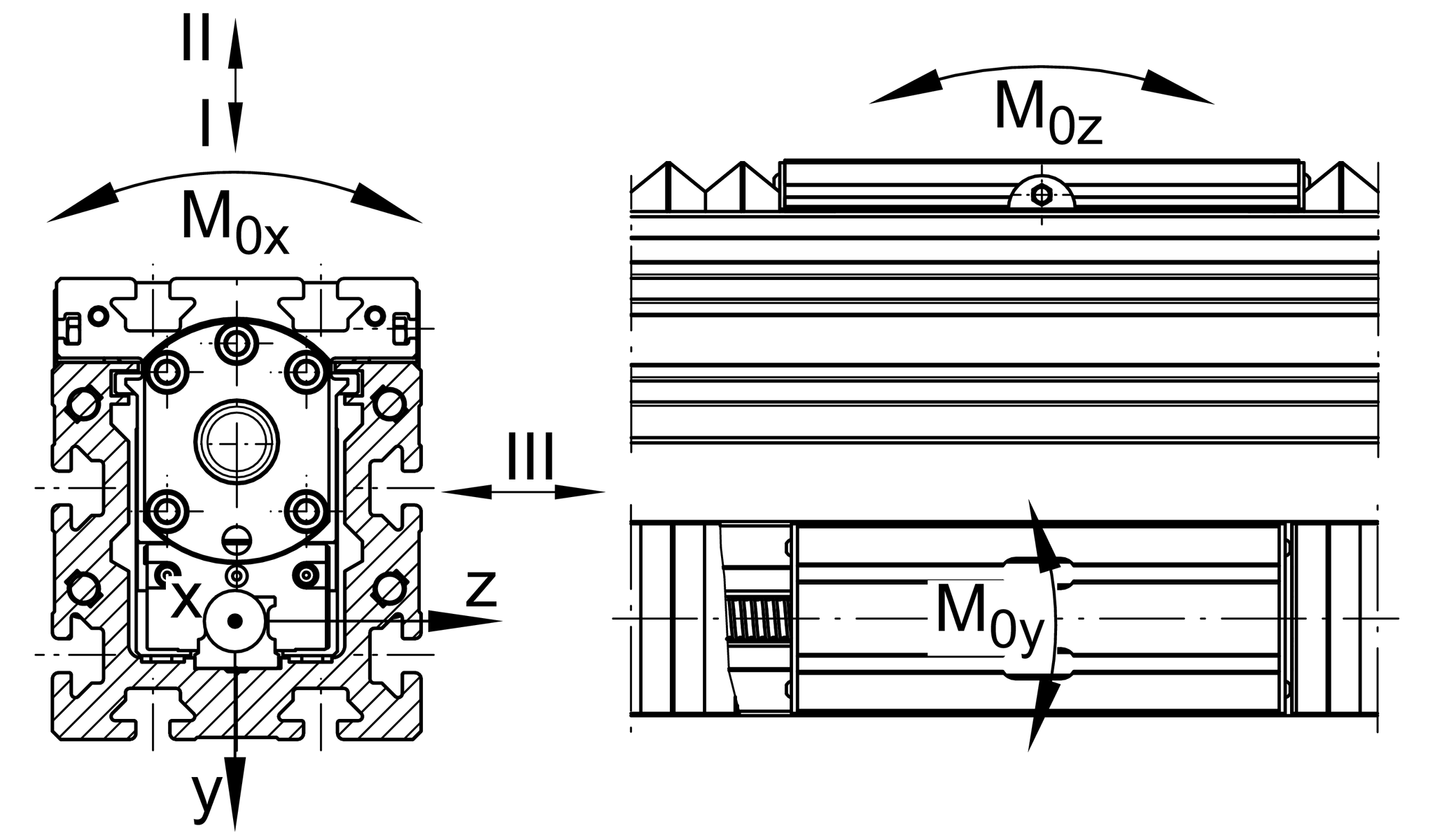

| IC | 11,700 N | Load direction I: compressive load |
| I C0 | 29,000 N | Load direction I: compressive load |
| II C | 11,700 N | Load direction II: tensile load |
| II C0 | 29,000 N | Load direction II: tensile load |
| III C | 11,700 N | Load direction III: lateral load |
| III C0 | 29,000 N | Load direction III: lateral load |
| M0x per | 245 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 500 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 600 Nm | Max. permissible static moment per Carriage 1 |
| ly | 96 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 77 cm4 | Geometrical moments of inertia of Support Rail |
附加資訊
2 x KWVE15-B-S | Carriage |
您目前的產品型號
| Size code | 15 | |
| Drive type | OA | 沒有 drive |
| Spindle support | / | none |
| Additional carriage | / | No additional carriage |
| Attachment to the carriage | N | T-Slots |
