n.r.
200 | Length of carriage |
主要尺寸與性能資料

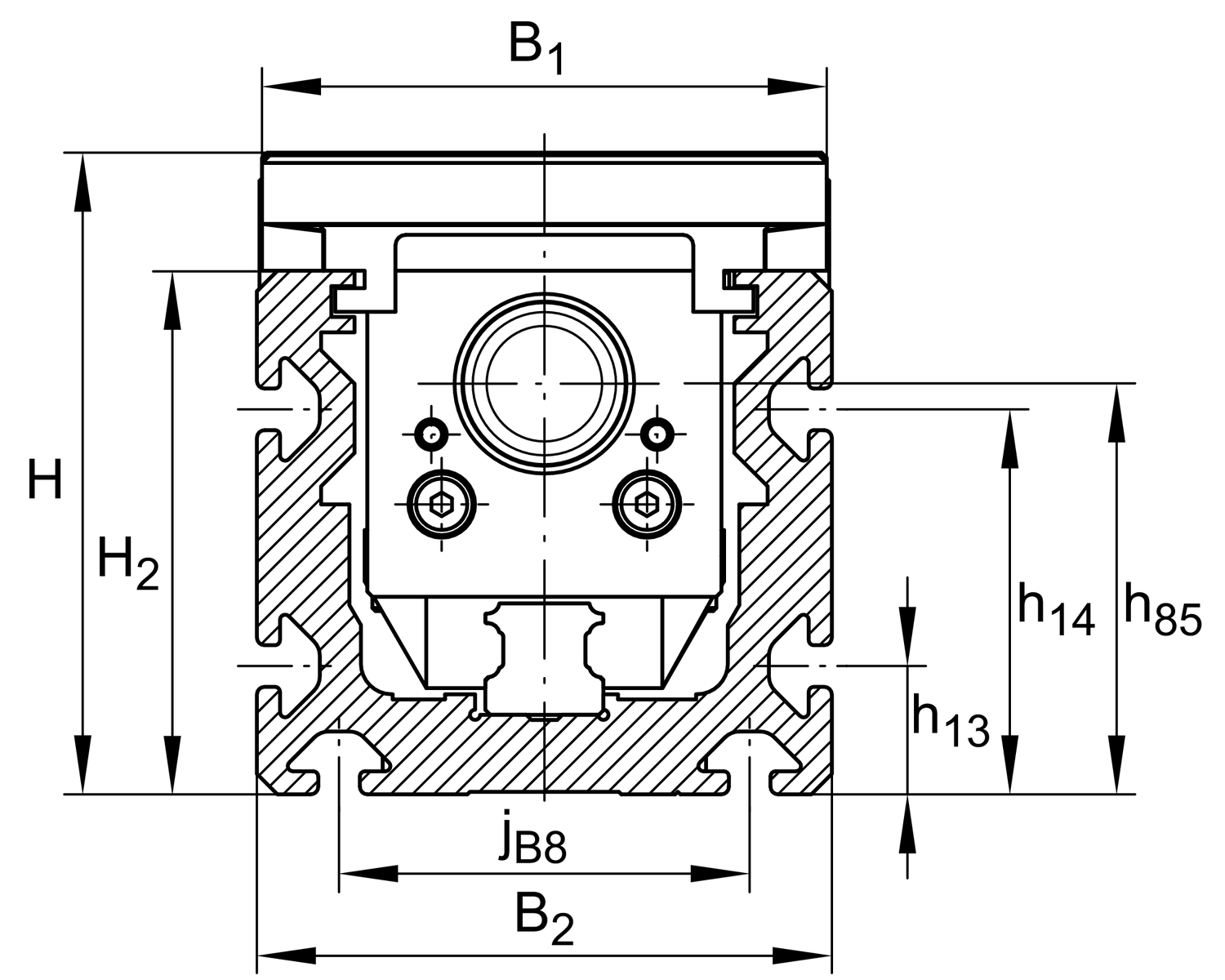

| L | 200 mm | Length of Carriage |
| H | 125 mm | Total Height |
| B2 | 112 mm | Total Width |

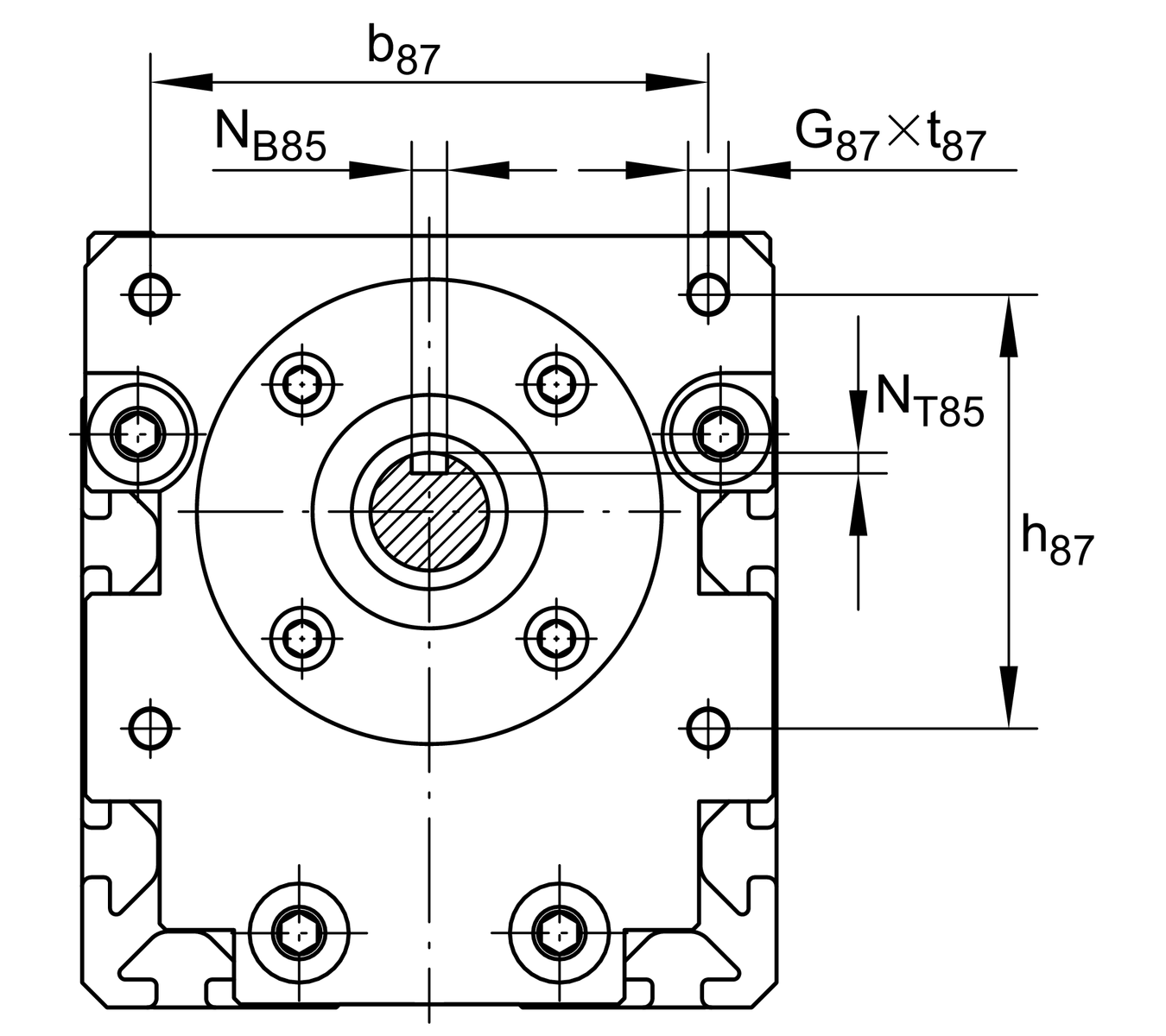

安裝尺寸
| B1 | 110 mm | Width of Carriage |

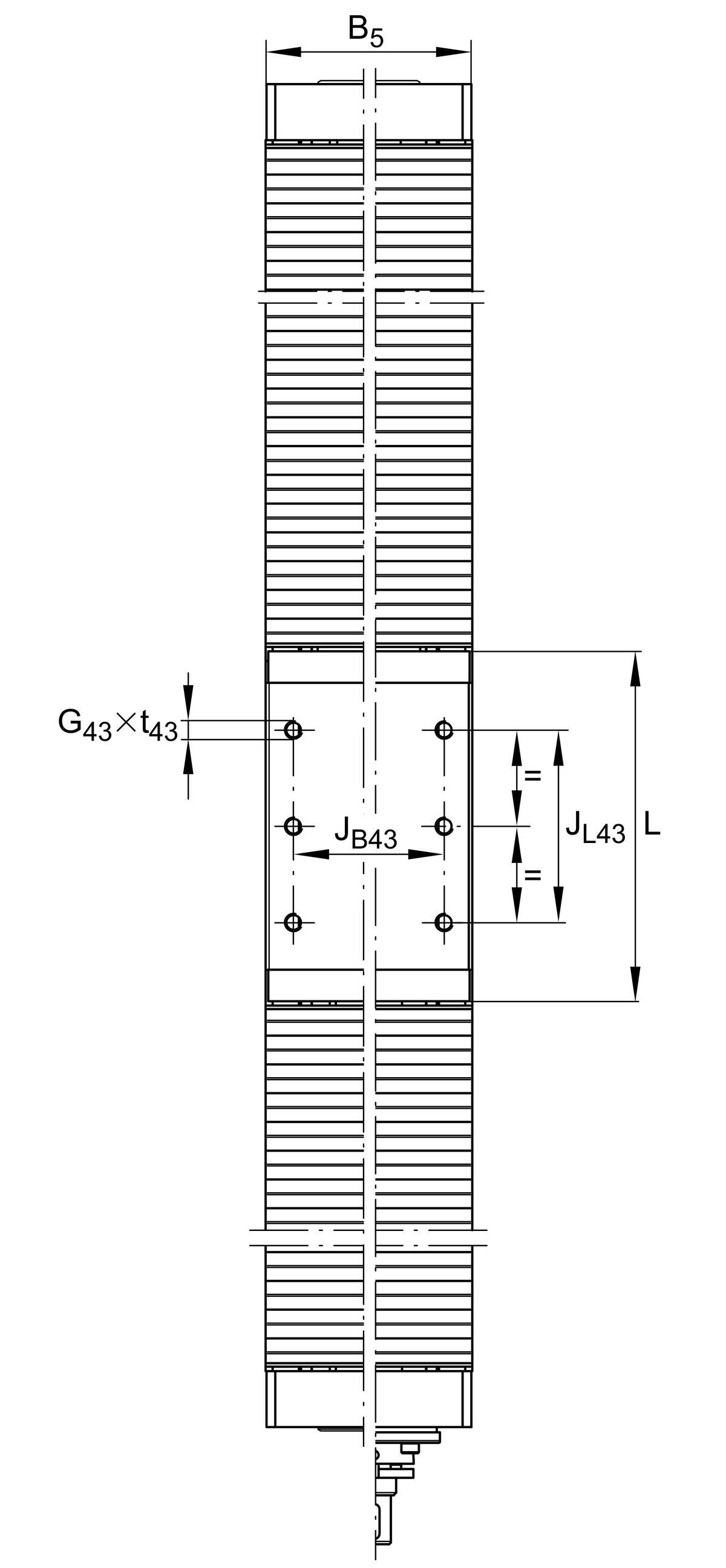

| G43 | M10 | 線 |
| h13 | 25 mm | |
| h14 | 75 mm | |
| JB43 | 80 mm | |
| Tol JB43 | 0.1 | 公差上限 |
| Tol JB43 | -0.1 | 較低的公差 |
| JL43 | 110 mm | Tolerance ±0,2 |
| jB8 | 80 mm | |
| L2 max | 5,850 mm | Maximum length of Support Rail |
| t43 | 20 mm | Depth of Thread |
尺寸
| B5 | 111 mm | Width of End Plates |
| FBL | 1.2 | Effective length factor of bellow |
| H2 | 102 mm | Width of Support Rail |

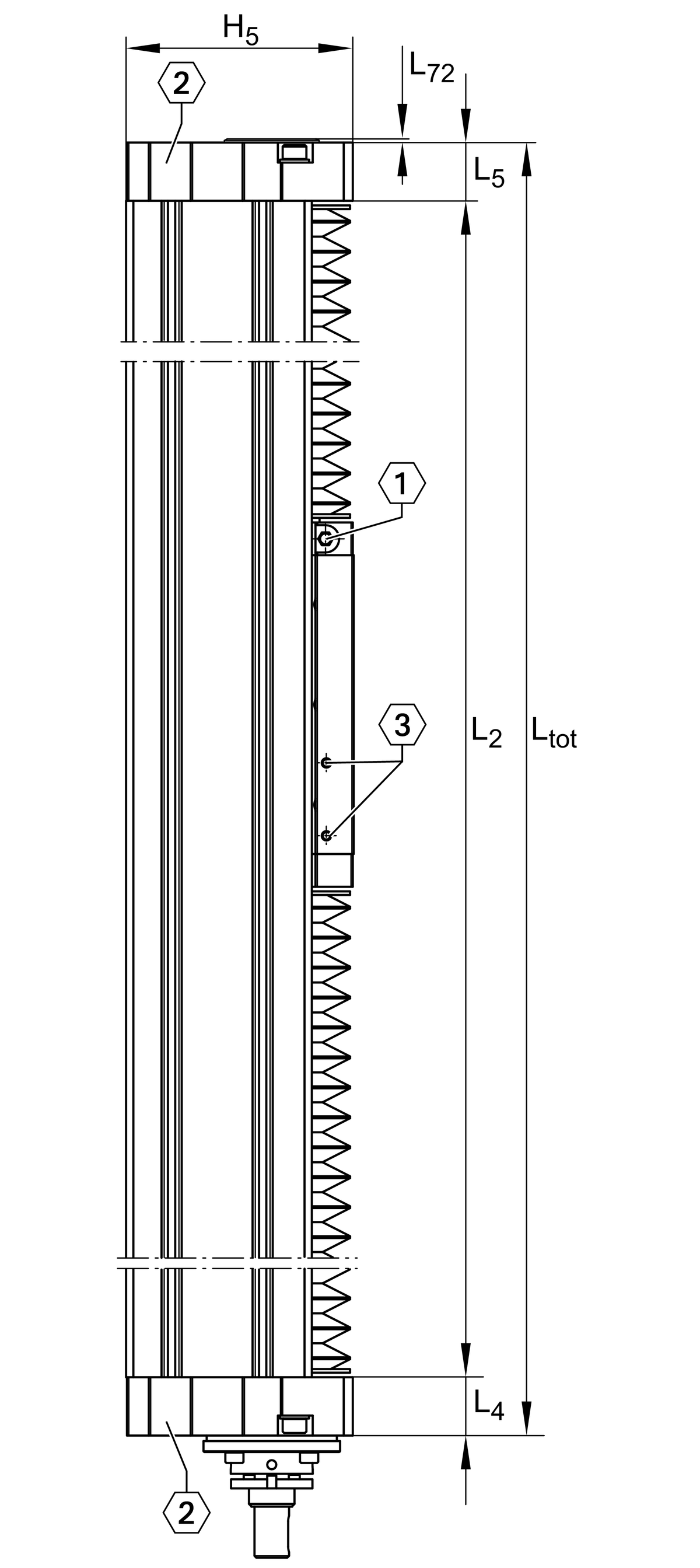

| H5 | 124.5 mm | |
| L4 | 32 mm | |
| L5 | 32 mm | |
| L72 | 2 mm | |
| Lx1 min | 20 mm | Minimum distance between the Carriages |
科技數據

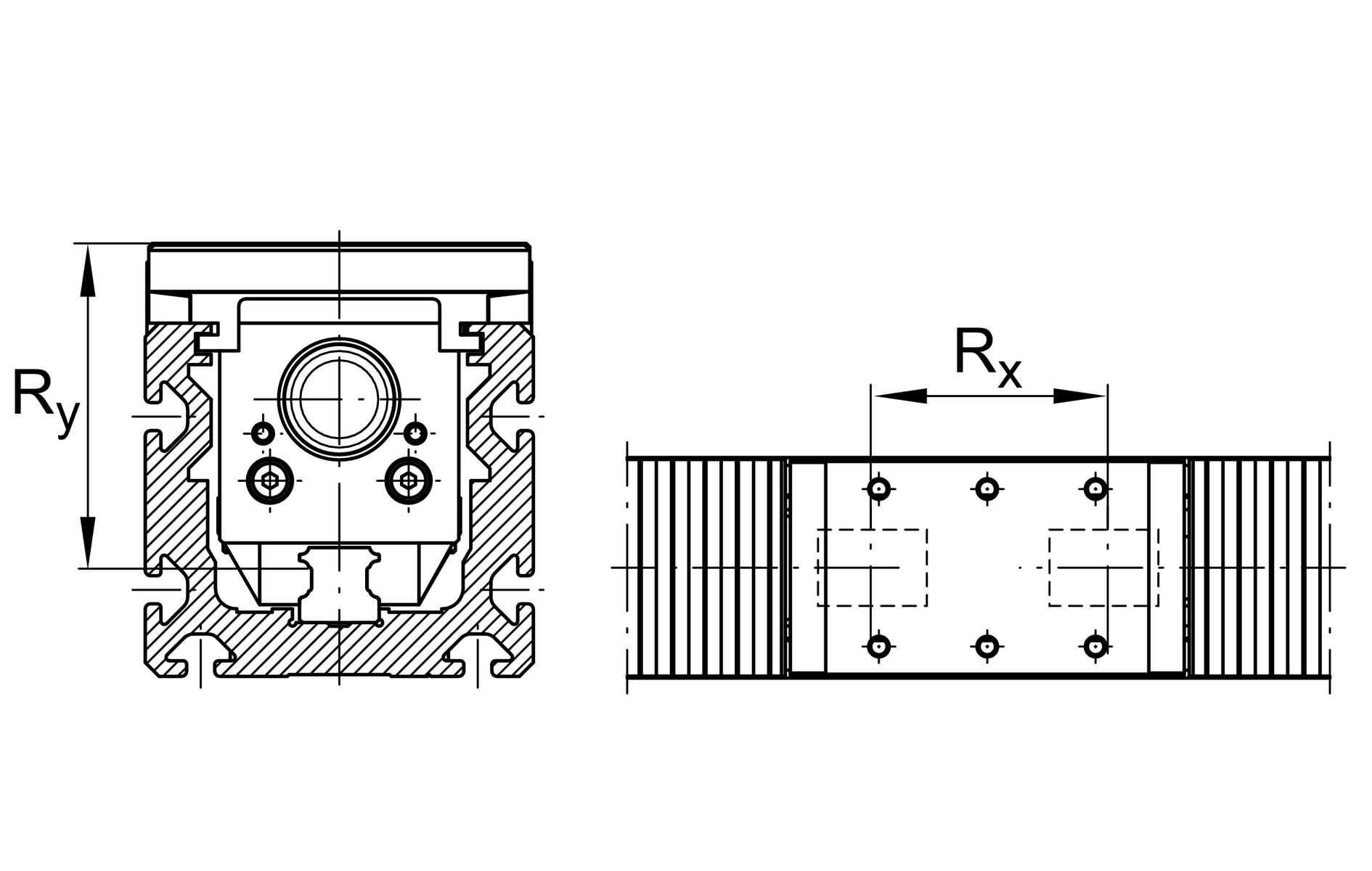

| Rx | 83.3 mm | |
| Ry | 93.8 mm | |
| S | 10 mm | Safety Distance |
| mLAW | 3.37 kg | Mass of Carriage |
| m3 | 3.37 kg | Mass of additional Carriage |

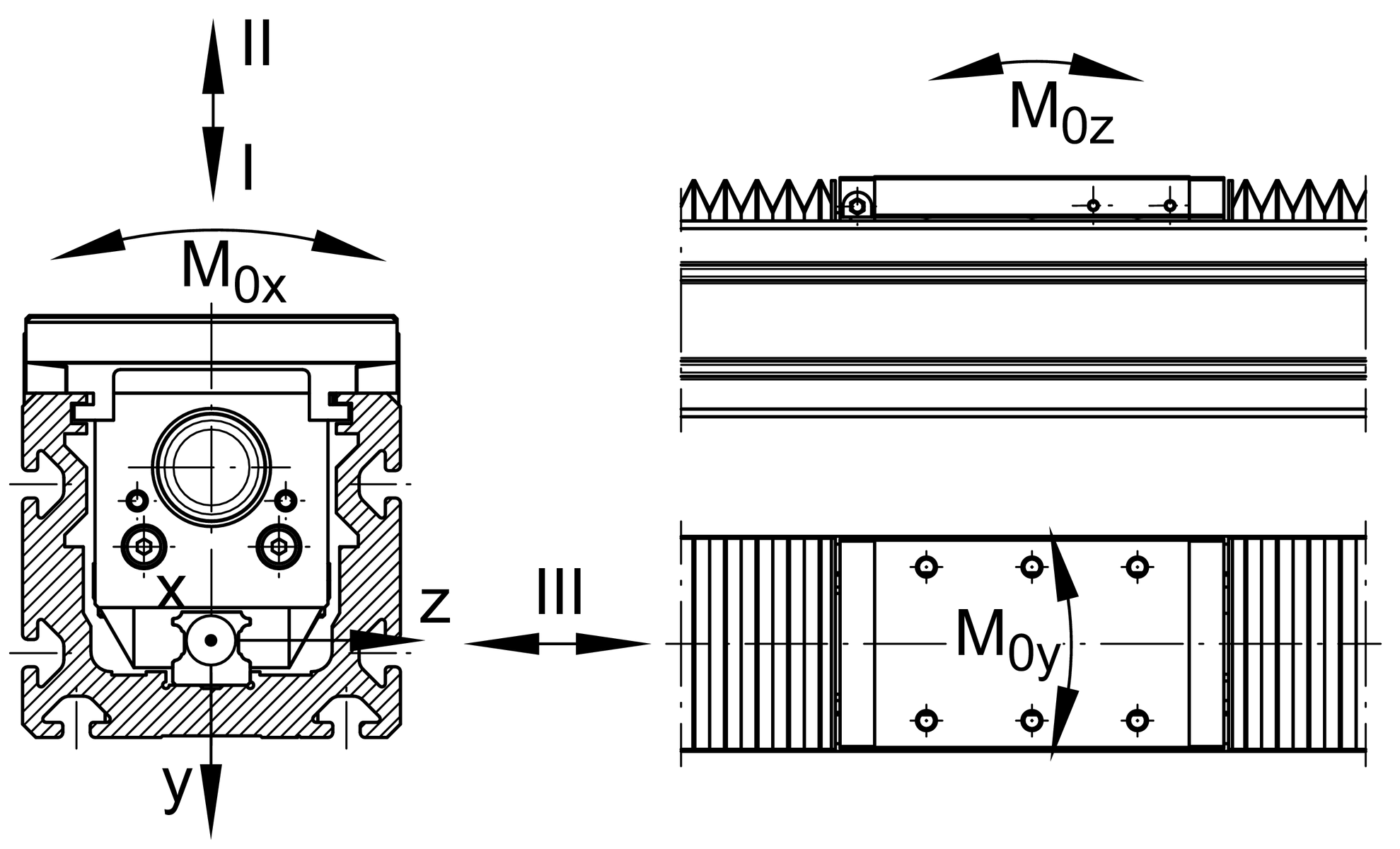

| IC | 61,700 N | Load direction I: compressive load |
| I C0 | 162,000 N | Load direction I: compressive load |
| II C | 42,200 N | Load direction II: tensile load |
| II C0 | 90,000 N | Load direction II: tensile load |
| III C | 45,400 N | Load direction III: lateral load |
| III C0 | 94,000 N | Load direction III: lateral load |
| M0x per | 1,350 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 1,850 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 2,000 Nm | Max. permissible static moment per Carriage 1 |
| ly | 670 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 384 cm4 | Geometrical moments of inertia of Support Rail |
| WN2 | Ja | Second, non-driven Carriage |
附加資訊
2xKWSE25 | Carriage |
您目前的產品型號
| Size code | 25 | |
| Drive type | OA | 沒有 drive |
| Spindle support | / | none |
| Additional carriage | WN2 | Second, non-driven carriage |
| Attachment to the carriage | / | Threaded holes |
