MKKUSE20-155-ZR-N

Linear actuator MKKUSE20-155-ZR-N

加入詢價

主要尺寸與性能資料

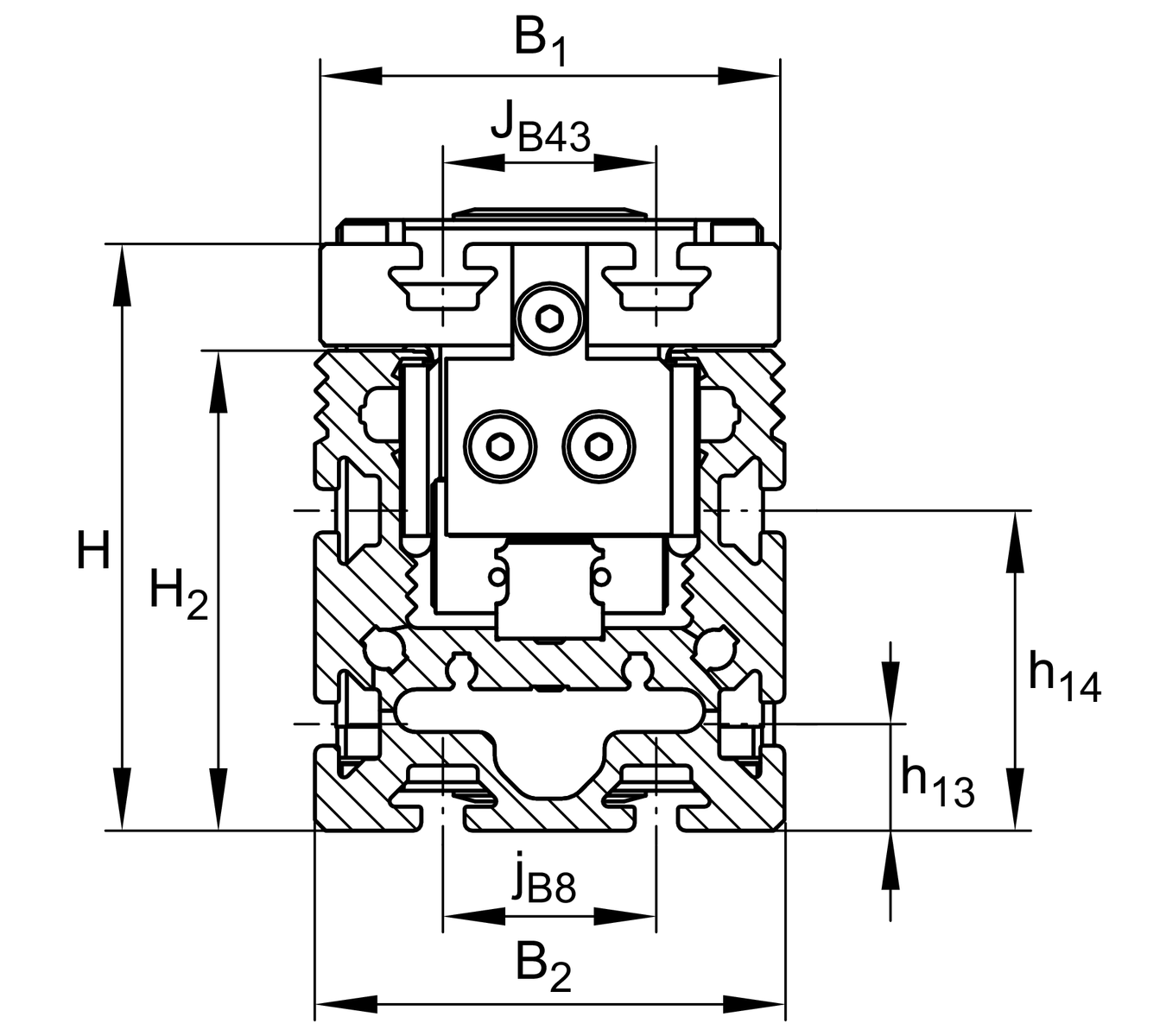

B₂	88 mm	Total Width
H	110 mm	Total Height
L	155 mm	Length of Carriage

安裝尺寸

B₁	86 mm	Width of Carriage

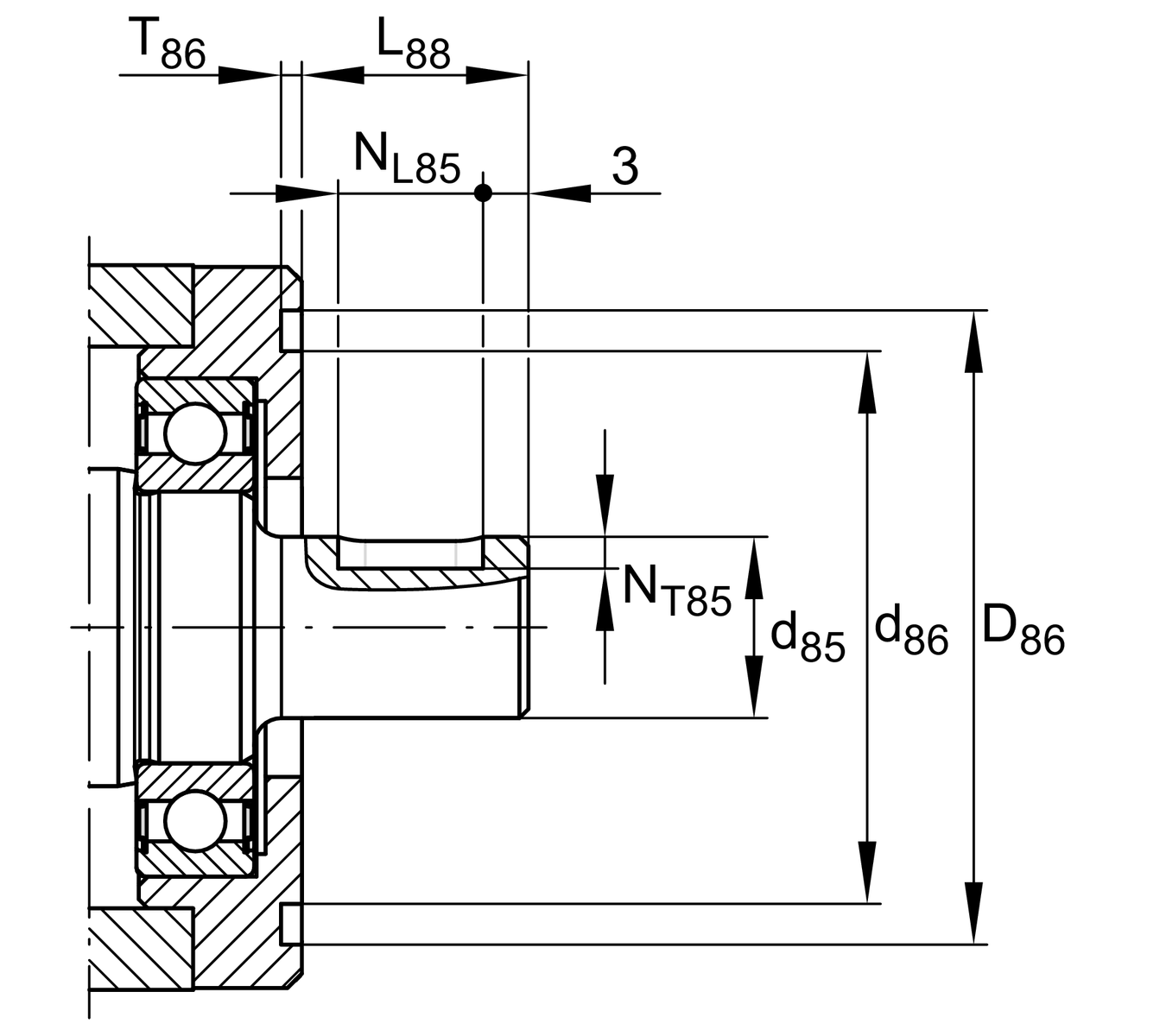

D₈₆	70 mm
Tol D₈₆	G7	Tolerance

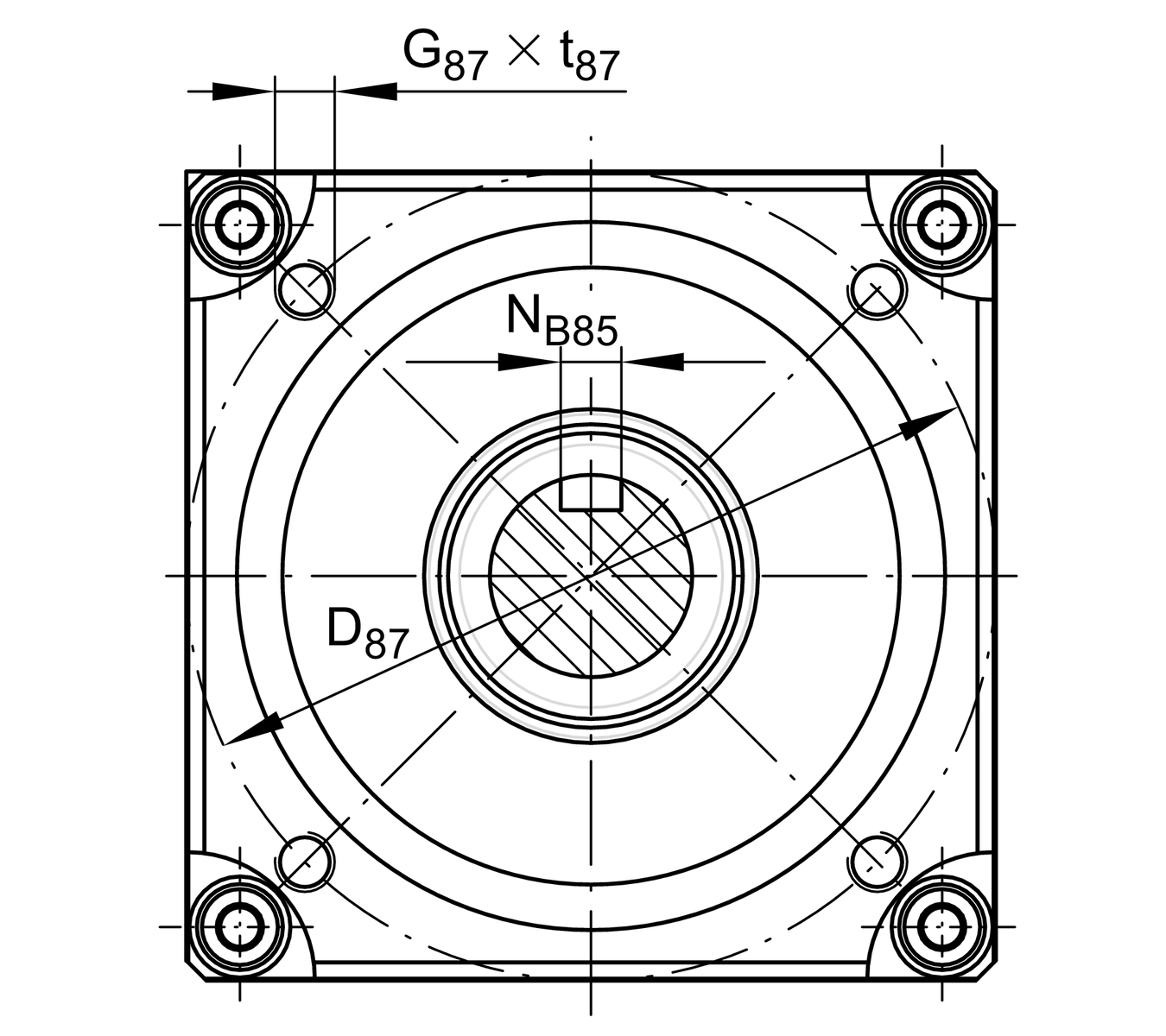

D₈₇	80 mm
d₈₅	20 mm	Tolerance h7
d₈₆	61 mm
G₈₇	M6
h₁₃	20 mm
h₁₄	60 mm
J_B43	40 mm
j_B8	40 mm
L_{2 max}	4,000 mm	Maximum length of Support Rail
L₈₈	25 mm
N_B85	6 mm	Tolerance P9
N_L85	16 mm	Length of Keyway
N_T85	3.5 mm	Depth of Keyway

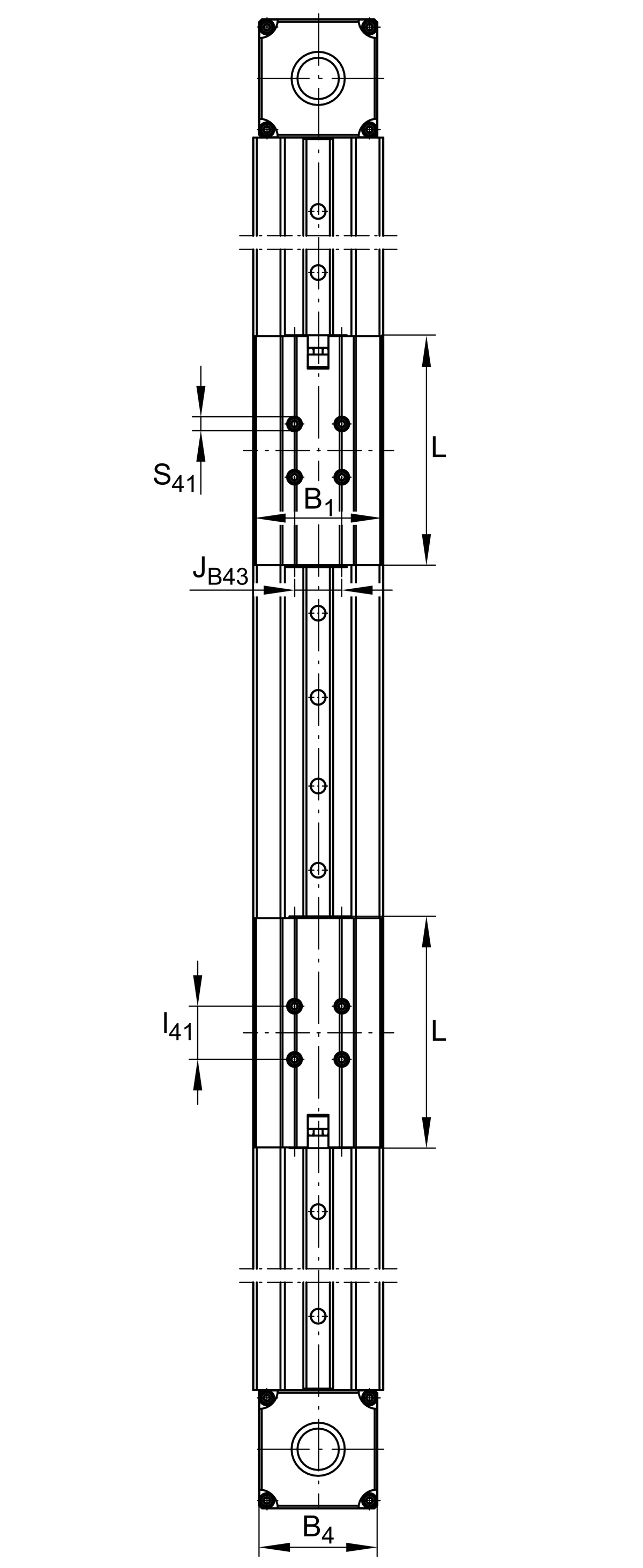

S₄₁	10 mm
t_{87 max}	12 mm	Depth of Thread

尺寸

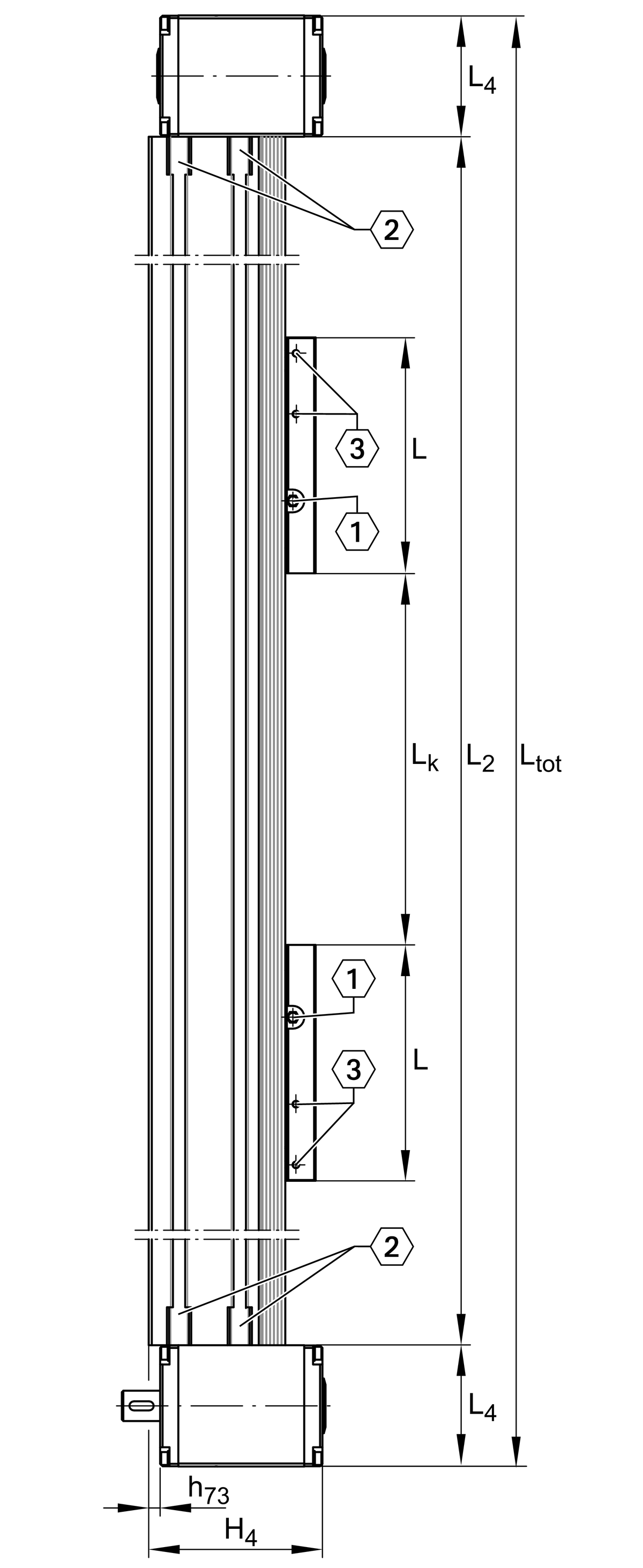

H₂	90 mm	Height of Support Rail
H₄	114.5 mm	Height of Return Unit
h₇₃	7.5 mm
L₄	80 mm	Length of Return Unit
l₄₁	36 mm
B₄	80 mm	Width of Return Unit
T₈₆	2.3 mm
Tol T₈₆	0 mm	較低的公差
Tol T₈₆	0.3 mm	公差上限

科技數據

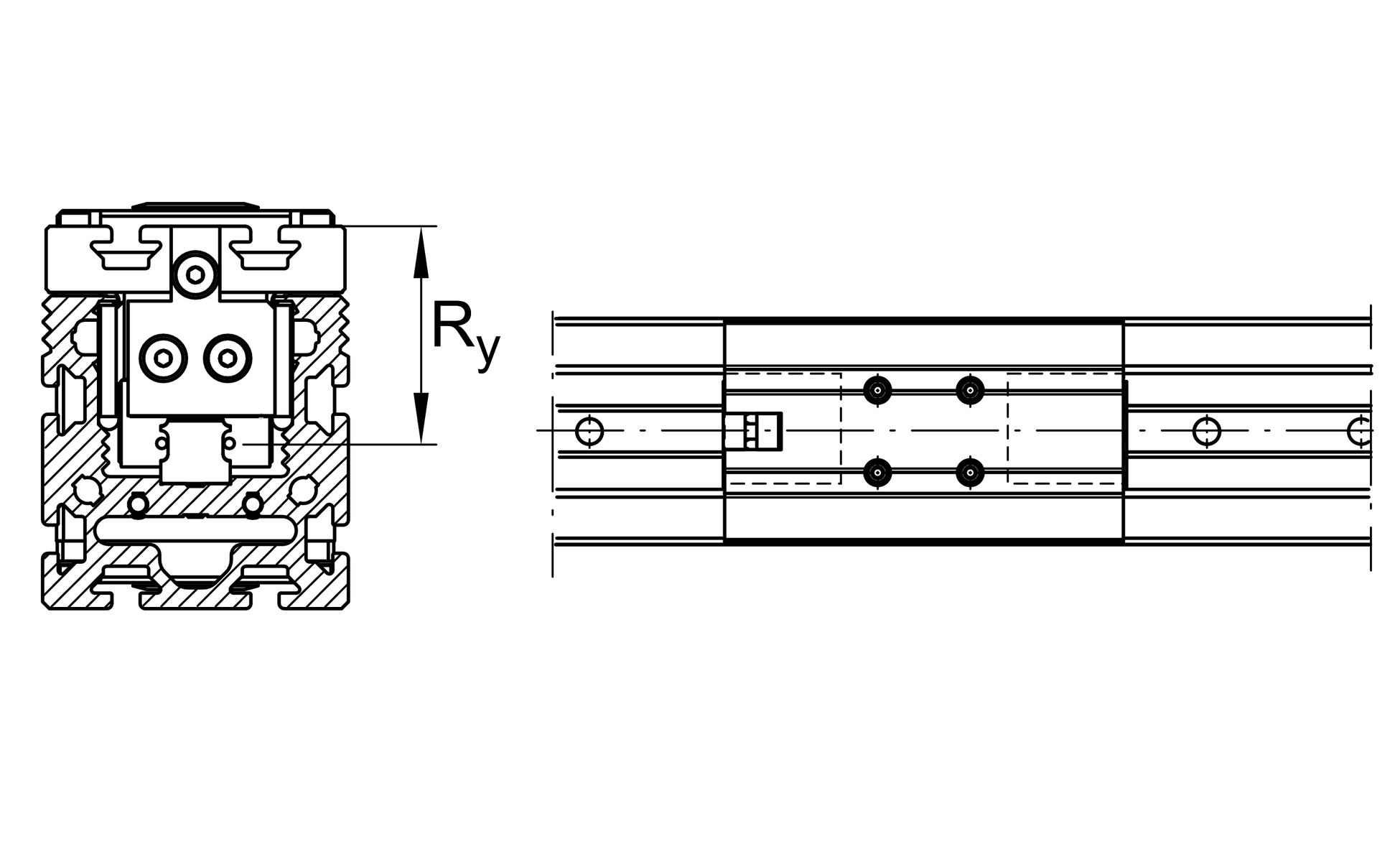

R_y	63.1 mm
S	85 mm	Safety Distance
m_LAW	2.6 kg
v_max	5 m/s	Maximum Speed
a_max	30 m/s2	Maximum Acceleration

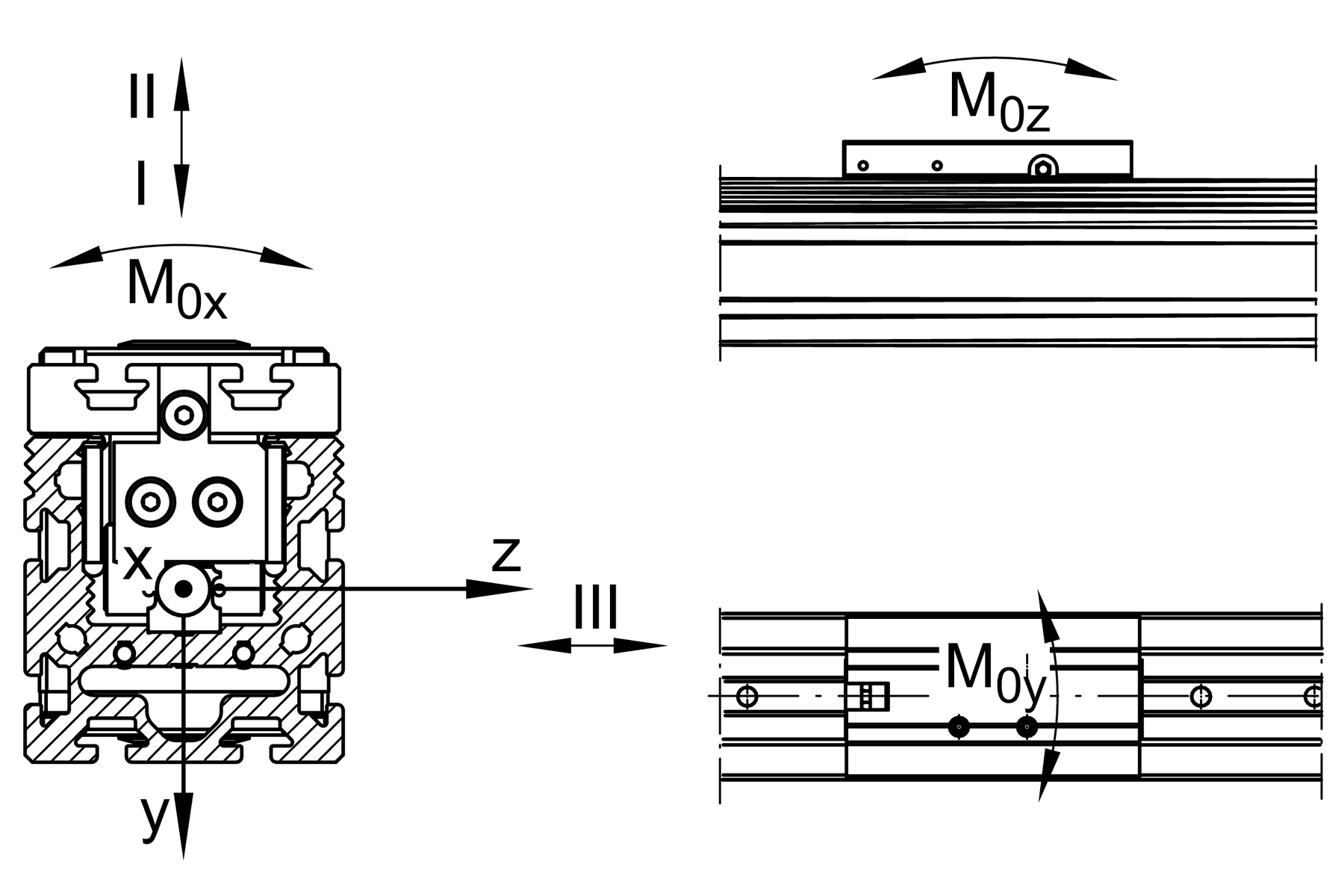

I C	25,500 N	Load direction I: compressive load
I C₀	61,000 N	Load direction I: compressive load
II C	21,300 N	Load direction II: tensile load
II C₀	35,300 N	Load direction II: tensile load
III C	21,000 N	Load direction III: lateral load
III C₀	35,000 N	Load direction III: lateral load
M_{0x per}	530 Nm	Max. permissible static moment per Carriage ¹
M_{0y per}	350 Nm	Max. permissible static moment per Carriage ¹
M_{0z per}	305 Nm	Max. permissible static moment per Carriage ¹
I_y	300 cm4	Geometrical moments of inertia of Support Rail
l_z	198 cm4	Geometrical moments of inertia of Support Rail

附加資訊

	18 Nm	Max. permissible drive torque
	2xKWSE20-H	Carriage
	0.1 mm	Repeat Accurancy ±
	160 mm	Feed (mm/rotation)
	32AT5	Toothed Belt
	0.11 kg/m	Mass of Toothed Belt
	650 N	Permissible Toothed Belt operating force
	2.2 kg*cm2	質量慣性矩 of Gears

溫度範圍

_max	80 °C	Maximum operating Temperatur
_min	0 °C	Minimum operating Temperatur

您目前的產品型號

Size code	20
Design	/	Basis
Drive type	(3)ZR	Toothed belt drive
Additional carriage	/	No additional carriage
Attachment to the carriage	N	T-Slots
Support rail design	/	One-piece
