主要尺寸與性能資料

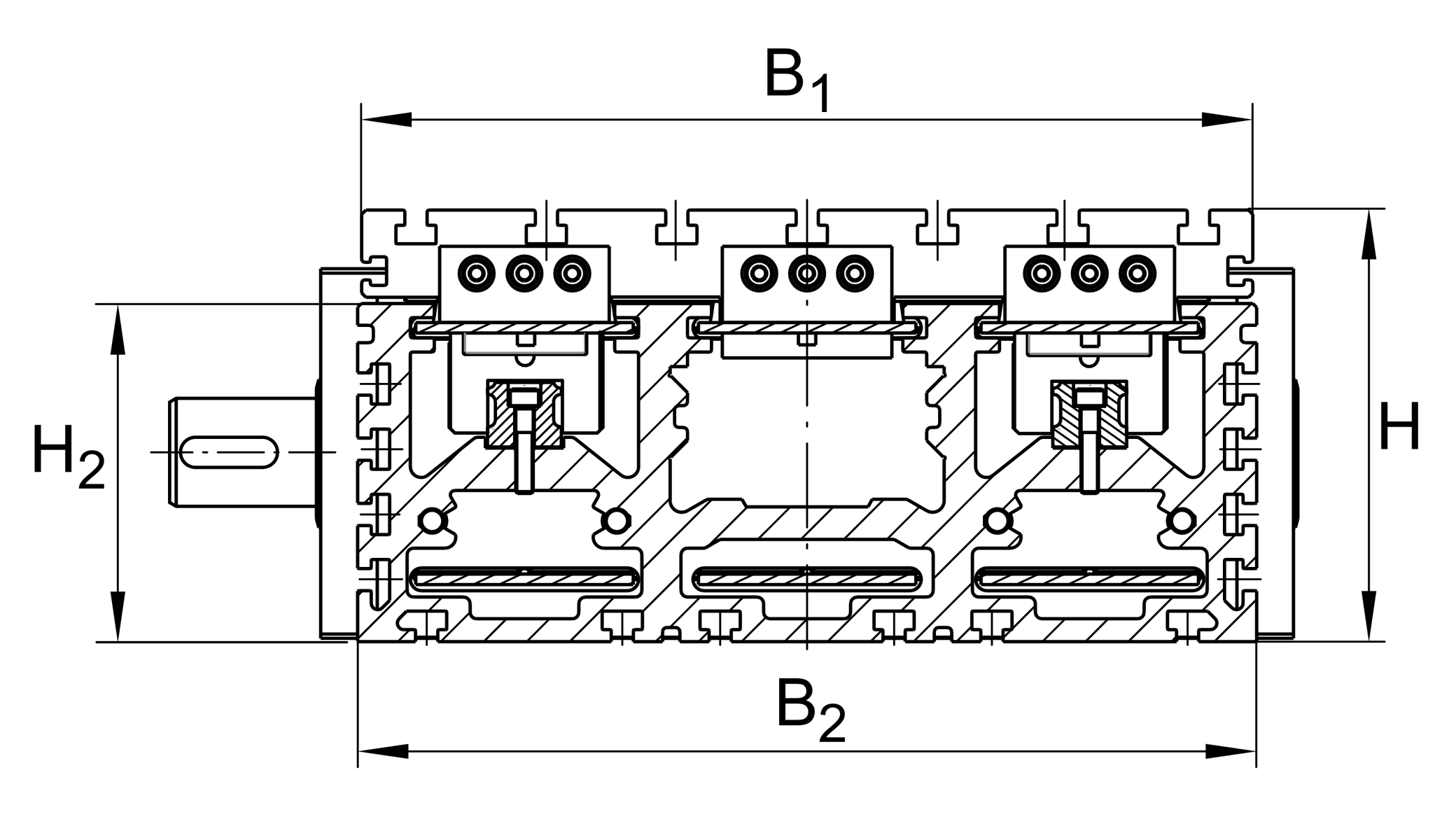

| B2 | 415 mm | Total Width |
| H | 200 mm | Total Height |
| L | 500 mm | Length of Carriage |

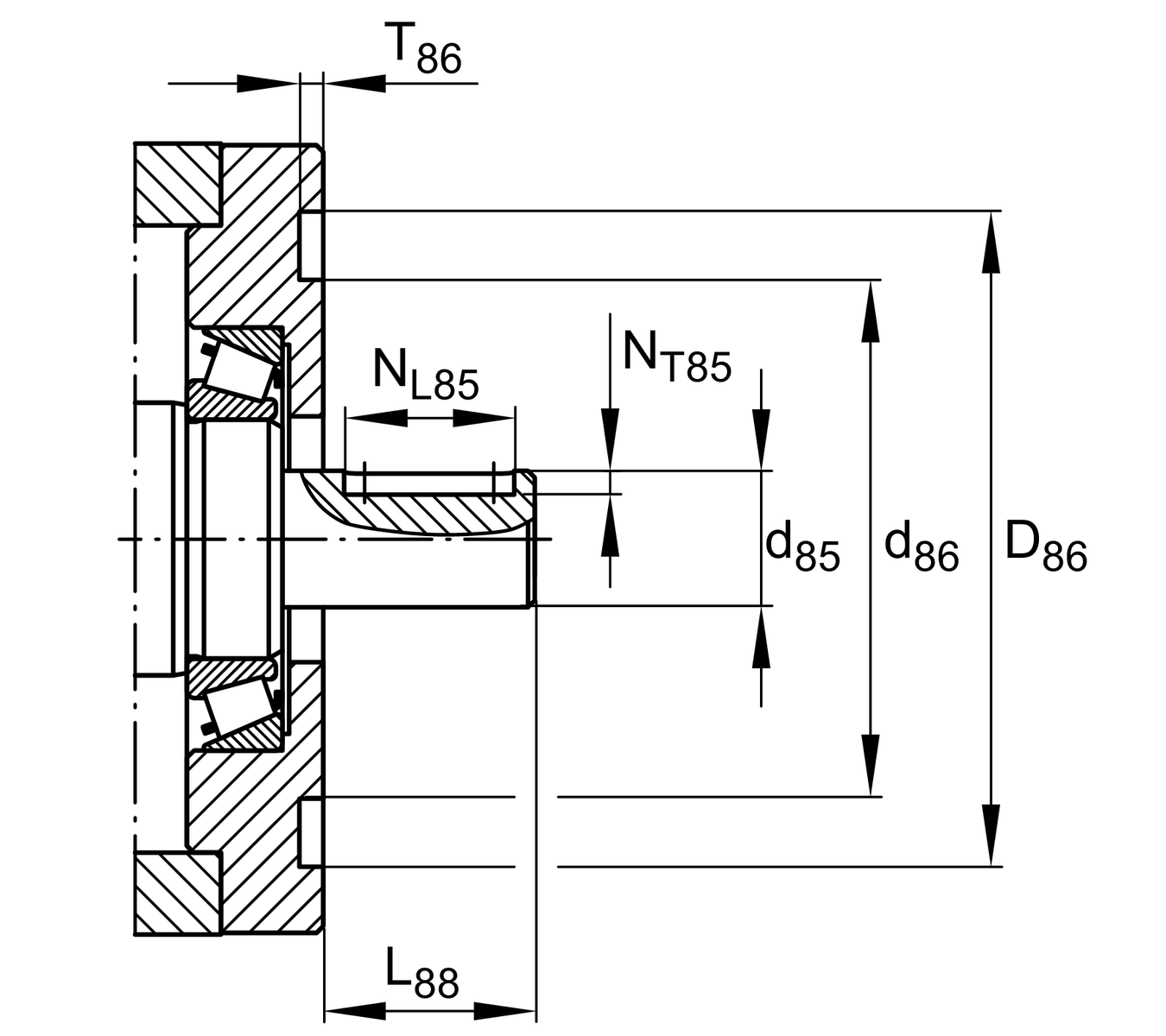

安裝尺寸
| B1 | 410 mm | Width of Carriage |
| D86 | 150 mm | |
| Tol D86 | G7 | Tolerance |

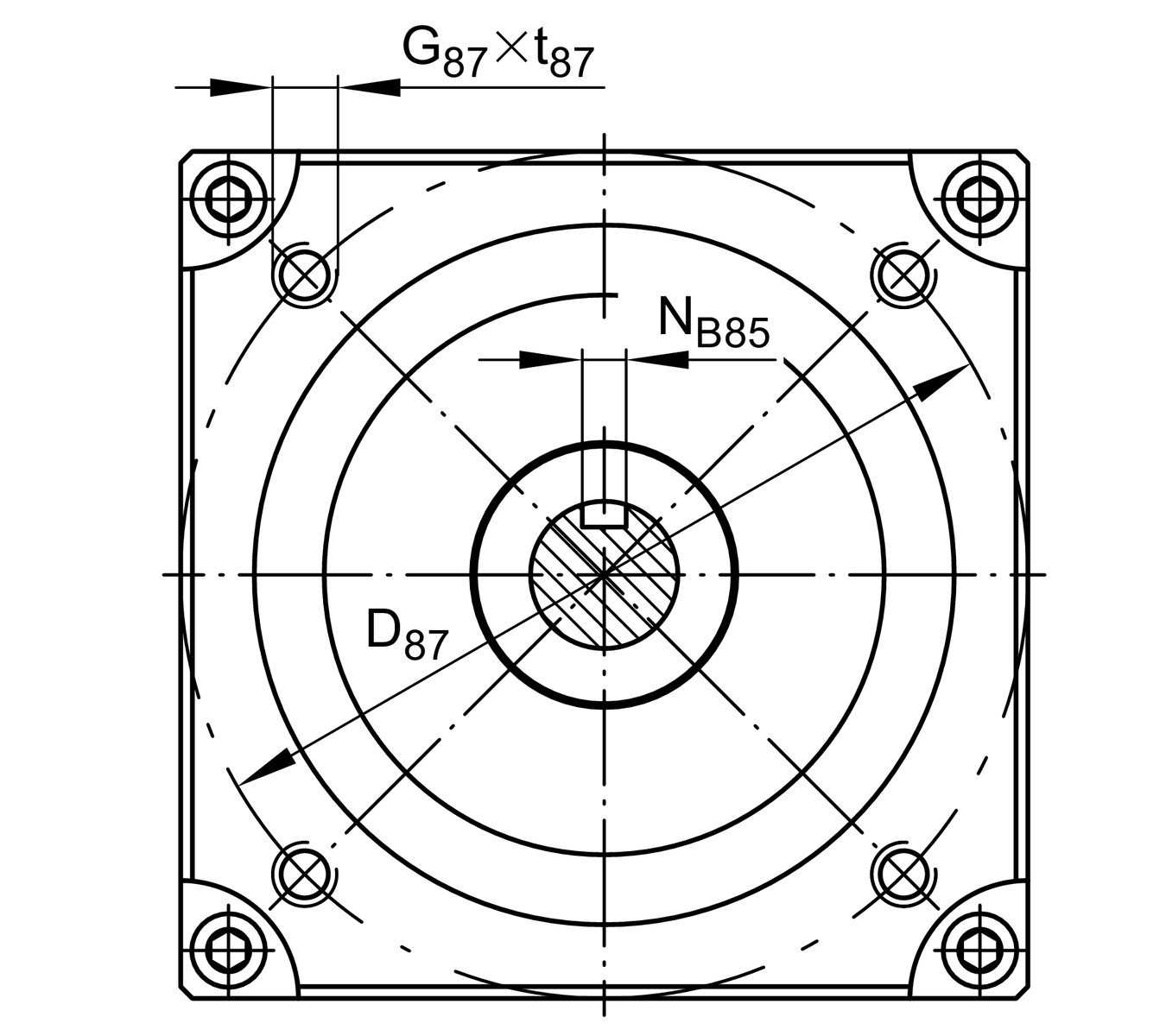

| D87 | 212 mm | |
| d85 | 50 mm | Tolerance h7 |
| d86 | 138 mm | |
| G87 | M8 | |

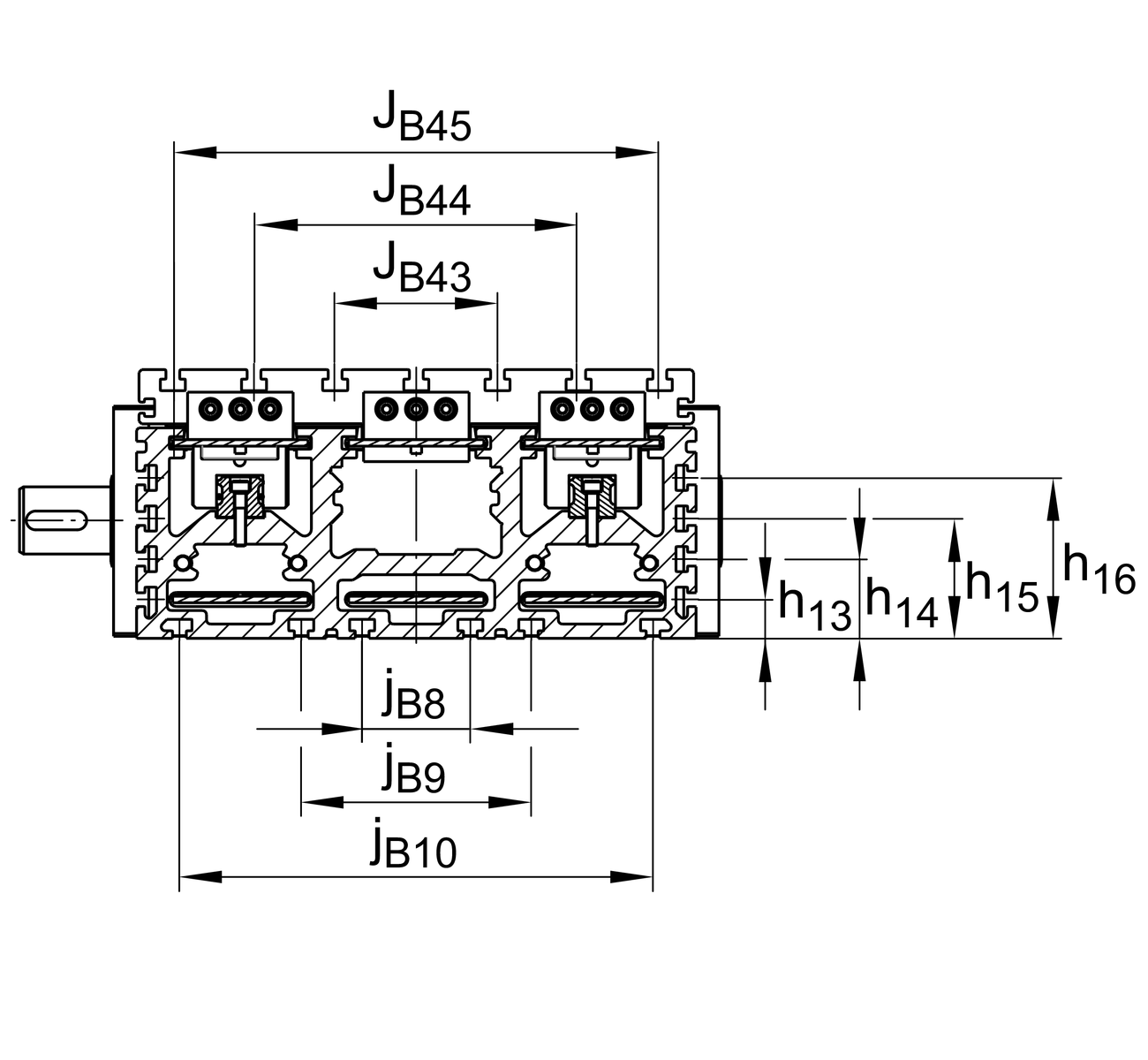

| h13 | 30 mm | |
| h14 | 60 mm | |
| h56 | 30 mm | |
| JB43 | 120 mm | |
| jB8 | 80 mm | |
| L2 max | 6,000 mm | Maximum length of Support Rail |
| L88 | 70 mm | |
| NB85 | 14 mm | Tolerance P9 |
| NL85 | 45 mm | Length of Keyway |
| NT85 | 5.5 mm | Depth of Keyway |
| t87 max | 27 mm | Depth of Thread |
| jB9 | 170 mm | |
| jB10 | 350 mm | |
| JB44 | 240 mm | |
| JB45 | 360 mm |
尺寸

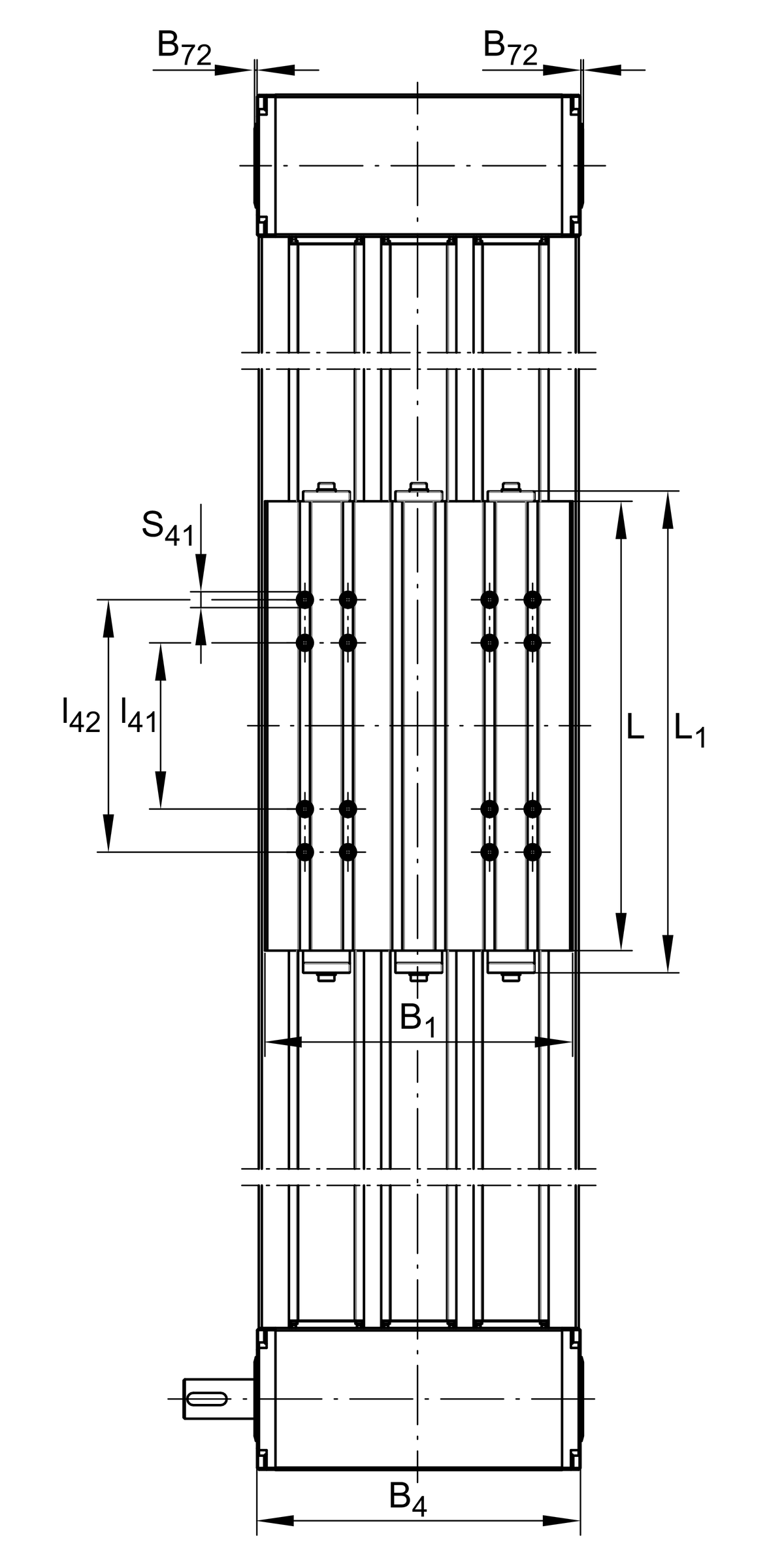

| B72 | 2 mm | |
| H2 | 157 mm | Height of Support Rail |
| H4 | 173 mm | Height of Return Unit |
| h85 | 88 mm | |
| L1 | 538 mm | |

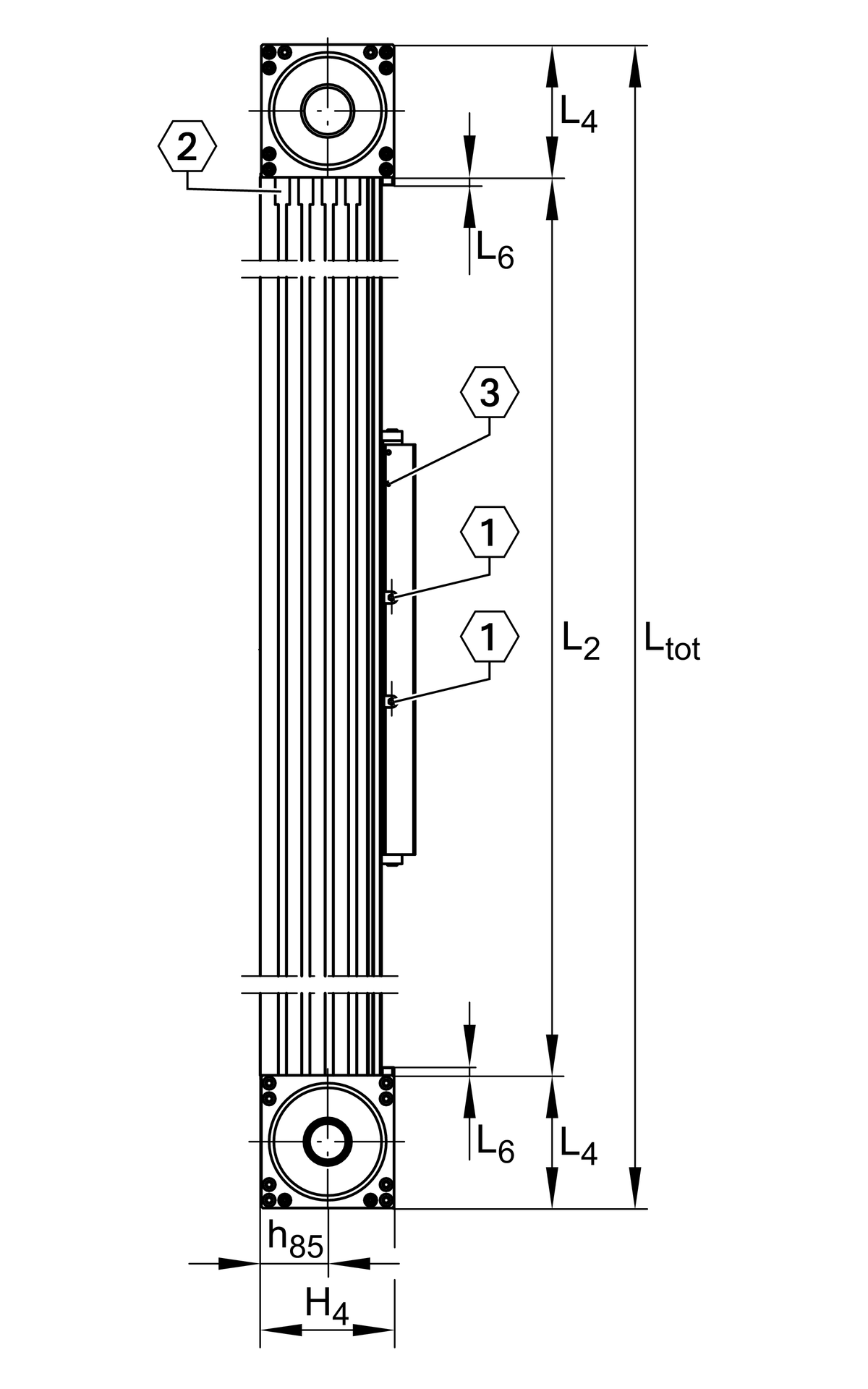

| L4 | 170 mm | Length of Return Unit |
| L6 | 10 mm | Length of Wiper Brushes |

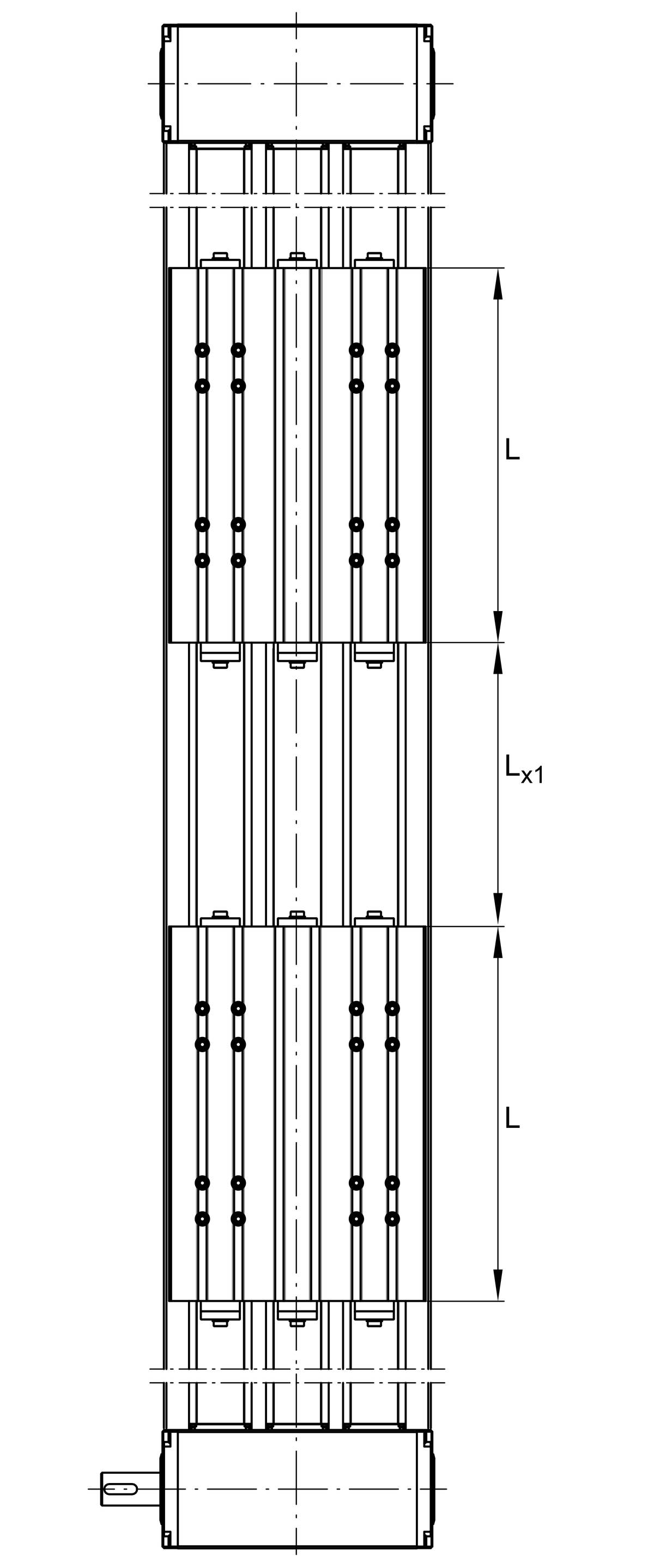

| Lx1 min | 100 mm | |
| B4 | 447.5 mm | Width of Return Unit |
| T86 | 4 mm |
科技數據

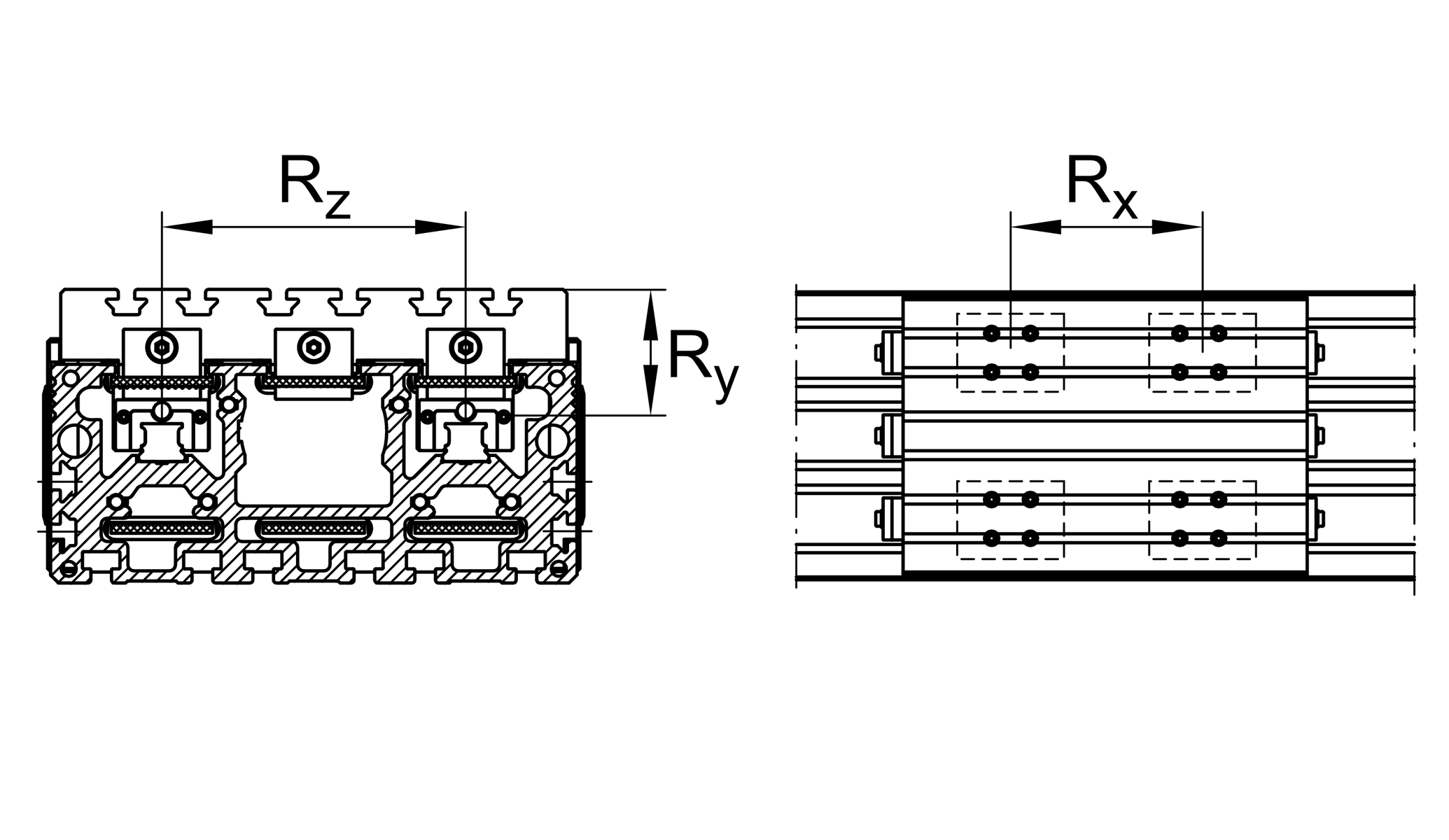

| Rx | 262 mm | |
| Ry | 92.5 mm | |
| RZ | 260 mm | |
| S | 85 mm | Safety Distance |
| mLAW | 42.3 kg | |
| m3 | 42.3 kg | Mass of additional Carriage |
| vmax | 5 m/s | Maximum Speed |
| amax | 30 m/s2 | Maximum Acceleration |

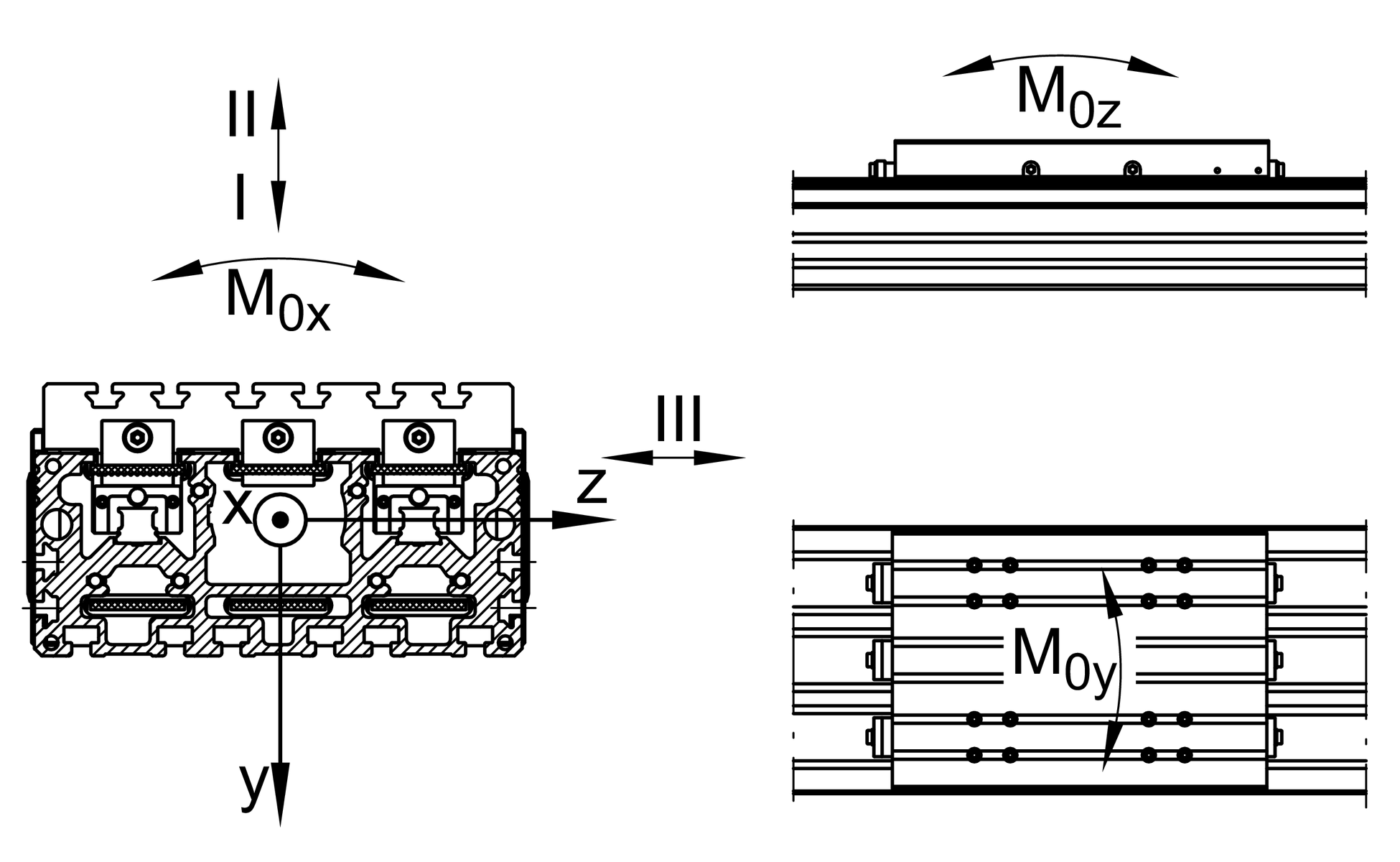

| I C | 100,200 N | Load direction I: compressive load |
| I C0 | 288,000 N | Load direction I: compressive load |
| II C | 100,200 N | Load direction II: tensile load |
| II C0 | 288,000 N | Load direction II: tensile load |
| III C | 100,200 N | Load direction III: lateral load |
| III C0 | 288,000 N | Load direction III: lateral load |
| M0x per | 33,800 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 20,200 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 24,000 Nm | Max. permissible static moment per Carriage 1 |
| Iy | 42,680 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 5,030 cm4 | Geometrical moments of inertia of Support Rail |
附加資訊
850 Nm | Max. permissible drive torque | |
4xKWVE35-B-H | Carriage | |
0.1 mm | Repeat Accurancy ± | |
370 mm | Feed (mm/rotation) | |
100ATK10L | Toothed Belt | |
2.06 kg/m | Mass of Toothed Belt | |
15,000 N | Permissible Toothed Belt operating force | |
892 kg*cm2 | 質量慣性矩 of Gears |
溫度範圍
| max | 80 °C | Maximum operating Temperatur |
| min | 0 °C | Minimum operating Temperatur |
您目前的產品型號
| Size code | 35 | |
| Length of carriage | 500 | 500 mm |
| Design | / | Basis |
| Drive type | (3)ZR | Toothed belt drive |
| Additional carriage | W2 | Second, driven carriage |
| Attachment to the carriage | N | T-Slots |
| Support rail design | / | One-piece |
