主要尺寸與性能資料

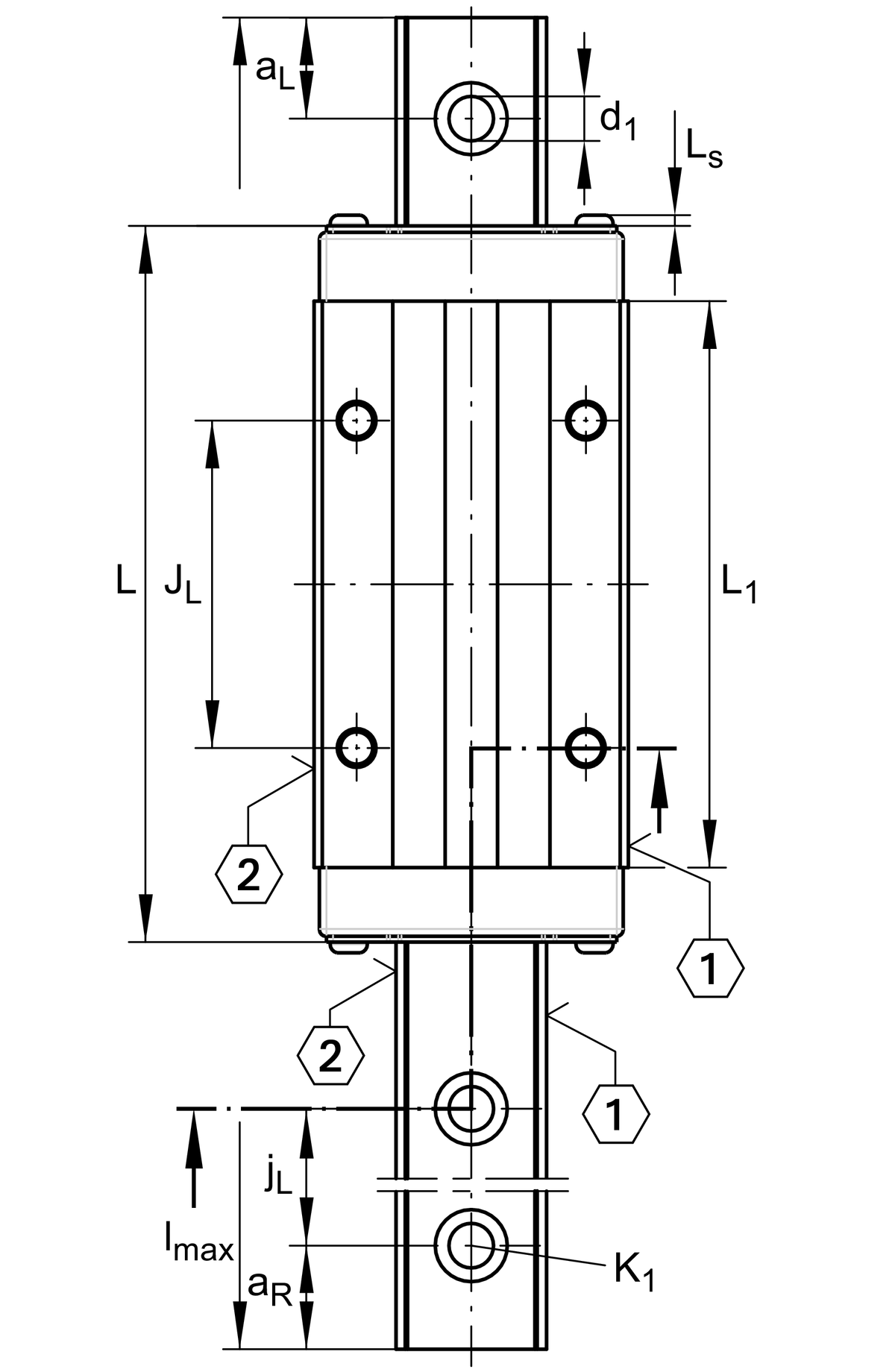

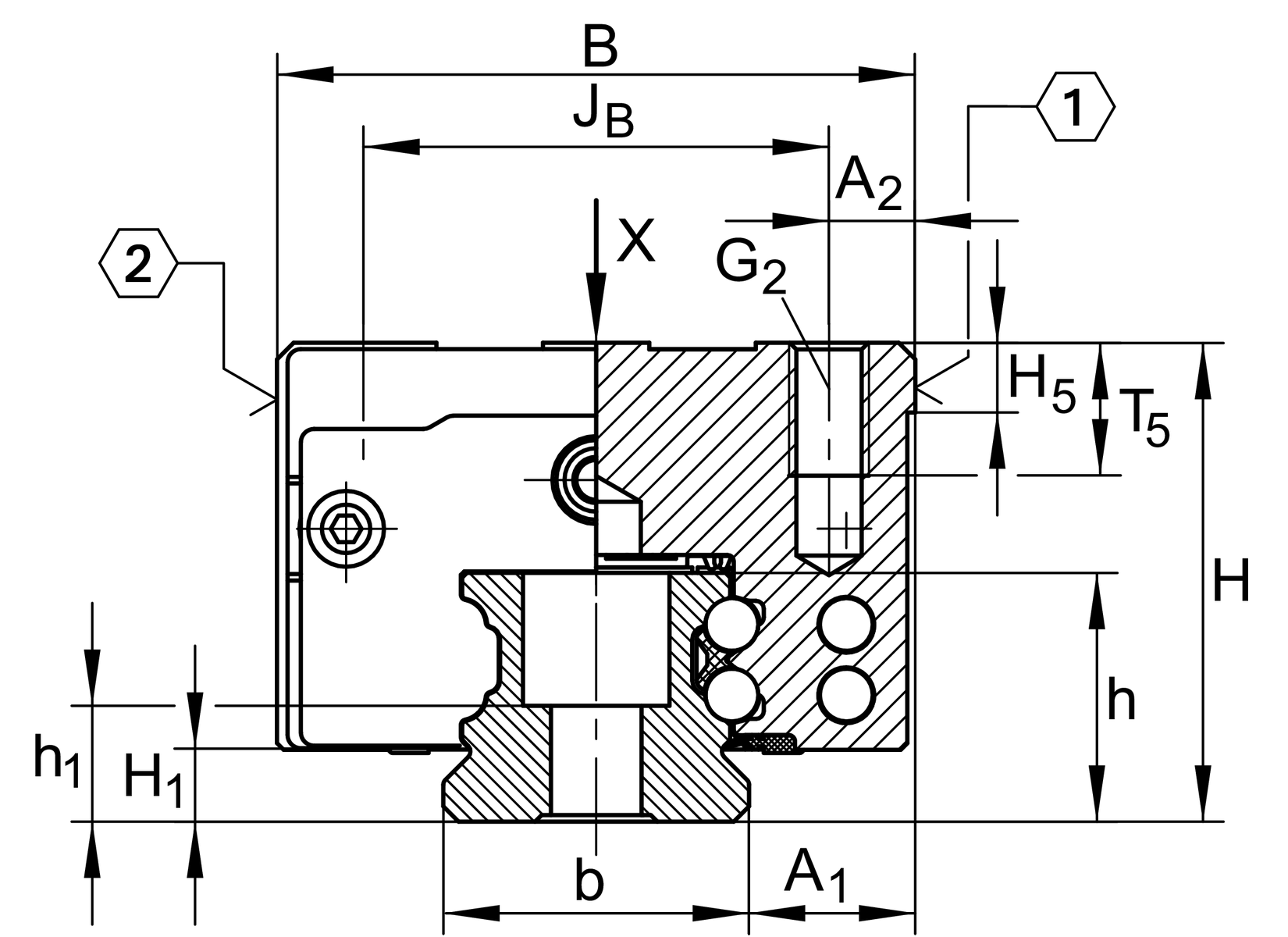

| H | 30 mm | height system |
| B | 44 mm | width carriage |
| L | 88.9 mm | overall length carriage |
| C | 16,200 N | dynamic load rating 1 |
| C0 | 36,500 N | static load rating 1 |
| M0x | 452 Nm | static moment rating about X axis |
| M0y | 430 Nm | static moment rating about Y axis |
| M0z | 430 Nm | static moment rating about Z axis |
| ≈m | 0.46 kg | 重量 |
安裝尺寸
| A1 | 12 mm | |
| JB | 32 mm | |
| b | 20 mm | width rail |
| A2 | 6 mm | |
| L1 | 67.9 mm | |
| LS | 1.3 mm | |
| JL | 50 mm | |
| H1 | 4.5 mm | |
| H5 | 5.25 mm | |
| T5 | 7.5 mm | |
| G2 | M5 | fixing screws above (DIN ISO 4762-12.9) |
| G2 MA | 10 Nm | maximum tightening torque 2 |

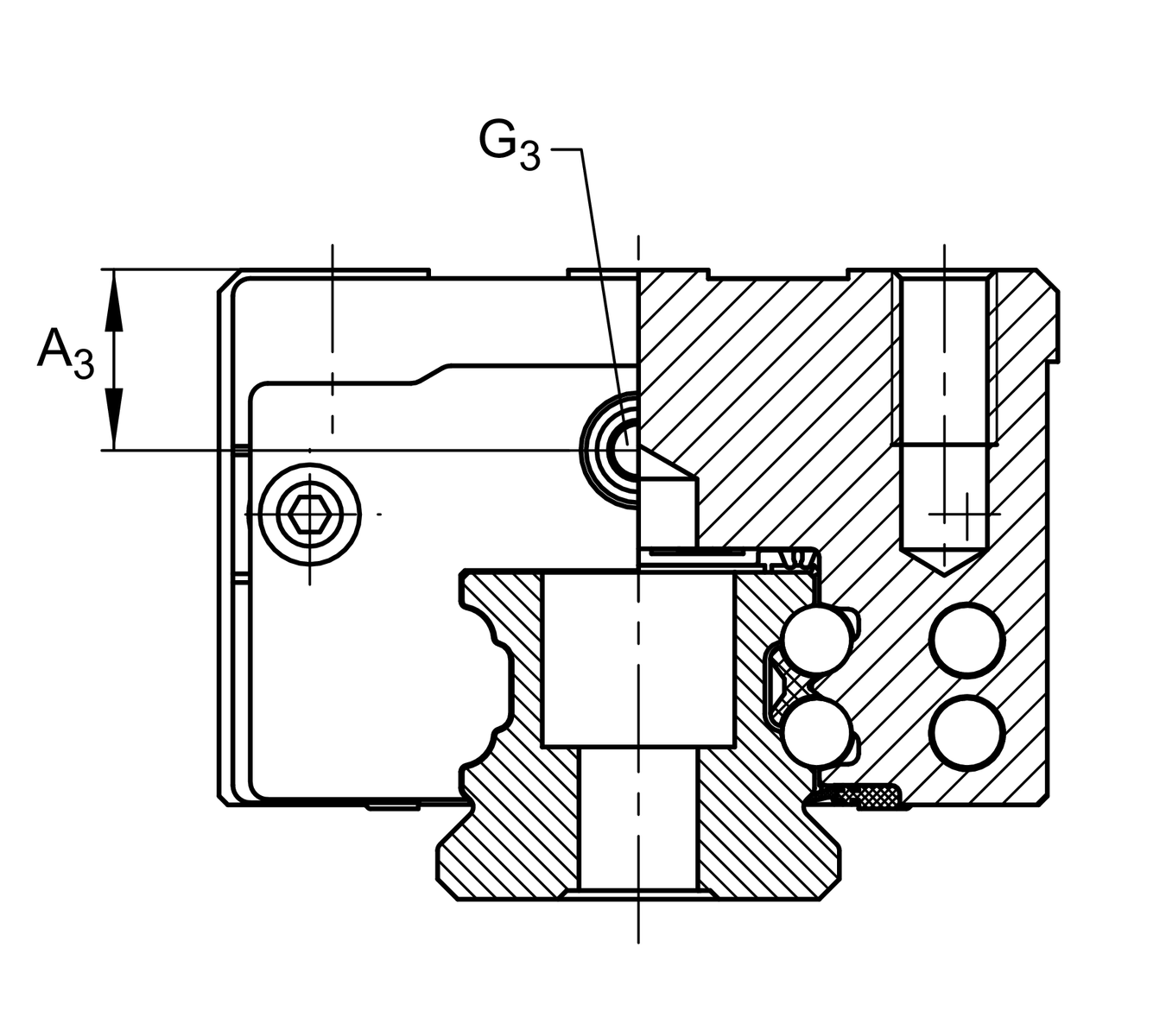

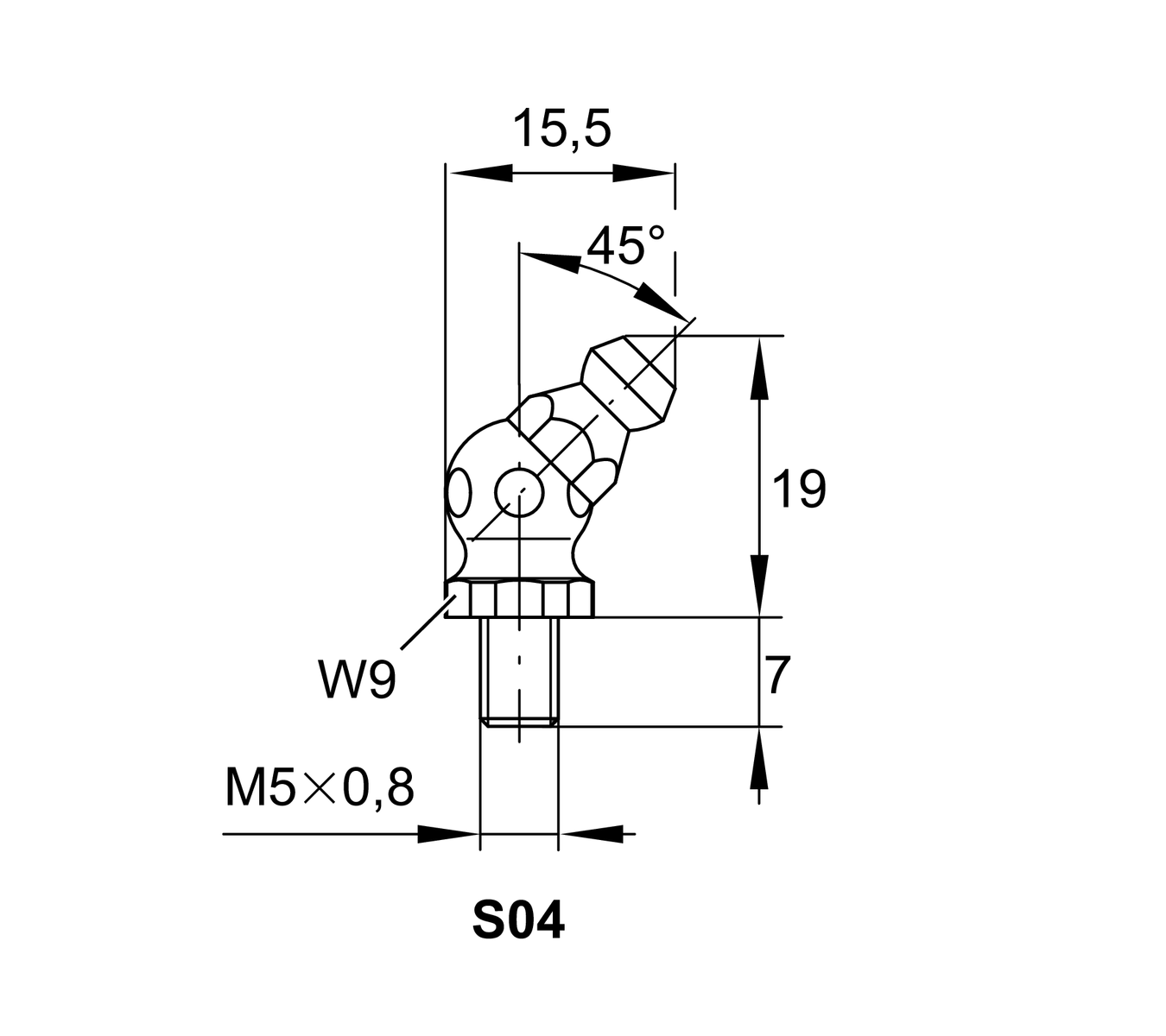

| A3 | 7.7 mm | position lubrication connector |
| G3 | M5 | lubrication connector |
| t G3 | 7 mm | maximum permissible screw depth for lubrication connectors |
| A4 | 4.6 mm | position lubrication connector |
| G4 | M5 | lubrication connector |
| t G4 | 5.5 mm | maximum permissible screw depth for lubrication connectors |

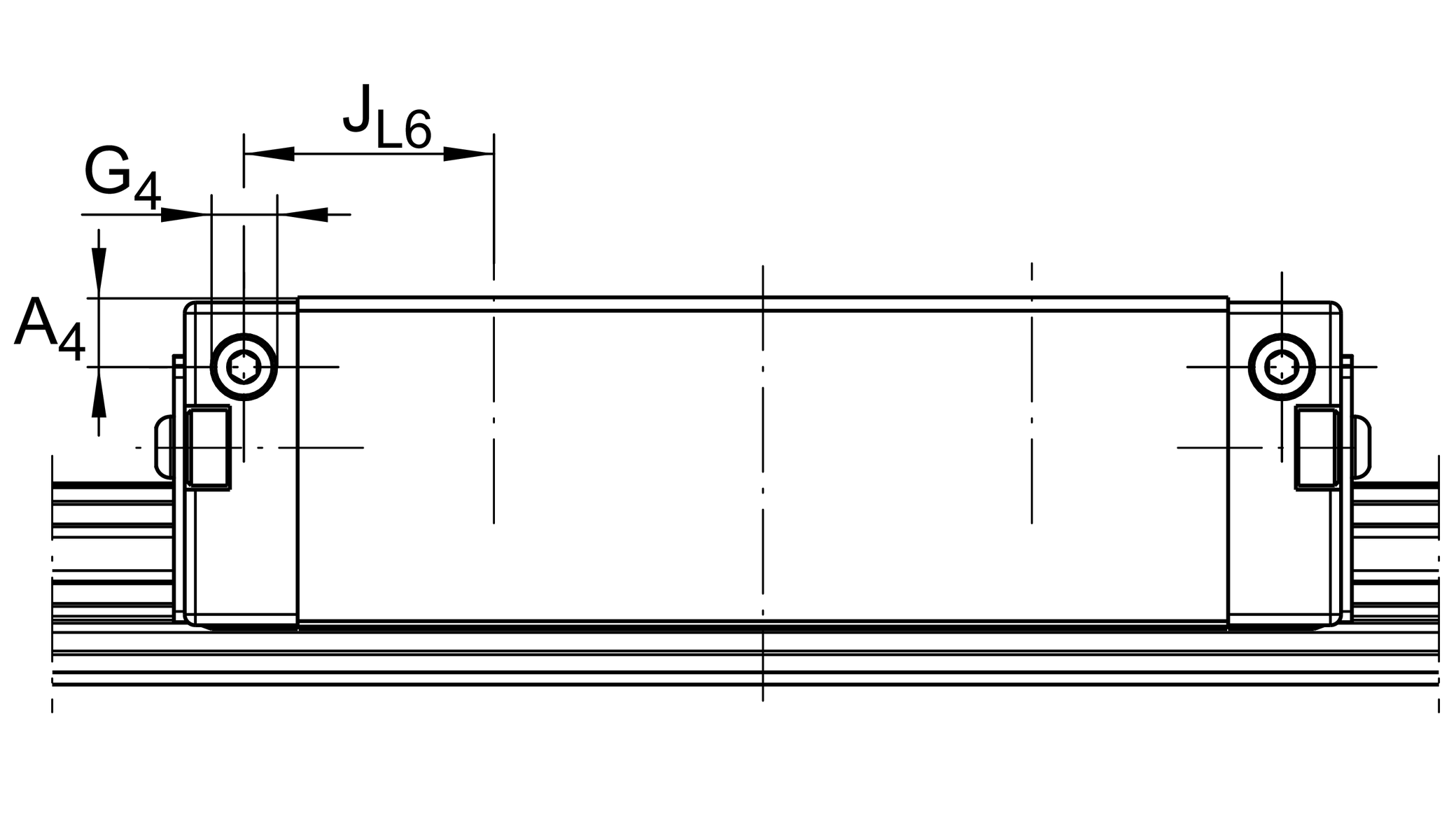

| JL6 | 13.2 mm | position lubrication connector |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 20 | |
| Version | B | |
| Carriage design | SL | Narrow, long carriage |
