主要尺寸與性能資料
| H | 27 mm | height system |
| B | 63 mm | width carriage |
| L | 71.4 mm | overall length carriage |
| C | 13,100 N | dynamic load rating 1 |
| C0 | 27,000 N | static load rating 1 |
| M0x | 332 Nm | static moment rating about X axis |
| M0y | 240 Nm | static moment rating about Y axis |
| M0z | 240 Nm | static moment rating about Z axis |
| ≈m | 0.37 kg | 重量 |
安裝尺寸
| A1 | 21.5 mm | |
| JB | 53 mm | |
| b | 20 mm | width rail |
| A2 | 5 mm | |
| L1 | 50.4 mm | |
| LS | 1.3 mm | |
| JL | 40 mm | |
| JLZ | 35 mm | |
| H1 | 4.5 mm | |
| H4 | 8.6 mm | |
| H5 | 5.25 mm | |
| T5 | 8 mm | |
| T6 | 6 mm | |
| G2 | M6 | fixing screws above (DIN ISO 4762-12.9) |
| G2 MA | 10 Nm | maximum tightening torque 2 |
| K3 | M5 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 10 Nm | maximum tightening torque 2 |
| K6 | M5 | fixing screws below (DIN 7984-8.8) |
| K6 MA | 4 Nm | maximum tightening torque 2 |
| D2 | 5.5 mm | |
| A3 | 4.7 mm | position lubrication connector |

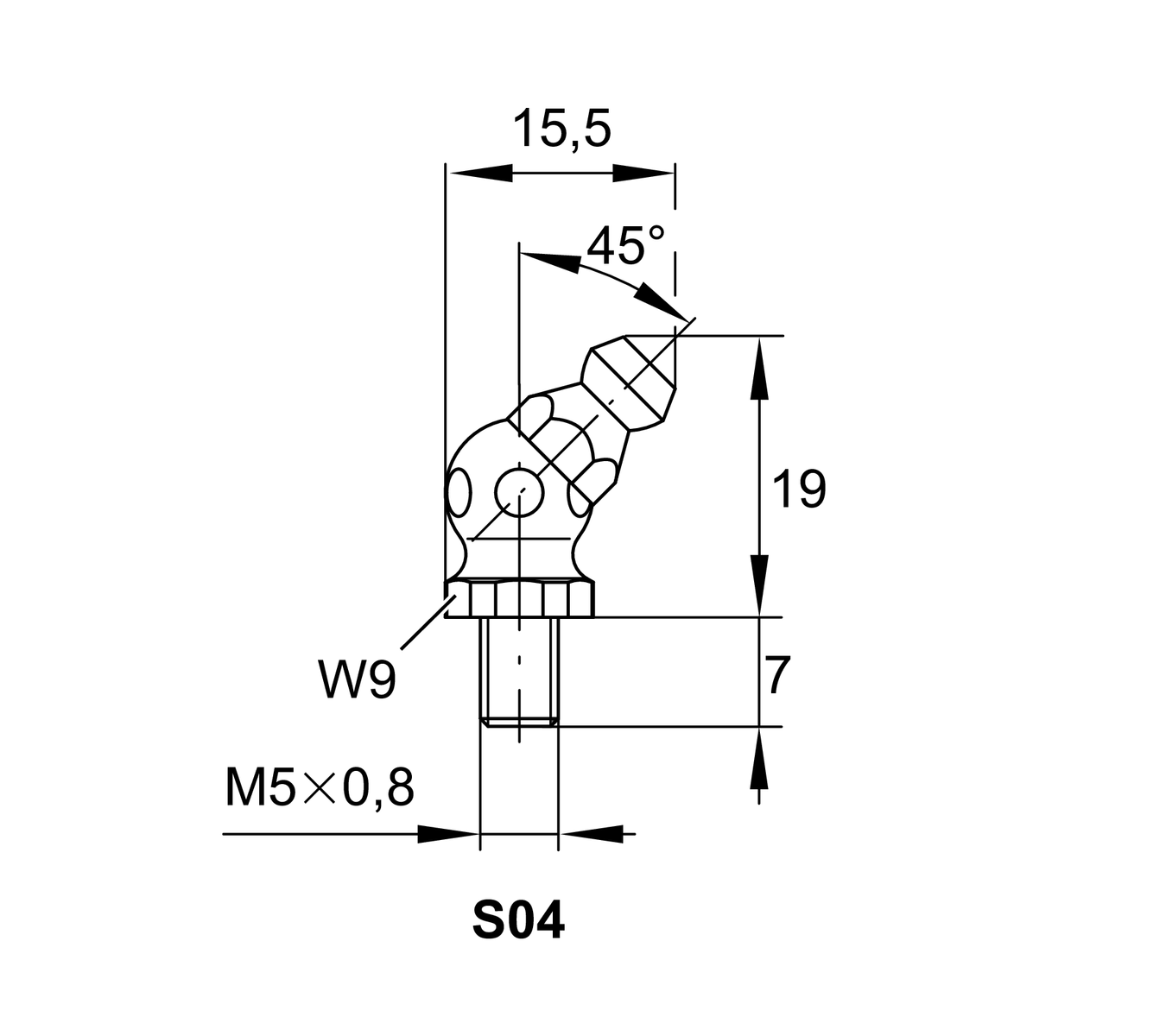

| G3 | M5 | lubrication connector |
| t G3 | 7 mm | maximum permissible screw depth for lubrication connectors |
| A4 | 3.3 mm | position lubrication connector |
| G4 | M3 | lubrication connector |
| t G4 | 5.5 mm | maximum permissible screw depth for lubrication connectors |
| JL6 | 9.4 mm | position lubrication connector |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 20 | |
| Version | B | |
| Carriage design | N | Low carriage |
