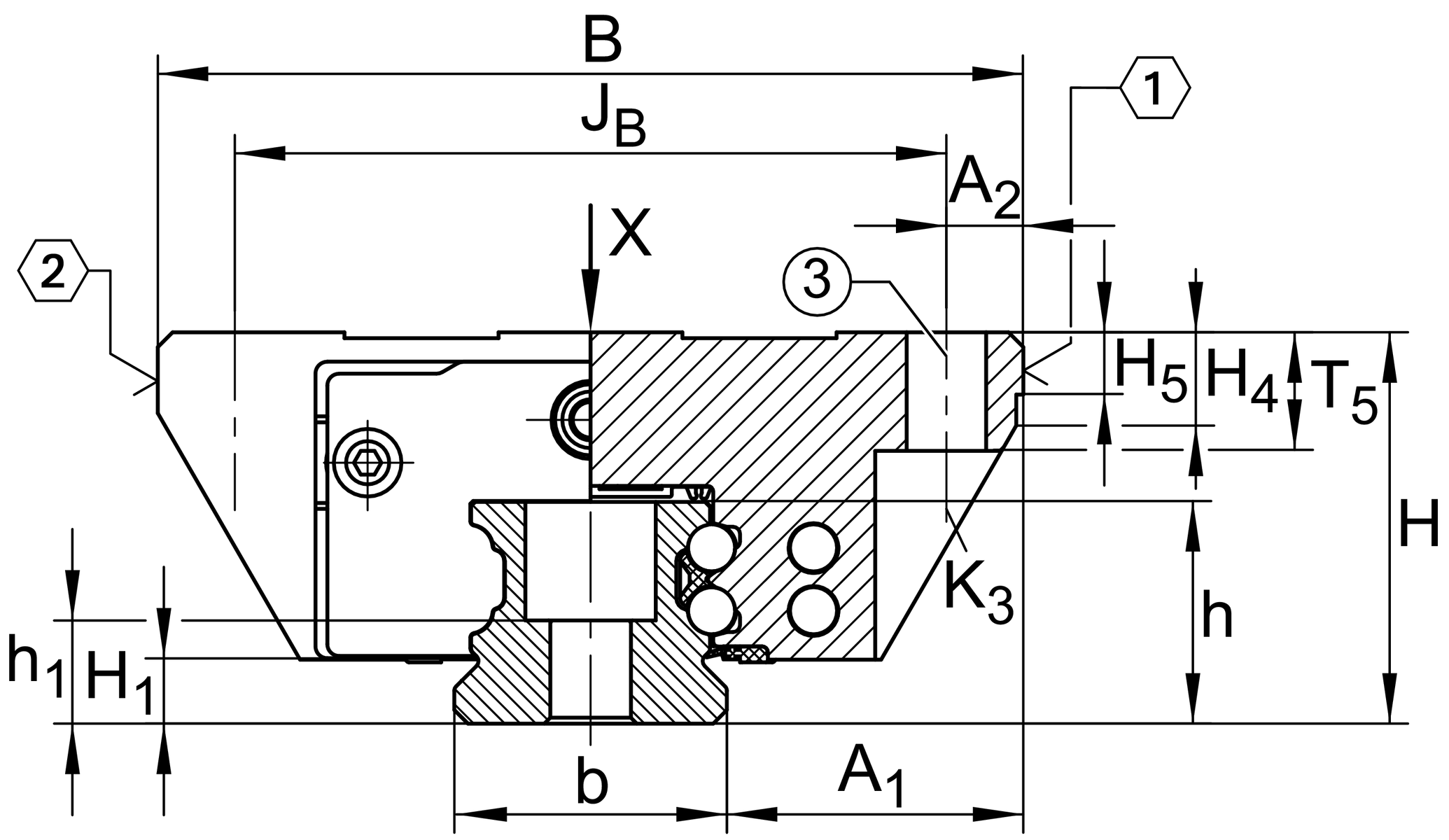

主要尺寸與性能資料
| H | 28 mm | height system |
| B | 59 mm | width carriage |
| L | 50.4 mm | overall length carriage |
| C | 8,900 N | dynamic load rating 1 |
| C0 | 15,400 N | static load rating 1 |
| M0x | 190 Nm | static moment rating about X axis |
| M0y | 85 Nm | static moment rating about Y axis |
| M0z | 85 Nm | static moment rating about Z axis |
| ≈m | 0.23 kg | 重量 |

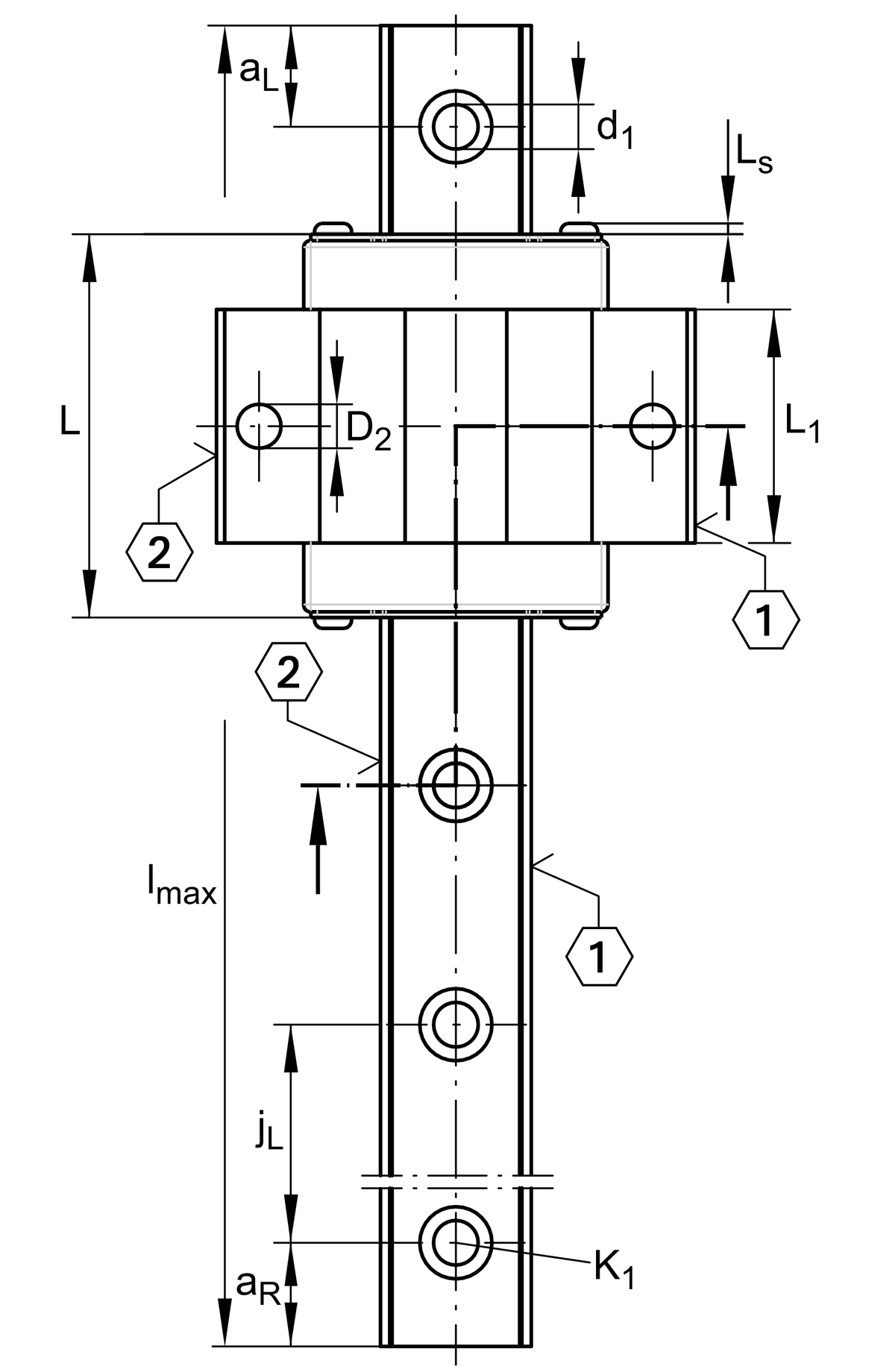

安裝尺寸
| A1 | 19.5 mm | |
| JB | 49 mm | |
| b | 20 mm | width rail |
| A2 | 5 mm | |
| L1 | 29.4 mm | |
| LS | 1.65 mm | |
| H1 | 4.5 mm | |
| H4 | 11.2 mm | |
| H5 | 5.25 mm | |
| T5 | 9 mm | |
| K3 | M5 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 10 Nm | maximum tightening torque 2 |
| D2 | 5.5 mm | |

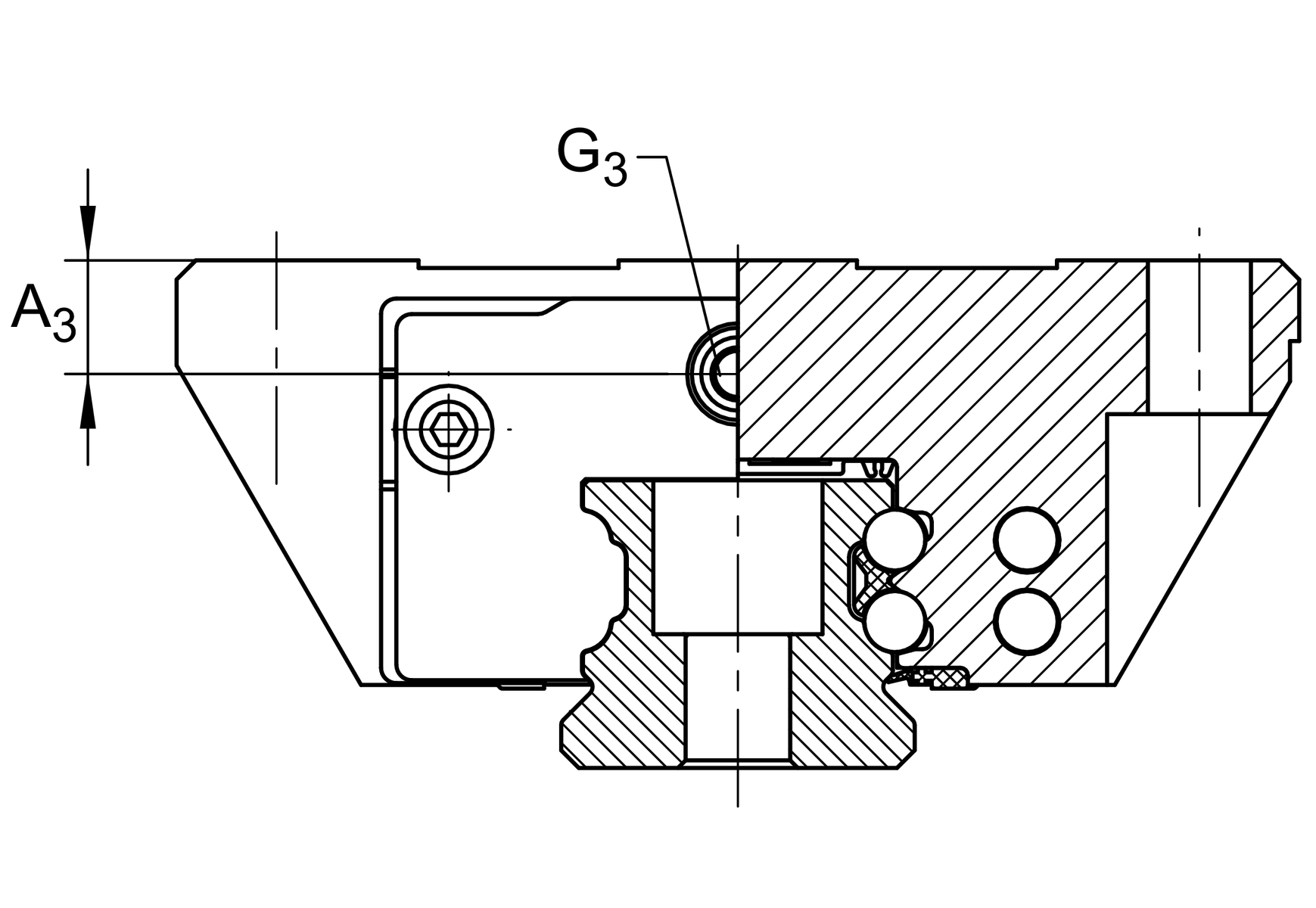

| A3 | 6 mm | position lubrication connector |

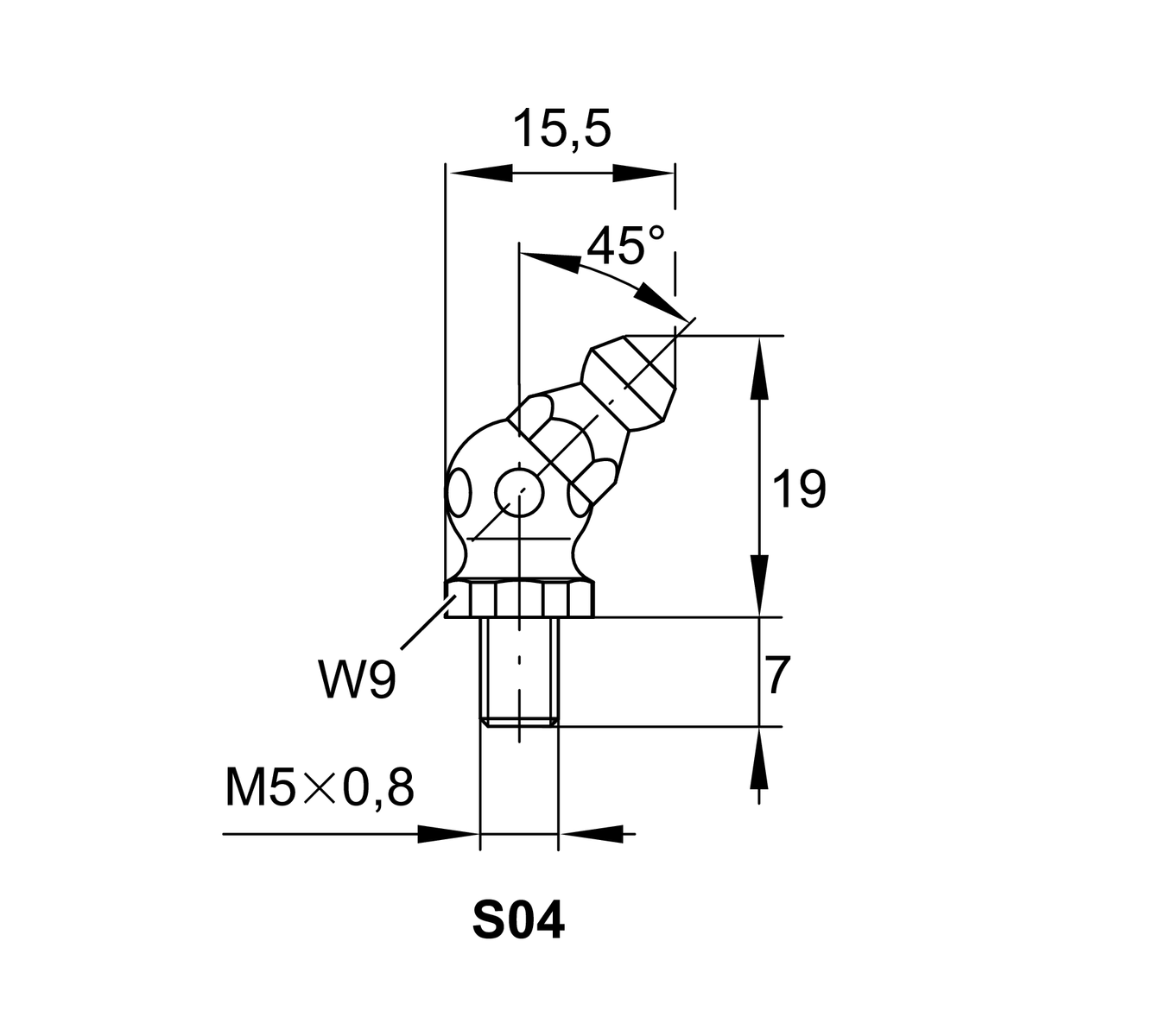

| G3 | M5 | lubrication connector |
| t G3 | 7 mm | maximum permissible screw depth for lubrication connectors |

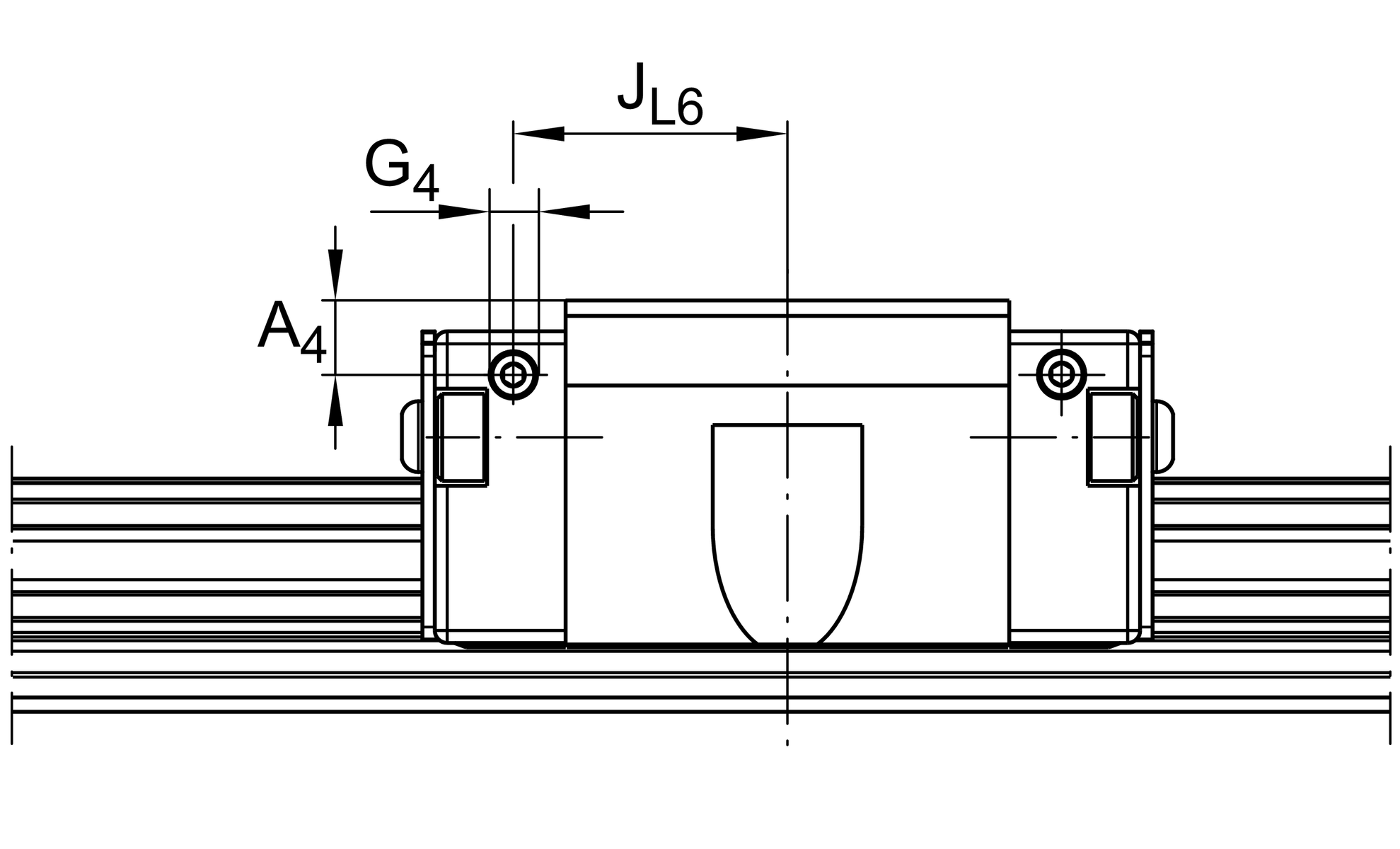

| A4 | 4.3 mm | position lubrication connector |
| G4 | M3 | lubrication connector |
| t G4 | 5.5 mm | maximum permissible screw depth for lubrication connectors |
| JL6 | 18.9 mm | position lubrication connector |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 20 | |
| Version | B | |
| Carriage design | EC | Expanded design, short carriage (carriage 沒有 screw threads) |
