主要尺寸與性能資料

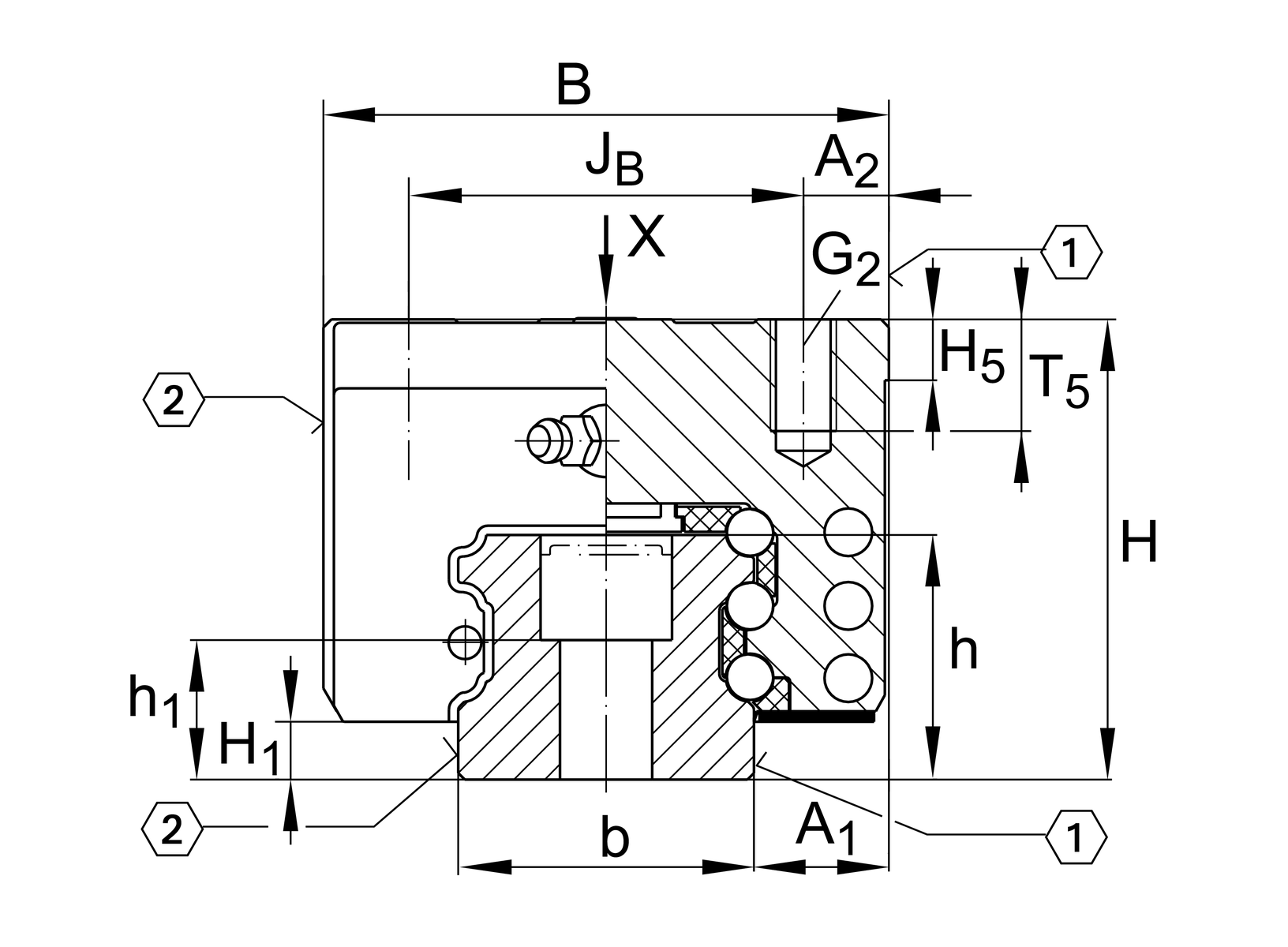

| H | 45 mm | height system |
| B | 60 mm | width carriage |
| L | 91.6 mm | overall length carriage |
| I C | 40,000 N | dynamic load rating, load direction I: compressive load |
| I C0 | 80,000 N | static load rating, load direction I: compressive load |
| II C | 37,800 N | dynamic load rating, load direction II: tensile load |
| II C0 | 60,000 N | static load rating, load direction II: tensile load |
| III C | 40,000 N | dynamic load rating; 基本額定動載重, Load direction III: lateral load |
| III C0 | 62,000 N | static load rating, Load direction III: lateral load |
| ≈m | 0.9 kg | 重量 |
安裝尺寸
| A1 | 16 mm | |
| JB | 40 mm | |
| b | 28 mm | width rail |
| A2 | 10 mm | |

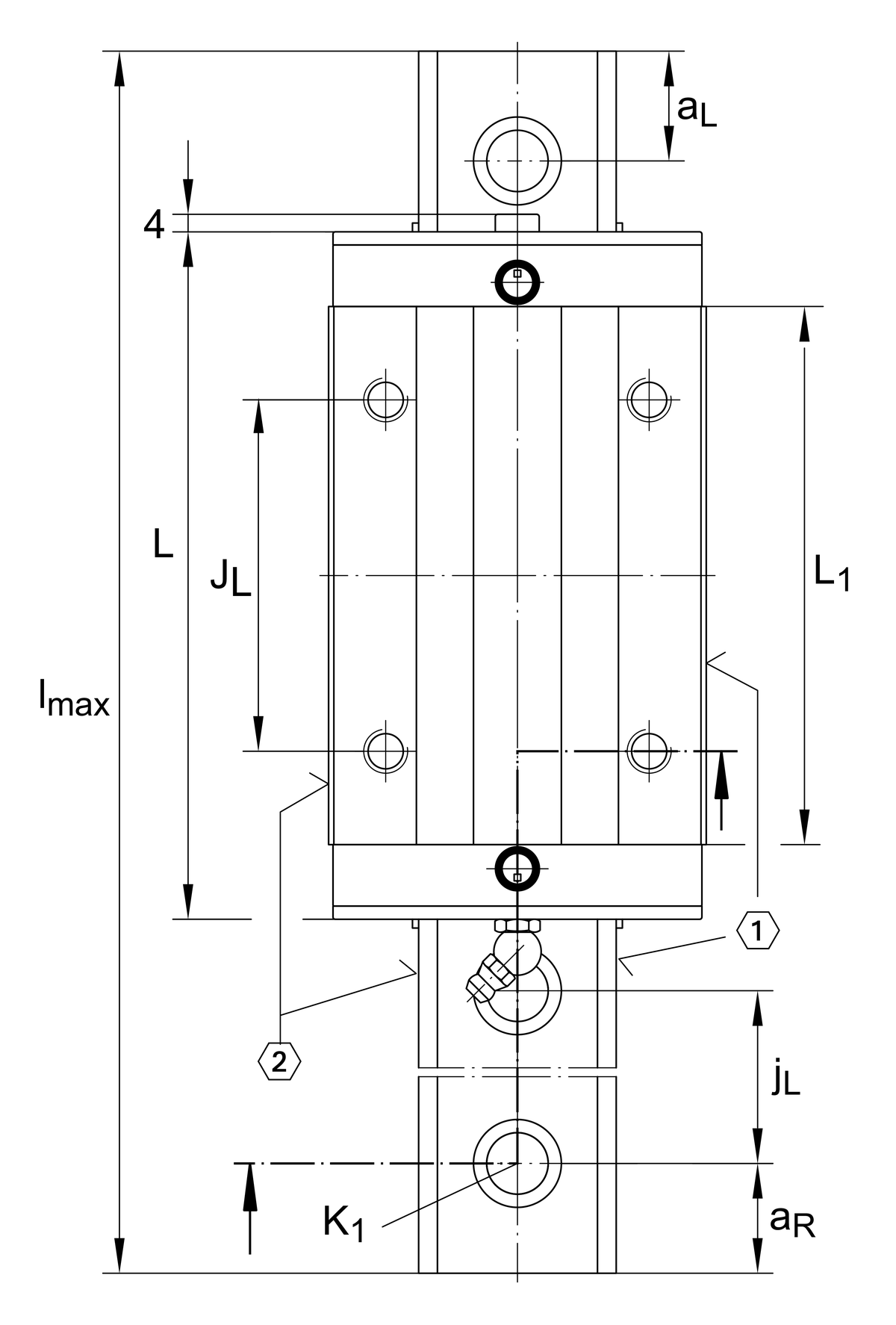

| L1 | 67.6 mm | |
| JL | 40 mm | |
| H1 | 5.4 mm | |
| H5 | 6 mm | |
| T5 | 11 mm | |
| G2 | M8 | fixing screws below (DIN ISO 4762-12.9) |
| G2 MA | 41 Nm | maximum tightening torque |
| N2 | 4.5 mm | max. diameter of lubrication hole in adjacent construction |

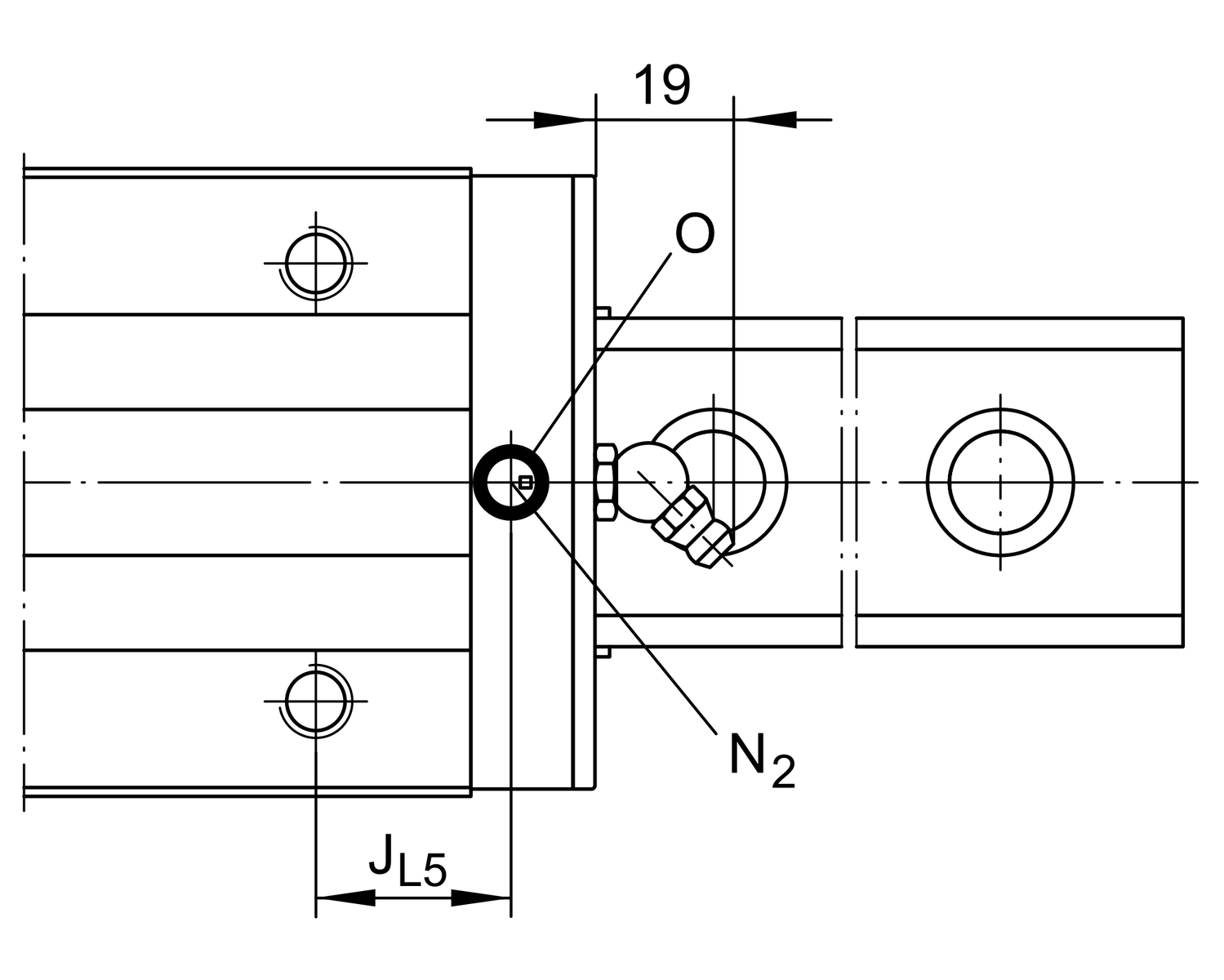

| JL5 | 18.8 mm | position lubrication connector |

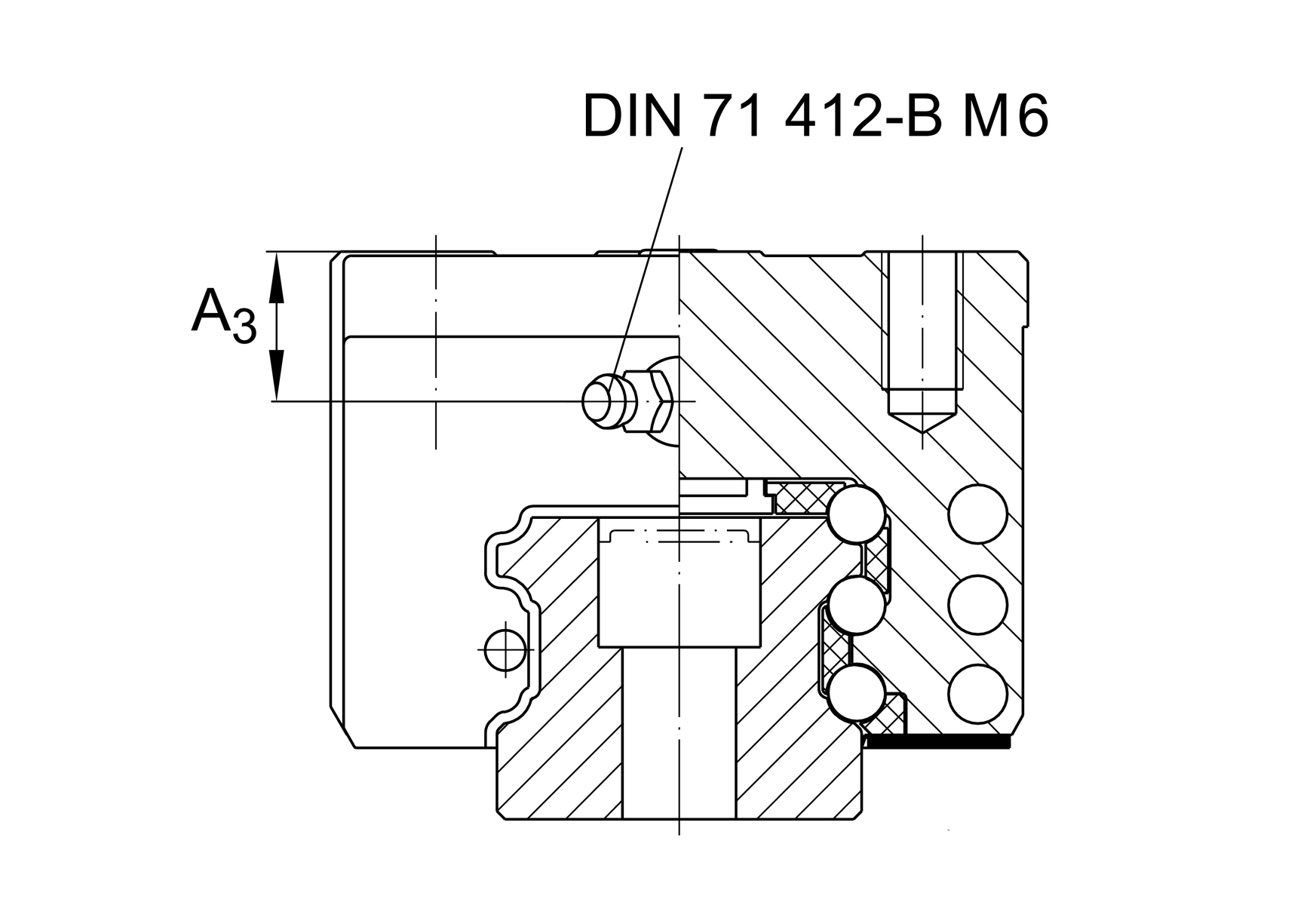

| A3 | 9.5 mm | position lubrication connector |
| t A3 | 7 mm | maximum permissible screw depth for lubrication connectors |
| O | 4,5x1,5 | O-Ring DIN 3771 |

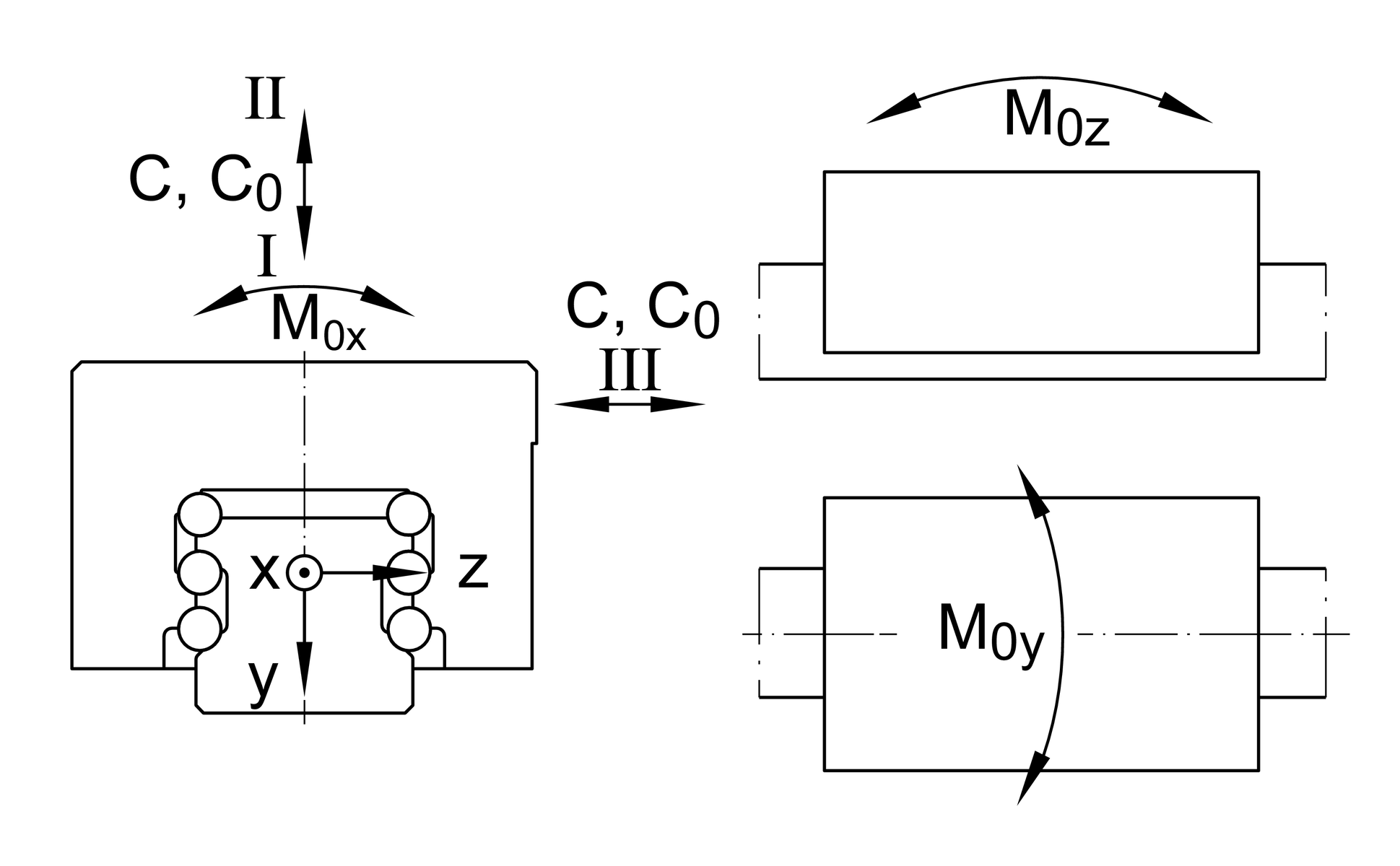

| M0X | 1,350 Nm | Moment |
| M0Y | 800 Nm | Moment |
| M0Z | 710 Nm | Moment |
附加資訊
| VMKB_065 | KWSE | Material name |
您目前的產品型號
| Size code | 30 | |
| Carriage design | H | High carriage |
