主要尺寸與性能資料

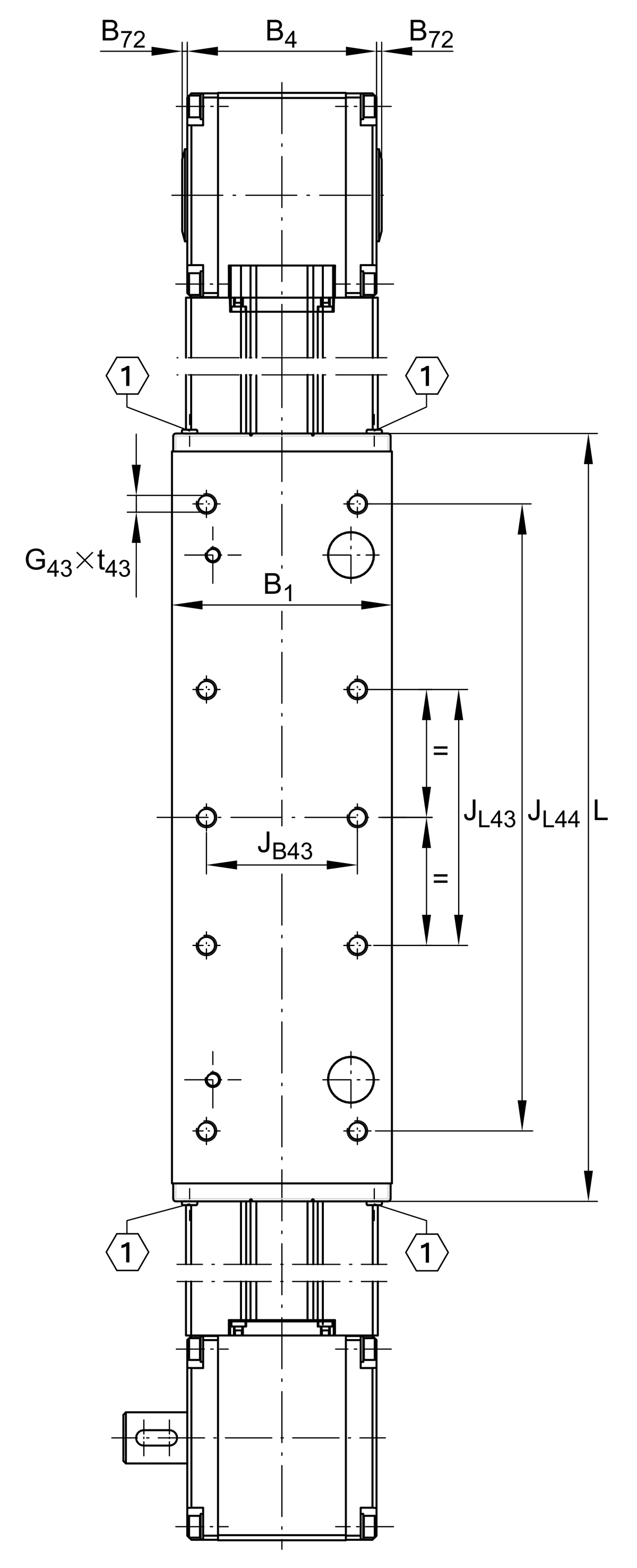

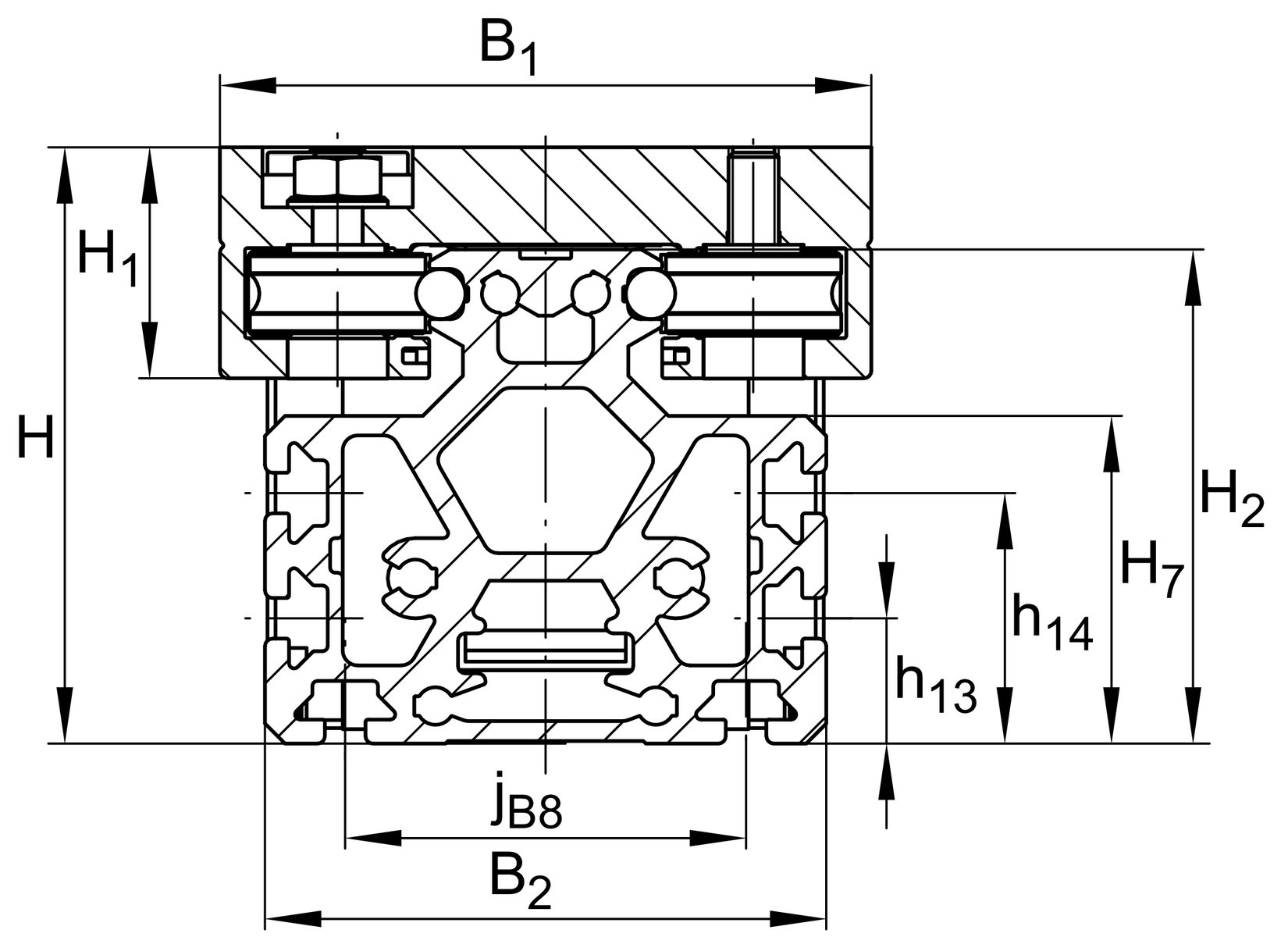

| B1 | 86 mm | Total Width |
| H | 82 mm | 高度 |
| L | 300 mm | 長度 |

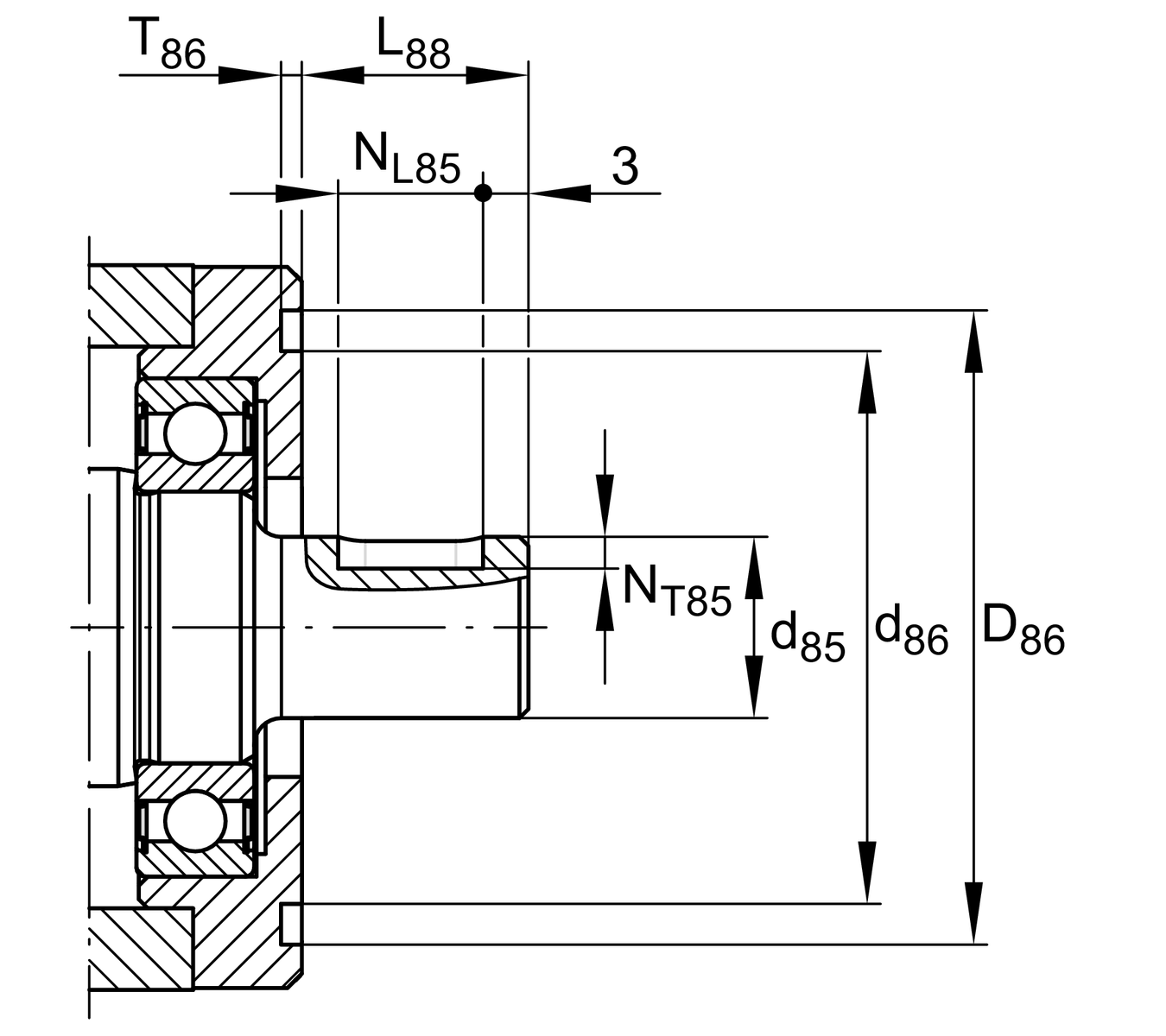

安裝尺寸
| D86 | 70 mm | |

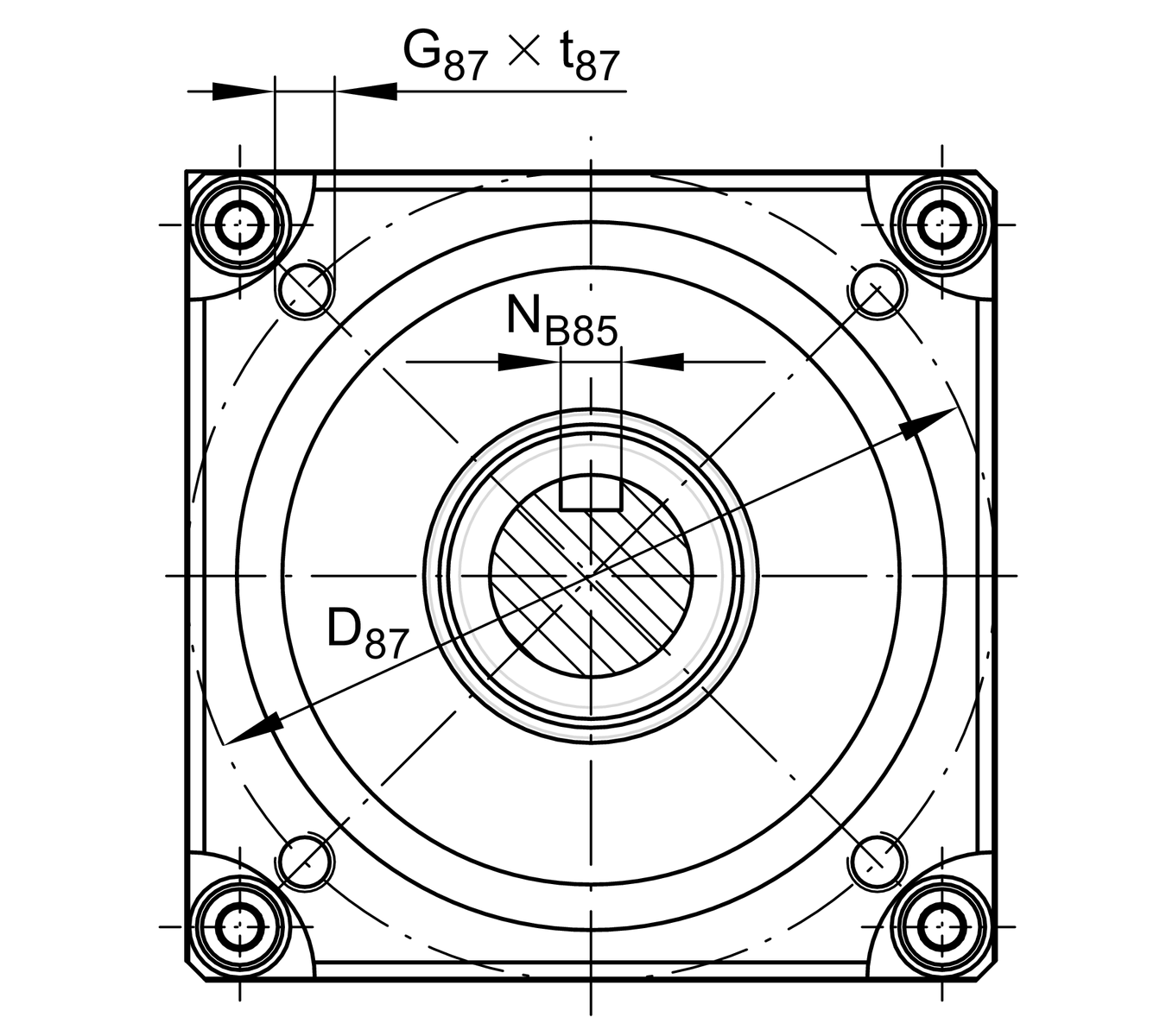

| D87 | 80 mm | ø Bolt circle |
| d85 | 20 mm | |
| d86 | 61 mm | ø Inner Fit |
| L88 | 25 mm | |
| G43 | M8 | 線 |
| G87 | M6 | 線 |
| h85 | 41.5 mm | |
| JB43 | 59 mm | |
| JL43 | 100 mm | Tolerance ±0,2 |
| JL44 | 245 mm | |
| jB8 | 43 mm | |
| NB85 | 6 mm | Width of Keyway |
| NL85 | 16 mm | Length of Keyway |
| NT85 | 3.5 mm | Depth of Keyway |
| T86 | 2.3 mm | Depth Fit |
| Tol T86 up | 0.3 mm | 公差上限 |
| Tol T86 low | 0 mm | 較低的公差 |
| t43 max | 14 mm | Depth of Thread |
| t87 max | 12 mm |

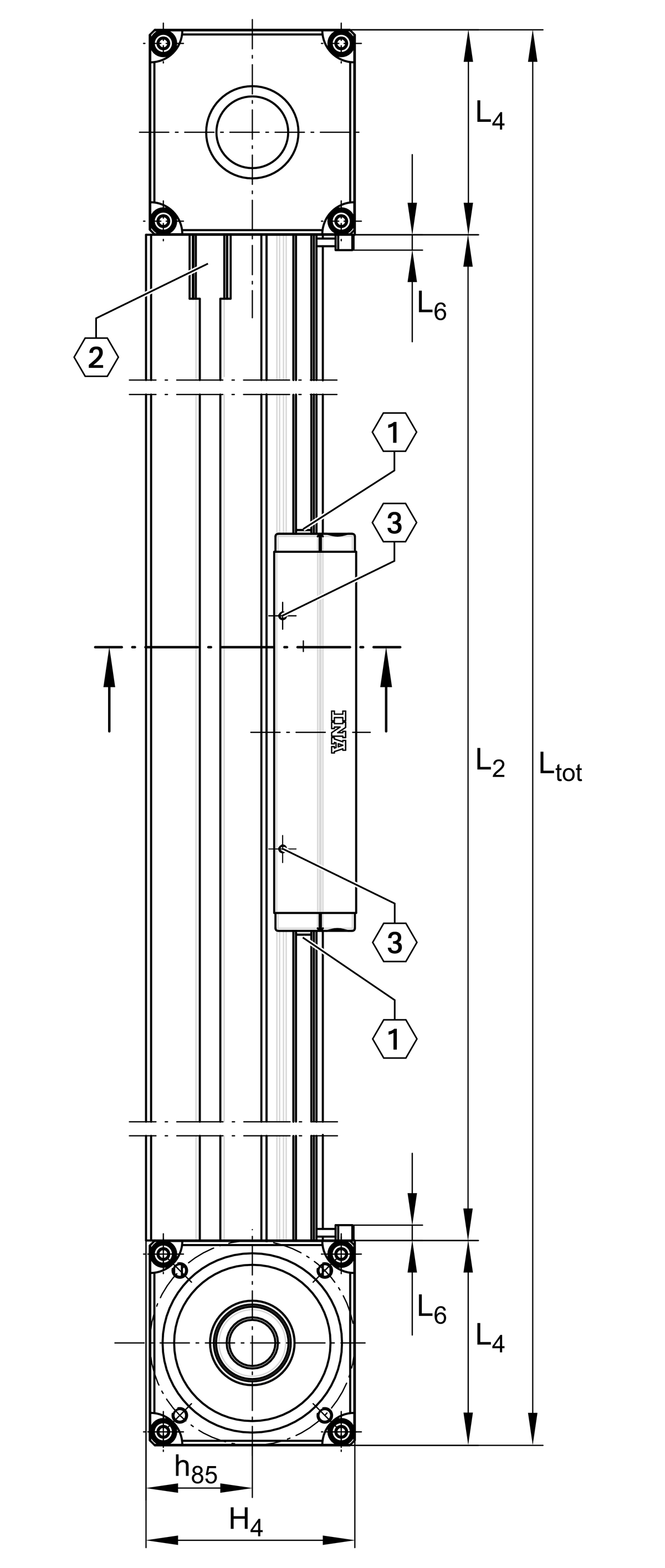

尺寸
| B2 | 75 mm | Width of Support Rail |
| B4 | 74 mm | Width of Return Unit |

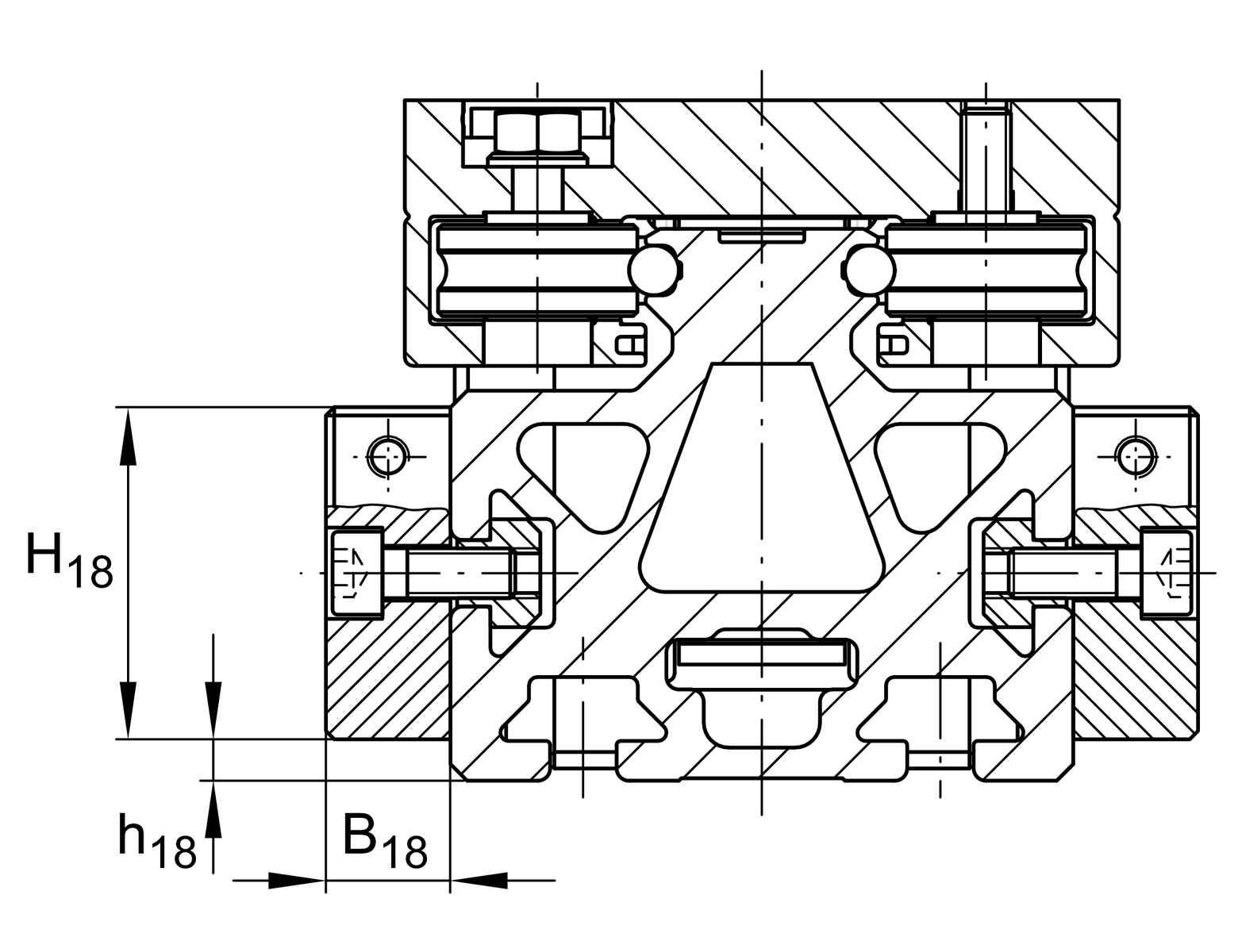

| B18 | 15 mm | |
| B72 | 2 mm | |
| H1 | 32 mm | |
| H2 | 66.5 mm | 高度 |
| H4 | 81.5 mm | Height of Return Unit |
| H7 | 47 mm | |
| H18 | 40 mm | |
| h13 | 25 mm | |
| h18 | 5 mm | |
| L2 max | 24,000 mm | Maximum length of Support Rail |
| L4 | 80 mm | |
| L18 | 300 mm | |

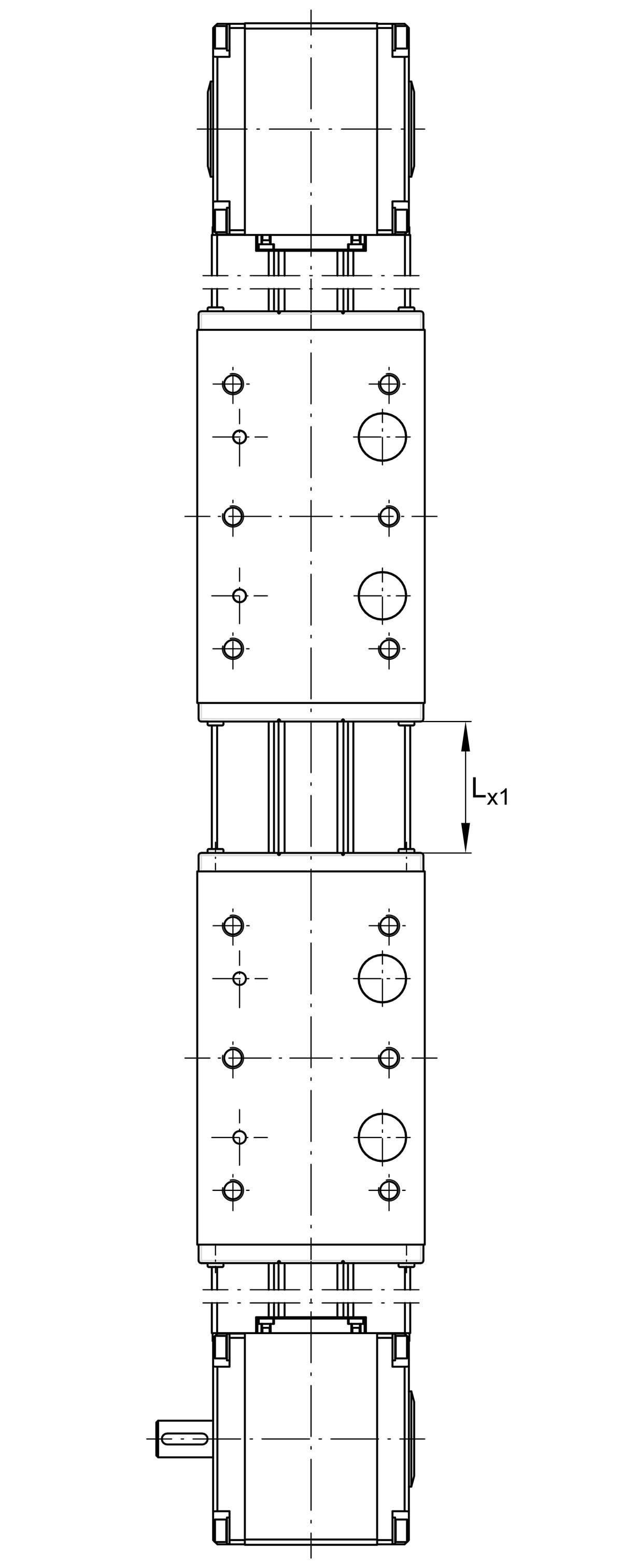

| Lx1 min | 20 mm | Minimum distance between the Carriages |

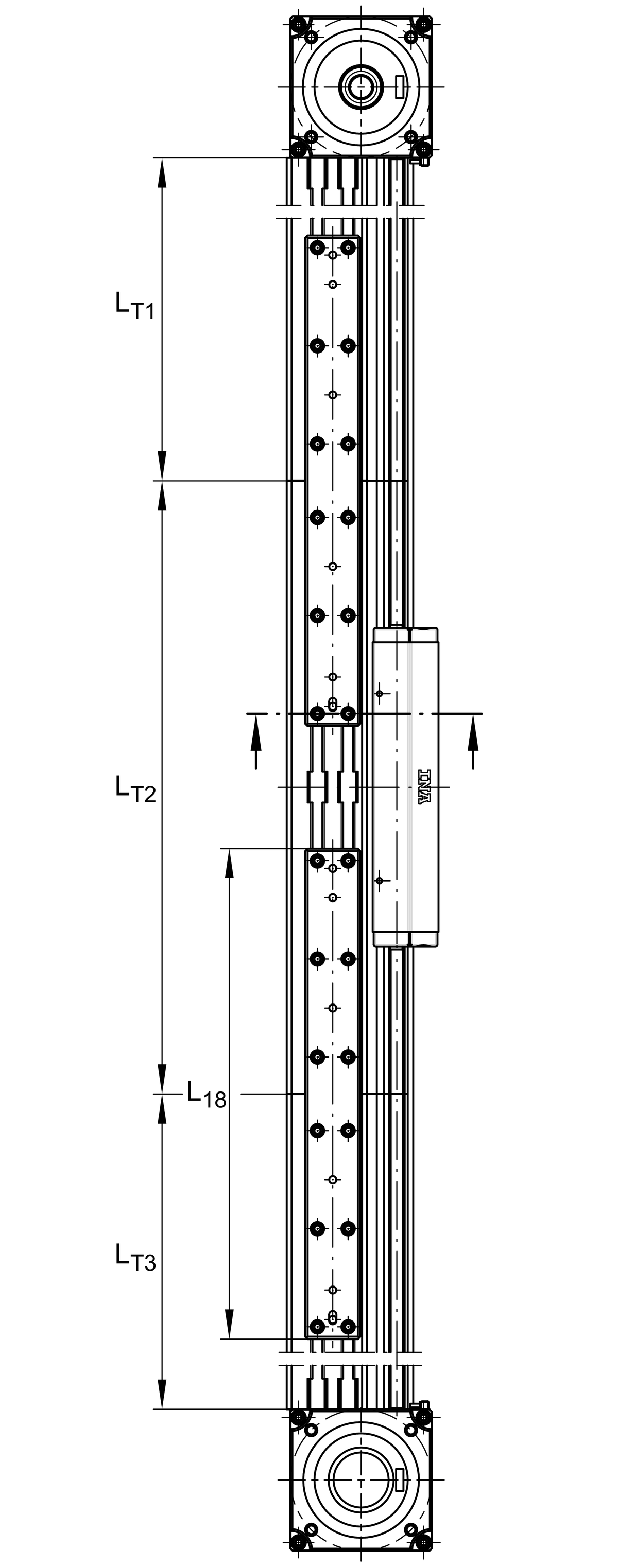

| LTn min | 500 mm | Support Rail in Segments length min |
| LTn max | 8,000 mm | Support Rail in Segments length max |
| FBL | 1.44 | Effective length factor of bellow |
| S | 85 mm | dimension |
科技數據
| mLAW | 1.38 kg | Mass of Carriage |
| m1 | 2.46 kg | Mass of Connecting Plates of Profiles |
| vmax | 8 m/s | Maximum Speed |
| amax | 40 m/s2 | Maximum Acceleration |

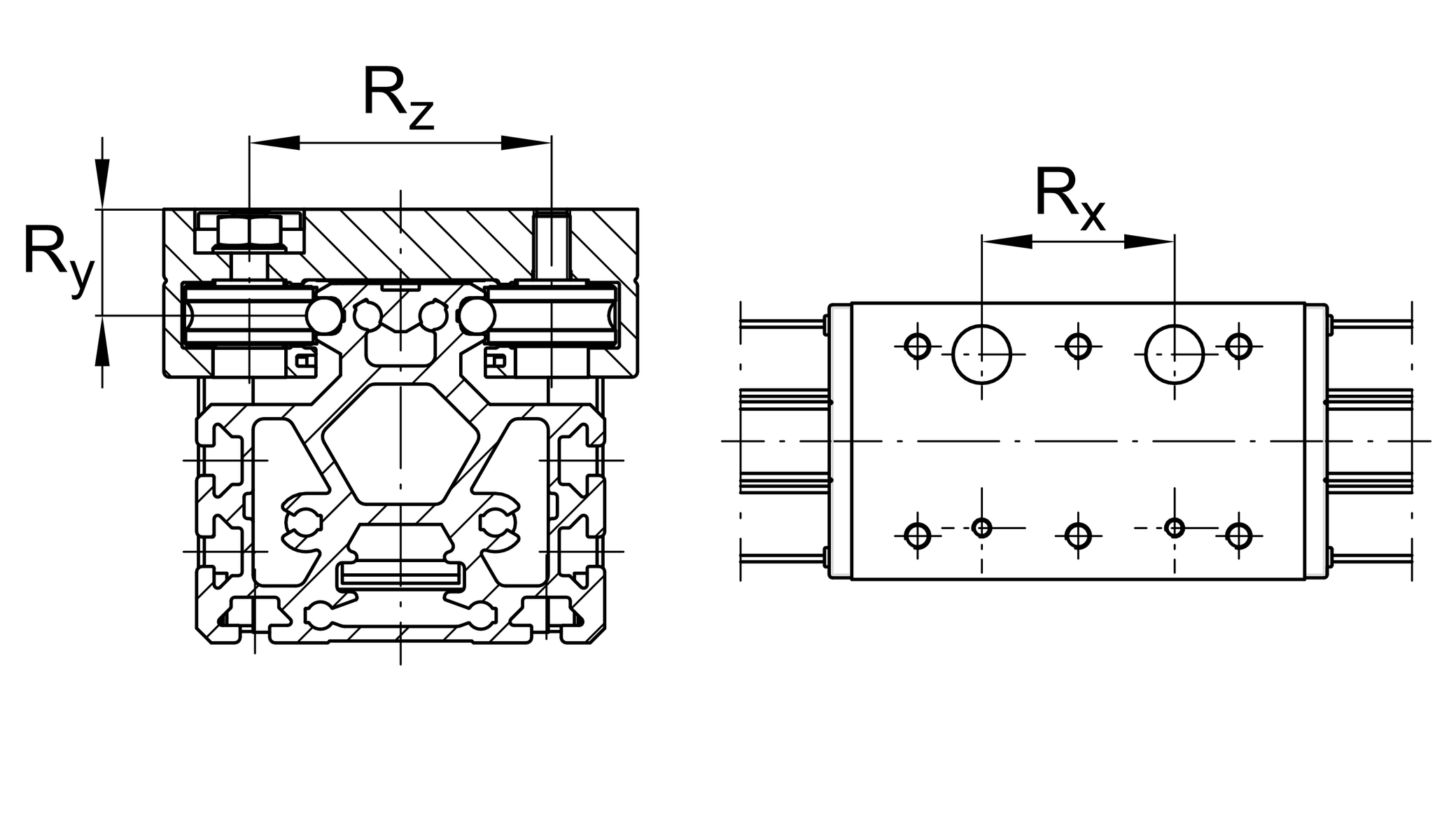

| Rx | 205 mm | |
| Ry | 20.5 mm | |
| Rz | 54 mm | |
| I C | 4,100 N | Load direction I: compressive load |
| I C0 | 2,400 N | Load direction I: compressive load |
| II C | 4,100 N | Load direction II: tensile load |
| II C0 | 2,400 N | Load direction II: tensile load |
| III C | 6,600 N | Load direction III: lateral load |
| III C0 | 4,200 N | Load direction III: lateral load |

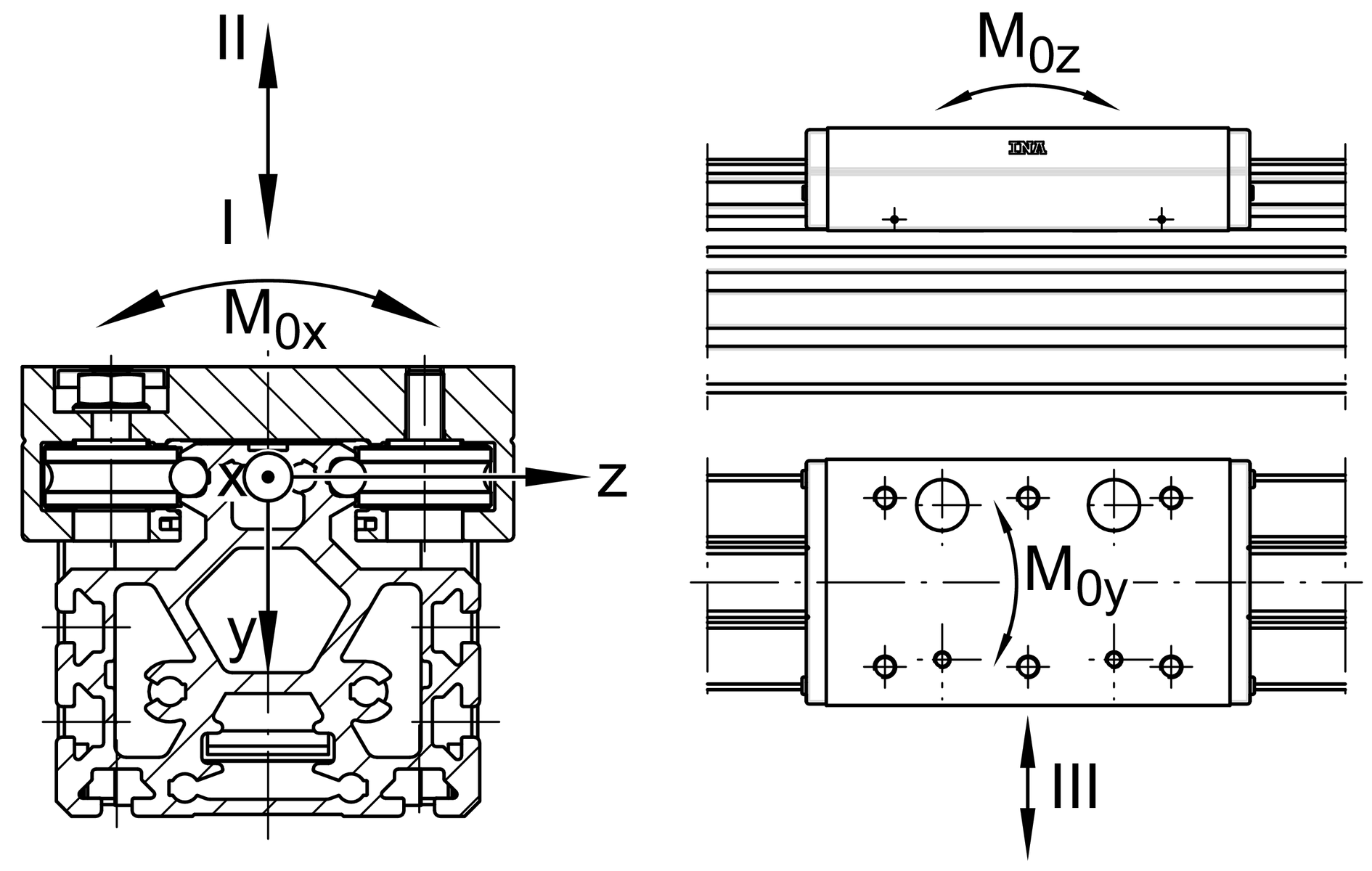

| M0x per | 30 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 425 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 205 Nm | Max. permissible static moment per Carriage 1 |
| Iy | 104 cm4 | Geometrical moments of inertia of Support Rail 2 |
| Iz | 76 cm4 | Geometrical moments of inertia of Support Rail 2 |
附加資訊
18 Nm | Max. permissible drive torque | |
4 x LFR50/8-6-2Z | Track Rollers | |
0.1 mm | Repeat Accurancy ± | |
175 mm | Feed (mm/rotation) | |
20AT5 | Toothed Belt | |
0.068 kg/m | Mass of Toothed Belt | |
640 N | Permissible Toothed Belt operating force | |
2.2 kg*cm2 | 質量慣性矩 of Gears |
溫度範圍
| Tmin | 0 °C | Minimum operating Temperatur |
| Tmax | 80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 32 | |
| Length of carriage | 300 | 300 mm |
| Carriage design | / | Standard carriage |
| Drive type | (3)ZR | Toothed belt drive |
| Additional carriage | WN2 | Second, non-driven carriage |
| Support rail design | FA517.2 | Three-piece |
| Bellow | FBALG | Yes |
