n.r.
365 | Length of carriage | |
F | Spindle nut design |
主要尺寸與性能資料

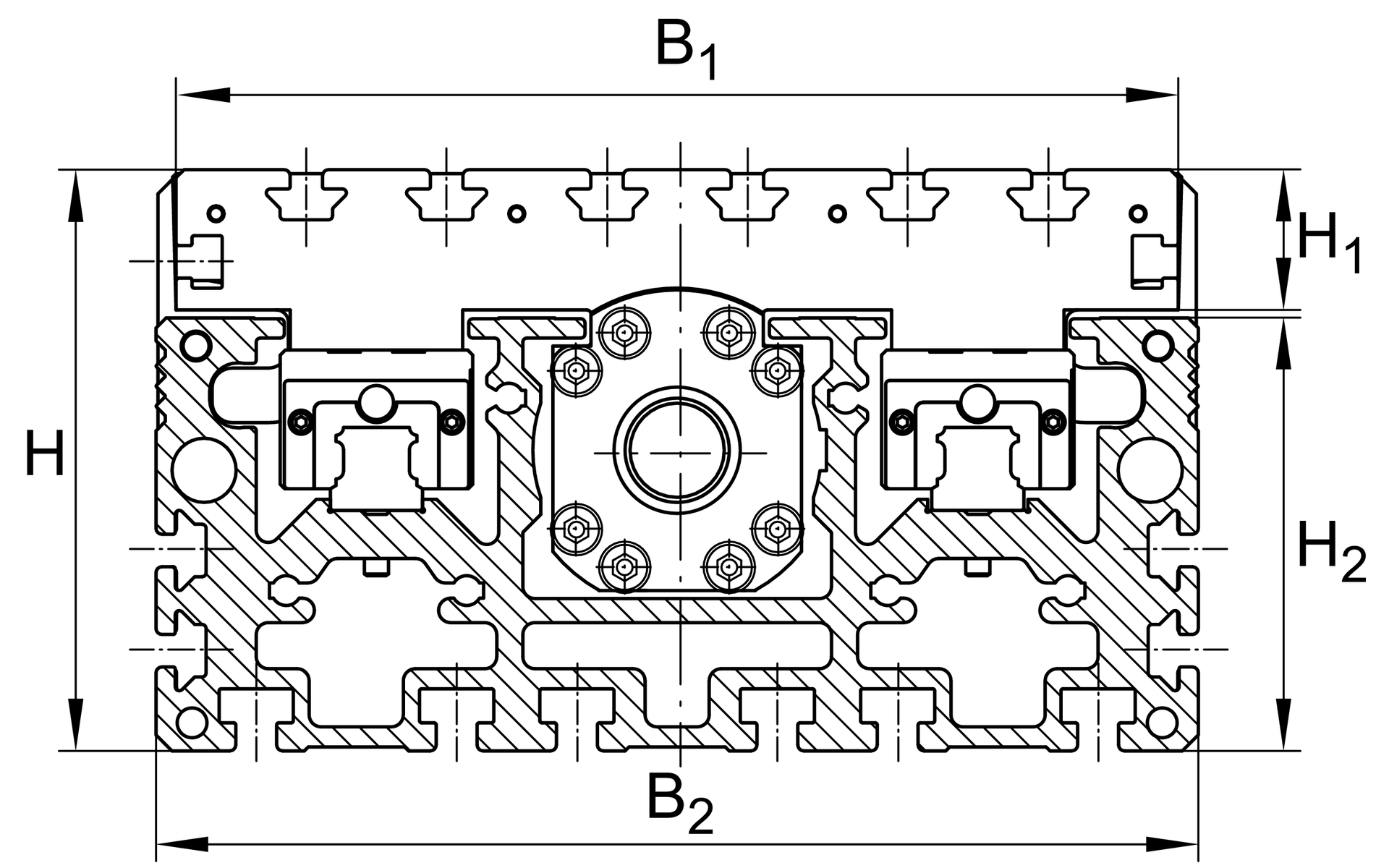

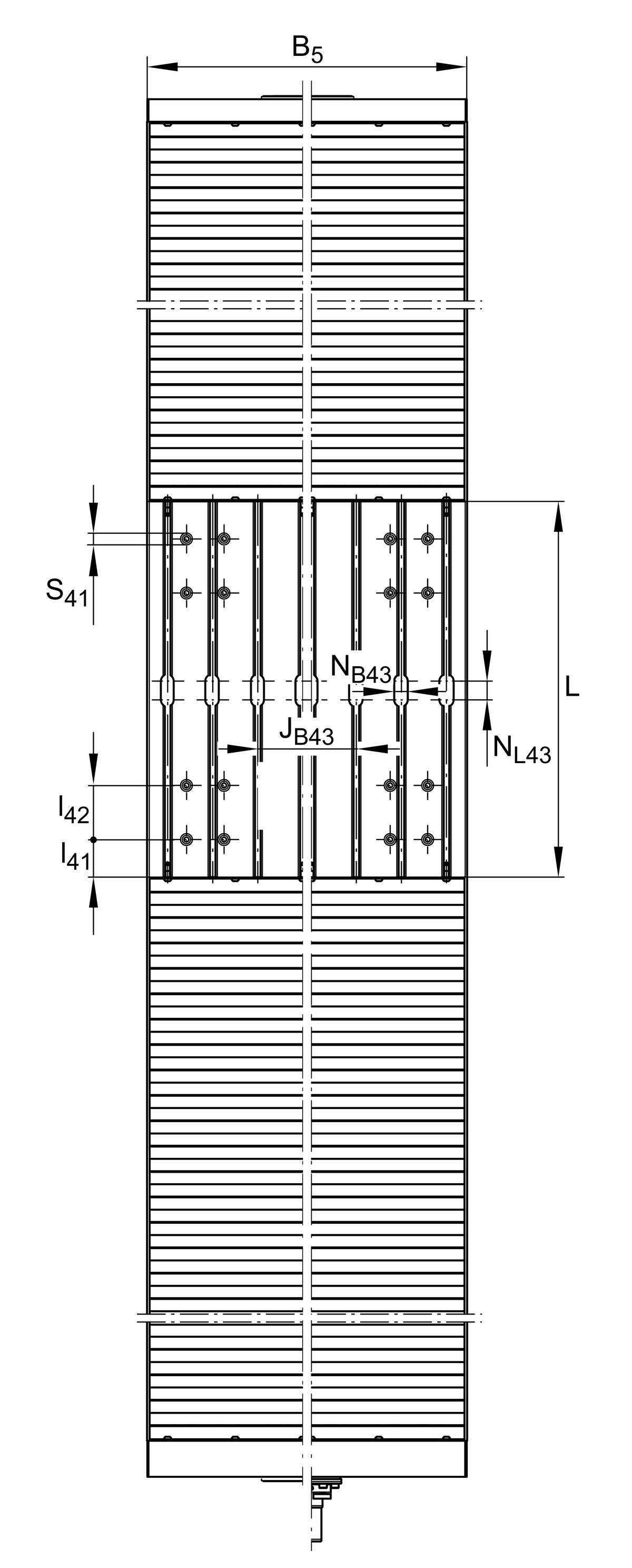

| L | 365 mm | Length of Carriage |
| H | 145 mm | Total Height |
| B2 | 260 mm | Total Width |
安裝尺寸
| B1 | 250 mm | Width of Carriage |

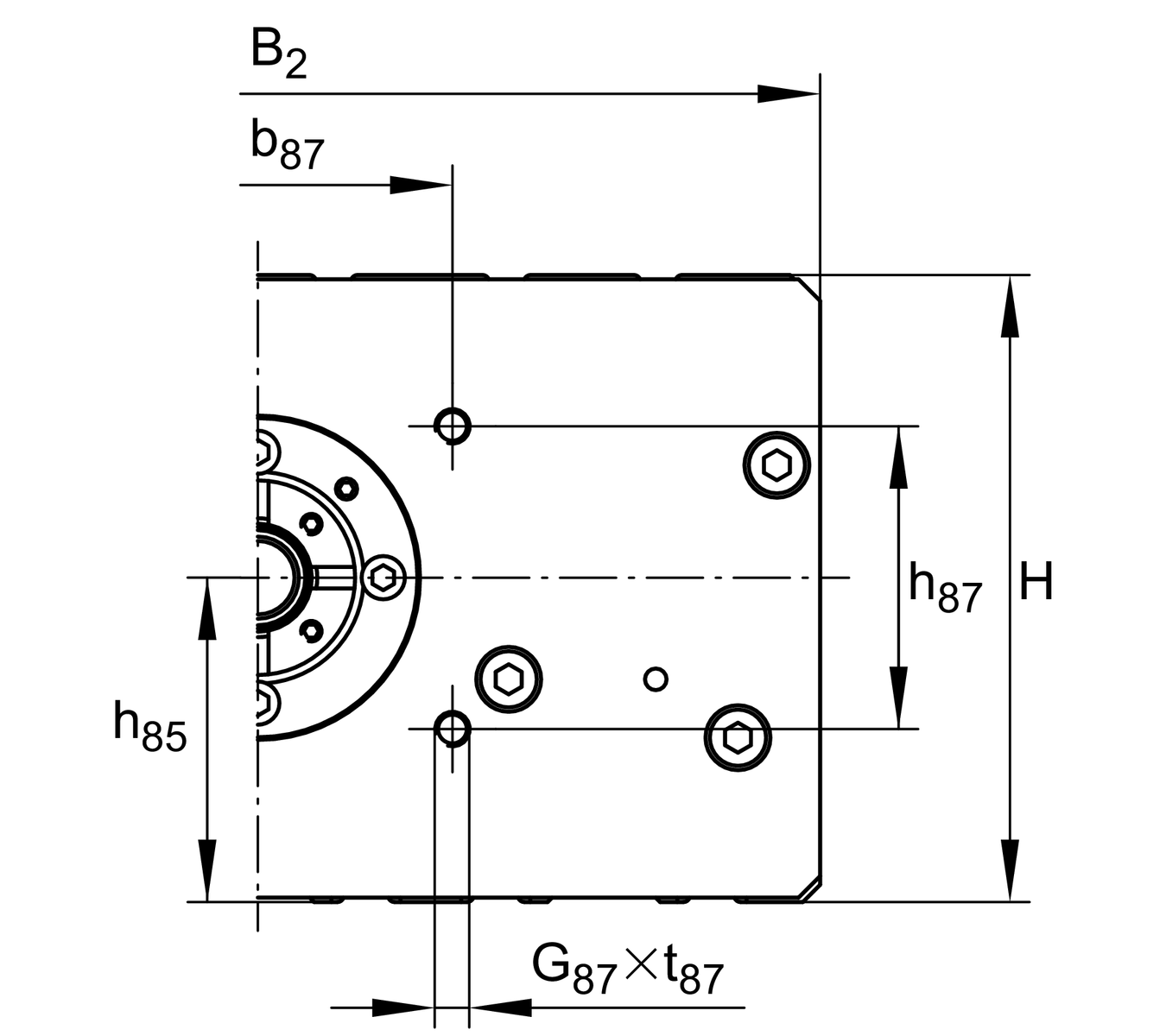

| b87 | 90 mm | |

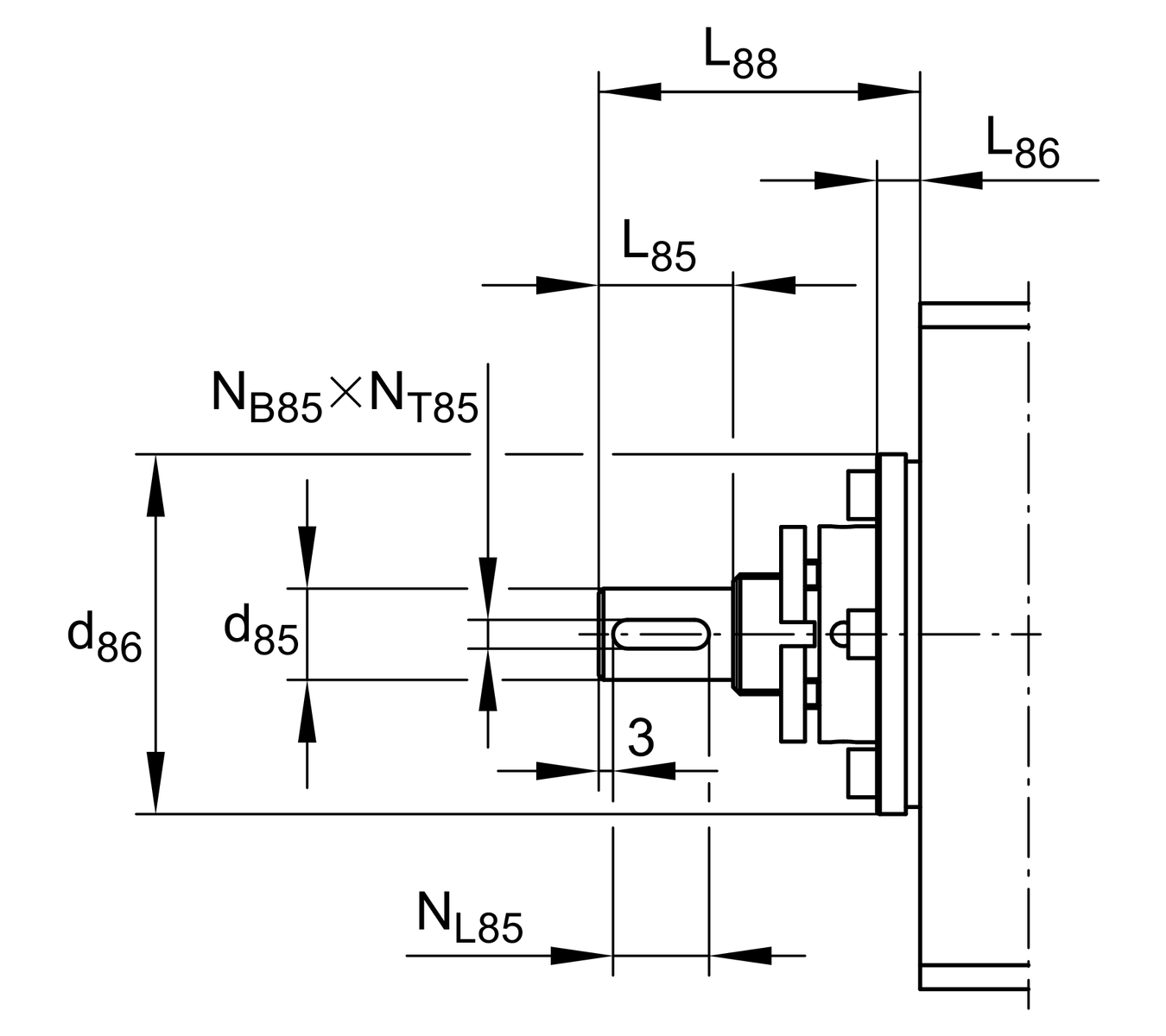

| d85 | 19 mm | Tolerance h6 |
| d86 | 75 mm | Tolerance h7 |
| G87 | M8 | 線 |

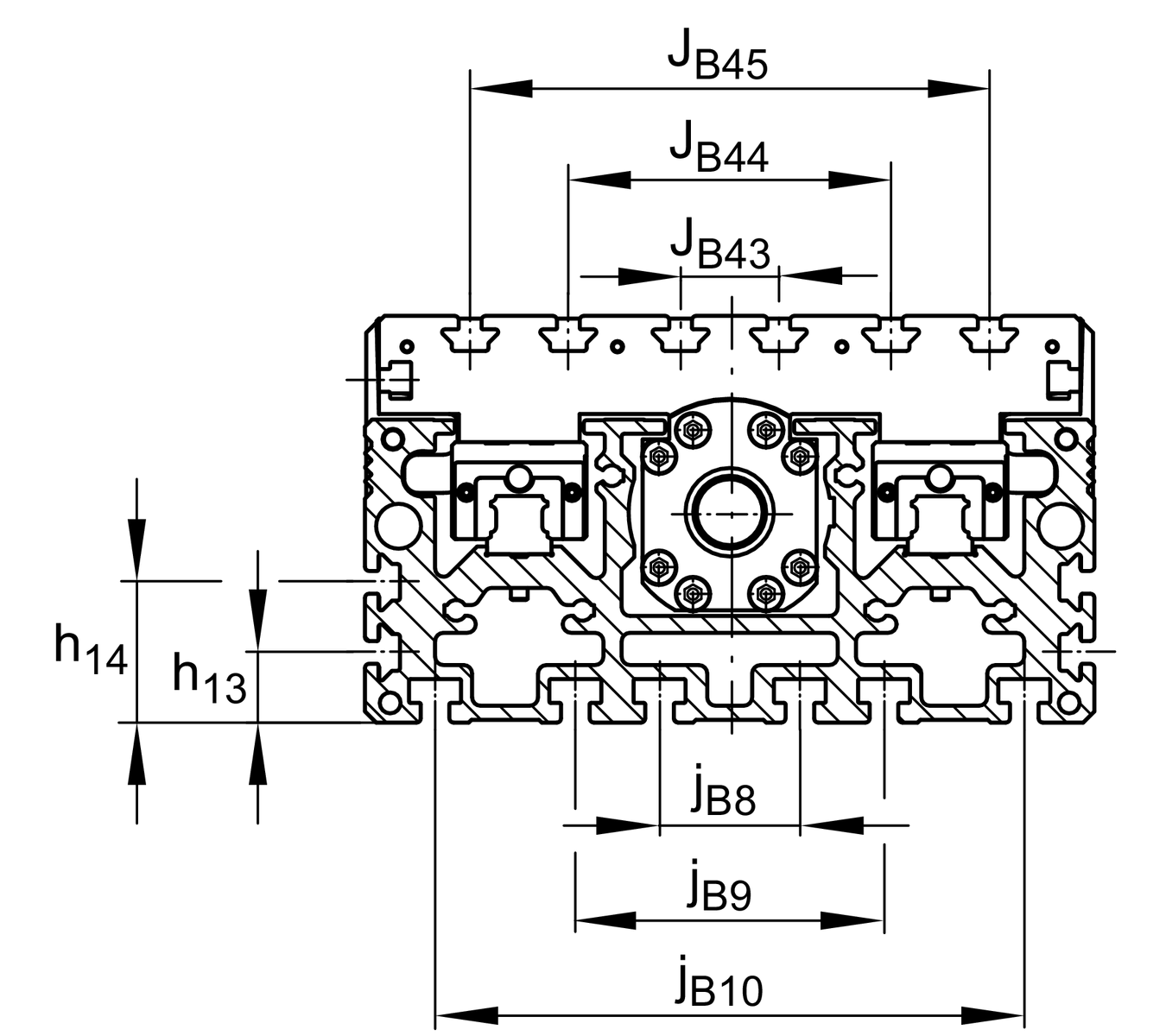

| h13 | 25 mm | |
| h14 | 50 mm | |
| h85 | 75 mm | |
| h87 | 70 mm | |
| JB43 | 35 mm | |
| JB44 | 115 mm | |
| JB45 | 185 mm | |
| jB8 | 50 mm | |
| jB9 | 110 mm | |
| jB10 | 210 mm | |
| L2 max | 5,850 mm | Maximum length of Support Rail |
| L85 | 28 mm | |
| L86 | 9 mm | |
| L88 | 67 mm | |
| NB43 | 14 mm | |
| NB85 | 6 mm | Tolerance P9 |
| NL43 | 20 mm | |
| NL85 | 20 mm | Length of Keyway |
| NT85 | 3.5 mm | Depth of Keyway |
| t87 | 20 mm | Depth of Thread |
尺寸

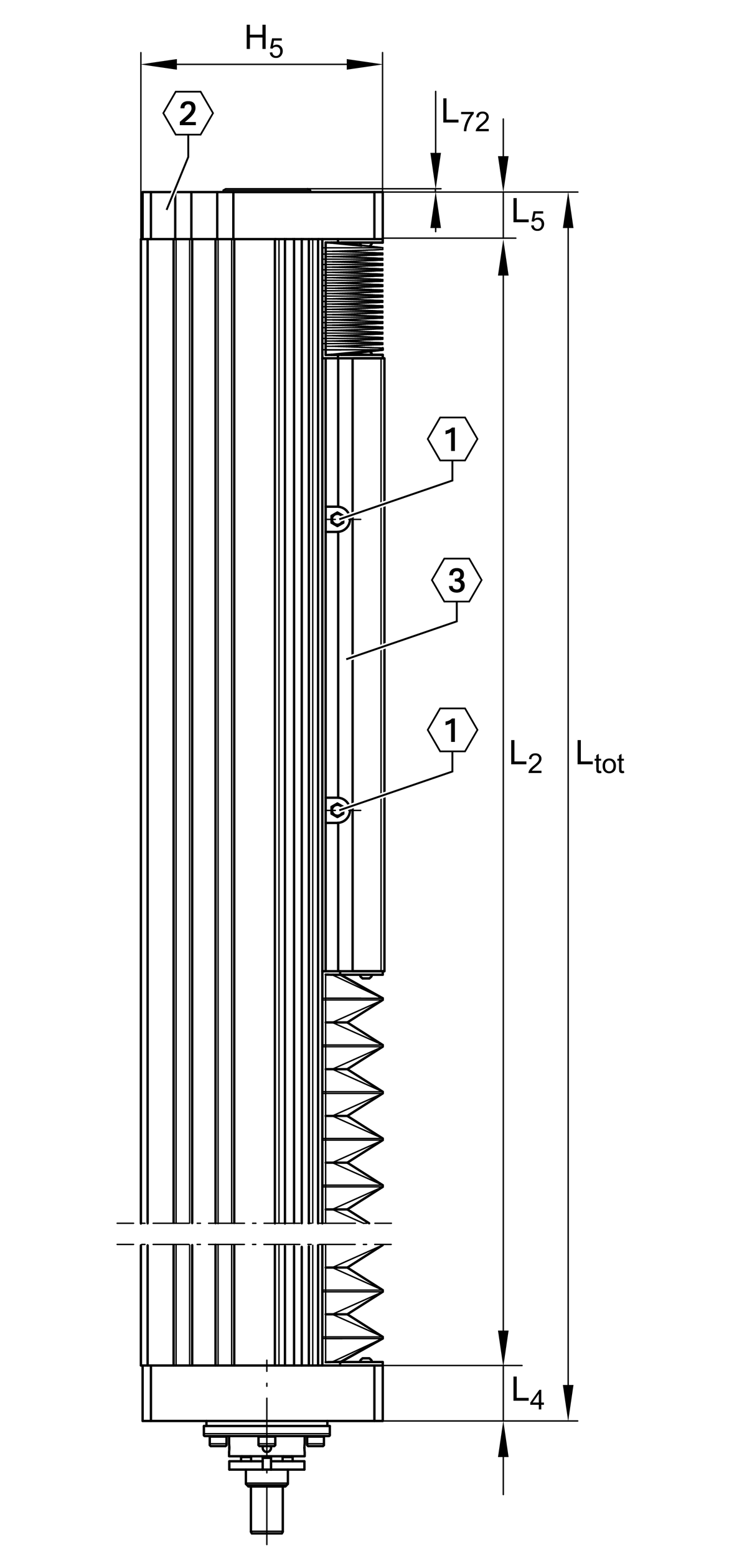

| B5 | 259 mm | Width of End Plates |
| FBL | 1.18 | Effective length factor of bellow |
| H1 | 35 mm | Height of Carriage |
| H2 | 108 mm | Width of Support Rail |
| H5 | 144 mm | |
| L4 | 33 mm | |
| L5 | 28 mm | |
| L72 | 2 mm | |
| l41 | 30 mm | |
| l42 | 35 mm | |

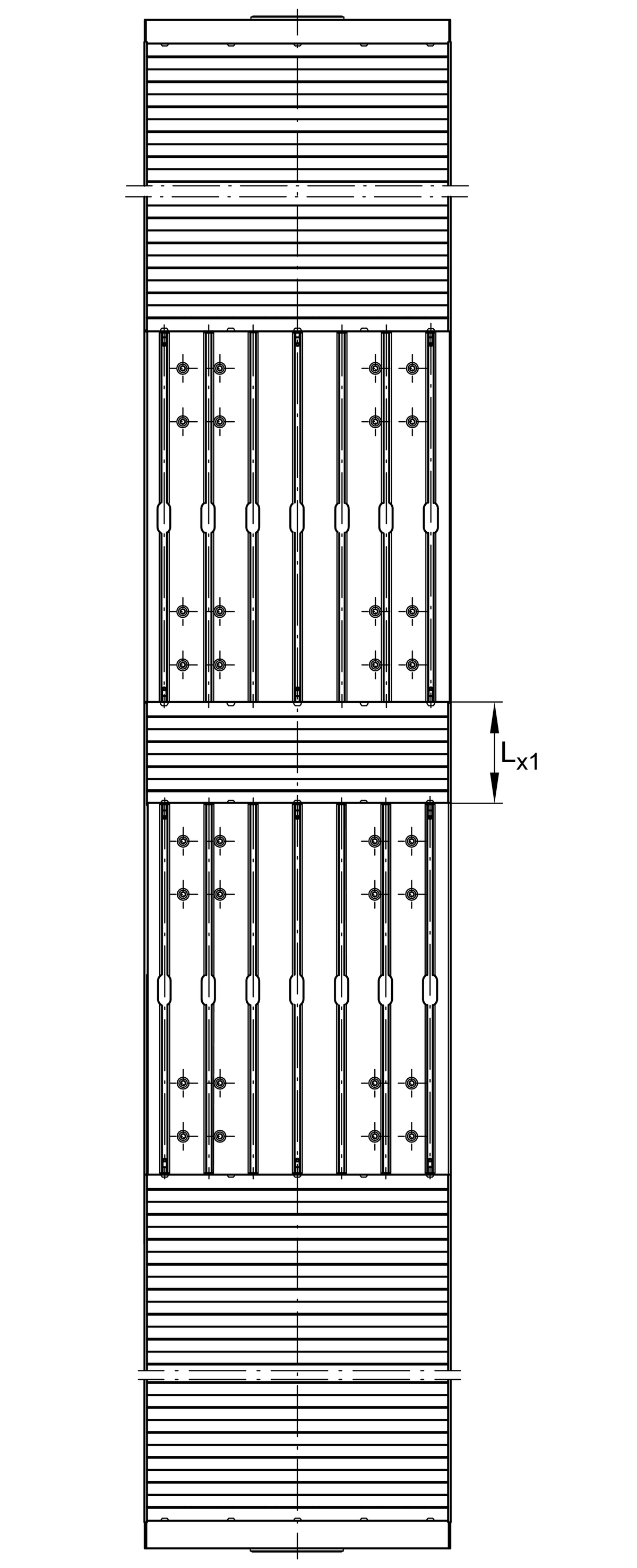

| Lx1 min | 20 mm | Minimum distance between the Carriages |
| S41 | 13 mm |
科技數據

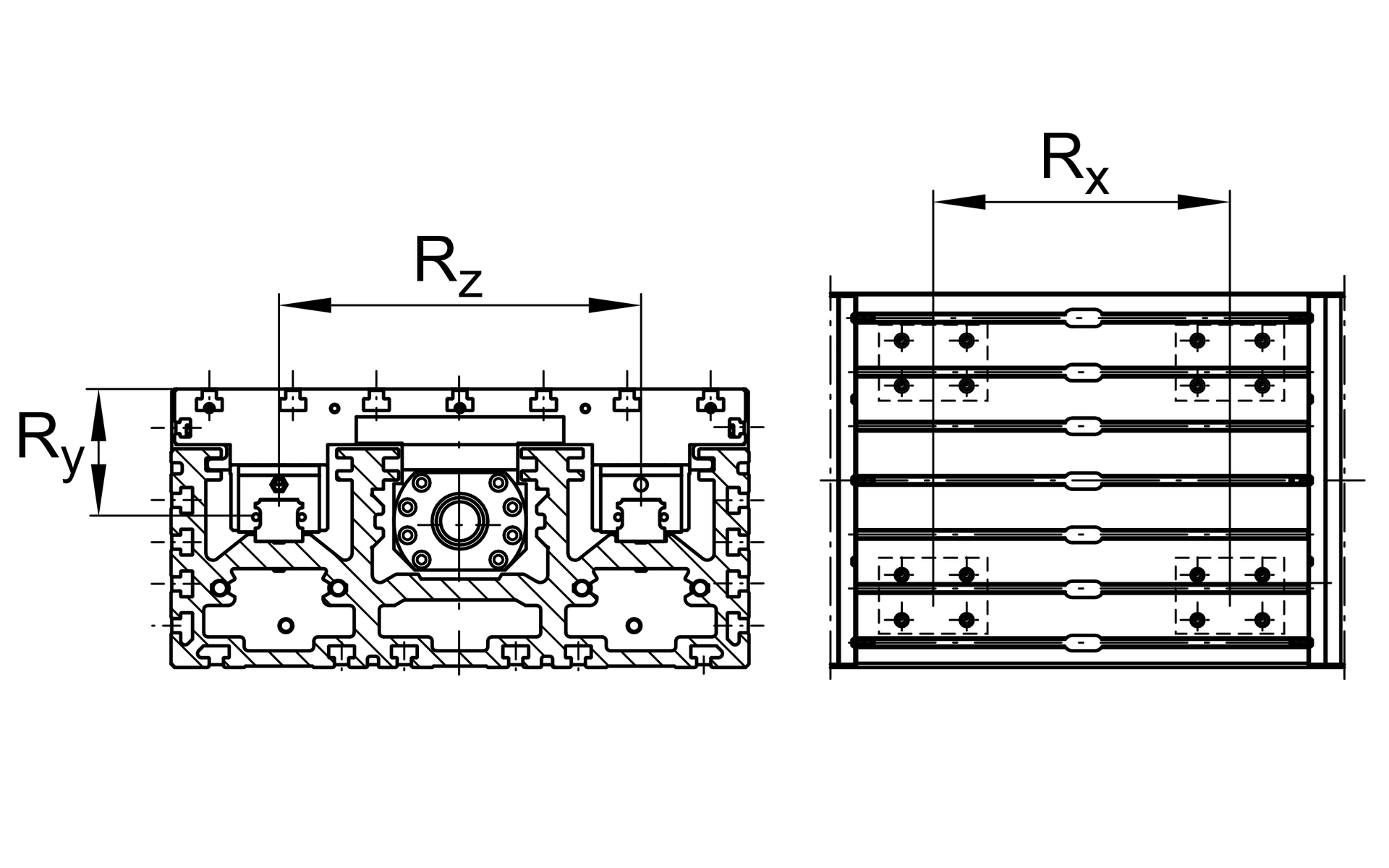

| Rx | 270 mm | |
| Ry | 72.8 mm | |
| Rz | 150 mm | |
| S | 20 mm | Safety Distance |
| mLAW | 13.04 kg | Mass of Carriage |
| m3 | 11.48 kg | Mass of additional Carriage |
| vmax | 0.86 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |

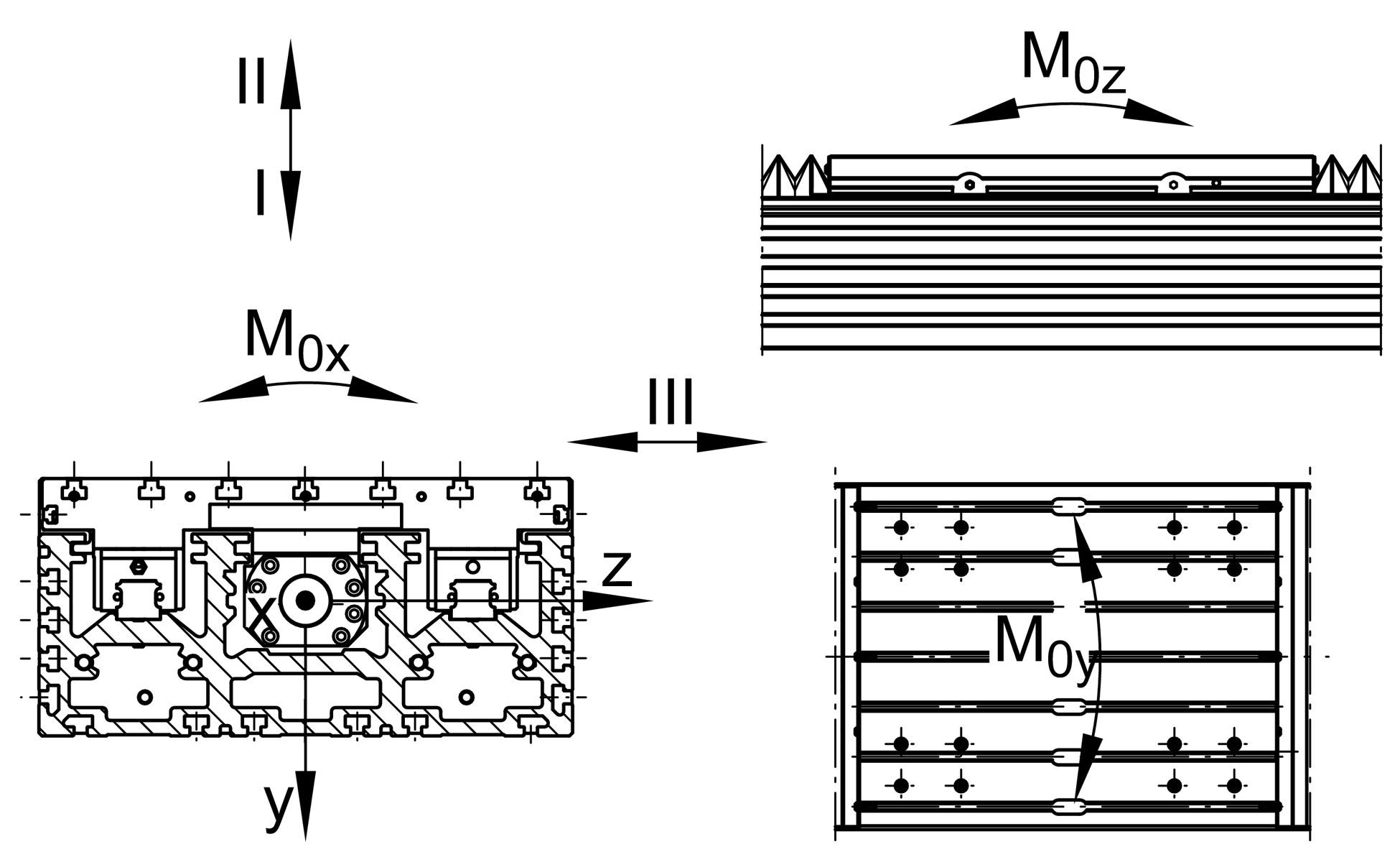

| IC | 47,200 N | Load direction I: compressive load |
| I C0 | 148,000 N | Load direction I: compressive load |
| II C | 47,200 N | Load direction II: tensile load |
| II C0 | 148,000 N | Load direction II: tensile load |
| III C | 47,200 N | Load direction III: lateral load |
| III C0 | 148,000 N | Load direction III: lateral load |
| M0x per | 9,500 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 16,000 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 16,000 Nm | Max. permissible static moment per Carriage 1 |
| ly | 7,069 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 899 cm4 | Geometrical moments of inertia of Support Rail |
| Ca MU | 29,700 N | Load capacity spindle nut dyn 2 |
| C0a MU | 59,800 N | Load capacity spindle nut stat 2 |
| Ca L | 27,500 N | Load capacity fixed Spindle bearing dyn |
| C0a L | 55,000 N | Load capacity fixed Spindle bearing stat |
| d0 | 32 mm | Spindle Diameter |
| P | 20 mm | Spindle Pitch |
| ls | 6.43 kg*cm2 | 質量慣性矩 of threaded Spindle |
| 2SPU | ja | Double Spindle Support |
| WN2 | ja | Second, non-driven Carriage |
附加資訊
ZKLF2575-2RS-PE | Rolling Bearings | |
F | Drive System | |
4x KWVE25-B-H | Carriage |
您目前的產品型號
| Size code | 25 | |
| Drive type | KGT | Ball screw drive |
| Spindle pitch | 20 | 20 mm |
| Spindle support | 2SPU | Double spindle support |
| Additional carriage | WN2 | Second, non-driven carriage |
| Attachment to the carriage | N | T-Slots |
