365 | Length of carriage |
主要尺寸與性能資料

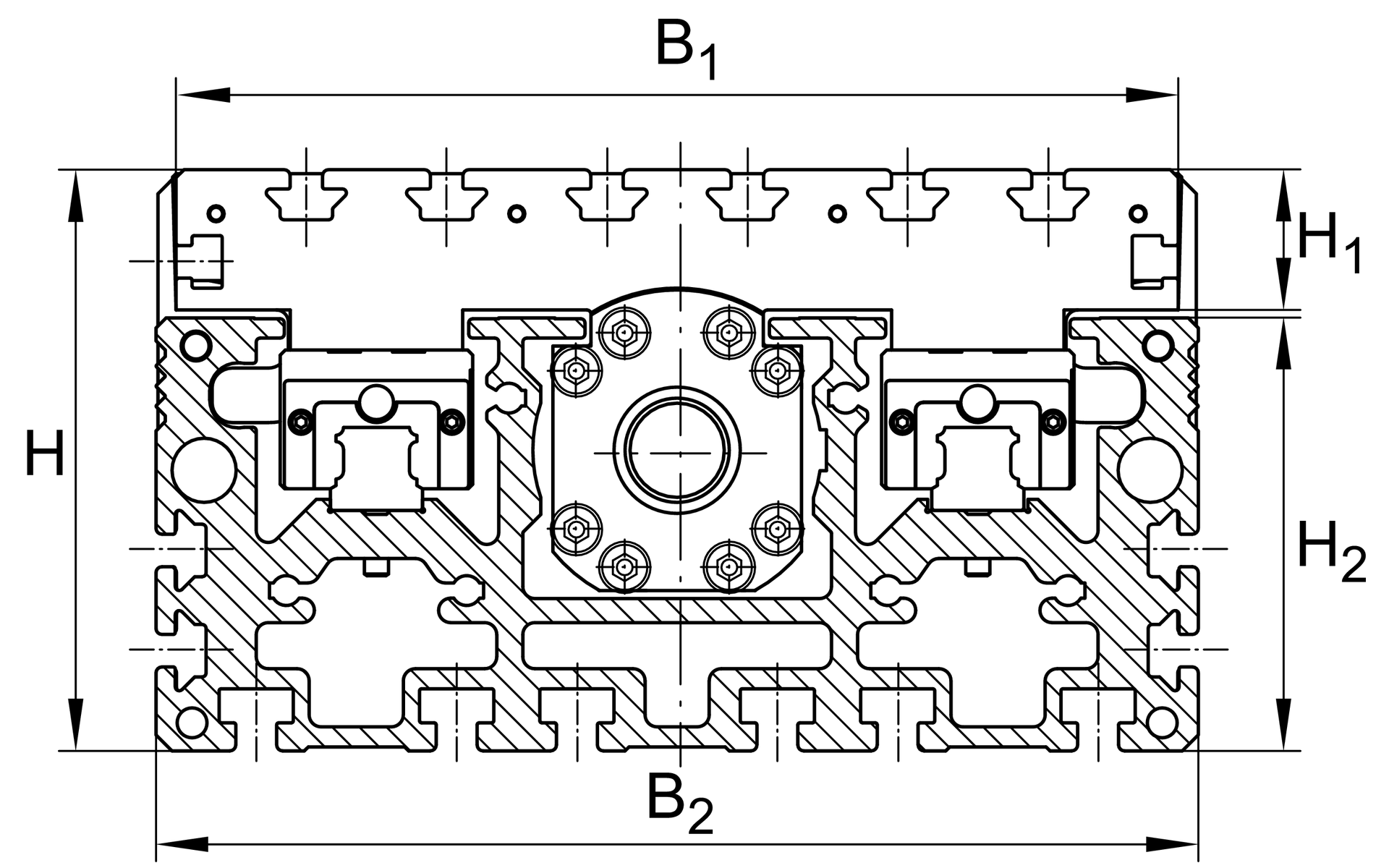

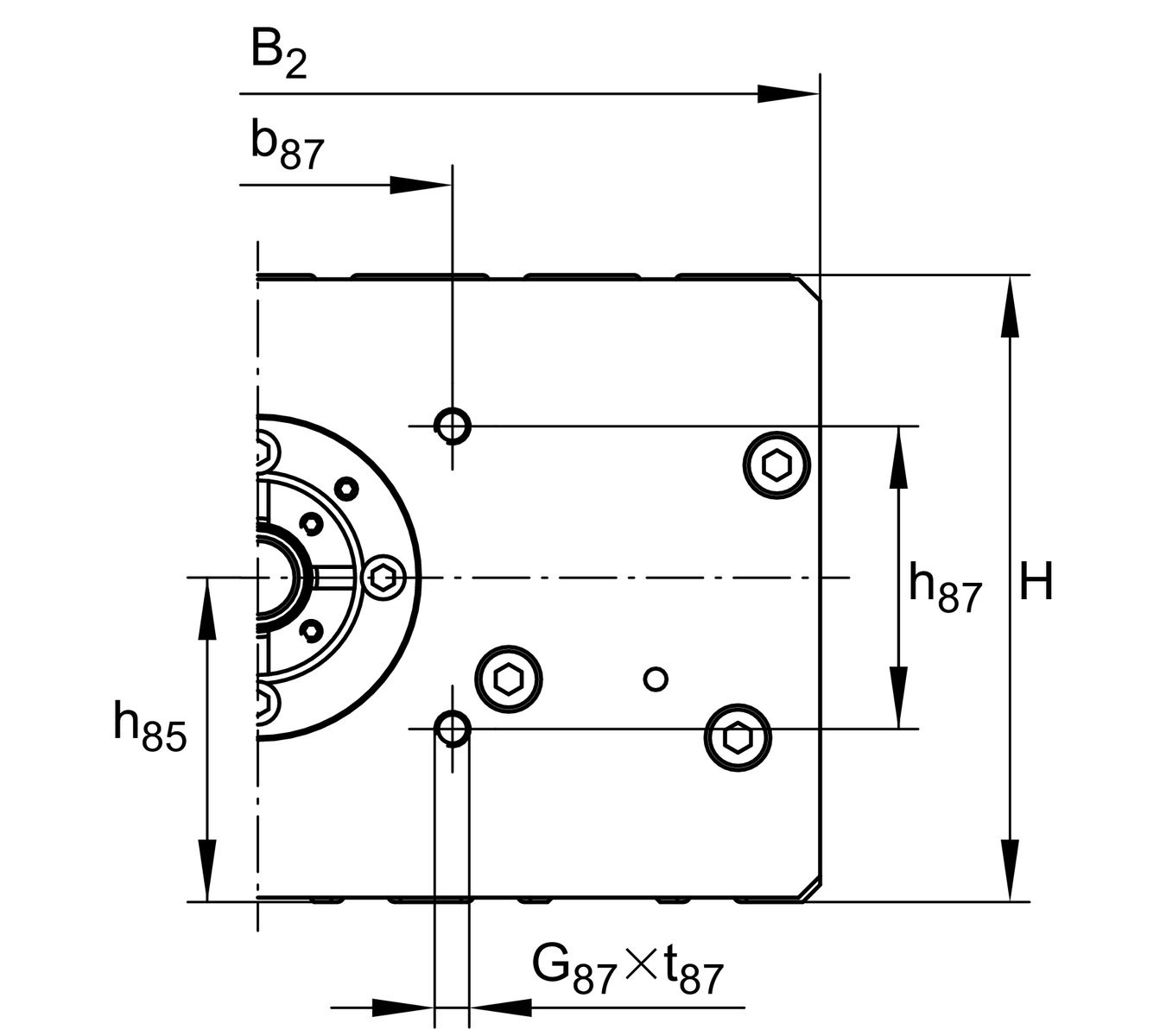

| L | 365 mm | Length of Carriage |
| H | 145 mm | Total Height |
| B2 | 260 mm | Total Width |
安裝尺寸

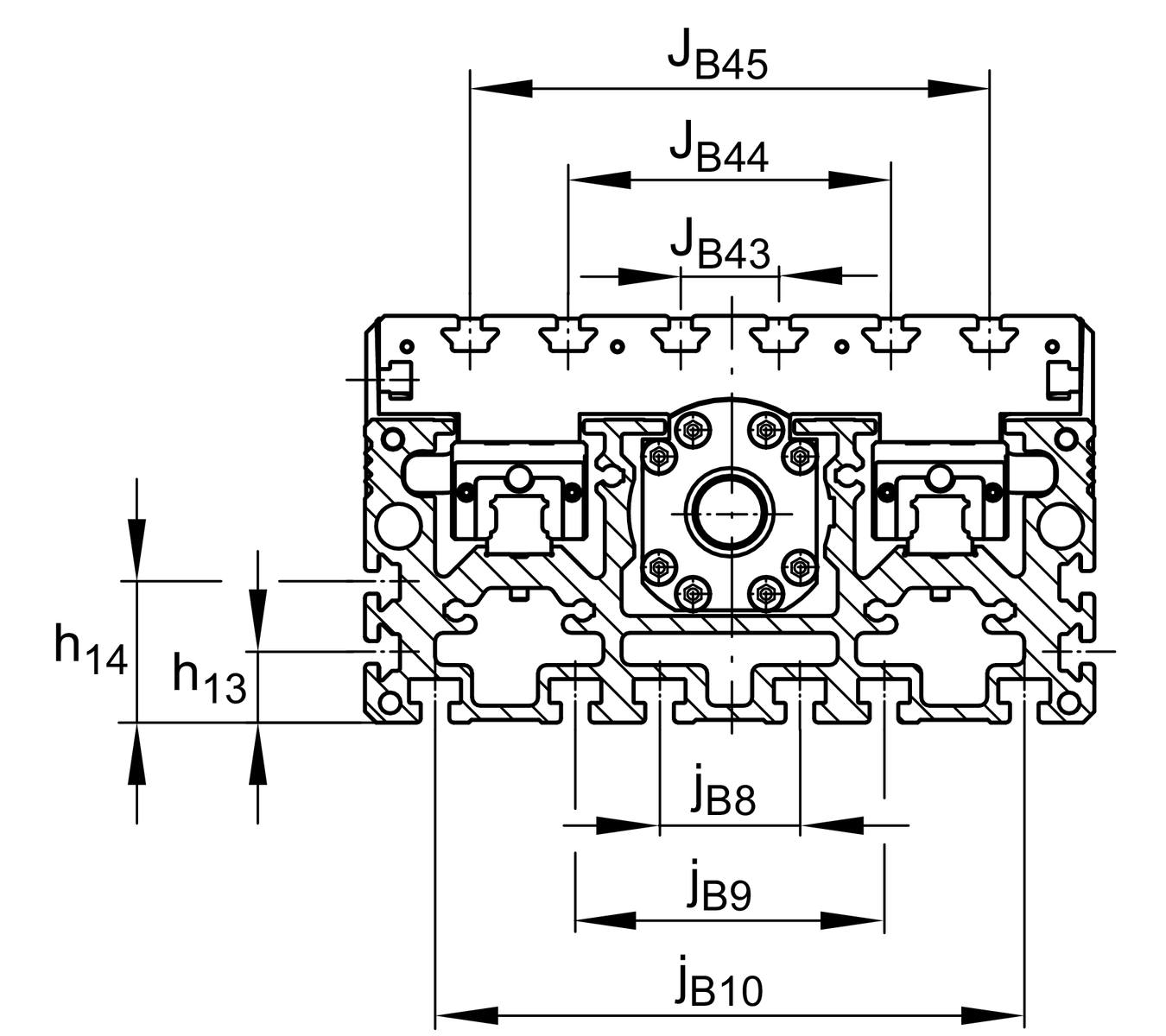

| B1 | 250 mm | Width of Carriage |
| h13 | 25 mm | |
| h14 | 50 mm | |
| JB43 | 35 mm | |
| JB44 | 115 mm | |
| JB45 | 185 mm | |
| jB8 | 50 mm | |
| jB9 | 110 mm | |
| jB10 | 210 mm | |
| L2 max | 5,850 mm | Maximum length of Support Rail |
| NB43 | 14 mm | |
| NL43 | 20 mm |
尺寸

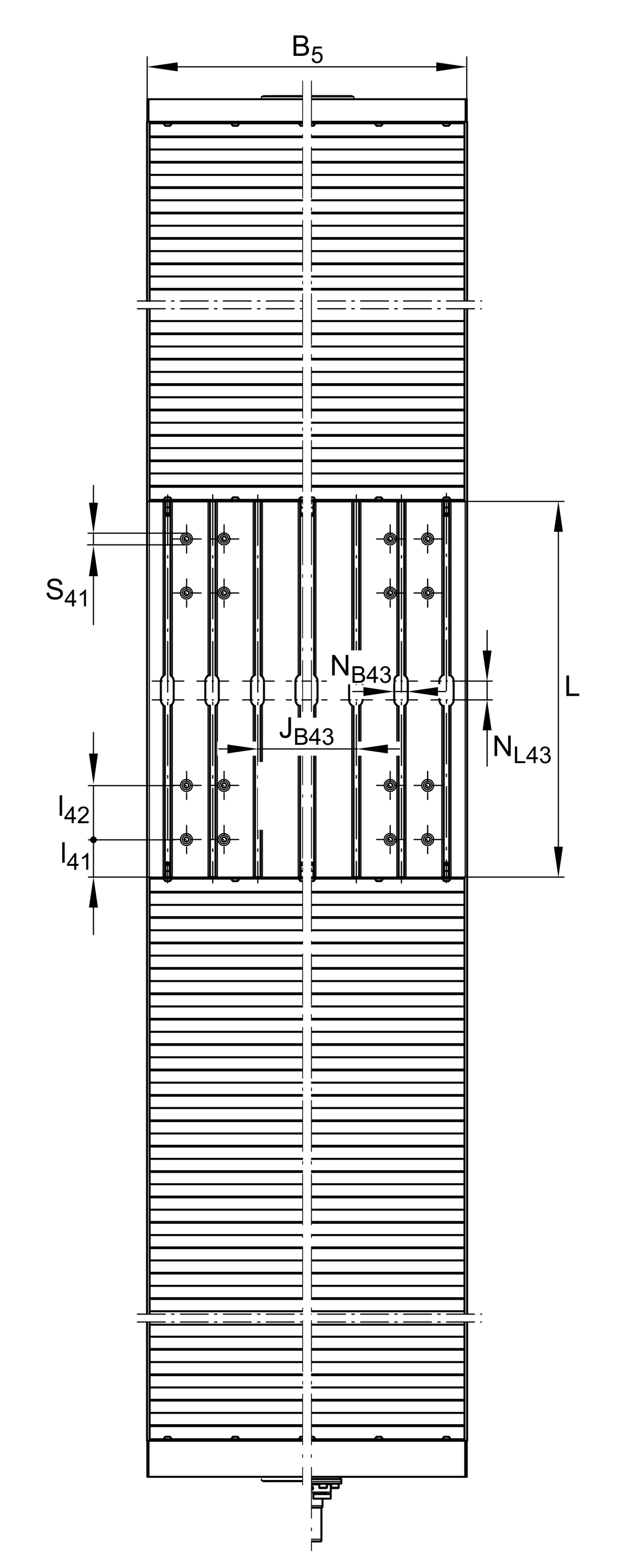

| B5 | 259 mm | Width of End Plates |

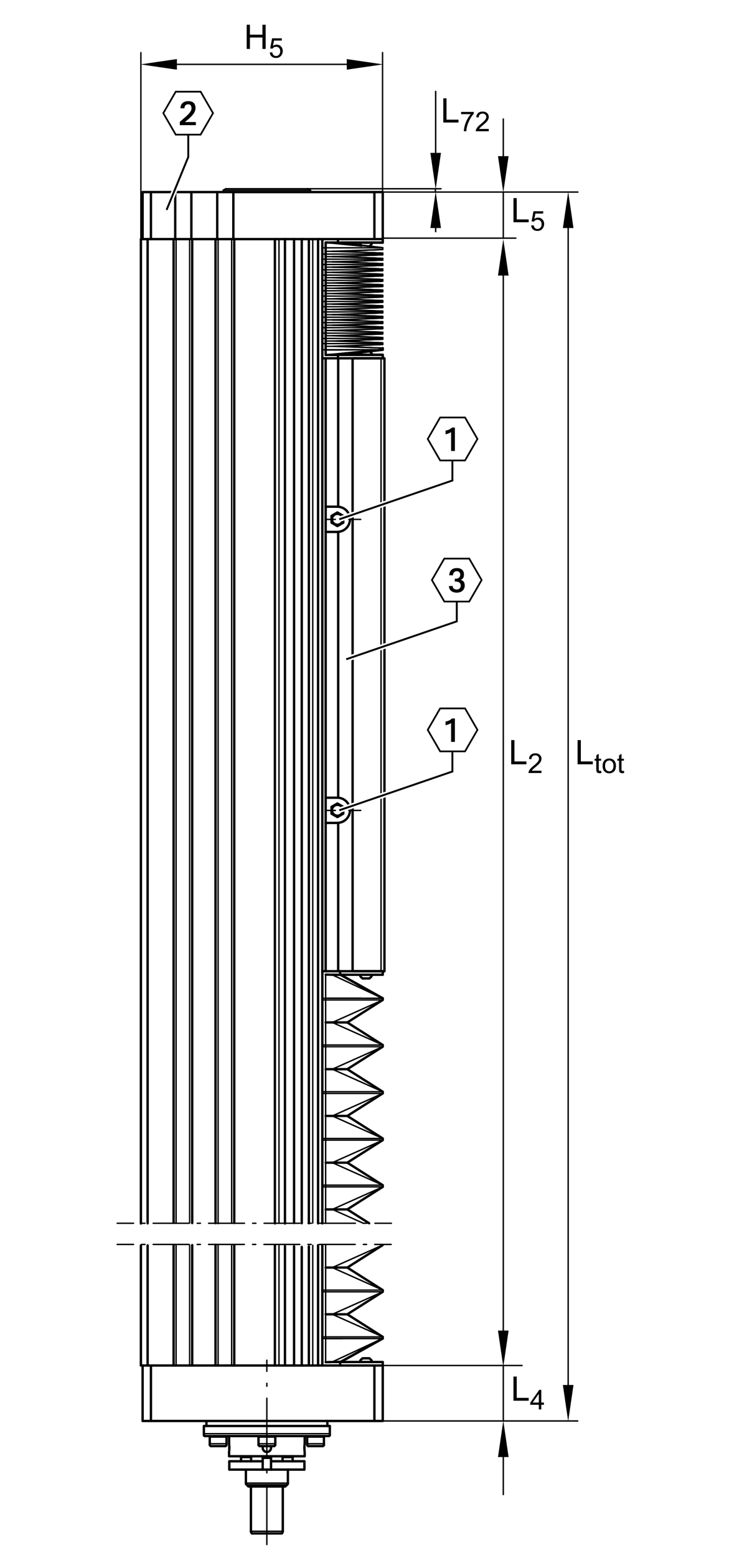

| FBL | 1.18 | Effective length factor of bellow |
| H1 | 35 mm | Height of Carriage |
| H2 | 108 mm | Width of Support Rail |
| H5 | 144 mm | |
| L4 | 28 mm | |
| L5 | 28 mm | |
| L72 | 2 mm | |

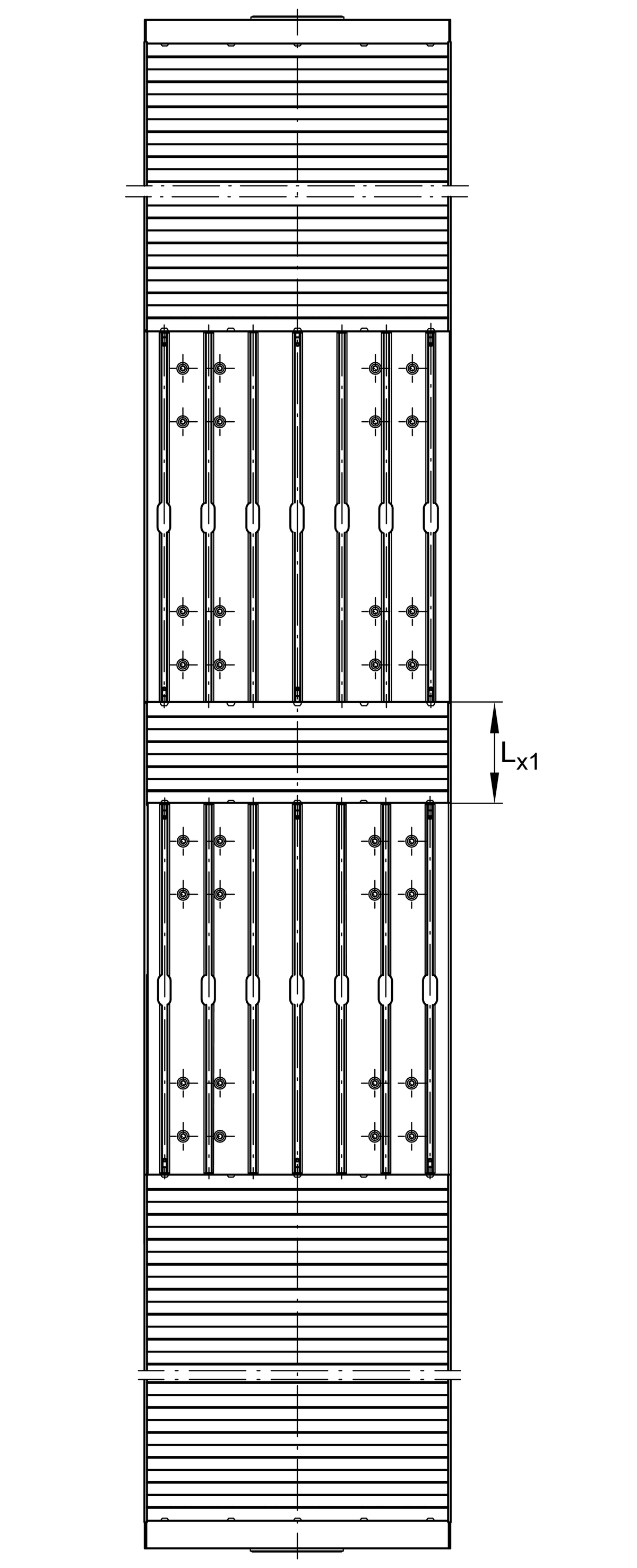

| Lx1 min | 20 mm | Minimum distance between the Carriages |
| S41 | 13 mm |
科技數據

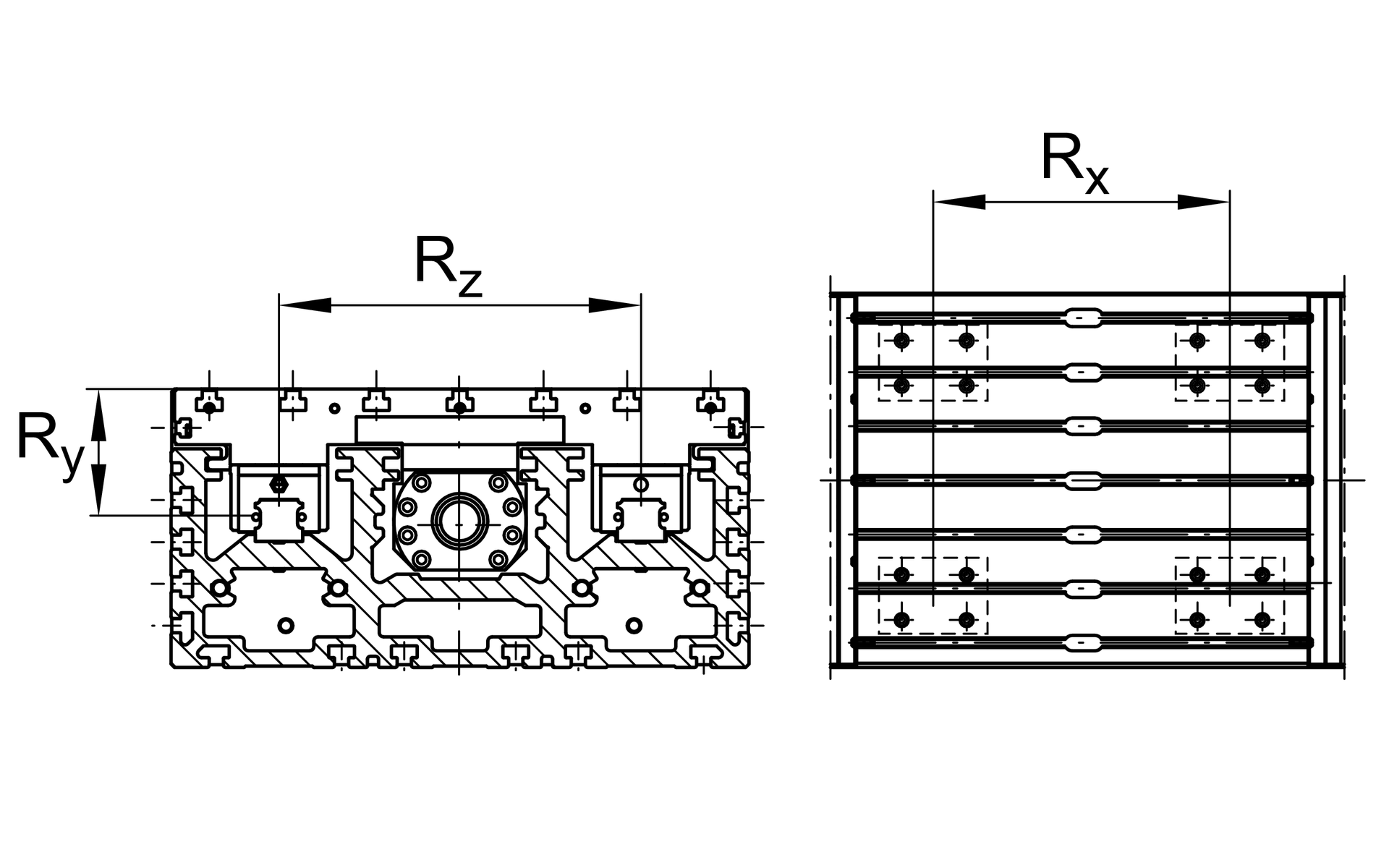

| Rx | 270 mm | |
| Ry | 72.8 mm | |
| Rz | 150 mm | |
| S | 10 mm | Safety Distance |
| mLAW | 11.48 kg | Mass of Carriage |
| m3 | 11.48 kg | Mass of additional Carriage |
| IC | 47,200 N | Load direction I: compressive load |
| I C0 | 148,000 N | Load direction I: compressive load |
| II C | 47,200 N | Load direction II: tensile load |
| II C0 | 148,000 N | Load direction II: tensile load |
| III C | 47,200 N | Load direction III: lateral load |
| III C0 | 148,000 N | Load direction III: lateral load |

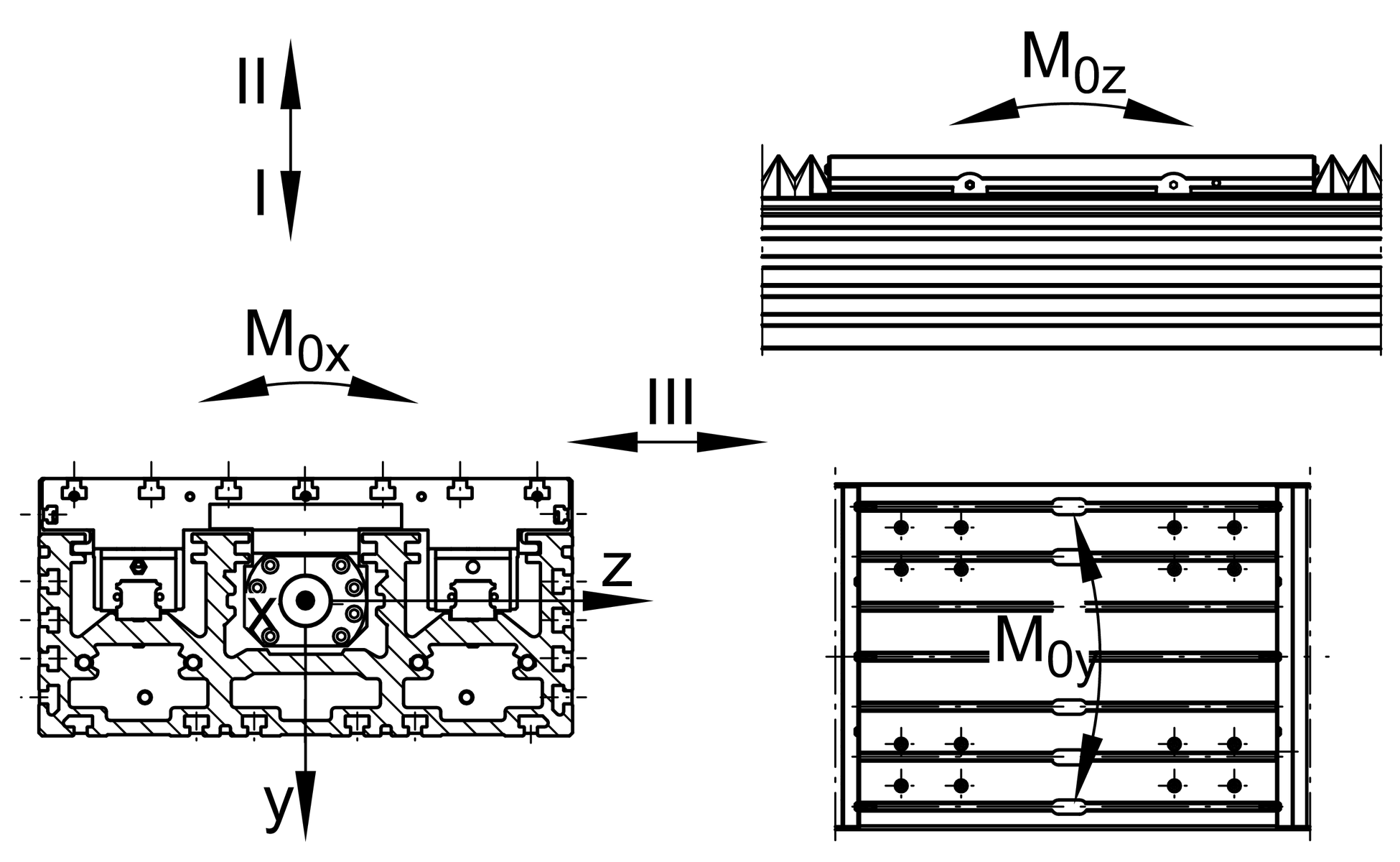

| M0x per | 9,500 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 16,000 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 16,000 Nm | Max. permissible static moment per Carriage 1 |
| ly | 7,069 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 899 cm4 | Geometrical moments of inertia of Support Rail |
| WN2 | Ja | Second, non-driven Carriage |
附加資訊
4x KWVE25-B-H | Carriage |
您目前的產品型號
| Size code | 25 | |
| Drive type | OA | 沒有 drive |
| Spindle support | / | none |
| Additional carriage | WN2 | Second, non-driven carriage |
| Attachment to the carriage | N | T-Slots |
