主要尺寸與性能資料

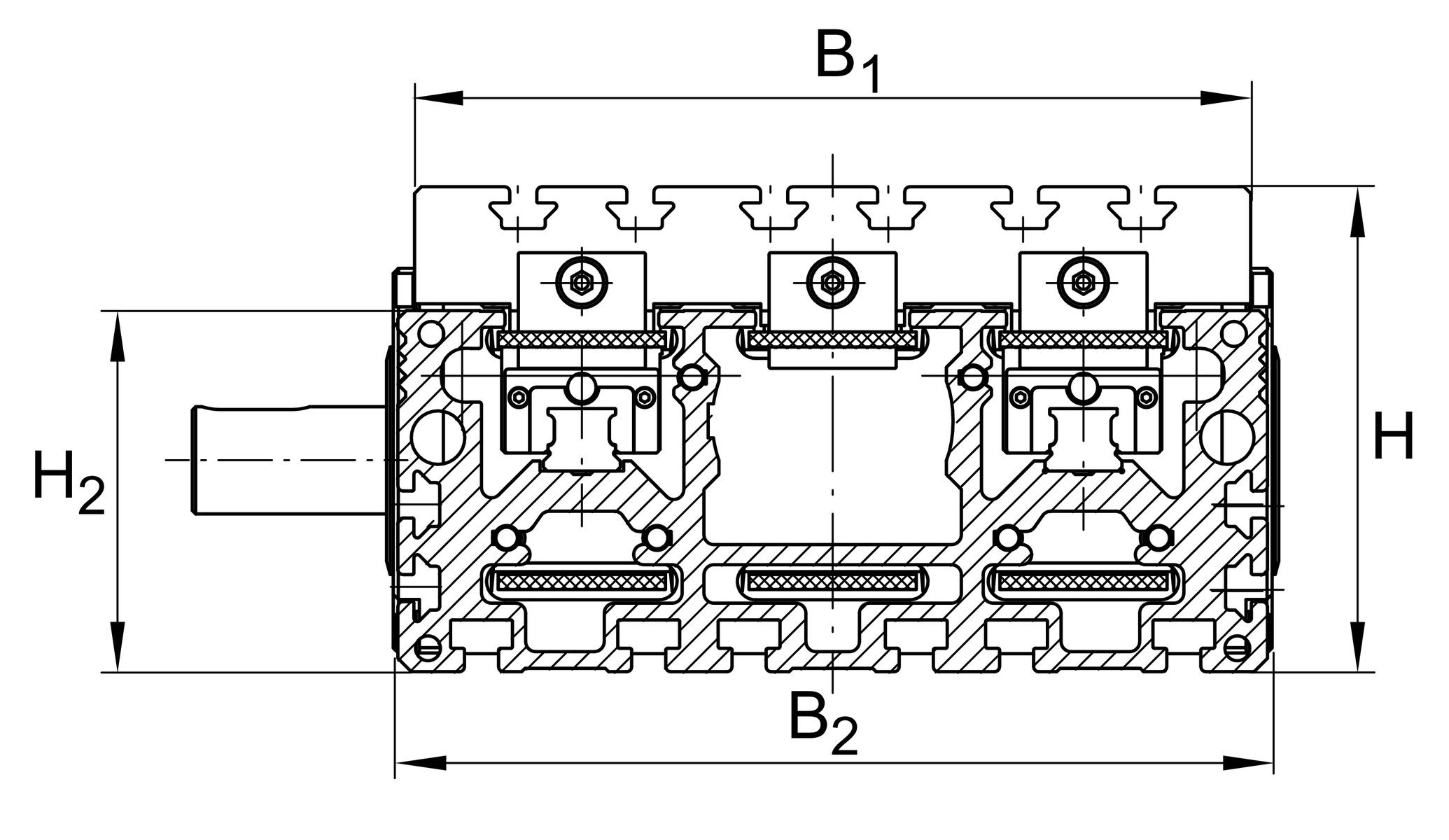

| B2 | 180 mm | Total Width |
| H | 105 mm | Total Height |
| L | 500 mm | Length of Carriage |

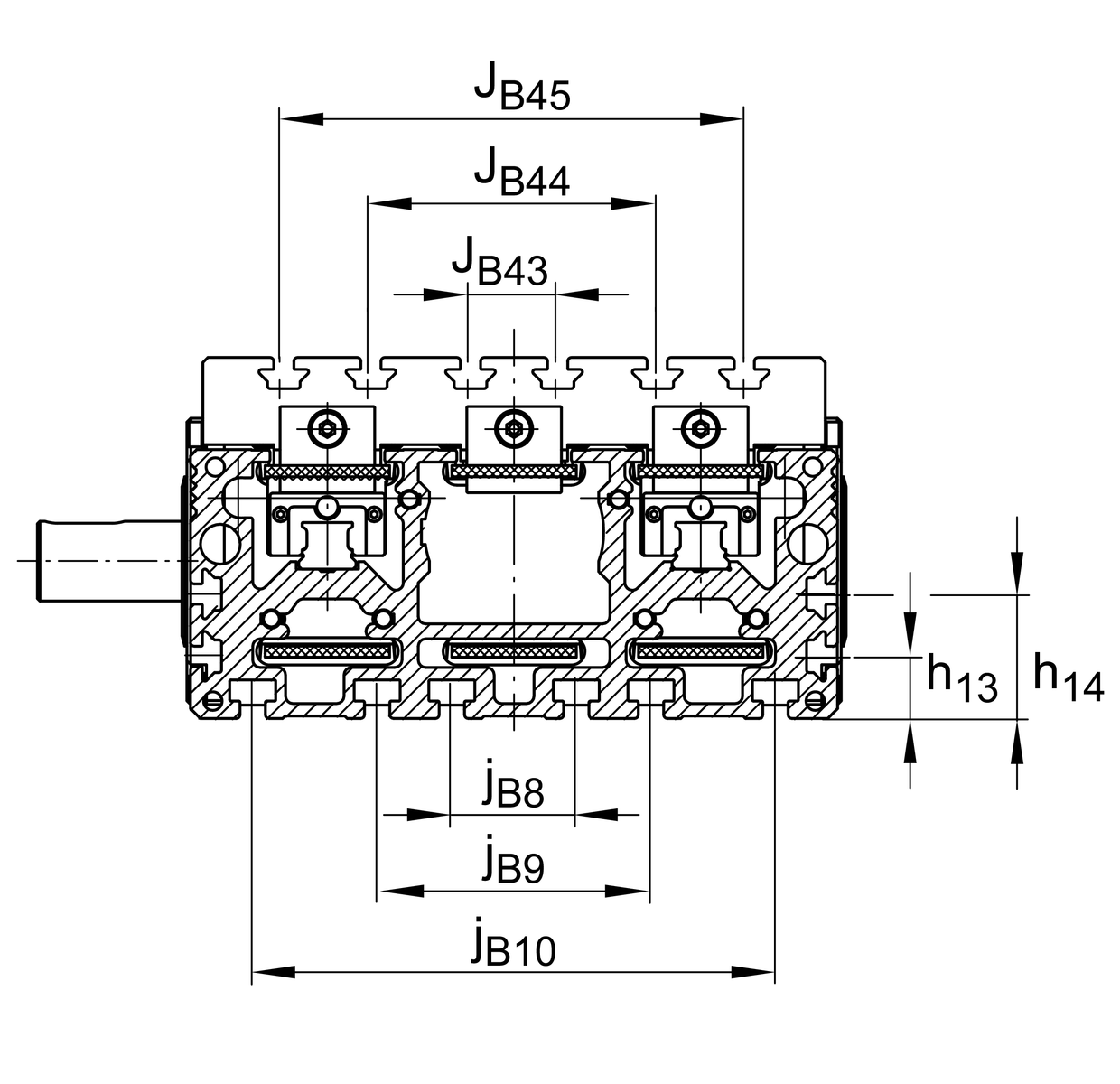

安裝尺寸
| B1 | 176 mm | Width of Carriage |

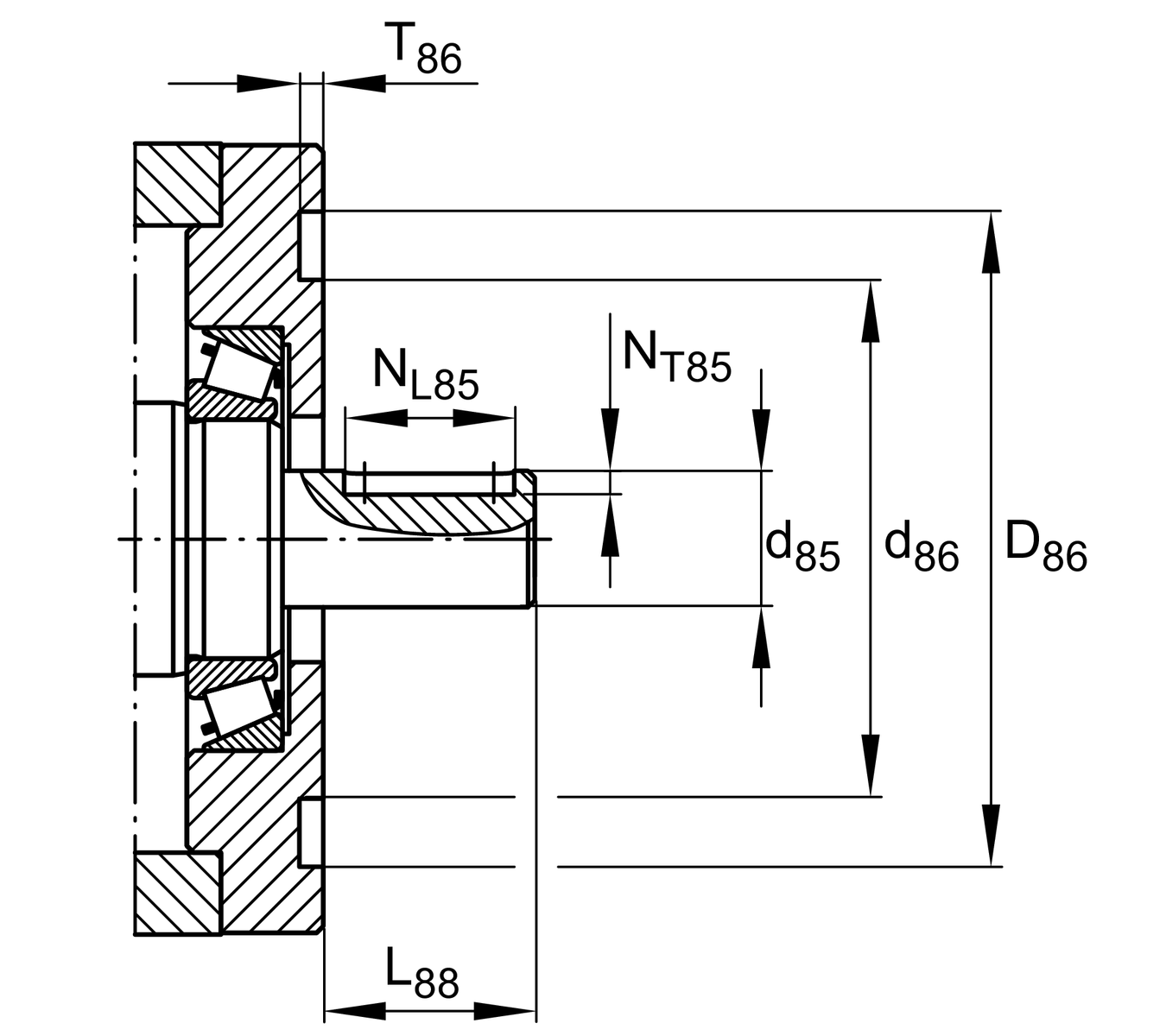

| D86 | 70 mm | |
| Tol D86 | G7 | Tolerance |

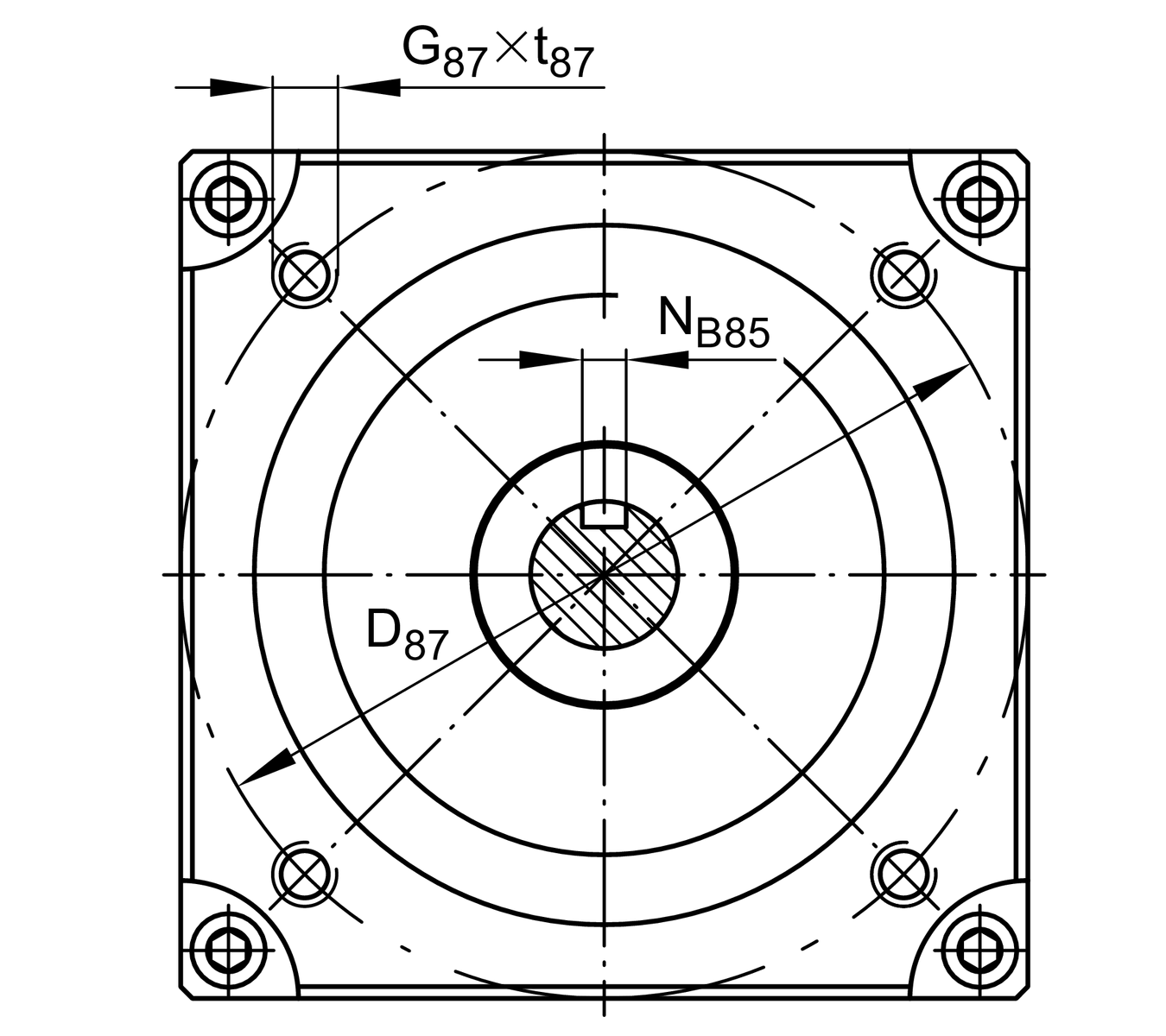

| D87 | 80 mm | |
| d85 | 25 mm | Tolerance h7 |
| d86 | 61 mm | |
| G87 | M6 | |
| h13 | 25 mm | |
| h14 | 45 mm | |
| h18 | 2 mm | |
| JB43 | 80 mm | |
| jB8 | 70 mm | |
| L2 max | 18,000 mm | Maximum length of Support Rail |
| L88 | 45 mm | |
| NB85 | 8 mm | Tolerance P9 |
| NL85 | 25 mm | Length of Keyway |
| NT85 | 4 mm | Depth of Keyway |
| S41 | 10 mm | |
| t87 max | 12 mm | Depth of Thread |
| jB9 | 140 mm | |
| JB44 | 130 mm |
尺寸

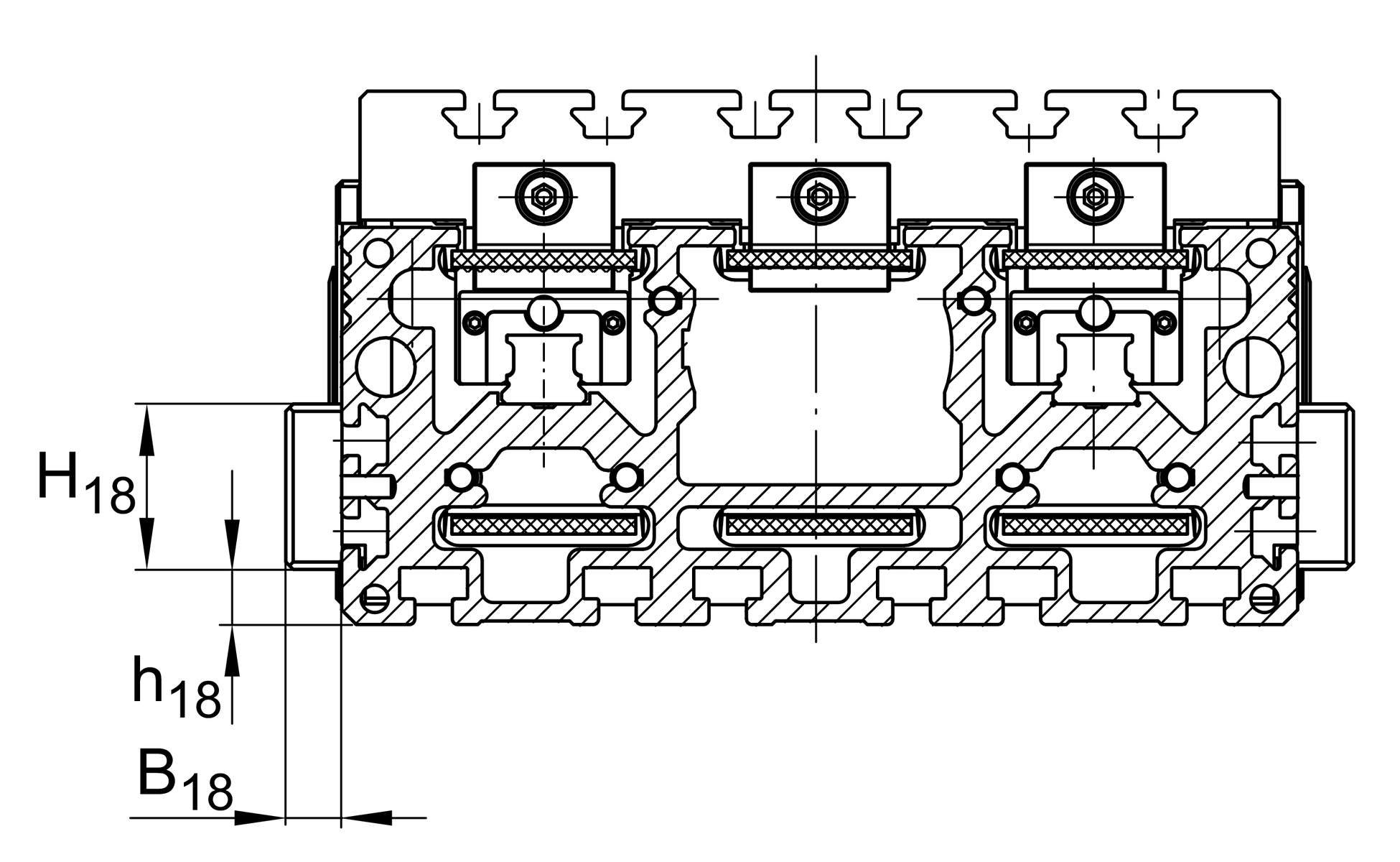

| B18 | 15 mm | |
| B72 | 2 mm | |
| H2 | 74.5 mm | Height of Support Rail |

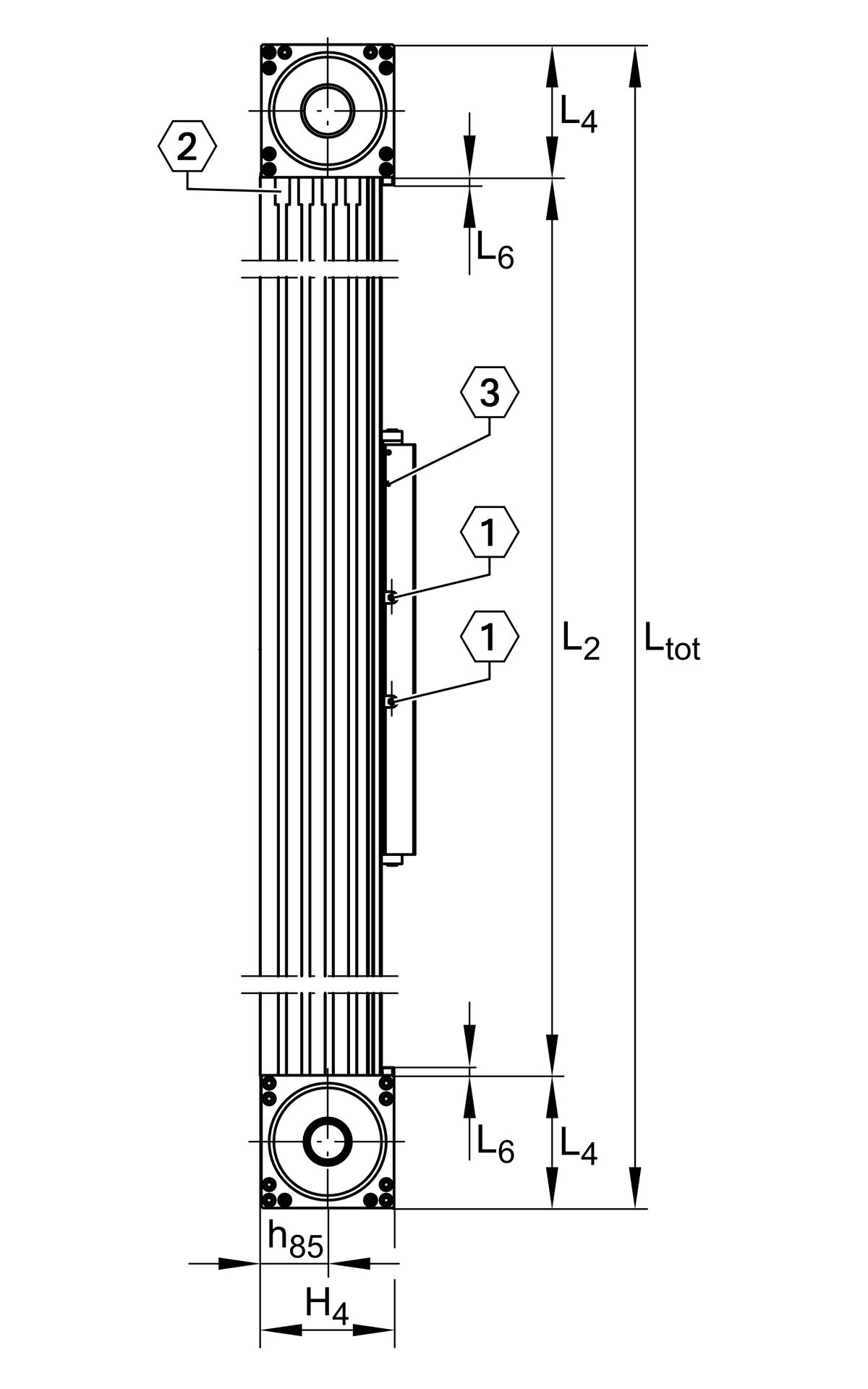

| H4 | 84 mm | Height of Return Unit |
| H18 | 50 mm | |
| h85 | 44 mm | |

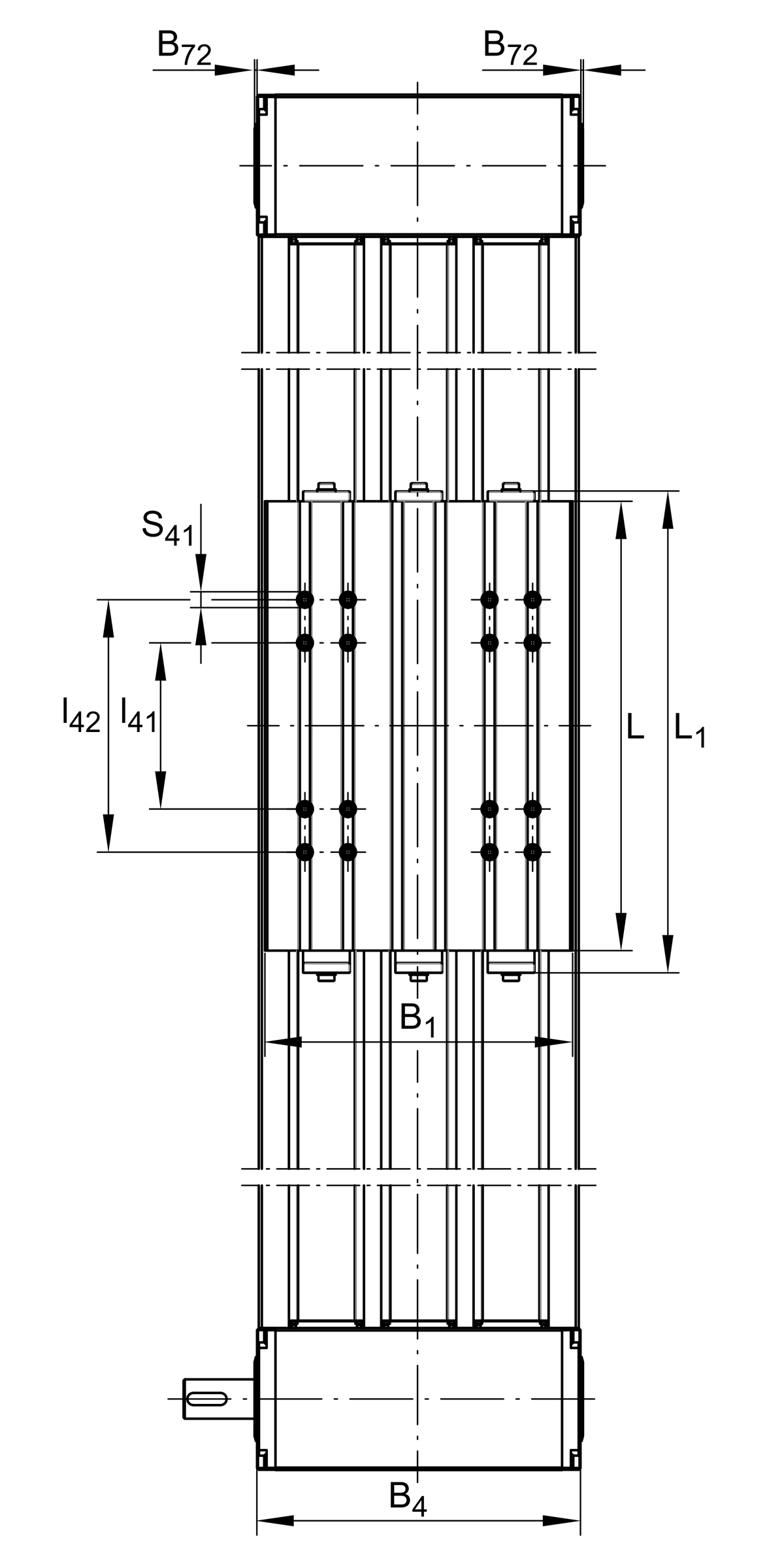

| L1 | 542 mm | |
| L4 | 80 mm | Length of Return Unit |
| L6 | 6 mm | Length of Wiper Brushes |

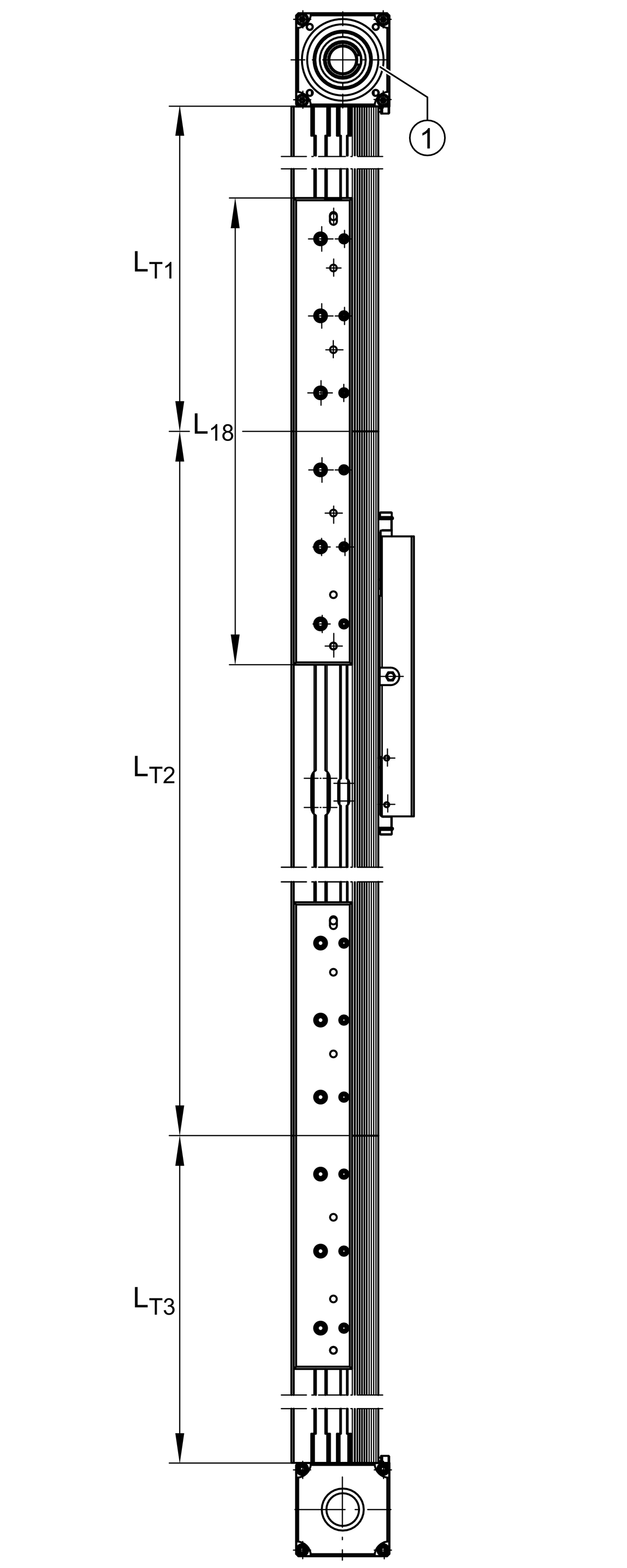

| L18 | 400 mm | |
| l41 | 314 mm | |
| l42 | 366 mm | |

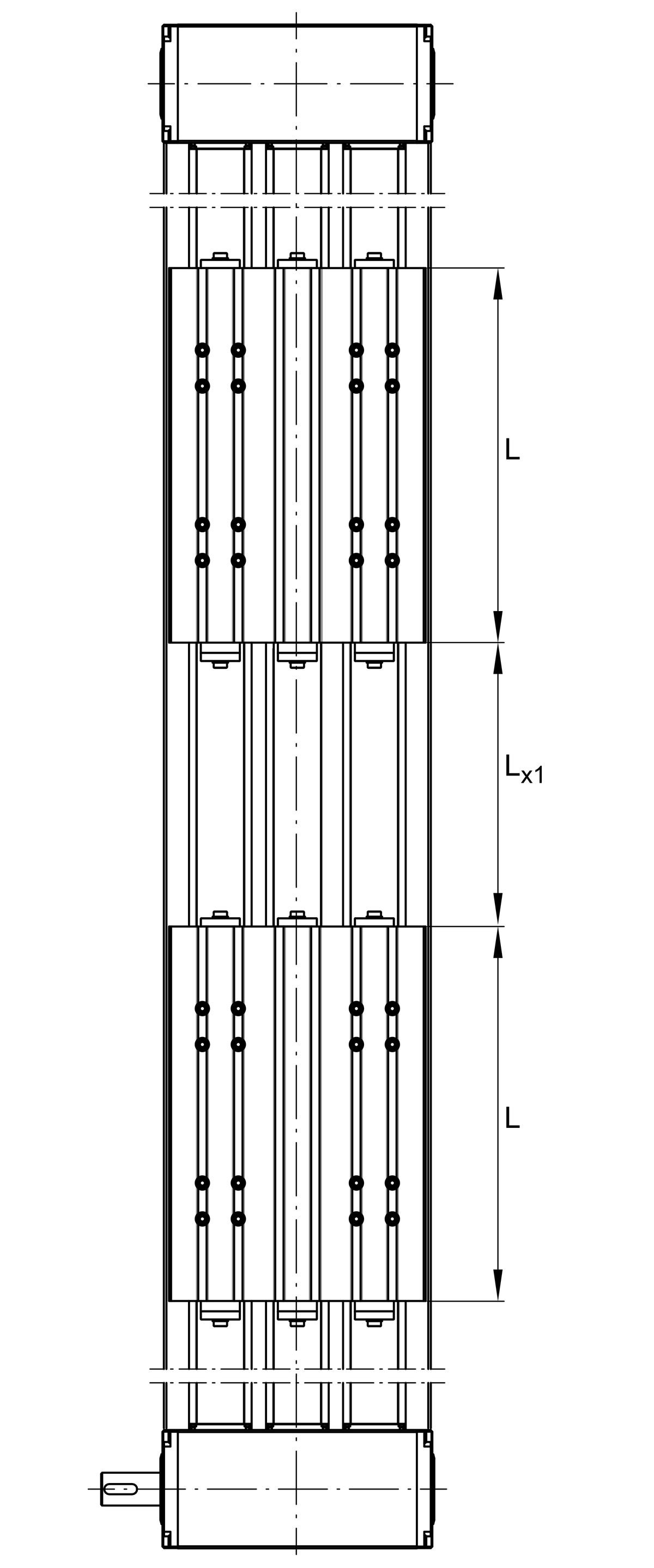

| Lx1 min | 100 mm | |
| B4 | 195 mm | Width of Return Unit |
| T86 | 2.3 mm |
科技數據

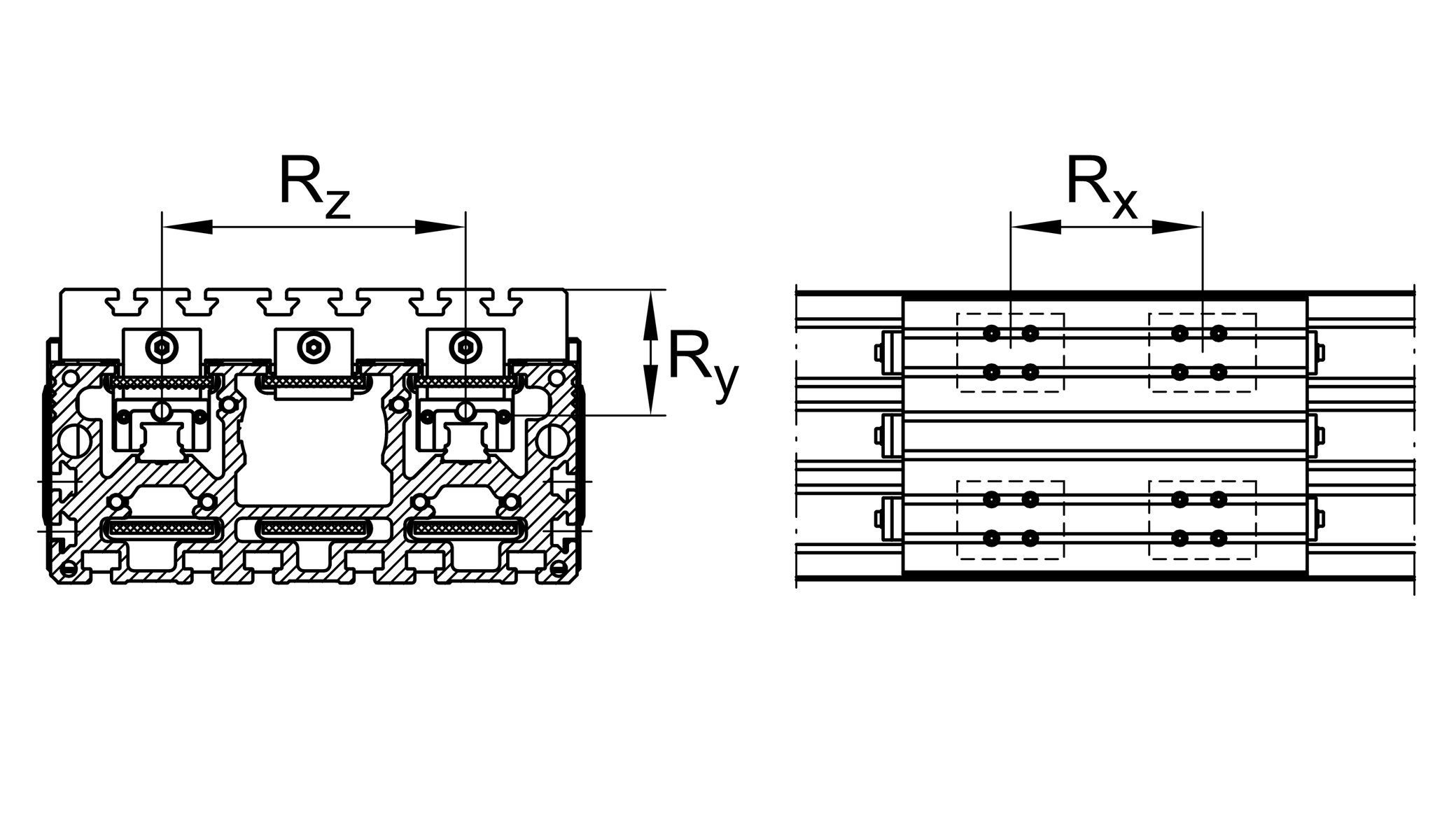

| Rx | 340 mm | |
| Ry | 56.5 mm | |
| RZ | 104 mm | |
| S | 85 mm | Safety Distance |
| mLAW | 7.82 kg | |
| m3 | 7.82 kg | Mass of additional Carriage |
| vmax | 5 m/s | Maximum Speed |
| amax | 30 m/s2 | Maximum Acceleration |

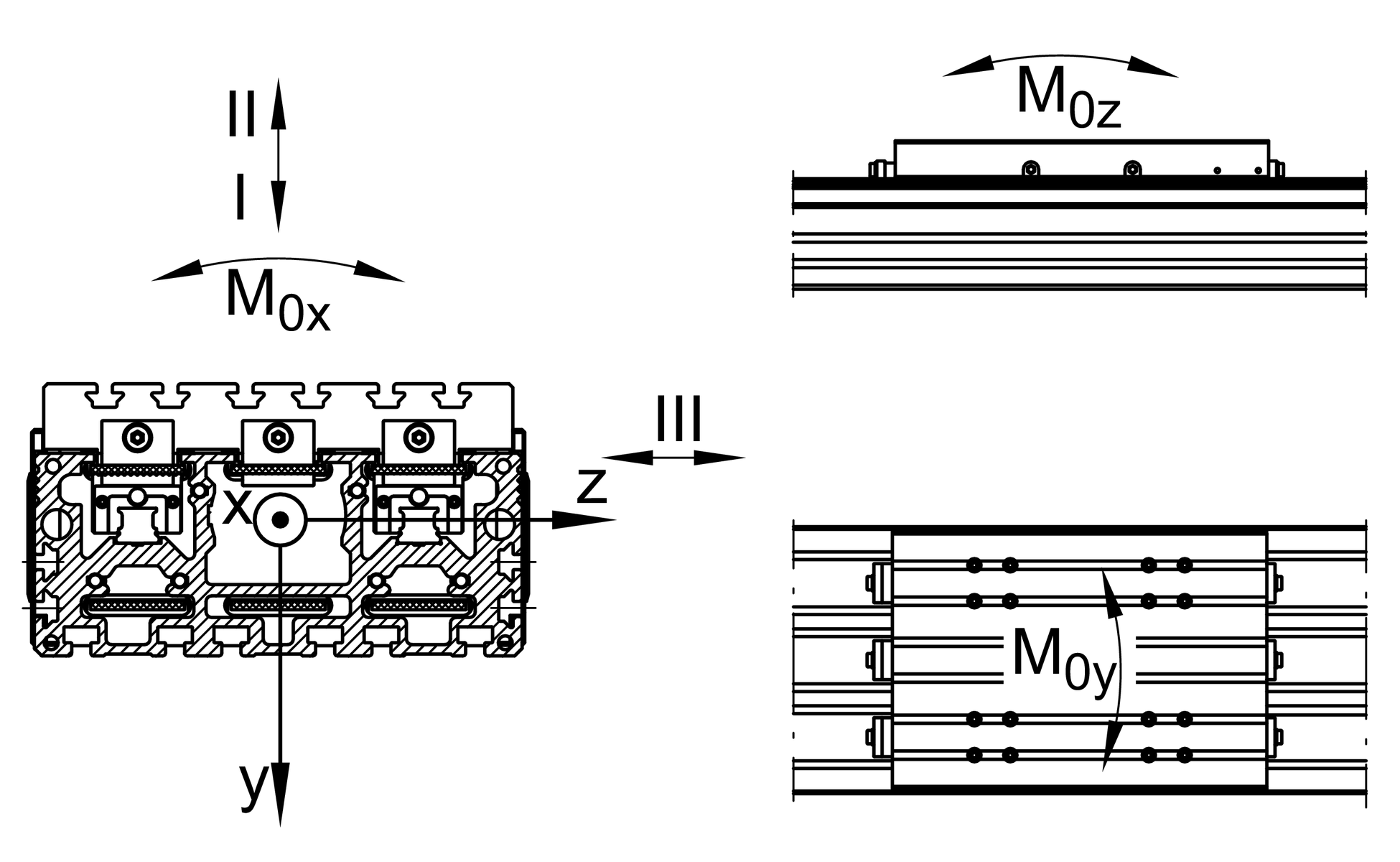

| I C | 19,000 N | Load direction I: compressive load |
| I C0 | 58,000 N | Load direction I: compressive load |
| II C | 19,000 N | Load direction II: tensile load |
| II C0 | 58,000 N | Load direction II: tensile load |
| III C | 19,000 N | Load direction III: lateral load |
| III C0 | 58,000 N | Load direction III: lateral load |
| M0x per | 2,550 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 4,200 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 4,800 Nm | Max. permissible static moment per Carriage 1 |
| Iy | 1,636 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 200 cm4 | Geometrical moments of inertia of Support Rail |
附加資訊
115 Nm | Max. permissible drive torque | |
4xKWVE15-B-H | Carriage | |
0.1 mm | Repeat Accurancy ± | |
160 mm | Feed (mm/rotation) | |
40AT10 | Toothed Belt | |
0.75 kg/m | Mass of Toothed Belt | |
4,500 N | Permissible Toothed Belt operating force | |
8.2 kg*cm2 | 質量慣性矩 of Gears |
溫度範圍
| max | 80 °C | Maximum operating Temperatur |
| min | 0 °C | Minimum operating Temperatur |
您目前的產品型號
| Size code | 15 | |
| Length of carriage | 500 | 500 mm |
| Design | / | Basis |
| Drive type | (3)ZR | Toothed belt drive |
| Additional carriage | W2 | Second, driven carriage |
| Attachment to the carriage | N | T-Slots |
| Support rail design | FA517.2 | Three-Piece |
