n.r.
240 | Length of carriage | |
F | Spindle nut design |
主要尺寸與性能資料

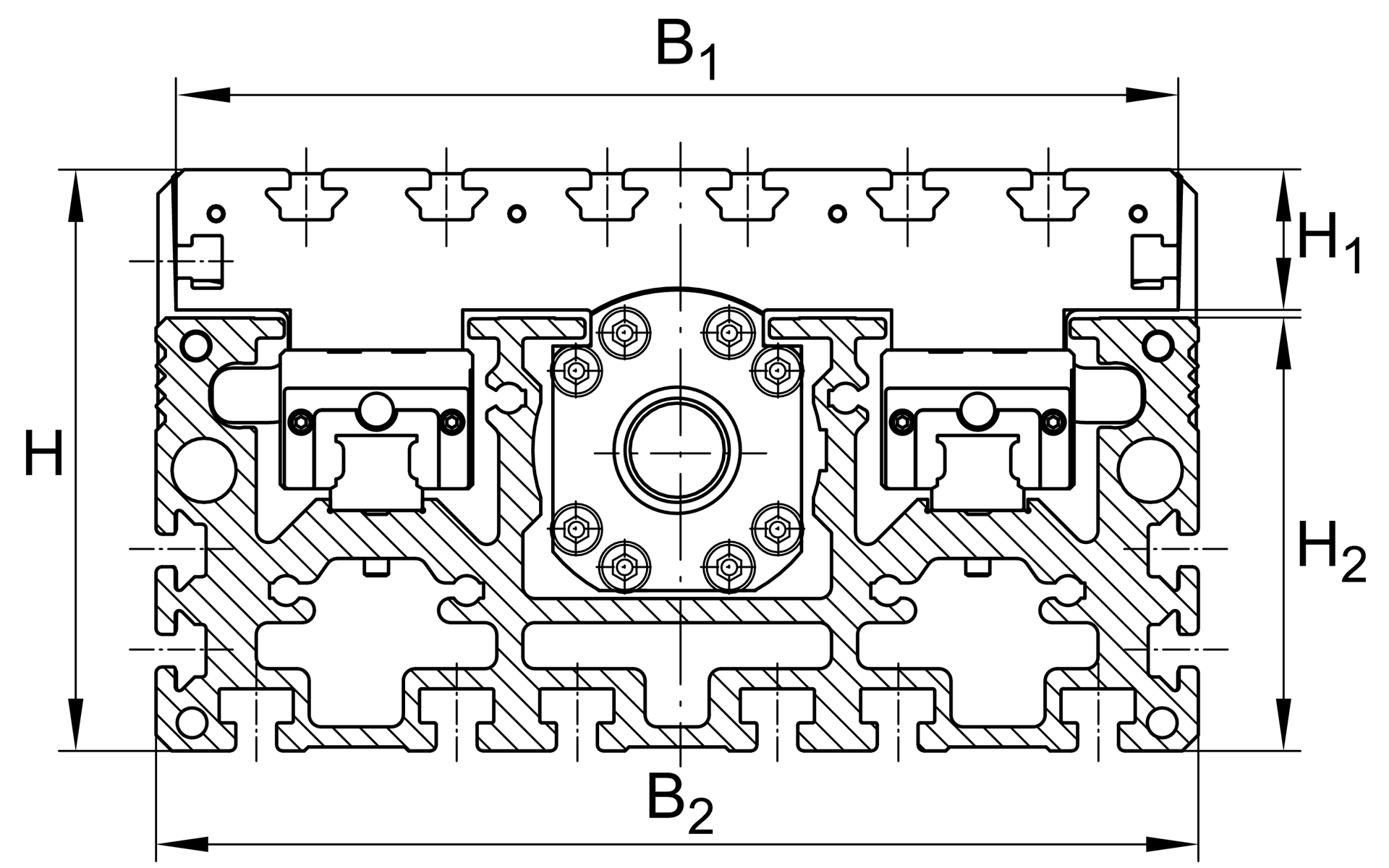

| L | 240 mm | Length of Carriage |
| H | 105 mm | Total Height |
| B2 | 180 mm | Total Width |
安裝尺寸
| B1 | 176 mm | Width of Carriage |

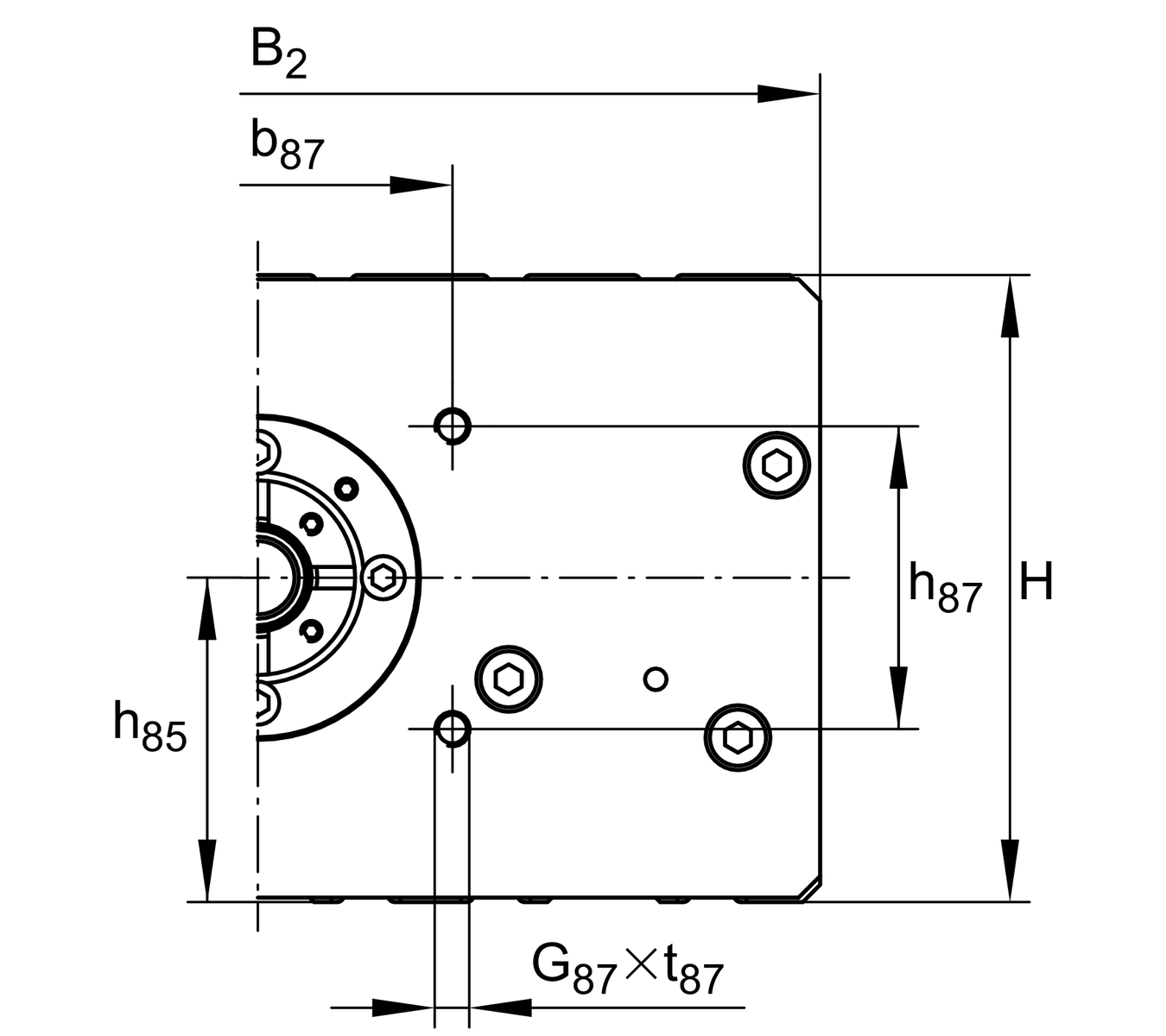

| b87 | 68 mm | |

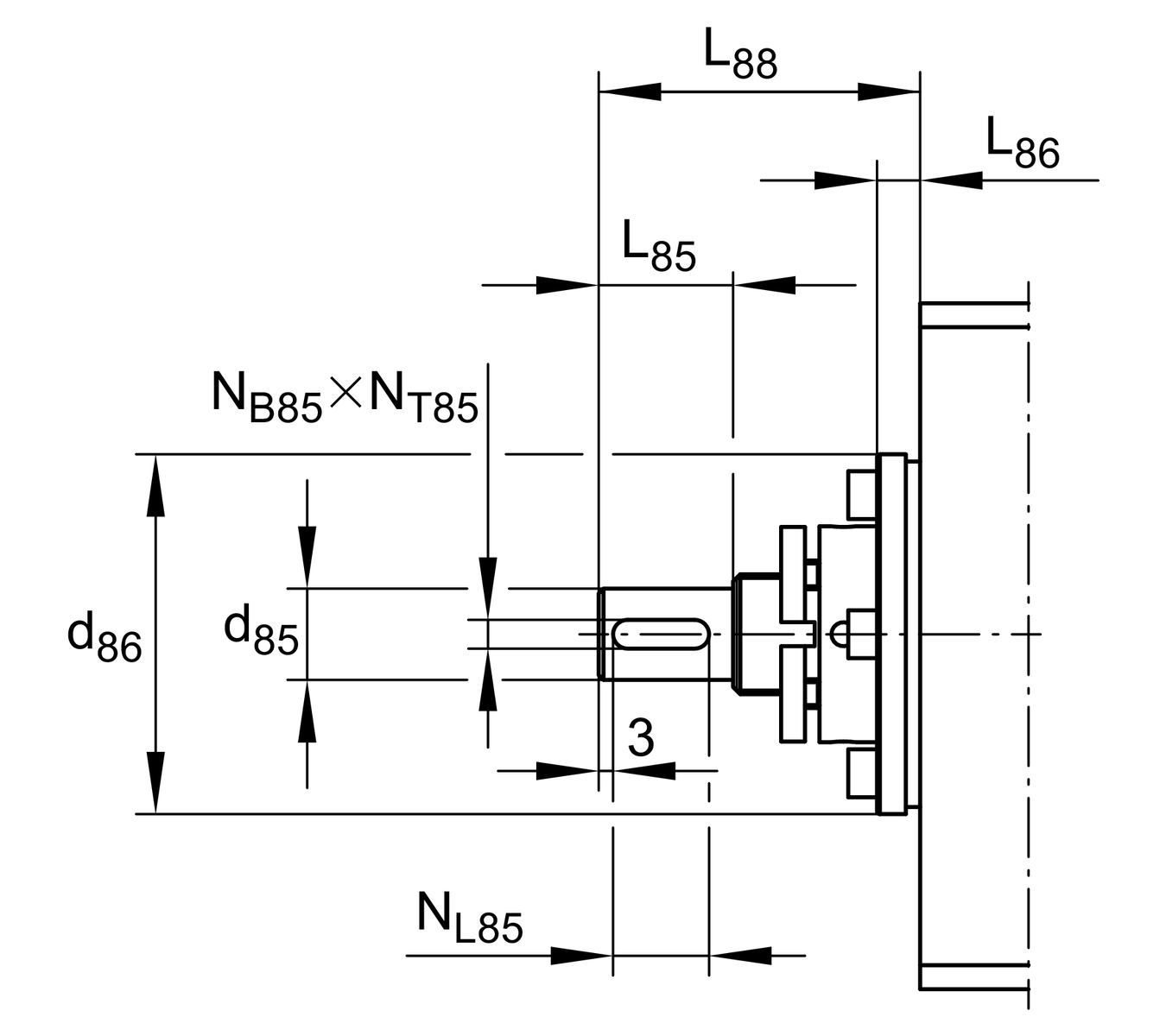

| d85 | 13 mm | Tolerance h6 |
| d86 | 60 mm | Tolerance h7 |
| G87 | M6 | 線 |

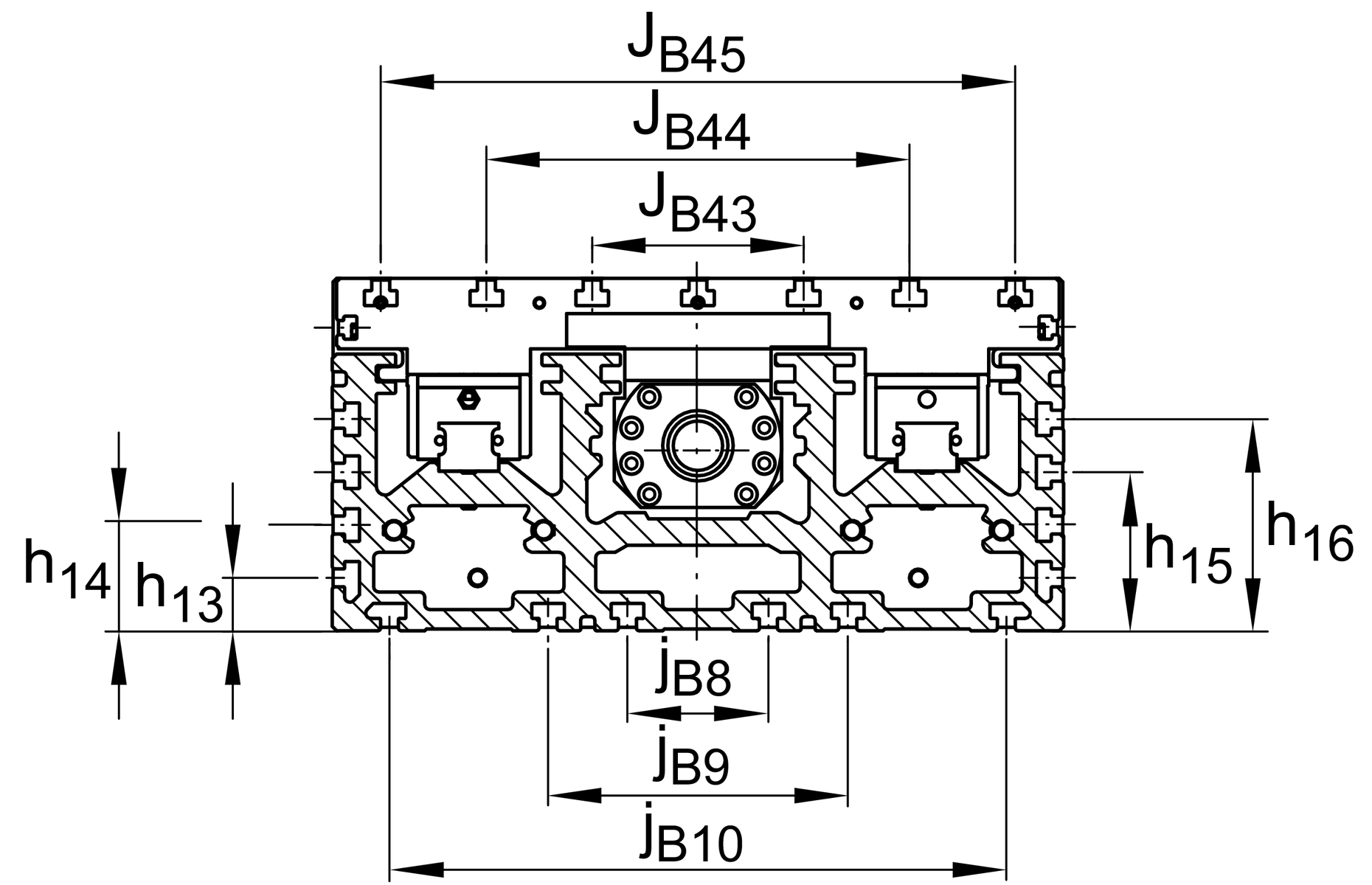

| h13 | 25 mm | |
| h14 | 45 mm | |
| h85 | 60.5 mm | |
| h87 | 46 mm | |
| JB43 | 80 mm | |
| JB44 | 130 mm | |
| jB8 | 70 mm | |
| jB9 | 140 mm | |
| L2 max | 5,850 mm | Maximum length of Support Rail |
| L85 | 23 mm | |
| L86 | 8 mm | |
| L88 | 42 mm | |
| NB43 | 14 mm | |
| NB85 | 5 mm | Tolerance P9 |
| NL43 | 20 mm | |
| NL85 | 18 mm | Length of Keyway |
| NT85 | 3.5 mm | Depth of Keyway |
| t87 | 15 mm | Depth of Thread |
尺寸

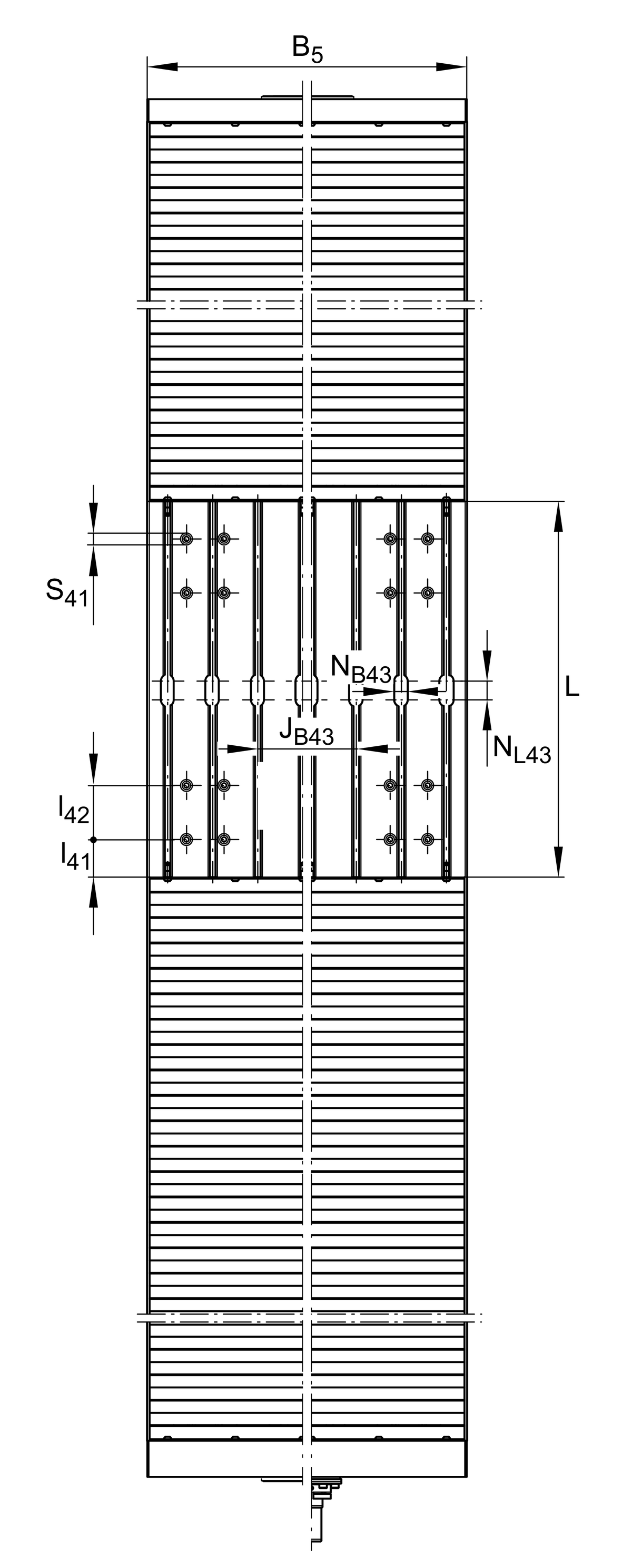

| B5 | 179 mm | Width of End Plates |
| FBL | 1.15 | Effective length factor of bellow |
| H1 | 29.3 mm | Height of Carriage |
| H2 | 74.5 mm | Width of Support Rail |

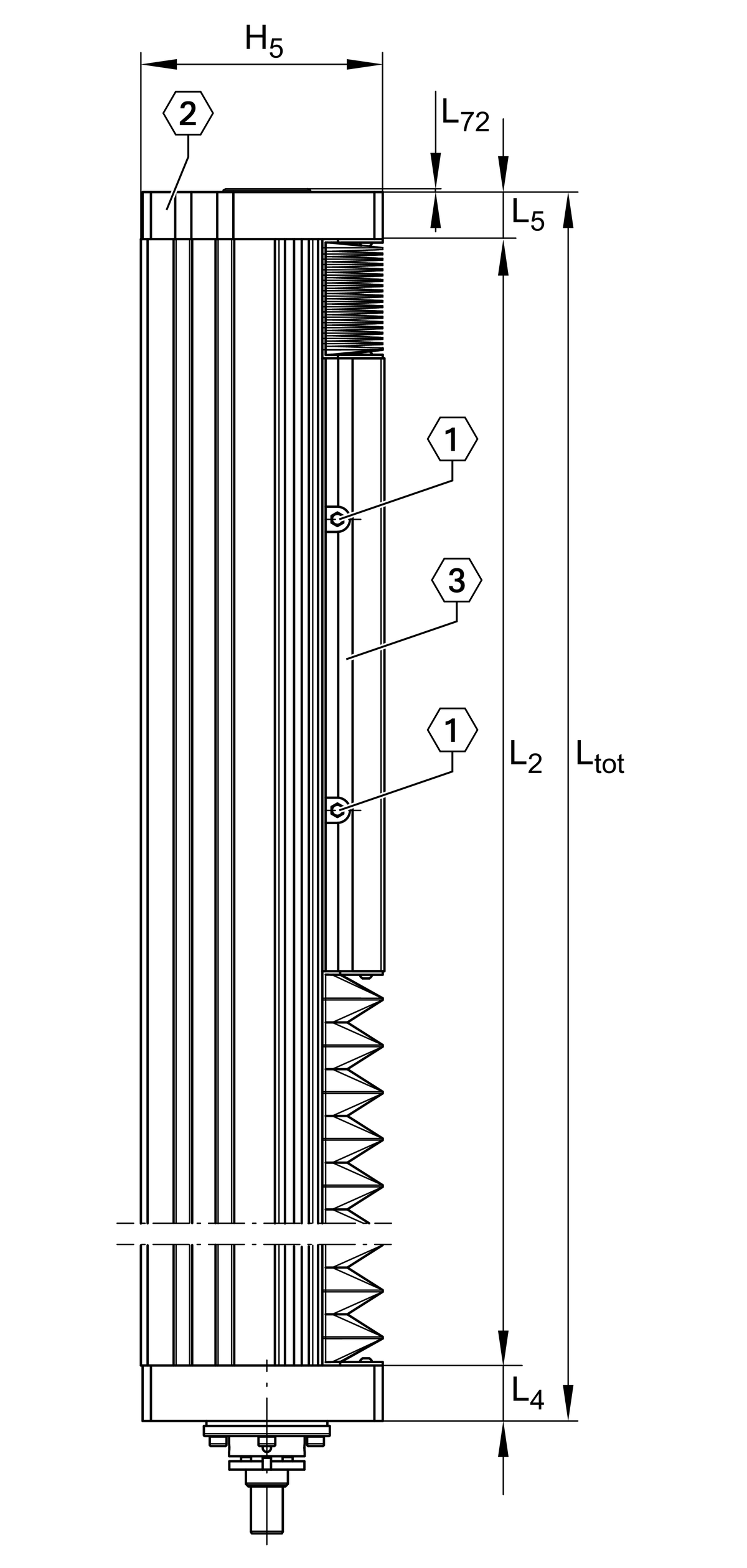

| H5 | 103.5 mm | |
| L4 | 28 mm | |
| L5 | 28 mm | |
| l41 | 20 mm | |
| l42 | 26 mm | |

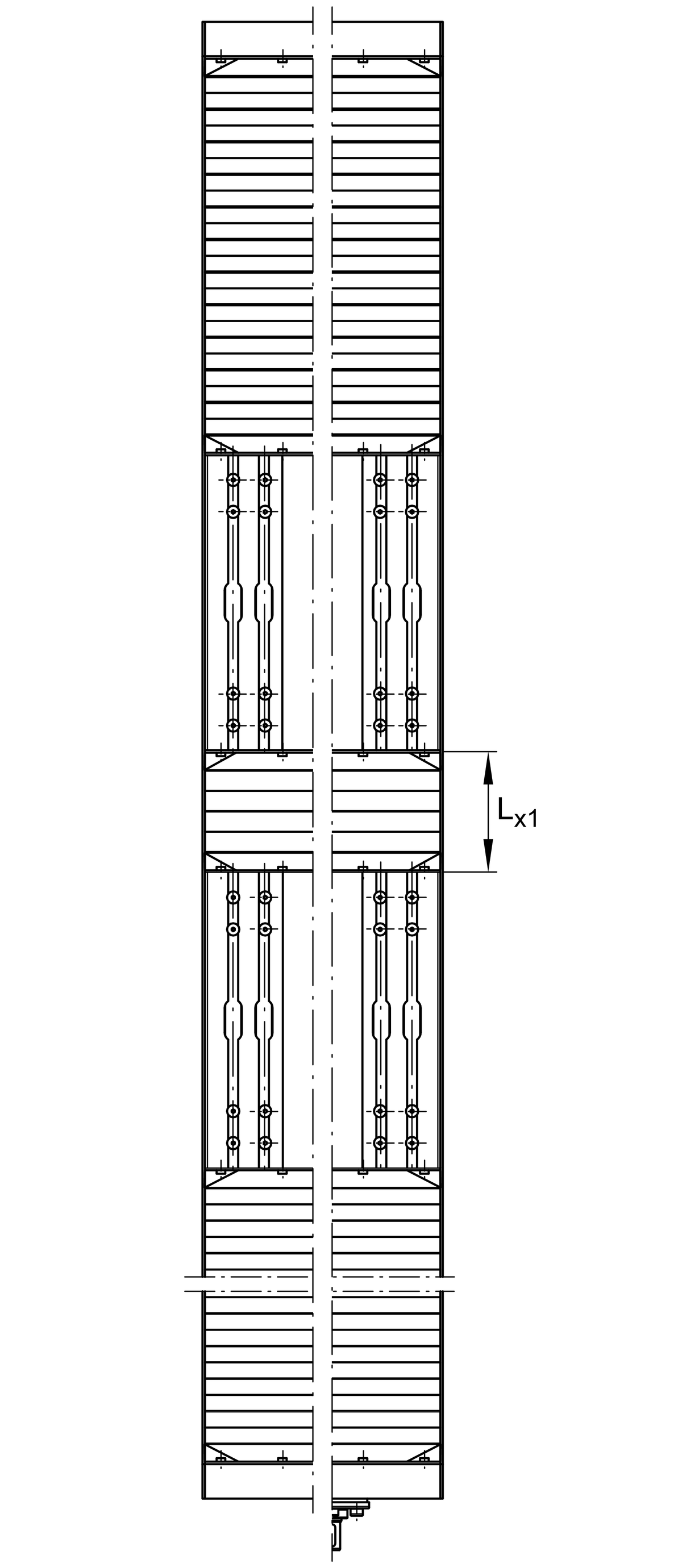

| Lx1 min | 20 mm | Minimum distance between the Carriages |
| S41 | 10 mm |
科技數據

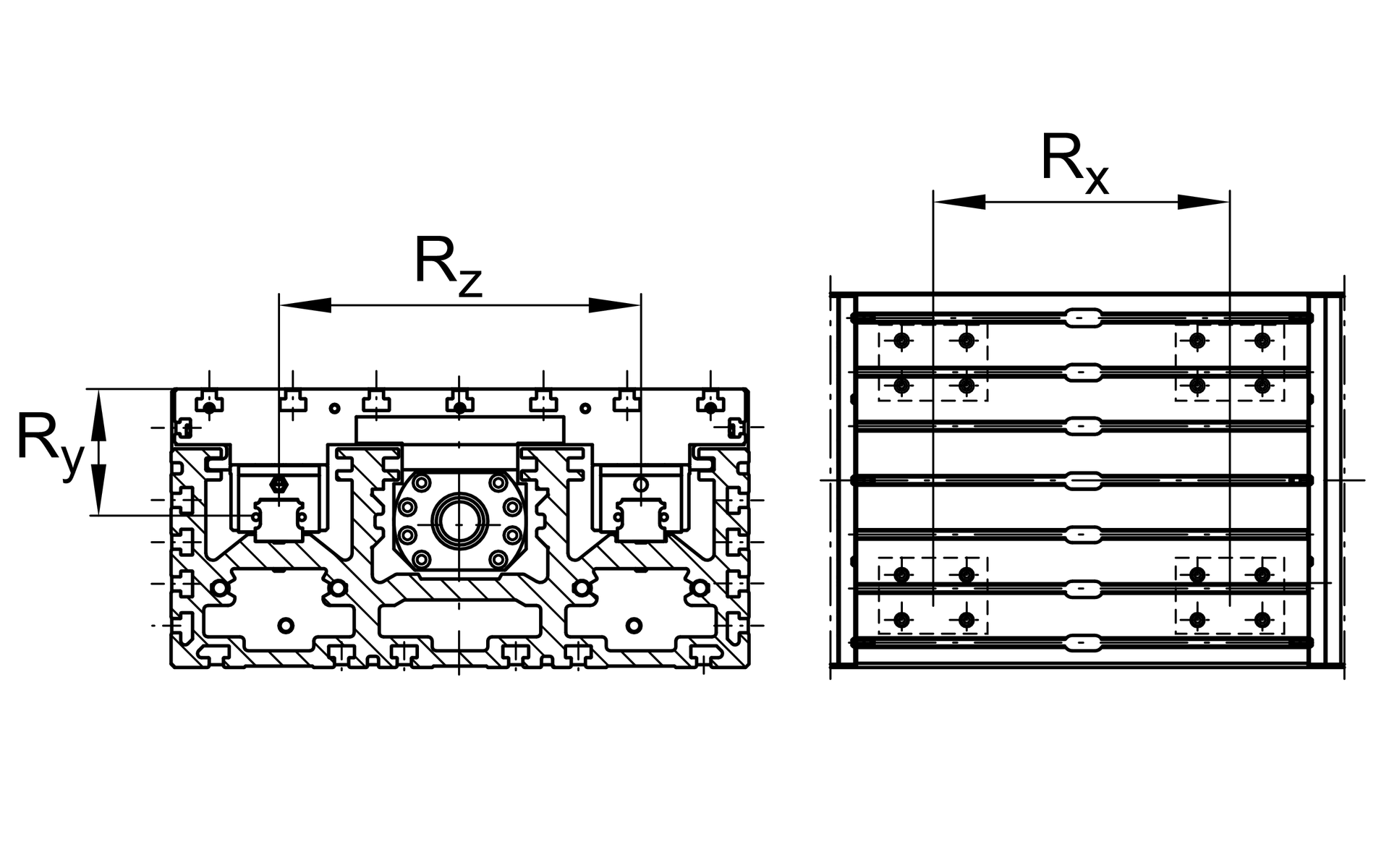

| Rx | 174 mm | |
| Ry | 56.5 mm | |
| Rz | 104 mm | |
| S | 50 mm | Safety Distance |
| mLAW | 4.61 kg | Mass of Carriage |
| m3 | 4.2 kg | Mass of additional Carriage |
| vmax | 2.9 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |

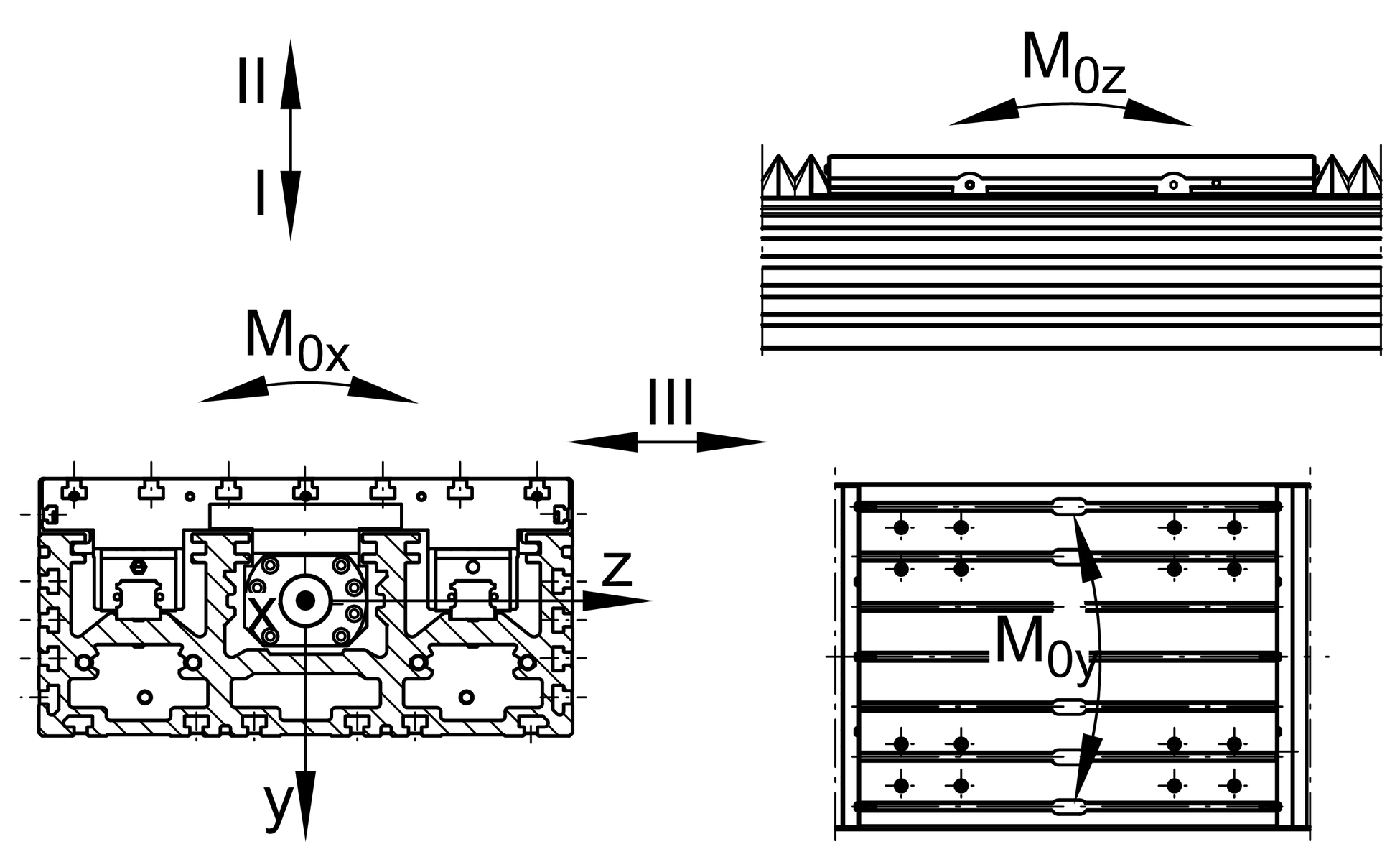

| IC | 19,000 N | Load direction I: compressive load |
| I C0 | 58,000 N | Load direction I: compressive load |
| II C | 19,000 N | Load direction II: tensile load |
| II C0 | 58,000 N | Load direction II: tensile load |
| III C | 19,000 N | Load direction III: lateral load |
| III C0 | 58,000 N | Load direction III: lateral load |
| M0x per | 2,700 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 2,950 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 3,450 Nm | Max. permissible static moment per Carriage 1 |
| ly | 1,636 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 200 cm4 | Geometrical moments of inertia of Support Rail |
| Ca MU | 13,000 N | Load capacity spindle nut dyn 2 |
| C0a MU | 24,600 N | Load capacity spindle nut stat 2 |
| Ca L | 17,900 N | Load capacity fixed Spindle bearing dyn |
| C0a L | 28,000 N | Load capacity fixed Spindle bearing stat |
| d0 | 20 mm | Spindle Diameter |
| P | 50 mm | Spindle Pitch |
| ls | 0.845 kg*cm2 | 質量慣性矩 of threaded Spindle |
| 2SPU | ja | Double Spindle Support |
| WN2 | Ja | Second, non-driven Carriage |
附加資訊
ZKLF1560-2RS-PE | Rolling Bearings | |
F | Drive System | |
4xKWVE15-B-H | Carriage |
您目前的產品型號
| Size code | 15 | |
| Drive type | KGT | Ball screw drive |
| Spindle pitch | 50 | 50 mm |
| Spindle support | 2SPU | Double spindle support |
| Additional carriage | WN2 | Second, non-driven carriage |
| Attachment to the carriage | N | T-Slots |
