240 | Length of carriage |

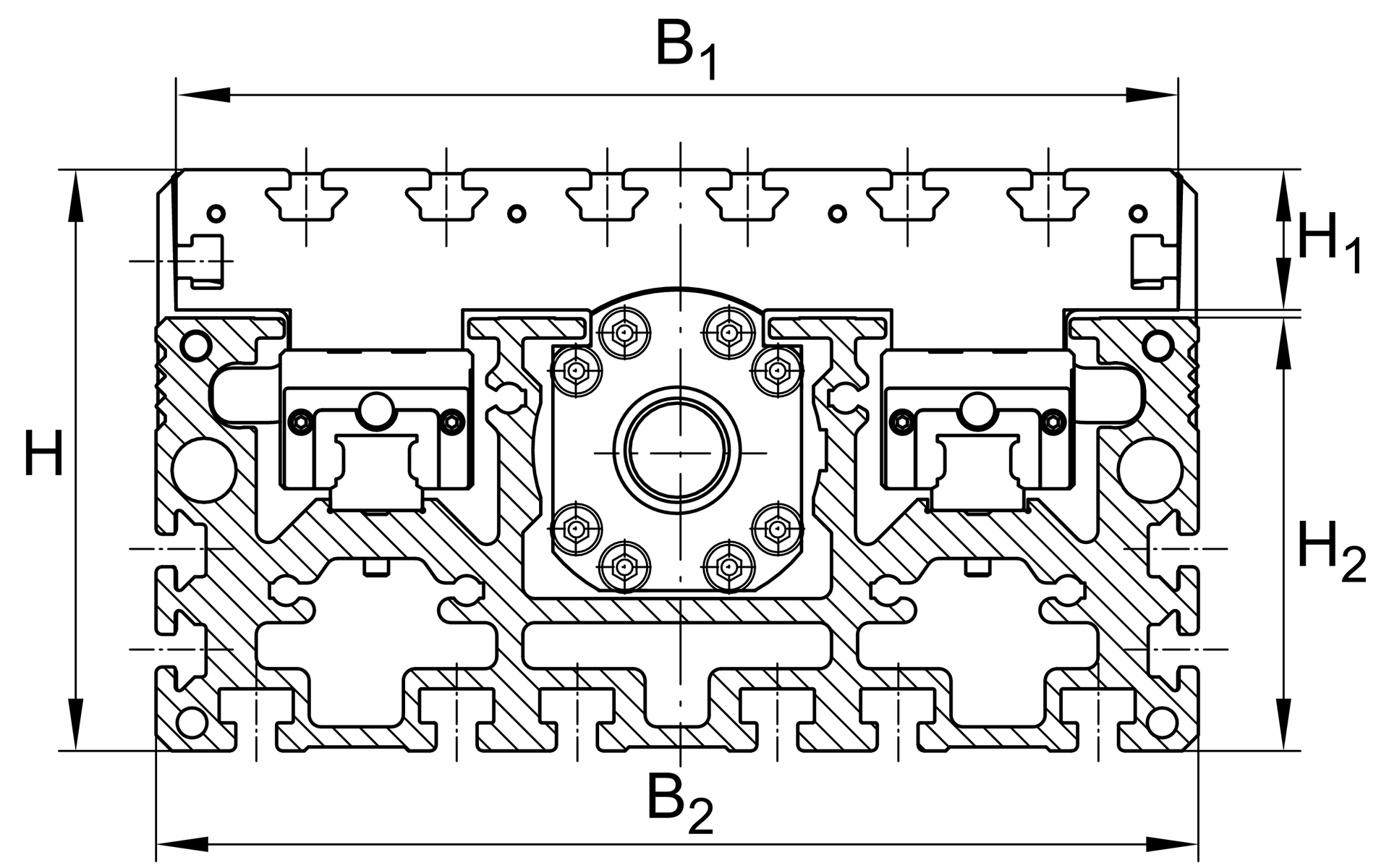

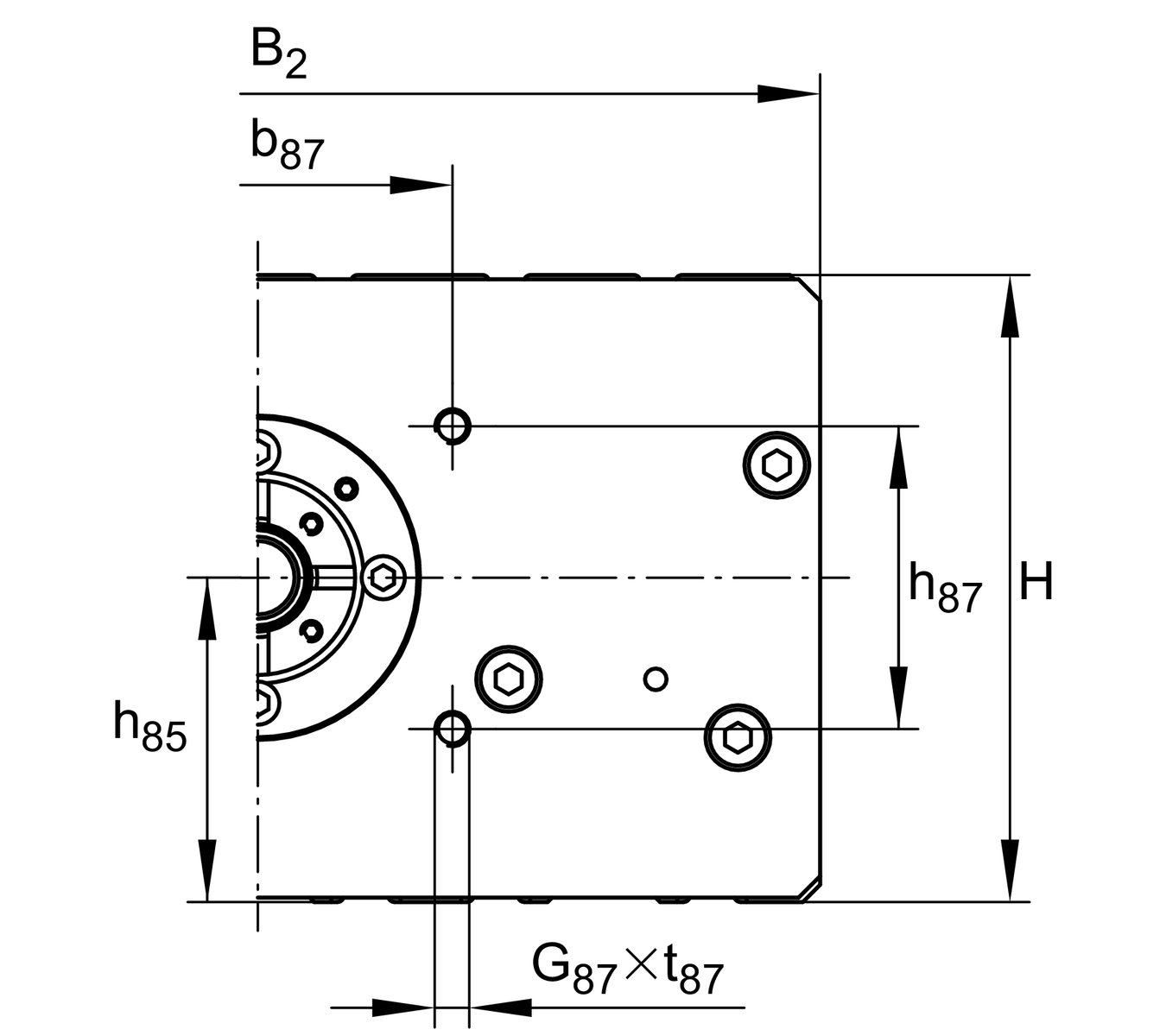

主要尺寸與性能資料
| L | 240 mm | Length of Carriage |
| H | 105 mm | Total Height |
| B2 | 180 mm | Total Width |

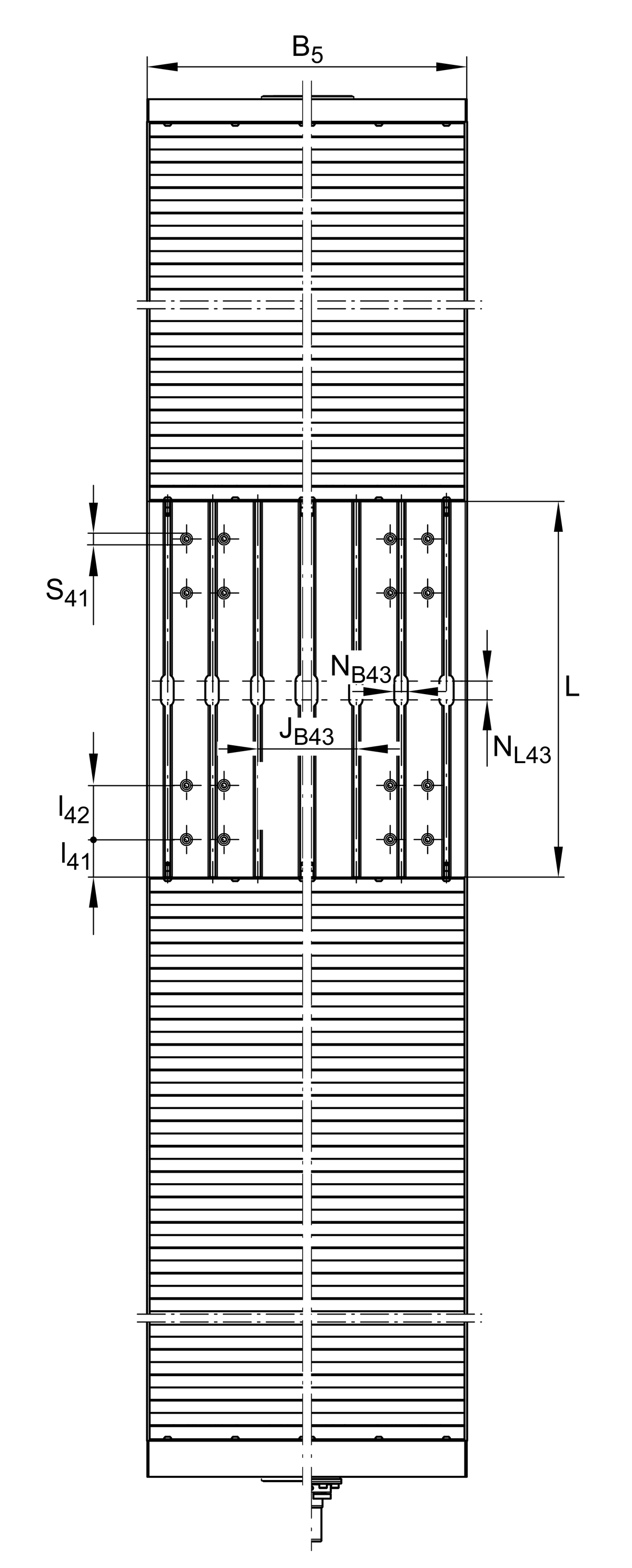

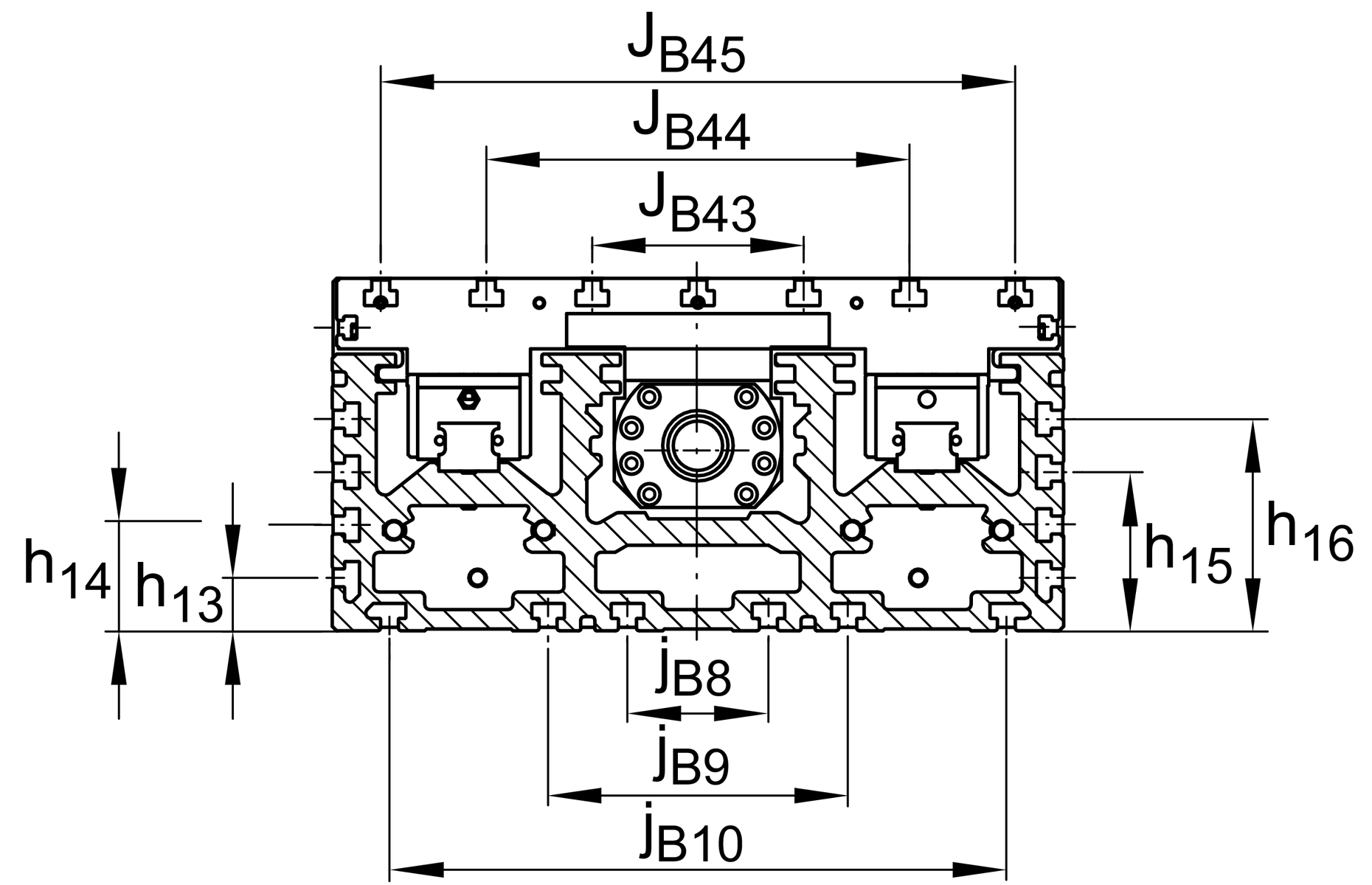

安裝尺寸
| B1 | 176 mm | Width of Carriage |
| h13 | 25 mm | |
| h14 | 45 mm | |
| JB43 | 80 mm | |
| JB44 | 130 mm | |
| jB8 | 70 mm | |
| jB9 | 140 mm | |
| L2 max | 5,850 mm | Maximum length of Support Rail |
| NB43 | 14 mm | |
| NL43 | 20 mm |

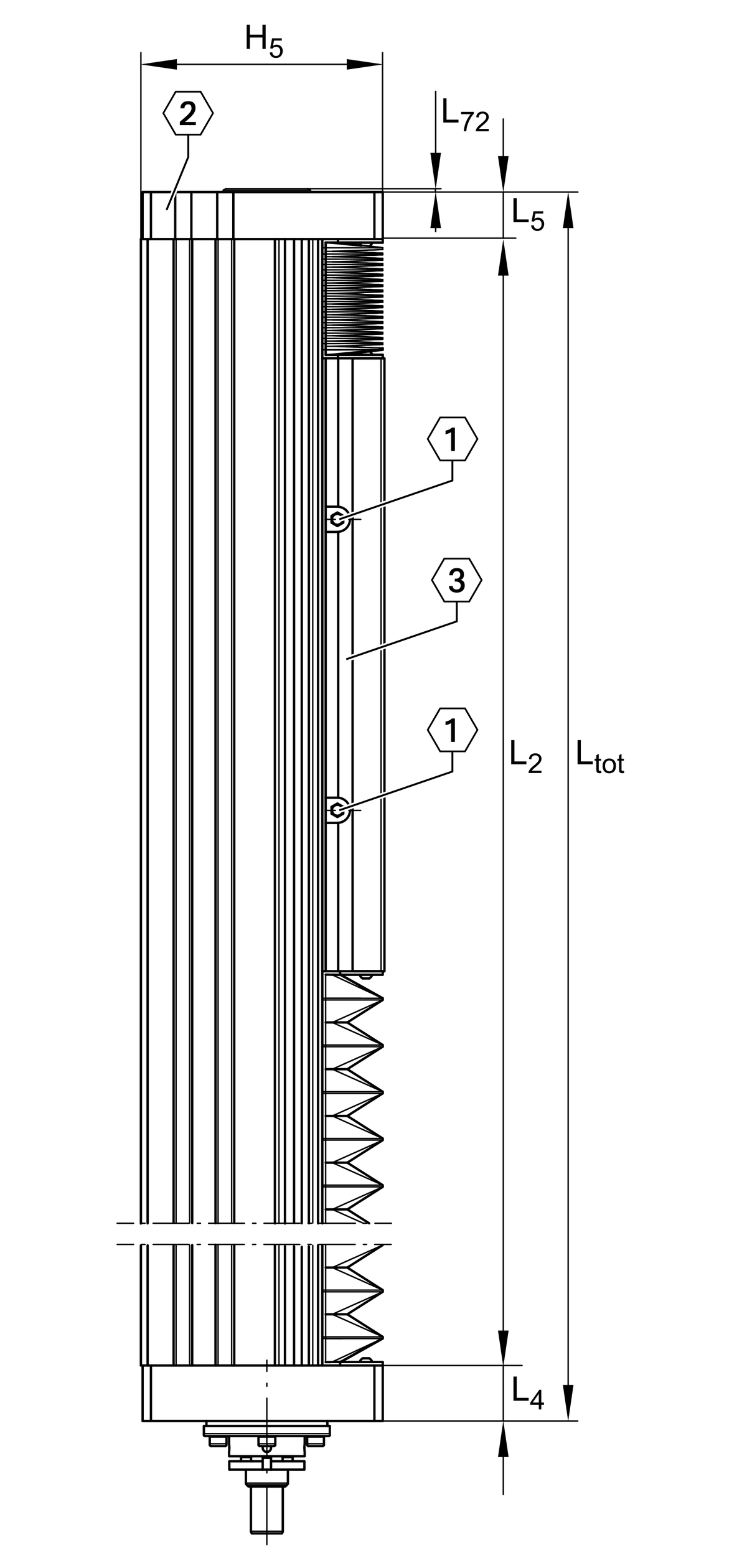

尺寸
| B5 | 179 mm | Width of End Plates |
| FBL | 1.15 | Effective length factor of bellow |
| H1 | 29.3 mm | Height of Carriage |
| H2 | 74.5 mm | Width of Support Rail |
| H5 | 103.5 mm | |
| L4 | 28 mm | |
| L5 | 28 mm | |
| l41 | 20 mm | |
| l42 | 26 mm | |

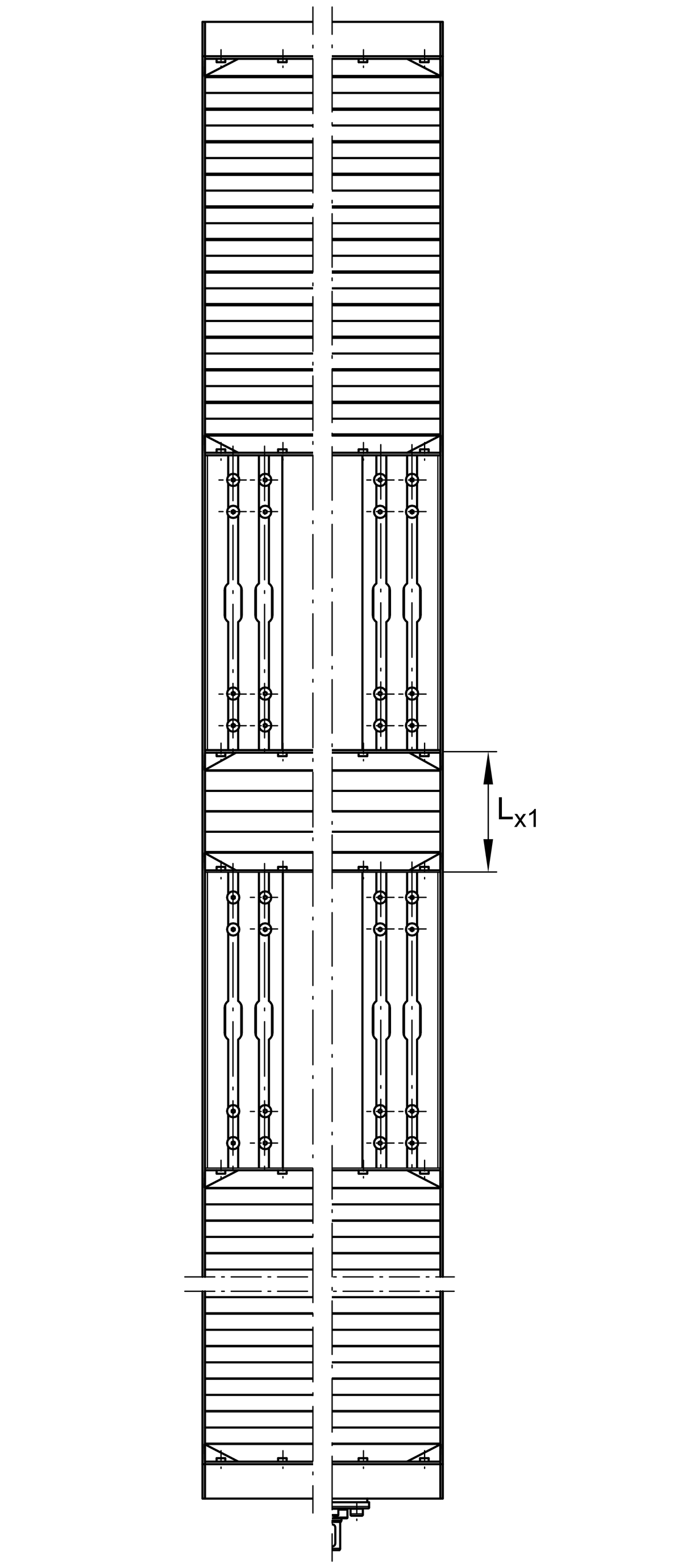

| Lx1 min | 20 mm | Minimum distance between the Carriages |
| S41 | 10 mm |
科技數據

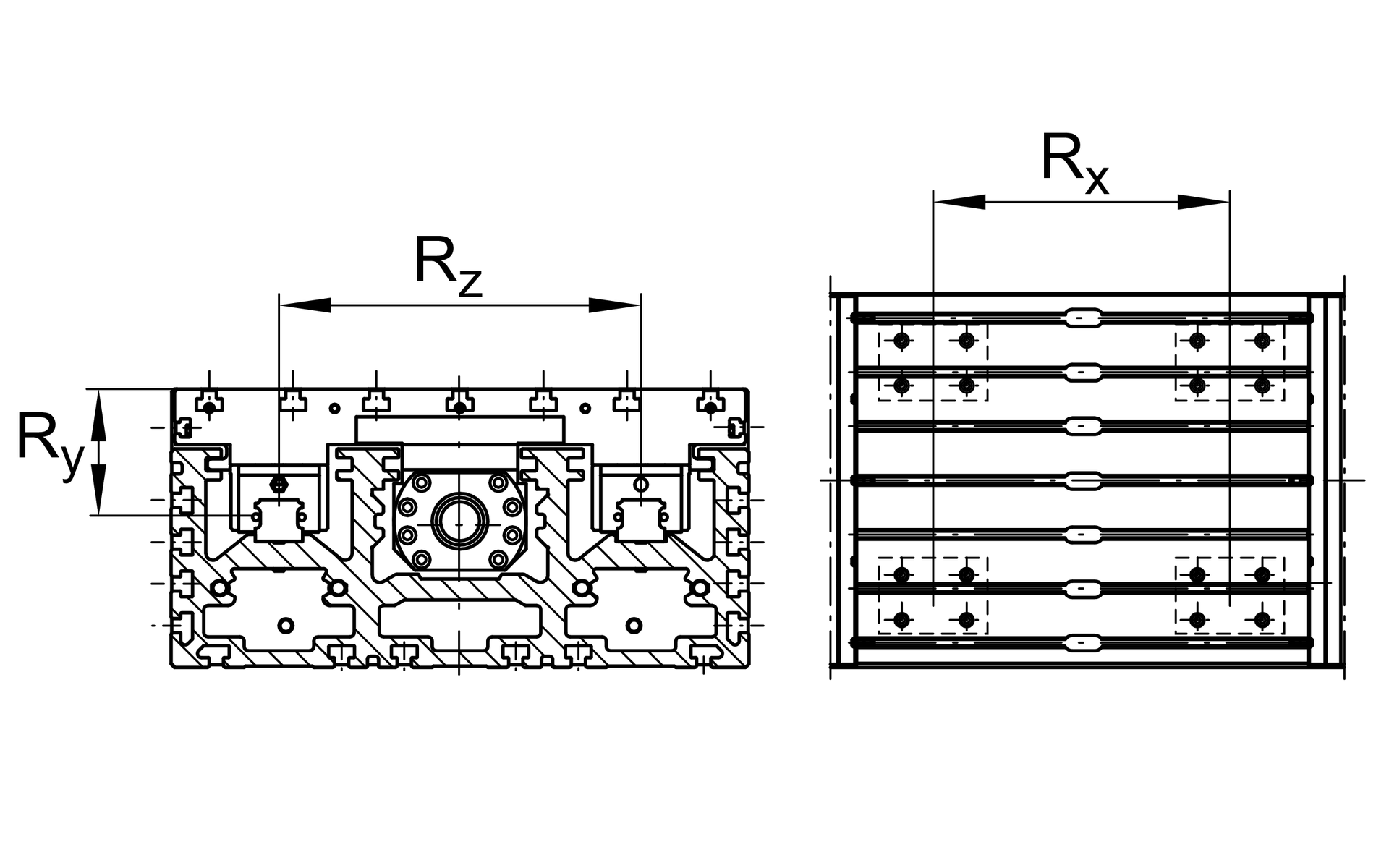

| Rx | 174 mm | |
| Ry | 56.5 mm | |
| Rz | 104 mm | |
| S | 10 mm | Safety Distance |
| mLAW | 4.2 kg | Mass of Carriage |
| m3 | 4.2 kg | Mass of additional Carriage |
| IC | 19,000 N | Load direction I: compressive load |
| I C0 | 58,000 N | Load direction I: compressive load |
| II C | 19,000 N | Load direction II: tensile load |
| II C0 | 58,000 N | Load direction II: tensile load |
| III C | 19,000 N | Load direction III: lateral load |
| III C0 | 58,000 N | Load direction III: lateral load |

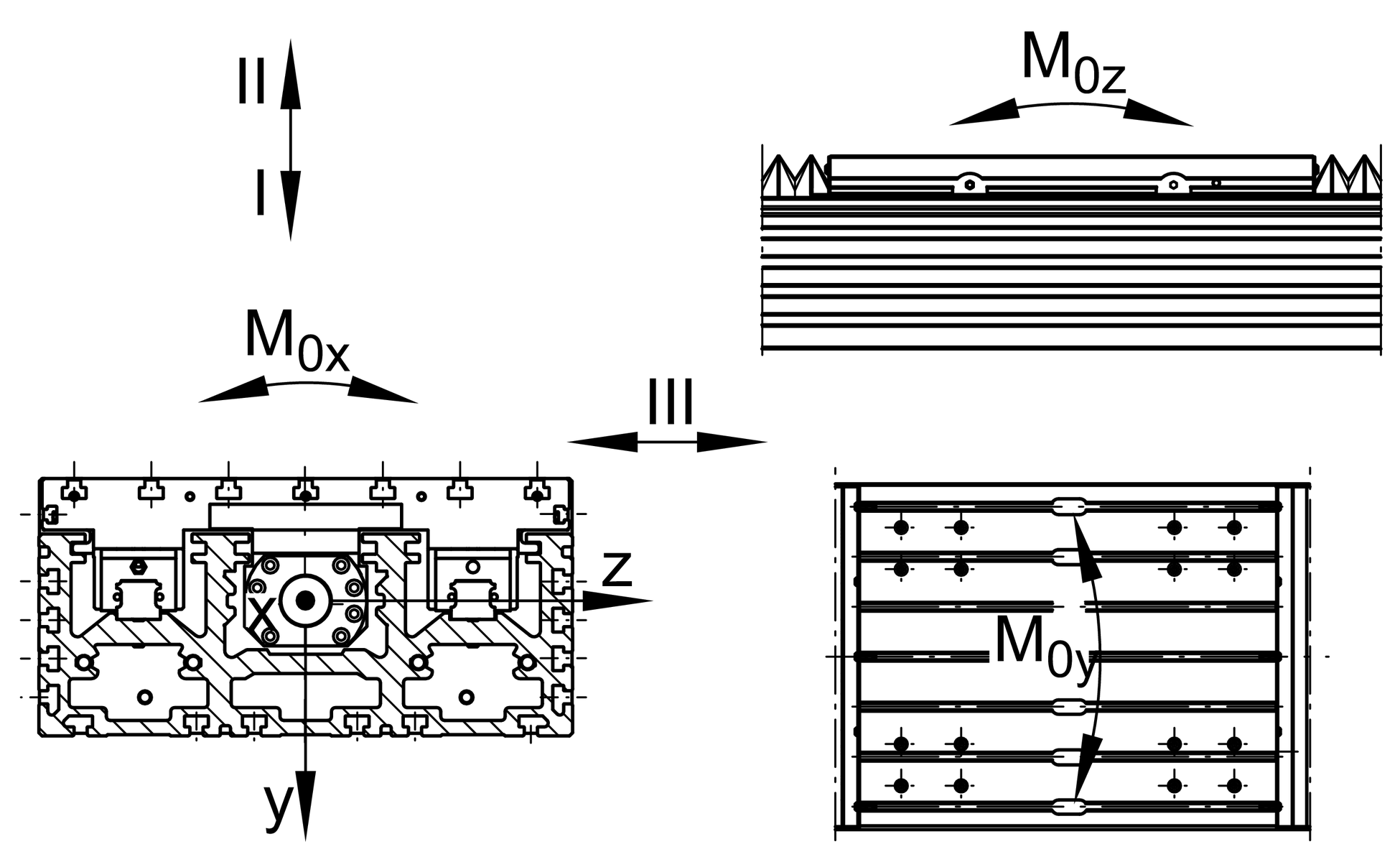

| M0x per | 2,700 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 2,950 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 3,450 Nm | Max. permissible static moment per Carriage 1 |
| ly | 1,636 cm4 | Geometrical moments of inertia of Support Rail |
| lz | 200 cm4 | Geometrical moments of inertia of Support Rail |
| WN2 | Ja | Second, non-driven Carriage |
附加資訊
4xKWVE15-B-H | Carriage |
您目前的產品型號
| Size code | 15 | |
| Drive type | OA | 沒有 drive |
| Spindle support | / | none |
| Additional carriage | WN2 | Second, non-driven carriage |
| Attachment to the carriage | N | T-Slots |
