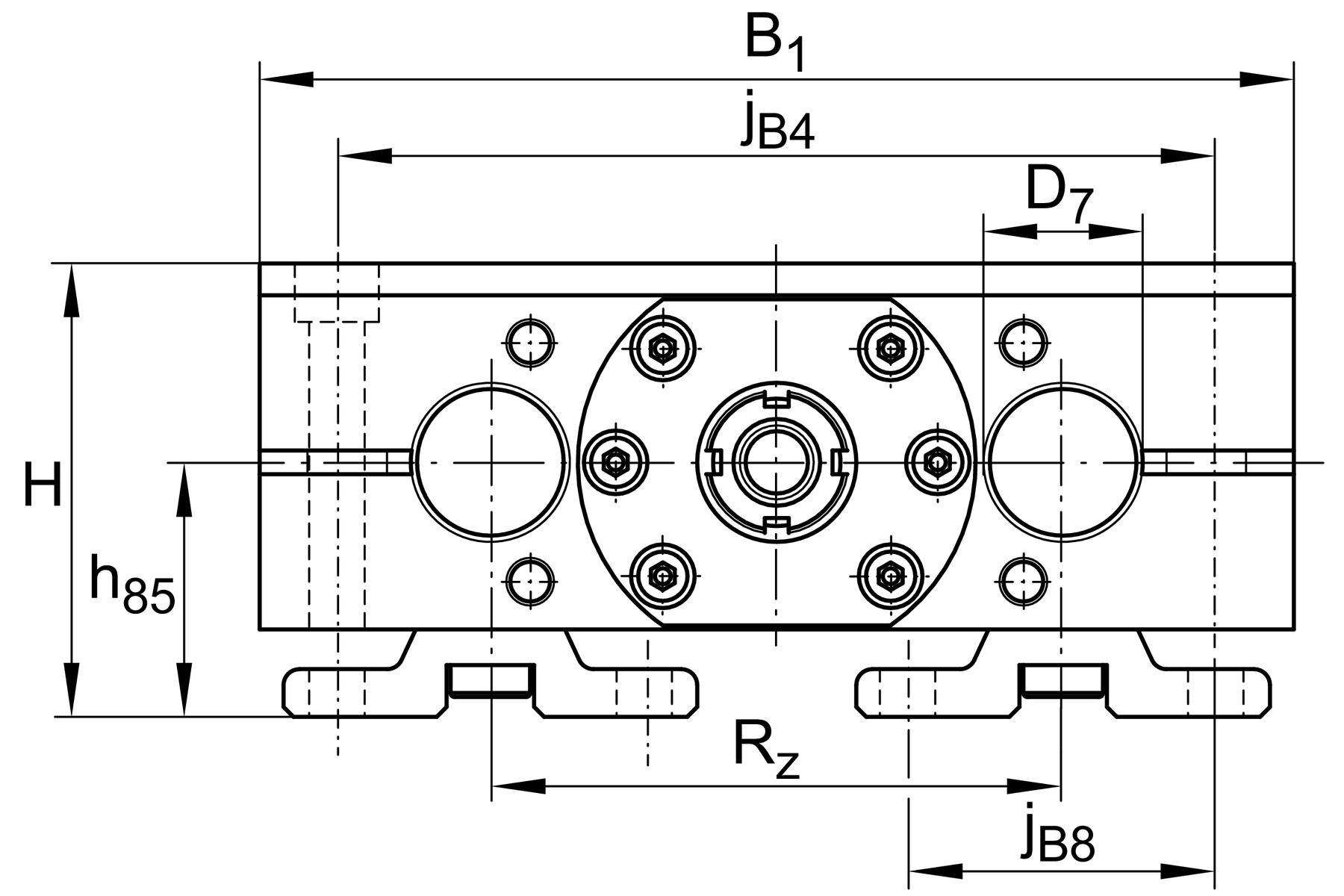

主要尺寸與性能資料
| H | 115 mm | Total Height |
| B1 | 280 mm | Total Width |
| L | 280 mm | Length of carriage |

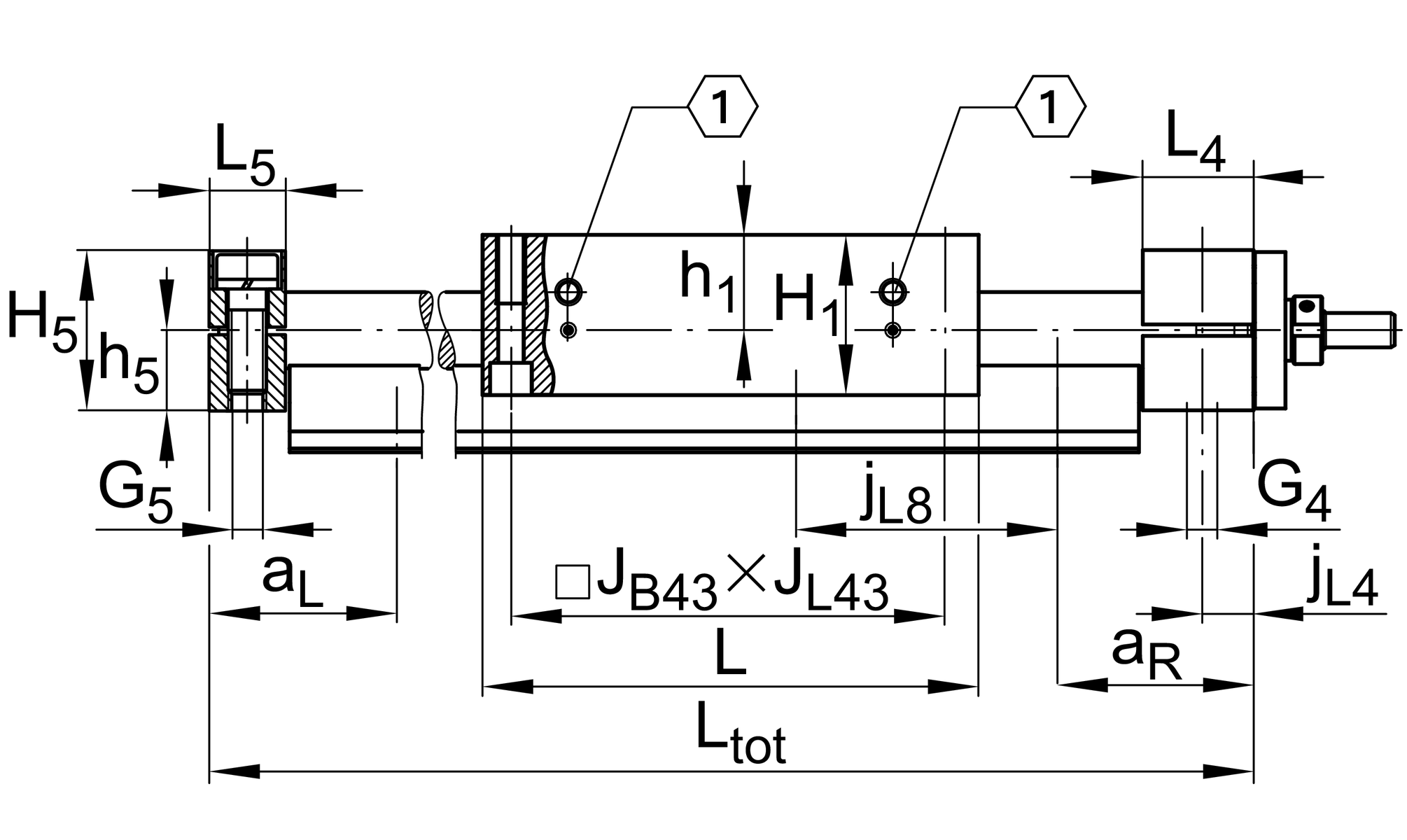

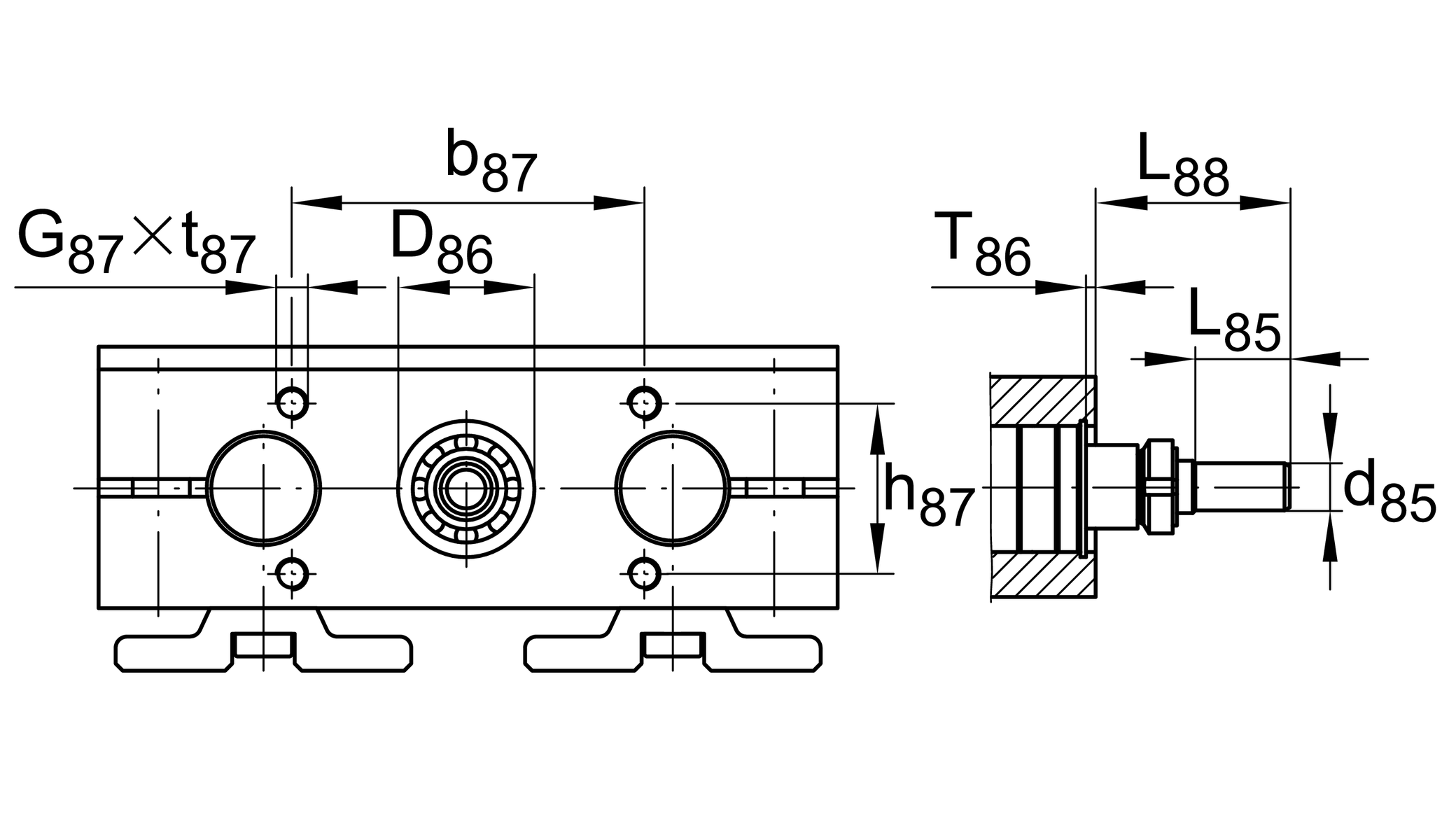

安裝尺寸
| D7 | 50 mm | Tolerance h7 |
| D8 | 11 mm | |
| H1 | 93 mm | Height of carriage |
| H12 | 21 mm | |
| JB43 | 250 mm | |
| jB8 | 63 mm | |
| jL8 | 200 mm | |
| K43 | M12 | |
| Ltot | 2,900 mm | maximum length |
| Rx | 163 mm | |
| S | 6 mm | Safety distance |
| S | 17 mm | |
| T8 | 9.5 mm | |
| t43 | 34 mm | Depth of Thread |
| t87 | 18 mm | Depth of Thread |
| b87 | 62 mm | Tolerance ±0,2 |
| d85 | 16 mm | Diameter drive shaft, Tolerance h7 1 |
| d86 | 72 mm | Tolerance g7 |
| G4 | M16 | 線 |
| G5 | M16 | 線 |
| G87 | M8 | 線 |
| G43 | M16 | 線 |
| h5 | 44 mm | |
| h85 | 60 mm | |
| h87 | 62 mm | Tolerance ±0,2 |
| JL43 | 250 mm | |
| jB4 | 240 mm | |
| JL4 | 15 mm |
尺寸
| H7 | 9 mm | |
| h1 | 55 mm | |
| L4 | 42 mm | Length of Shaft Support Block with Drive System |
| L5 | 30 mm | Length of Shaft Support Block 沒有 drive System |
| L88 | 46 mm | |
| L86 | 9.4 mm | |
| Rz | 152 mm | |
| H5 | 88 mm | Height of Shaft Support Blocks |
科技數據
| mLAW | 16.3 kg | Mass of Carriage |
| vmax | 0.15 m/s | Maximum Speed |
| amax | 2.5 m/s2 | Maximum Acceleration |
| d0 | 32 mm | ø Spindle |
| P | 6 mm | Spindle Pitch |
| Is | 5.45 kg*cm2 | 質量慣性矩 of threaded Spindle |
| CI | 13,480 N | Load direction I: compressive load |
| C0I | 26,400 N | Load direction I: compressive load |
| CII | 14,200 N | Load direction II: tensile load |
| C0II | 16,800 N | Load direction II: tensile load |
| CIII | 30,320 N | Load direction III: lateral load |
| C0III | 22,600 N | Load direction III: lateral load 2 |
| C0 | 5,530 N | Load capacity Spindle Nut stat 3 |
| C0a | 5,530 N | Load capacity fixed Spindle bearing stat |
| M0x | 1,180 Nm | Max. permissible static moment per Carriage 3 |
| M0y | 1,580 Nm | Max. permissible static moment per Carriage 3 |
| M0z | 1,250 Nm | Max. permissible static moment per Carriage 3 |
附加資訊
5 Nm | Max. permissible drive torque | |
3304-2RS | Rolling Bearings | |
5.45 kg*cm2 | 質量慣性矩 of threaded Spindle | |
KBO50-PP-AS | Bearing 2 |
溫度範圍
| min | 0 °C | Minimum operating Temperatur |
| max | 80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 50 | |
| Drive type | TGT | Trapezoidal screw drive |
| Length of carriage | 280 | 280 mm |
| Spindle diameter | 32 | 32mm |
| Spindle pitch | 06 | 6 mm |
| Spindle nut design | M | Cylinder nut |
| Bellow | 0 | No |
