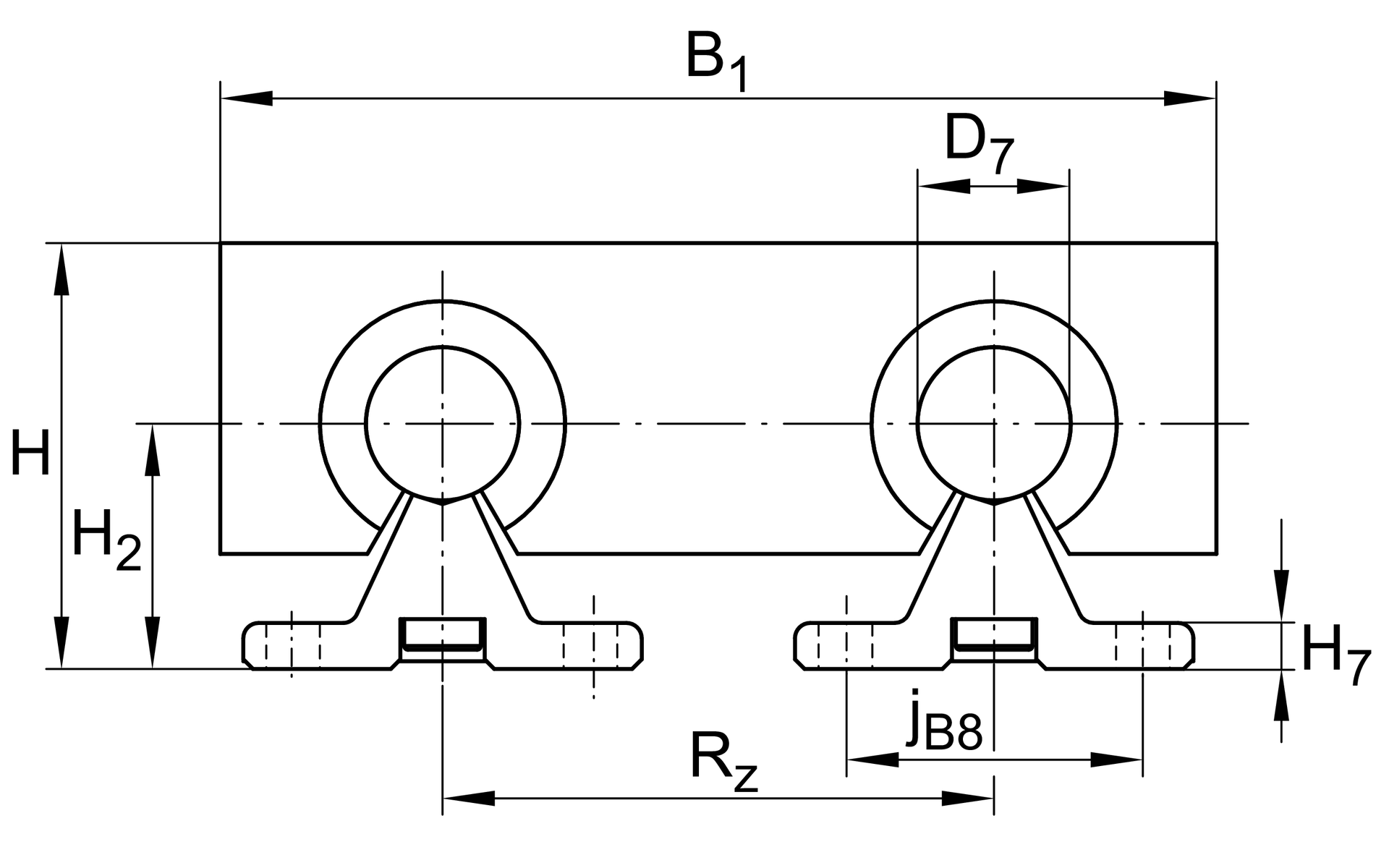

主要尺寸與性能資料
| H | 115 mm | Total Height |
| B1 | 280 mm | Total Width |
| L | 280 mm | Length of carriage |

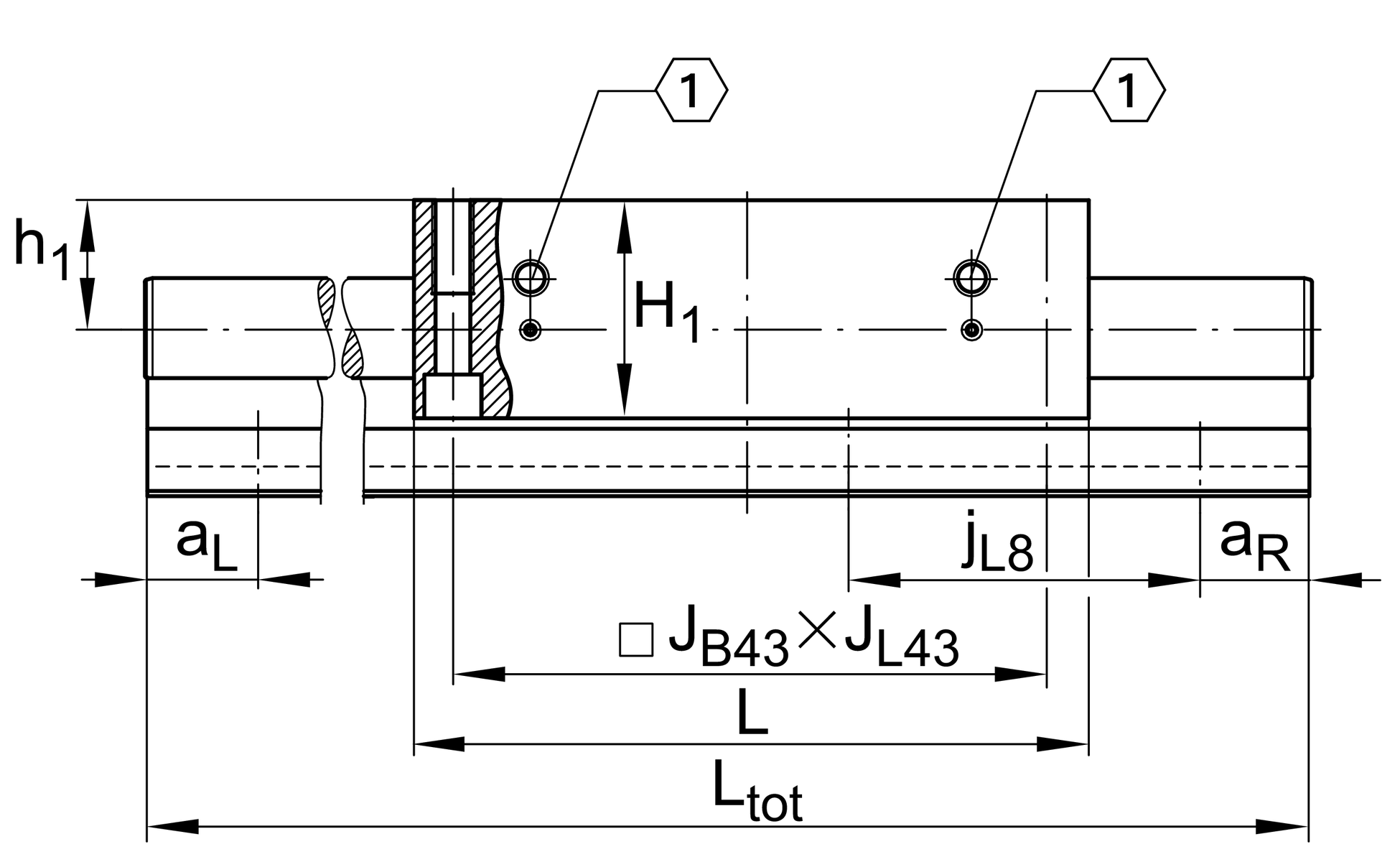

安裝尺寸
| D7 | 50 mm | Tolerance h7 |
| D8 | 11 mm | |
| H1 | 93 mm | Height of carriage |
| H12 | 21 mm | |
| H2 | 60 mm | |
| JB43 | 250 mm | |
| jB8 | 63 mm | |
| jL8 | 200 mm | |
| K43 | M12 | |
| L20 | 4.4 mm | |
| L21 | 4 mm | |
| Ltot | 6,000 mm | maximum length |
| Rx | 163 mm | |
| S | 17 mm | |
| T8 | 9.5 mm | |
| t43 | 34 mm | Depth of Thread |
| G43 | M16 | 線 |
| JL43 | 250 mm |
尺寸
| H7 | 9 mm | |
| h1 | 55 mm | |
| Rz | 152 mm |
科技數據
| mLAW | 16.1 kg | Mass of Carriage |
| vmax | 5 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |
| CI | 23,480 N | Load direction I: compressive load |
| C0I | 26,400 N | Load direction I: compressive load |
| CII | 14,200 N | Load direction II: tensile load |
| C0II | 16,800 N | Load direction II: tensile load |
| CIII | 30,320 N | Load direction III: lateral load |
| C0III | 22,600 N | Load direction III: lateral load 1 |
| M0x | 1,180 Nm | Max. permissible static moment per Carriage 2 |
| M0y | 1,580 Nm | Max. permissible static moment per Carriage 2 |
| M0z | 1,250 Nm | Max. permissible static moment per Carriage 2 |
附加資訊
KBO50-PP-AS | Bearing 1 |
溫度範圍
| min | 0 °C | Minimum operating Temperatur |
| max | 80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 50 | |
| Drive type | OA | 沒有 drive |
| Length of carriage | 280 | 280 mm |
| Bellow | 0 | No |
