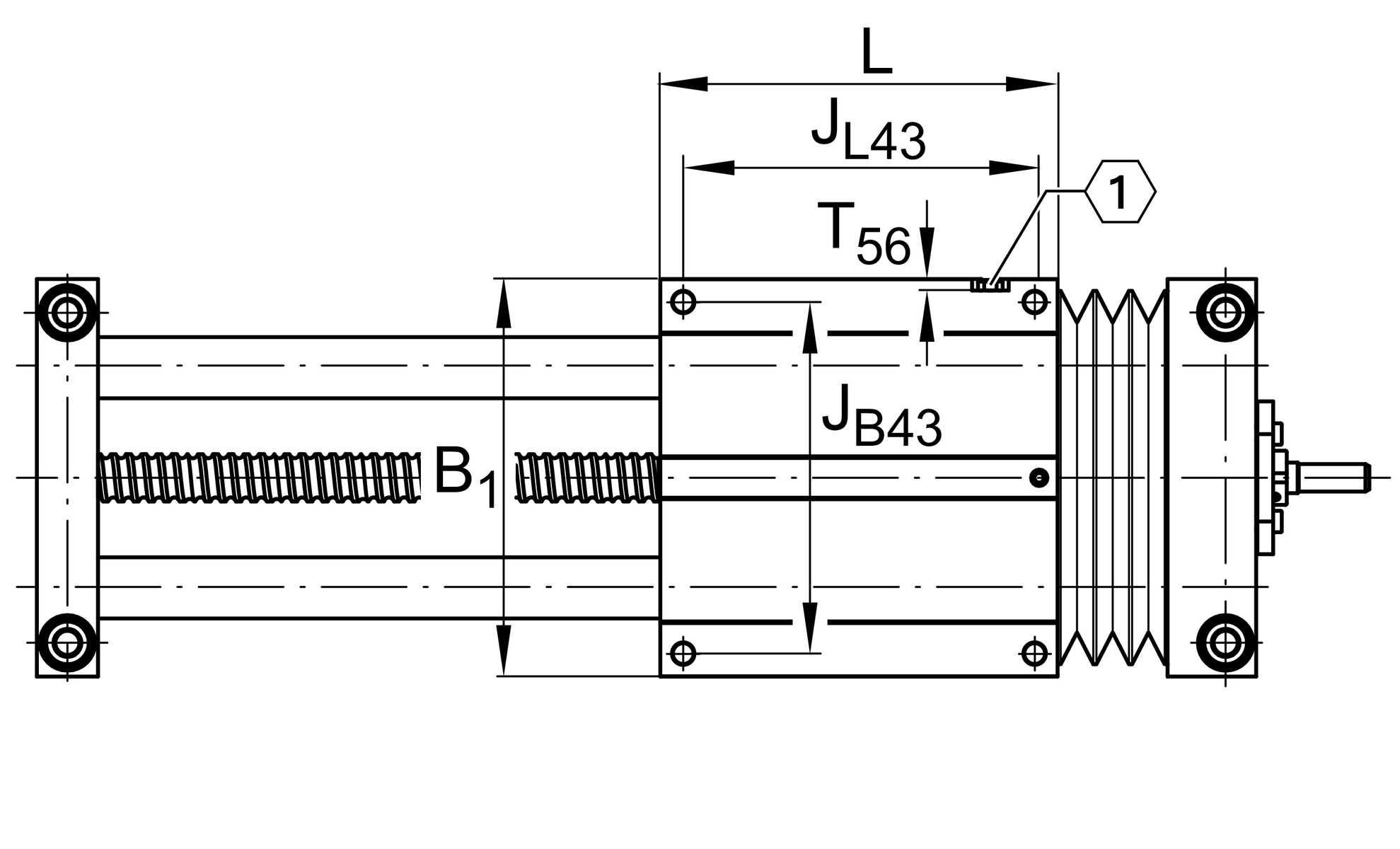

主要尺寸與性能資料
| B1 | 280 mm | Total Width |
| L | 280 mm | Length of Carriage |

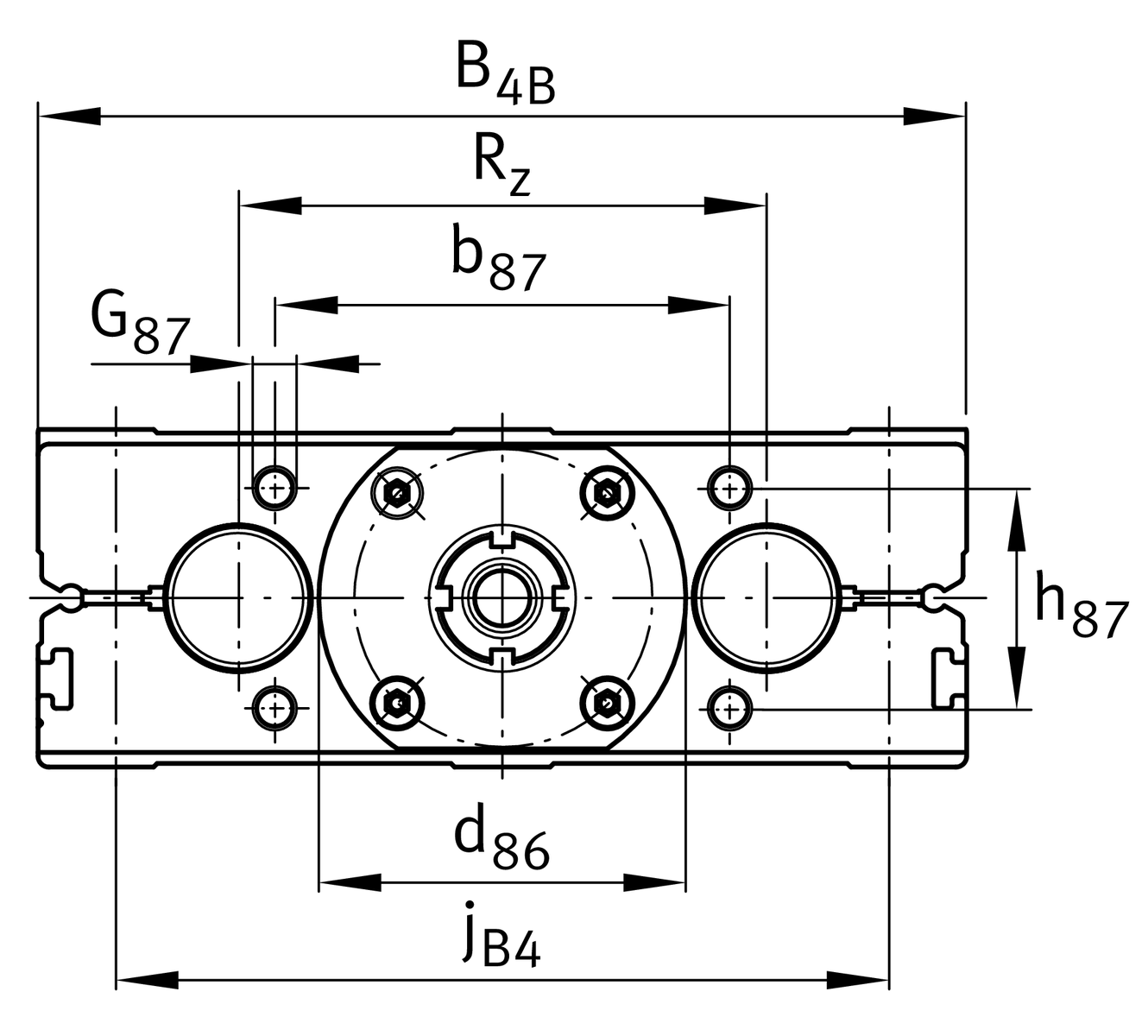

安裝尺寸
| B4B | 280 mm | Width of Shaft Support Blocks |
| b87 | 62 mm | Tolerance ±0,2 |
| d85 | 16 mm | Tolerance h7 1 |
| d86 | 66 mm | Tolerance g7 |
| G3 | M16 | 線 |
| G43 | M16 | 線 |
| G87 | M8x18 | 線 |
| h85 | 52 mm | |
| h87 | 62 mm | Tolerance ±0,2 |
| JB43 | 250 mm | |
| JL43 | 250 mm | |
| jB4 | 240 mm | |
| jL3 | 15 mm | |
| K43 | M12 | 線 |
| L85 | 23 mm | |
| L86 | 9 mm | |
| L88 | 46 mm | |

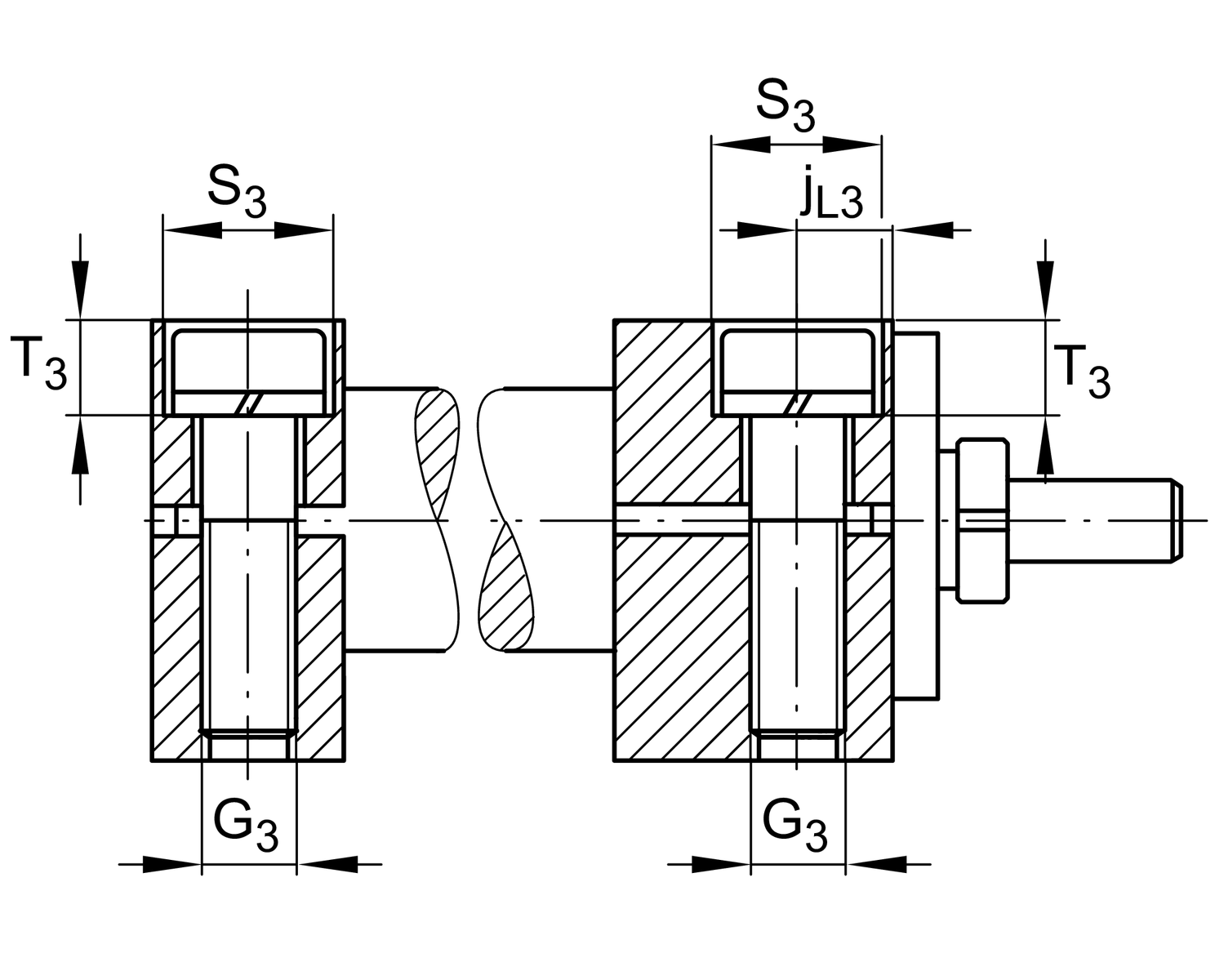

| S3 | 26 mm | |
| T3 | 21 mm | |
| t43 | 34 mm | Depth of Thread |

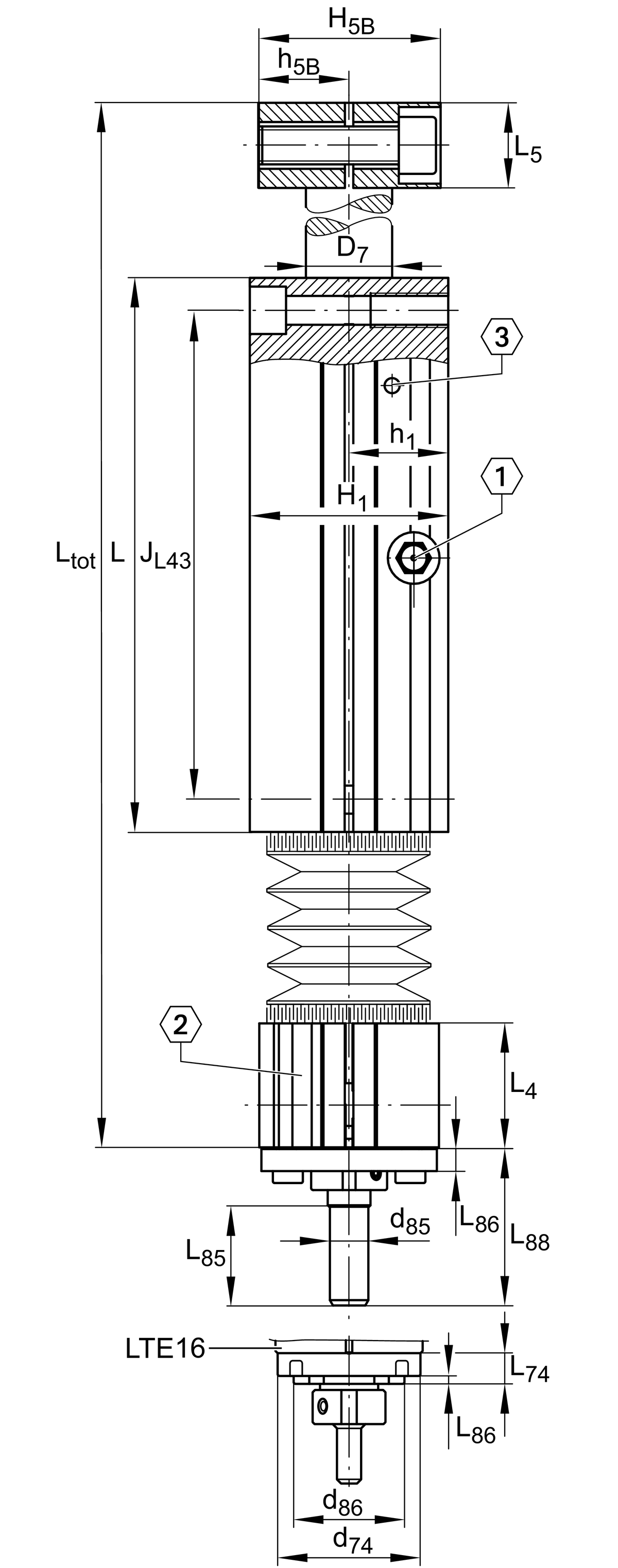

尺寸
| BB | 22 mm | Length of Bellows Fastener |
| FBL | 1.24 | Effective length factor of bellow |
| H1 | 96 mm | Height of Carriage |

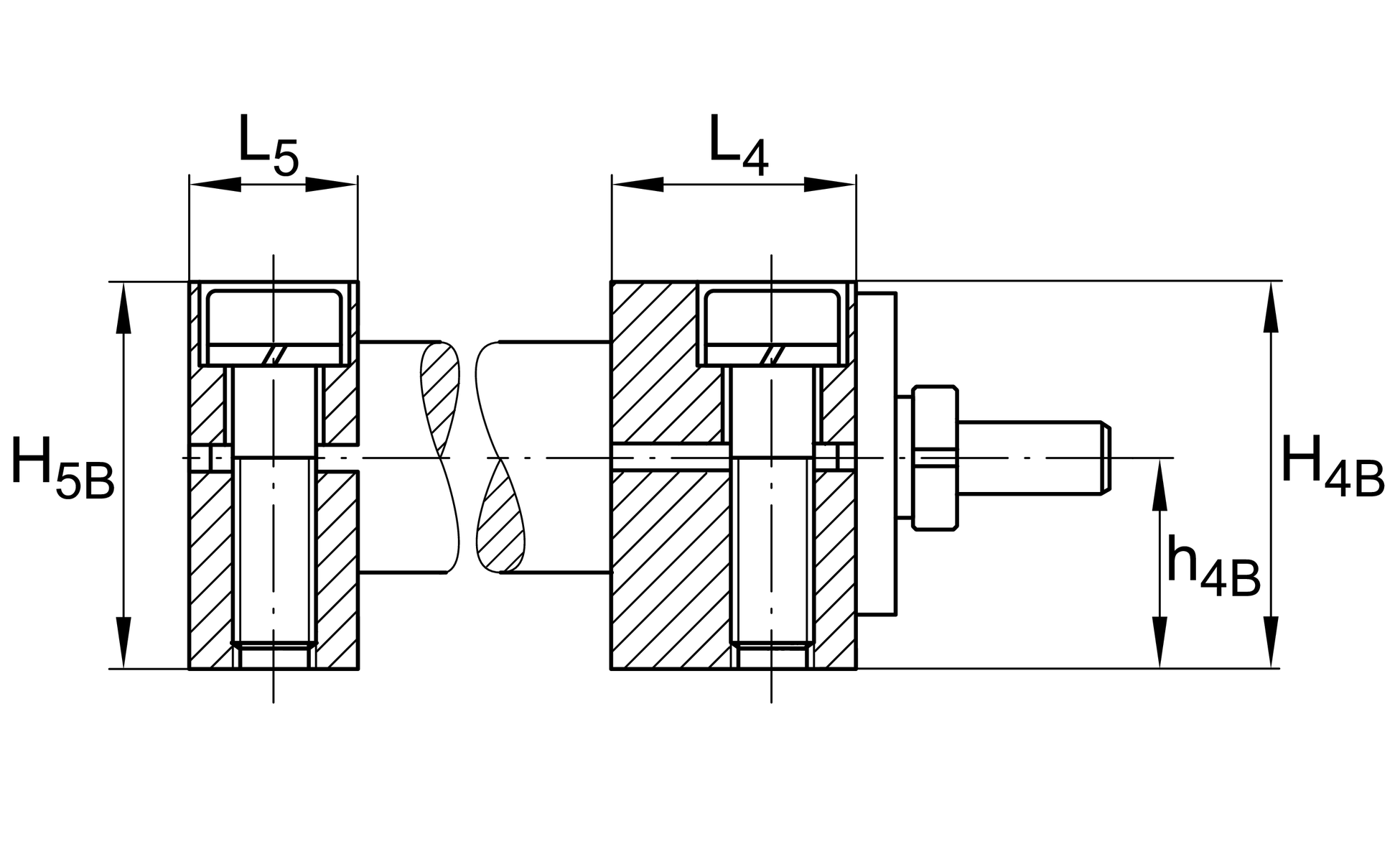

| H4B | 88 mm | Height of Shaft Support Blocks |
| H5B | 88 mm | Height of Shaft Support Blocks |
| h1 | 48 mm | |
| h4B | 44 mm | |
| h5B | 44 mm | |
| L4 | 39 mm | Length of Shaft Support Block with Drive System |
| L5 | 30 mm | Length of Shaft Support Block 沒有 drive System |
| D7 | 50 mm | ø Shaft, Tolerance h7 |
科技數據
| RX | 163 mm | |
| RZ | 152 mm | |
| S | 5 mm | Safety Distance |
| mLAW | 16.5 kg | Mass of Carriage |
| vmax | 0.25 m/s | Maximum Speed |
| amax | 20 m/s2 | Maximum Acceleration |
| CI | 22,950 N | Load direction I: compressive load |
| C0I | 25,200 N | Load direction I: compressive load |
| CII | 22,950 N | Load direction II: tensile load |
| C0II | 25,200 N | Load direction II: tensile load |
| CIII | 22,950 N | Load direction III: lateral load |
| C0III | 25,200 N | Load direction III: lateral load |
| M0x per | 1,904 Nm | Max. permissible static moment per Carriage 2 |
| M0y per | 1,736 Nm | Max. permissible static moment per Carriage 2 |
| M0z per | 1,510 Nm | Max. permissible static moment per Carriage 2 |
| d0 | 25 mm | Spindle Diameter |
| P | 5 mm | Spindle Pitch |
| C | 12,300 N | Load capacity Spindle Nut dyn 3 |
| C0 | 22,500 N | Load capacity Spindle Nut stat 3 |
| Ca | 18,800 N | Load capacity fixed Spindle bearing dyn |
| C0a | 31,000 N | Load capacity fixed Spindle bearing stat |
附加資訊
12 Nm | Max. permissible drive torque | |
KB50-P | Linear Ball Bearings 4 | |
ZKLN1747-2RS-PE | Rolling Bearings (locating bearing) | |
0.05 mm | Repeat accuracy ± | |
2.25 kg*cm2 | 質量慣性矩 of threaded Spindle |
溫度範圍
0 °C | Minimum operating Temperatur | |
80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 50 | |
| Length of carriage | 280 | 280 mm |
| Version | B | |
| Drive type | KGT | Ball screw drive |
| Spindle diameter | 25 | 25mm |
| Spindle pitch | 5 | 5 mm |
| Spindle nut design | M | Cylinder nut |
| Bellow | 1 | Yes |
