主要尺寸與性能資料

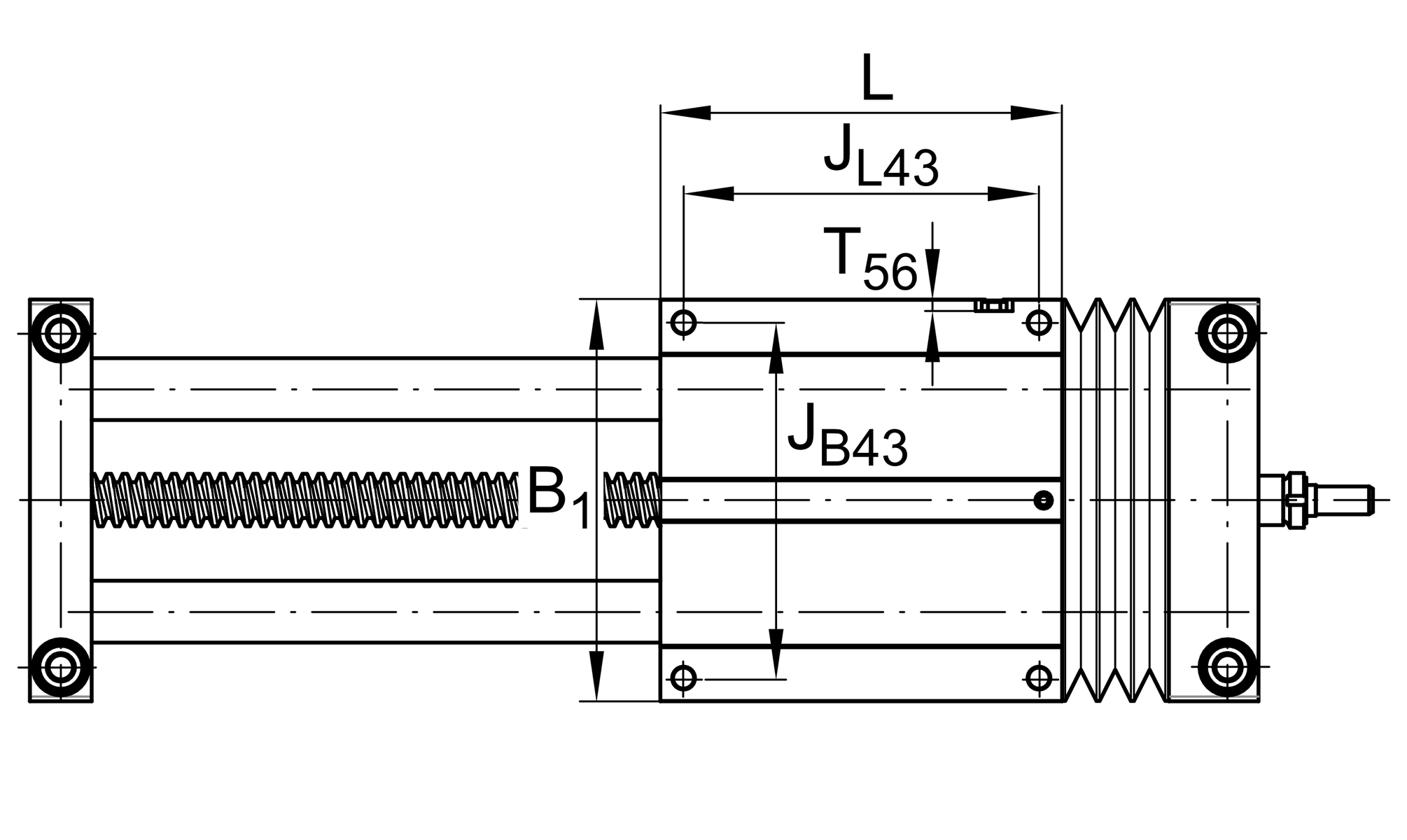

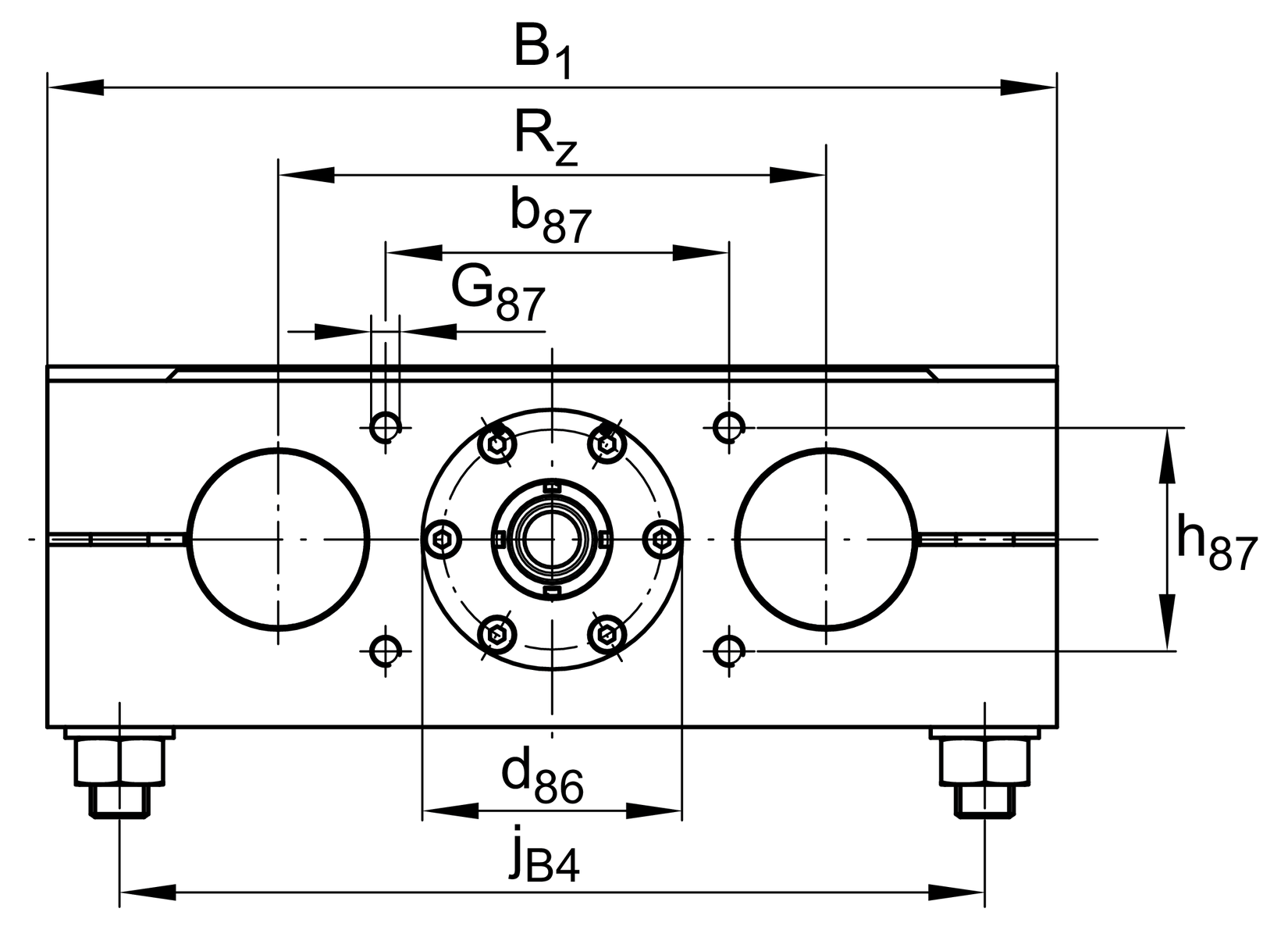

| B1 | 280 mm | Total Width |
| H | 100 mm | Total Height |
| L | 280 mm | Length of Carriage |
安裝尺寸

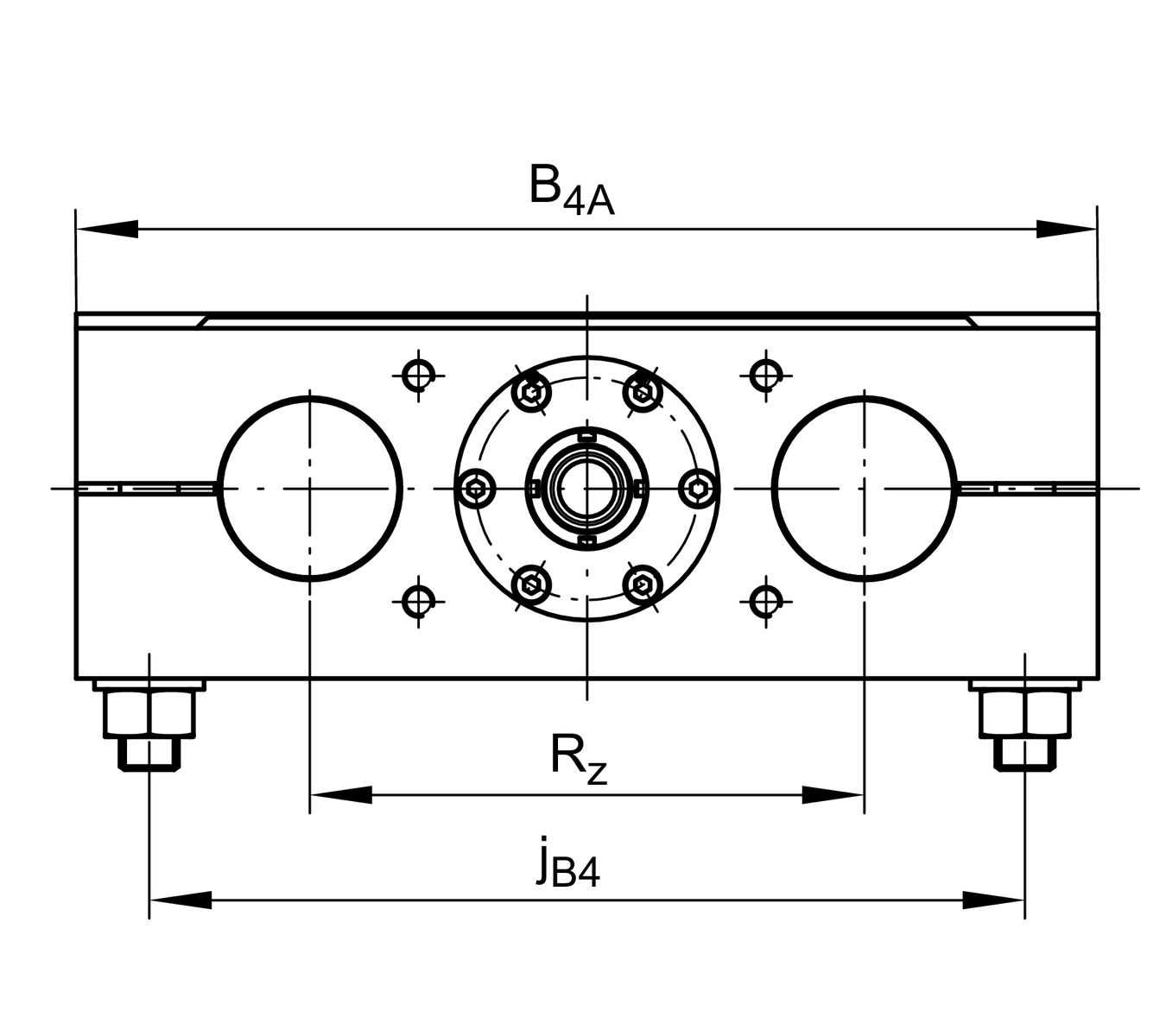

| B4A | 280 mm | Width of Shaft Support Blocks |
| b87 | 62 mm | Tolerance ±0,2 |
| D3 | 17.5 mm | |
| D86 | 0 mm | Tolerance H7 |
| d85 | 16 mm | Tolerance h7 1 |
| d86 | 72 mm | Tolerance g7 |
| G43 | M16 | 線 |
| G87 | M8x18 | 線 |
| h85 | 52 mm | |
| h87 | 62 mm | Tolerance ±0,2 |
| JB43 | 250 mm | |
| JL43 | 250 mm | |
| jB4 | 240 mm | |
| jL3 | 15 mm | |
| K43 | M12 | 線 |
| L85 | 23 mm | |
| L86 | 9 mm | |
| L88 | 46 mm | |
| S3 | 26 mm | |
| T3 | 21 mm | |
| t43 | 34 mm | Depth of Thread |
尺寸
| BB | 22 mm | Length of Bellows Fastener |
| FBL | 1.24 | Effective length factor of bellow |

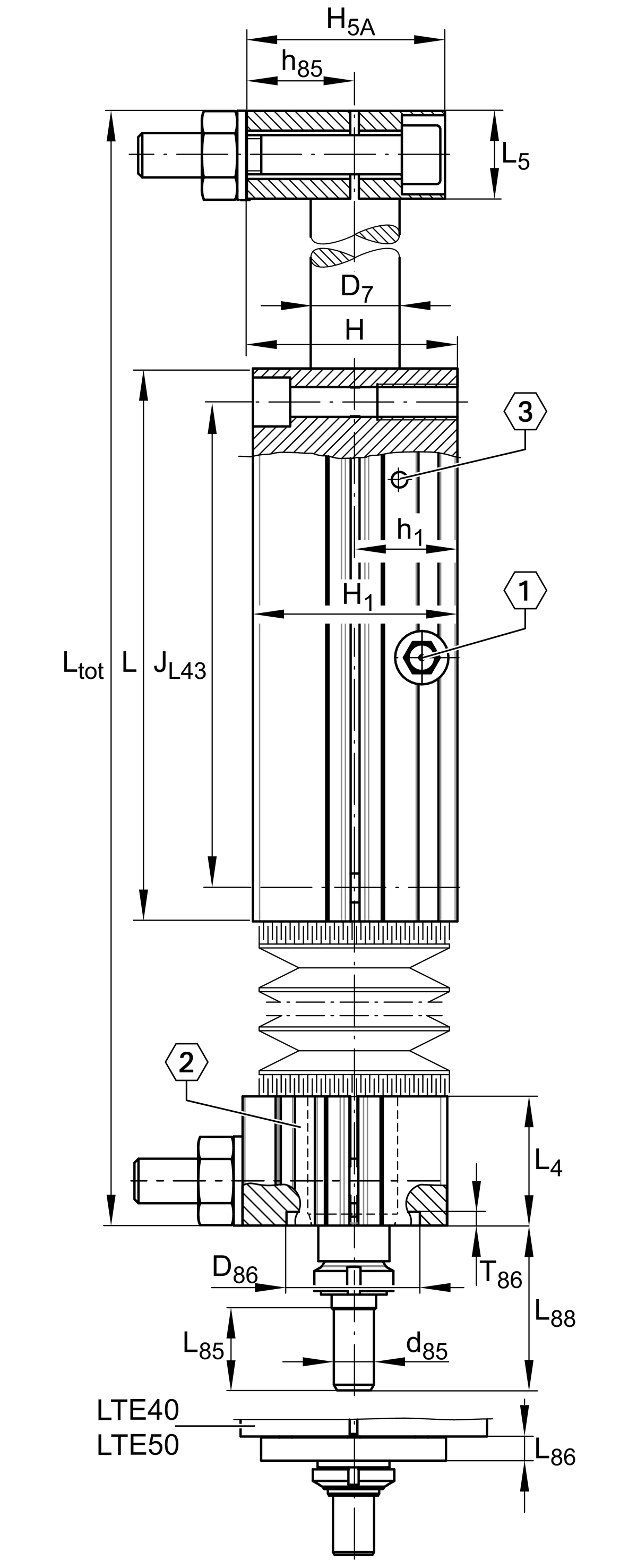

| H1 | 96 mm | Height of Carriage |

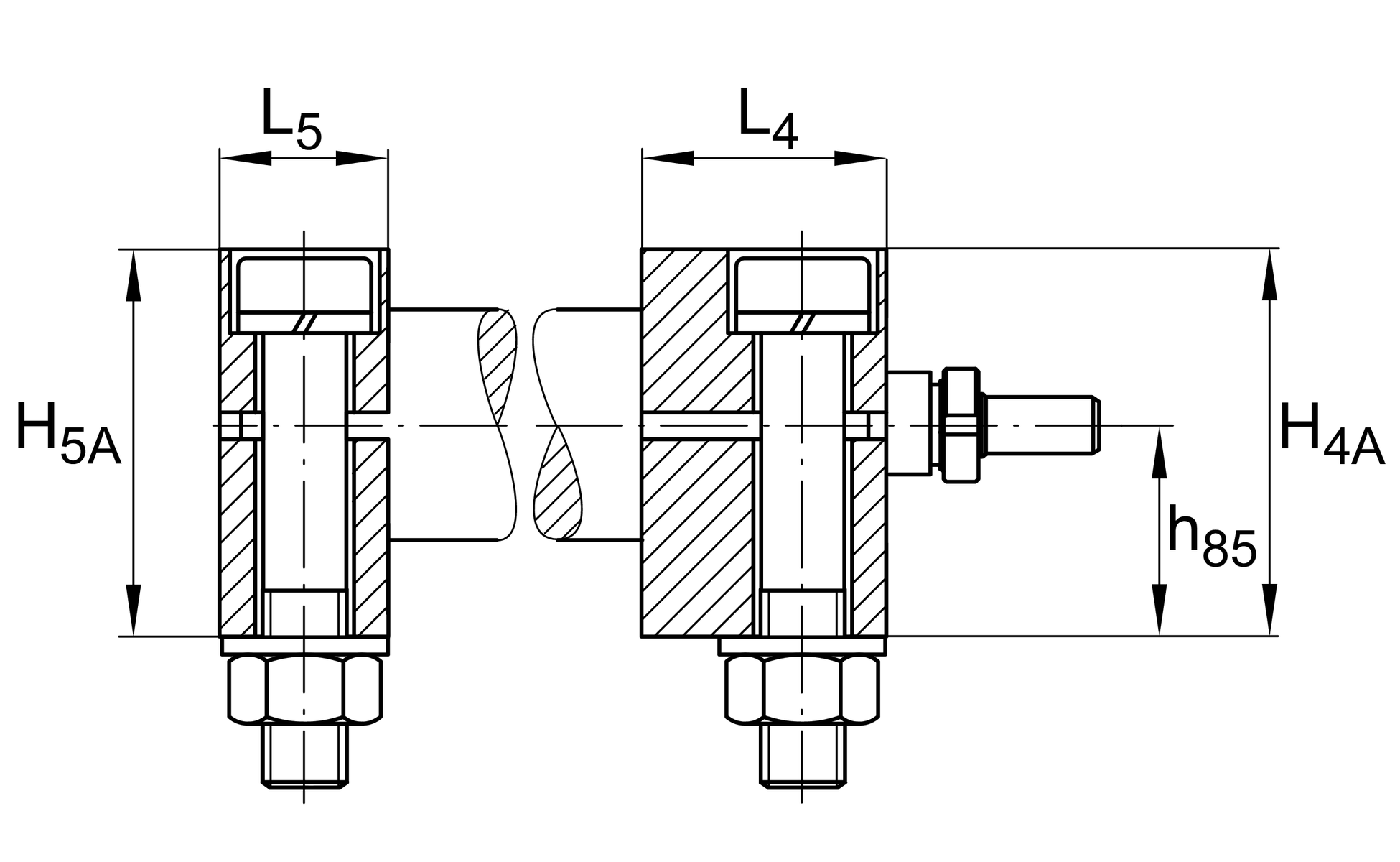

| H4A | 96 mm | Height of Shaft Support Blocks |
| H5A | 96 mm | Height of Shaft Support Blocks |
| h1 | 48 mm | |
| L4 | 42 mm | Length of Shaft Support Block with Drive System |
| L5 | 30 mm | Length of Shaft Support Block 沒有 drive System |
| D7 | 50 mm | ø Shaft, Tolerance h7 |
科技數據
| RX | 163 mm | |
| RZ | 152 mm | |
| S | 6 mm | Safety Distance |
| mLAW | 16.5 kg | Mass of Carriage |
| vmax | 0.15 m/s | Maximum Speed |
| amax | 2.5 m/s2 | Maximum Acceleration |
| CI | 22,950 N | Load direction I: compressive load |
| C0I | 25,200 N | Load direction I: compressive load |
| CII | 22,950 N | Load direction II: tensile load |
| C0II | 25,200 N | Load direction II: tensile load |
| CIII | 22,950 N | Load direction III: lateral load |
| C0III | 25,200 N | Load direction III: lateral load |
| M0x per | 1,904 Nm | Max. permissible static moment per Carriage 2 |
| M0y per | 1,736 Nm | Max. permissible static moment per Carriage 2 |
| M0z per | 1,510 Nm | Max. permissible static moment per Carriage 2 |
| d0 | 32 mm | Spindle Diameter |
| P | 6 mm | Spindle Pitch |
| C0 | 5,530 N | Load capacity Spindle Nut stat 3 |
| C0a | 5,530 N | Load capacity fixed Spindle bearing stat |
附加資訊
5 Nm | Max. permissible drive torque | |
KB50-P | Linear Ball Bearings 4 | |
3304-2RS | Rolling Bearings (locating bearing) | |
0.25 mm | Repeat accuracy ± | |
5.45 kg*cm2 | 質量慣性矩 of threaded Spindle |
溫度範圍
0 °C | Minimum operating Temperatur | |
80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 50 | |
| Length of carriage | 280 | 280 mm |
| Version | A | |
| Drive type | TGT | Trapezoidal screw drive |
| Spindle diameter | 32 | 32mm |
| Spindle pitch | 06 | 6 mm |
| Spindle nut design | M | Cylinder nut |
| Bellow | 1 | Yes |
