科技數據

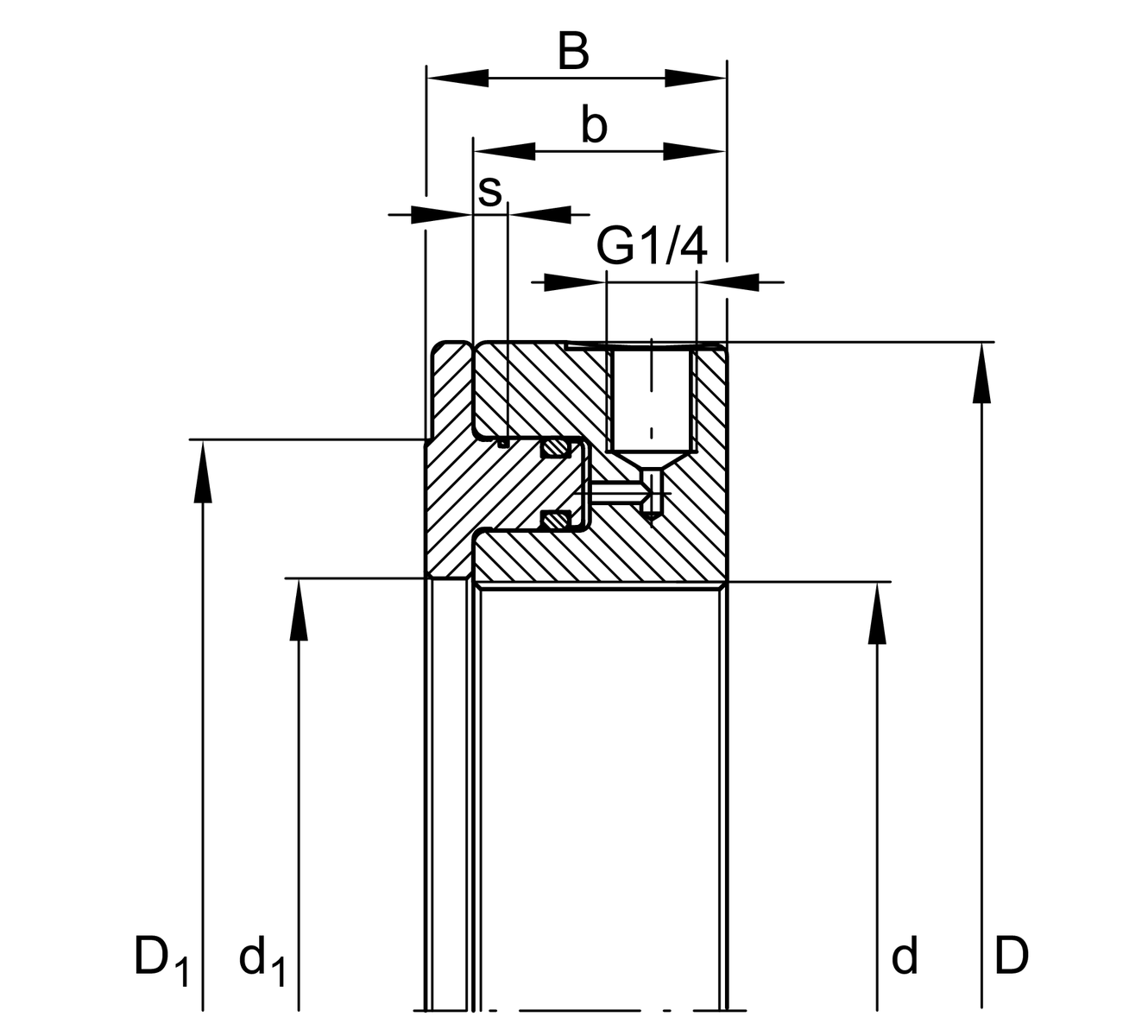

| d | Tr880x7 | 線 |
| D | 1,050 mm | 外徑 |
| B | 101 mm | 寬度 |
| b | 85 mm | Width press ring |
| D1 | 988 mm | |
| d1 | 883 mm | |
| s | 29 mm | Stroke, max. |
1,148.4 cm² | Piston surface | |
300 bar | Pressure, max. | |
3,445 kN | Drive-up force, max. | |
| ≈m | 206.1 kg | 重量 |
附加資訊
1 pc. Hydraulic nut, 3 pcs. Clamping screws, 1 pc. Screw plug, 1 pc. Connection nipple, 3 pcs. to 5 pcs. Threaded pins, 1 pc. Hand lever, 1 pc. Replacement seal set, 1 pc. User manual | 供貨範圍 |
您目前的產品型號
| Series | E | metric fine pitch thread/trapezoid thread |
