科技數據

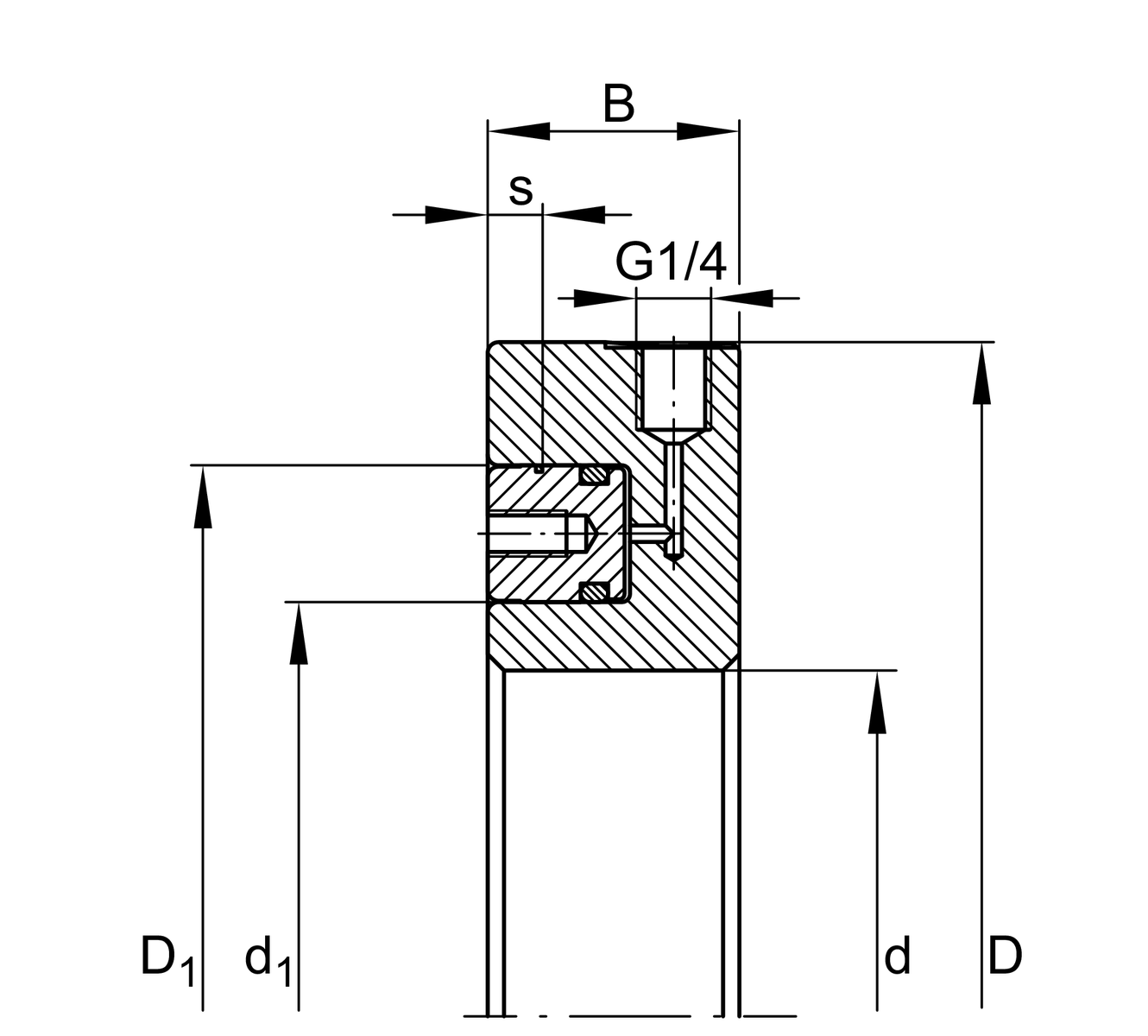

| d | 800 mm | 內徑 (tolerance: H7) |
| D | 1,205 mm | 外徑 |
| B | 92 mm | 寬度 |
| D1 | 1,070 mm | |
| d1 | 855 mm | |
| s | 35 mm | Stroke, max. |
3,251 cm² | Piston surface | |
300 bar | Pressure, max. | |
9,750 kN | Drive-up force, max. | |
| ≈m | 453.1 kg | 重量 |
附加資訊
1 pc. Hydraulic nut, 1 pc. Screw plug, 1 pc. Connection nipple, 1 pc. Replacement seal set, 1 pc. User manual | 供貨範圍 |
您目前的產品型號
| Series | HEAVY | reinforced version 沒有 thread |
