科技數據

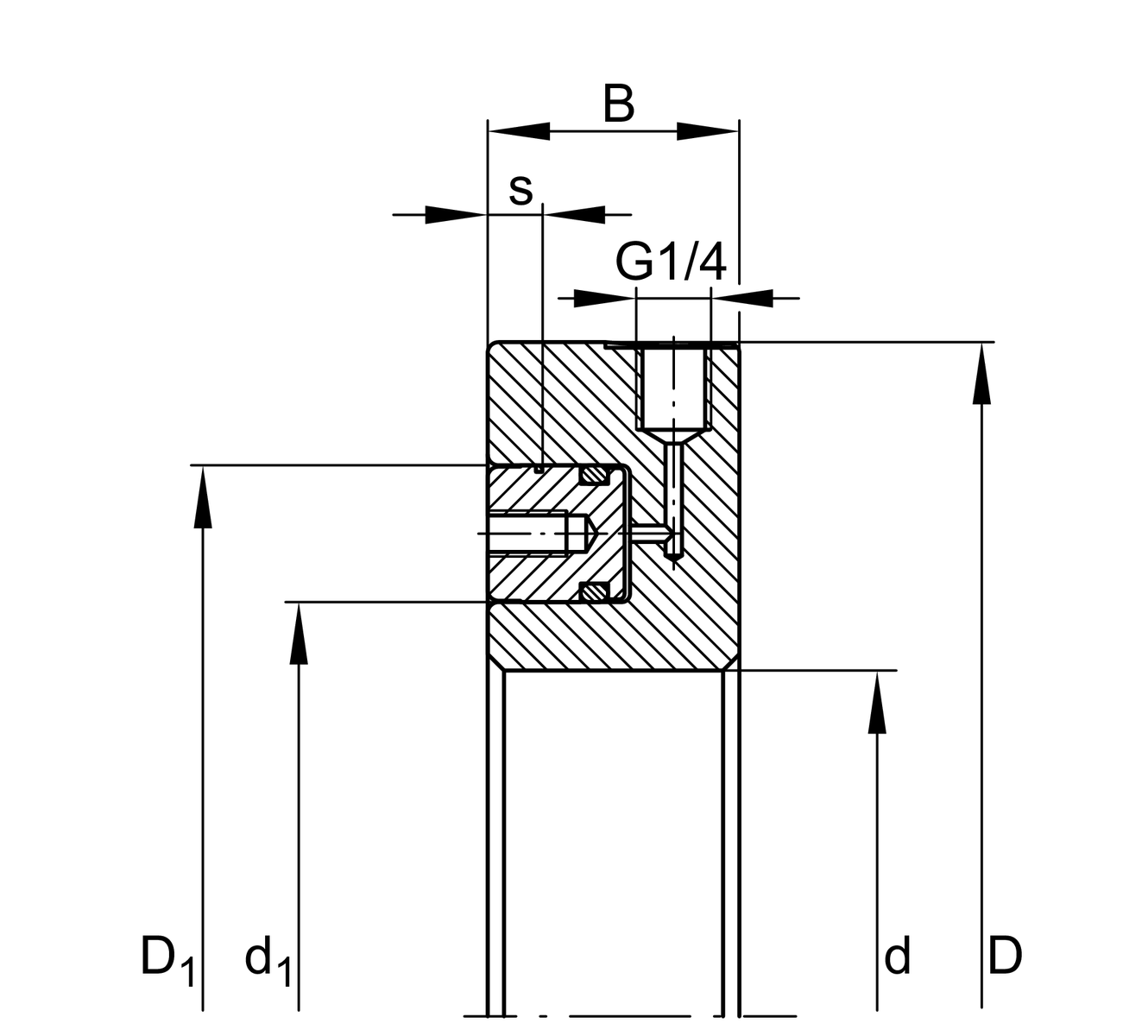

| d | 700 mm | 內徑 (tolerance: H7) |
| D | 1,060 mm | 外徑 |
| B | 86 mm | 寬度 |
| D1 | 940 mm | |
| d1 | 750 mm | |
| s | 30 mm | Stroke, max. |
2,522 cm² | Piston surface | |
300 bar | Pressure, max. | |
7,570 kN | Drive-up force, max. | |
| ≈m | 330.5 kg | 重量 |
附加資訊
1 pc. Hydraulic nut, 1 pc. Screw plug, 1 pc. Connection nipple, 1 pc. Replacement seal set, 1 pc. User manual | 供貨範圍 |
您目前的產品型號
| Series | HEAVY | reinforced version 沒有 thread |
