主要尺寸與性能資料
| d1 | 400 mm | Shaft diameter |
| a | 1,100 mm | Length base |
| h1 | 755 mm | Total height |
| g1 | 310 mm | Total width with lid g1 |
| g2 | 350 mm | Total width with lid g2 |
| ≈m | 413 kg | 重量 |

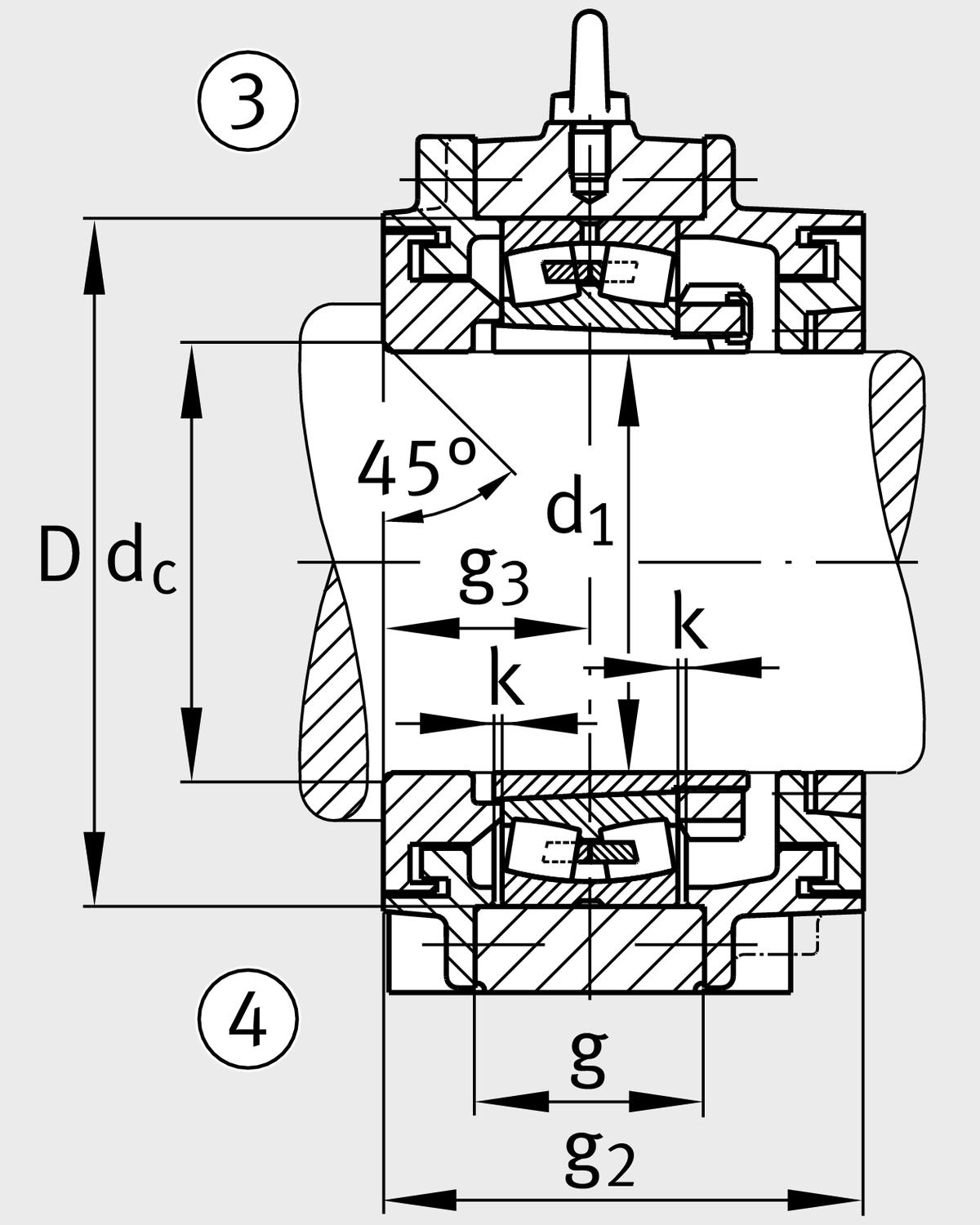

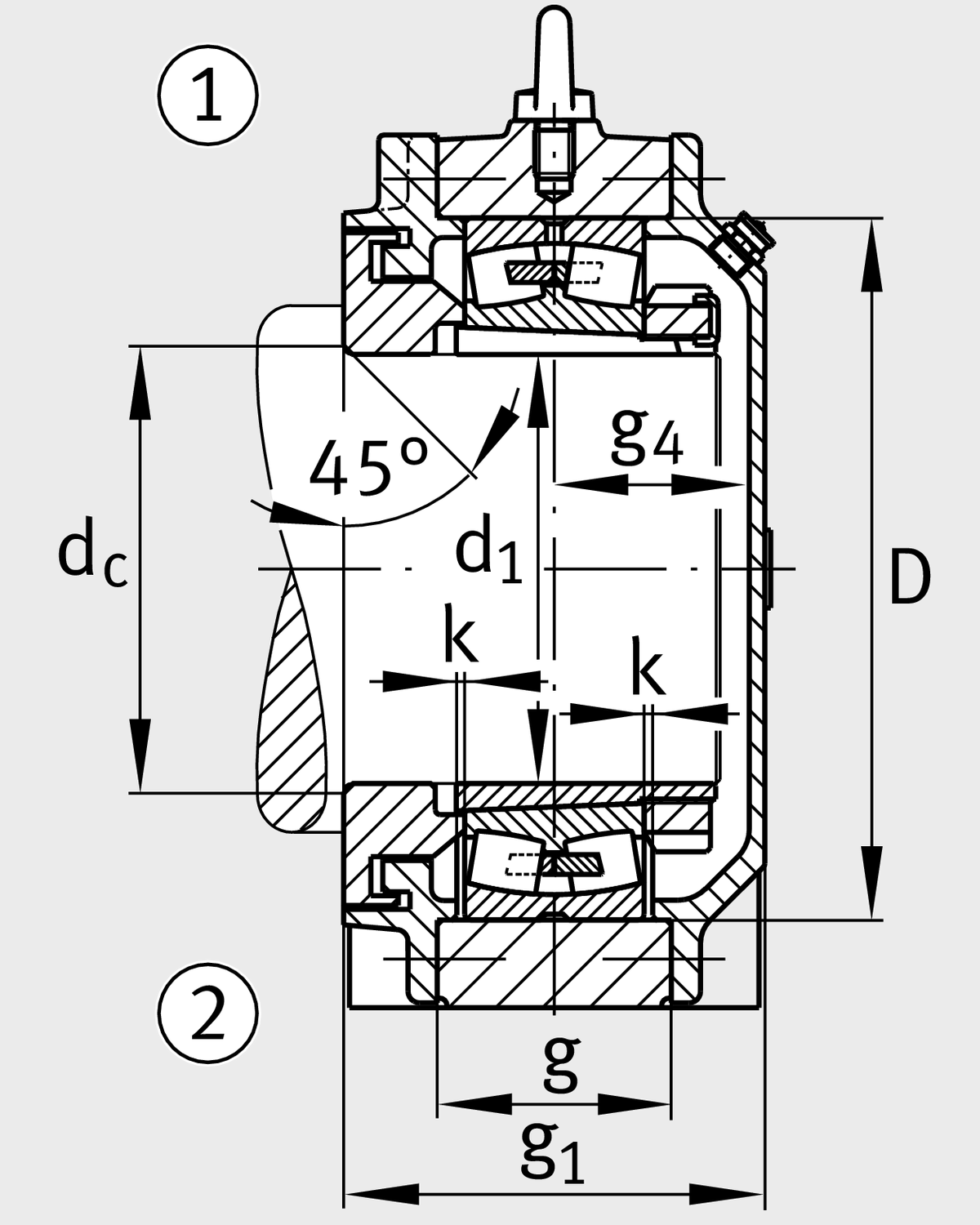

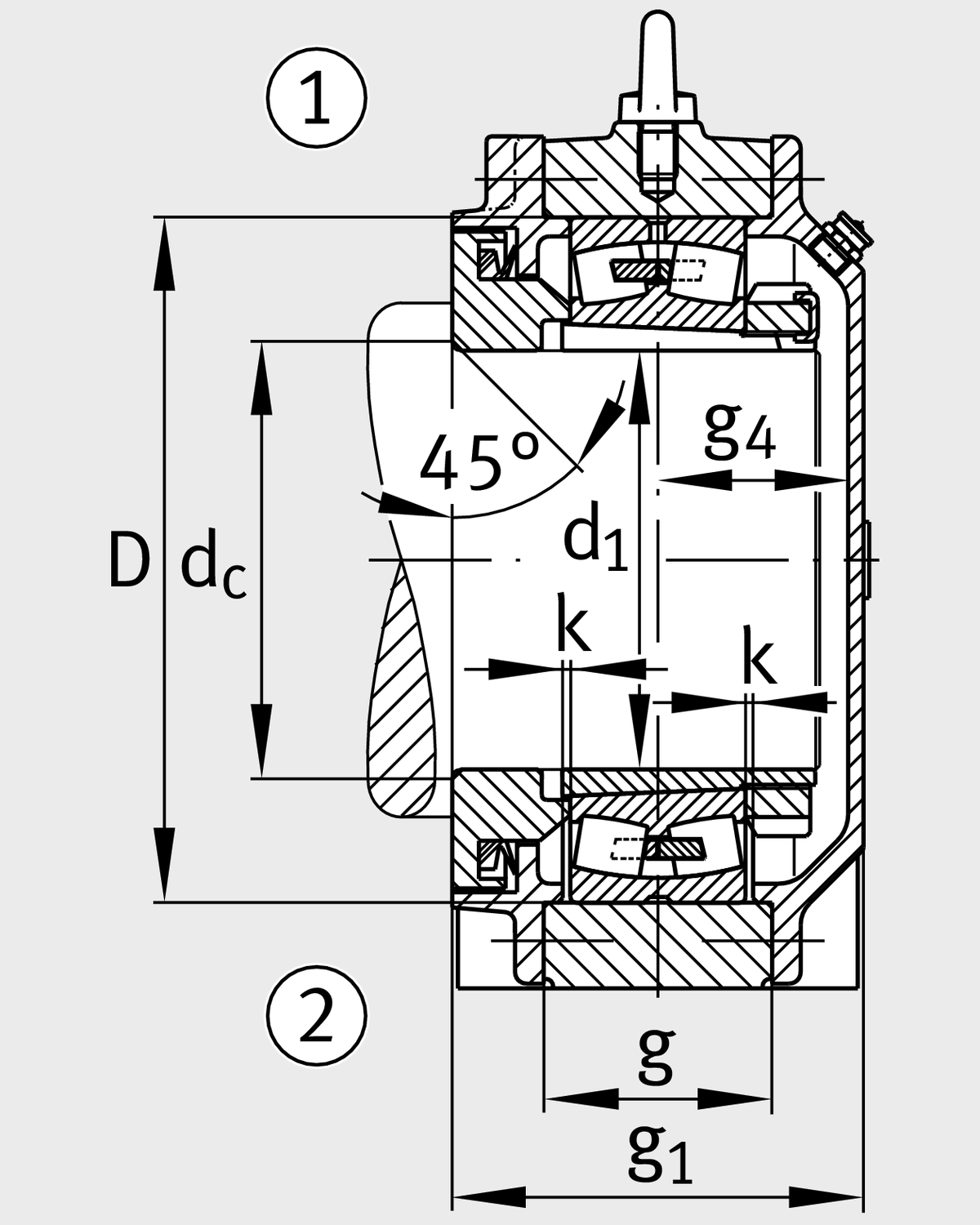

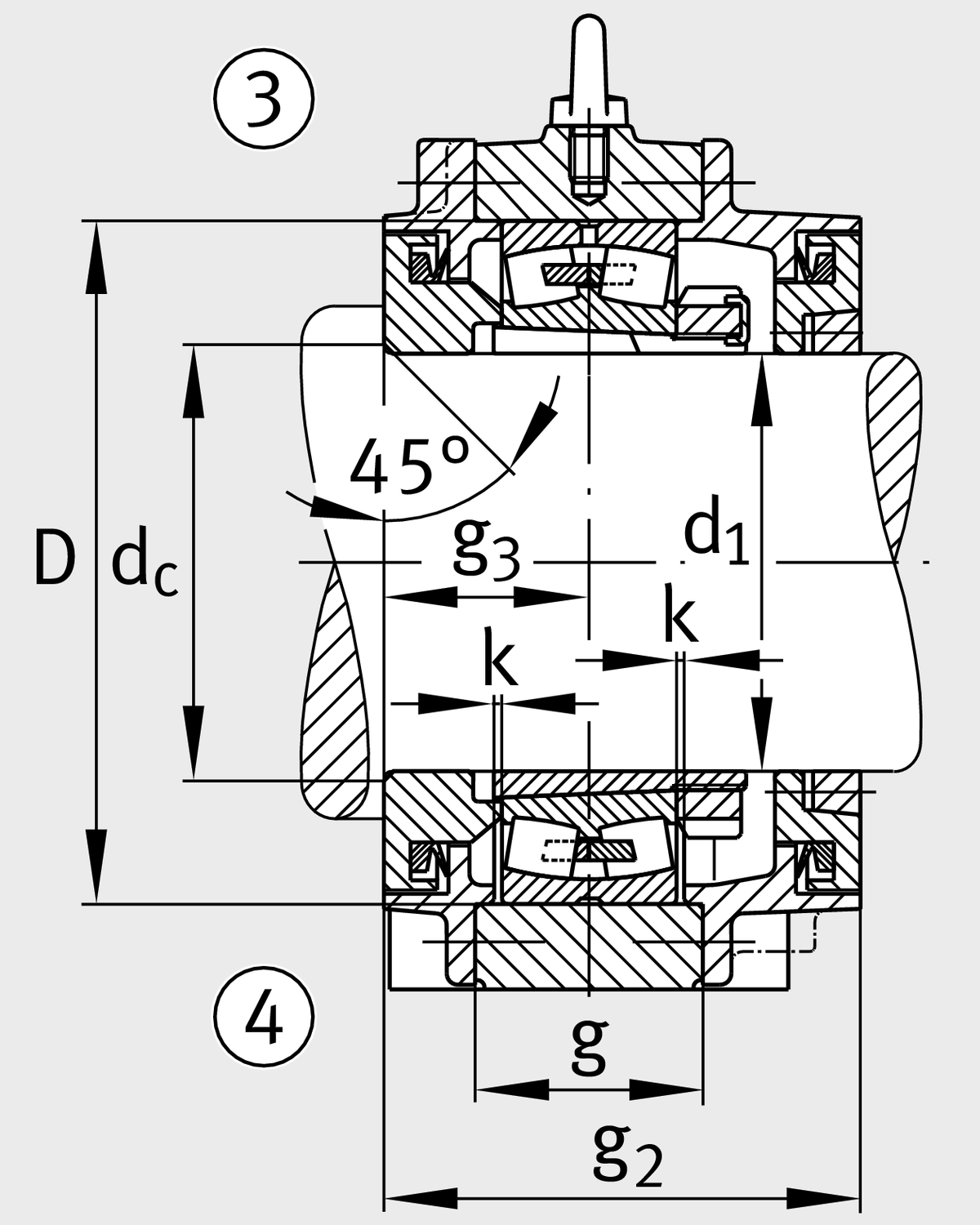

尺寸
45 ° | Champfer angle | |
| b | 340 mm | Width base |
| c | 115 mm | Height base foot |
| D | 620 mm | 外徑 |
| dc | 420 mm | Champfer diameter c |
| dz | 420 mm | Champfer diameter dz |
| g | 180 mm | Width 軸承座 body |
| g3 | 150 mm | Locking collar width g3 |
| g4 | 149 mm | Locking collar width g4 |
| h | 375 mm | Distance shaft axis |
| k | 7 mm | 軸向位移 |
| m | 940 mm | 固定內孔距離 |
| n | 210 mm | Bore distance width |
| s | M48 | Size of fixing screws |
| s2 | M20 | Thread 固定內徑 |
| s2 | 8 | 螺絲孔數 |
| t | 670 mm | Pitch circle dia fixing holes |
| u | 56 mm | Width oblong holes |
| v | 75 mm | Lenght oblong hole |
附加資訊
H3084X-HG | Adaptive Sleeve | |
23084..-K | 軸承型號 |
溫度範圍
| Tmin | -20 °C | 最低工作溫度 |
| Tmax | 100 °C | 最高操作溫度 |
