科技數據

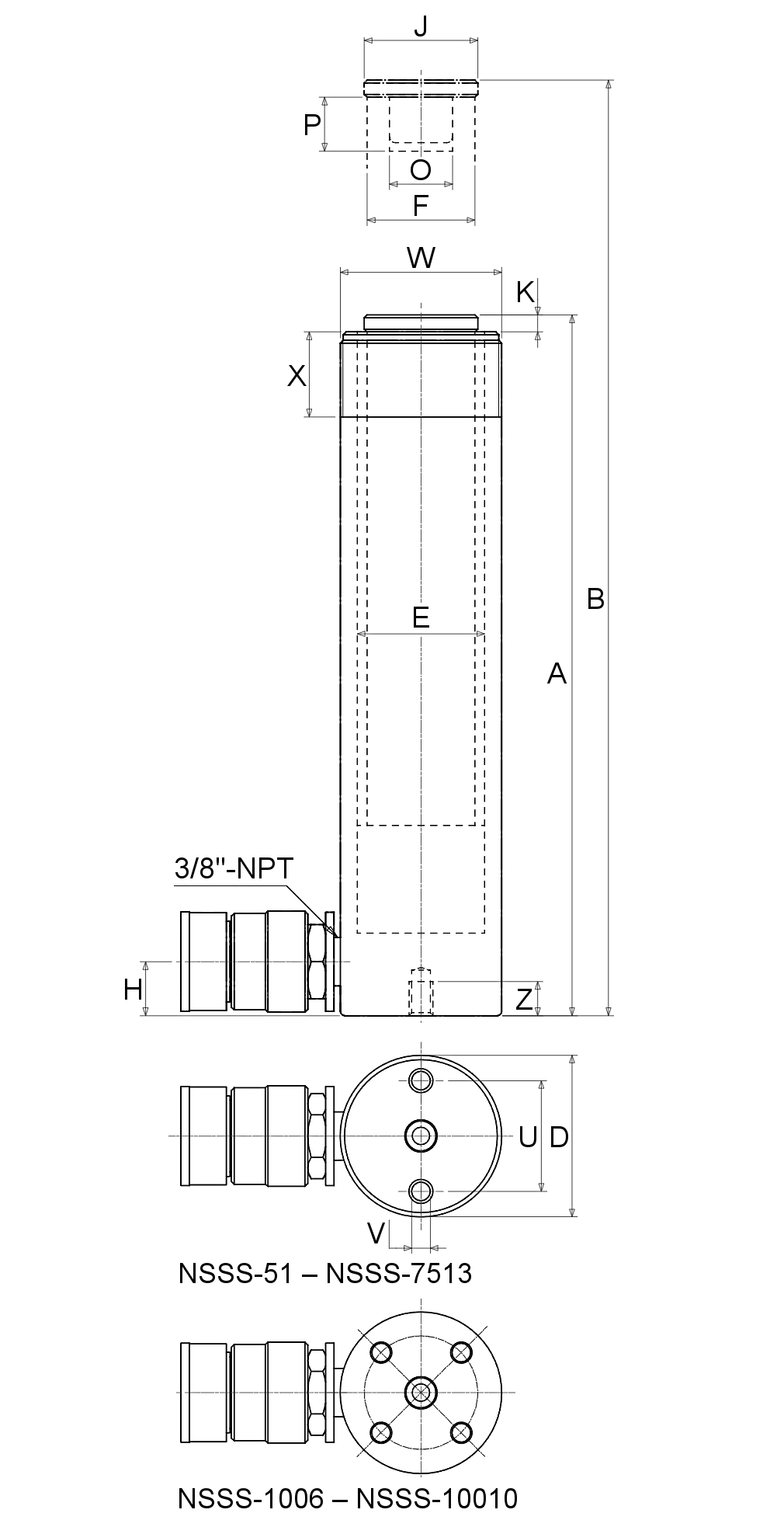

4,5 | Capacity class (tons) | |
| sp | 26 mm | Stroke |
| Fa | 44.9 kN | Advance force, max. |
| pmax | 700 bar | Operating pressure, max. |
| Voil | 17 cm³ | Oil capacity |
| A | 110 mm | Height, retracted |
| B | 136 mm | Height, extended |
| D | 38 mm | 外徑 |
| E | 28.6 mm | Cylinder 內徑 |
| F | 25.4 mm | Plunger diameter |
| H | 19 mm | Base to advance port |
| J | 25 mm | Saddle diameter |
| K | 6 mm | Saddle protrusion from plunger |
| O | 3/4"-16 UN | Plunger female thread (UN) |
| P | 14 mm | Plunger 螺紋長度 |
| U | 25 mm | Base mounting holes, bolt circle |
| V | 1/4"-20 UNC | Base mounting holes, thread (UNC) |
| Z | 14 mm | Base mounting holes, thread depth |
| W | 1½"-16 UN | Collar thread (UN) |
| X | 28 mm | Collar thread, length |
| ≈m | 1 kg | 重量 |
附加資訊
Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap | Product specifics |
您目前的產品型號
| Series | NSSS | Standard cylinder |
| Version | 5T | Capacity class 5 |
