科技數據

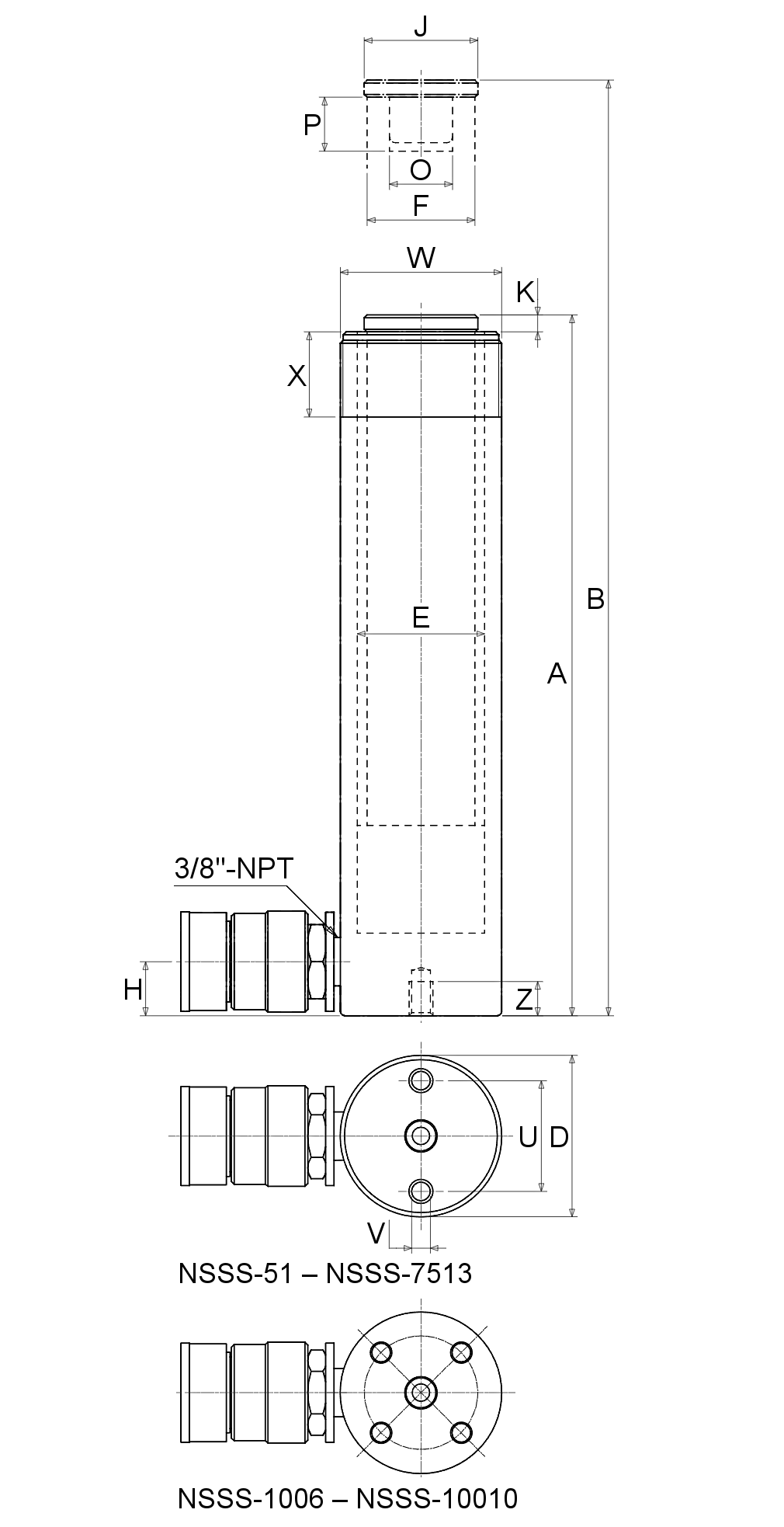

50 | Capacity class (tons) | |
| sp | 51 mm | Stroke |
| Fa | 496 kN | Advance force, max. |
| pmax | 700 bar | Operating pressure, max. |
| Voil | 361 cm³ | Oil capacity |
| A | 177 mm | Height, retracted |
| B | 228 mm | Height, extended |
| D | 127 mm | 外徑 |
| E | 95 mm | Cylinder 內徑 |
| F | 80 mm | Plunger diameter |
| H | 33 mm | Base to advance port |
| J | 70 mm | Saddle diameter |
| K | 3 mm | Saddle protrusion from plunger |
| U | 95 mm | Base mounting holes, bolt circle |
| V | 1/2"-13 UNC | Base mounting holes, thread (UNC) |
| Z | 19 mm | Base mounting holes, thread depth |
| W | 5"-12 UN | Collar thread (UN) |
| X | 55 mm | Collar thread, length |
| ≈m | 15 kg | 重量 |
附加資訊
Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap | Product specifics |
您目前的產品型號
| Series | NSSS | Standard cylinder |
| Version | 50T | Capacity class 50 |
