科技數據

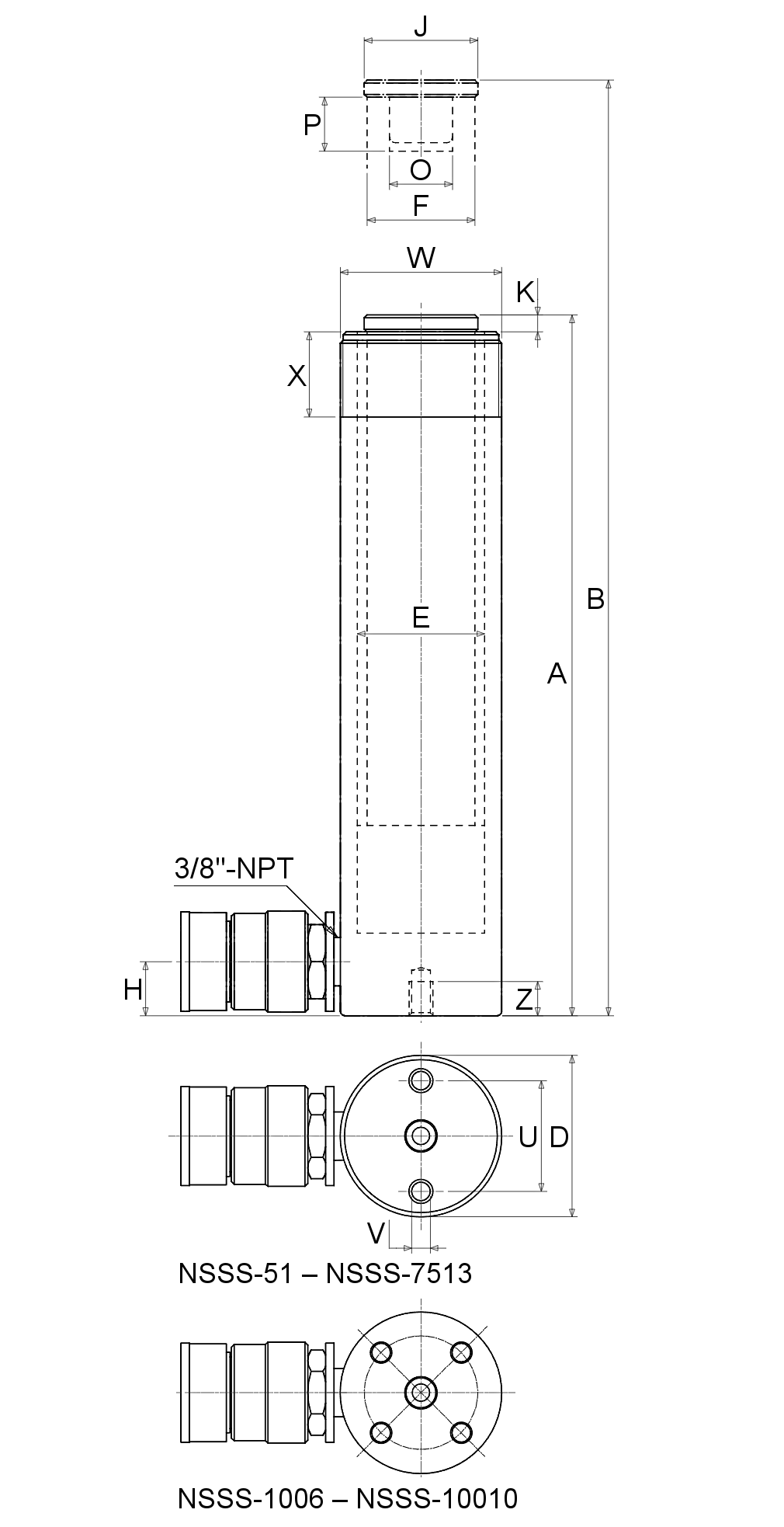

25 | Capacity class (tons) | |
| sp | 209.5 mm | Stroke |
| Fa | 269 kN | Advance force, max. |
| pmax | 700 bar | Operating pressure, max. |
| Voil | 806 cm³ | Oil capacity |
| A | 324 mm | Height, retracted |
| B | 533.5 mm | Height, extended |
| D | 88 mm | 外徑 |
| E | 70 mm | Cylinder 內徑 |
| F | 55 mm | Plunger diameter |
| H | 25 mm | Base to advance port |
| J | 50 mm | Saddle diameter |
| K | 10.5 mm | Saddle protrusion from plunger |
| O | 1½"-16 UN | Plunger female thread (UN) |
| P | 25.4 mm | Plunger 螺紋長度 |
| U | 58 mm | Base mounting holes, bolt circle |
| V | 1/2"-13 UNC | Base mounting holes, thread (UNC) |
| Z | 19 mm | Base mounting holes, thread depth |
| W | 3 5/16"-12 UN | Collar thread (UN) |
| X | 50 mm | Collar thread, length |
| ≈m | 12.2 kg | 重量 |
附加資訊
Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap | Product specifics |
您目前的產品型號
| Series | NSSS | Standard cylinder |
| Version | 25T | Capacity class 25 |
