科技數據

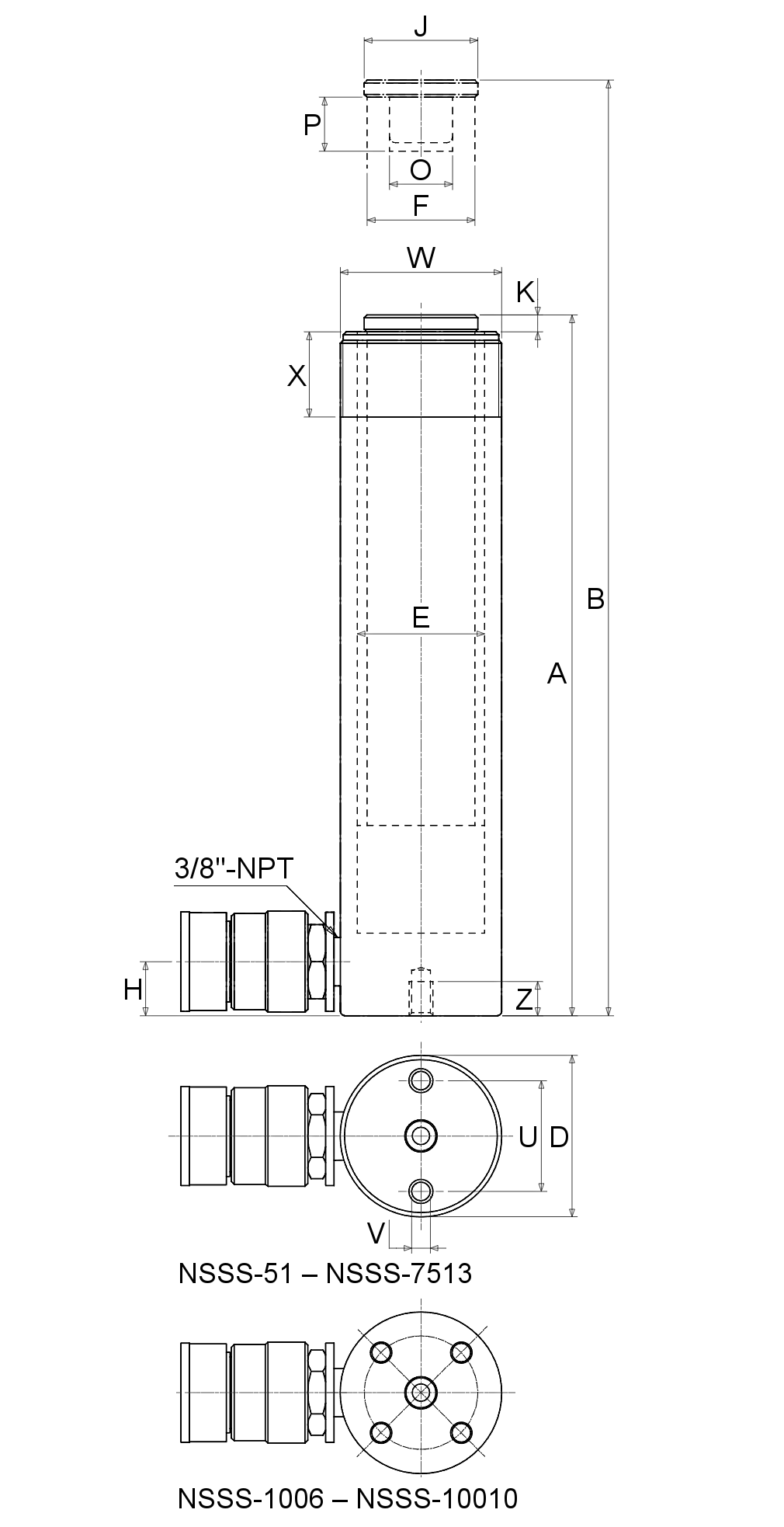

15 | Capacity class (tons) | |
| sp | 26.5 mm | Stroke |
| Fa | 166 kN | Advance force, max. |
| pmax | 700 bar | Operating pressure, max. |
| Voil | 63 cm³ | Oil capacity |
| A | 124 mm | Height, retracted |
| B | 150.5 mm | Height, extended |
| D | 73 mm | 外徑 |
| E | 55 mm | Cylinder 內徑 |
| F | 40 mm | Plunger diameter |
| H | 19 mm | Base to advance port |
| J | 38 mm | Saddle diameter |
| K | 9.6 mm | Saddle protrusion from plunger |
| O | 1"-8 UN | Plunger female thread (UN) |
| P | 25.4 mm | Plunger 螺紋長度 |
| U | 47.7 mm | Base mounting holes, bolt circle |
| V | 3/8"-16 UNC | Base mounting holes, thread (UNC) |
| Z | 13 mm | Base mounting holes, thread depth |
| W | 2¾"-16 UN | Collar thread (UN) |
| X | 30 mm | Collar thread, length |
| ≈m | 3.3 kg | 重量 |
附加資訊
Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap | Product specifics |
您目前的產品型號
| Series | NSSS | Standard cylinder |
| Version | 15T | Capacity class 15 |
