科技數據

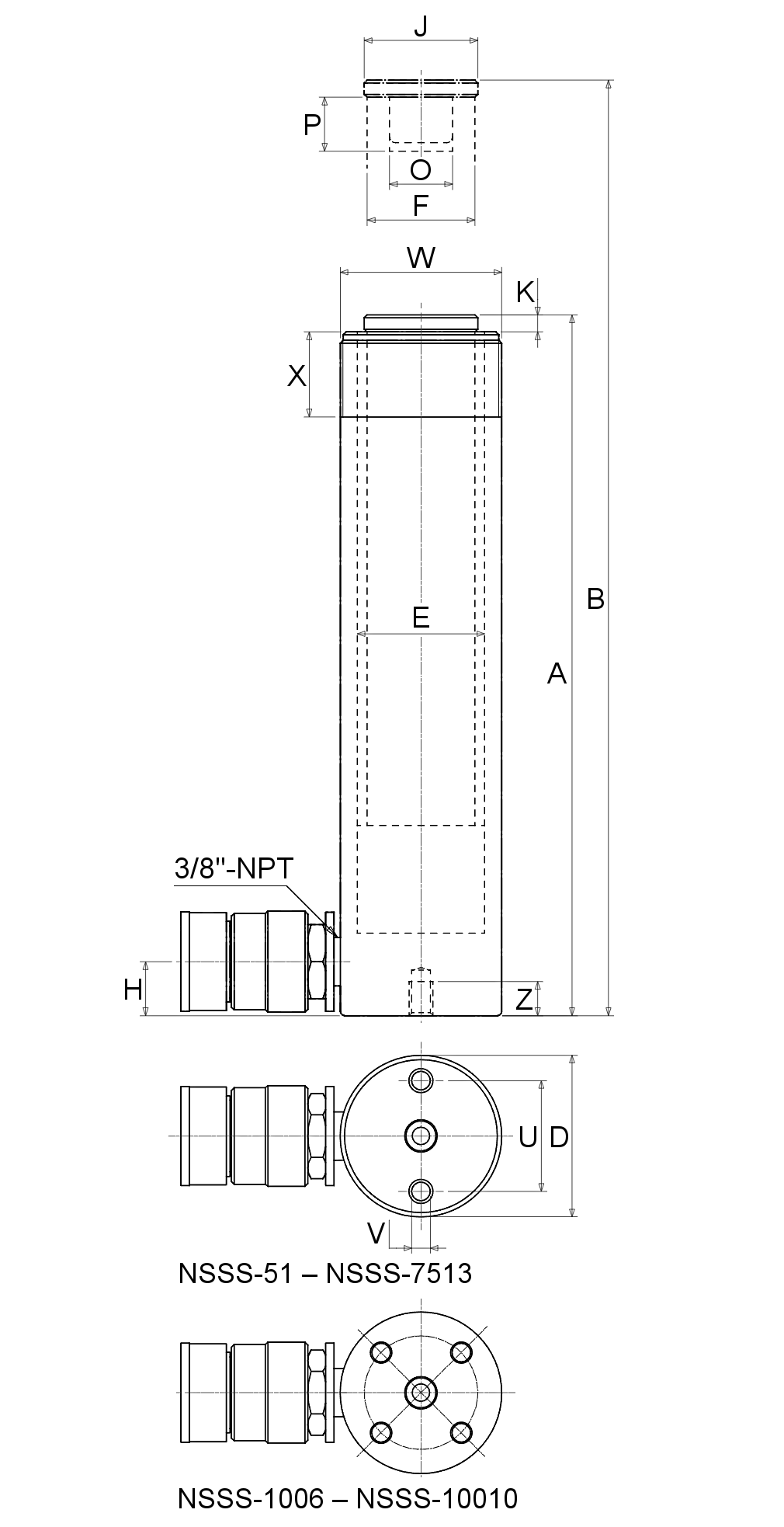

10 | Capacity class (tons) | |
| sp | 255.5 mm | Stroke |
| Fa | 111 kN | Advance force, max. |
| pmax | 700 bar | Operating pressure, max. |
| Voil | 406 cm³ | Oil capacity |
| A | 350 mm | Height, retracted |
| B | 605.5 mm | Height, extended |
| D | 57 mm | 外徑 |
| E | 45 mm | Cylinder 內徑 |
| F | 38 mm | Plunger diameter |
| H | 19 mm | Base to advance port |
| J | 40 mm | Saddle diameter |
| K | 6 mm | Saddle protrusion from plunger |
| O | 1"-8 UN | Plunger female thread (UN) |
| P | 19 mm | Plunger 螺紋長度 |
| U | 39 mm | Base mounting holes, bolt circle |
| V | 5/16"-18 UNC | Base mounting holes, thread (UNC) |
| Z | 13 mm | Base mounting holes, thread depth |
| W | 2¼"-14 UN | Collar thread (UN) |
| X | 30 mm | Collar thread, length |
| ≈m | 6.4 kg | 重量 |
附加資訊
Hard chrome plated and hardened piston, Rolled inside of cylinder, Sandblasted outside with black nitride coating, Coupling with dust cap | Product specifics |
您目前的產品型號
| Series | NSSS | Standard cylinder |
| Version | 10T | Capacity class 10 |
