MHI460-0-1-1-1-1760-01,0M-1-1-A
angle measuring system MHI460-0-1-1-1-1760-01,0M-1-1-A
加入詢價
Digital Output
SIN COS 1Vpp + reference signal
Electronic interface
≈m
250 g
重量

主要尺寸與性能資料

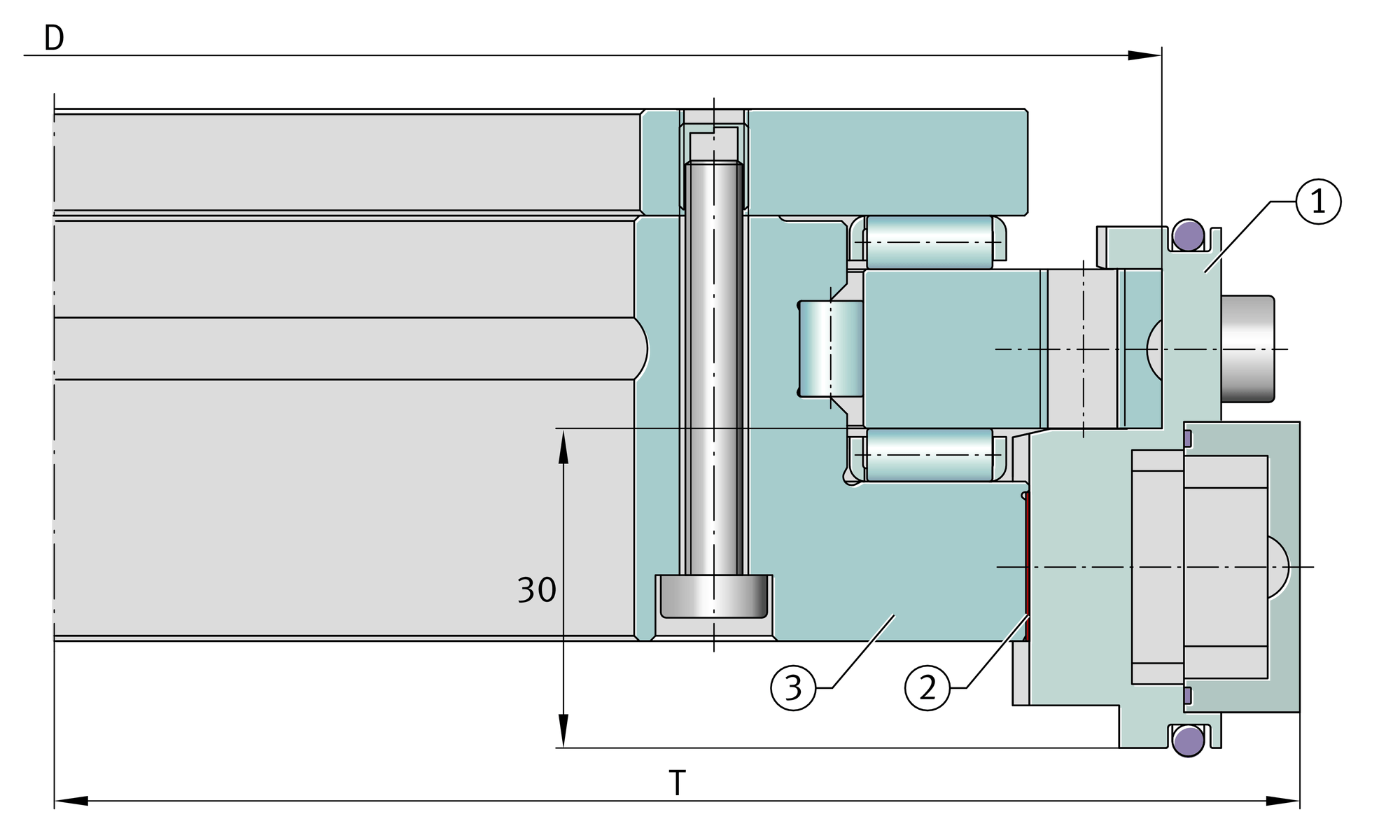

D
600 mm
Diameter bearing outer ring

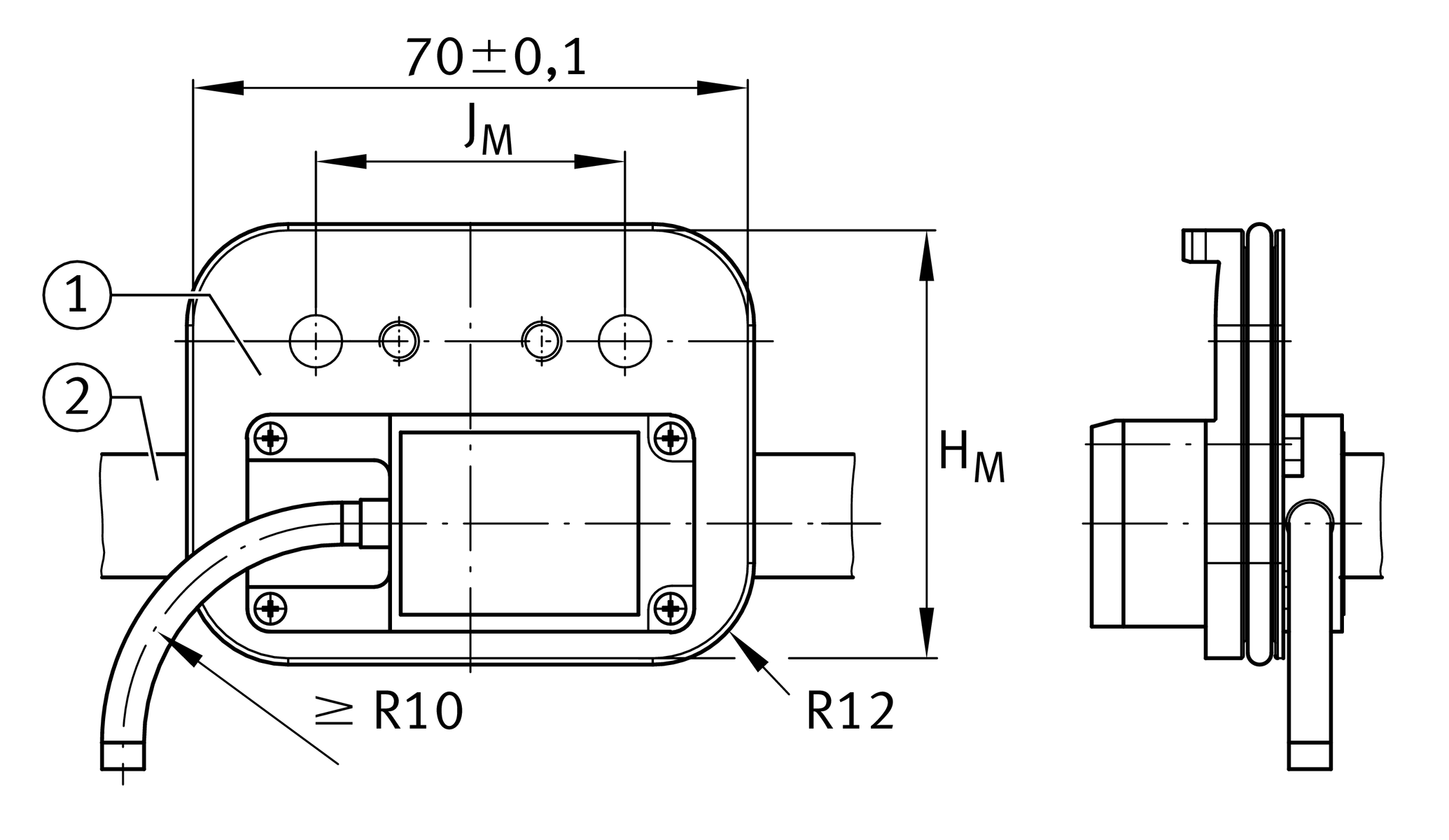

HM
56 mm
高度

安裝尺寸
JM
39 mm
Bore distance
T
313.2 mm
Distance bearing center measuring head

附加資訊
2x ISO4762-M6x20-8.8
Cap Head Screws Sensor
5 Nm
Tightening torque
0.5 Nm
Tightening torque 公差上限
-0.5 Nm
Tightening torque 較低的公差

Cable
M23x1
Thread plug connector
12
Pins plug connector

您目前的產品型號
Cable length1 m
