MHI200-2-1-1-1-0860-01,0M-1-1-A
angle measuring system MHI200-2-1-1-1-0860-01,0M-1-1-A
加入詢價
Digital Output
SIN COS 1Vpp + reference signal
Electronic interface
≈m
200 g
重量

主要尺寸與性能資料

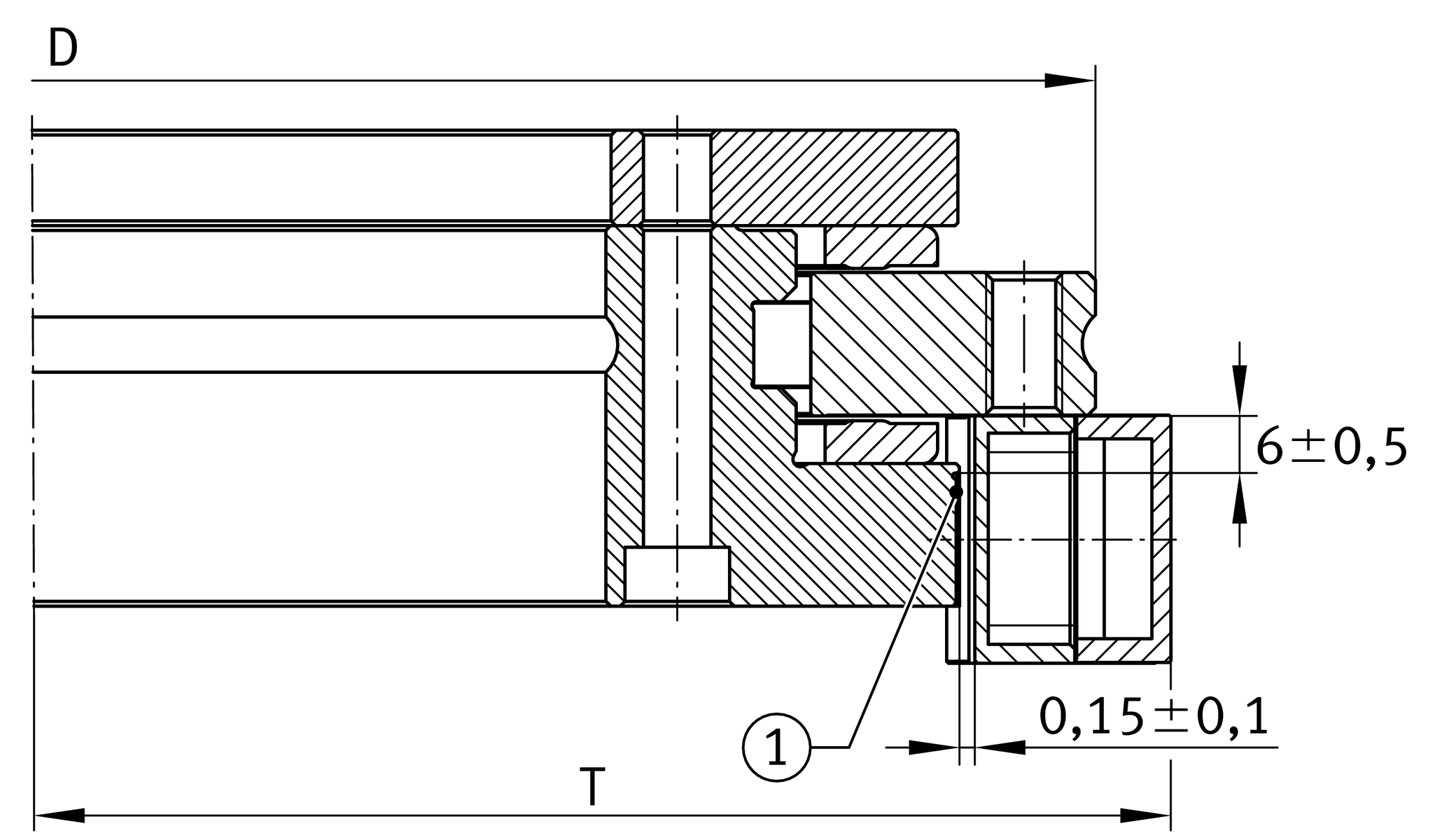

D
300 mm
Diameter bearing outer ring
HM
25 mm
高度

安裝尺寸

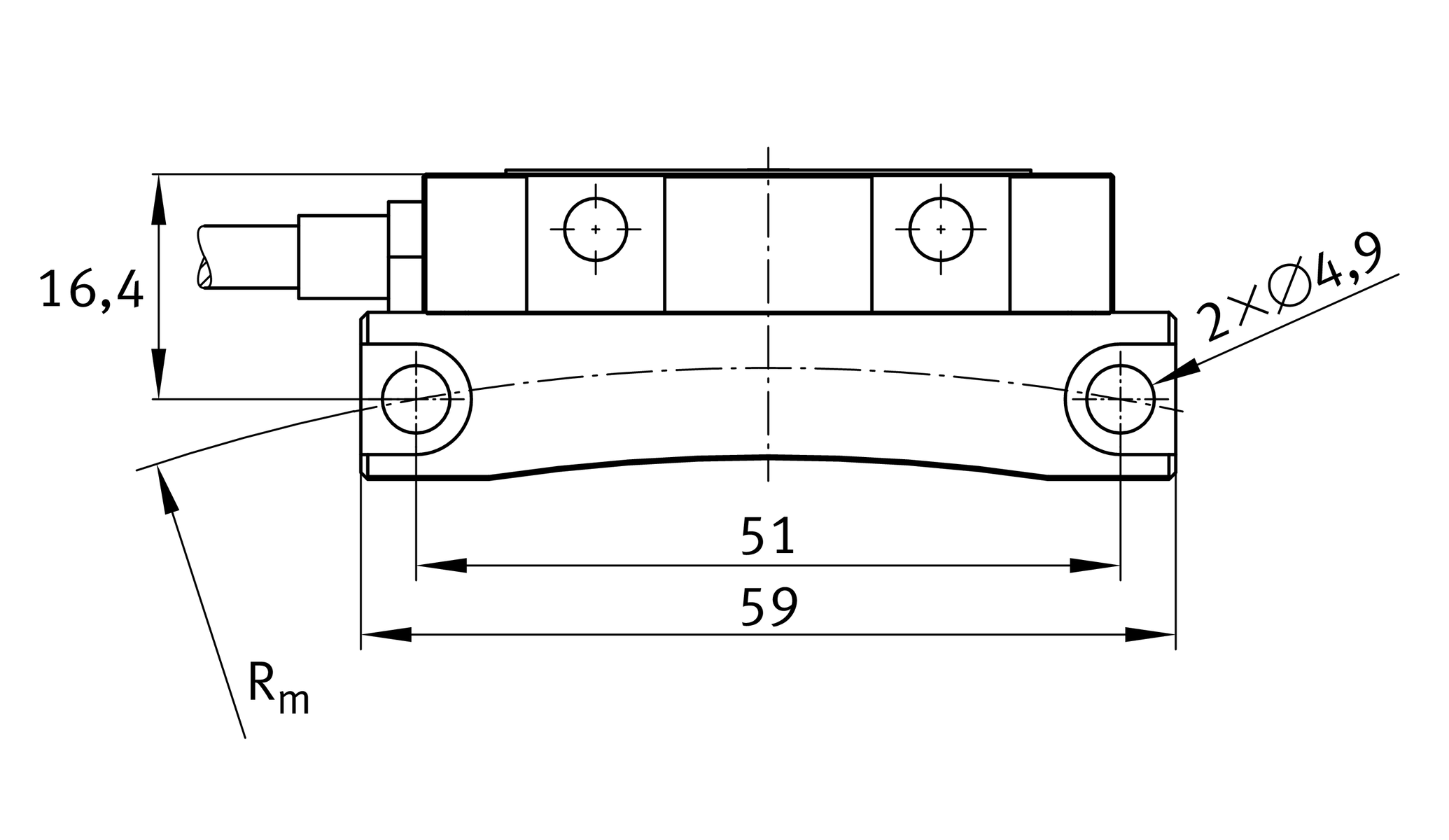

JM
51 mm
Bore distance
Rm
143.9 mm
Pitch circle radius bores
T
156.5 mm
Distance bearing center measuring head

附加資訊
2x ISO4762-M4x35-8.8
Cap Head Screws Sensor
2 Nm
Tightening torque
0.2 Nm
Tightening torque 公差上限
-0.2 Nm
Tightening torque 較低的公差

Cable
M23x1
Thread plug connector
12
Pins plug connector

您目前的產品型號
Cable length1 m
