Digital Output
SIN COS 1Vpp + reference signal | Electronic interface | |
| ≈m | 250 g | 重量 |
Power Supply
5 Vdc | Supply voltage | |
200 mA | Current consumption |

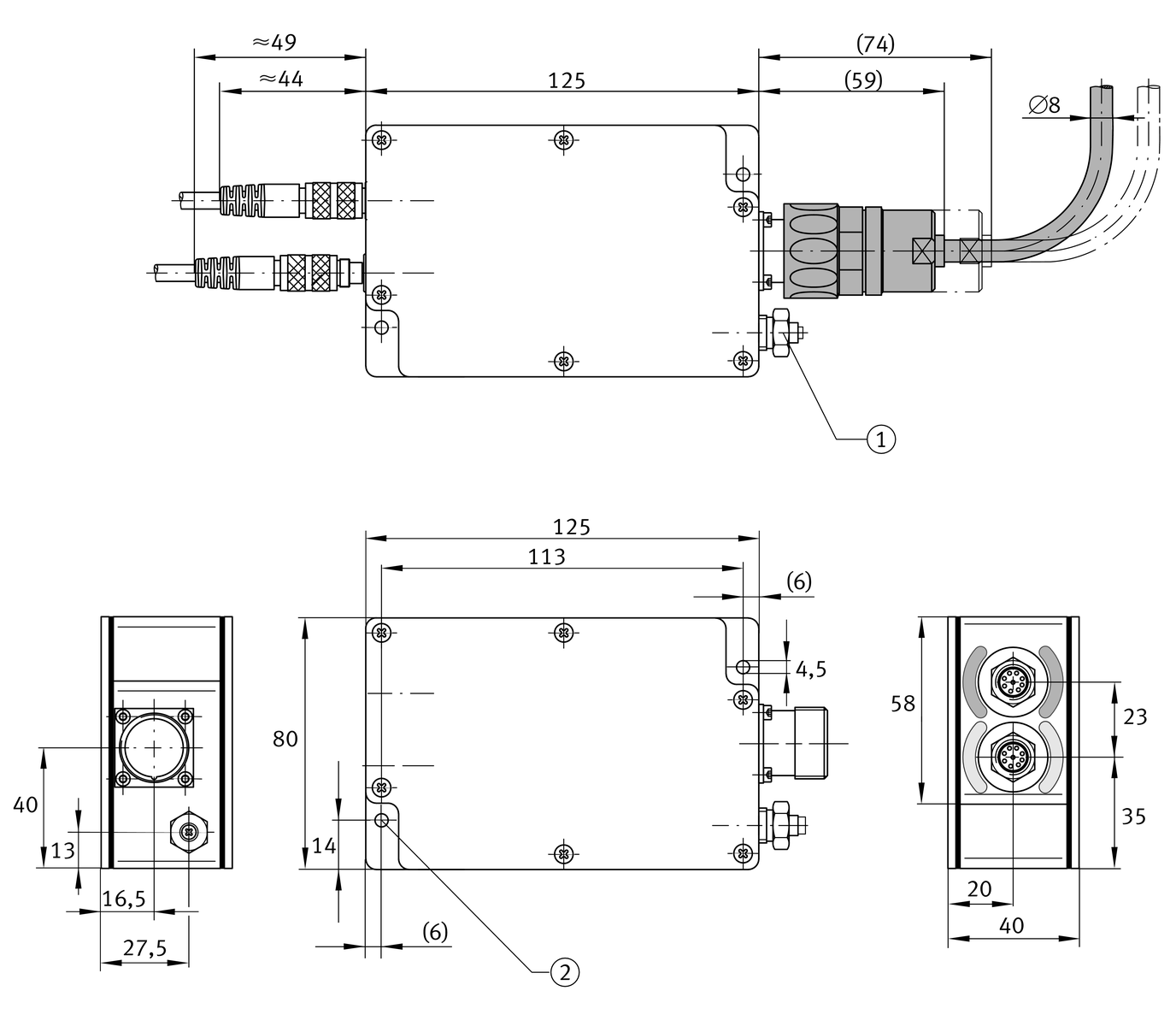

Main dimensions
125 mm | Length MEKOBOX (excluding plugs) | |
80 mm | Width MEKOBOX | |
40 mm | Height MEKOBOX | |
236 mm | Length MEKOBOX (total) |
溫度範圍
IP65 | Ingress protection | |
70 °C | 最高操作溫度 | |
0 °C | 最低工作溫度 |
附加資訊
ISO4762 M4X10-8.8 | Cap head screws MEKOBOX |
Cable
M23x1 | Thread plug connector | |
12 | Number pins plug connector |
