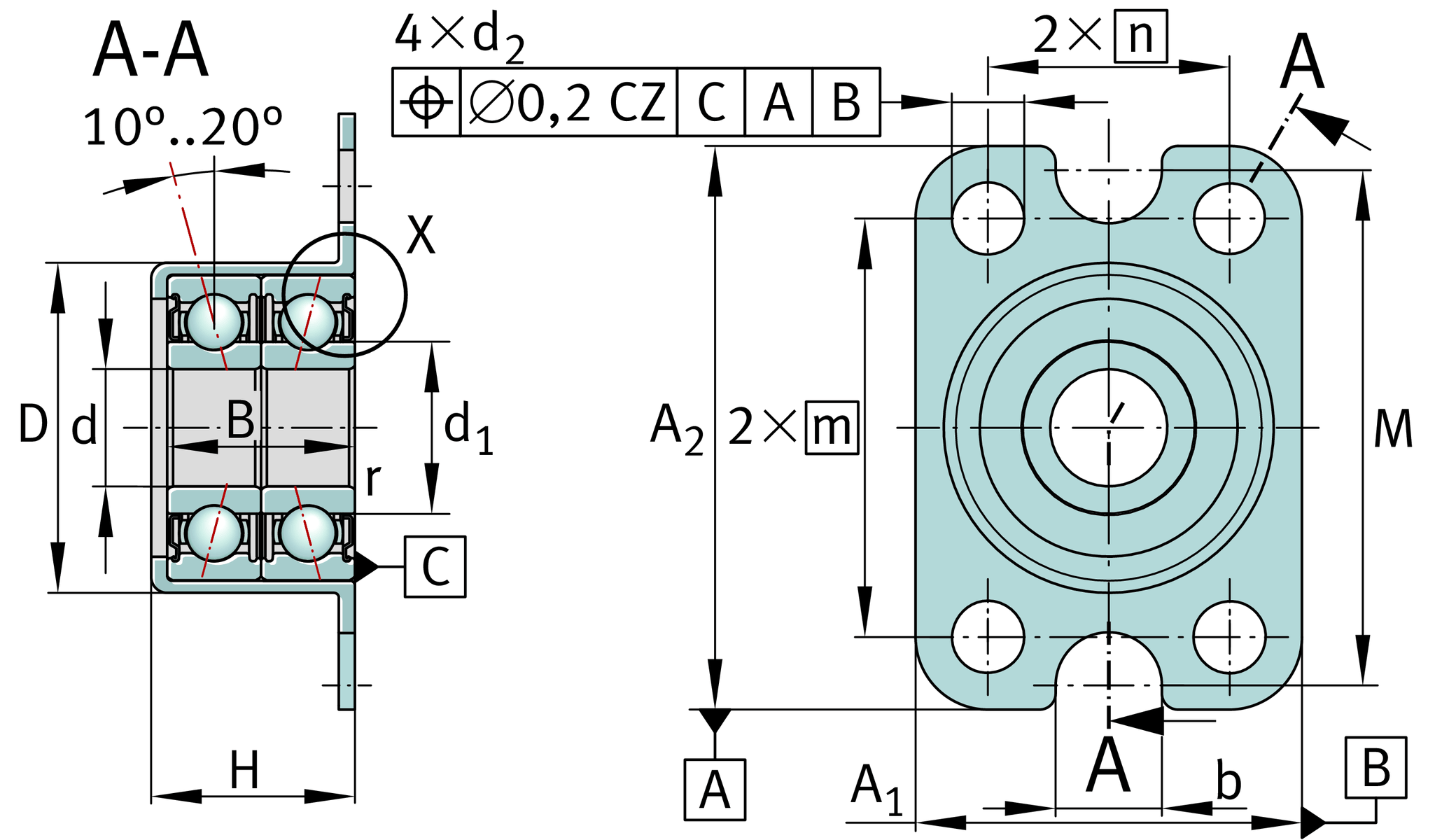

主要尺寸與性能資料
| d | 8 mm | 內徑 |
0 mm | 內徑公差上限 | |
-0.008 mm | 內徑公差下限 | |
| D | 23.9 mm | 外徑 bearing pot |
0.03 mm | 外徑 bearing pot 公差上限 | |
-0.01 mm | 外徑 bearing pot 較低的公差 | |
| B | 14 mm | 內圈寬度 |
0.25 mm | Inner ring 寬度上限公差 | |
-0.25 mm | Inner ring 寬度下限公差 | |
| Cr | 5,000 N | 基本額定動載荷，徑向 |
| C0r | 2,700 N | 基本額定靜態負荷，徑向 |
| Ca | 2,060 N | 基本額定動載荷，軸向 |
| C0a | 1,850 N | 基本額定靜態載荷，軸向 |
| Cur | 142 N | 疲勞負載極限，徑向 |
| MRL | 0.08 Nm | Bearing friction torque |
| ≈m | 35.698 g | 重量 |

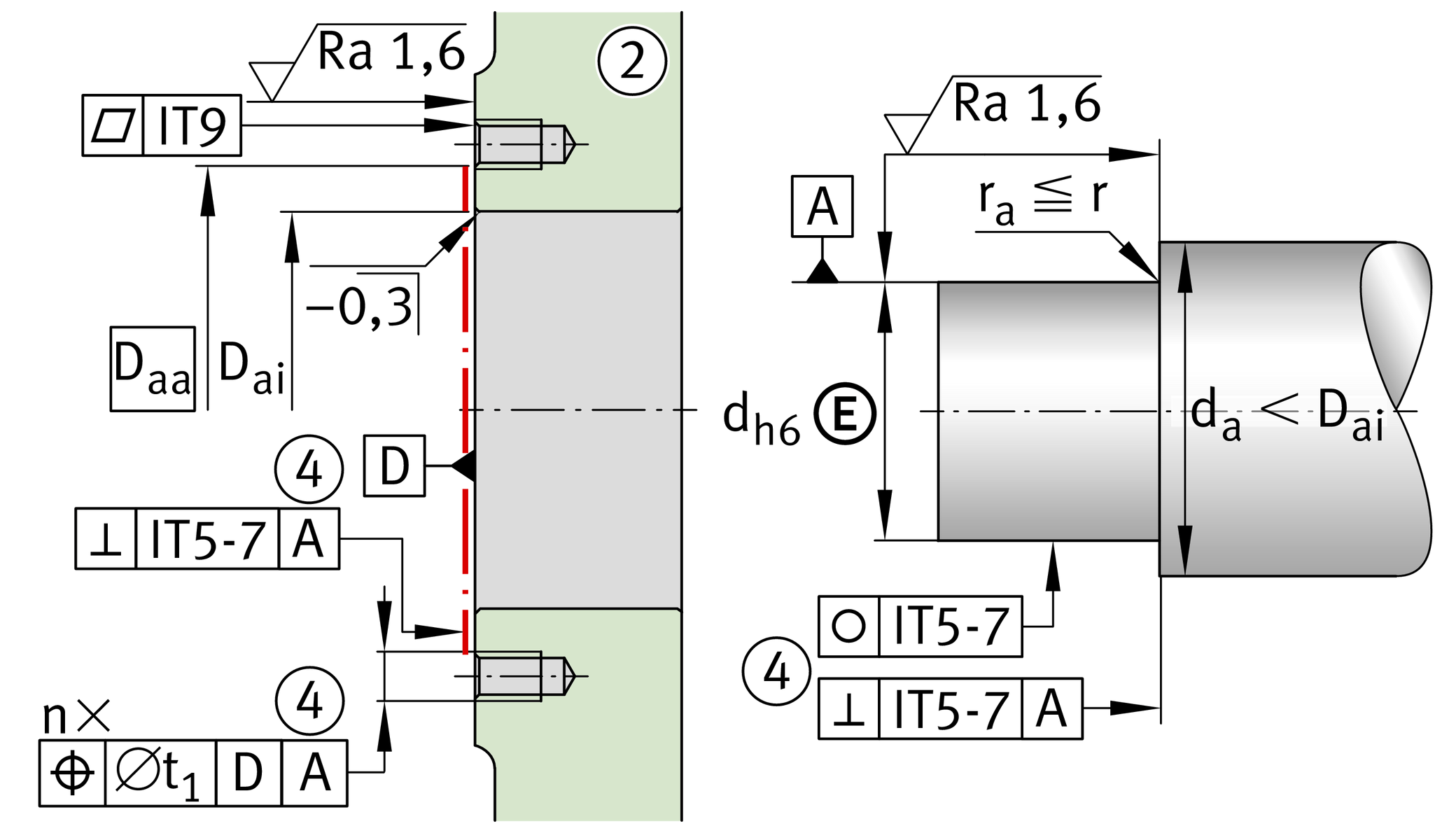

安裝尺寸
| da | 10.4 mm | 直徑軸肩 |

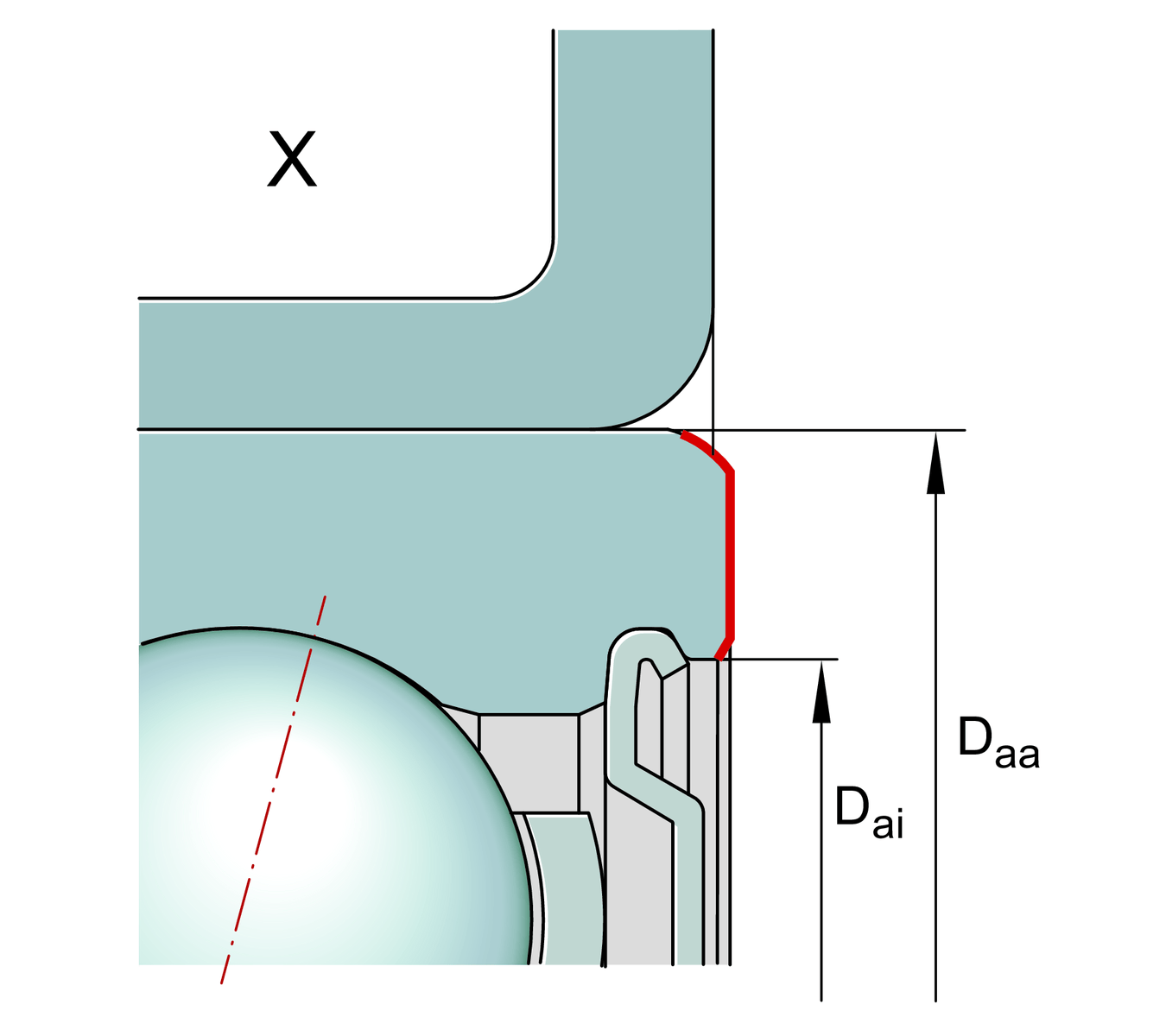

| Dai | 18 mm | Support diameter outer ring inside |
| Daa min | 22 mm | Minimum support diameter outer ring outside |
M4 | Screw size | |
| n | 4 | Number of screws |
M6 | Screw size b | |
| n | 2 | Number of screws b |
| t1 | 0.2 mm | Position bore in the 軸承座 |
尺寸
| d1 | 11 mm | 內圈擋邊直徑 |
| rmin | 0.3 mm | 最小倒角尺寸 |
| d2 | 4.5 mm | Fixing boring diameter |
| A1 | 28 mm | 法蘭寬度 |
| A2 | 35 mm | Height flange |
| b | 6.6 mm | Wide fixing groove |
| m | 26 mm | Bore distance height |
| n | 20 mm | Bore distance width |
| M | 35 mm | Distance fixing groove |
| H | 15.5 mm | 外殼高度 |
0 mm | 外殼高度 公差上限 | |
-0.5 mm | 外殼高度 較低的公差 |
附加資訊
| caL | 16 N/µm | 軸向剛性 |
| Mm | 0.0028 kg*cm2 | 質量慣性矩 |
7 µm | 軸向跳動 | |
ZM08 | Locknut 1 | |
| MA | 4 Nm | 擰緊扭力螺母 |
您目前的產品型號
| Sealing | 2Z | Minimal gap seals on both sides |
