科技數據
| U | 230 V | Voltage |
AC power | Current type | |
| I | 12 A | Amperage |
| f | 50 – 60 Hz | Power frequency |
| Fc max | 980 kN | Max. contact force cylinder |
| sc max | 255 mm | Max. working stroke cylinder |
| pmax | 700 bar | Max. operating pressure |
384 – 731 | Working height range [bottom – center axis cylinder] (mm) | |
1299 x 627 x 909 | Dimensions [LxWxH] (mm) | |
| ≈m | 400 kg | 重量 |
Functions
electrically driven hydraulic unit for function main cylinder and height adjustment, remote control | Functional principle | |
hydraulically by means of aggregate | Height adjustment | |
4 swivel castors with brake function | Castors |
附加資訊
Product is manufactured to order. Request with specification of the application case to customer service. | 可用性 | |

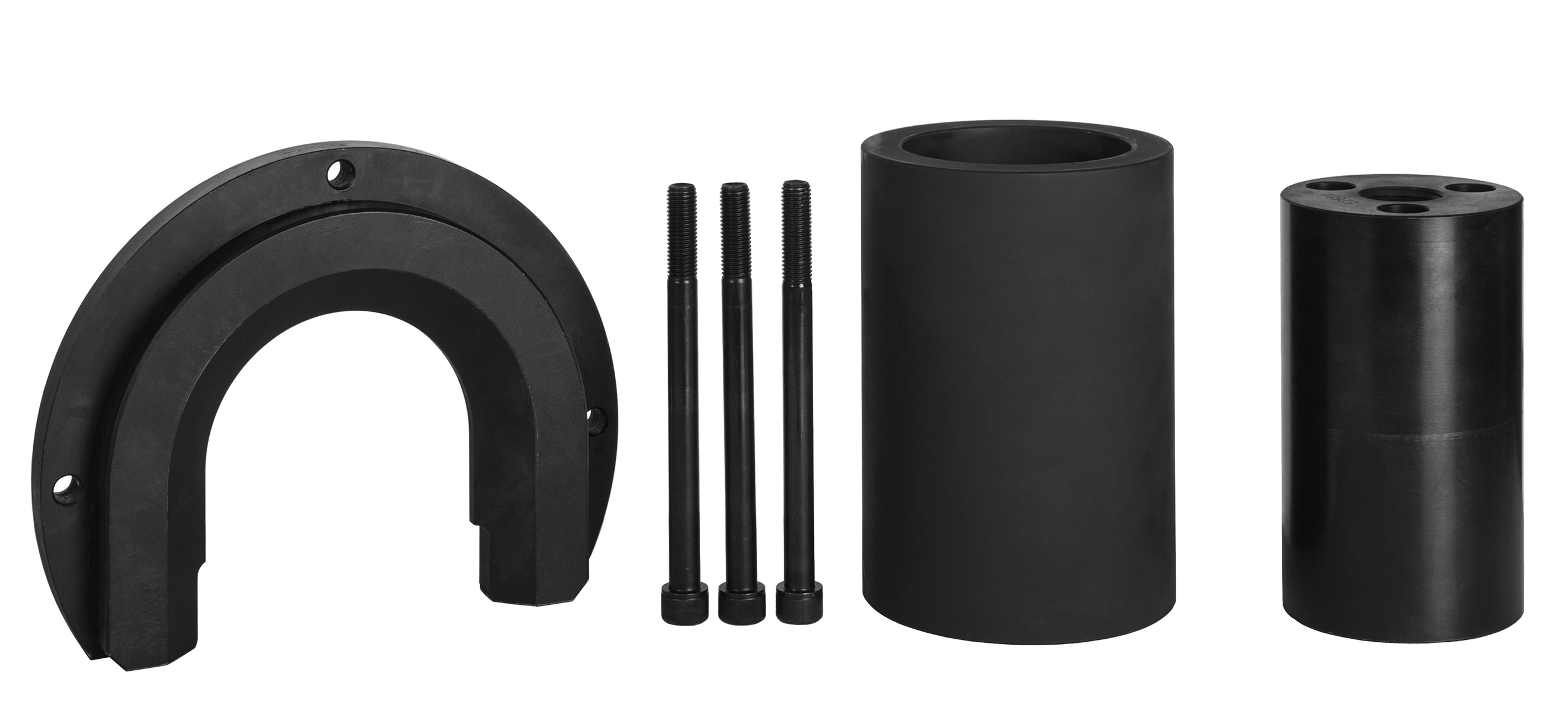

only in conjunction with bearing/application-specific tool set (not included in delivery, separate on request) | 可用性 |
您目前的產品型號
| Series | BPP/BPPS | BEARING PULLER/PUSHER |
