RWU35-F
Recirculating roller bearing carriage RWU35-F
加入詢價

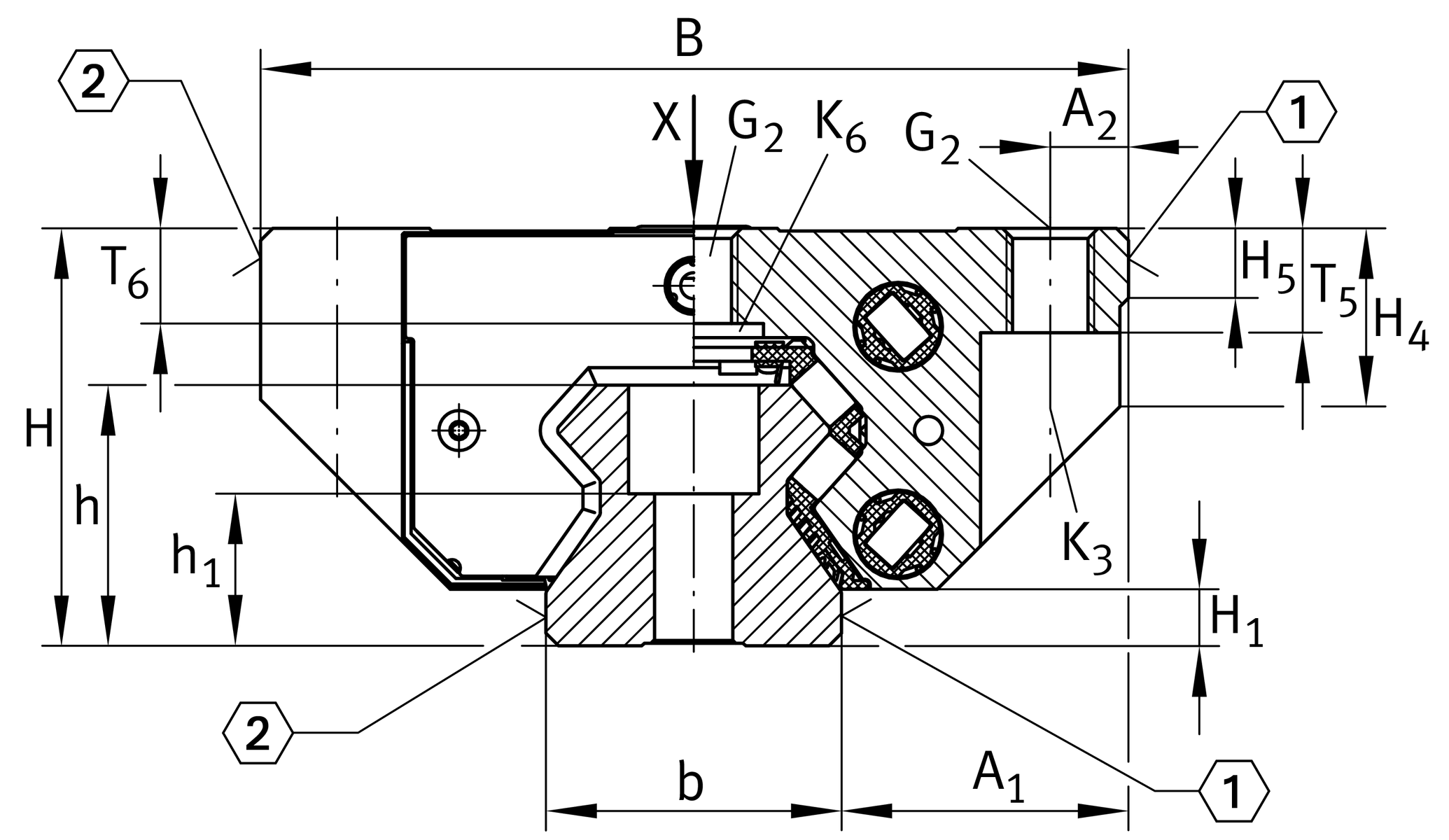

主要尺寸與性能資料
H
48 mm
height system
B
100 mm
width carriage
L
122.9 mm
overall length carriage 1
C
59,000 N
dynamic load rating 2
C0
140,000 N
dynamic load rating 2
M0x
1,200 Nm
static moment rating about X axis
M0y
2,150 Nm
static moment rating about Y axis
M0Z
1,950 Nm
static moment rating about Z axis
≈m
1.75 kg
重量

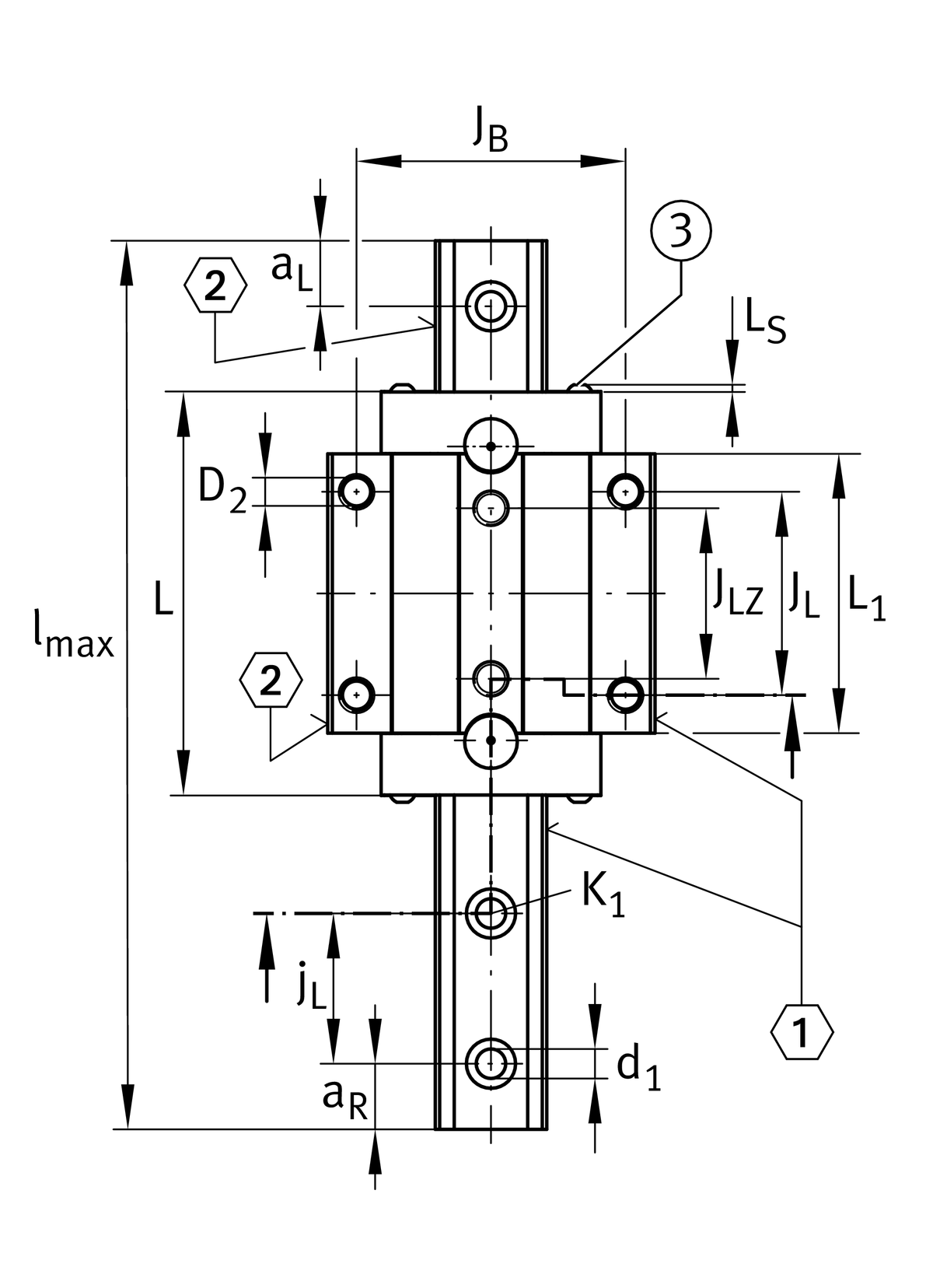

安裝尺寸
A1
33 mm
JB
82 mm
b
34 mm
width rail
A2
9 mm
L1
85.2 mm
LS
2.2 mm
JL
62 mm
JLZ
52 mm
H1
6.5 mm
H4
20.5 mm
H5
8 mm
T5
12 mm
T6
10.9 mm
G2
M10
fixing screws below (DIN ISO 4762-12.9)
G2 MA
41 Nm
maximum tightening torque 3
K3
M8
fixing screws below (DIN ISO 4762-12.9)
K3 MA
41 Nm
maximum tightening torque 3
K6
M8
fixing screws below (DIN 7984-8.8)
K6 MA
24 Nm
maximum tightening torque 3
D2
8.6 mm
內徑

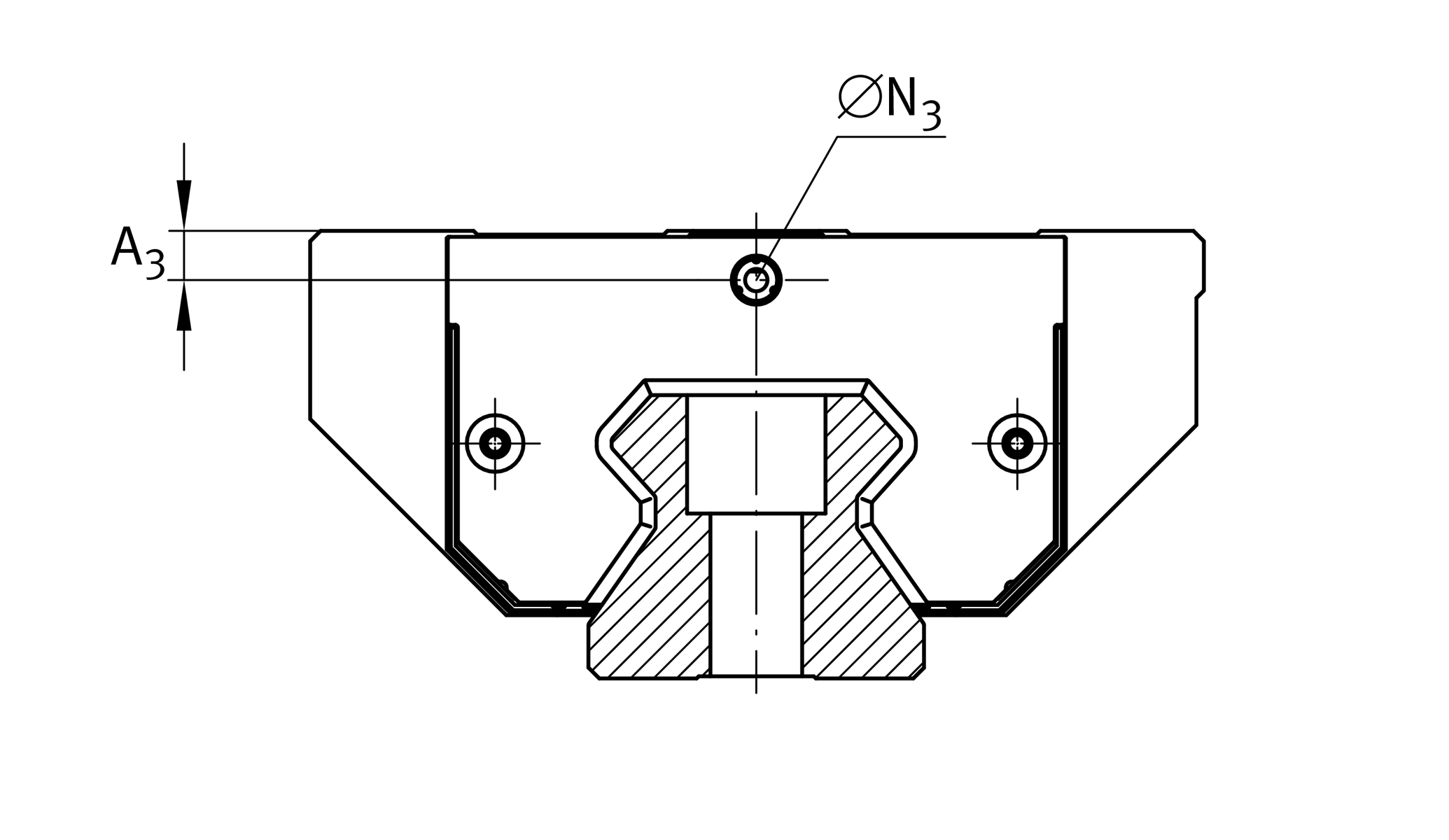

A3
6.6 mm
position lubrication connector
N3
M6
lubrication connector
t N3
6 mm
maximum permissible screw depth for lubrication connectors

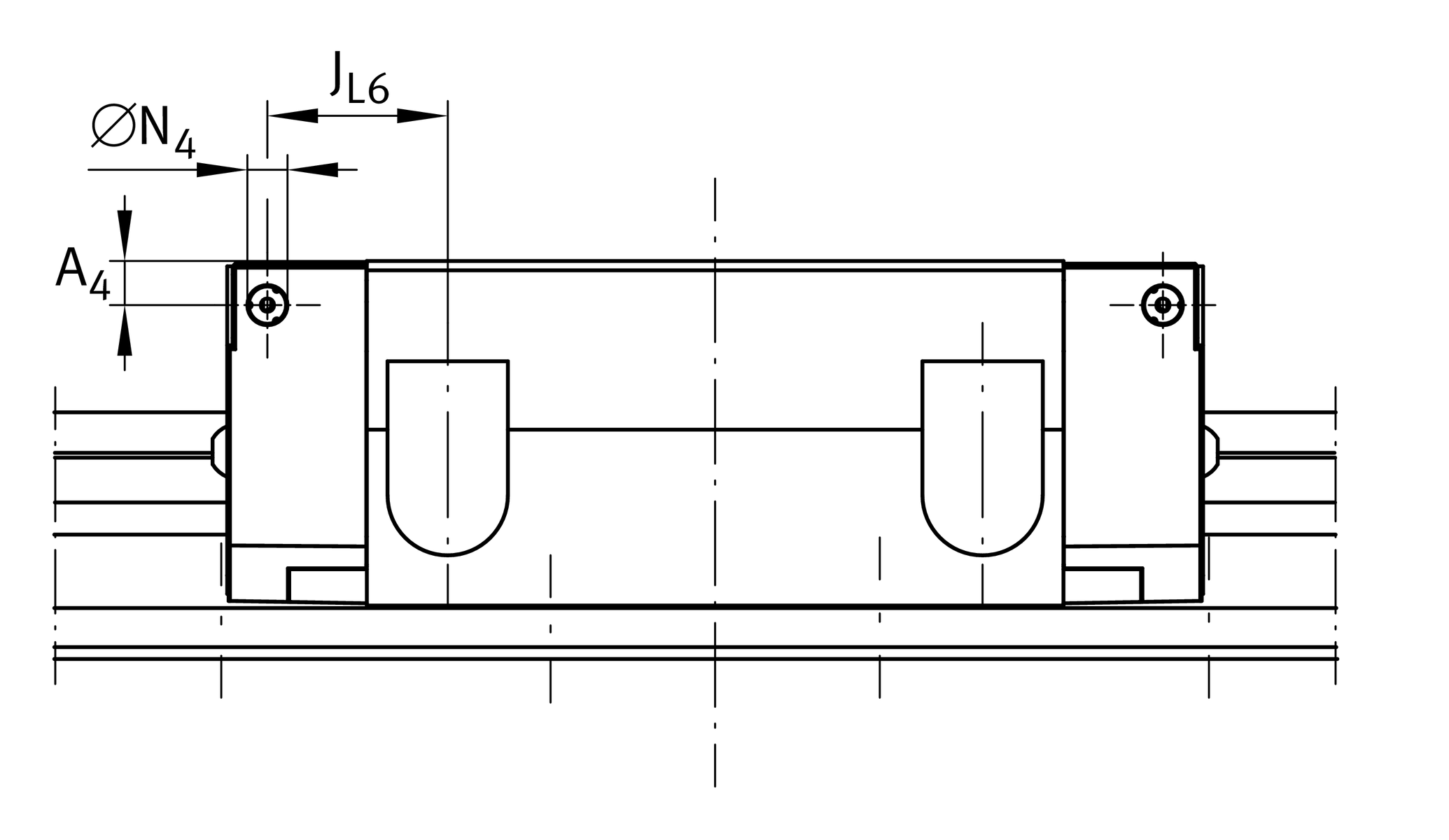

A4
5.6 mm
position lubrication connector
N4
6 mm
lubrication connector
t N4
6 mm
maximum permissible screw depth for lubrication connectors
JL6
24.4 mm
position lubrication connector
N2
6 mm
max. diameter of lubrication hole in adjacent construction 4

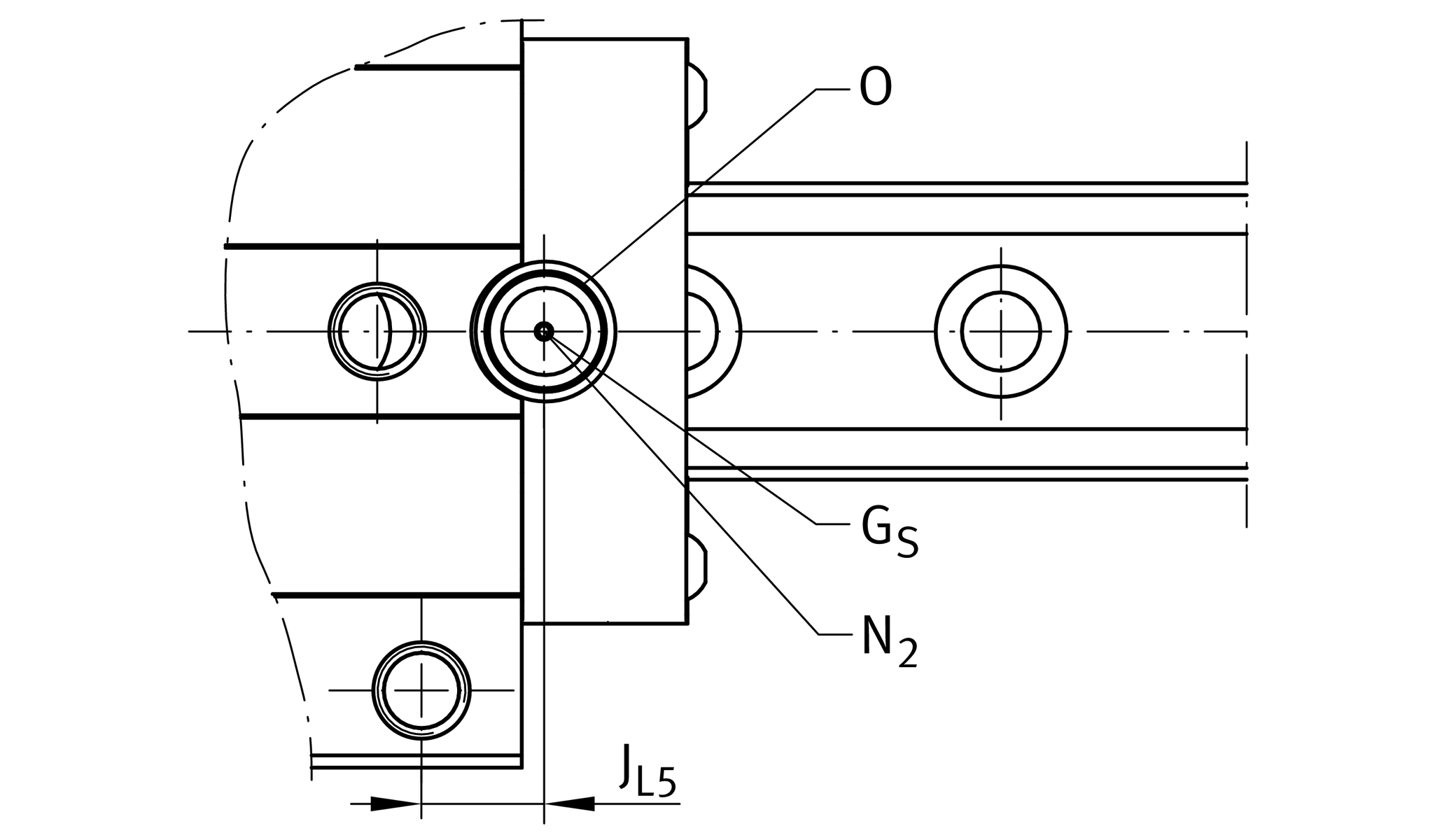

JL5
14.3 mm
position lubrication connector 5
GS
M4x4
O
10x1,5
O-Ring DIN 3771
