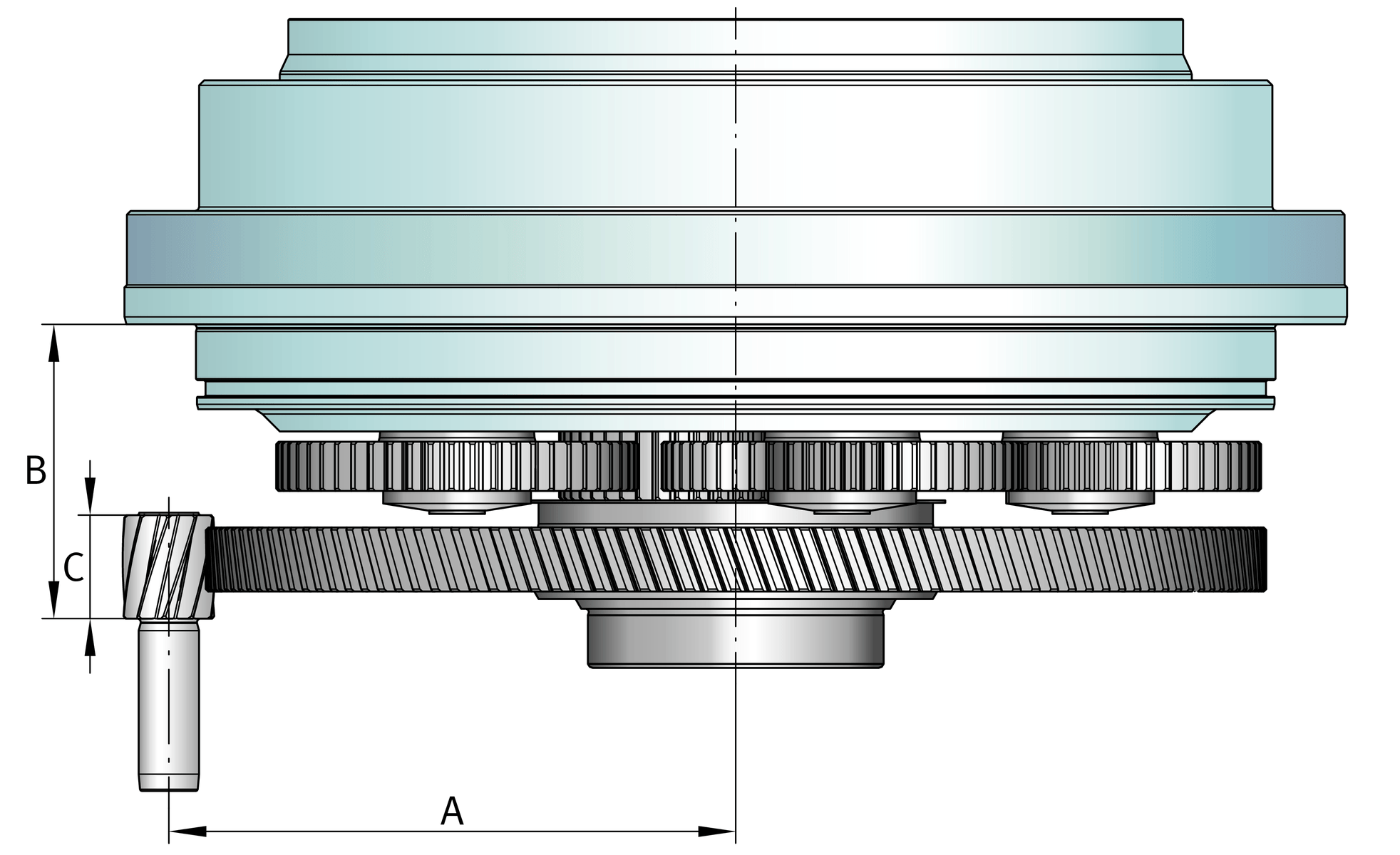

主要尺寸與性能資料
| i | 90 | Gear reduction ratio |
| JJ | 14.33 kg*cm2 | Mass moment of interia at input |
| nmax out | 39 1/min | Max. output speed |
| nmax per In | 3,500 1/min | Maximum input drive speed |
| nper In | 2,000 1/min | |
| Ck | 10,250 Nm/arcmin | 傾斜剛性 |
| Cr | 1,460 Nm/arcmin | Torsional rigidity |
| MOut | 4,495 Nm | Maximum torque |
| Mnom Out | 3,505 Nm | Rated torque |
| Macc | 4,905 Nm | Acceleration moment |
| Mestopp | 11,980 Nm | E-stop moment |
| MTilt | 6,080 Nm | Continuous tilting moment |
| MTilt estop | 13,750 Nm | Max. e-stop tilting moment |
| Fa max dyn | 46 kN | Max. dynamic axial force |
| Fa max stat | 535 kN | Max. static axial force |
| Fr max stat | 29 kN | Max. dynamic radial force |
| Fr max stat | 170 kN | Max. static radial force |
| Pρ | 89 Nm/kg | Power density |
| φα back | 0.1 arcmin | Torsional backlash at output |
| φα lost | 0.6 arcmin | Lost Motion at output |
| Ups | 50 arcsec | Synchronous running accuracy |
| ≈m | 50.3 kg | 重量 |
您目前的產品型號
| Size code | 400 | 400 |
| 優化設計 | E | Mounting kit |
| Product type | PSC | Precision Planetary Gearboxes Series PSC |
| Design | H | Hollow shaft |
