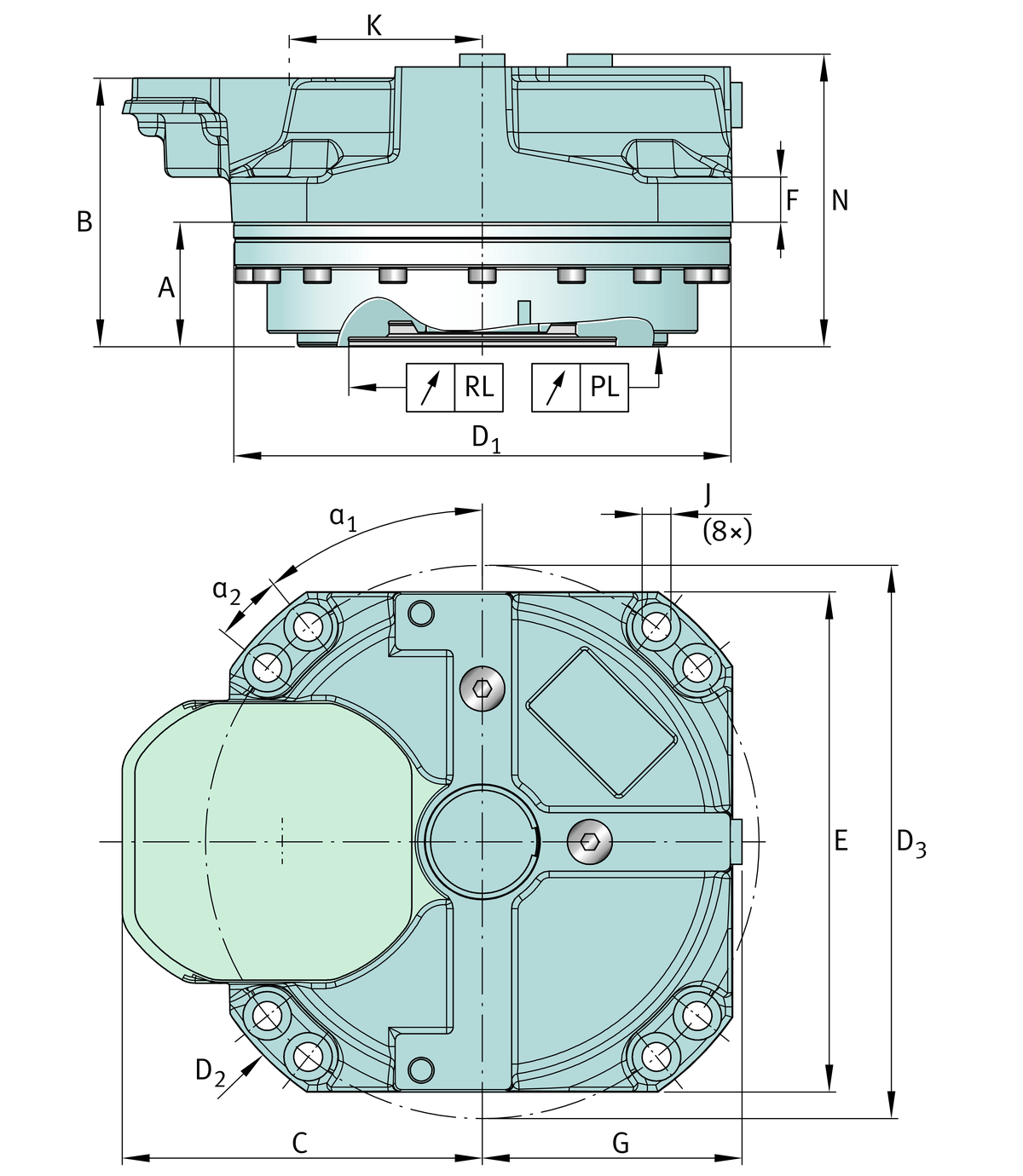

主要尺寸與性能資料
| i | 80 | Gear reduction ratio |
| JJ | 0.51 kg*cm2 | Mass moment of interia at input |
| nmax out | 75 1/min | Max. output speed |
| nmax per In | 6,000 1/min | Maximum input drive speed |
| nper In | 4,000 1/min | |
| Ck | 1,170 Nm/arcmin | 傾斜剛性 |
| Cr | 165 Nm/arcmin | Torsional rigidity |
| MOut | 575 Nm | Maximum torque |
| Mnom Out | 445 Nm | Rated torque |
| Macc | 625 Nm | Acceleration moment |
| Mestopp | 1,545 Nm | E-stop moment |
| MTilt | 1,070 Nm | Continuous tilting moment |
| MTilt estop | 3,645 Nm | Max. e-stop tilting moment |
| Fa max dyn | 18 kN | Max. dynamic axial force |
| Fa max stat | 152 kN | Max. static axial force |
| Fr max stat | 11 kN | Max. dynamic radial force |
| Fr max stat | 55 kN | Max. static radial force |
| Pρ | 75 Nm/kg | Power density |
| φα back | 0.1 arcmin | Torsional backlash at output |
| φα lost | 0.6 arcmin | Lost Motion at output |
| Ups | 70 arcsec | Synchronous running accuracy |
| ≈m | 7.7 kg | 重量 |
您目前的產品型號
| Size code | 056 | 056 |
| 優化設計 | B | Gear unit with flange |
| Product type | PSC | Precision Planetary Gearboxes Series PSC |
| Engine construction variant | 2 | Unconnected input shaft with keyway |
| Design | V | Solid shaft |
