主要尺寸與性能資料
| B2 | 65 mm | Total Width |
| H | 85 mm | Total Height |
| L | 260 mm | Length of carriage |
安裝尺寸

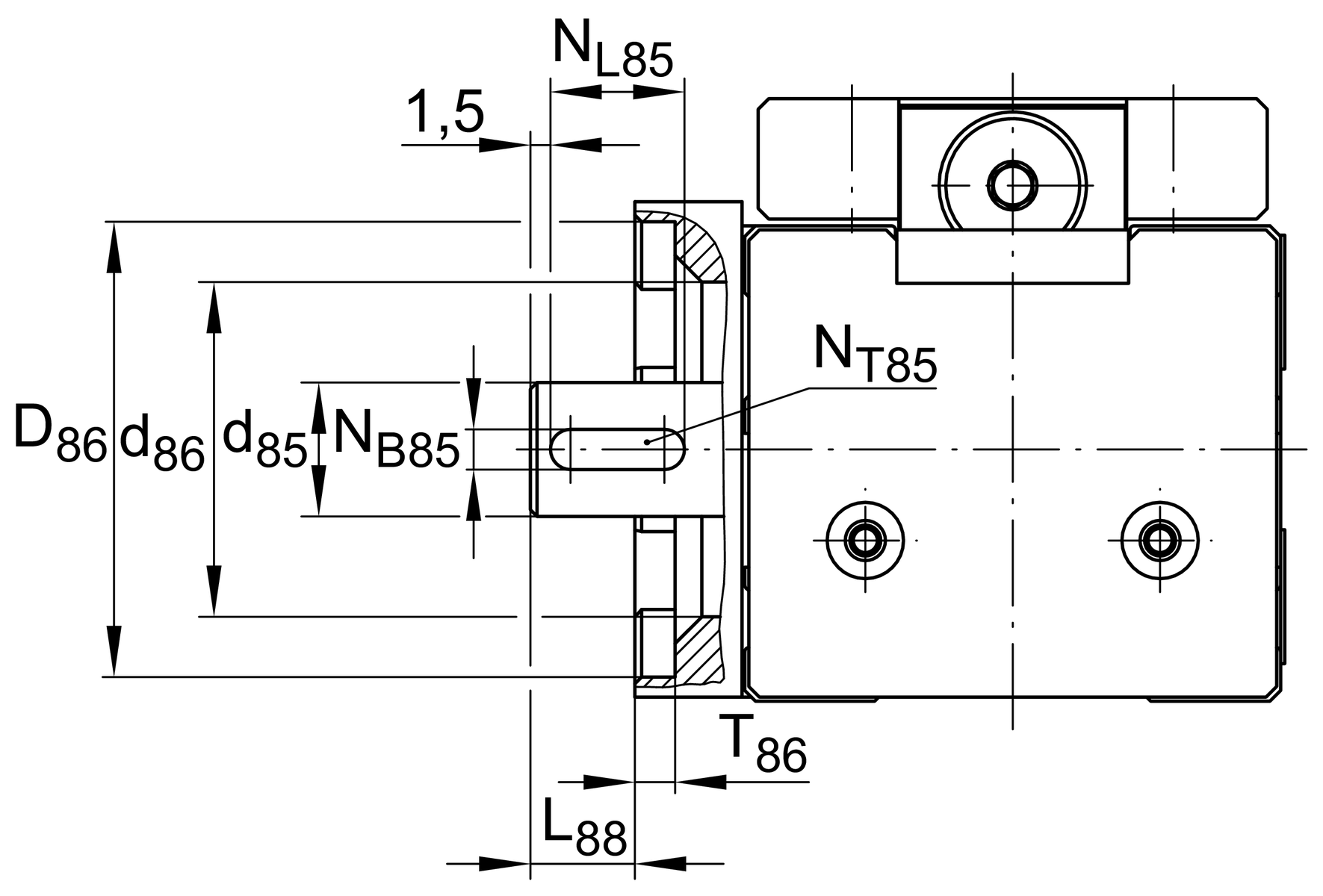

| D86 | 47 mm | |
| Tol D86 | H7 | Tolerance |
| d85 | 16 mm | |
| L88 | 31 mm | Length of Drive Pin |
| G43 | M6 | 線 |
| G87 | M6 | 線 |
| h56 | 30 mm | |
| h85 | 43.5 mm | |
| h87 | 51 mm | |

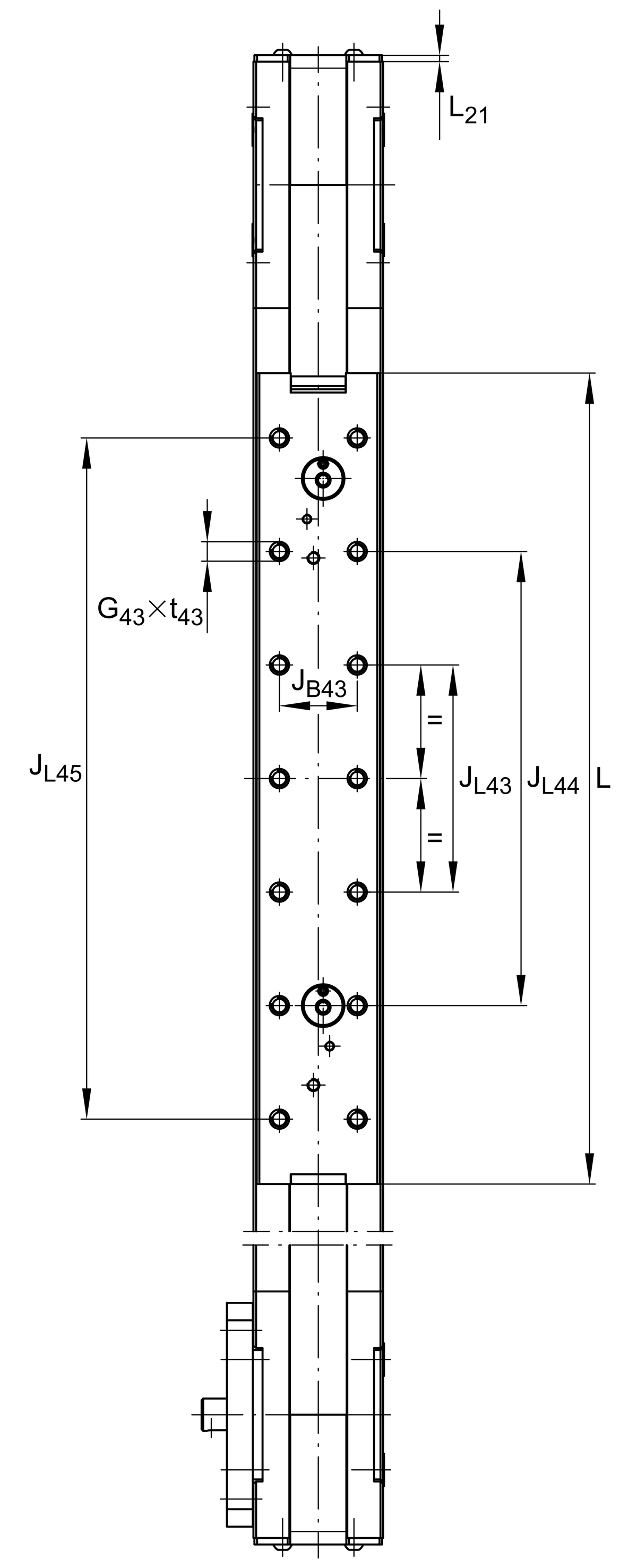

| JB43 | 45 mm | |
| JL43 | 80 mm | |
| JL44 | 240 mm | |
| JB8 | 40 mm | |
| L8 | 77.5 mm | |
| l85 | 39.3 mm | |
| l87 | 60 mm | |
| NB85 | 5 mm | Width of Keyway |
| NL85 | 25 mm | Length of Keyway |
| NT85 | 3 mm | Depth of Keyway, Tolerance P9 |
| T86 | 1.6 mm | Depth Fit |
| t43 max | 14 mm | Depth of Thread |
| t87 max | 12 mm |
尺寸

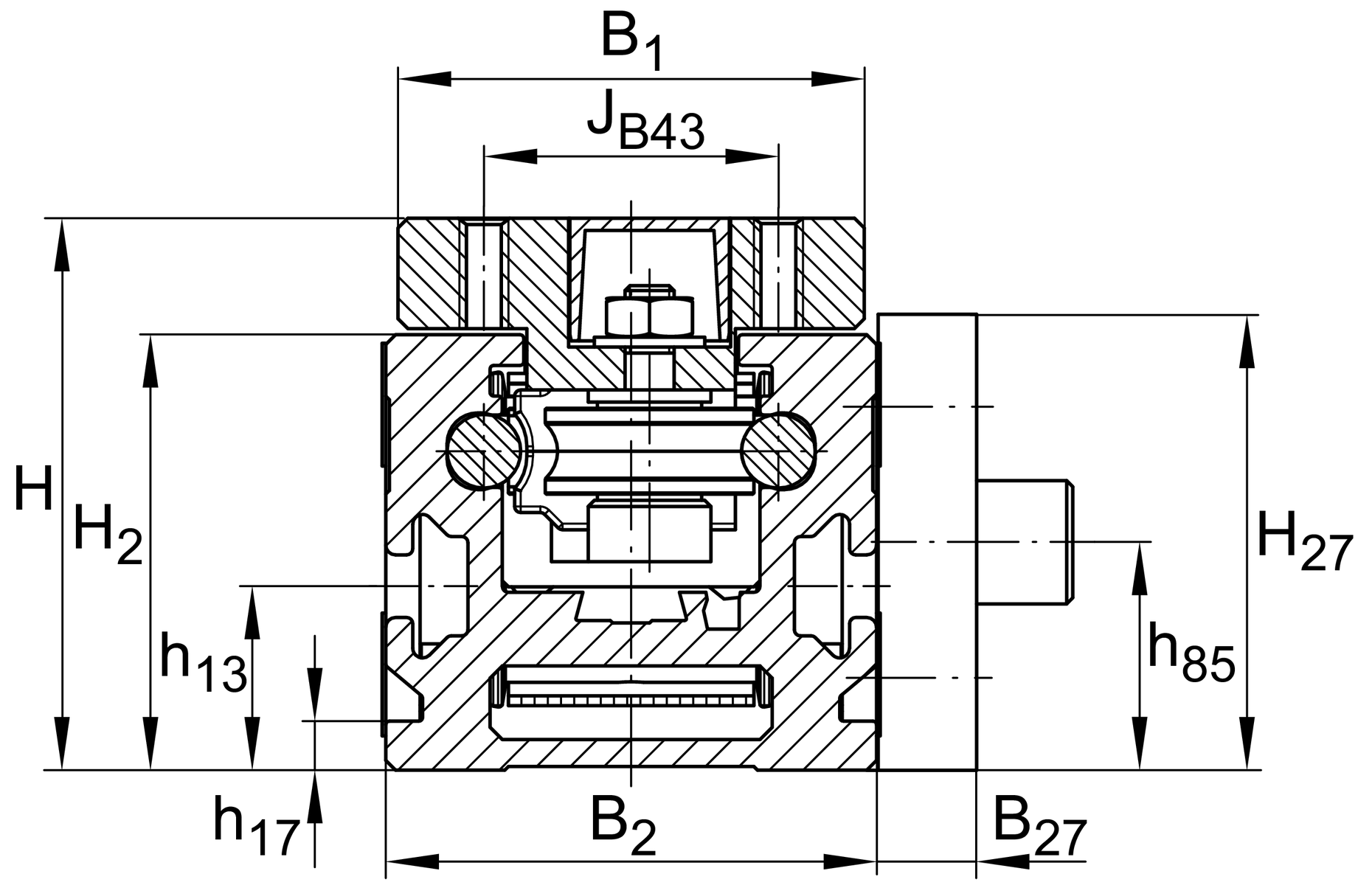

| B1 | 63 mm | Width of Carriage |
| B27 | 6,000 mm | |
| H1 | 14.2 mm | Height of Carriage |
| H2 | 70 mm | Height of Support Rail |
| h13 | 22 mm | |
| h14 | 62.7 mm | |
| L1 | 298 mm | |

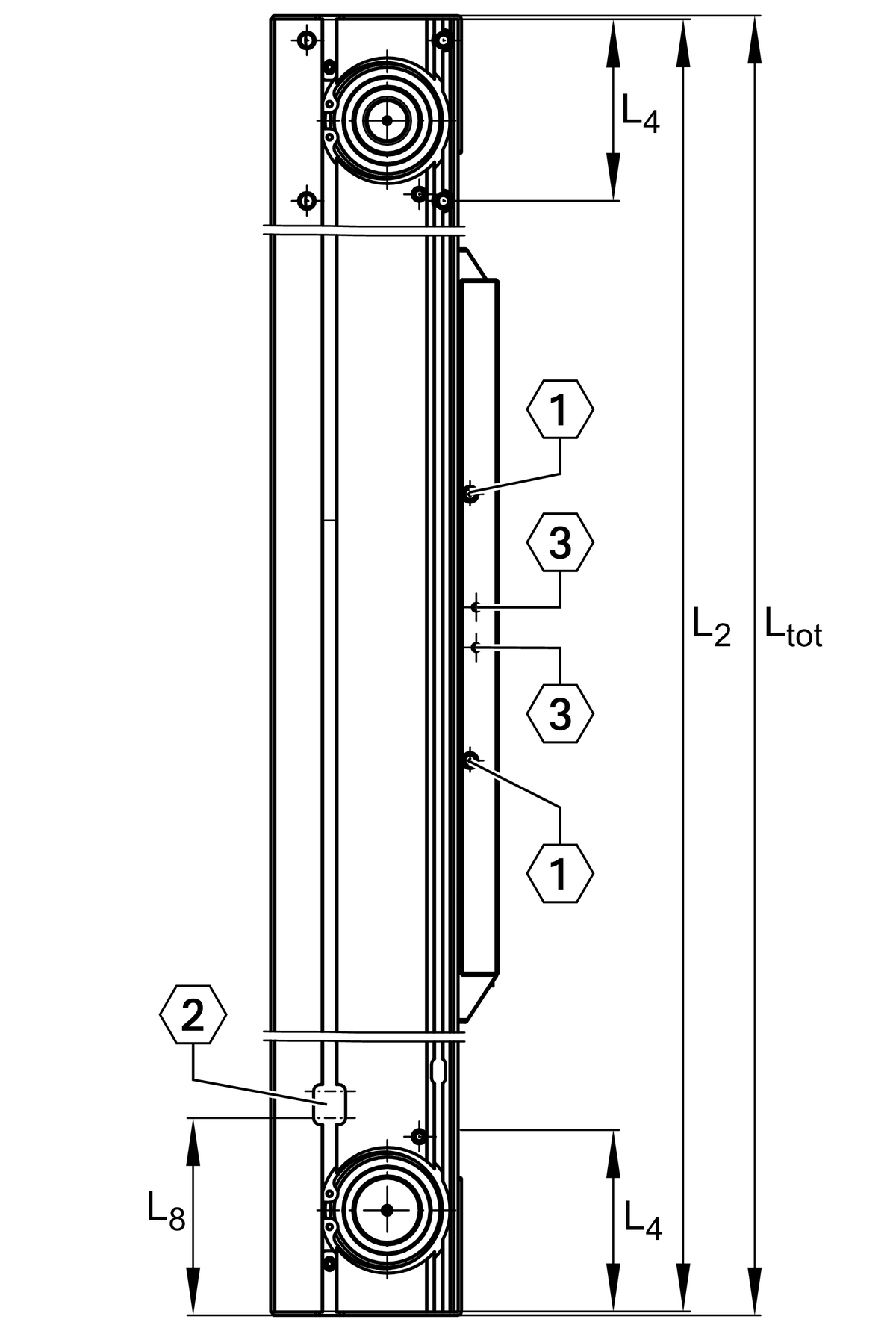

| L4 | 69 mm | Length of Return Unit |
| L5 | 9.3 mm | |
| L21 | 1.3 mm | |
| S | 85 mm | Safety Distance |
科技數據
| mLAW | 1.4 kg | Mass of Carriage |
| m3 | 1.4 kg | Mass of additional Carriage |
| vmax | 8 m/s | Maximum Speed |
| amax | 40 m/s2 | Maximum Acceleration |

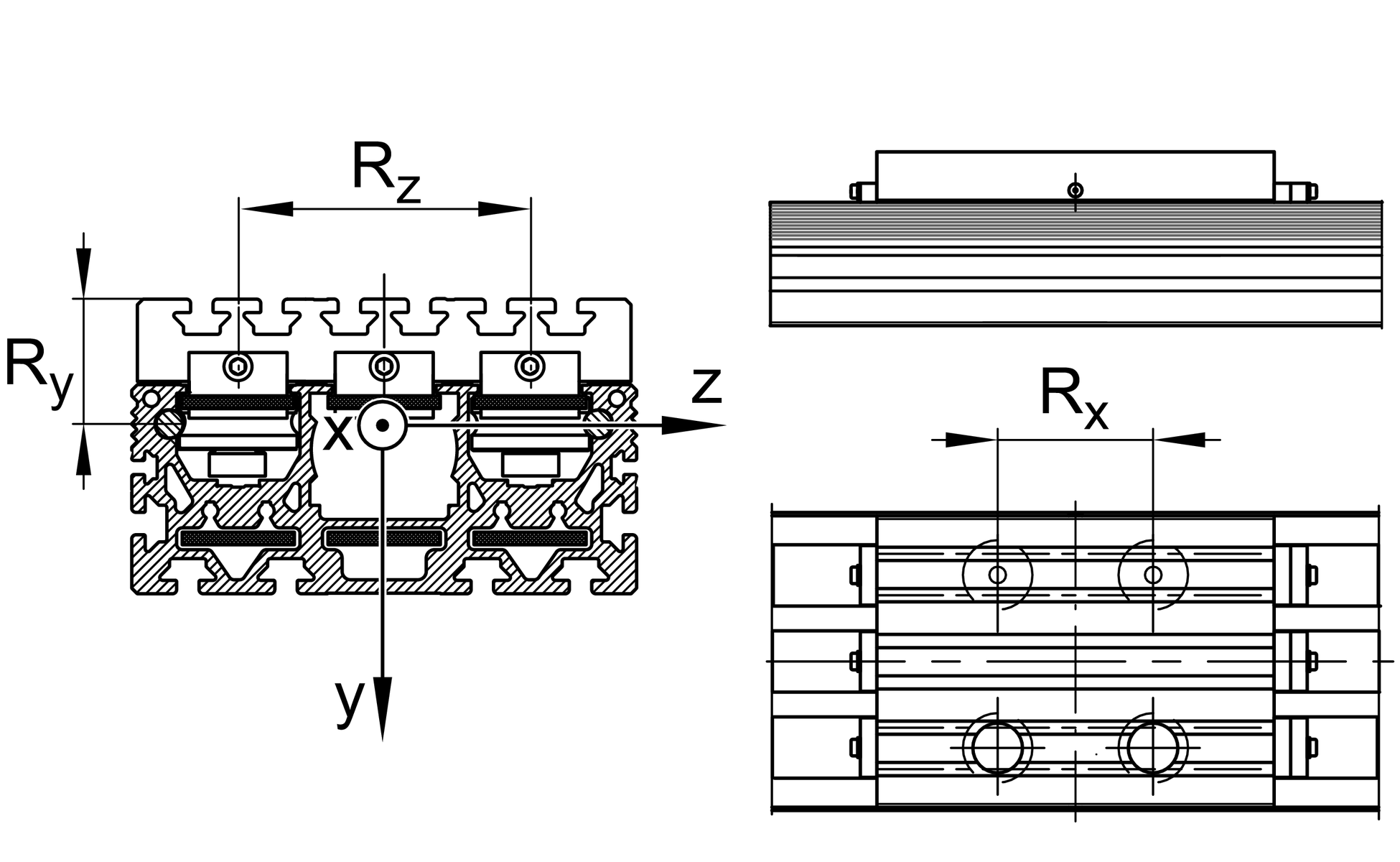

| Rx | 53 mm | |
| Ry | 33.9 mm | |
| Rz | 3 mm | |

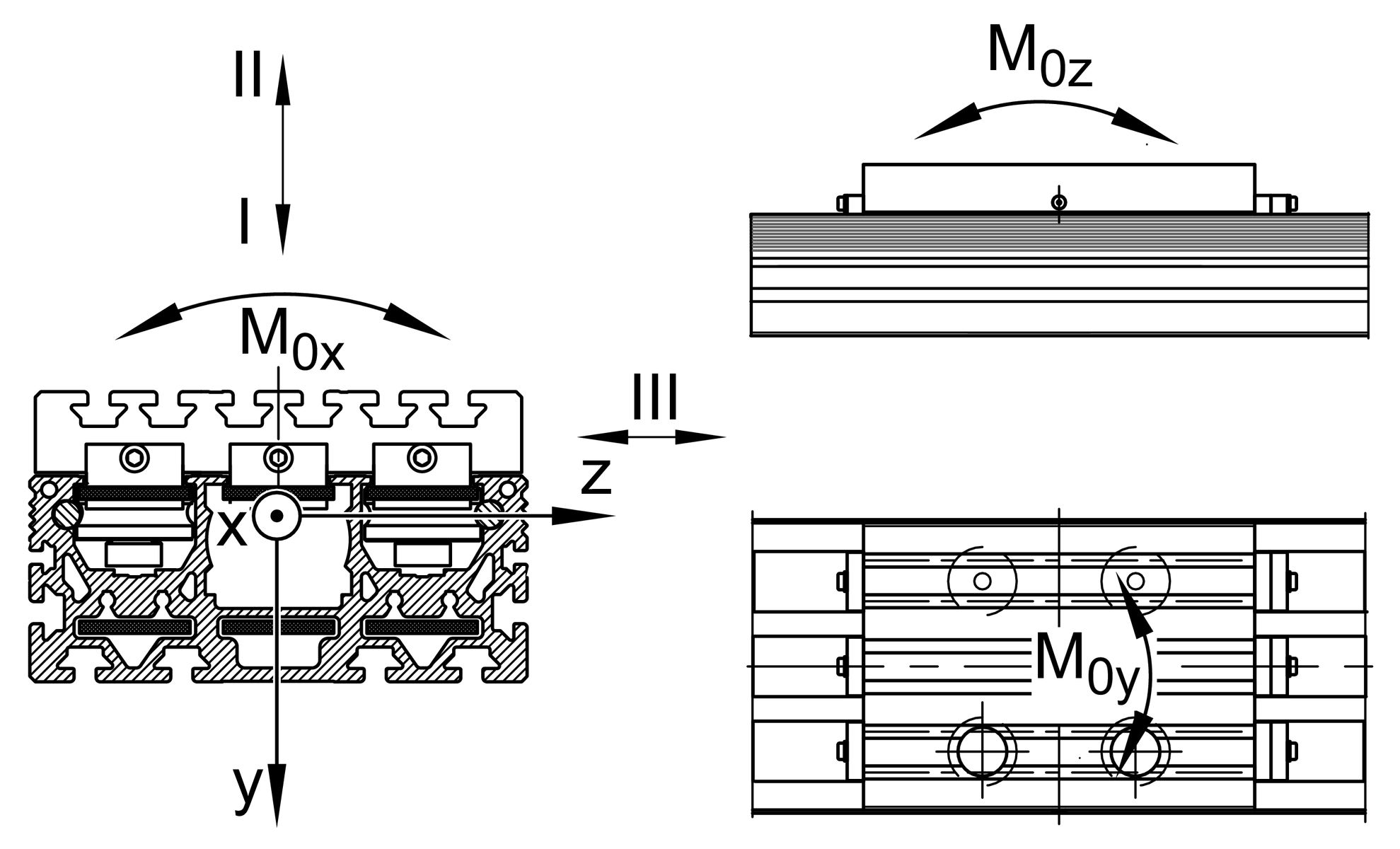

| I C | 10,300 N | Load direction I: compressive load |
| I C0 | 5,400 N | Load direction I: compressive load |
| II C | 10,300 N | Load direction II: tensile load |
| II C0 | 5,400 N | Load direction II: tensile load |
| III C | 5,100 N | Load direction III: lateral load |
| III C0 | 2,500 N | Load direction III: lateral load |
| M0x per | 120 Nm | Max. permissible static moment per Carriage 1 |
| M0y per | 480 Nm | Max. permissible static moment per Carriage 1 |
| M0z per | 255 Nm | Max. permissible static moment per Carriage 1 |
| Iy | 84 cm4 | Geometrical moments of inertia of Support Rail |
| Iz | 107 cm4 | Geometrical moments of inertia of Support Rail |
附加資訊
32 Nm | Max. permissible drive torque | |
4 x LFR5201-10-2Z | Track Rollers | |
144 mm | Feed (mm/rotation) | |
W-8-PU-32-STD | Toothed Belt | |
0.36 kg/m | Mass of Toothed Belt | |
1,400 N | Permissible Toothed Belt operating force |
溫度範圍
| Tmin | 0 °C | Minimum operating Temperatur |
| Tmax | 80 °C | Maximum operating Temperatur |
您目前的產品型號
| Size code | 34 | |
| Length of carriage | 260 | 260 mm |
| Version | / | Standard |
| Design | / | Basis |
| Drive type | (3)ZR | Toothed belt drive |
| Additional carriage | W2 | Second, driven carriage |
| Attachment to the carriage | / | Threaded holes |
| Support rail design | / | One-piece |
