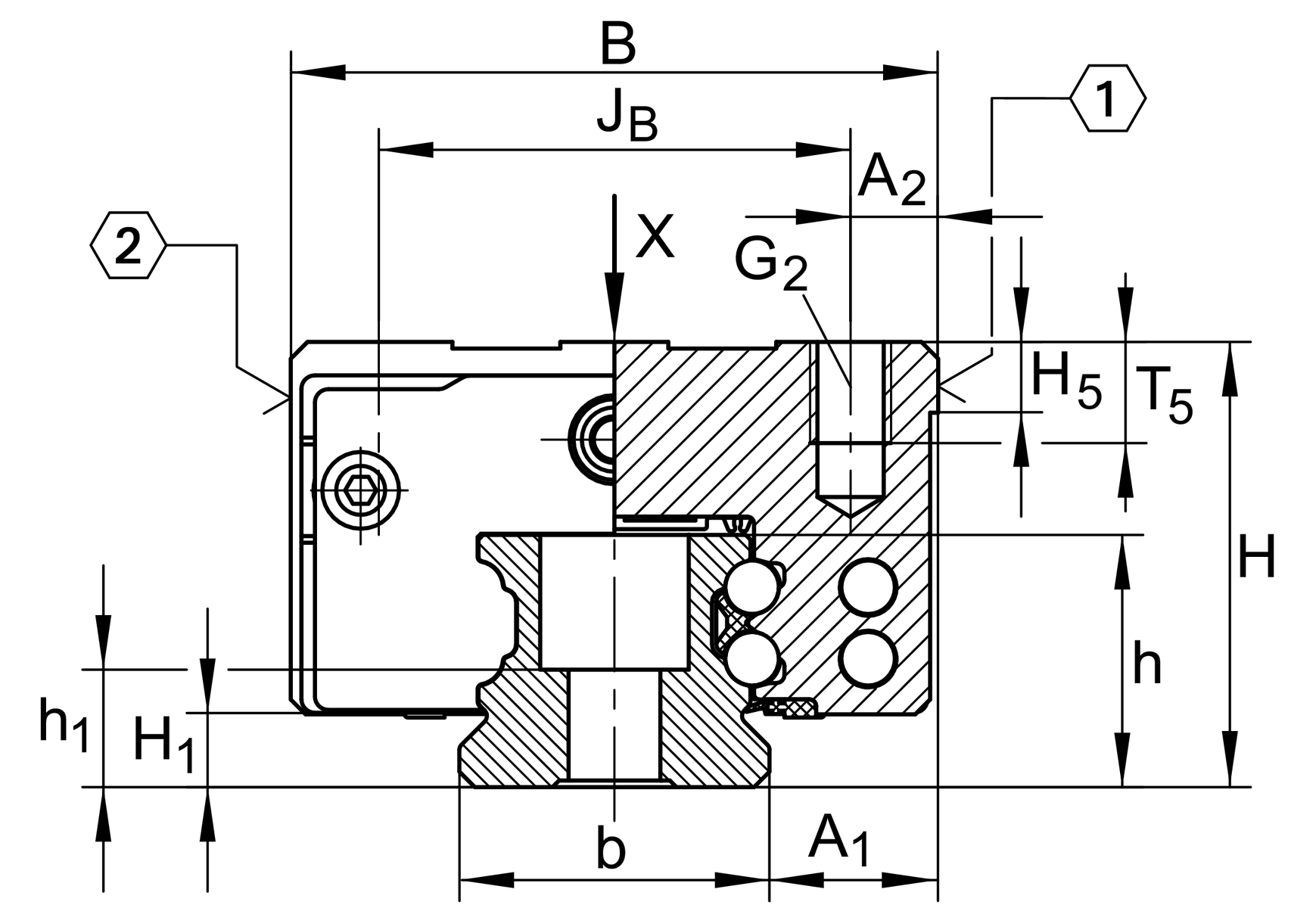

主要尺寸與性能資料
| H | 60 mm | height system |
| B | 86 mm | width carriage |
| L | 97.8 mm | overall length carriage |
| C | 46,500 N | dynamic load rating 1 |
| C0 | 80,000 N | static load rating 1 |
| M0x | 2,060 Nm | static moment rating about X axis |
| M0y | 883 Nm | static moment rating about Y axis |
| M0z | 883 Nm | static moment rating about Z axis |
| ≈m | 1.8 kg | 重量 |
安裝尺寸
| A1 | 20.5 mm | |
| JB | 60 mm | |
| b | 45 mm | width rail |
| A2 | 13 mm | |

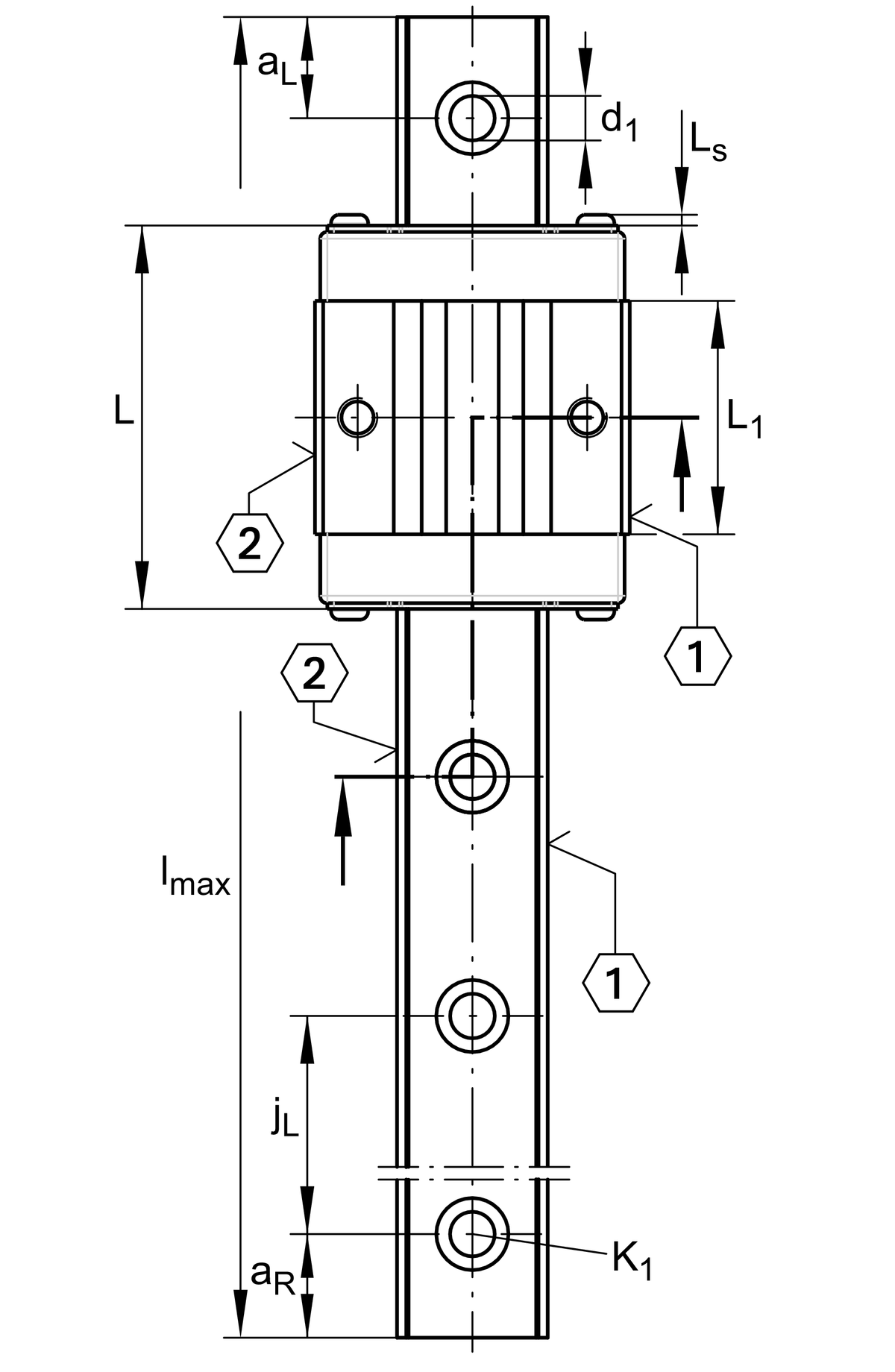

| L1 | 59.7 mm | |
| LS | 2.2 mm | |
| H1 | 9.7 mm | |
| H5 | 9.25 mm | |
| T5 | 17 mm | |
| G2 | M10 | fixing screws above (DIN ISO 4762-12.9) |
| G2 MA | 83 Nm | maximum tightening torque 2 |

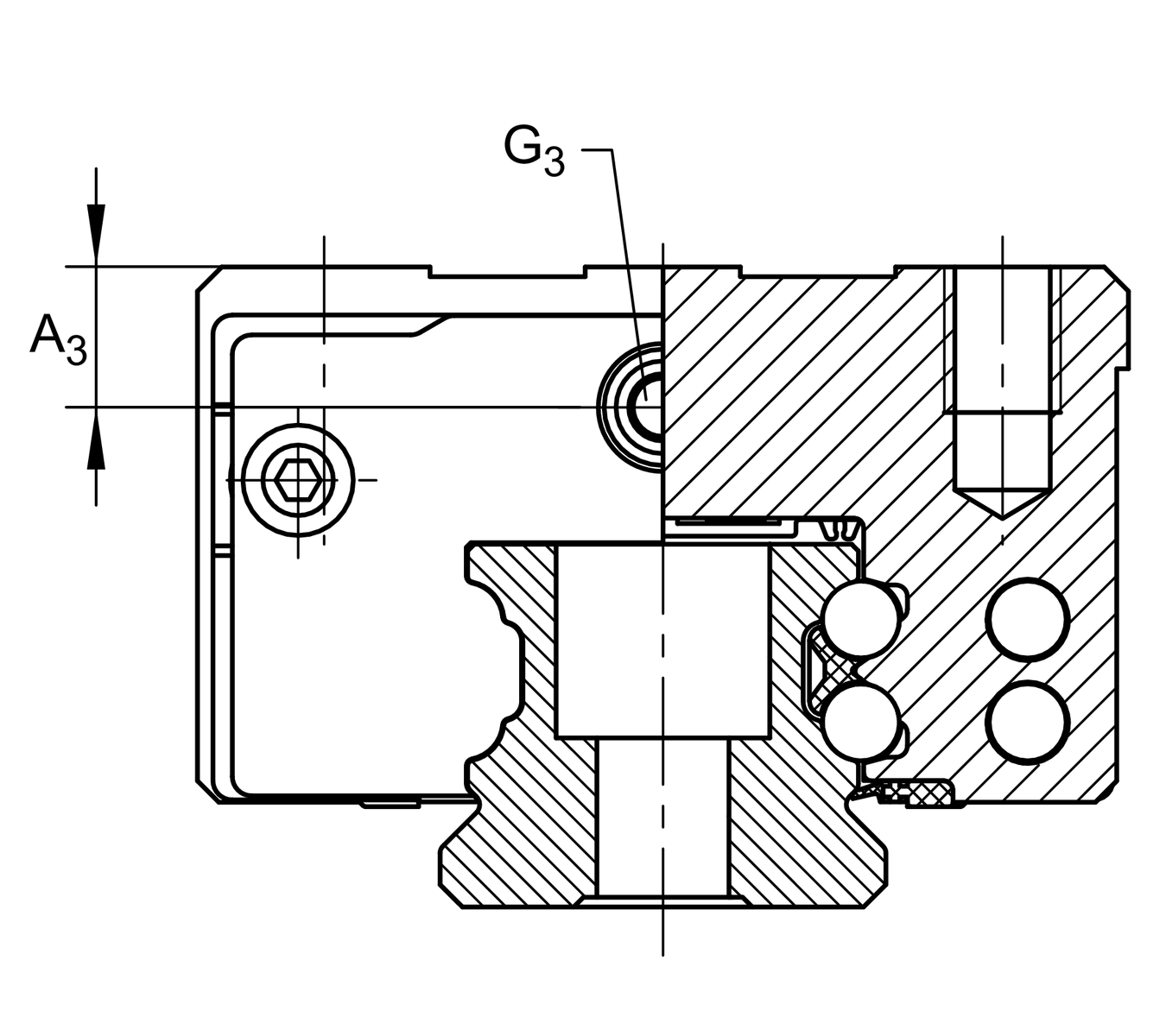

| A3 | 16.5 mm | position lubrication connector |
| G3 | M6 | lubrication connector |
| t G3 | 7 mm | maximum permissible screw depth for lubrication connectors |

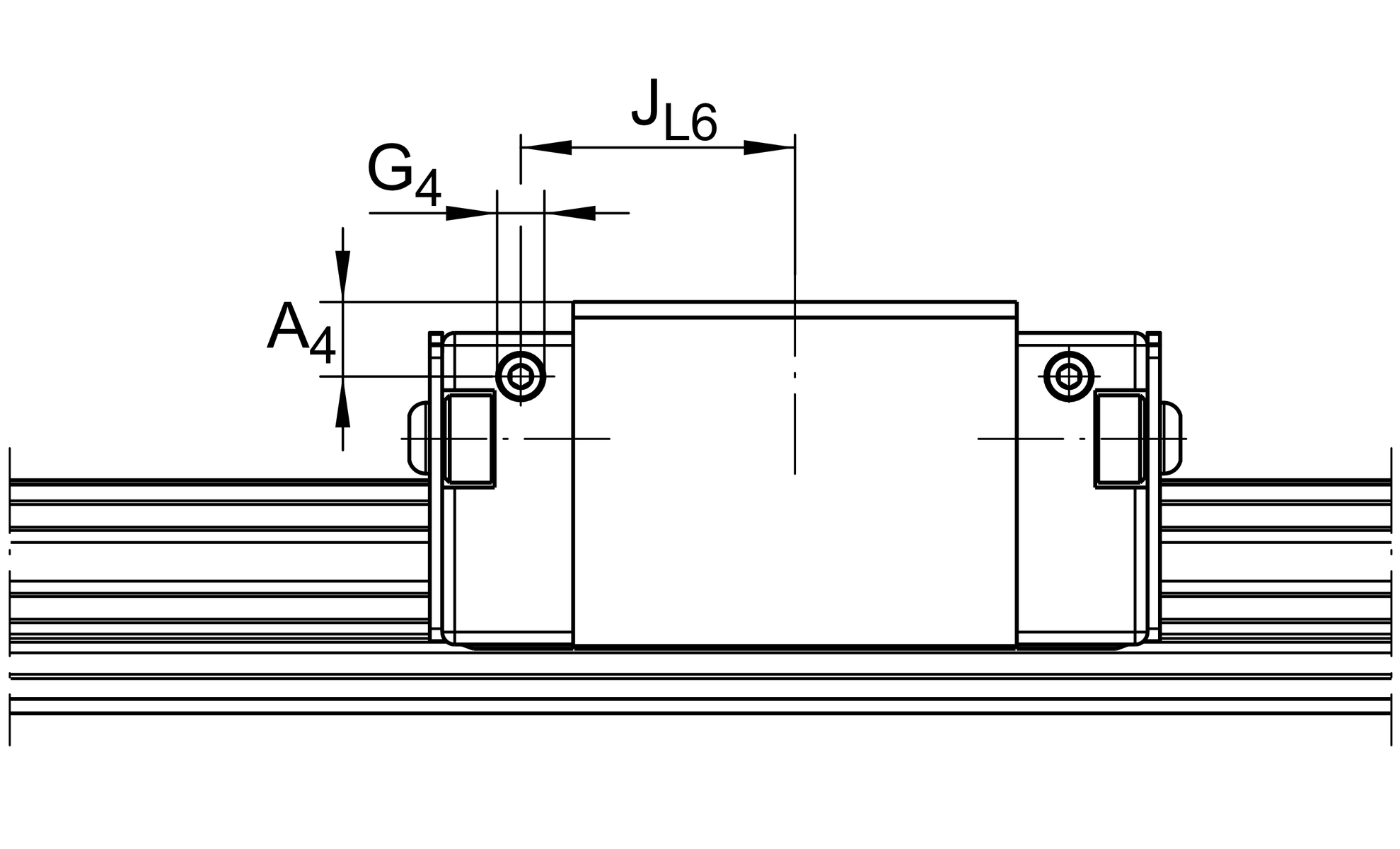

| A4 | 16.5 mm | position lubrication connector |
| G4 | M6 | lubrication connector |
| t G4 | 7 mm | maximum permissible screw depth for lubrication connectors |
| JL6 | 37.9 mm | position lubrication connector |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 45 | |
| Version | B | |
| Carriage design | ESC | Expanded design, short, narrow carriage |
