主要尺寸與性能資料

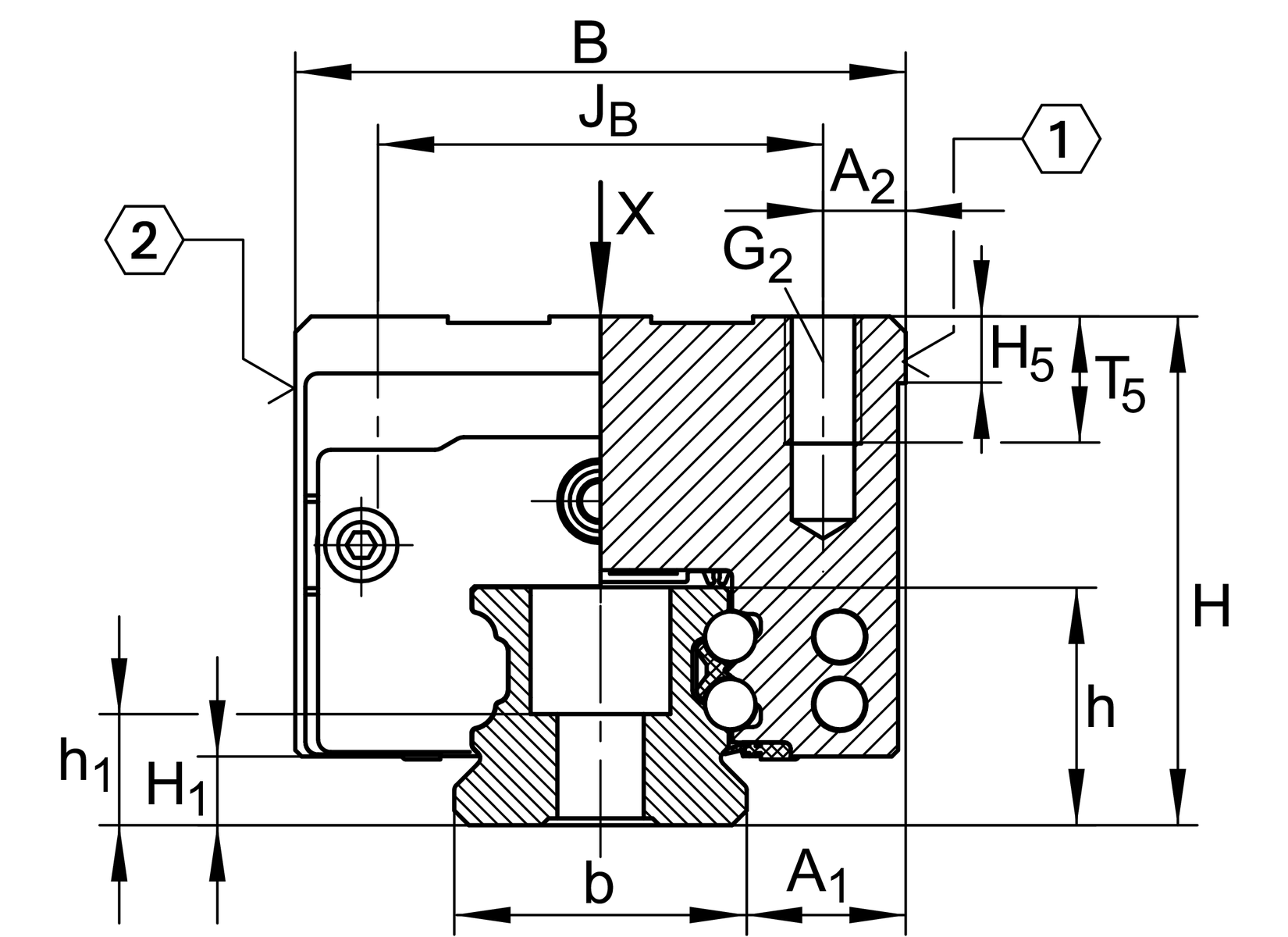

| H | 44 mm | height system |
| B | 70 mm | width carriage |

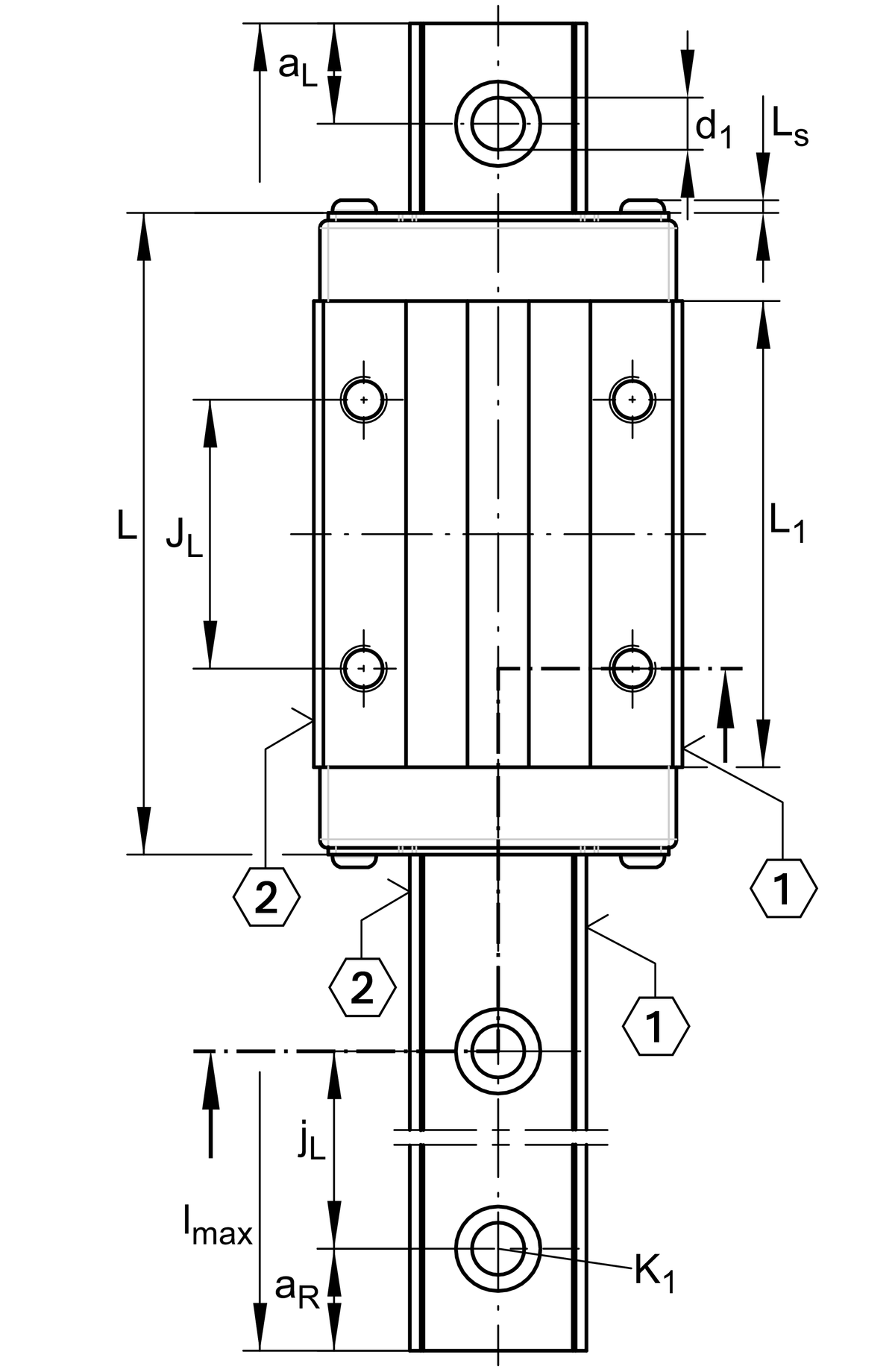

| L | 112 mm | overall length carriage |
| C | 38,000 N | dynamic load rating 1 |
| C0 | 72,000 N | static load rating 1 |
| M0x | 1,465 Nm | static moment rating about X axis |
| M0y | 1,020 Nm | static moment rating about Y axis |
| M0z | 1,020 Nm | static moment rating about Z axis |
| ≈m | 1.24 kg | 重量 |
安裝尺寸
| A1 | 18 mm | |
| JB | 50 mm | |
| b | 34 mm | width rail |
| A2 | 10 mm | |
| L1 | 80 mm | |
| LS | 1.65 mm | |
| JL | 50 mm | |
| H1 | 6.7 mm | |
| H5 | 6.75 mm | |
| T5 | 13.5 mm | |
| G2 | M8 | fixing screws above (DIN ISO 4762-12.9) |
| G2 MA | 41 Nm | maximum tightening torque 2 |

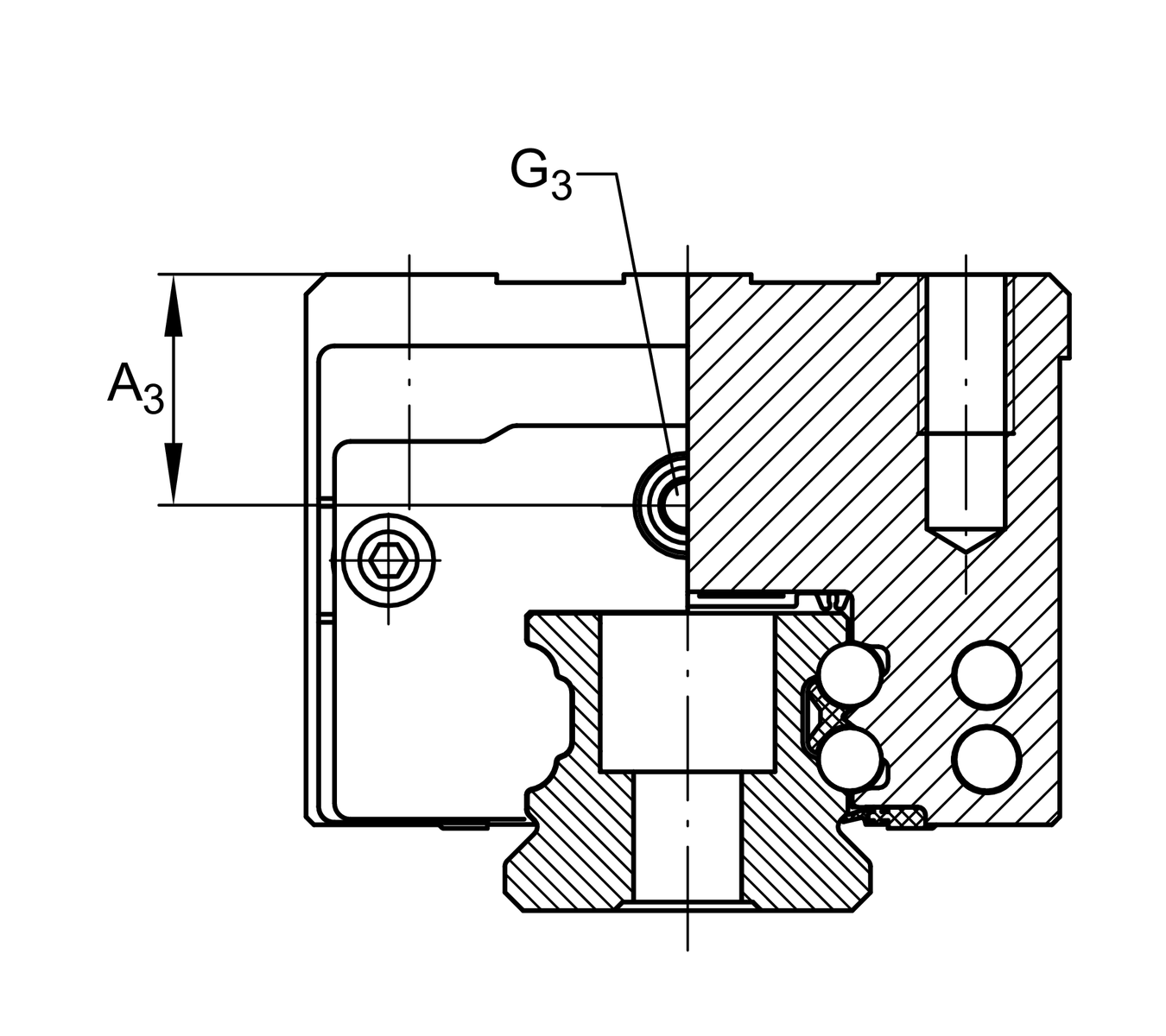

| A3 | 8.3 mm | position lubrication connector |
| G3 | M6 | lubrication connector |
| t G3 | 7 mm | maximum permissible screw depth for lubrication connectors |

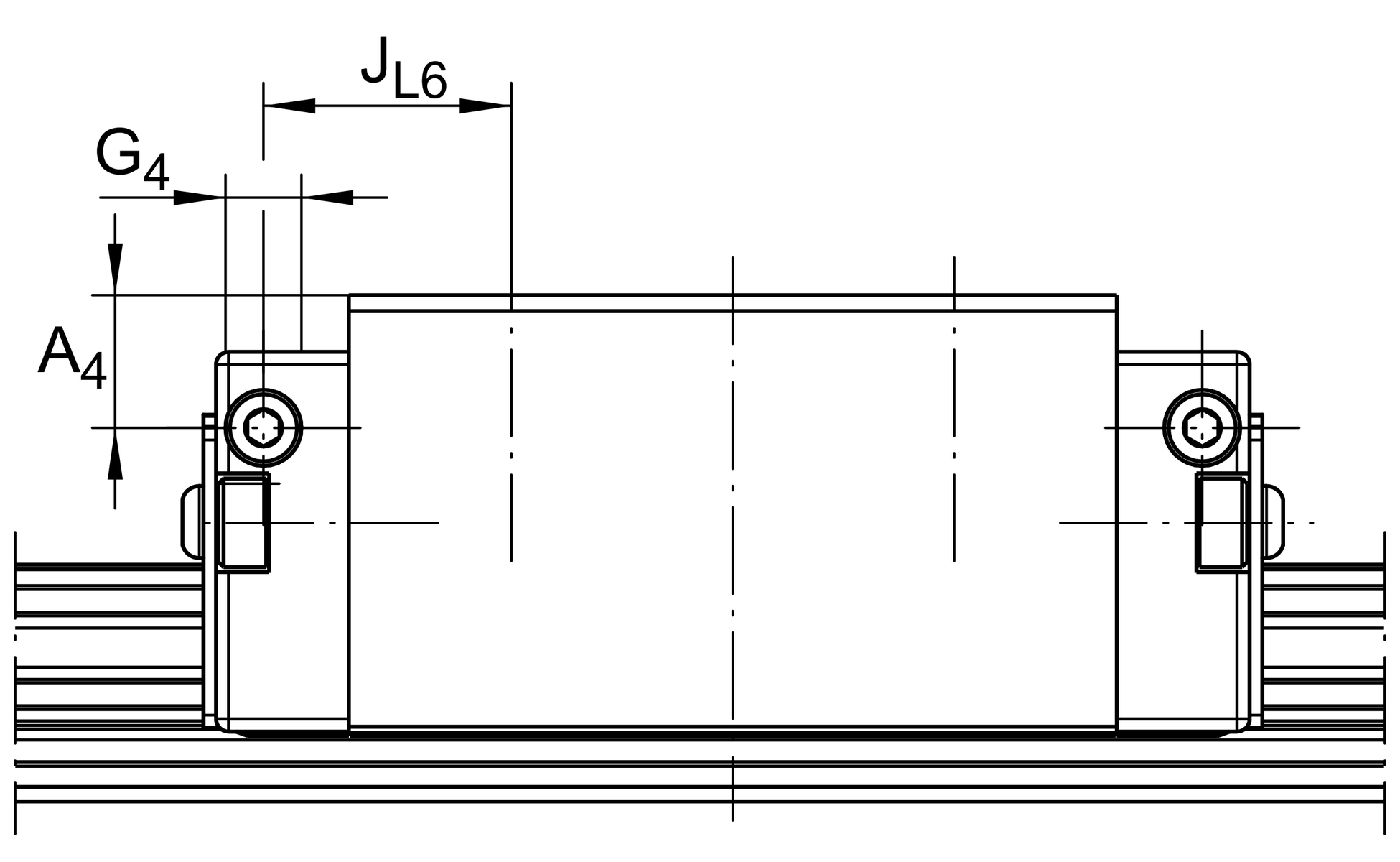

| A4 | 7 mm | position lubrication connector |
| G4 | M6 | lubrication connector |
| t G4 | 7 mm | maximum permissible screw depth for lubrication connectors |
| JL6 | 22 mm | position lubrication connector |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 35 | |
| Version | B | |
| Carriage design | SN | Narrow, low carriage |
