主要尺寸與性能資料
| H | 48 mm | height system |
| B | 70 mm | width carriage |
| L | 76.2 mm | overall length carriage |
| C | 24,600 N | dynamic load rating 1 |
| C0 | 39,000 N | static load rating 1 |
| M0x | 790 Nm | static moment rating about X axis |
| M0y | 330 Nm | static moment rating about Y axis |
| M0z | 330 Nm | static moment rating about Z axis |
| ≈m | 1.04 kg | 重量 |

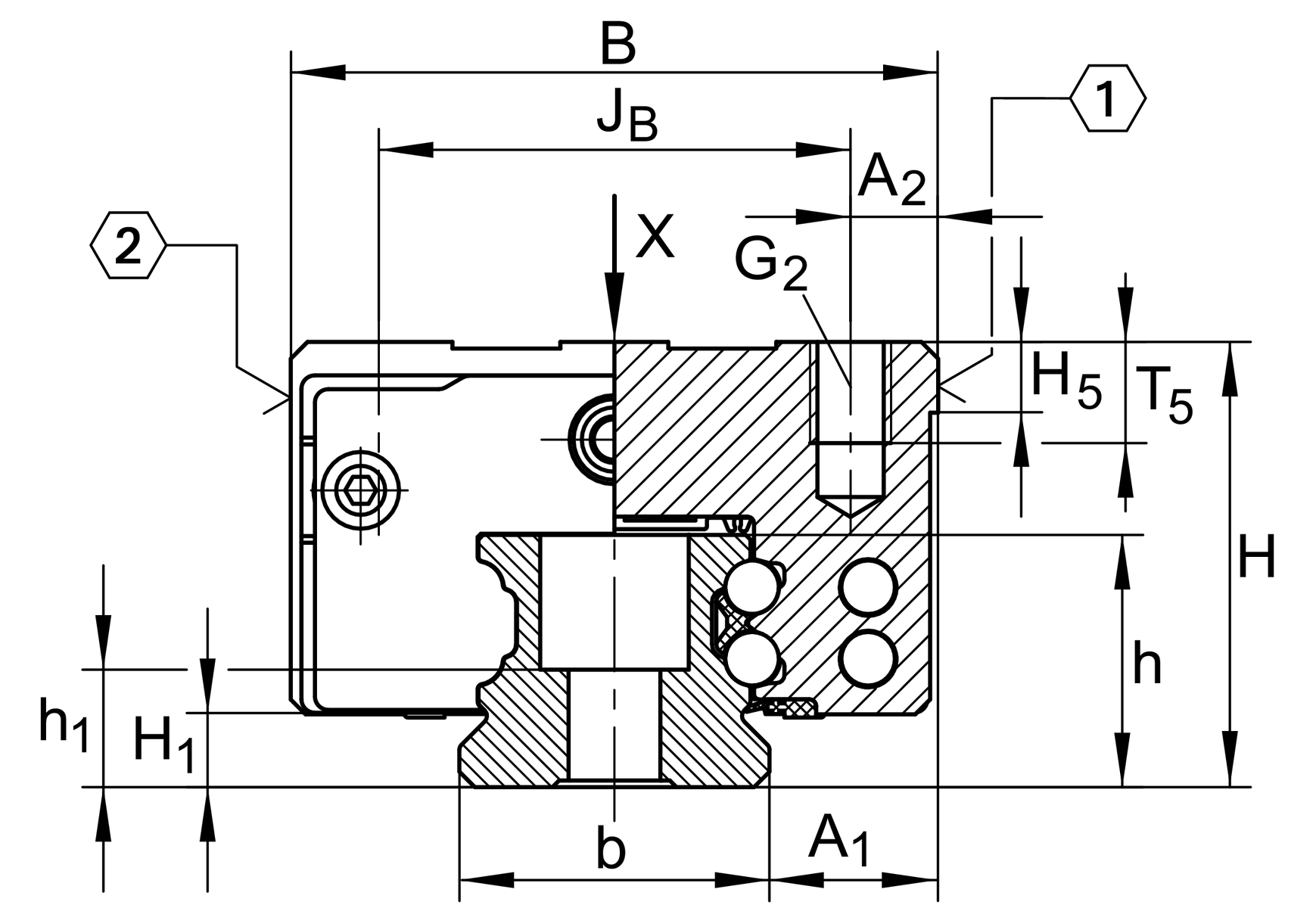

安裝尺寸

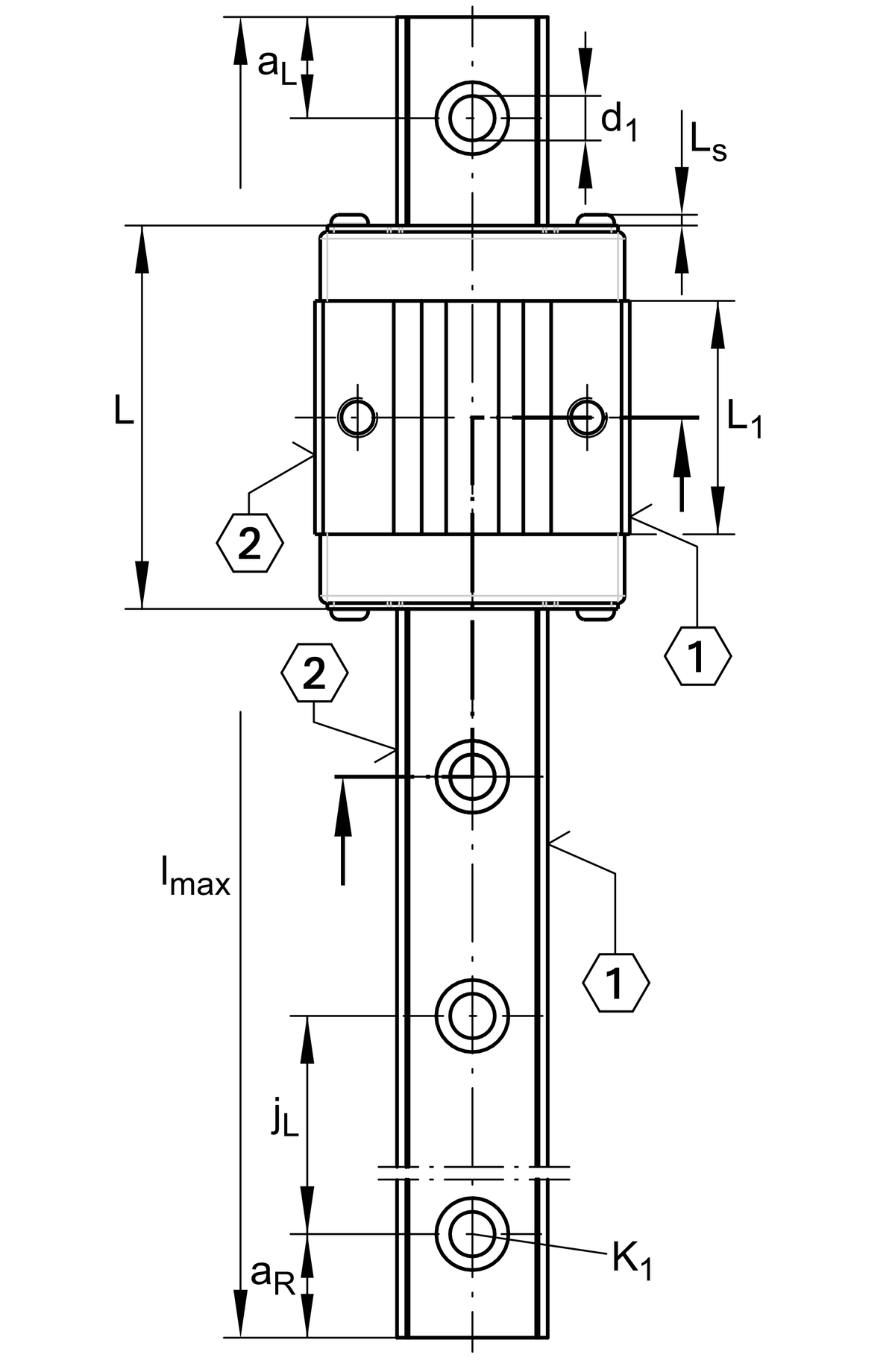

| A1 | 18 mm | |
| JB | 50 mm | |
| b | 34 mm | width rail |
| A2 | 10 mm | |
| L1 | 44.2 mm | |
| LS | 1.65 mm | |
| H1 | 6.7 mm | |
| H5 | 6.75 mm | |
| T5 | 13.5 mm | |
| G2 | M8 | fixing screws above (DIN ISO 4762-12.9) |
| G2 MA | 41 Nm | maximum tightening torque 2 |

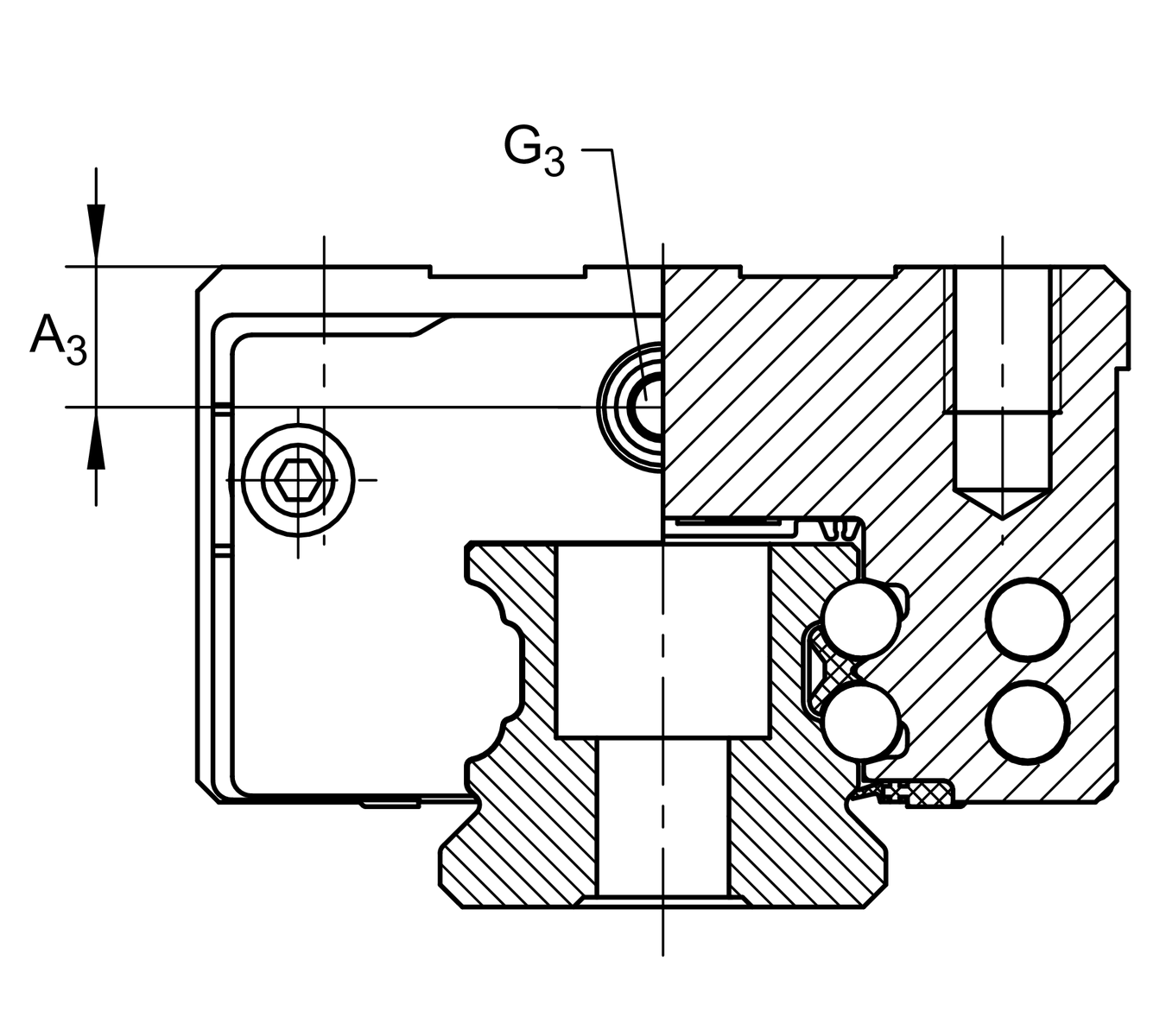

| A3 | 12.3 mm | position lubrication connector |
| G3 | M6 | lubrication connector |
| t G3 | 7 mm | maximum permissible screw depth for lubrication connectors |
| A4 | 11 mm | position lubrication connector |
| G4 | M6 | lubrication connector |
| t G4 | 7 mm | maximum permissible screw depth for lubrication connectors |

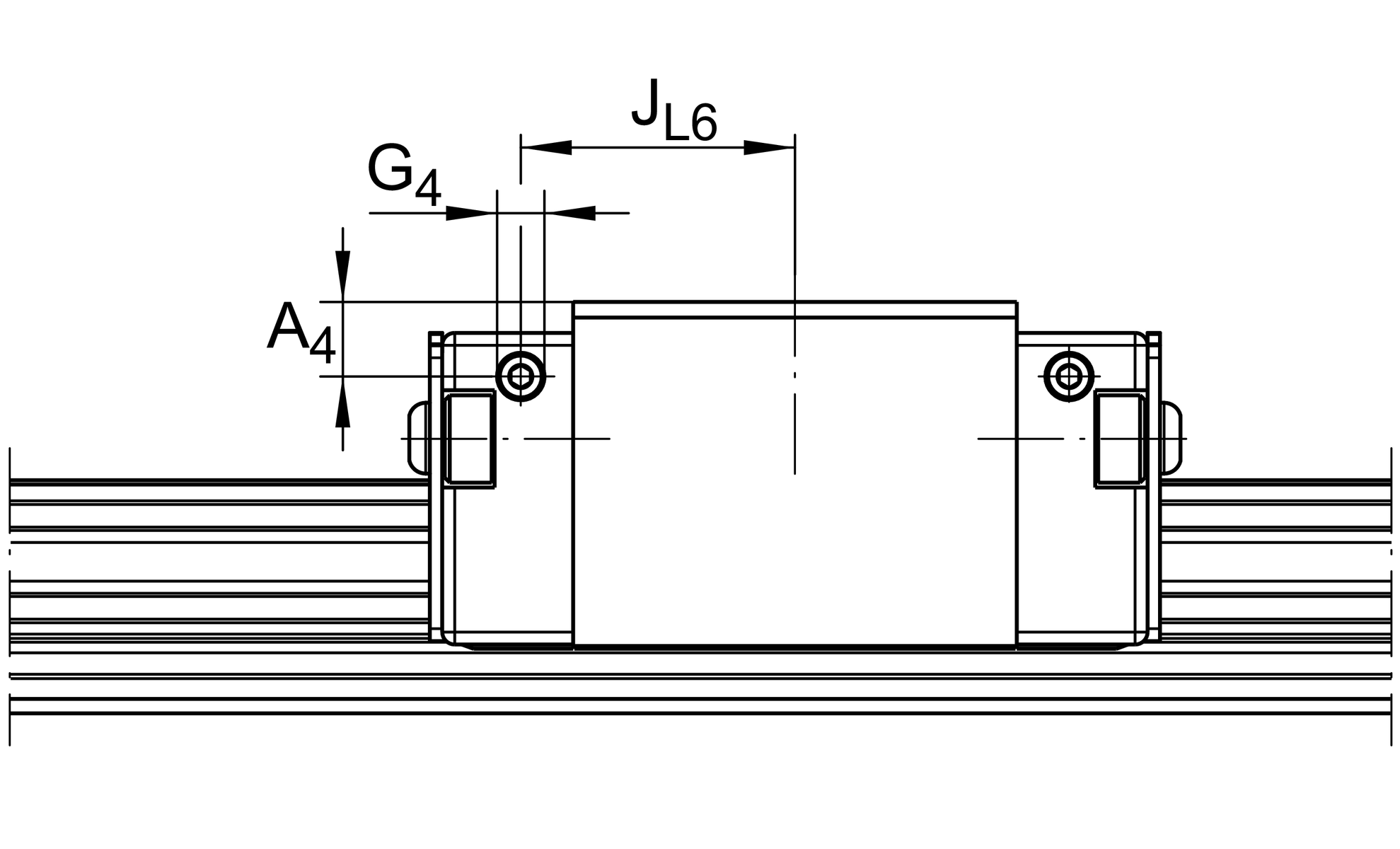

| JL6 | 29.1 mm | position lubrication connector |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 35 | |
| Version | B | |
| Carriage design | ESC | Expanded design, short, narrow carriage |
