主要尺寸與性能資料
| H | 42 mm | height system |
| B | 142 mm | width carriage |
| L | 97.5 mm | overall length carriage |

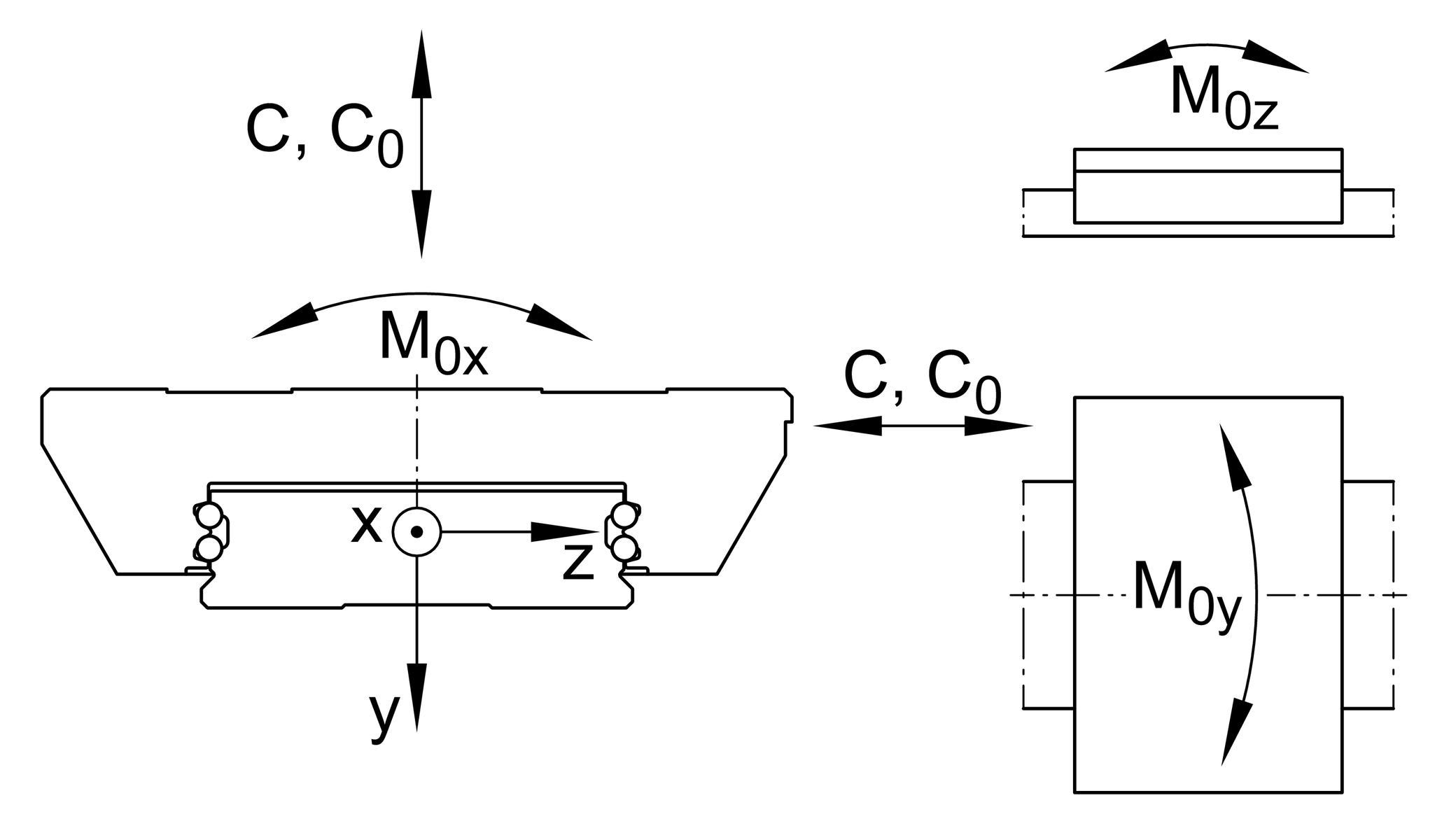

| C | 27,500 N | dynamic load rating 1 |
| C0 | 55,000 N | static load rating 1 |
| M0x | 2,660 Nm | static moment rating about X axis |
| M0y | 700 Nm | static moment rating about Y axis |
| M0z | 700 Nm | static moment rating about Z axis |
| ≈m | 1.95 kg | 重量 |

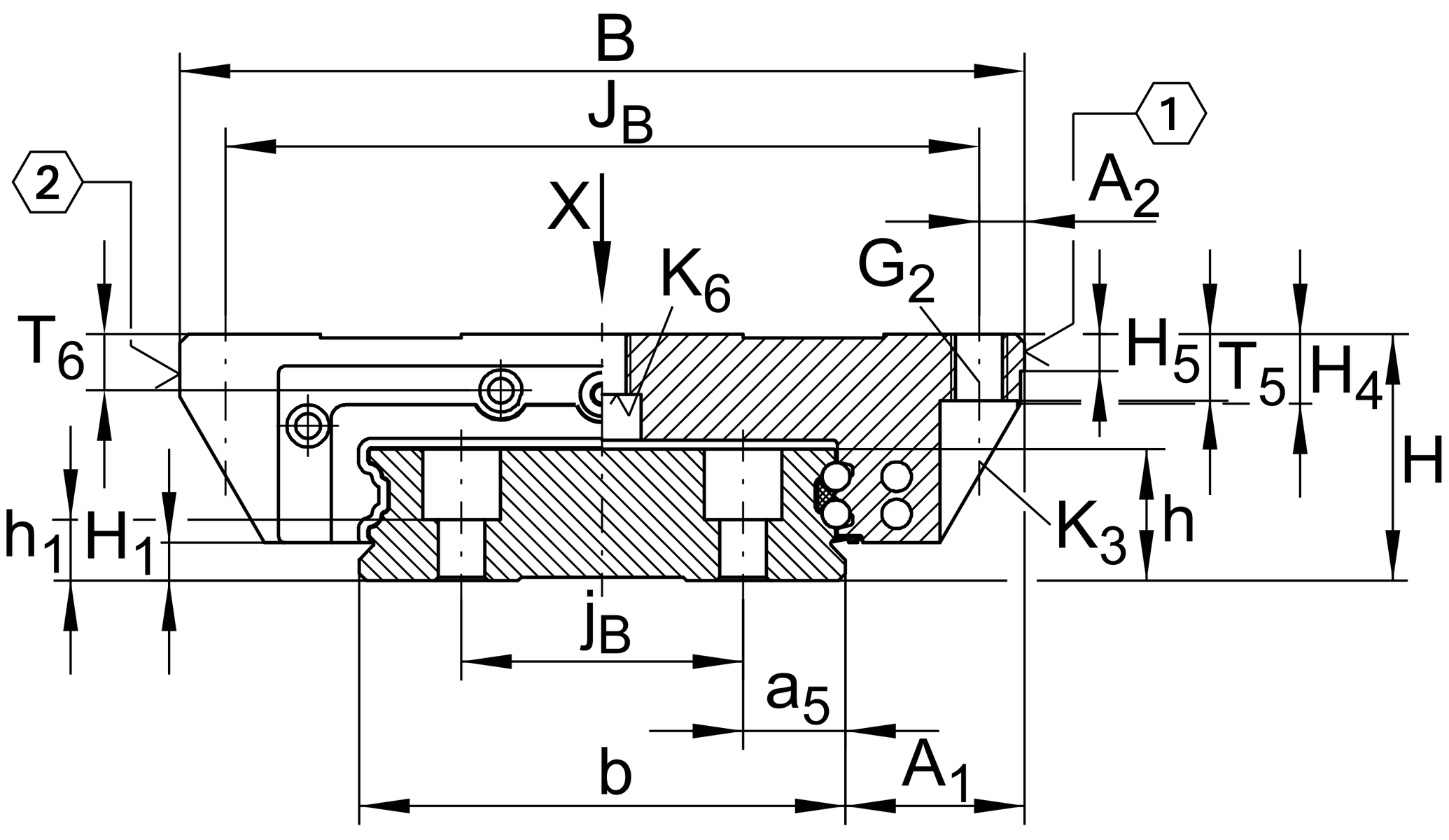

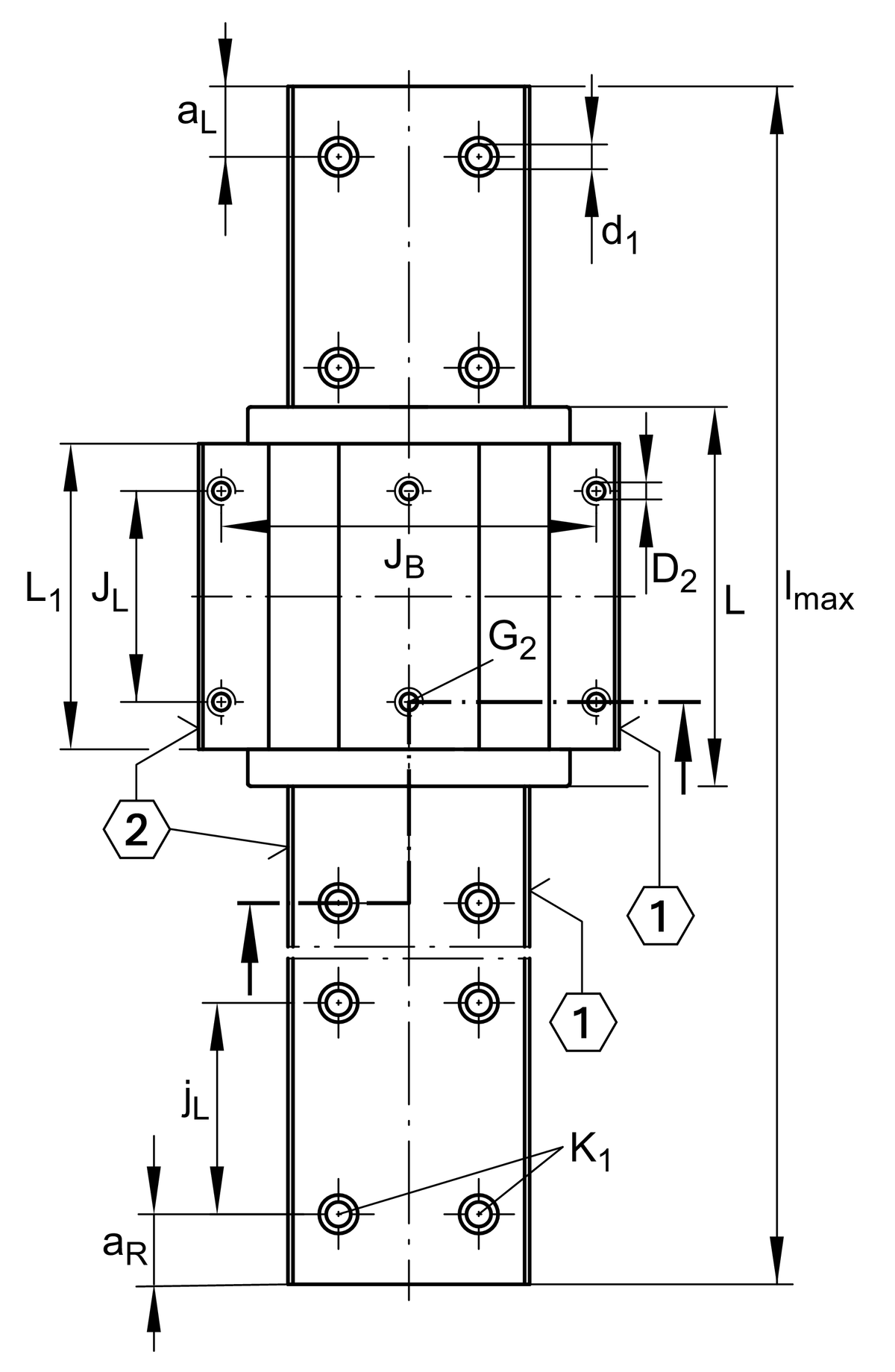

安裝尺寸
| A1 | 31 mm | |
| JB | 124 mm | |
| b | 80 mm | width rail |
| A2 | 9 mm | |
| L1 | 72 mm | |
| JL | 52 mm | |
| H1 | 6 mm | |
| H4 | 13.8 mm | |
| H5 | 6 mm | |
| T5 | 12 mm | |
| T6 | 12 mm | |
| G2 | M10 | fixing screws above (DIN ISO 4762-12.9) |
| G2 MA | 41 Nm | maximum tightening torque 2 |
| K3 | M8 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 41 Nm | maximum tightening torque 2 |
| K6 | M8 | fixing screws below (DIN 7984-8.8) |
| K6 MA | 12 Nm | maximum tightening torque 2 |
| D2 | 8.6 mm | |

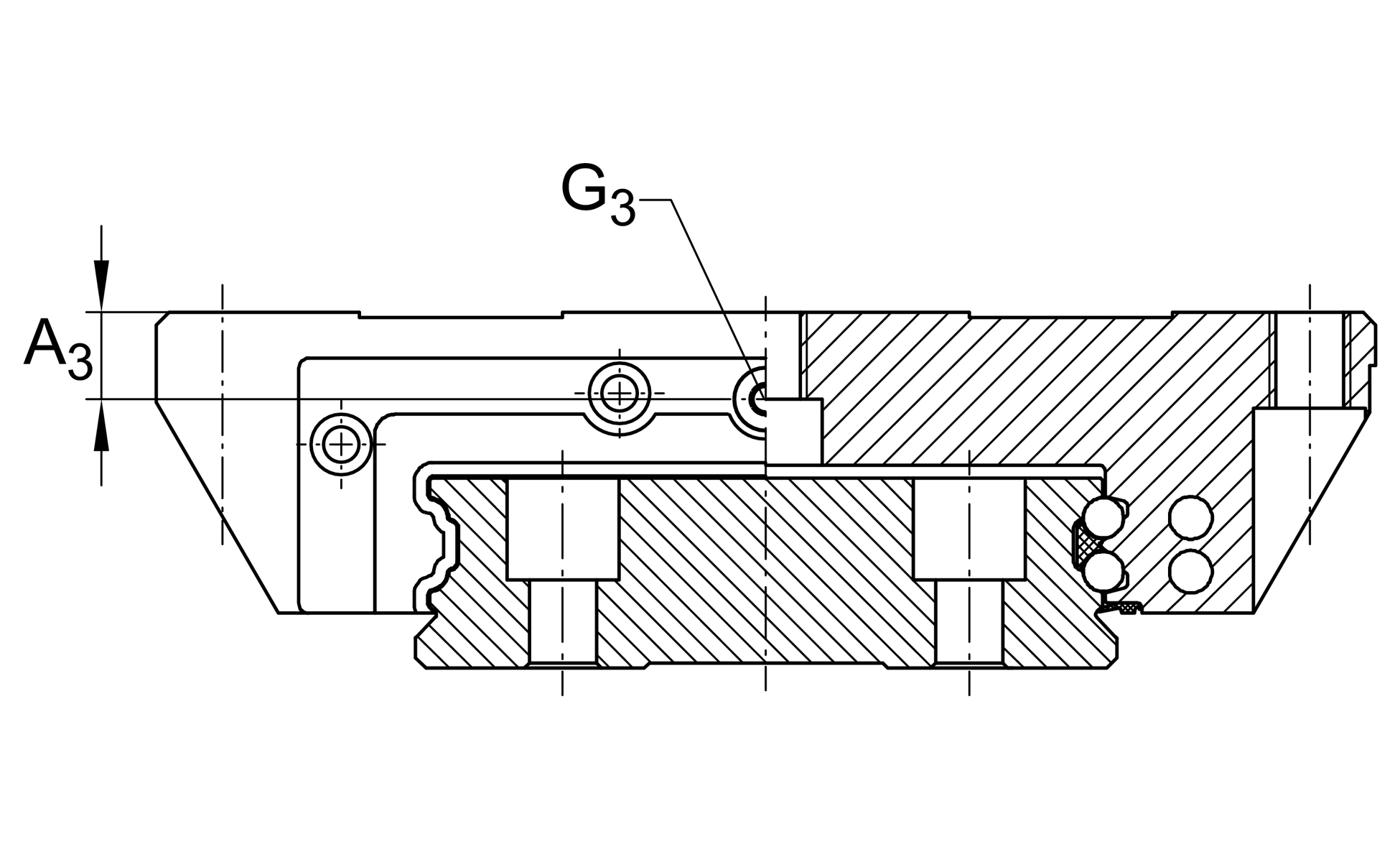

| A3 | 11.25 mm | position lubrication connector |
| G3 | M6 | lubrication connector |
| t G3 | 6 mm | maximum permissible screw depth for lubrication connectors |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 30 | |
| Version | Version | |
| Carriage design | W | Wide carriage and wide guideway |
