主要尺寸與性能資料
| H | 42 mm | height system |
| B | 90 mm | width carriage |
| L | 69 mm | overall length carriage |
| C | 18,700 N | dynamic load rating 1 |
| C0 | 31,500 N | static load rating 1 |
| M0x | 554 Nm | static moment rating about X axis |
| M0y | 248 Nm | static moment rating about Y axis |
| M0z | 248 Nm | static moment rating about Z axis |
| ≈m | 0.75 kg | 重量 |

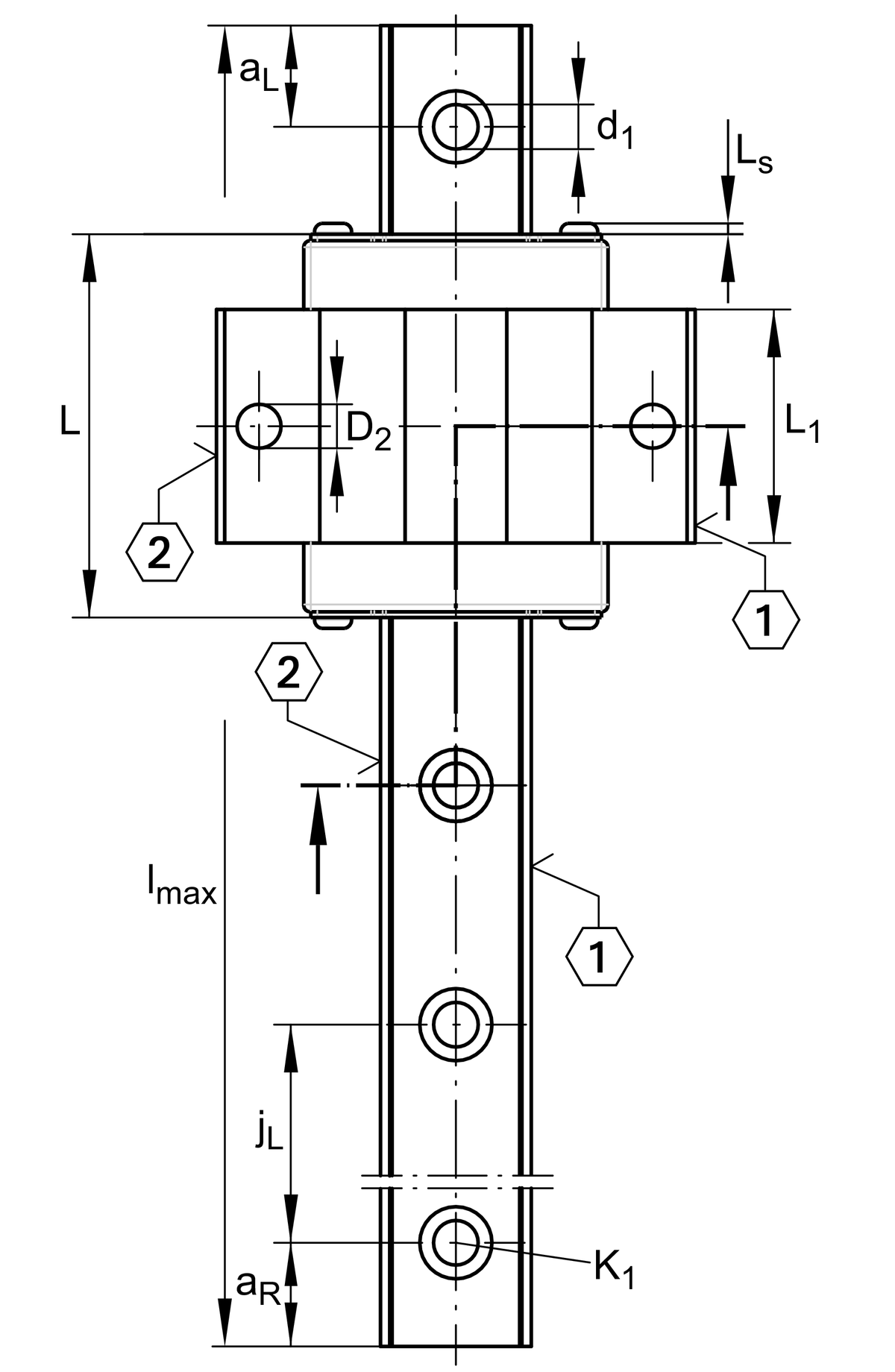

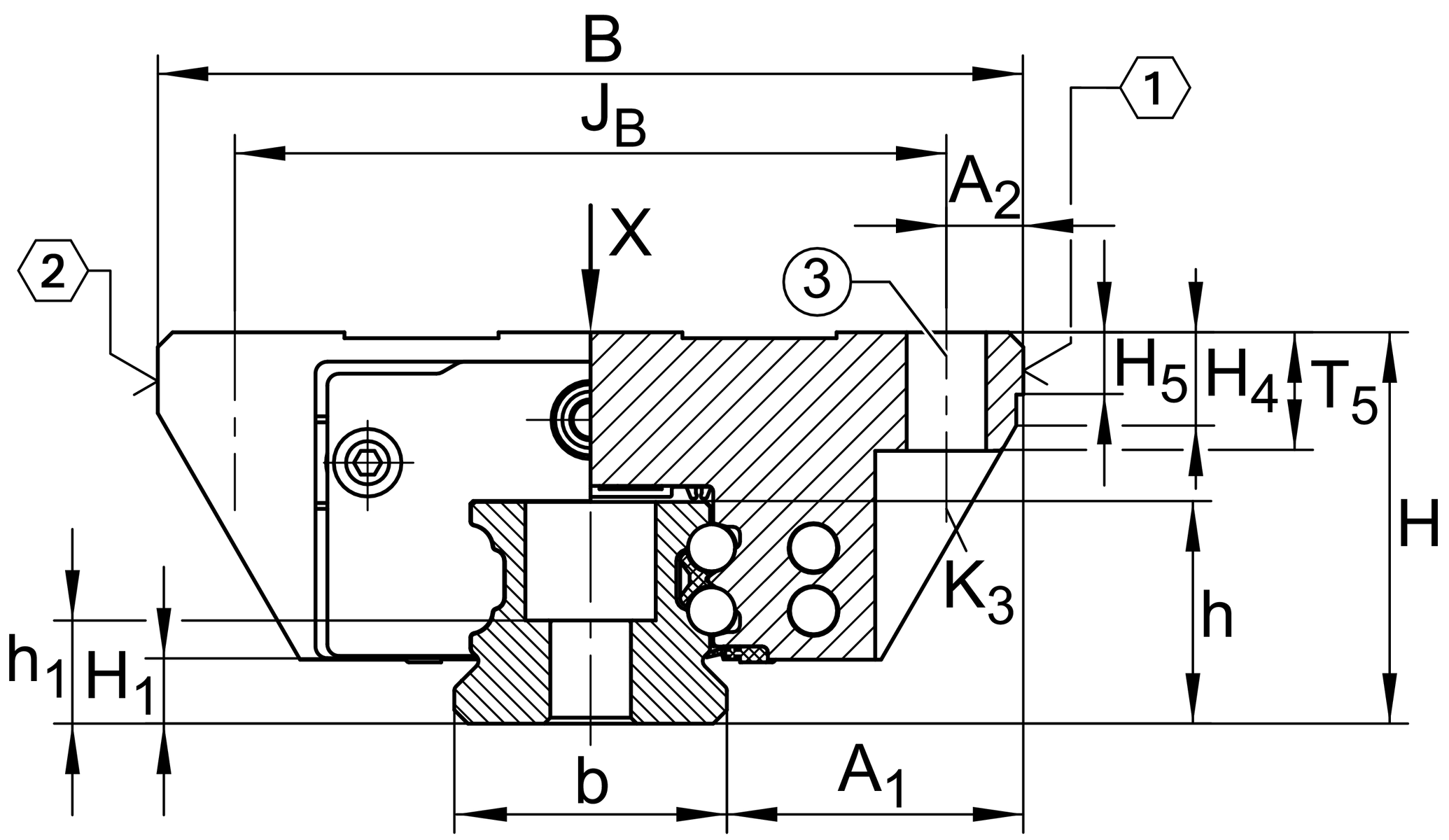

安裝尺寸
| A1 | 31 mm | |
| JB | 72 mm | |
| b | 28 mm | width rail |
| A2 | 9 mm | |
| L1 | 42 mm | |
| LS | 1.65 mm | |
| H1 | 5.9 mm | |
| H4 | 13.8 mm | |
| H5 | 6.25 mm | |
| T5 | 12 mm | |
| K3 | M8 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 41 Nm | maximum tightening torque 2 |
| D2 | 8.6 mm | |

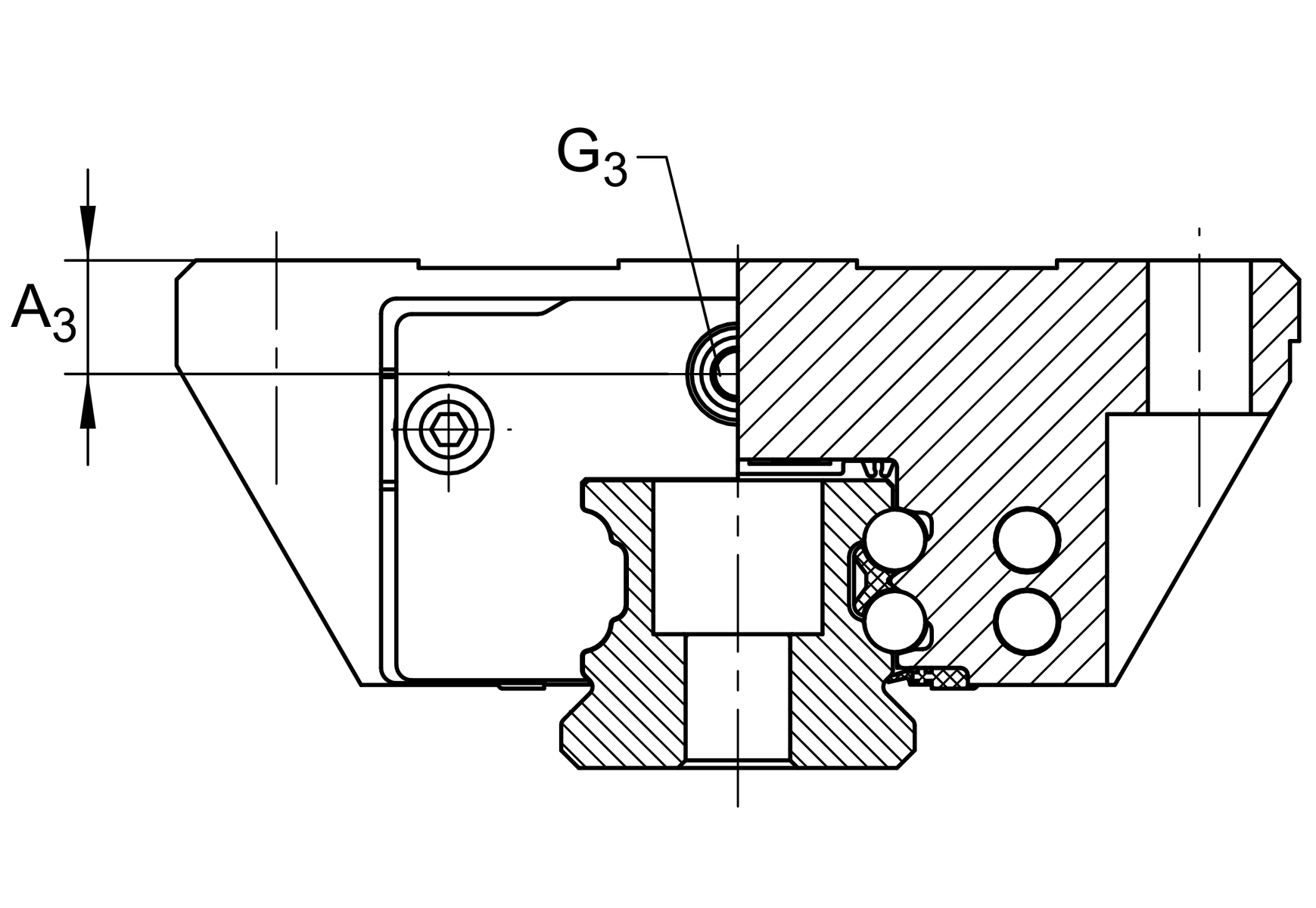

| A3 | 11.5 mm | position lubrication connector |
| G3 | M6 | lubrication connector |
| t G3 | 7 mm | maximum permissible screw depth for lubrication connectors |

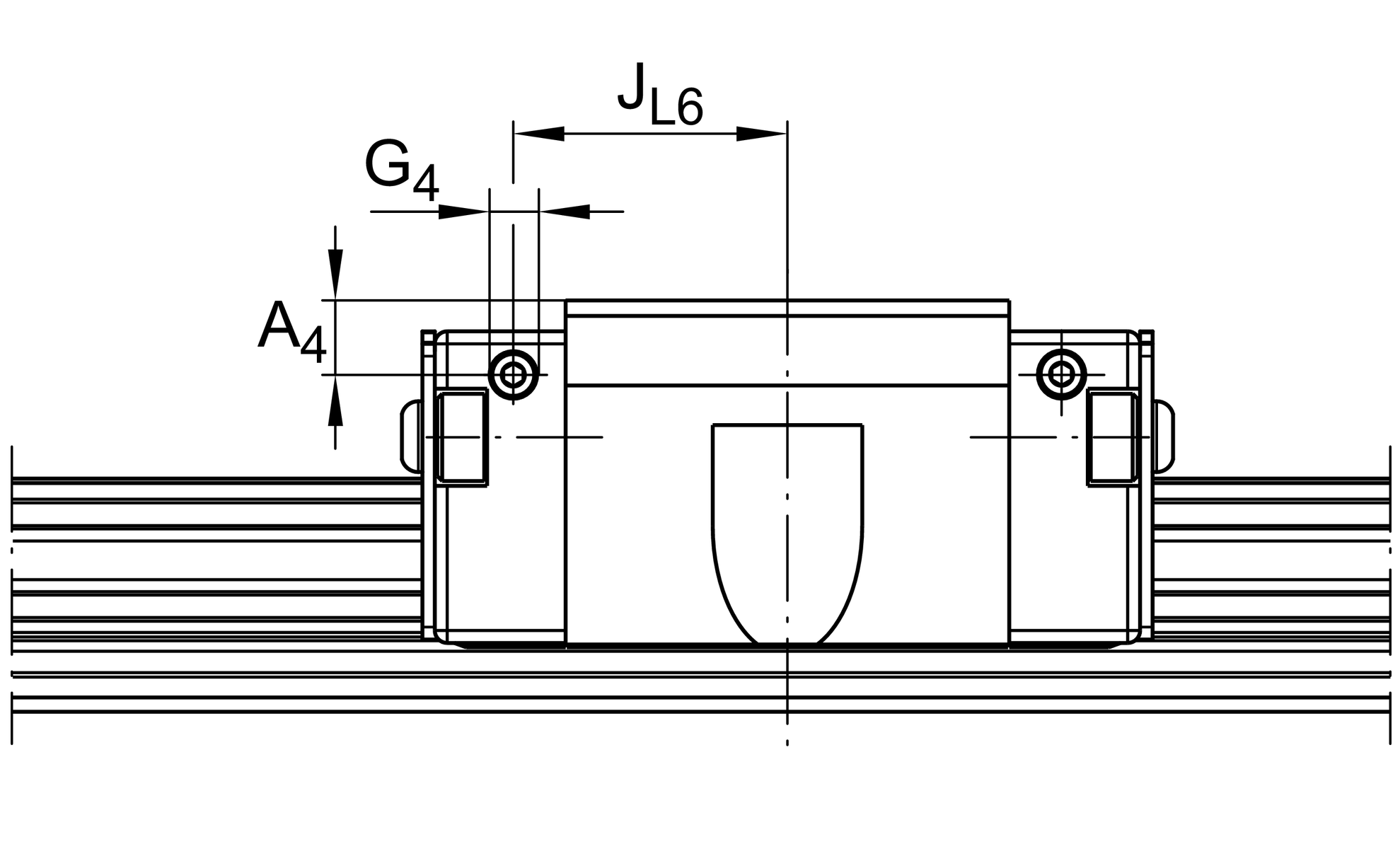

| A4 | 7 mm | position lubrication connector |
| G4 | M6 | lubrication connector |
| t G4 | 7 mm | maximum permissible screw depth for lubrication connectors |
| JL6 | 26.5 mm | position lubrication connector |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 30 | |
| Version | B | |
| Carriage design | EC | Expanded design, short carriage (carriage 沒有 screw threads) |
