KWVE25-B-H
Recirculating ball bearing carriage KWVE25-B-H
加入詢價
主要尺寸與性能資料

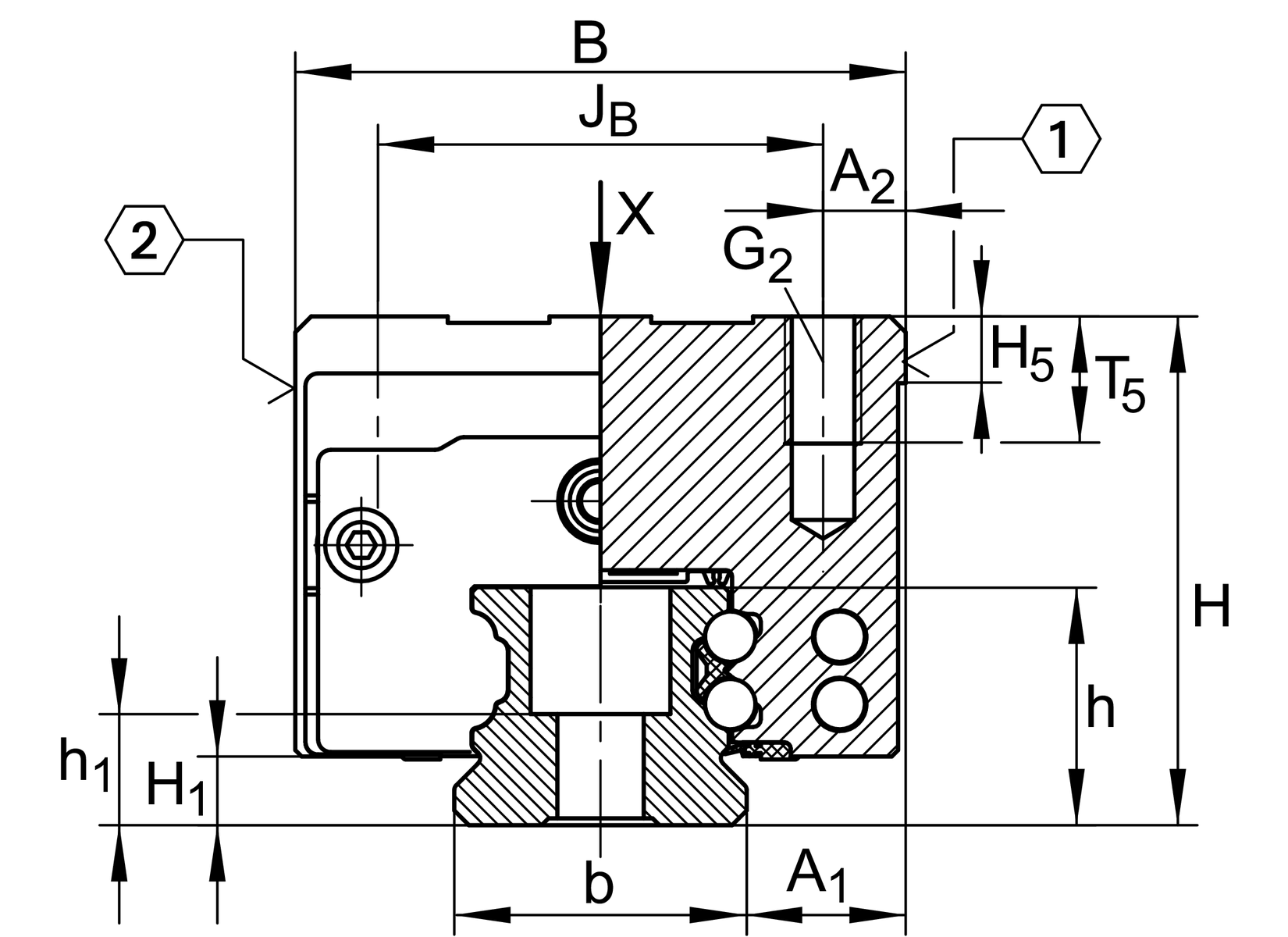

H
40 mm
height system
B
48 mm
width carriage

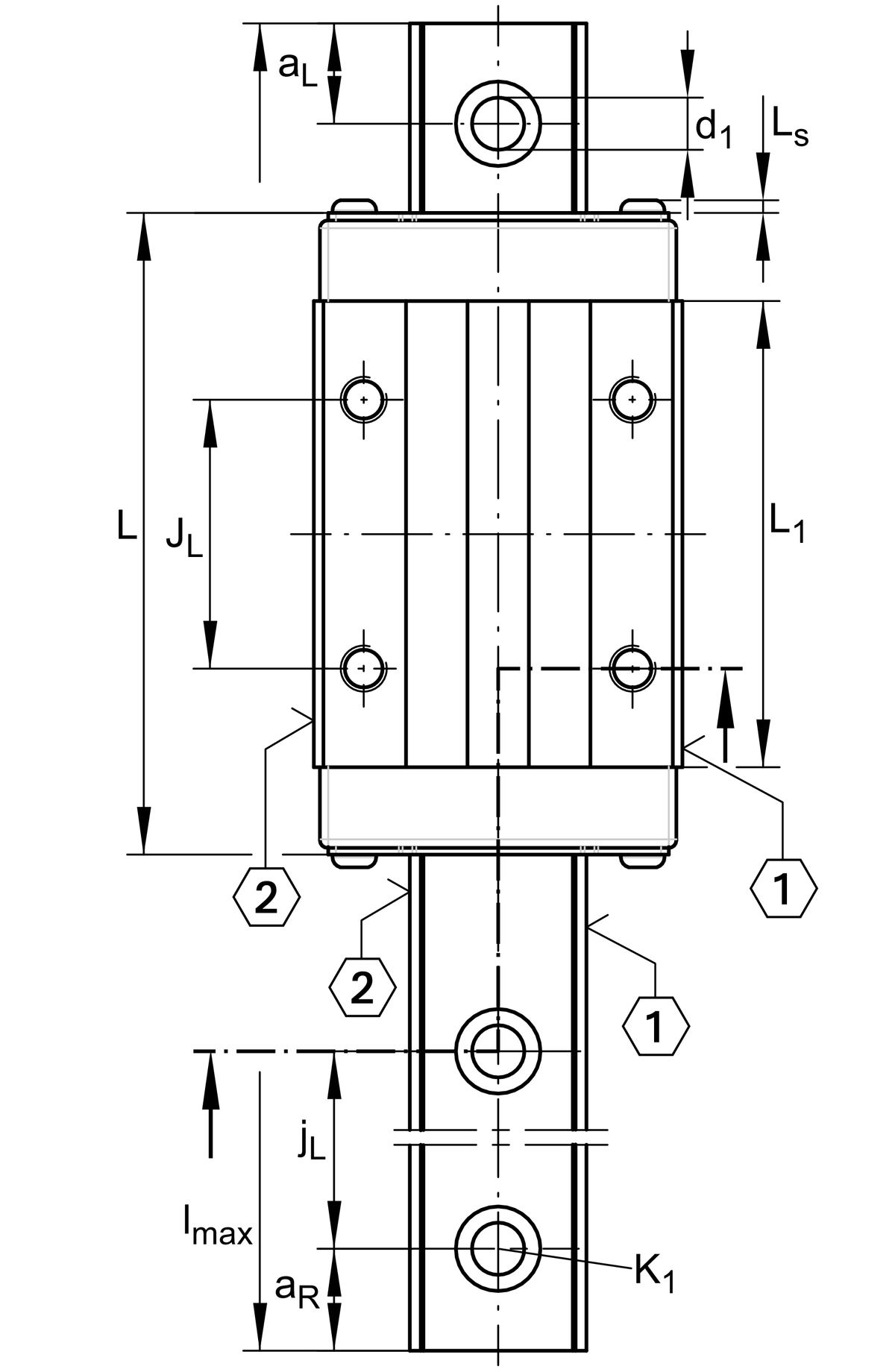

L
83.3 mm
overall length carriage
C
17,900 N
dynamic load rating 1
C0
39,000 N
static load rating 1
M0x
510 Nm
static moment rating about X axis
M0y
395 Nm
static moment rating about Y axis
M0z
395 Nm
static moment rating about Z axis
≈m
0.65 kg
重量

安裝尺寸
A1
12.5 mm
JB
35 mm
b
23 mm
width rail
A2
6.5 mm
L1
60.7 mm
LS
1.65 mm
JL
35 mm
H1
5.1 mm
H5
5.25 mm
T5
10 mm
G2
M6
fixing screws above (DIN ISO 4762-12.9)
G2 MA
17 Nm
maximum tightening torque 2

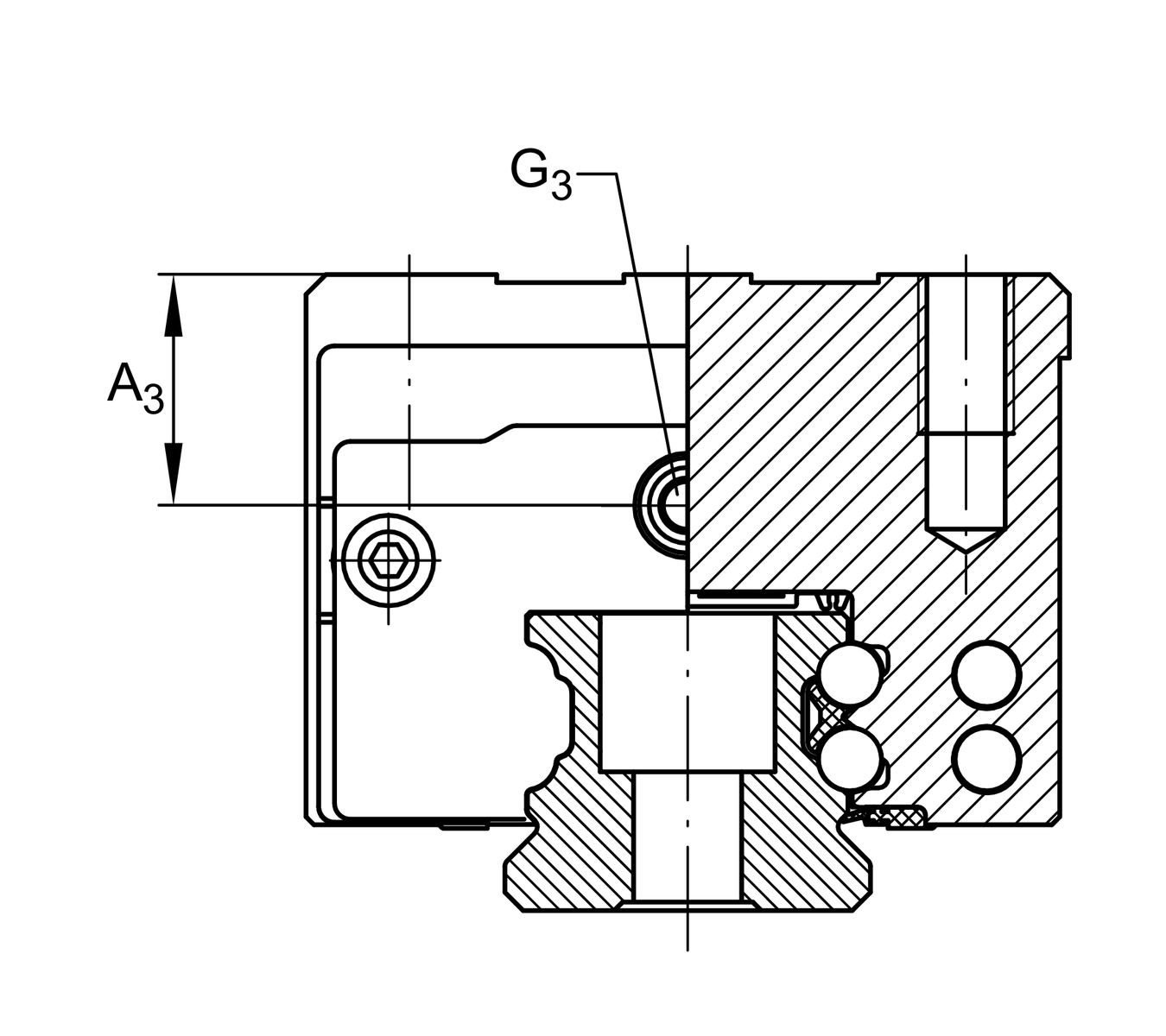

A3
15 mm
position lubrication connector
G3
M6
lubrication connector
t G3
7 mm
maximum permissible screw depth for lubrication connectors

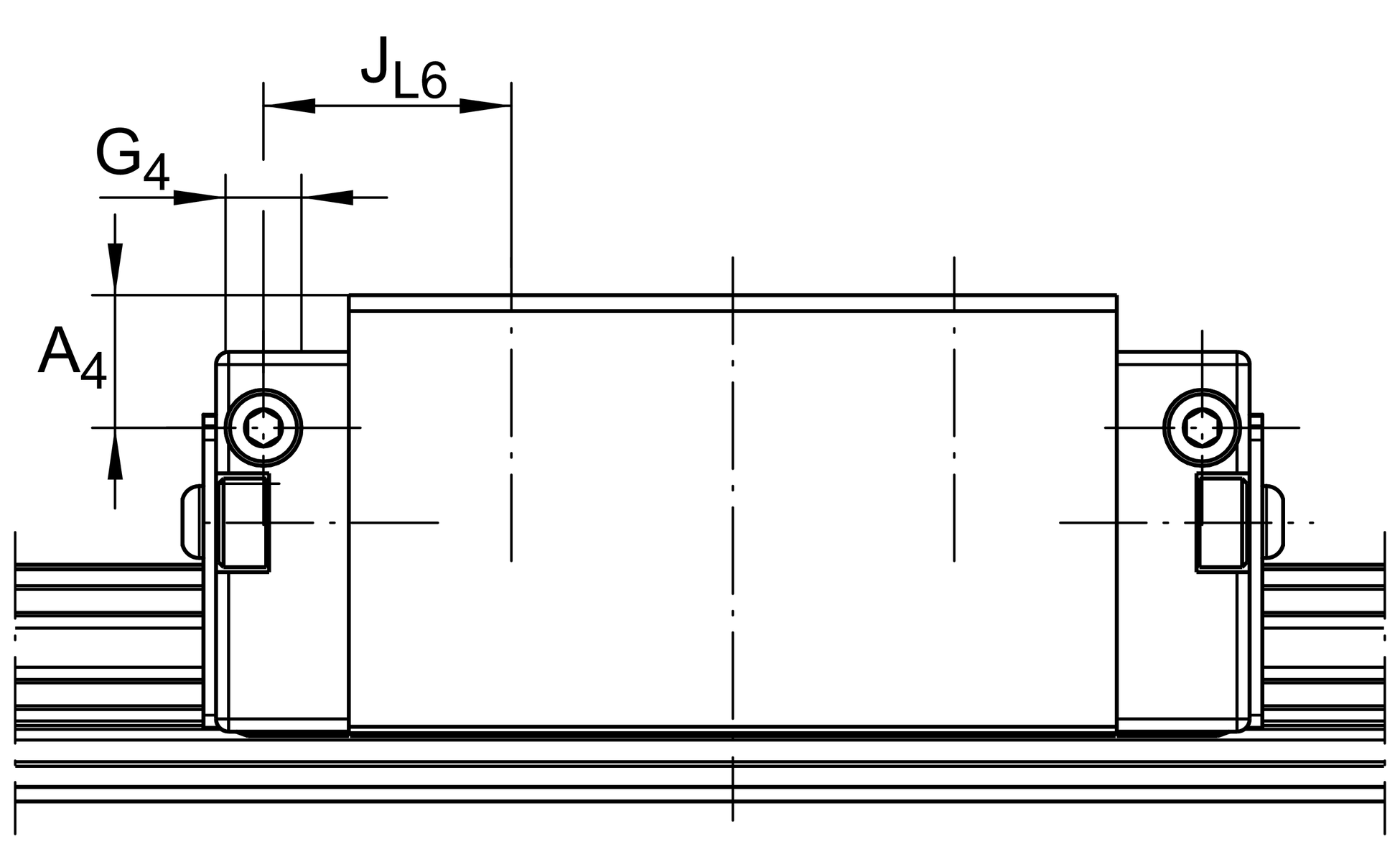

A4
10.5 mm
position lubrication connector
G4
M6
lubrication connector
t G4
7 mm
maximum permissible screw depth for lubrication connectors
JL6
17.9 mm
position lubrication connector

附加資訊
VMKB_065
KWVE
Material name

您目前的產品型號
Size code25
VersionB
Carriage designHHigh carriage
