主要尺寸與性能資料

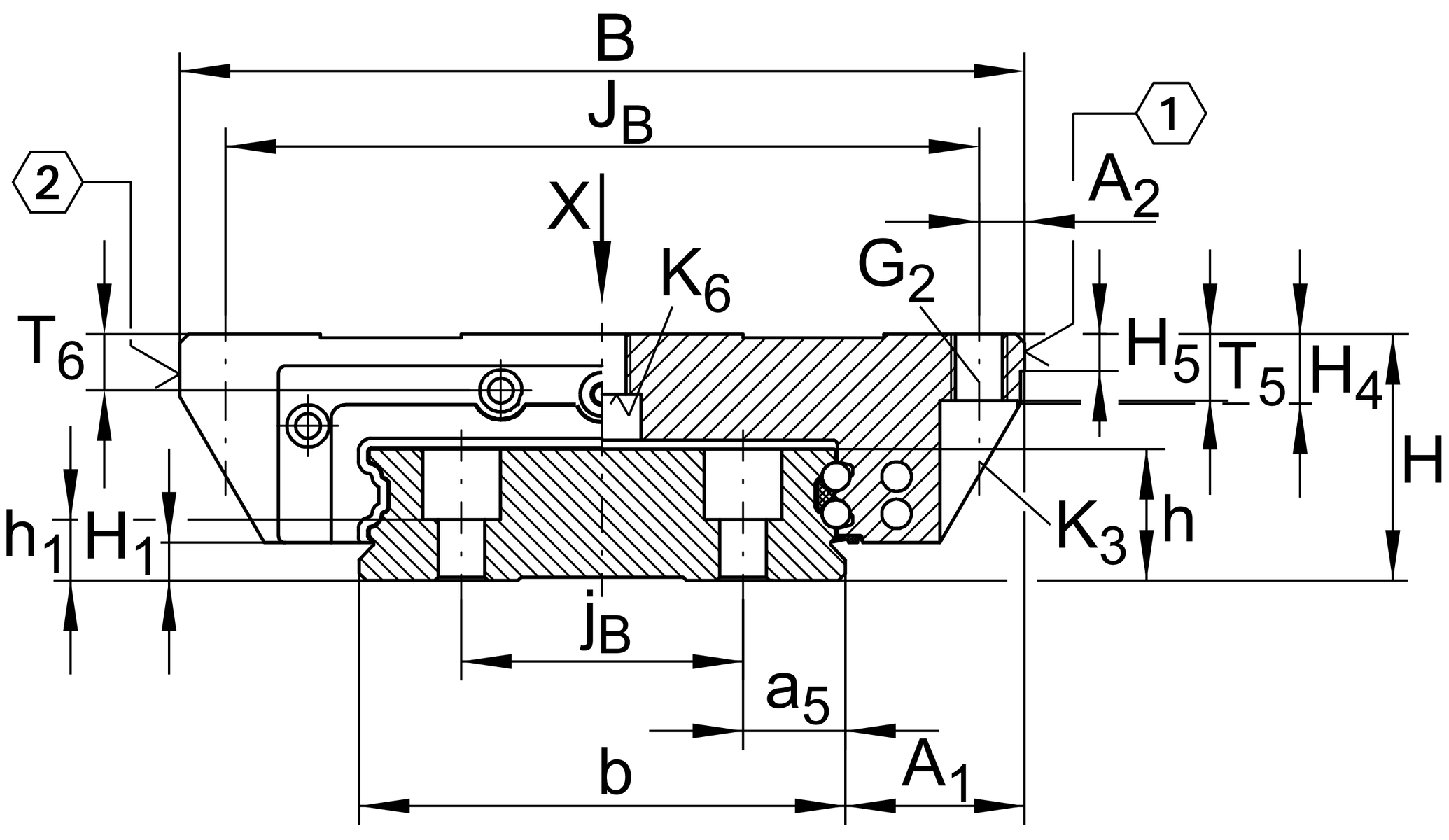

| H | 27 mm | height system |
| B | 80 mm | width carriage |
| L | 87.3 mm | overall length carriage |
| C | 16,200 N | dynamic load rating 1 |
| C0 | 36,500 N | static load rating 1 |

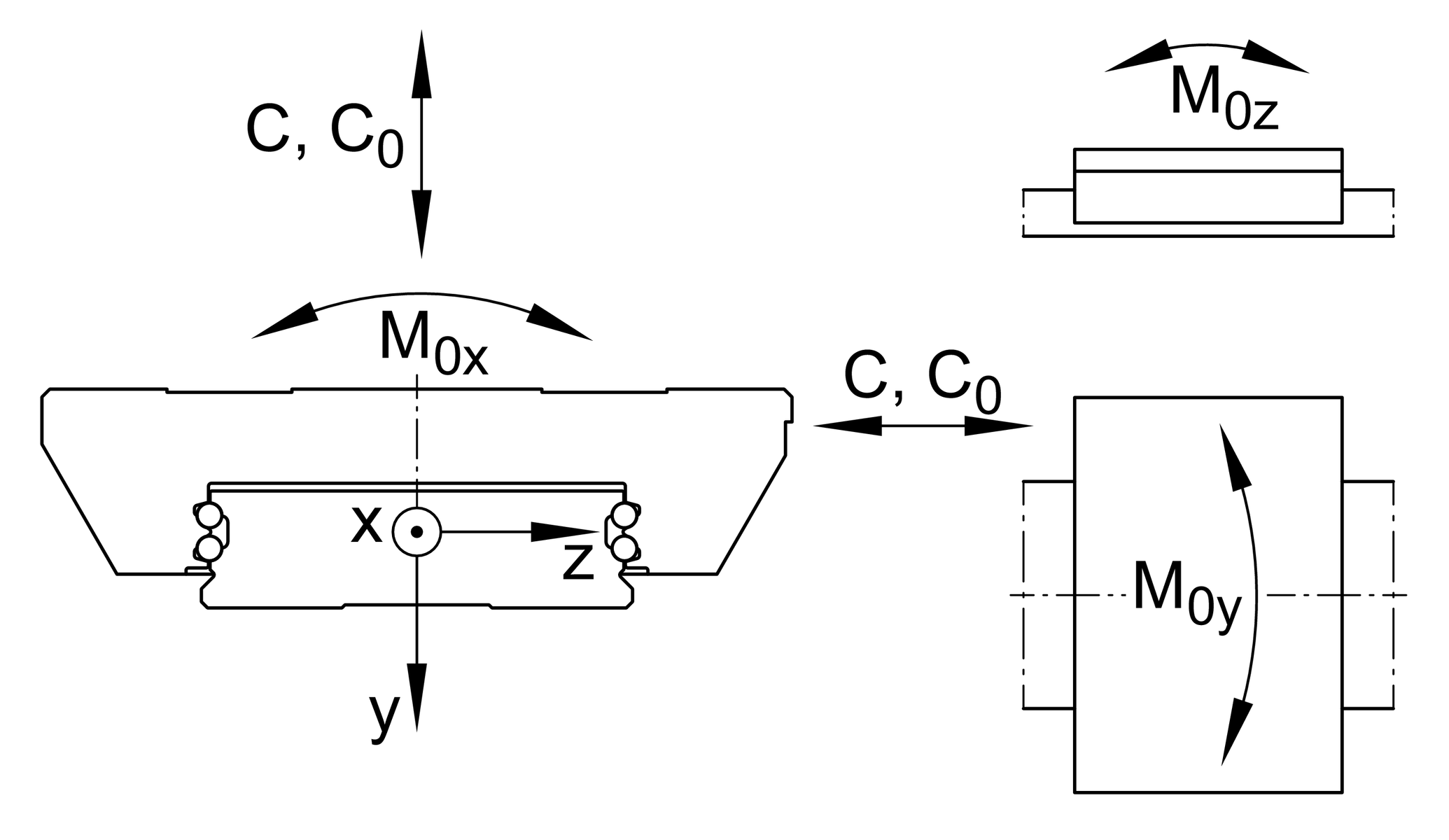

| M0x | 920 Nm | static moment rating about X axis |
| M0y | 400 Nm | static moment rating about Y axis |
| M0z | 400 Nm | static moment rating about Z axis |
| ≈m | 0.7 kg | 重量 |

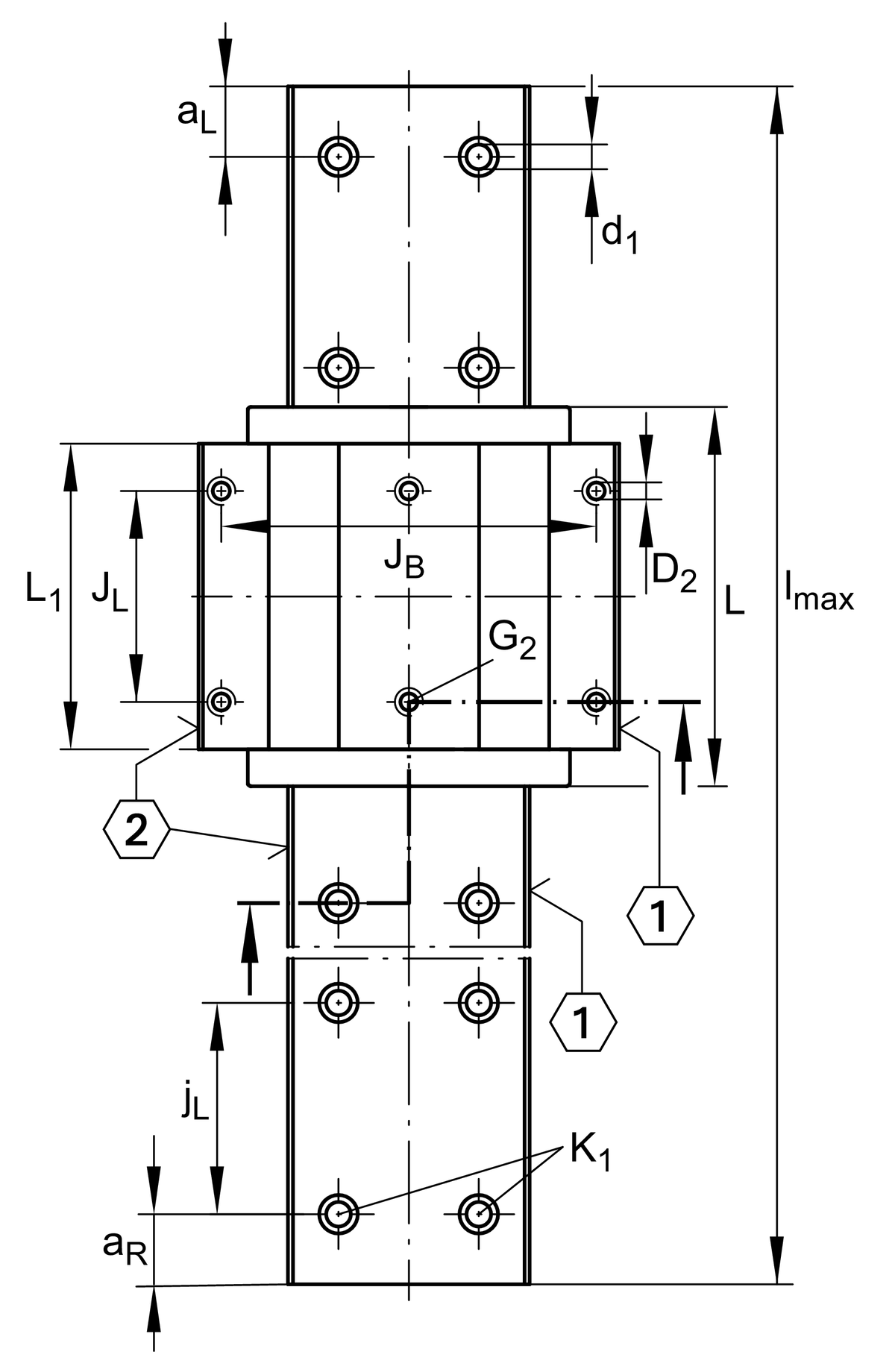

安裝尺寸
| A1 | 19 mm | |
| JB | 70 mm | |
| b | 42 mm | width rail |
| A2 | 5 mm | |
| L1 | 67.9 mm | |
| JL | 40 mm | |
| H1 | 4.6 mm | |
| H4 | 10.6 mm | |
| H5 | 5 mm | |
| T5 | 10 mm | |
| T6 | 6 mm | |
| G2 | M6 | fixing screws above (DIN ISO 4762-12.9) |
| G2 MA | 10 Nm | maximum tightening torque 2 |
| K3 | M5 | fixing screws below (DIN ISO 4762-12.9) |
| K3 MA | 10 Nm | maximum tightening torque 2 |
| K6 | M6 | fixing screws below (DIN ISO4762-12.9) |
| K6 MA | 17 Nm | maximum tightening torque 3 |
| D2 | 5.5 mm | |

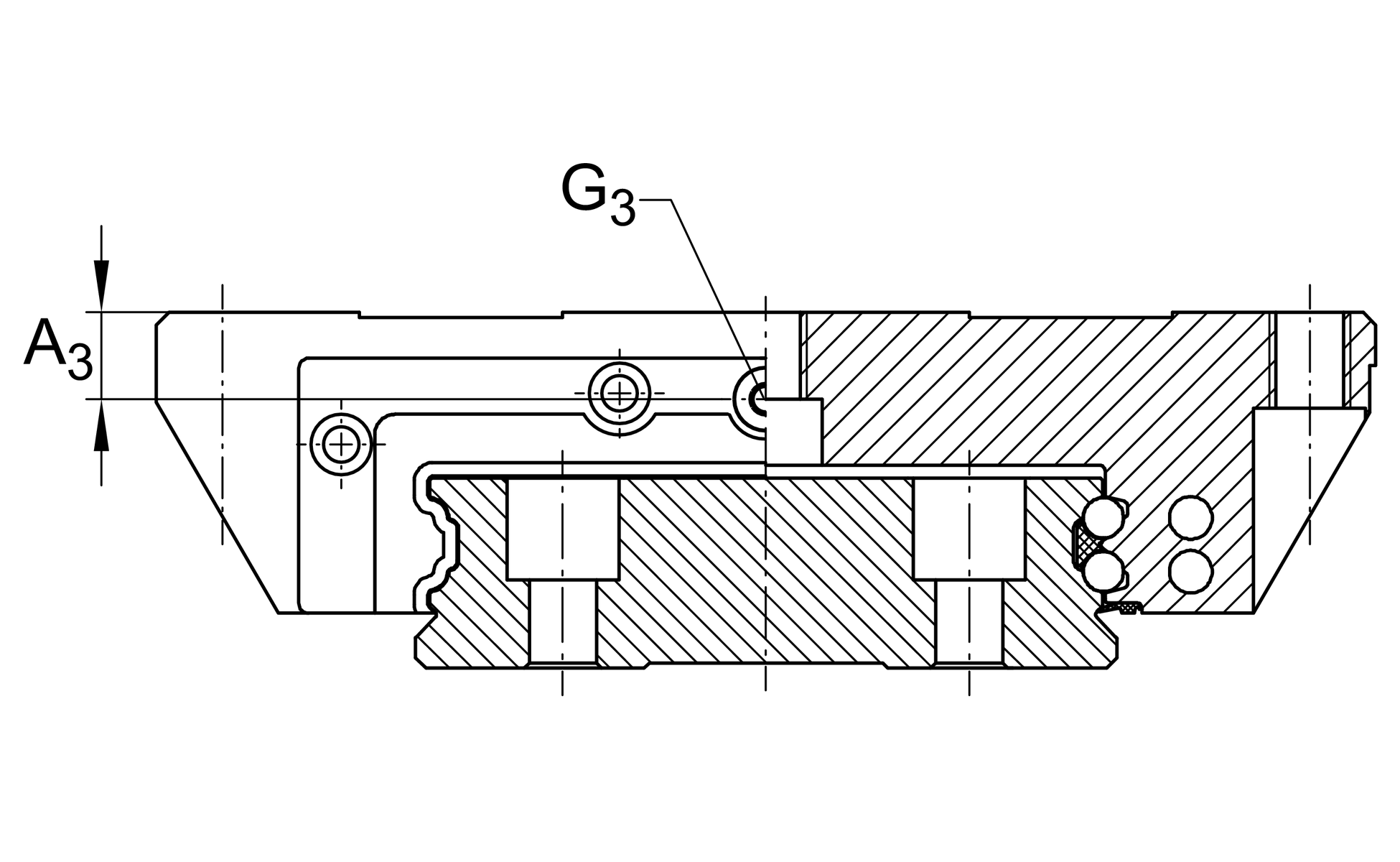

| A3 | 5 mm | position lubrication connector |

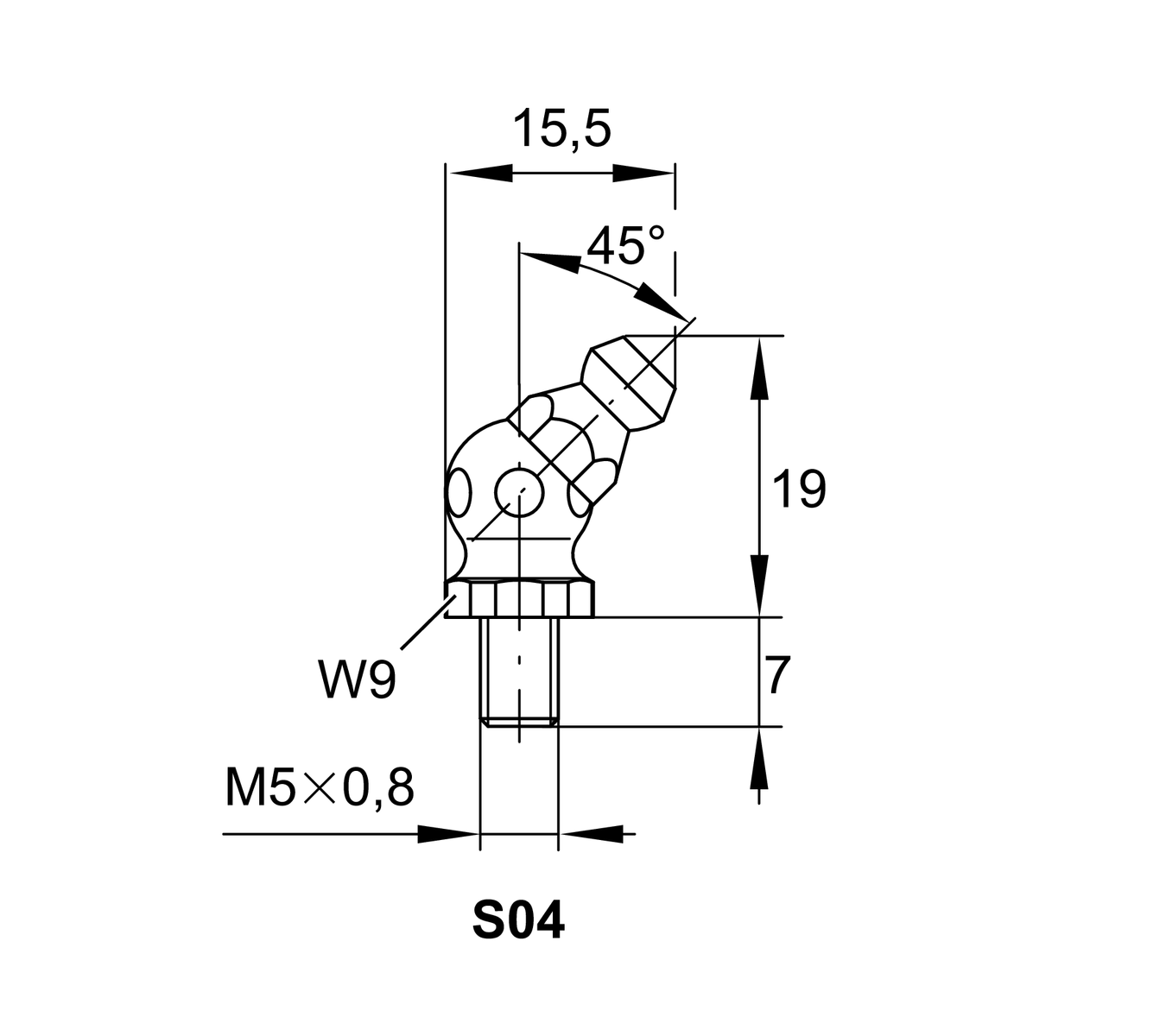

| G3 | M6 | lubrication connector |
| t G3 | 5 mm | maximum permissible screw depth for lubrication connectors |
附加資訊
| VMKB_065 | KWVE | Material name |
您目前的產品型號
| Size code | 20 | |
| Version | Version | |
| Carriage design | WL | Wide, long carriage and wide guideway |
