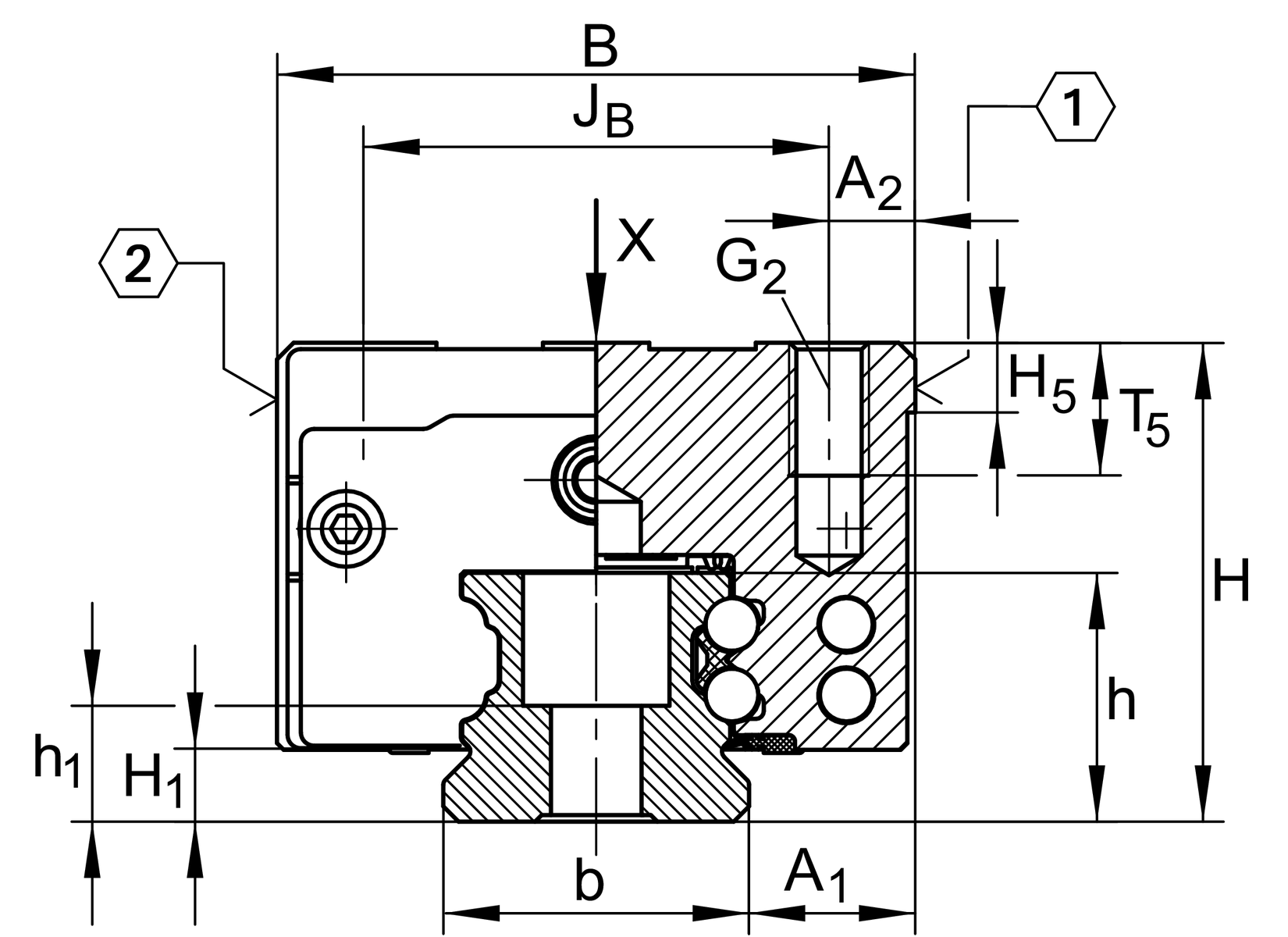

Main dimensions
| lmax | 5,820 mm | Max length single piece guideway 1 |
| H | 70 mm | height system |
| B | 100 mm | width carriage |
| L | 211.6 mm | overall length carriage |
科技數據
| C | 127,000 N | dynamic load rating 2 |
| C0 | 285,000 N | static load rating 2 |
| M0x | 7,500 Nm | static moment rating about X axis |
| M0y | 4,725 Nm | static moment rating about Y axis |
| M0z | 4,725 Nm | static moment rating about Z axis |
安裝尺寸
| A1 | 23.5 mm | |
| JB | 75 mm | |
| b | 53 mm | width rail |
| Tolb | -0.005 mm | 公差上限 |
| Tolb | -0.03 mm | 較低的公差 |
| A2 | 12.5 mm | |

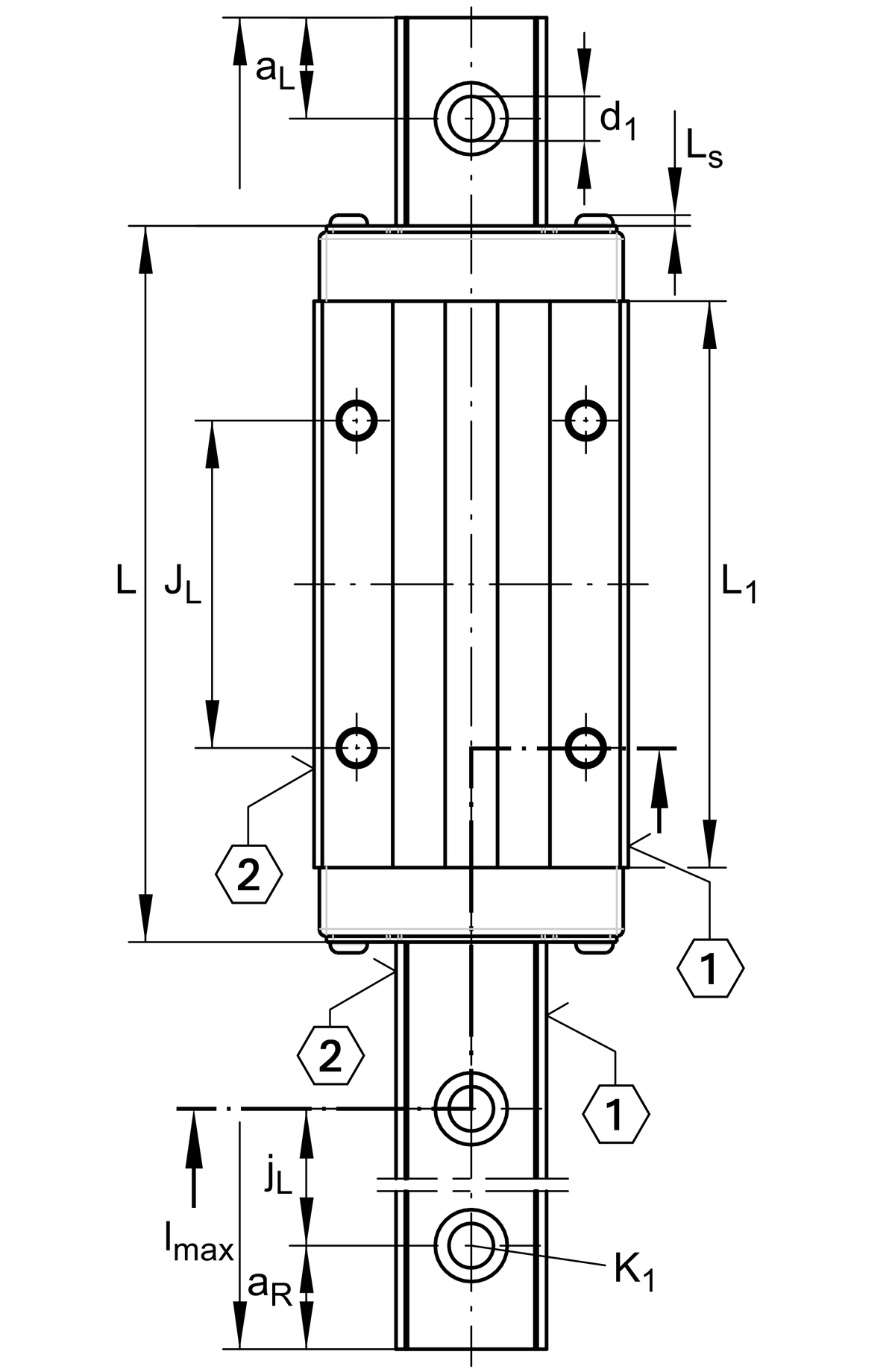

| L1 | 170 mm | |
| Ls | 2.2 mm | |
| JL | 95 mm | |
| jL | 120 mm | |
| aL min | 20 mm | 3 |
| aL max | 107 mm | 3 |
| aR min | 20 mm | 3 |
| aR max | 107 mm | 3 |
| H1 | 13.5 mm | |
| H5 | 11.25 mm | |
| T5 | 15 mm | |
| h | 41.5 mm | |
| h1 | 19 mm | |
| G2 | M12 | fixing screws |
| G2 MA | 140 Nm | maximum tightening torque 4 |
| K1 | M14 | fixing screws |
| K1 MA | 220 Nm | maximum tightening torque 4 |
| d1 | 15.4 mm | |

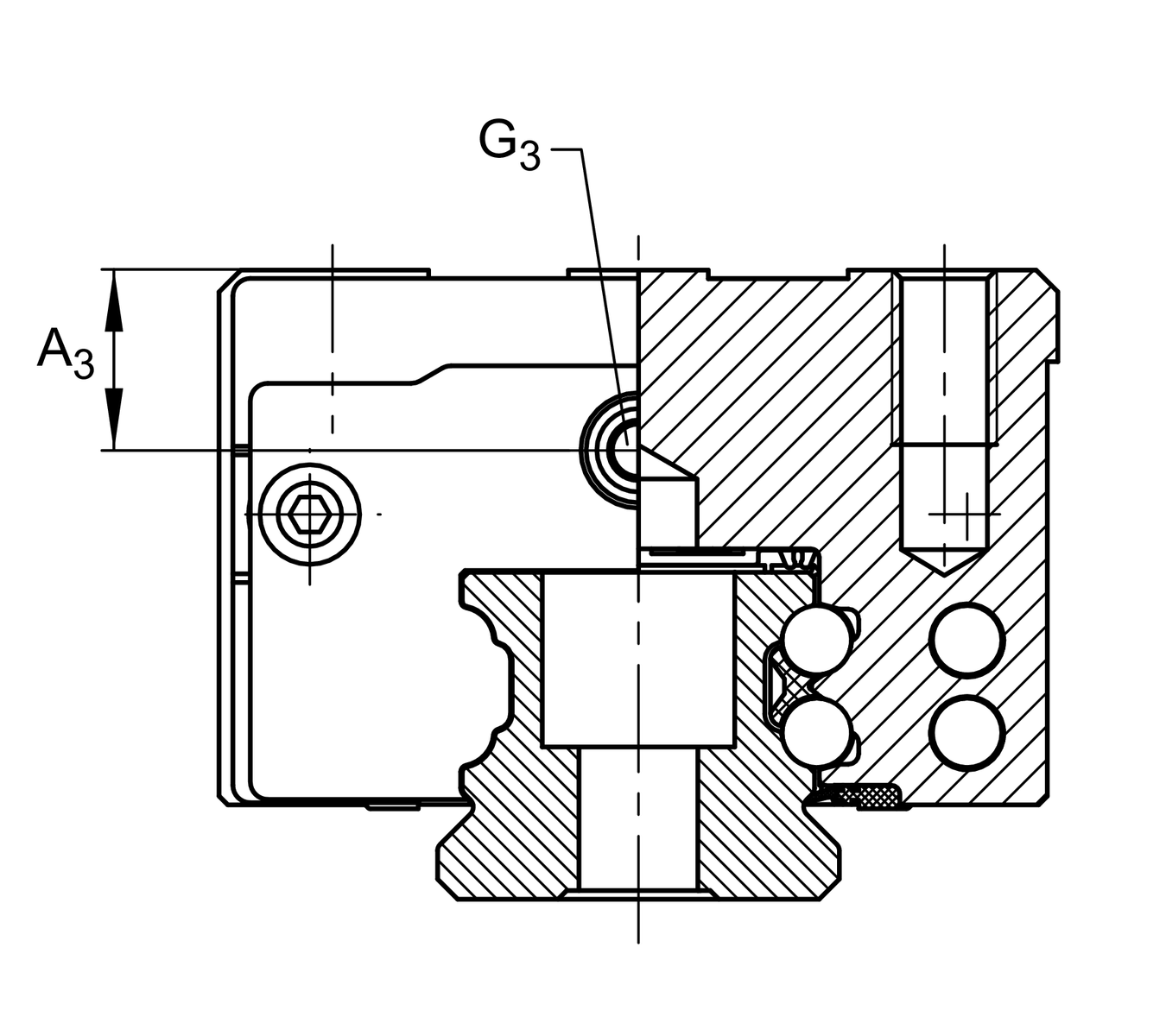

| A3 | 15 mm | |
| G3 | M6 | |
| t G3 | 7 mm | 5 |

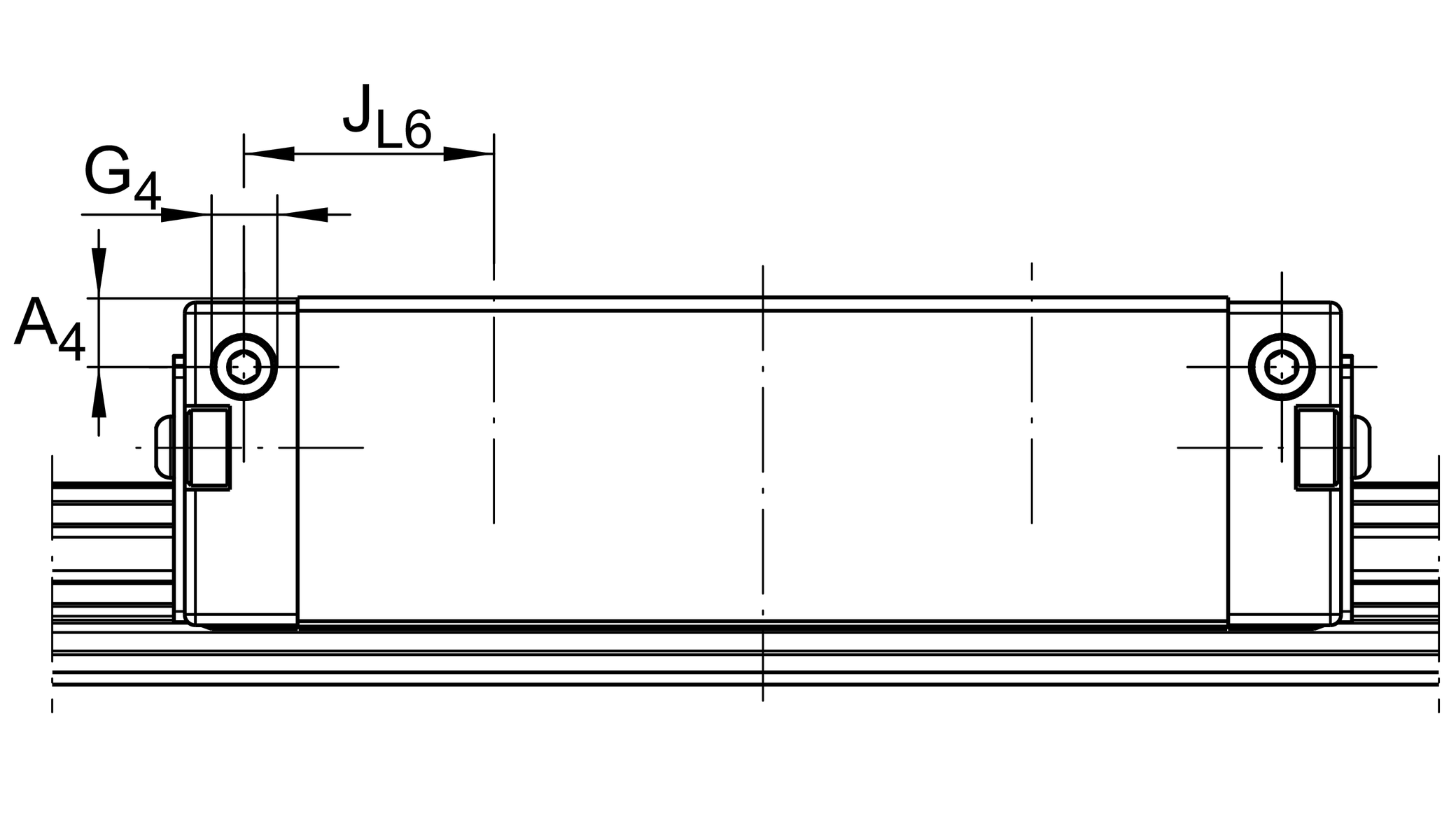

| A4 | 15 mm | |
| G4 | M6 | |
| t G4 | 7 mm | 5 |
| JL6 | 49.5 mm |
Related products
KWVE55-B-SL | Carriage | |
TKVD55-B | suitable Guide Rail |
您目前的產品型號
| Size code | 55 | |
| Carriage design | SL | Narrow, long carriage |
| Version | B |
