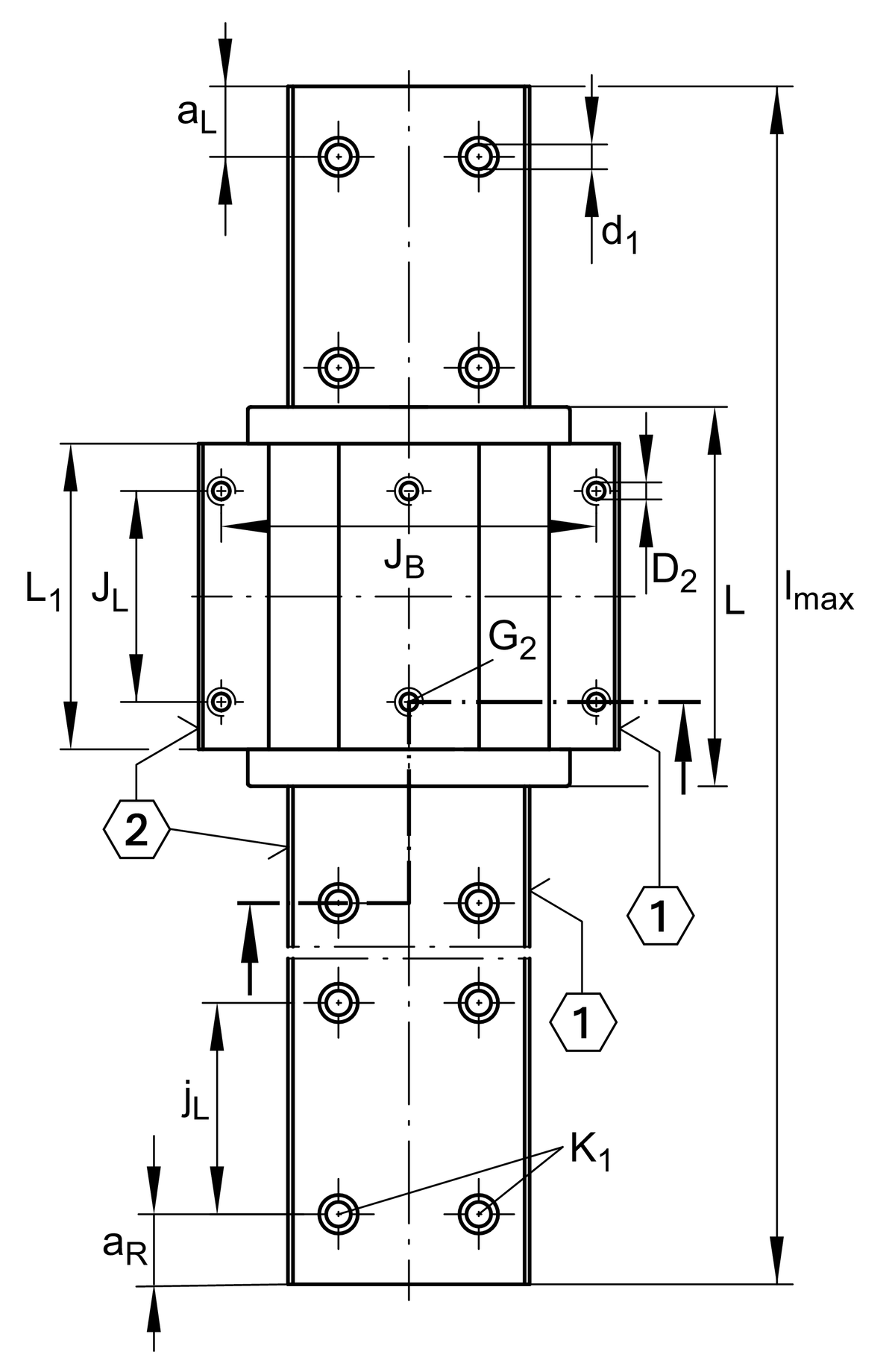

Main dimensions
| lmax | 5,860 mm | Max length single piece guideway 1 |
| H | 50 mm | height system |
| B | 162 mm | width carriage |
| L | 140.2 mm | overall length carriage |

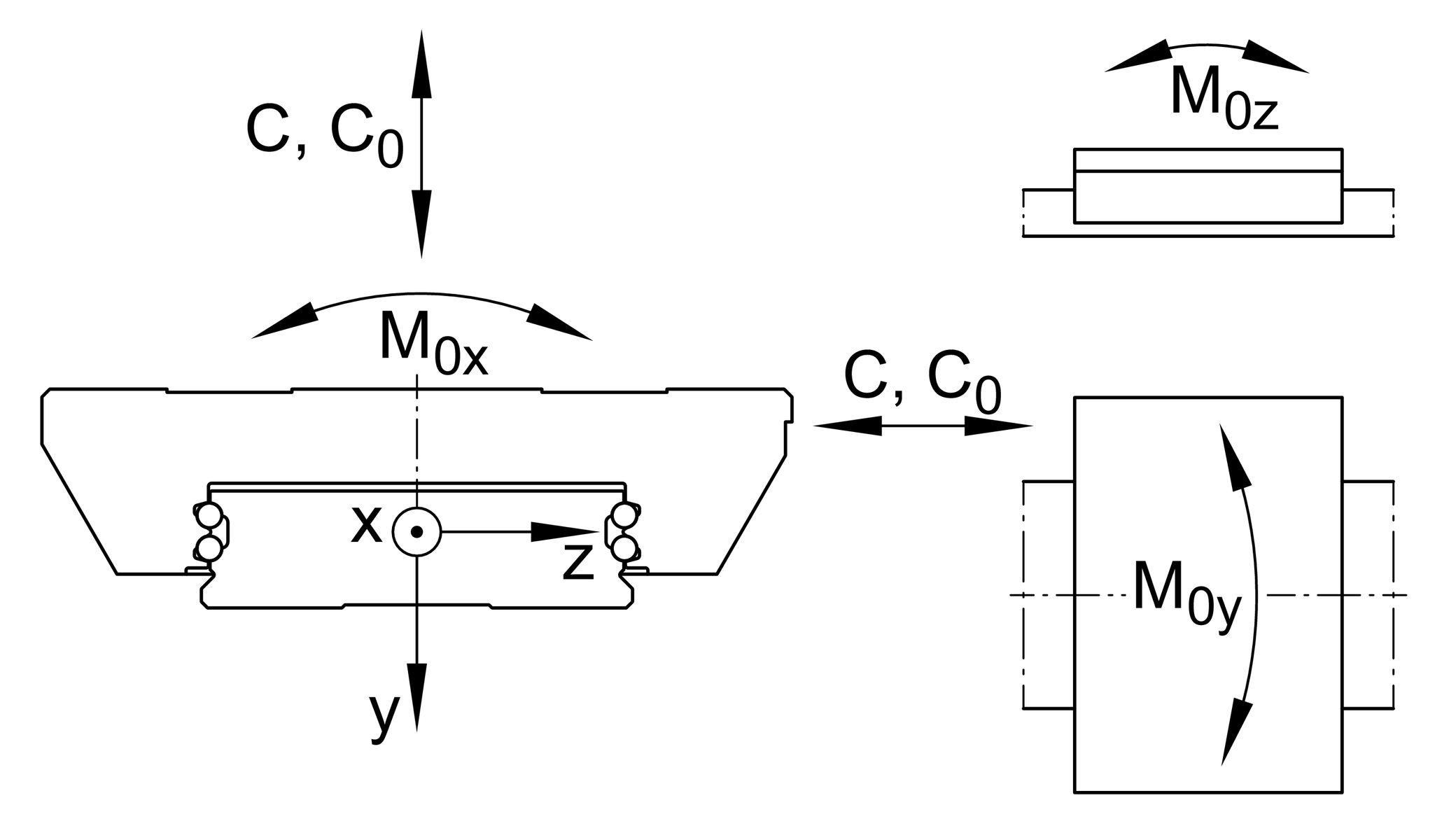

科技數據
| C | 47,500 N | dynamic load rating 2 |
| C0 | 100,000 N | static load rating 2 |
| M0x | 5,550 Nm | static moment rating about X axis |
| M0y | 1,890 Nm | static moment rating about Y axis |
| M0z | 1,890 Nm | static moment rating about Z axis |

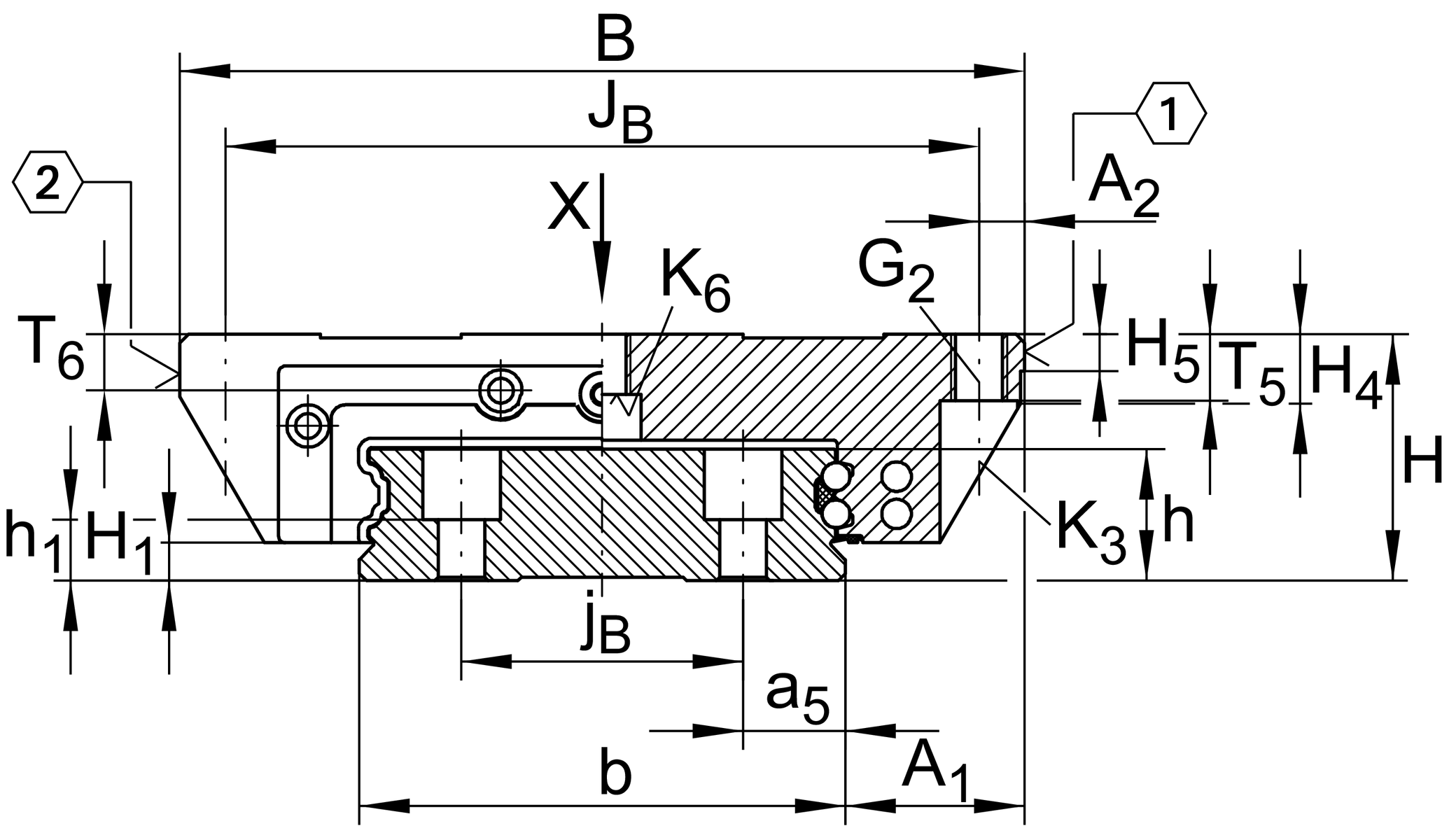

安裝尺寸
| A1 | 36 mm | |
| JB | 144 mm | |
| jB | 60 mm | |
| b | 90 mm | width rail |
| a5 | 15 mm | |
| A2 | 9 mm | |
| L1 | 109.8 mm | |
| JL | 80 mm | |
| jL | 80 mm | |
| aL min | 20 mm | 3 |
| aL max | 71 mm | 3 |
| aR min | 20 mm | 3 |
| aR max | 71 mm | 3 |
| H1 | 6.8 mm | |
| H4 | 16.3 mm | |
| H5 | 6.5 mm | |
| T5 | 13 mm | |
| T6 | 13 mm | |
| h | 27 mm | |
| h1 | 14.5 mm | |
| G2 | M10 | fixing screws |
| G2 MA | 41 Nm | maximum tightening torque 4 |
| K1 | M8 | fixing screws |
| K1 MA | 41 Nm | maximum tightening torque 4 |
| K3 | M8 | fixing screws |
| K3 MA | 41 Nm | maximum tightening torque 4 |
| K6 | M8 | fixing screws |
| K6 MA | 41 Nm | maximum tightening torque 4 |
| d1 | 9 mm | |
| D2 | 8.6 mm | |

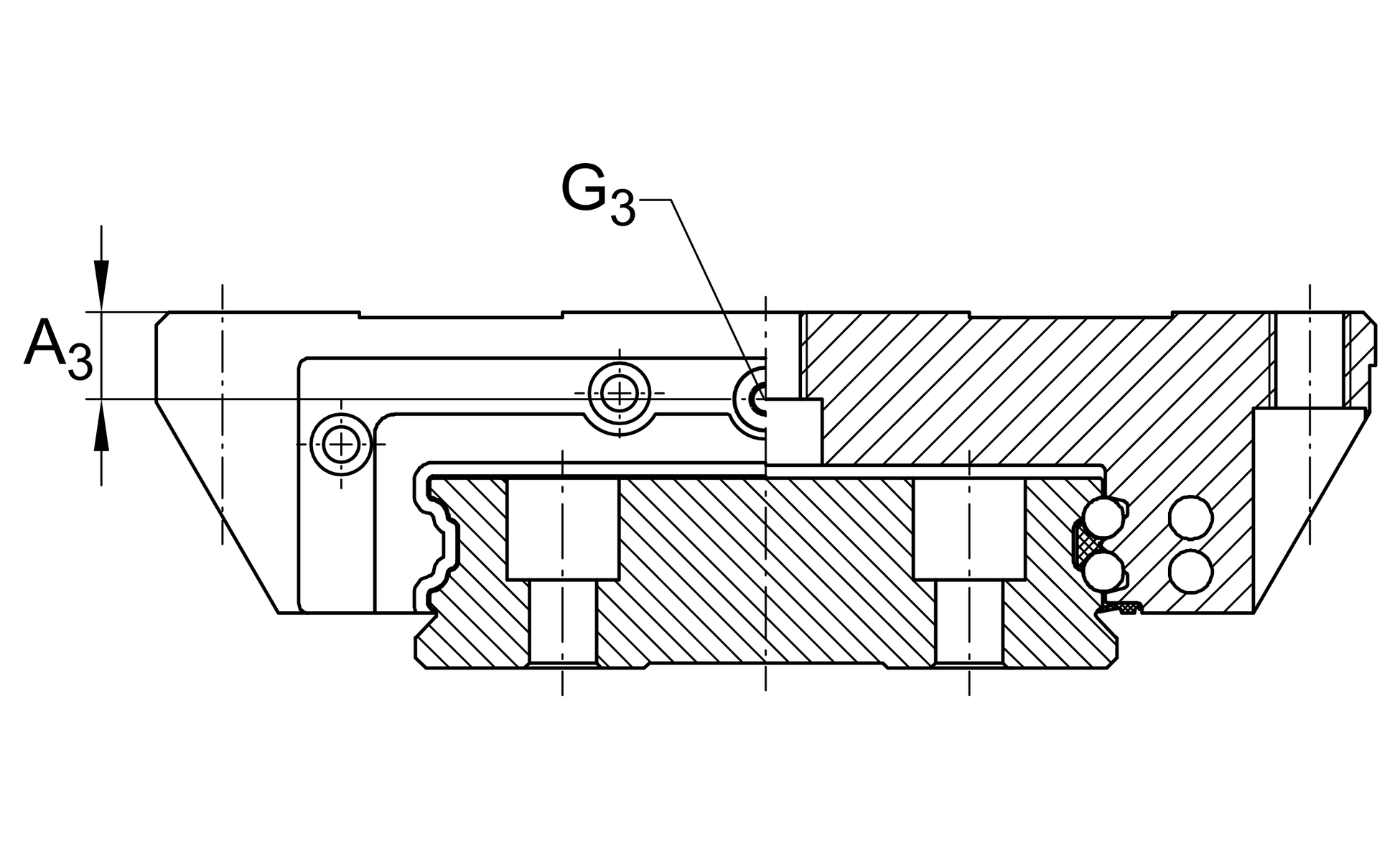

| A3 | 14.3 mm | |
| G3 | M6 | |
| t G3 | 6 mm | 5 |
Related products
KWVE35-WL | Carriage | |
TKVD35-W | suitable Guide Rail |
您目前的產品型號
| Size code | 35 | |
| Carriage design | WL | Wide, long carriage and wide guideway |
